swagger(springfox)配置分组(根据uri分组,url分组等)

swagger配置代码:



package com.wjj.application;

import com.wjj.application.response.ReturnCode;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.bind.annotation.RequestMethod;
import springfox.documentation.builders.*;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.BasicAuth;
import springfox.documentation.service.Parameter;
import springfox.documentation.service.ResponseMessage;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.ApiSelectorBuilder;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

/**
 * swagger配置
 * Docket 排序方式(groupName): 1-10,a-z,A-Z
 * @author hank
 */
@Configuration
@EnableSwagger2
public class Swagger2 {
    @Bean
    public Docket payDocket() {
        return getDocket("a 支付相关", "com.wjj.application.controller", "1.支付相关", "1.支付相关",
                new String[]{
                        "/manager/totalPay/.*",
                        "/payment/bindBankcard/.*"
                }
        );
    }

    @Bean
    public Docket index18Docket() {
        return getDocket("z 1.8接口汇总", "com.wjj.application.controller", "1.8接口汇总", "1.8接口汇总",
                new String[]{
                        "/homeMall/getActivityGoods",
                        "/backGroundImage/imagesList",
                        "/tabBar/getClientTabBar",
                        "/homePage/iconsList",
                        "/marketintActive/seckill/activeGoodInfo",
                        "/wjjGmOpenToken/account/anchorGoodsSales/addAnchorGoodsSales",
                        "/wjjGmOpenToken/account/anchorGoodsSales/statisticsAnchorGoods",
                        "/wjjGmOpenToken/account/anchorGoodsSales/batchStatisticsAnchorGoodsNums",
                        "/wjjGmOpenToken/account/anchorGoodsSales/selectAnchorGoodsList",
                        "/wjjGmOpenToken/account/anchorGoodsSales/selectAnchorGoodsNums",
                        "/createLiveUser/selectLiveUserList",
                        "/wx/miniapps/shareGmhealthLive",
                        "/backGroundImage/v1.5/getPayBanner"
                }
        );
    }
    //manager group
    @Bean
    public Docket allDocket() {
        return getDocket("z All", "com.wjj.application.controller", "后台接口", "后台接口");
    }



    private Docket getDocket(String groupName, String basePackage, String apiName, String apiDesc){
        return  getDocket(groupName, basePackage, apiName, apiDesc, null);


    }
    /**
     *
     * @param groupName 组名
     * @param basePackage 扫描包路径
     * @param apiName apiName
     * @param apiDesc apiDesc
     * @param paths 正则路径匹配
     * @return
     */
    private Docket getDocket(String groupName, String basePackage, String apiName, String apiDesc, String[] paths){
         ApiSelectorBuilder apiSelectorBuilder = new Docket(DocumentationType.SWAGGER_2).apiInfo(apiInfo(apiName, apiDesc))
                .groupName(groupName)
                .securitySchemes(Arrays.asList(new BasicAuth("test")))
                .select()
                .apis(RequestHandlerSelectors.basePackage(basePackage));
         if(paths==null){
             apiSelectorBuilder.paths(PathSelectors.any());
         }else{
             StringBuilder pathRegex = new StringBuilder();
             for (String path : paths){
                 pathRegex.append("(").append(path).append(")|");
             }
             apiSelectorBuilder.paths(PathSelectors.regex(pathRegex.substring(0, pathRegex.length()-1)));
         }

         return apiSelectorBuilder.build()
//                .globalOperationParameters(getPubParam())
                .globalResponseMessage(RequestMethod.GET, getResponseMessage())
                .globalResponseMessage(RequestMethod.POST, getResponseMessage())
                ;
    }

    private ApiInfo apiInfo(String title, String description) {
        return new ApiInfoBuilder()
                .title(title)
                .description(description)
                .version("1.0").build();
    }

    /**
     * 获得公共的参数
     * @return
     */
    private List<Parameter> getPubParam() {
        ParameterBuilder tokenPar = new ParameterBuilder();
        List<Parameter> pars = new ArrayList<>();
        tokenPar.name("X-Auth-Token").description("token").modelRef(new ModelRef("string")).parameterType("header").required(false).build();
        pars.add(tokenPar.build());
        return pars;
    }
    private List<ResponseMessage> getResponseMessage(){
        List<ResponseMessage> responseMessageList = new ArrayList<>();
        responseMessageList.add(new ResponseMessageBuilder().code(Integer.valueOf(ReturnCode.SUCCESS.getCode())).message("成功").build());
        responseMessageList.add(new ResponseMessageBuilder().code(Integer.valueOf(ReturnCode.NO_TOKEN.getCode())).message("登录失效").build());
        responseMessageList.add(new ResponseMessageBuilder().code(3002).message("权限不足").build());
        return responseMessageList;
    }
}

这个bean就是一个分组:

    @Bean
    public Docket payDocket() {
        return getDocket("a 支付相关", "com.wjj.application.controller", "1.支付相关", "1.支付相关",
                new String[]{
                        "/manager/totalPay/.*",
                        "/payment/bindBankcard/.*"
                }
        );
    }

这里要注意,swagger的分组列表排序默认是按照groupName来排序的这个比较坑,Docket 排序方式(groupName): 1-10,a-z,A-Z,所以命名Docket的groupName时候要注意顺序的处理

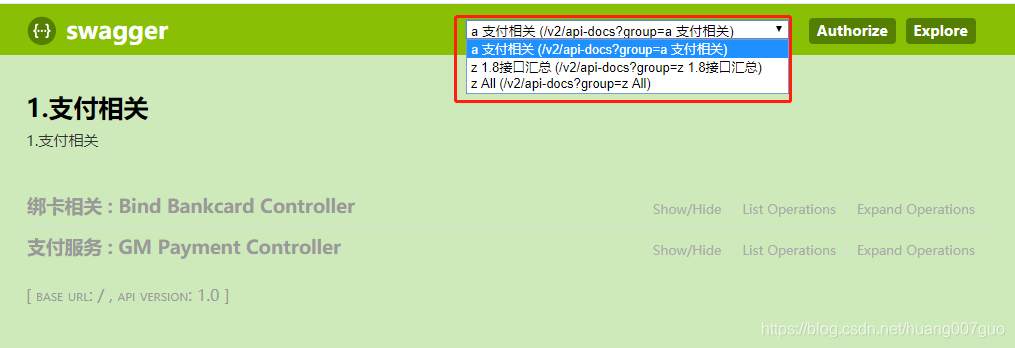

最后的效果是:
