Android NDK开发详解Wear之Watch Face Studio

Device compatibility

Watch faces made using WFS can be downloaded and installed for any Wear OS watch device, regardless of manufacturer, as long as the device targets Wear 3.0 (API level 30) or higher.

Get started
WFS works on both Windows and macOS environments. Here are some of the key ways you can use WFS:

Style editing:
Customize the watch face’s color, background image, font, etc.

Groups and complications:
Group components so that you can control or move those components with a single action. You can handle a complication by shape.

Tag expressions:
Add tags with date, time, battery, step count information, and more.

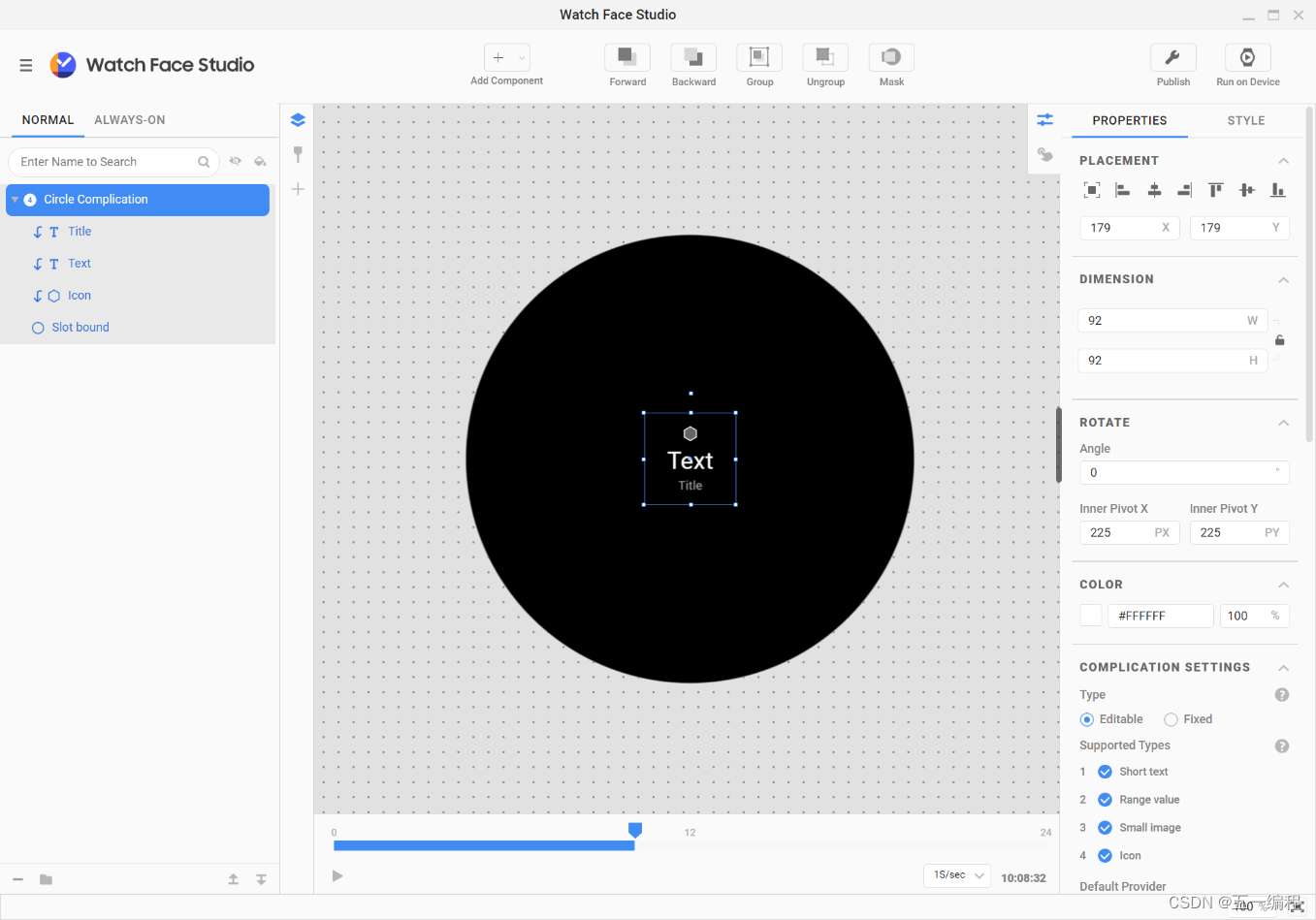

Figure 1. Watch face design in WFS

Keyboard shortcuts

Use the following keyboard shortcuts to quickly navigate Watch Face Studio (WFS).


Function
Windows
macOS
Context
Note
Menu bar
Preview
Layer
Conditional line
New project	Control+N	Command+N	✓
Open project	Control+O	Command+O	✓
Save	Control+S	Command+S	✓				Available if changes have occurred
Save as	Control+Shift+S	Command+Shift+S	✓
Close	Control+W	Command+W	✓	✓	✓	✓	Available on the landing page
Quit	Control+Q	Command+Q	✓	✓	✓	✓	Available on the landing page
Undo	Control+Z	Command+Z	✓
Redo	Control+Y	Command+Y	✓
Cut	Control+X	Command+X	✓	✓	✓	✓	Available when selecting objects
Copy	Control+C	Command+C	✓	✓	✓	✓	Available when selecting objects
Paste	Control+V	Command+V	✓	✓	✓	✓
Duplicate	Control+D	Command+D	✓	✓	✓		Available when selecting objects
Group	Control+G	Command+G	✓	✓	✓		Available when selecting multiple objects
Ungroup	Control+Shift+G	Command+Shift+G	✓	✓	✓		Available when selecting a group
Show or hide layer	Control+Shift+H	Command+Shift+H	✓		✓	✓	Available when selecting layer or object
Run on device	F9	F9	✓
Build	F10	F10	✓
Show pivot	Control+P	Command+P	✓	✓
Bring to front	Control+Alt+]	Command+Option+]		✓	✓		Available when selecting objects
Bring forward	Control+]	Command+]		✓	✓		Available when selecting objects
Send backward	Control+[	Command+[		✓	✓		Available when selecting objects
Send to back	Control+Alt+[	Command+Option+[		✓	✓		Available when selecting objects
Align center	Control+\	Command+\		✓
Zoom in	Control++	Command++		✓			Same as mouse wheel up
Zoom out	Control+-	Command+-		✓			Same as mouse wheel down
Zoom in or out	Control+Mouse wheel	Command+Mouse wheel		✓			Same as mouse wheel down
Fit in window	Control+0	Command+0		✓
View actual size (100%)	Control+1	Command+1		✓
Horizontal scroll view	Shift+Mouse wheel	Shift+Mouse wheel		✓		✓
Lock or unlock	Control+Shift+L	Command+Shift+L		✓	✓		Available when selecting layer or object
Multiple select or deselect	Shift-click	Shift-click		✓
Delete	Del	Del		✓	✓
Move	Drag	Drag		✓			Available when selecting objects
Copy	Alt-drag	Option-drag		✓			Available when selecting objects
Move vertically or horizontally	Shift-drag	Shift-drag		✓			Available when selecting objects
Adjust image size proportionally	Shift-drag		✓			Available when selecting object's selection handle
Restrict movement to 45 degree angles	Shift-drag		✓			Available when selecting with the Hand tool
Move object	Arrow key	Arrow key		✓			Available when selecting objects
Fast move object	Shift+Arrow key	Shift+Arrow key		✓			Available when selecting objects. Moves objects by 10 pixels.
Hand tool	Spacebar	Spacebar		✓			Available in the preview window
Multi-select show or hide pattern	Drag	Drag				✓	Available when selecting a frame
Move selected show or hide pattern	Drag				✓
Left-align	Control+Shift+[	Command+Shift+[		✓			Available when selecting digital clock or text
Center-align	Control+Shift+\	Command+Shift+\		✓
Right-align	Control+Shift+]	Command+Shift+]		✓
Justify	Control+Shift+J	Command+Shift+J		✓
