(第一篇)spring cloud 前置准备工作

目录

一、各组件版本

二、本次讲解的内容有

三、基础服务搭建

1、搭建父工程

2、搭建提供者cloud-provider-payment8001工程

3、搭建消费者cloud-consumer-order80工程

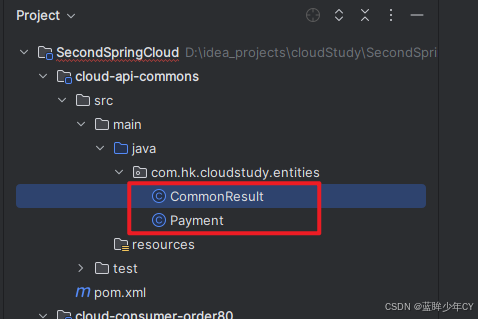

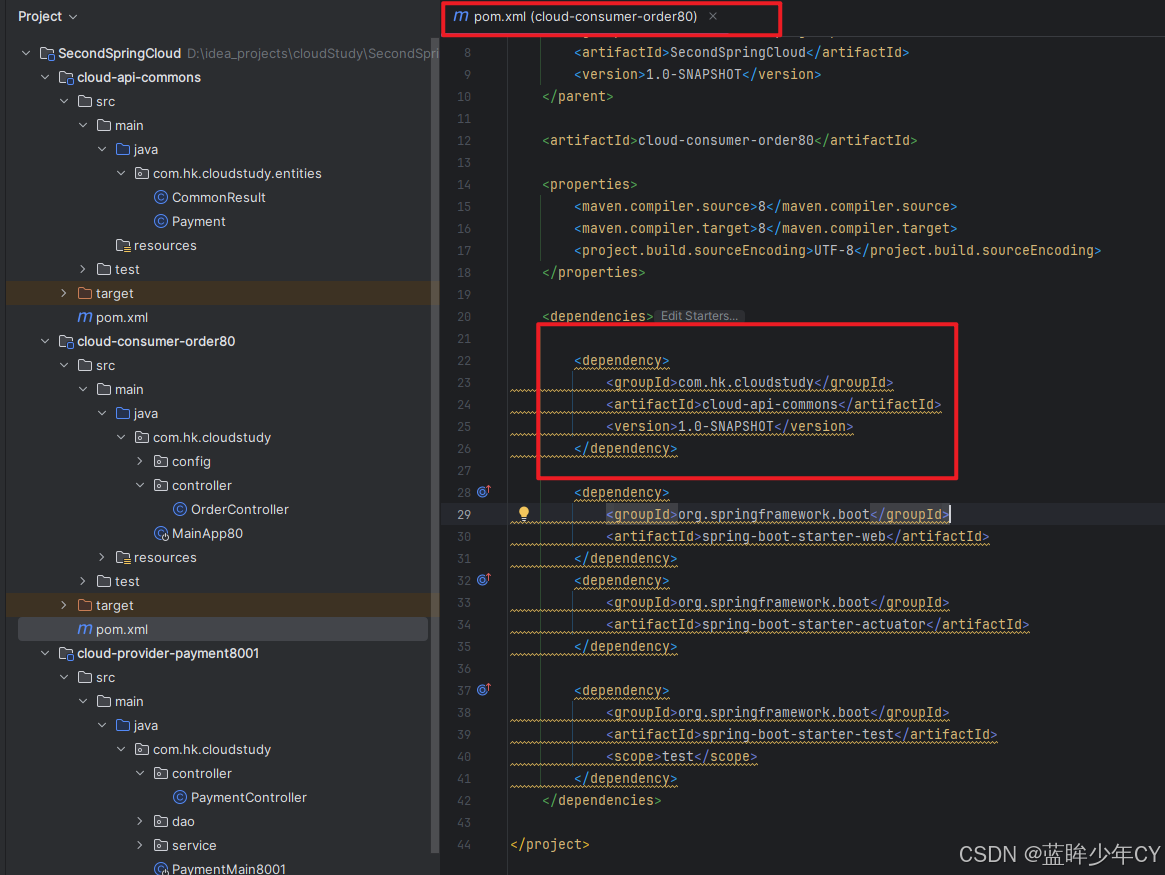

4、工程重构


一、各组件版本

  • springcloud:Hoxton.SR1
  • spring boot: 2.2.2.RELEASE
  • spring cloud alibaba:2.1.0.RELEASE
  • Java: 8

二、本次讲解的内容有

  • 注册中心:Eureka、Zookeeper、Consul、Nacos
  • 服务调用:Ribbon、OpenFeign
  • 服务降级:Hystrix、Sentinel
  • 服务网关:Zuul、gateway
  • 配置中心:Config、Nacos
  • 消息总线:Bus
  • 消息驱动:Stream
  • 链路追踪:Sleuth
  • 分布式事务:Seata

三、基础服务搭建

1、搭建父工程

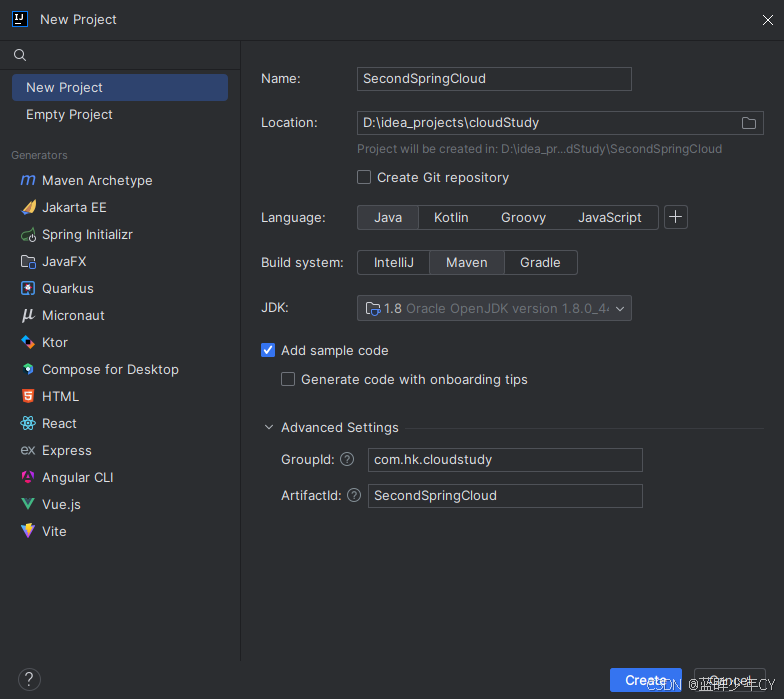

(1)创建工程SecondSpringCloud

(2)添加Pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.hk.cloudstudy</groupId>
    <artifactId>SecondSpringCloud</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>pom</packaging>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <junit.version>4.12</junit.version>
        <log4j.version>1.2.17</log4j.version>
        <lombok.version>1.16.18</lombok.version>
        <mysql.version>5.1.47</mysql.version>
        <druid.version>1.1.16</druid.version>
        <mybatis.spring.boot.version>1.3.0</mybatis.spring.boot.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <!--spring boot 2.2.2-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>2.2.2.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--spring cloud Hoxton.SR1-->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>Hoxton.SR1</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!--spring cloud alibaba 2.1.0.RELEASE-->
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>2.1.0.RELEASE</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis.spring.boot.version}</version>
            </dependency>
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>${junit.version}</version>
            </dependency>
            <dependency>
                <groupId>log4j</groupId>
                <artifactId>log4j</artifactId>
                <version>${log4j.version}</version>
            </dependency>
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok.version}</version>
                <optional>true</optional>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                    <addResources>true</addResources>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

2、搭建提供者cloud-provider-payment8001工程

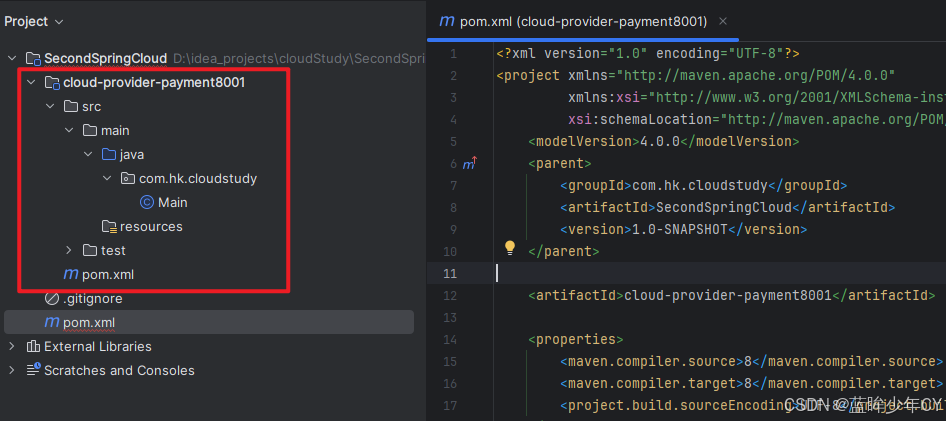

(1)创建工程

(2)添加pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.hk.cloudstudy</groupId>
        <artifactId>SecondSpringCloud</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>cloud-provider-payment8001</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>
        <!--mysql-connector-java-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--jdbc-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

(3)编写yml

server:
  port: 8001

spring:
  application:
    name: cloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource            # 当前数据源操作类型
    driver-class-name: org.gjt.mm.mysql.Driver              # mysql驱动包 com.mysql.jdbc.Driver
    url: jdbc:mysql://192.168.10.139:3306/cloud_study?useUnicode=true&characterEncoding=utf-8&useSSL=false
    username: root
    password: root


mybatis:
  mapperLocations: classpath:mapper/*.xml
  type-aliases-package: com.hk.cloudstudy.entities    # 所有Entity别名类所在包

(4)启动类

package com.hk.cloudstudy;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class PaymentMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class, args);
    }
}

(5)建表数据

CREATE TABLE `payment` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'ID',
  `serial` varchar(200) DEFAULT '',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8

(6)新建实体类

package com.hk.cloudstudy.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment implements Serializable {
    private static final long serialVersionUID = 1L;

    private Long id;
    private String serial;
}

(7)封装公共响应类

package com.hk.cloudstudy.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T>
{
    private Integer code;
    private String  message;
    private T data;

    public CommonResult(Integer code, String message)
    {
        this(code,message,null);
    }
}

(8)编写dao层接口PaymentDao

package com.hk.cloudstudy.dao;

import com.hk.cloudstudy.entities.Payment;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

@Mapper
public interface PaymentDao {

    public int create(Payment payment);

    public Payment getPaymentById(@Param("id") Long id);
}

(9)编写xml映射文件

位置:src\main\resources\mapper\PaymentMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >

<mapper namespace="com.hk.cloudstudy.dao.PaymentDao">

    <resultMap id="BaseResultMap" type="com.hk.cloudstudy.entities.Payment">
        <id column="id" property="id" jdbcType="BIGINT"/>
        <result column="serial" property="serial" jdbcType="VARCHAR"/>
    </resultMap>

    <insert id="create" parameterType="Payment" useGeneratedKeys="true" keyProperty="id">
        INSERT INTO payment(SERIAL) VALUES(#{serial});
    </insert>

    <select id="getPaymentById" parameterType="Long" resultMap="BaseResultMap" >
        SELECT * FROM payment WHERE id=#{id};
    </select>

</mapper>

(10)编写service层接口

package com.hk.cloudstudy.service;

import com.hk.cloudstudy.entities.Payment;

public interface PaymentService {
    public int create(Payment payment);

    public Payment getPaymentById(Long id);
}

(11)编写service层实现

package com.hk.cloudstudy.service.impl;

import com.hk.cloudstudy.dao.PaymentDao;
import com.hk.cloudstudy.entities.Payment;
import com.hk.cloudstudy.service.PaymentService;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service
public class PaymentServiceImpl implements PaymentService {

    @Resource
    private PaymentDao paymentDao;

    @Override
    public int create(Payment payment) {
        return paymentDao.create(payment);
    }

    @Override
    public Payment getPaymentById(Long id) {
        return paymentDao.getPaymentById(id);
    }
}

(12)编写controller层

package com.hk.cloudstudy.controller;

import com.hk.cloudstudy.entities.CommonResult;
import com.hk.cloudstudy.entities.Payment;
import com.hk.cloudstudy.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.*;

import javax.annotation.Resource;

@RestController
@Slf4j
public class PaymentController {

    @Resource
    private PaymentService paymentService;

    @PostMapping(value = "/payment/create")
    public CommonResult create(@RequestBody Payment payment){
        int result = paymentService.create(payment);
        log.info("*******插入结果:"+result);
        if(result>0){
            return new CommonResult(200,"插入数据库成功");
        }else{
            return new CommonResult(444,"插入数据库失败");
        }
    }

    @GetMapping(value = "/payment/get/{id}")
    public CommonResult getPaymentById(@PathVariable("id") Long id){
        Payment payment = paymentService.getPaymentById(id);
        log.info("*******查询结果:"+payment);
        if(payment!=null){
            return new CommonResult(200,"查询成功",payment);
        }else{
            return new CommonResult(444,"没有对应记录,查询ID:"+id);
        }
    }
}

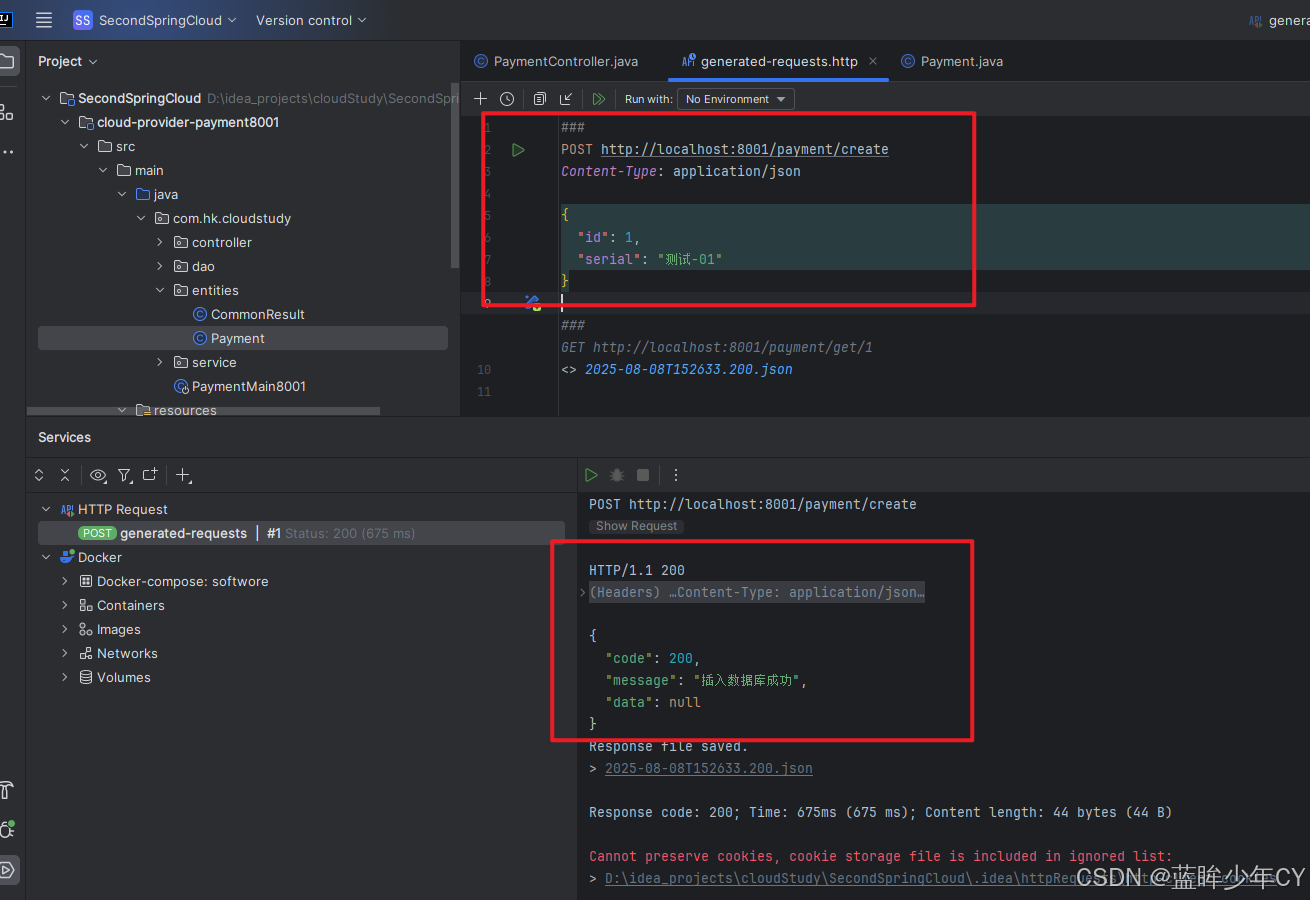

(13)测试

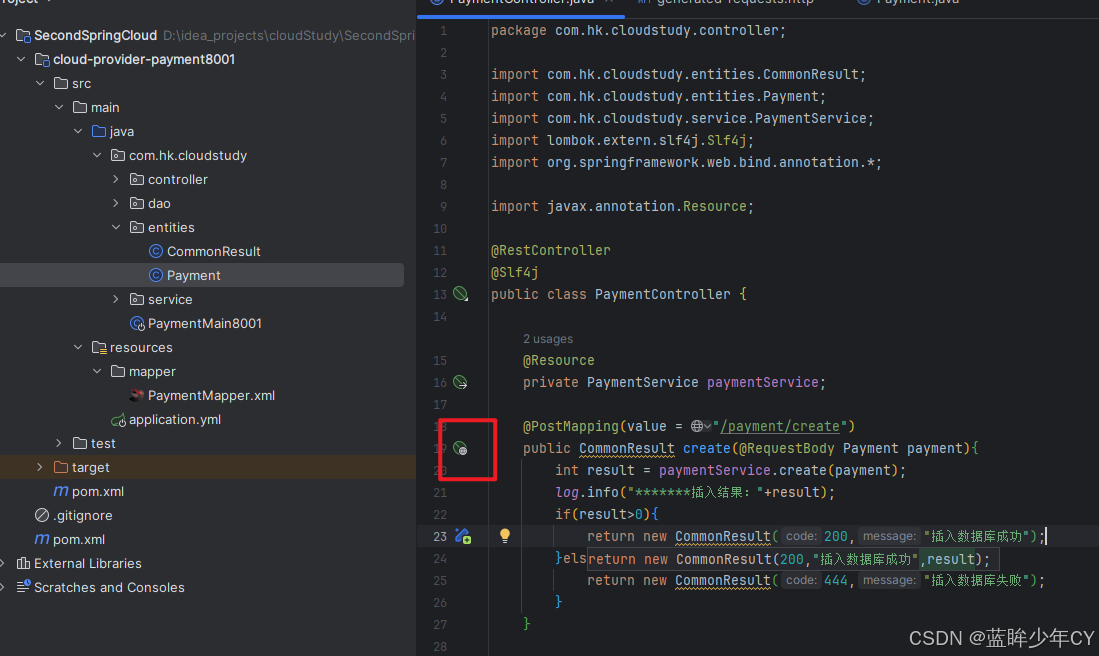

测试添加

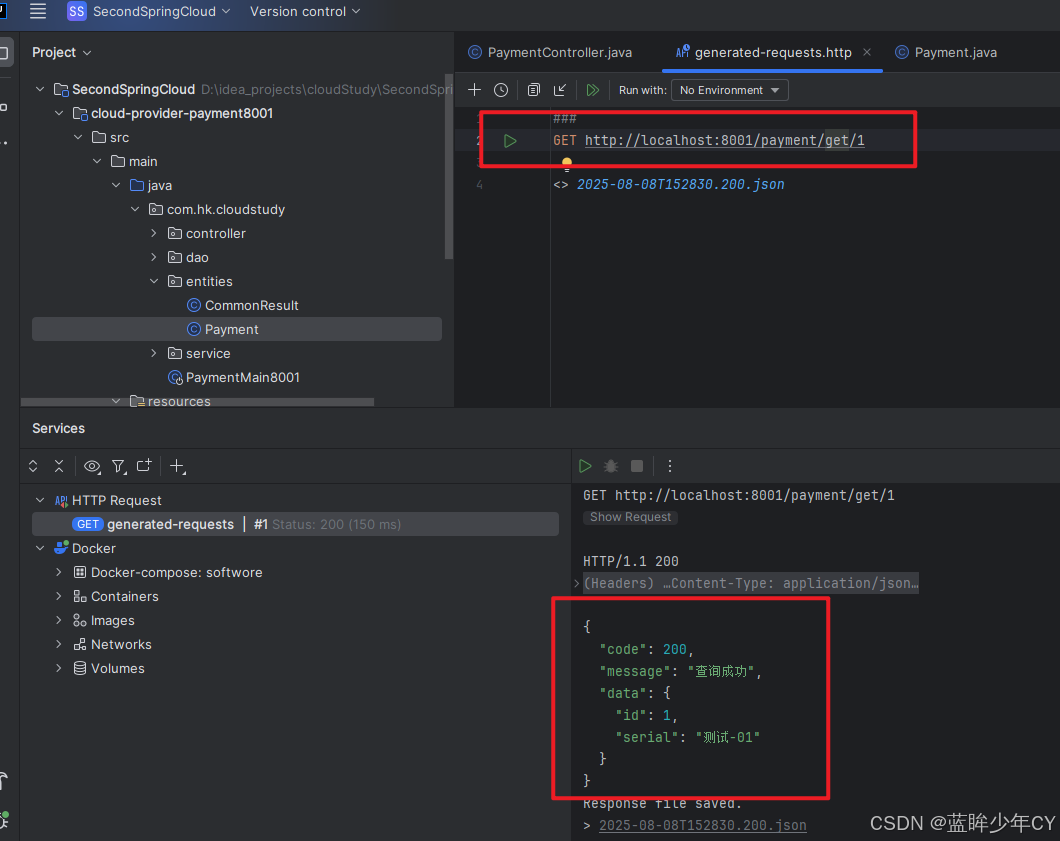

测试查询

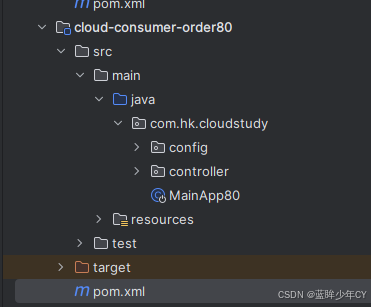

3、搭建消费者cloud-consumer-order80工程

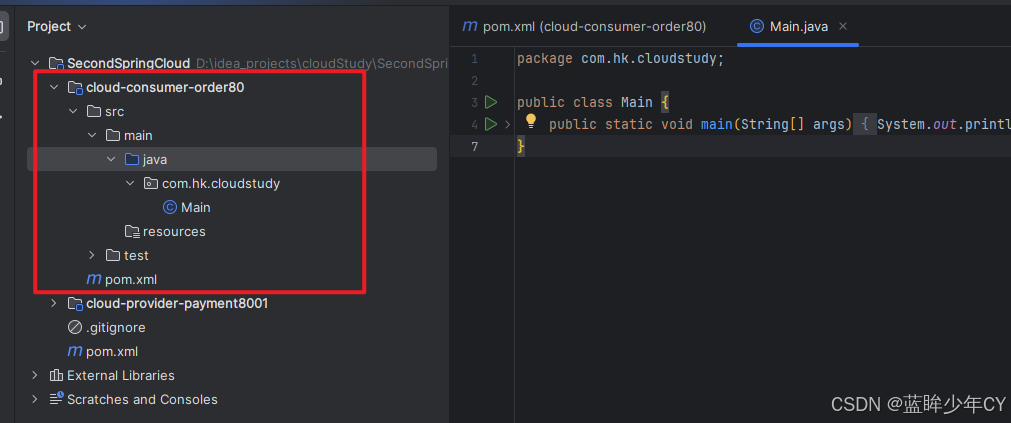

(1)创建工程

(2)添加pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.hk.cloudstudy</groupId>
        <artifactId>SecondSpringCloud</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>cloud-consumer-order80</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

</project>

(3)添加yml配置文件

server:
  port: 80

(4)启动类

package com.hk.cloudstudy;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class MainApp80 {
    public static void main(String[] args) {
        SpringApplication.run(MainApp80.class,args);
    }
}

(5)编写实体

package com.hk.cloudstudy.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment implements Serializable {
    private static final long serialVersionUID = 1L;

    private Long id;
    private String serial;
}

(6)编写响应实体

package com.hk.cloudstudy.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T>
{
    private Integer code;
    private String  message;
    private T data;

    public CommonResult(Integer code, String message)
    {
        this(code,message,null);
    }
}

(7)编写restTemplate配置类

        RestTemplate提供了多种便捷访问远程Http服务的方法, 是一种简单便捷的访问restful服务模板类,是Spring提供的用于访问Rest服务的客户端模板工具集

package com.hk.cloudstudy.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

@Configuration
public class ApplicationContextConfig {

    @Bean
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }
}

(8)编写controller层

远程调用8001的接口

package com.hk.cloudstudy.controller;

import com.hk.cloudstudy.entities.CommonResult;
import com.hk.cloudstudy.entities.Payment;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

@RestController
public class OrderController {

    public static final String PAYMENT_URL = "http://localhost:8001";

    @Autowired
    private RestTemplate restTemplate;

    //客户端用浏览器是get请求,但是底层实质发送post调用服务端8001
    @GetMapping("/consumer/payment/create")
    public CommonResult create(Payment payment){
        return restTemplate.postForObject(PAYMENT_URL + "/payment/create", payment, CommonResult.class);
    }

    @GetMapping("/consumer/payment/get/{id}")
    public CommonResult getPaymentById(@PathVariable("id") Long id){
        return restTemplate.getForObject(PAYMENT_URL + "/payment/get/" + id, CommonResult.class, id);
    }
}

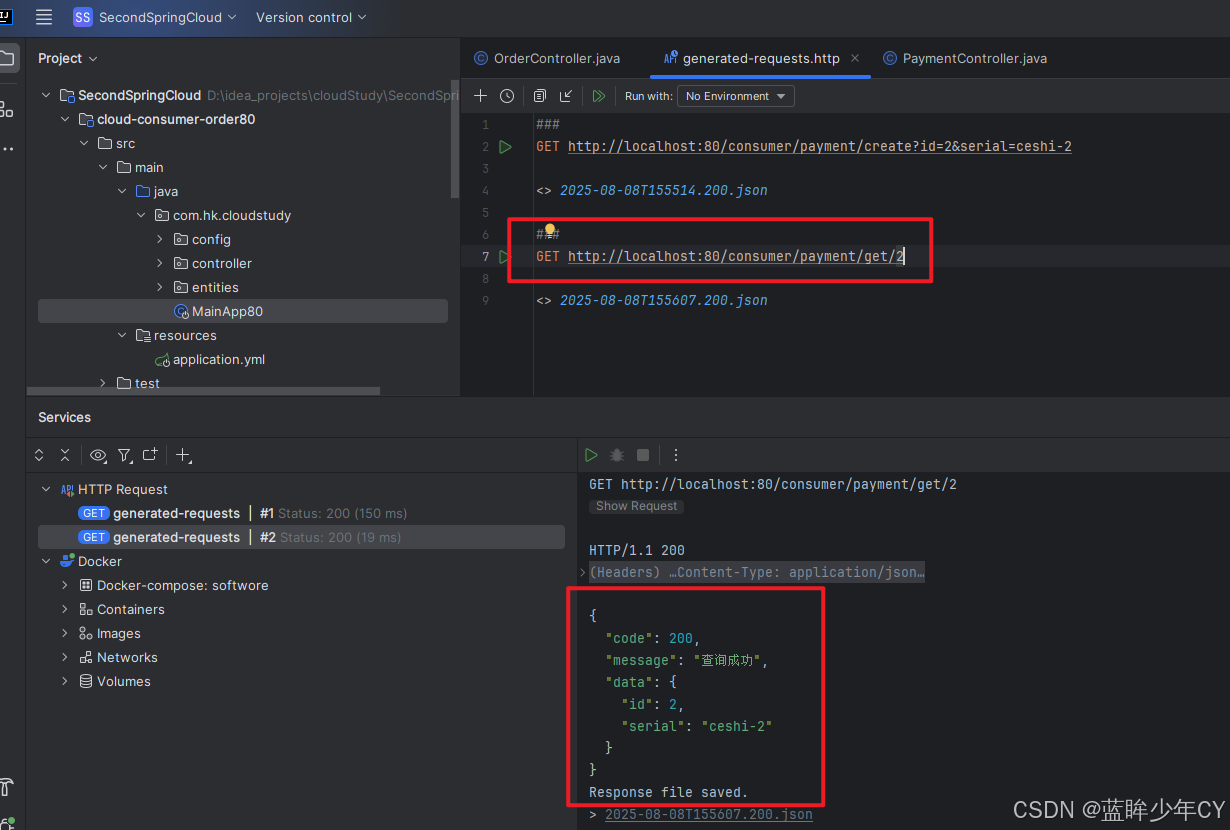

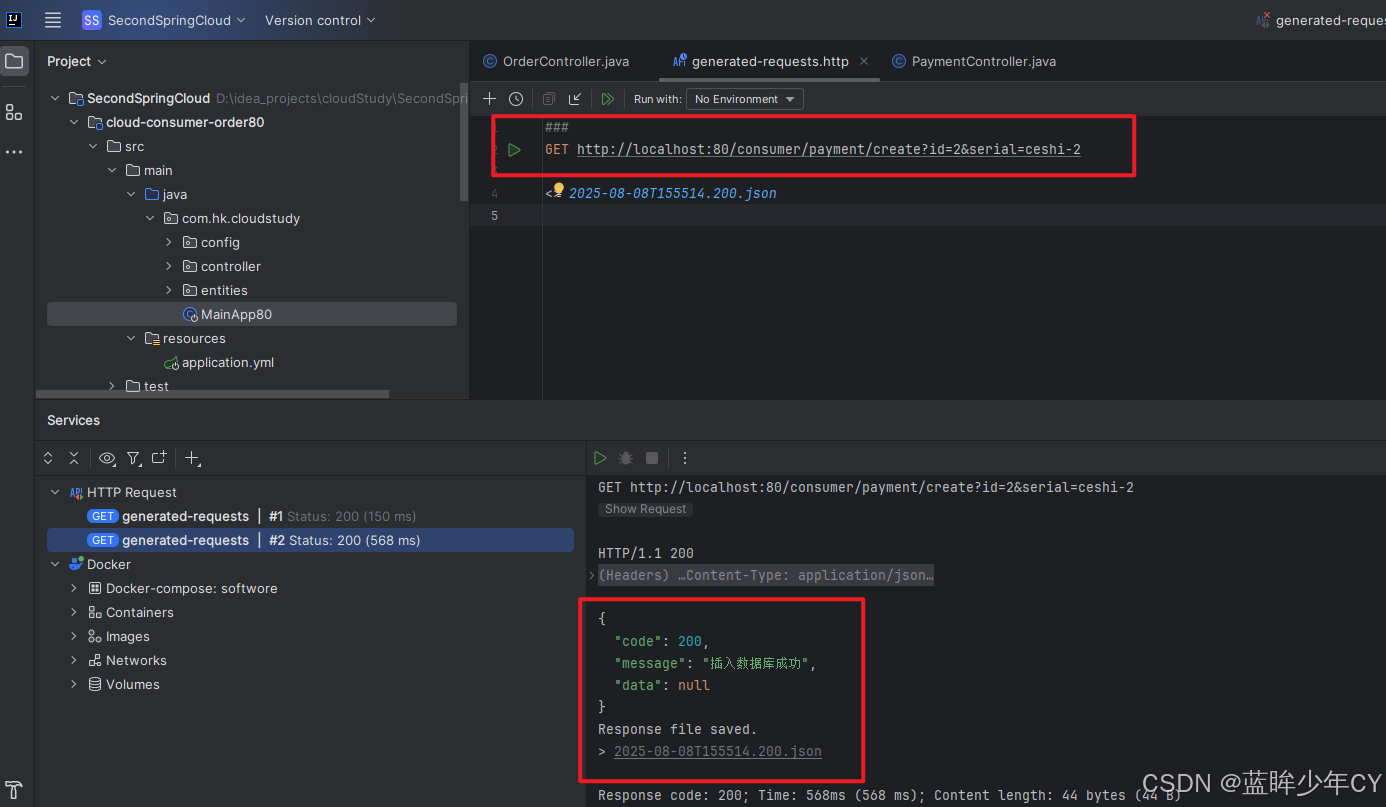

(9)测试

4、工程重构

上述的8001和80工程的entities包中Payment实体和公共响应CommonResult实体出现了重复

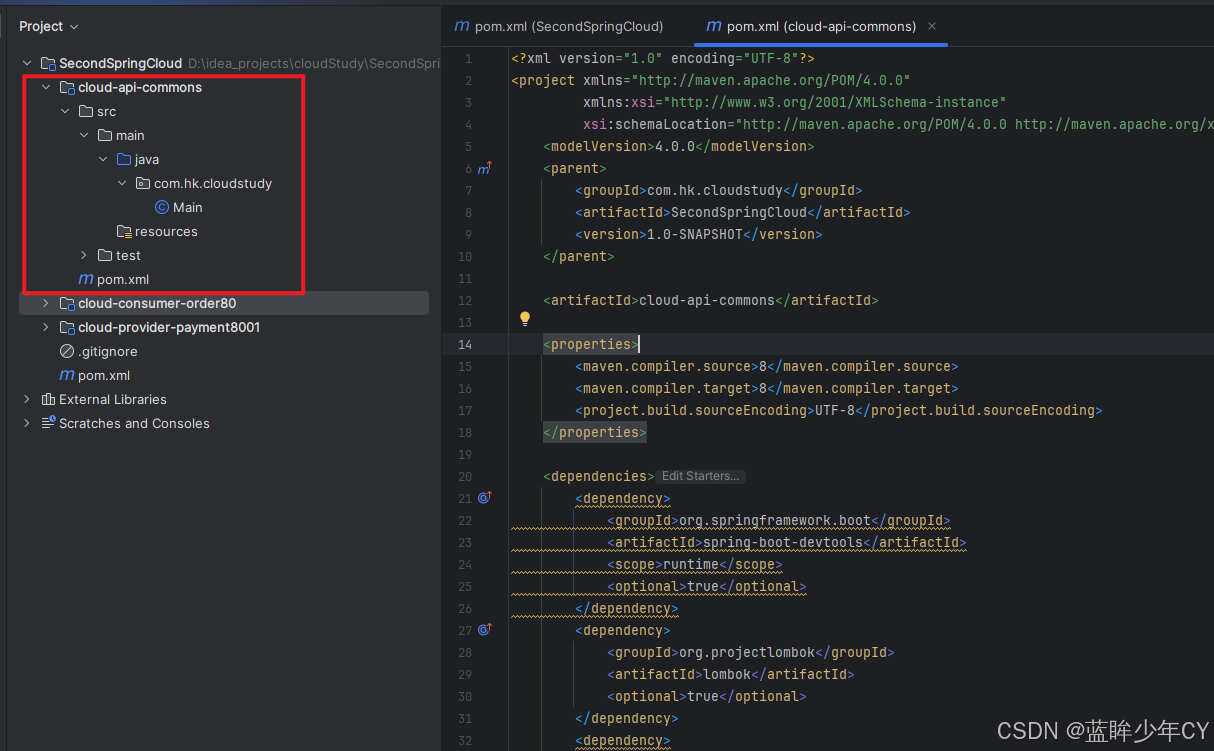

(1)新建公共工程cloud-api-commons

(2)修改pom文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.hk.cloudstudy</groupId>
        <artifactId>SecondSpringCloud</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>cloud-api-commons</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.1.0</version>
        </dependency>
    </dependencies>

</project>

(2)将Payment实体和公共响应CommonResult实体移入公共工程

(3)编译

执行maven命令clean install

(4)改造8001和80工程

  • 删除entities文件夹
  • 在80和8001的pom中加入cloud-api-commons依赖,并且移除spring-boot-devtools和lombok依赖hou

后续会慢慢更新其他组件的使用...

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
