分布式seata案例学习-2

上篇文章学习了如何安装seata，先学习如何使用

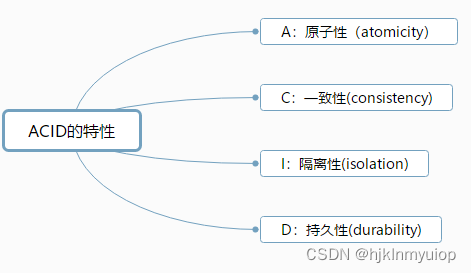

事务的4个特性ACID
事务特性

at模式详解

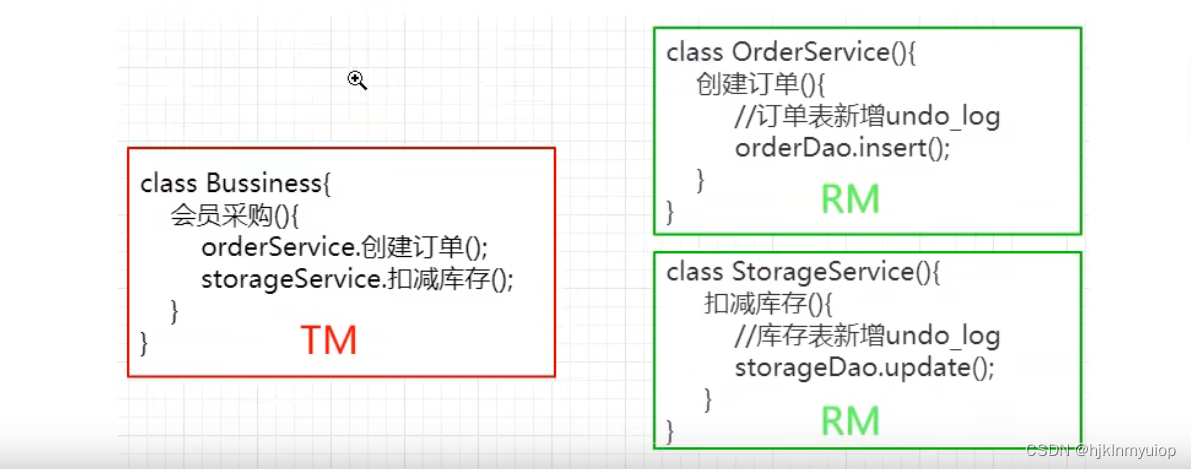

AT模式运行机制
AT模式的特点就是对业务无入侵式，整体机制分二阶段提交
两阶段提交协议的演变：

• 一阶段：业务数据和回滚日志记录在同一个本地事务中提交，释放本地锁和连接资源。
• 二阶段：
• • 提交异步化，非常快速地完成。
• • 回滚通过一阶段的回滚日志进行反向补偿。
    在 AT 模式下，用户只需关注自己的业务SQL，用户的业务SQL 作为一阶段，Seata 框架会自动生成事务的二阶段提交和回滚操作。

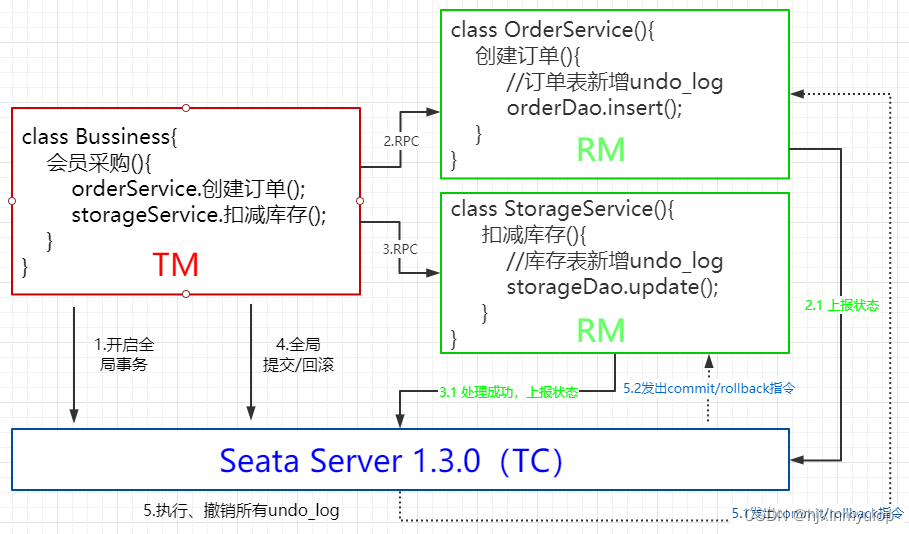

Seata具体实现步骤

1. TM端使用@GlobalTransaction进行全局事务开启、提交、回滚
2. TM开始RPC调用远程服务
3. RM端seata-client通过扩展DataSourceProxy，实现自动生成UNDO_LOG与TC上报
4. TM告知TC提交/回滚全局事务
5. TC通知RM各自执行commit/rollback操作，同时清除undo_log

RM实现

1. 创建订单和库存服务的DB

-- 库存服务DB执行
CREATE TABLE `tab_storage` (
  `id` bigint(11) NOT NULL AUTO_INCREMENT,
  `product_id` bigint(11) DEFAULT NULL COMMENT '产品id',
  `total` int(11) DEFAULT NULL COMMENT '总库存',
  `used` int(11) DEFAULT NULL COMMENT '已用库存',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;
INSERT INTO `tab_storage` (`product_id`, `total`,`used`)VALUES ('1', '96', '4');
INSERT INTO `tab_storage` (`product_id`, `total`,`used`)VALUES ('2', '100','0');

-- 订单服务DB执行
CREATE TABLE `tab_order` (
  `id` bigint(11) NOT NULL AUTO_INCREMENT,
  `user_id` bigint(11) DEFAULT NULL COMMENT '用户id',
  `product_id` bigint(11) DEFAULT NULL COMMENT '产品id',
  `count` int(11) DEFAULT NULL COMMENT '数量',
  `money` decimal(11,0) DEFAULT NULL COMMENT '金额',
  `status` int(1) DEFAULT NULL COMMENT '订单状态：0：创建中；1：已完成',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

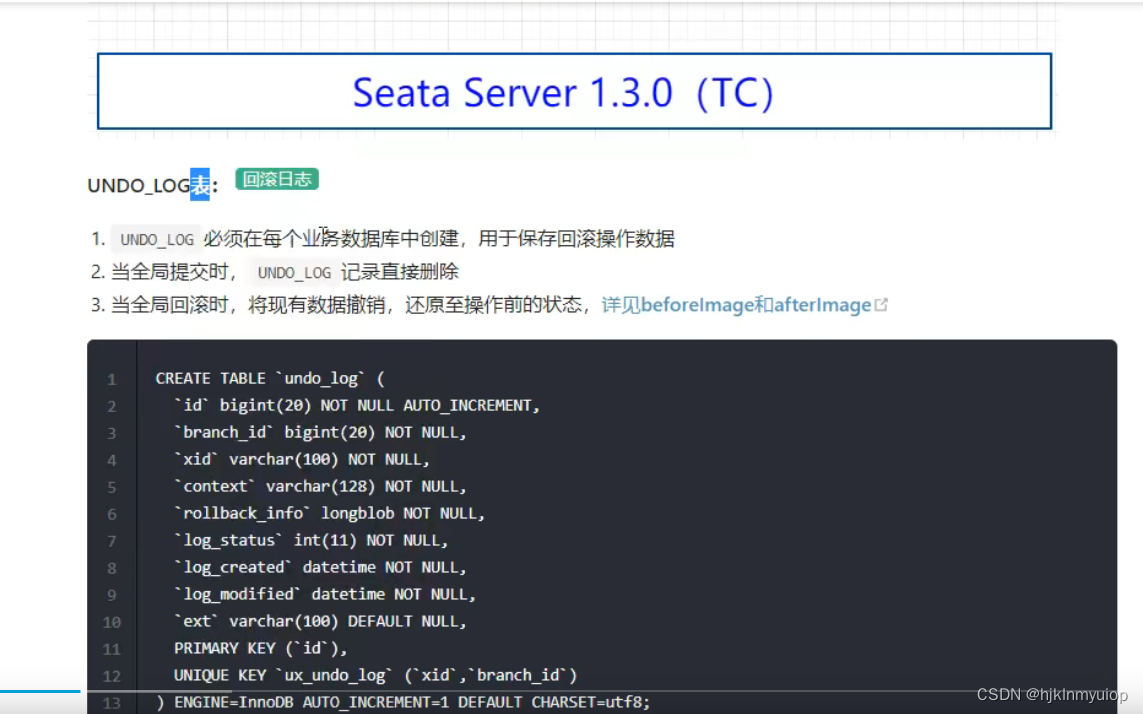

2. 各数据库加入undo_log表

CREATE TABLE `undo_log` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `branch_id` bigint(20) NOT NULL,
  `xid` varchar(100) NOT NULL,
  `context` varchar(128) NOT NULL,
  `rollback_info` longblob NOT NULL,
  `log_status` int(11) NOT NULL,
  `log_created` datetime NOT NULL,
  `log_modified` datetime NOT NULL,
  `ext` varchar(100) DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `ux_undo_log` (`xid`,`branch_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

3. 编写业务代码

库存代码

package com.seata.storage;

import com.seata.storage.model.Storage;
import com.seata.storage.service.StorageService;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;


@RestController
@SpringBootApplication
@MapperScan("com.seata.storage.mapper")
@EnableDiscoveryClient
@EnableFeignClients
public class StorageApplication {
    @Autowired
    private StorageService storageService;

    @GetMapping("storage/change")
    public Boolean change(long used , long productId){
        Storage storage = new Storage();
        storage.setTotal(100)
                .setProductId(productId)
                .setUsed(3);
        return storageService.create(storage);
    }
    public static void main(String[] args) {
        SpringApplication.run(StorageApplication.class, args);
    }
}

订单代码

package com.seata.order;

import com.seata.order.model.Order;
import com.seata.order.service.OrderService;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.math.BigDecimal;

@RestController
@SpringBootApplication
@MapperScan("com.seata.order.mapper")
@EnableDiscoveryClient
@EnableFeignClients
public class OrderApplication {
    @Autowired
    private OrderService orderService;

    @GetMapping("order/create")
    public Boolean create(long userId , long productId){
        Order order = new Order();
        order.setCount(1)
                .setMoney(BigDecimal.valueOf(88))
                .setProductId(productId)
                .setUserId(userId)
                .setStatus(0);
        return orderService.create(order);
    }
    public static void main(String[] args) {
        SpringApplication.run(OrderApplication.class, args);
    }

}

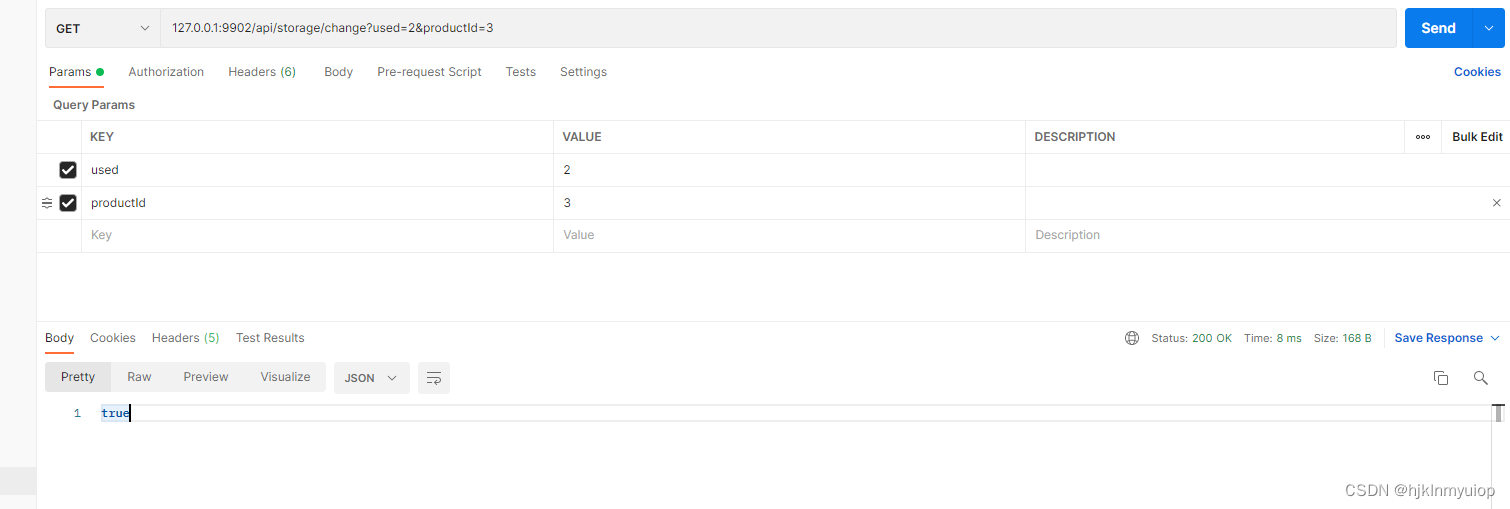

4. 测试业务代码是否正常运行（完整代码见附件链接：https://pan.baidu.com/s/1vnaulywP-GLk5rGvtJulPg?pwd=e7vk
   提取码：e7vk）
5.
6. TM实现
   搭建business服务，pom、bootstrap.yml与RM基本一致，并提供FeignClient调用组件
   FeignClient组件代码编写

@FeignClient(value = "storage-service")
@Component
public interface StorageClient {
    @GetMapping("api/storage/change")
    Boolean changeStorage(@RequestParam("productId") long productId , @RequestParam("used")  int used);
}

@FeignClient(value = "order-service")
@Component
public interface OrderClient {
    @GetMapping("api/order/create")
    Boolean create(@RequestParam("userId") long userId , @RequestParam("productId") long productId);
}

调用层代码编写

package com.seata.business;

import com.seata.business.feign.OrderClient;
import com.seata.business.feign.StorageClient;
import io.seata.spring.annotation.GlobalTransactional;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@SpringBootApplication
@RestController
@EnableFeignClients
@EnableDiscoveryClient
public class BusinessApplication {
    @Autowired
    private OrderClient orderClient;
    @Autowired
    private StorageClient storageClient;
    @GetMapping("buy")
    @GlobalTransactional
    public String buy(long userId , long productId){
        orderClient.create(userId , productId);
        storageClient.changeStorage(userId , 1);
        return "ok";
    }
    public static void main(String[] args) {
        SpringApplication.run(BusinessApplication.class, args);
    }

}

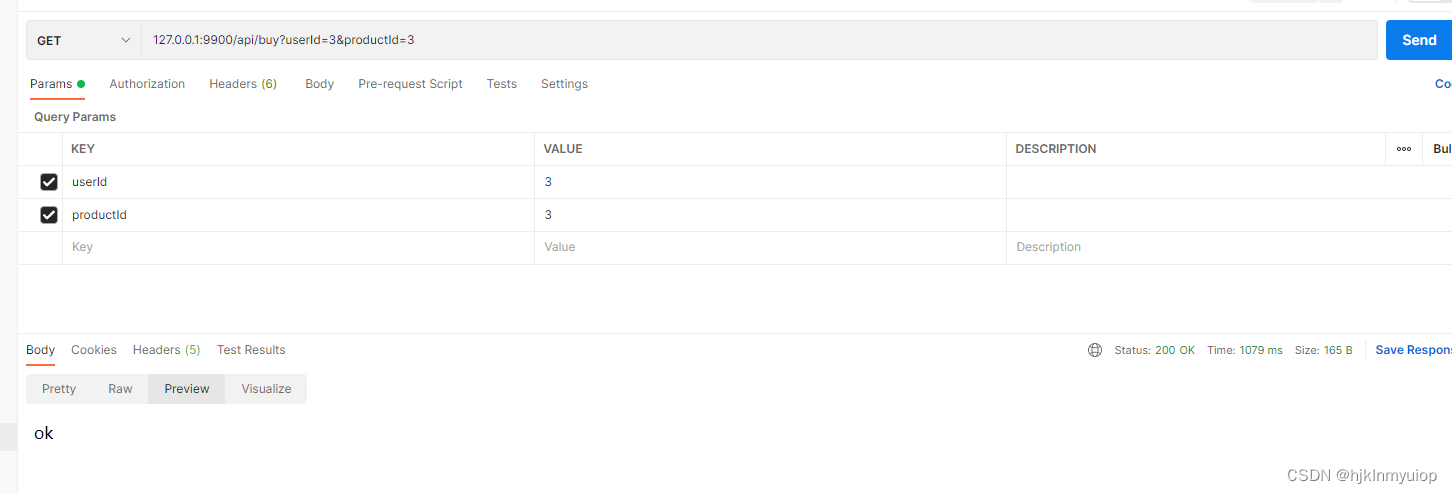

TM测试请求

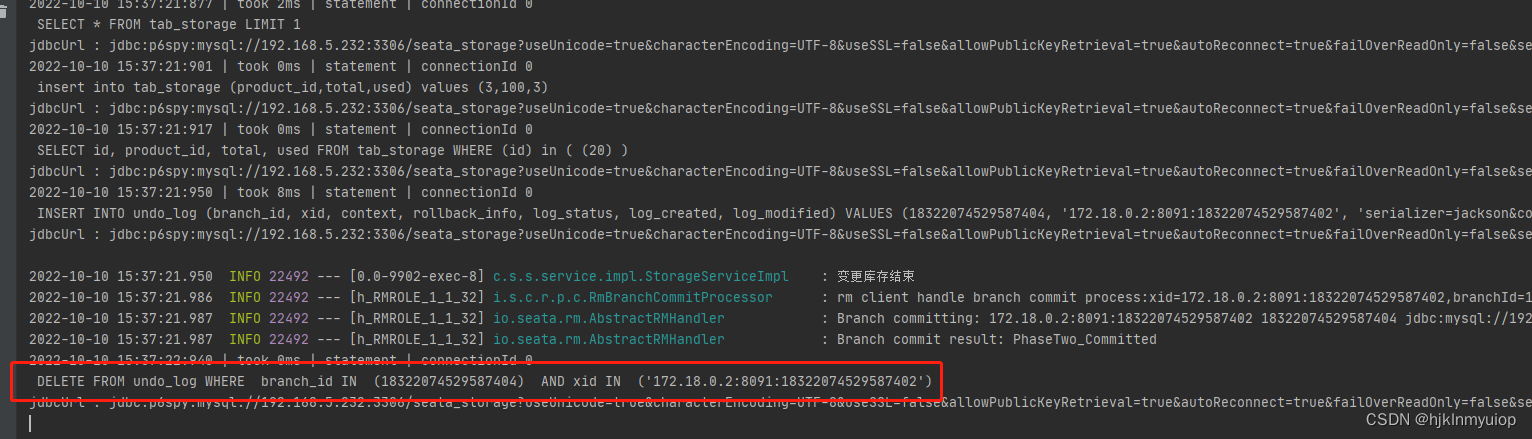

如果在order与storage服务器出现以下语句表示分布式事务成功
