为什么LSTM预测是一条直线

import os
import numpy as np
import pandas as pd
import torch
import torch.nn as nn
from torch.utils.data import DataLoader, Dataset
from sklearn.metrics import mean_squared_error, mean_absolute_error, r2_score
import matplotlib.pyplot as plt

class BearingDataset(Dataset):
    def __init__(self, data_folder, file_limit=None):
        self.files = sorted([os.path.join(data_folder, f) for f in os.listdir(data_folder) if f.endswith('.csv')])
        if file_limit is not None:
            self.files = self.files[:file_limit]
        self.data = []
        self.labels = []
        for file in self.files:
            df = pd.read_csv(file, header=None)
            data = df.iloc[:, 4].values  # 提取振动信号列
            # 对每个文件的数据进行归一化
            data = (data - np.min(data)) / (np.max(data) - np.min(data) + 1e-8)  # 避免除以零
            label = df.iloc[0, -1]  # 假设每个文件的最后一列是单个标签值
            self.data.append(data)
            self.labels.append(label)
        self.data = np.array(self.data)
        self.labels = np.array(self.labels)

    def __len__(self):
        return len(self.data)

    def __getitem__(self, idx):
        data = torch.tensor(self.data[idx], dtype=torch.float32).unsqueeze(-1)  # 增加一个维度
        label = torch.tensor(self.labels[idx], dtype=torch.float32)
        return data, label


# # RNN模型用于RUL预测
# class RNNRULPredictor(nn.Module):
#     def __init__(self, input_dim, hidden_dim, output_dim, num_layers=4):
#         super(RNNRULPredictor, self).__init__()
#         # 使用一个LSTM模型作为特征提取器
#         self.lstm = nn.LSTM(input_dim, hidden_dim, num_layers=num_layers, batch_first=True)
#         # 输出一个 RUL 值
#         self.fc = nn.Linear(hidden_dim, output_dim)
#
#     def forward(self, x):
#         # LSTM 返回的输出包括 (output, (h_n, c_n))，我们只使用 output
#         lstm_out, (h_n, c_n) = self.lstm(x)
#         # 只取最后一个时间步的隐藏状态作为特征输入到全连接层
#         final_hidden_state = h_n[-1]  # 获取最后一层 LSTM 的最后一个隐藏状态
#         output = self.fc(final_hidden_state)  # 用全连接层生成 RUL 预测值
#         return output


class RNNRULPredictor(nn.Module):
    def __init__(self, input_dim, hidden_dim1, hidden_dim2, hidden_dim3, hidden_dim4, output_dim):
        super(RNNRULPredictor, self).__init__()
        # 手动堆叠 4 个 LSTM 层，每一层的输入输出维度不同
        self.lstm1 = nn.LSTM(input_dim, hidden_dim1, batch_first=True)
        self.lstm2 = nn.LSTM(hidden_dim1, hidden_dim2, batch_first=True)
        self.lstm3 = nn.LSTM(hidden_dim2, hidden_dim3, batch_first=True)
        self.lstm4 = nn.LSTM(hidden_dim3, hidden_dim4, batch_first=True)

        # 输出一个 RUL 值
        self.fc = nn.Linear(hidden_dim4, output_dim)

    def forward(self, x):
        # 依次通过每个 LSTM 层
        x, _ = self.lstm1(x)
        x, _ = self.lstm2(x)
        x, _ = self.lstm3(x)
        x, _ = self.lstm4(x)

        # 只取最后一个时间步的输出作为特征输入到全连接层
        x = x[:, -1, :]  # 取最后一个时间步的输出
        output = self.fc(x)  # 用全连接层生成 RUL 预测值
        return output


# 损失函数：MSE用于回归任务
def loss_function(pred_rul, true_rul):
    return nn.MSELoss()(pred_rul, true_rul)


# 数据文件夹路径
train_data_folder = r"E:\pycharm code\1-1label"
test_data_folder = r"E:\pycharm code\1-6label"

# 训练集，使用前800个文件
train_dataset = BearingDataset(train_data_folder, file_limit=None)
train_data_loader = DataLoader(train_dataset, batch_size=16, shuffle=False)


# 模型参数
input_dim = 1  # 每个时间步只有一个特征（振动信号）
hidden_dim1 = 256  # 第1层隐藏层维度
hidden_dim2 = 128  # 第2层隐藏层维度
hidden_dim3 = 64   # 第3层隐藏层维度
hidden_dim4 = 32   # 第4层隐藏层维度
output_dim = 1  # 预测RUL是一个标量
lr = 0.0001  # 学习率
epochs = 2  # 增加训练轮数

# 初始化模型和优化器
model = RNNRULPredictor(input_dim, hidden_dim1,hidden_dim2,hidden_dim3,hidden_dim4 , output_dim).cuda()
optimizer = torch.optim.Adam(model.parameters(), lr=lr)


# 训练过程
for epoch in range(epochs):
    model.train()
    train_loss = 0
    for data, label in train_data_loader:
        data = data.cuda()
        label = label.cuda()

        optimizer.zero_grad()
        pred_rul = model(data)  # RUL预测
        loss = loss_function(pred_rul, label)  # 计算损失
        loss.backward()
        train_loss += loss.item()
        optimizer.step()

    print(f'Epoch {epoch + 1}, Loss: {train_loss / len(train_data_loader)}')

# 测试集推断
test_dataset = BearingDataset(test_data_folder)
test_data_loader = DataLoader(test_dataset, batch_size=32, shuffle=False)

actual_values = []
predicted_values = []
file_indices = []  # 用于记录每个文件的序号
model.eval()
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
model.to(device)  # 确保模型在正确的设备上

with torch.no_grad():
    for file_idx, (data, label) in enumerate(test_data_loader):
        data = data.to(device)
        label = label.to(device)

        # 只对每个文件的数据进行一次推理
        pred_rul = model(data)

        # 确保将 label 和 pred_rul 转为标量
        actual_values.append(label.cpu().numpy()[0])  # 提取第一个元素，避免用 .item()
        predicted_values.append(pred_rul.cpu().numpy().flatten()[0])  # 预测值

        file_indices.append(file_idx + 1)  # 文件序号从1开始

# 将数据转换为 NumPy 数组
actual_values = np.array(actual_values)  # 真实值，1D 数组
predicted_values = np.array(predicted_values)  # 预测值，1D 数组

# 将数据转换为 NumPy 数组
actual_values = np.array(actual_values)  # 真实值，1D 数组
predicted_values = np.array(predicted_values)  # 预测值，1D 数组

# 将数据转换为 NumPy 数组
actual_values = np.array(actual_values).flatten()  # 真实值，1D 数组
predicted_values = np.array(predicted_values).flatten()  # 预测值，1D 数组
file_indices = np.array(file_indices)  # 文件序号，1D 数组

# 计算 MSE, MAE 和 R2
mse = mean_squared_error(actual_values, predicted_values)
mae = mean_absolute_error(actual_values, predicted_values)
r2 = r2_score(actual_values, predicted_values)

# 打印评价指标
print(f'Mean Squared Error (MSE): {mse:.4f}')
print(f'Mean Absolute Error (MAE): {mae:.4f}')
print(f'R-squared (R²): {r2:.4f}')

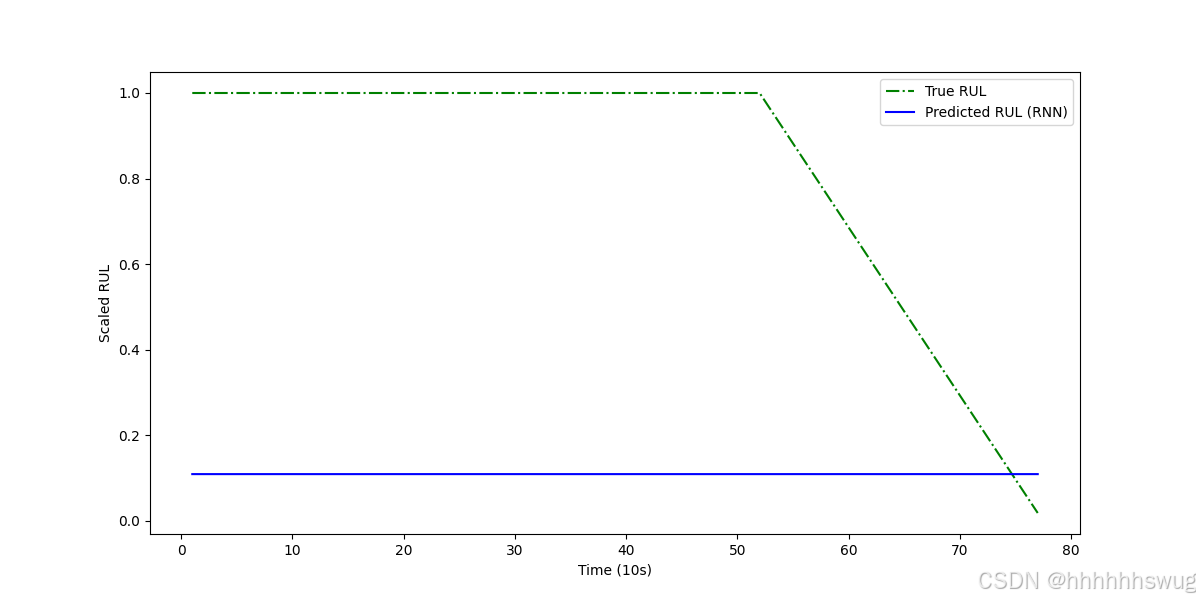

# 绘制RUL曲线
plt.figure(figsize=(12, 6))
plt.plot(file_indices, actual_values, label='True RUL', color='green', linestyle='-.')  # 真实RUL
plt.plot(file_indices, predicted_values, label='Predicted RUL (RNN)', color='blue')  # 预测RUL
plt.xlabel('Time (10s)')
plt.ylabel('Scaled RUL')
plt.legend()
plt.savefig('./my/{} RUL Prediction with LSTM.png'.format(round(mse, 3)))
