revit二次开发——view

1.viewType 视图类型(枚举)

API

ViewType Enumeration
Member name	Description
Undefined	Undefined/unspecified type of view.   未定义未指定的视图类型。
FloorPlan	Floor plan type of view.    平面图平面图类型的视图。
CeilingPlan	Reflected ceiling plan type of view.      反映天花板平面类型的视图。
Elevation	Elevation type of view.       仰角类型的视图
ThreeD	3-D type of view.      三维类型的视图
Schedule	Schedule type of view.         Schedule调度视图类型
DrawingSheet	Drawing sheet type of view.  绘图表视图类型
ProjectBrowser	The project browser view.        ProjectBrowser项目浏览器视图
Report	Report type of view.   Report报表视图类型
DraftingView	Drafting type of view.        DraftingView视图的绘图类型
Legend	Legend type of view.      传说类型的视图。
SystemBrowser	The MEP system browser view. MEP系统浏览器视图
EngineeringPlan	Structural plan or Engineering plan type of view. 计划或工程计划类型的视图
AreaPlan	Area plan type of view.     区域规划视图类型。
Section	Cross section type of view.   横截面视图类型
Detail	Detail type of view.           视图的详细类型
CostReport	Cost Report view.    成本报表视图
LoadsReport	Loads Report view.      负载报表视图
PresureLossReport	Pressure Loss Report view.        压力损失报表视图
ColumnSchedule	Column Schedule type of view.          列调度视图类型
PanelSchedule	Panel Schedule Report view.     面板进度报表视图
Walkthrough	Walk-Through type of 3D view.    渲染类型的3D视图
Rendering	Rendering type of view.           视图的渲染类型
Internal	Revit's internal type of view          Revit的内部类型的视图

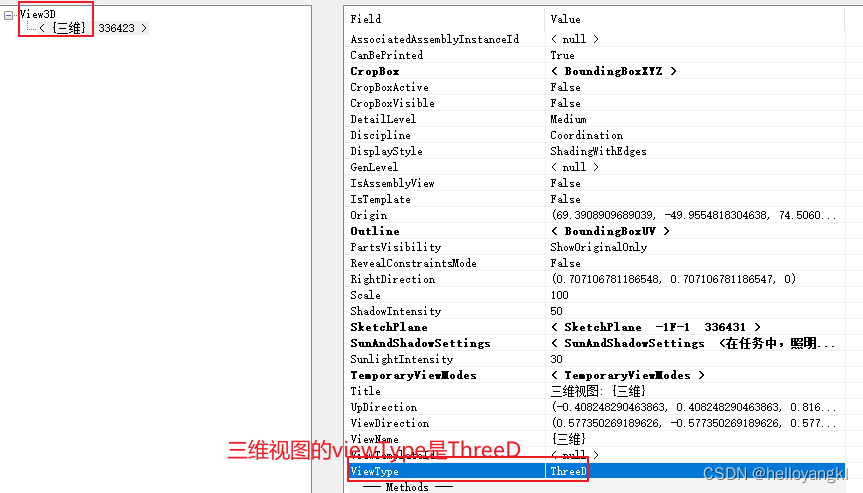

 例子

 2.规程DisCipline

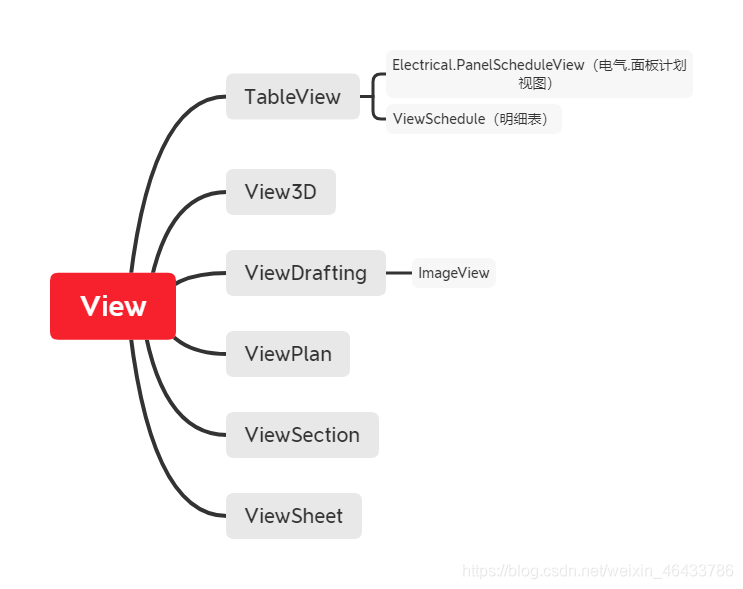

3.View 继承结构

所有的视图都是继承自 Autodesk.Revit.DB.View，分别对应各种视图类型

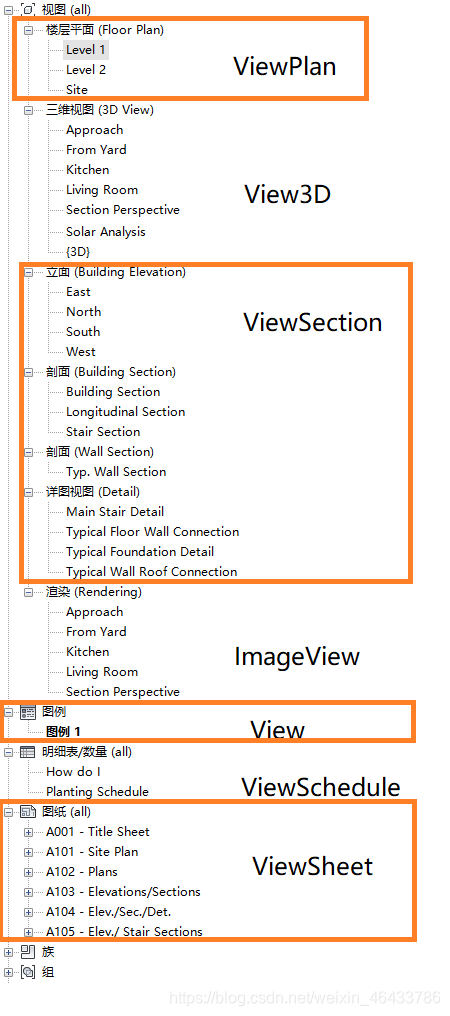

4.View 的实例

以官方给的文件为例：

楼层平面：ViewPlan
三维视图：View3D
立面、剖面、详细视图：ViewSection
渲染：ImageView
图例：View
明细表：ViewSchedule
图纸：ViewSheet

5.获取 View 的信息

视图的基本信息，包括:

视图名称，view.Name
视图裁剪区域，view.CropBox
视图起始点，view.Origin
视图平面投影区域，view.Outline
视图往右、往上、指向观察者的方向，view.RightDirection，view.UpDirection，view.ViewDirection
视图缩放比例，view.Scale

方法示例：

        private void Getinfo_View(Autodesk.Revit.DB.View view)
        {
            string message = "View: ";

            // 得到视图的名称
            message += "\nView name: " + view.Name;

            // 视图裁剪区域包围盒
            BoundingBoxXYZ cropBox = view.CropBox;
            XYZ max = cropBox.Max; // 最大值，包围盒右上角
            XYZ min = cropBox.Min; // 最小值，包围盒左下角
            message += "\nCrop Box: ";
            message += "\nMaximum coordinates: (" + max.X + ", " + max.Y + ", " + max.Z + ")";
            message += "\nMinimum coordinates: (" + min.X + ", " + min.Y + ", " + min.Z + ")";


            // 视图的起始点（想象一下透视视图）
            XYZ origin = view.Origin;
            message += "\nOrigin: (" + origin.X + ", " + origin.Y + ", " + origin.Z + ")";


            //视图投影到平面的范围框
            BoundingBoxUV outline = view.Outline;
            UV maxUv = outline.Max; // 最大值，包围盒右上角
            UV minUv = outline.Min; // 最小值，包围盒左下角
            message += "\nOutline: ";
            message += "\nMaximum coordinates: (" + maxUv.U + ", " + maxUv.V + ")";
            message += "\nMinimum coordinates: (" + minUv.U + ", " + minUv.V + ")";

            // 视图往右的方向
            XYZ rightDirection = view.RightDirection;
            message += "\nRight direction: (" + rightDirection.X + ", " +
                           rightDirection.Y + ", " + rightDirection.Z + ")";

            // 视图往上的方向
            XYZ upDirection = view.UpDirection;
            message += "\nUp direction: (" + upDirection.X + ", " +
                           upDirection.Y + ", " + upDirection.Z + ")";

            // 视图指向观察者（即我）的方向
            XYZ viewDirection = view.ViewDirection;
            message += "\nView direction: (" + viewDirection.X + ", " +
                           viewDirection.Y + ", " + viewDirection.Z + ")";

            // 视图的缩放比例
            message += "\nScale: " + view.Scale;
            // Scale is meaningless for Schedules
            if (view.ViewType != ViewType.Schedule)
            {
                int testScale = 5;
                //设置视图比例，需要 Transaction
                view.Scale = testScale;
                message += "\nScale after set: " + view.Scale;
            }

            TaskDialog.Show("Revit", message);
        }

主程序调用：

using System;
using System.Collections.Generic;
using System.Text;
using Autodesk.Revit.Attributes;
using Autodesk.Revit.DB;
using Autodesk.Revit.UI;

namespace PersonalTools
{
    [Transaction(TransactionMode.Manual)]
    public class Command : IExternalCommand
    {
        public Result Execute(ExternalCommandData commandData, ref string message, ElementSet elements)
        {
            UIApplication uiApp = commandData.Application;
            UIDocument uiDoc = uiApp.ActiveUIDocument;
            Document doc = uiDoc.Document;

            using(Transaction transaction = new Transaction(doc, "View"))
            {
                transaction.Start();
                View view = doc.ActiveView;
                Getinfo_View(view);
                transaction.Commit();
            }
            return Result.Succeeded;
        }

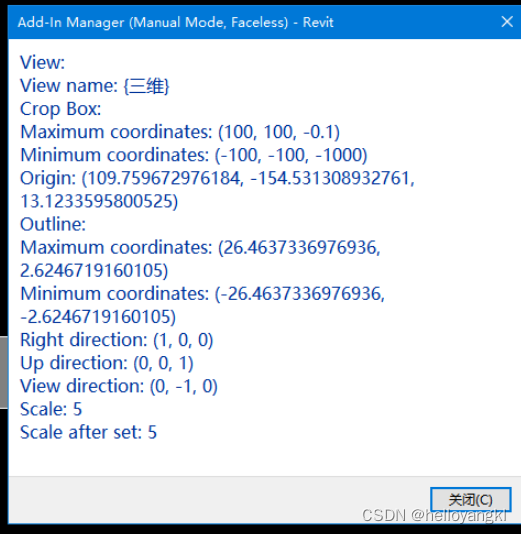

前视图数据：可知 Revit 中的坐标系，往右是 X 方向，往上是 Z 方向。因此前视图是从 Y 方向从屏幕外指向屏幕里面。
