wpf 实现DataGrid的表格嵌套

原创 已于 2025-04-14 15:40:55 修改 · 1.3k 阅读 · 4 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
文章标签：

#wpf

于 2024-07-12 15:07:51 首次发布
<UserControl
    x:Class="NavTest.Views.Page5"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:cv="clr-namespace:NavTest.Components"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:dp="clr-namespace:NavTest.Assets.Dp"
    xmlns:hc="https://handyorg.github.io/handycontrol"
    xmlns:i="http://schemas.microsoft.com/xaml/behaviors"
    xmlns:local="clr-namespace:NavTest.Views"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:mv="clr-namespace:NavTest.ViewModels"
    d:DataContext="{d:DesignInstance mv:Page5ViewModel}"
    d:DesignHeight="450"
    d:DesignWidth="800"
    Background="Transparent"
    FontSize="50"
    mc:Ignorable="d">
    <Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition />
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition Height="0.1*" />
            <RowDefinition />
        </Grid.RowDefinitions>
        <StackPanel Orientation="Horizontal">
            <dp:CostomTextBox
                dp:TextBoxHelper.Title="this addition"
                IsHighLighted="True"
                Text="{Binding RelativeSource={RelativeSource Mode=Self}, Path=(dp:TextBoxHelper.Title)}" />
            <TextBlock Background="{Binding MyBrush}" Text="ddd" />
        </StackPanel>
        <Border
            Grid.Row="1"
            BorderBrush="Yellow"
            BorderThickness="2"
            CornerRadius="10">
            <Border.Background>
                <LinearGradientBrush>
                    <GradientStop Offset="0.1" Color="#d378ff" />
                    <GradientStop Offset="0.5" Color="#7895ff" />
                    <GradientStop Offset="1" Color="#5ad7fd" />
                </LinearGradientBrush>
            </Border.Background>
            <DataGrid
                x:Name="myDataGrid"
                Margin="30"
                AutoGenerateColumns="False"
                Background="Transparent"
                BorderBrush="#CDCDCD"
                CanUserAddRows="False"
                ColumnHeaderHeight="40"
                ColumnWidth="*"
                GridLinesVisibility="None"
                IsReadOnly="True"
                ItemsSource="{Binding MyStudents}"
                RowDetailsVisibilityMode="Collapsed"
                RowHeaderWidth="0"
                RowHeight="40"
                SelectedIndex="{Binding DetailInex}">
                <DataGrid.ColumnHeaderStyle>
                    <Style TargetType="DataGridColumnHeader">
                        <Setter Property="Foreground" Value="#1B1B1B" />
                        <Setter Property="BorderThickness" Value="0,0,0,1" />
                        <Setter Property="FontWeight" Value="Bold" />
                        <Setter Property="Background" Value="Transparent" />
                        <Setter Property="VerticalContentAlignment" Value="Center" />
                    </Style>
                </DataGrid.ColumnHeaderStyle>
                <DataGrid.RowStyle>
                    <Style TargetType="DataGridRow">
                        <Setter Property="BorderThickness" Value="0,0,0,1" />
                    </Style>
                </DataGrid.RowStyle>

                <DataGrid.CellStyle>
                    <Style TargetType="DataGridCell">
                        <Setter Property="VerticalContentAlignment" Value="Center" />
                        <Setter Property="Template">
                            <Setter.Value>
                                <ControlTemplate TargetType="DataGridCell">
                                    <Border Background="{TemplateBinding Background}">
                                        <ContentPresenter VerticalAlignment="Center" Content="{TemplateBinding Content}" />
                                    </Border>
                                </ControlTemplate>
                            </Setter.Value>
                        </Setter>
                    </Style>
                </DataGrid.CellStyle>
                <DataGrid.RowDetailsTemplate>
                    <DataTemplate>
                        <Grid
                            Width="680"
                            Height="300"
                            Margin="10,3,10,3">
                            <DataGrid
                                Margin="30"
                                AutoGenerateColumns="False"
                                Background="White"
                                BorderBrush="#CDCDCD"
                                CanUserAddRows="False"
                                ColumnHeaderHeight="40"
                                ColumnWidth="*"
                                IsReadOnly="True"
                                ItemsSource="{Binding MyCourse}"
                                RowHeaderWidth="0"
                                RowHeight="30">
                                <DataGrid.ColumnHeaderStyle>
                                    <Style TargetType="DataGridColumnHeader">
                                        <Setter Property="Foreground" Value="#1B1B1B" />
                                        <Setter Property="BorderThickness" Value="0,0,0,1" />
                                        <Setter Property="FontWeight" Value="Bold" />
                                        <Setter Property="Background" Value="Transparent" />
                                        <Setter Property="VerticalContentAlignment" Value="Center" />
                                        <Setter Property="HorizontalAlignment" Value="Center" />
                                    </Style>
                                </DataGrid.ColumnHeaderStyle>
                                <DataGrid.RowStyle>
                                    <Style TargetType="DataGridRow">
                                        <Setter Property="BorderThickness" Value="0,0,0,1" />
                                    </Style>
                                </DataGrid.RowStyle>
                                <DataGrid.CellStyle>
                                    <Style TargetType="DataGridCell">
                                        <Setter Property="VerticalContentAlignment" Value="Center" />
                                        <Setter Property="HorizontalAlignment" Value="Center" />
                                        <Setter Property="Template">
                                            <Setter.Value>
                                                <ControlTemplate TargetType="DataGridCell">
                                                    <Border Background="{TemplateBinding Background}">
                                                        <ContentPresenter VerticalAlignment="Center" Content="{TemplateBinding Content}" />
                                                    </Border>
                                                </ControlTemplate>
                                            </Setter.Value>
                                        </Setter>
                                    </Style>
                                </DataGrid.CellStyle>
                                <DataGrid.Columns>
                                    <DataGridTextColumn
                                        Binding="{Binding CourseName}"
                                        Foreground="Black"
                                        Header="课程名称" />
                                    <DataGridTextColumn
                                        Binding="{Binding Teacher}"
                                        Foreground="Black"
                                        Header="教师" />
                                    <DataGridTextColumn
                                        Binding="{Binding Score}"
                                        Foreground="Black"
                                        Header="分数" />
                                    <DataGridTextColumn
                                        Binding="{Binding Classroom}"
                                        Foreground="Black"
                                        Header="教室" />
                                </DataGrid.Columns>
                            </DataGrid>
                        </Grid>
                    </DataTemplate>
                </DataGrid.RowDetailsTemplate>
                <DataGrid.Columns>
                    <DataGridTemplateColumn Width="30">
                        <DataGridTemplateColumn.CellTemplate>
                            <DataTemplate>
                                <ToggleButton
                                    Width="15"
                                    Height="15"
                                    BorderThickness="0"
                                    Command="{Binding RelativeSource={RelativeSource AncestorType=UserControl}, Path=DataContext.DetailCommand}"
                                    CommandParameter="{Binding ElementName=myDataGrid}"
                                    FontFamily="{StaticResource fontAwesome}">
                                    <ToggleButton.Style>
                                        <Style TargetType="ToggleButton">
                                            <Setter Property="FontFamily" Value="{StaticResource fontAwesome}" />
                                            <Setter Property="Template">
                                                <Setter.Value>
                                                    <ControlTemplate TargetType="ToggleButton">
                                                        <Border
                                                            x:Name="border"
                                                            Width="15"
                                                            Height="15">
                                                            <TextBlock
                                                                x:Name="textBlock"
                                                                HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
                                                                VerticalAlignment="{TemplateBinding VerticalContentAlignment}"
                                                                Text="&#xf060;" />
                                                        </Border>
                                                        <ControlTemplate.Triggers>
                                                            <Trigger Property="IsChecked" Value="True">
                                                                <Setter TargetName="textBlock" Property="TextBlock.Text" Value="&#xf062;" />
                                                            </Trigger>
                                                            <Trigger Property="IsChecked" Value="False">
                                                                <Setter TargetName="textBlock" Property="TextBlock.Text" Value="&#xf063;" />
                                                            </Trigger>
                                                        </ControlTemplate.Triggers>
                                                    </ControlTemplate>

                                                </Setter.Value>
                                            </Setter>
                                        </Style>
                                    </ToggleButton.Style>
                                </ToggleButton>
                            </DataTemplate>
                        </DataGridTemplateColumn.CellTemplate>
                    </DataGridTemplateColumn>
                    <DataGridTextColumn
                        Binding="{Binding Id}"
                        Foreground="Black"
                        Header="Id" />
                    <DataGridTextColumn
                        Binding="{Binding Name}"
                        Foreground="Black"
                        Header="姓名" />
                    <DataGridTextColumn
                        Binding="{Binding Age}"
                        Foreground="Black"
                        Header="年龄" />
                </DataGrid.Columns>
            </DataGrid>

        </Border>
    </Grid>
</UserControl>


using CommunityToolkit.Mvvm.ComponentModel;
using CommunityToolkit.Mvvm.Input;
using NavTest.Eneities;
using NavTest.Service.Ioc;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Windows.Controls;
using System.Windows.Media;

namespace NavTest.ViewModels
{
    public partial class Page5ViewModel : ObservableObject, ISingleton
    {
        private readonly PLCModels pLCModelsIoc;

        public Page5ViewModel(PLCModels pLCModelsIoc)
        {
            this.pLCModelsIoc = pLCModelsIoc;
            this.PLCModels = pLCModelsIoc.pLCModels;
            MyBrush = new SolidColorBrush(Colors.Red);

            for (int i = 0; i < 50; i++)
            {
                MyStudents.Add(
                    new()
                    {
                        Id = i,
                        Age = $"{i + 10}",
                        Name = $"Name{i + 5}",
                        MyCourse = new()
                        {
                            new Course()
                            {
                                CourseName = "语文",
                                Teacher = "张老师",
                                Score = i + 60,
                                Classroom = $"教室{i}"
                            },
                            new Course()
                            {
                                CourseName = "英语",
                                Teacher = "李老师",
                                Score = i + 61,
                                Classroom = $"教室{i}"
                            }
                            ,
                            new Course()
                            {
                                CourseName = "数学",
                                Teacher = "张老师",
                                Score = i + 60,
                                Classroom = $"教室{i}"
                            }
                            ,
                            new Course()
                            {
                                CourseName = "语文",
                                Teacher = "张老师",
                                Score = i + 60,
                                Classroom = $"教室{i}"
                            }
                            ,
                            new Course()
                            {
                                CourseName = "语文",
                                Teacher = "张老师",
                                Score = i + 60,
                                Classroom = $"教室{i}"
                            }
                        }
                    }
                );
            }
        }

        [ObservableProperty]
        private ObservableCollection<PLCModel> pLCModels;

        [ObservableProperty]
        private Brush myBrush;

        [ObservableProperty]
        private List<Student> myStudents = new();

        [ObservableProperty]
        private int detailInex;

        [RelayCommand]
        public void Detail(DataGrid dataGrid)
        {
            DataGridRow dataGridRow = (DataGridRow)dataGrid.ItemContainerGenerator.ContainerFromIndex(DetailInex);
            if (dataGridRow.DetailsVisibility == System.Windows.Visibility.Visible)
            {
                dataGridRow.DetailsVisibility = System.Windows.Visibility.Collapsed;
            }
            else
            {
                dataGridRow.DetailsVisibility = System.Windows.Visibility.Visible;
            }
        }
    }
}


    public class Student
    {
        public int Id { get; set; }
        public string? Name { get; set; }
        public string? Description { get; set; }
        public string? Age { get; set; }
        public List<Course>? MyCourse { get; set; }
    }

    public class Course
    {
        public string? CourseName { get; set; }
        public string? Teacher { get; set; }
        public int? Score { get; set; }
        public string? Classroom { get; set; }
    }

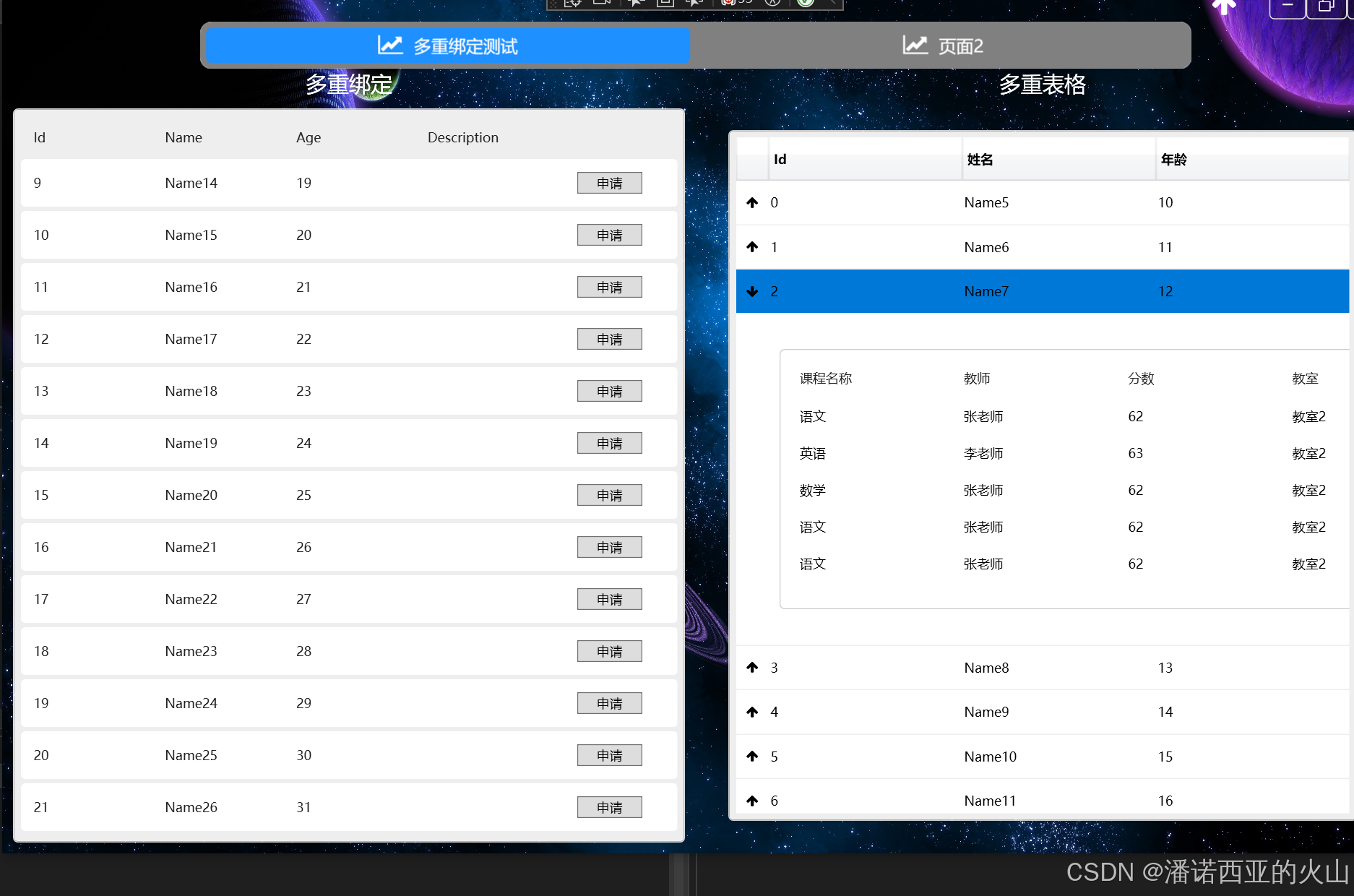

效果:

在这里插入图片描述

20240718修改 箭头上下bug=====

<UserControl
    x:Class="WpfAppTest.Views.MyPageOneView"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:con="clr-namespace:WpfAppTest.Converter"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:i="http://schemas.microsoft.com/xaml/behaviors"
    xmlns:local="clr-namespace:WpfAppTest.Views"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:vm="clr-namespace:WpfAppTest.ViewModels"
    d:DataContext="{d:DesignInstance vm:MyPageOneViewModel}"
    d:DesignHeight="768"
    d:DesignWidth="1024"
    mc:Ignorable="d">
    <UserControl.Resources>
        <con:MultiParamConverter x:Key="MultiParamConverter" />
    </UserControl.Resources>

    <Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition />
            <ColumnDefinition />
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition />
            <RowDefinition />
        </Grid.RowDefinitions>

        <DockPanel Grid.RowSpan="2">
            <TextBlock
                HorizontalAlignment="Center"
                DockPanel.Dock="Top"
                FontSize="20"
                Foreground="White"
                Text="多重绑定" />
            <DataGrid
                Margin="10"
                AlternationCount="2"
                AutoGenerateColumns="False"
                CanUserAddRows="False"
                ColumnHeaderHeight="40"
                ColumnWidth="*"
                ItemsSource="{Binding Stu}"
                RowDetailsVisibilityMode="Collapsed"
                RowHeaderWidth="0">
                <DataGrid.Columns>
                    <DataGridTextColumn Binding="{Binding Id}" Header="Id" />
                    <DataGridTextColumn Binding="{Binding Name}" Header="Name" />
                    <DataGridTextColumn Binding="{Binding Age}" Header="Age" />
                    <DataGridTextColumn Binding="{Binding Description}" Header="Description" />
                    <DataGridTemplateColumn>
                        <DataGridTemplateColumn.CellTemplate>
                            <DataTemplate>
                                <Button
                                    Width="60"
                                    HorizontalAlignment="Center"
                                    Command="{Binding RelativeSource={RelativeSource AncestorType=UserControl}, Path=DataContext.MyButtonCommand}"
                                    CommandParameter="{Binding}"
                                    Content="申请">
                                    <Button.Style>
                                        <Style TargetType="Button">
                                            <Setter Property="IsEnabled">
                                                <Setter.Value>
                                                    <MultiBinding Converter="{StaticResource MultiParamConverter}">
                                                        <Binding Path="Age" />
                                                        <Binding Path="Id" />
                                                    </MultiBinding>
                                                </Setter.Value>
                                            </Setter>
                                        </Style>
                                    </Button.Style>
                                </Button>
                            </DataTemplate>
                        </DataGridTemplateColumn.CellTemplate>
                    </DataGridTemplateColumn>
                </DataGrid.Columns>
            </DataGrid>
        </DockPanel>

        <Grid Grid.RowSpan="2" Grid.Column="1">
            <Grid.RowDefinitions>
                <RowDefinition Height="auto" />
                <RowDefinition />
            </Grid.RowDefinitions>
            <TextBlock
                HorizontalAlignment="Center"
                FontSize="20"
                Foreground="White"
                Text="多重表格" />
            <DataGrid
                x:Name="myDataGrid"
                Grid.Row="1"
                Margin="30"
                AutoGenerateColumns="False"
                BorderBrush="#CDCDCD"
                CanUserAddRows="False"
                ColumnHeaderHeight="40"
                ColumnWidth="*"
                IsReadOnly="True"
                ItemsSource="{Binding Stu}"
                RowHeaderWidth="0"
                RowHeight="40"
                SelectedIndex="{Binding DetailInex}">
                <DataGrid.ColumnHeaderStyle>
                    <Style TargetType="DataGridColumnHeader">
                        <Setter Property="BorderThickness" Value="0,0,0,1" />
                        <Setter Property="FontWeight" Value="Bold" />
                        <Setter Property="VerticalContentAlignment" Value="Center" />
                    </Style>
                </DataGrid.ColumnHeaderStyle>
                <DataGrid.RowStyle>
                    <Style TargetType="DataGridRow">
                        <Setter Property="BorderThickness" Value="0,0,0,1" />
                        <Setter Property="DetailsVisibility" Value="{Binding RelativeSource={RelativeSource AncestorType=UserControl}, Path=DataContext.RowDetailsVisibility}" />
                    </Style>
                </DataGrid.RowStyle>

                <DataGrid.CellStyle>
                    <Style TargetType="DataGridCell">
                        <Setter Property="VerticalContentAlignment" Value="Center" />
                        <Setter Property="Template">
                            <Setter.Value>
                                <ControlTemplate TargetType="DataGridCell">
                                    <Border Background="{TemplateBinding Background}">
                                        <ContentPresenter VerticalAlignment="Center" Content="{TemplateBinding Content}" />
                                    </Border>
                                </ControlTemplate>
                            </Setter.Value>
                        </Setter>
                    </Style>
                </DataGrid.CellStyle>
                <DataGrid.RowDetailsTemplate>
                    <DataTemplate>
                        <Grid
                            Width="680"
                            Height="300"
                            Margin="10,3,10,3">
                            <DataGrid
                                Margin="30"
                                AutoGenerateColumns="False"
                                Background="White"
                                BorderBrush="#CDCDCD"
                                CanUserAddRows="False"
                                ColumnHeaderHeight="40"
                                ColumnWidth="*"
                                IsReadOnly="True"
                                ItemsSource="{Binding MyCourse}"
                                RowHeaderWidth="0"
                                RowHeight="30">

                                <DataGrid.Columns>
                                    <DataGridTextColumn
                                        Binding="{Binding CourseName}"
                                        Foreground="Black"
                                        Header="课程名称" />
                                    <DataGridTextColumn
                                        Binding="{Binding Teacher}"
                                        Foreground="Black"
                                        Header="教师" />
                                    <DataGridTextColumn
                                        Binding="{Binding Score}"
                                        Foreground="Black"
                                        Header="分数" />
                                    <DataGridTextColumn
                                        Binding="{Binding Classroom}"
                                        Foreground="Black"
                                        Header="教室" />
                                </DataGrid.Columns>
                            </DataGrid>
                        </Grid>
                    </DataTemplate>
                </DataGrid.RowDetailsTemplate>
                <DataGrid.Columns>
                    <DataGridTemplateColumn Width="30">
                        <DataGridTemplateColumn.CellTemplate>
                            <DataTemplate>
                                <ToggleButton
                                    x:Name="tgbtn"
                                    Width="15"
                                    Height="15"
                                    BorderThickness="0"
                                    Command="{Binding RelativeSource={RelativeSource AncestorType=UserControl}, Path=DataContext.DetailCommand}"
                                    CommandParameter="{Binding ElementName=myDataGrid}"
                                    Foreground="Black"
                                    Style="{DynamicResource ToggleButtonStyle}">
                                    <ToggleButton.IsChecked>
                                        <Binding Path="DataContext.RowDetailsVisibility" RelativeSource="{RelativeSource AncestorType=UserControl}" />
                                    </ToggleButton.IsChecked>
                                </ToggleButton>
                            </DataTemplate>
                        </DataGridTemplateColumn.CellTemplate>
                    </DataGridTemplateColumn>
                    <DataGridTextColumn
                        Binding="{Binding Id}"
                        Foreground="Black"
                        Header="Id" />
                    <DataGridTextColumn
                        Binding="{Binding Name}"
                        Foreground="Black"
                        Header="姓名" />
                    <DataGridTextColumn
                        Binding="{Binding Age}"
                        Foreground="Black"
                        Header="年龄" />
                </DataGrid.Columns>
            </DataGrid>
        </Grid>

    </Grid>
</UserControl>


using CommunityToolkit.Mvvm.ComponentModel;
using CommunityToolkit.Mvvm.Input;
using System.Collections.ObjectModel;
using System.Windows;
using System.Windows.Controls;
using WpfAppTest.Share.Models;

namespace WpfAppTest.ViewModels
{
    public partial class MyPageOneViewModel : ObservableObject
    {
        [ObservableProperty]
        private string myTest1 = "测试页1";

        public MyPageOneViewModel()
        {
            for (int i = 0; i < 50; i++)
            {
                Stu.Add(
                    new()
                    {
                        Id = i,
                        Age = i + 10,
                        Name = $"Name{i + 5}",
                        MyCourse = new()
                        {
                            new Course()
                            {
                                CourseName = "语文",
                                Teacher = "张老师",
                                Score = i + 60,
                                Classroom = $"教室{i}"
                            },
                            new Course()
                            {
                                CourseName = "英语",
                                Teacher = "李老师",
                                Score = i + 61,
                                Classroom = $"教室{i}"
                            }
                            ,
                            new Course()
                            {
                                CourseName = "数学",
                                Teacher = "张老师",
                                Score = i + 60,
                                Classroom = $"教室{i}"
                            }
                            ,
                            new Course()
                            {
                                CourseName = "语文",
                                Teacher = "张老师",
                                Score = i + 60,
                                Classroom = $"教室{i}"
                            }
                            ,
                            new Course()
                            {
                                CourseName = "语文",
                                Teacher = "张老师",
                                Score = i + 60,
                                Classroom = $"教室{i}"
                            }
                        }
                    }
                );
            }
        }

        [ObservableProperty]
        private ObservableCollection<Student> stu = new();

        [ObservableProperty]
        private int detailInex = -1;

        [ObservableProperty]
        private bool isChecked;

        [ObservableProperty]
        private Visibility rowDetailsVisibility = Visibility.Collapsed;

        [RelayCommand]
        public void MyButton(Student student)
        {
            MessageBox.Show(student.Name);
        }

        [RelayCommand]
        public void Detail(DataGrid dataGrid)
        {
            DataGridRow dataGridRow = (DataGridRow)dataGrid.ItemContainerGenerator.ContainerFromIndex(DetailInex);
            if (dataGridRow.DetailsVisibility == Visibility.Visible)
            {
                IsChecked = false;
                dataGridRow.DetailsVisibility = Visibility.Collapsed;
            }
            else
            {
                IsChecked = true;
                dataGridRow.DetailsVisibility = Visibility.Visible;
            }
        }
    }
}

在这里插入图片描述

wpf表格嵌表格
yang1415832133的博客
09-02 4080
WPF如何实现表格嵌套表格 用wpf实现了一些功能，一直想整理成博客分享，今天开始行动，希望可以对大家有一点点帮助。 今天我先说一下wpf表格嵌套表格的功能，这个功能是我自己想的，可能有更好的方法欢迎大家指导分享！ 首先向在一个列中加入扩展表格的话，我们可以用 DataGridTemplateColumn.CellTemplate 属性来把 DataGrid的列的 cellTemplat...
wpf DataGrid主从表,DataGrid嵌套DataGrid主从结构rowdetailtemplate实现,绑定DataTable数据源,使用Visual Studio 2017
techcai的博客
12-24 5678
wpf DataGrid主从表, DataGrid嵌套DataGrid主从结构rowdetailtemplate实现,绑定DataTable数据源,使用Visual Studio 2017 . 子表绑定DataTable数据源不用转换轻松实现.. 虽然实现了功能,但还有错误,实现显示收缩子表时有闪烁,这与dataset数据库查询慢有关,选择行的单元格时常不能编辑,这和子表的显示折叠不知
Silverlight GridView(DataGrid)嵌套多张表
wushang923的专栏
06-03 2540
可以通过设置DataGrid的HierarchyChildTemplate来实现表的主从嵌套，不过这里设置完成后所有嵌套的表的结构都是一样了，但是我需要不一样的结构，由一下代码完成。 注1：DataGrid的嵌套是直接点击后下拉出来的，平时看不出有嵌套的情况。但是我想在要那种树状结构，所以这里直接用了RAD第三方控件的插件，RadGridView，他们都能实现，只是显示的效果有点不一样。 注2
WPF DataGrid合并单元格（模板列嵌套DataGrid)
09-22
WPF中的DataGrid合并单元格，模板列内嵌套DataGrid，非真正合并
DataGrid嵌套DataGrid
Michael Chan的专栏
08-11 880
1.html代码HTML>    HEAD>        title>DataGridNestingtitle>        meta content="Microsoft Visual Studio .NET 7.1" name="GENERATOR">        meta content="C#" name="CODE_LANGUAGE">        meta content=
WPF应用实战开发指南 - 如何实现DataGrid分组显示及嵌套明细展示效果
最新发布
需要界面开发、IDE工具研发中文教程资料的小伙伴，记得私信我~
04-22 1390
本文主要介绍在WPF应用中如何实现DataGrid的分组显示以及嵌套明细展示效果，欢迎下载一些三方组件体验~
WPF DataGrid 拖拽实现
11-16
本文将深入探讨如何在WPF的DataGrid中实现拖放功能。 首先，我们需要了解WPF中的拖放操作涉及到的主要类和事件。`DragDrop`是WPF提供的一个静态类，它提供了处理拖放操作的方法和事件。主要涉及的事件有`DragEnter`...
wpf datagrid 折叠与展开的代码实现
05-03
在Windows Presentation Foundation (WPF) 中，`DataGrid` 是一个强大的控件，常用于显示和编辑表格数据。本教程将详细介绍如何实现`DataGrid`的行细节折叠与展开功能，以便展示更多详细信息，例如订单的子项详情。...
  如何在WPF 表格中嵌套按钮
weixin_44543308的博客
08-28 1253
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 开发工具与关键技术：WPF 表格嵌套按钮 作者：沈金凤 年级：18C# 撰写日期：2020年08月28日 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 一般在WPF中，表格中只是有表格数据，但今天我们来卡下如何在表格数据中添加button按钮，首先我们要在用户控件中写上表格中的表头字段如下...
[WPF](小结2)DataGrid嵌套DataGrid(也叫主从表)
weixin_30502965的博客
06-12 1149
DataGrid嵌套DataGrid(也叫主从表),效果为:单击表中某项后,从中间展开一个新表,总表绑定的是题目类大集合,从表绑定的是对应的选项集合. 第一:选构建题目类,再建一个选项类,题目类集合中的每个项包含一个选项类集合,即数组嵌套数组,C#语句如下: (为方便看清语句,类直接写在主程序中) C#代码如下： using System; using System.Coll...
WPF DataGrid合并行
07-06
WPF DataGrid合并行
DataGrid里面嵌套DataGrid（重叠嵌套），鼠标滚动优化方案
04-21
【注意，已经出2.0DataGrid.....啦】 有的时候，会遇到DataGrid里面嵌套DataGrid（重叠嵌套），然后里面的鼠标滚轮无法响应外面的滚动，为此记录下解决方案，详情请移步：https://blog.youkuaiyun.com/u010438205/article/details/105659330
实现DataGrid多层嵌套.doc
06-21
实现DataGrid多层嵌套.doc
WPF Datagrid 合并单元格
01-16
WPF Datagrid 合并单元格 复杂表头 支持位置拖动、 列宽度拖动，组内列会按比例自动调整 ；
wpf-DataGrid用法
Byronloong 的博客
04-06 682
<DataGrid x:Name="DataGrd_FeelerPin_List" ItemsSource="{Binding GridModelList}" AutoGenerateColumns="False" CanUserAddRows="False" SelectionUnit="Cell" EnableRowVirtualization="True" GridLinesVisibility="All".
DataGrid嵌套
stonec的专栏
05-14 511
http://singlepine.cnblogs.com/articles/312975.html
WPF学习之使用DataGrid
weixin_30600503的博客
10-25 401
在WinForm或者WebForm中我们有一大批的Grid控件供我们使用，DataGridView,GridView,Repeater等等，这样的网格数据空间给我们提供了极大的方便去让数据以可定义的方式显示并提供诸如导航，分页，排序，过滤，数据更新等附加操作 ，而程序员所需要付出的却很少。但在WPF中我们通常并不具备这么优越的网格控件，而要做到这些除了用Grid.RowDefinitions...
WPF中DataGrid模板列内嵌套技巧及虚拟合并单元格
通过上述分析，我们可以得出结论，虽然在WPF DataGrid中无法实现真正的嵌套DataGrid单元格合并，但通过一些视觉上的调整和样式同步，我们可以有效地模拟出合并单元格的视觉效果。这要求开发者对DataGrid的样式和布局...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

潘诺西亚的火山

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
