JavaFX WebView与cefpython显示ECharts图对比

概况

JavaFX WebView和cefpython都提供了在桌面程序中显示网页的功能，但是cefpython显示效果更优。其中cefpython基于Chromium Embedded Framework (CEF)提供了更好的网页显示支持，并能嵌入到Qt / GTK / wxPython构建的窗体中。

作者从Echart实例网站(https://gallery.echartsjs.com/)上找了四个例子，分别用JavaFX WebView和cefpython去加载，得到的效果图见对比。两种库显示效果对比如下表：

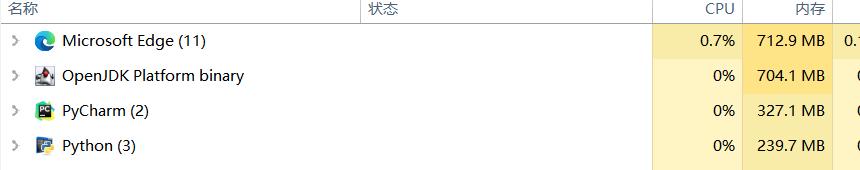

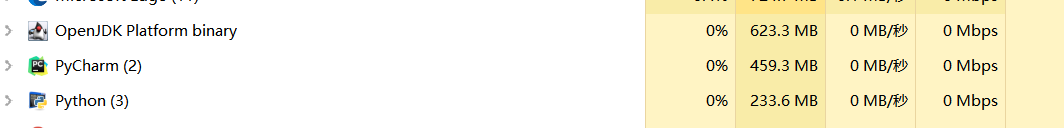

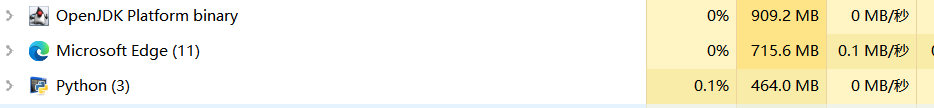

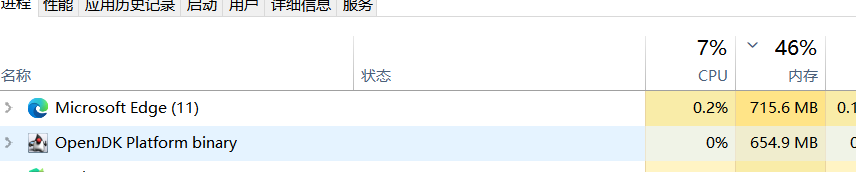

示例	显示对象	JavaFX WebView	cefpython	内存 MB (JavaFX WebView : cefpython : chrome)

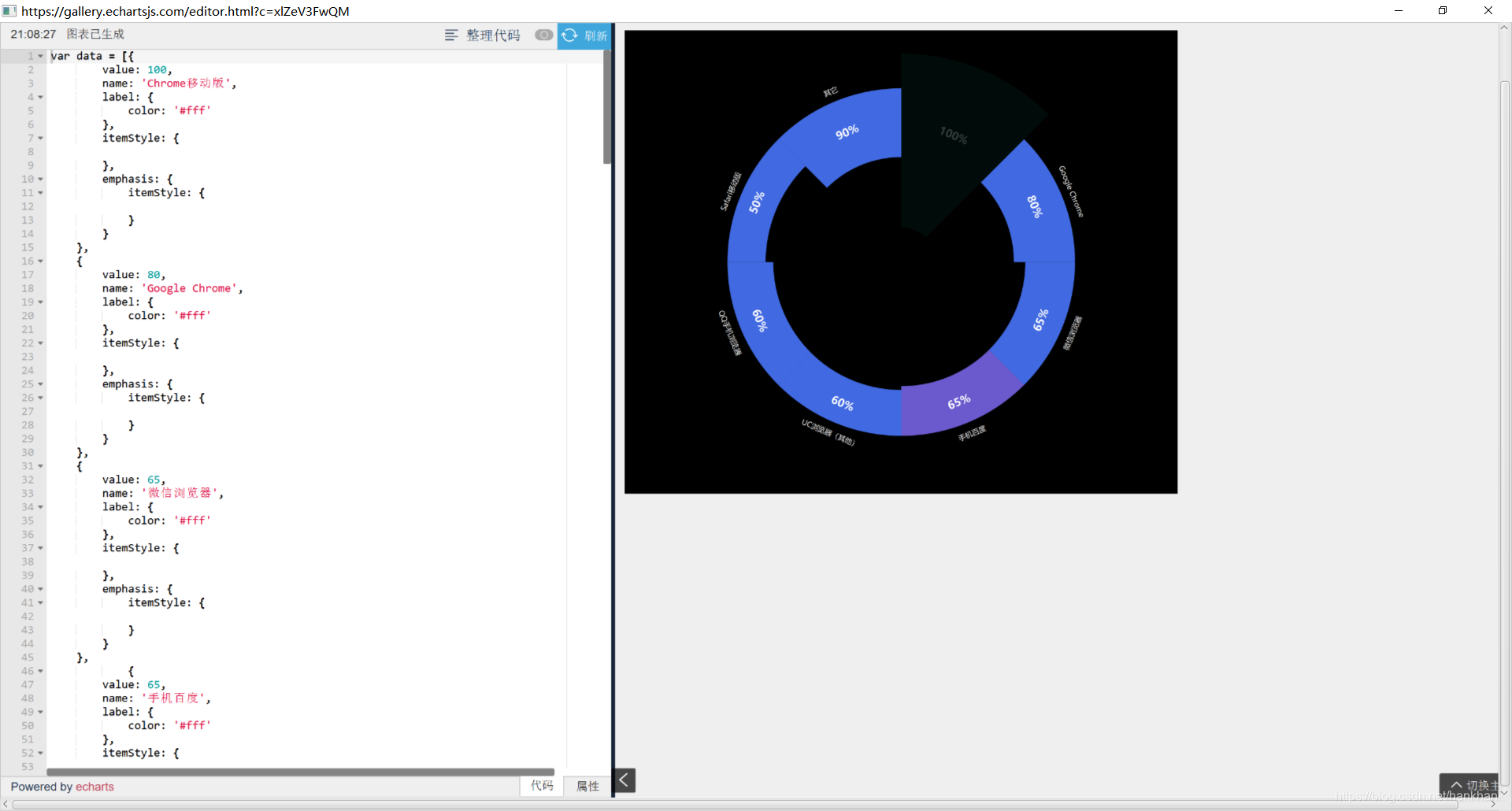

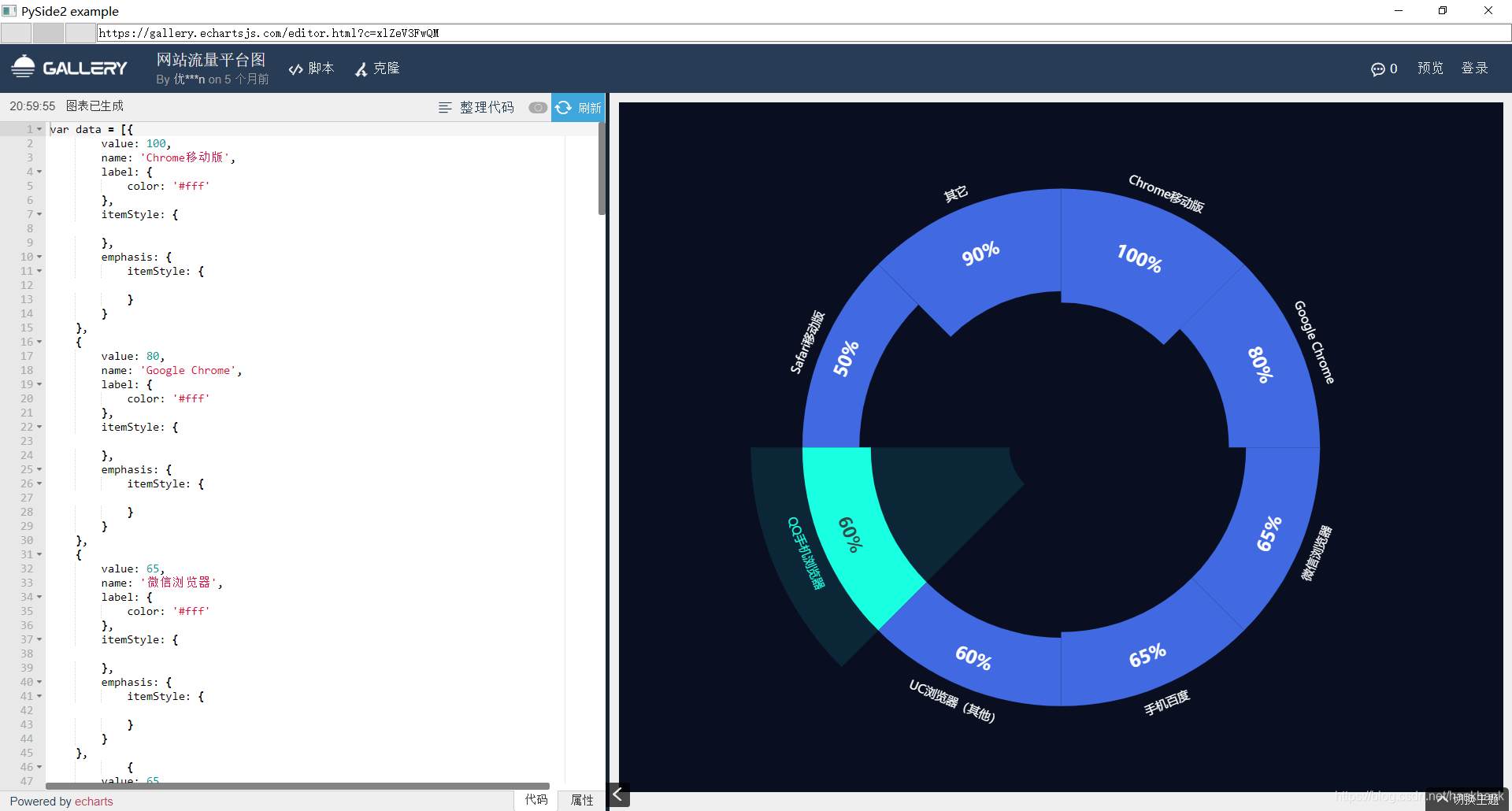

案例1	极坐标柱状图	有些效果显示不了，分辨率低	正常(同chrome对比)	620 : 234 : 390

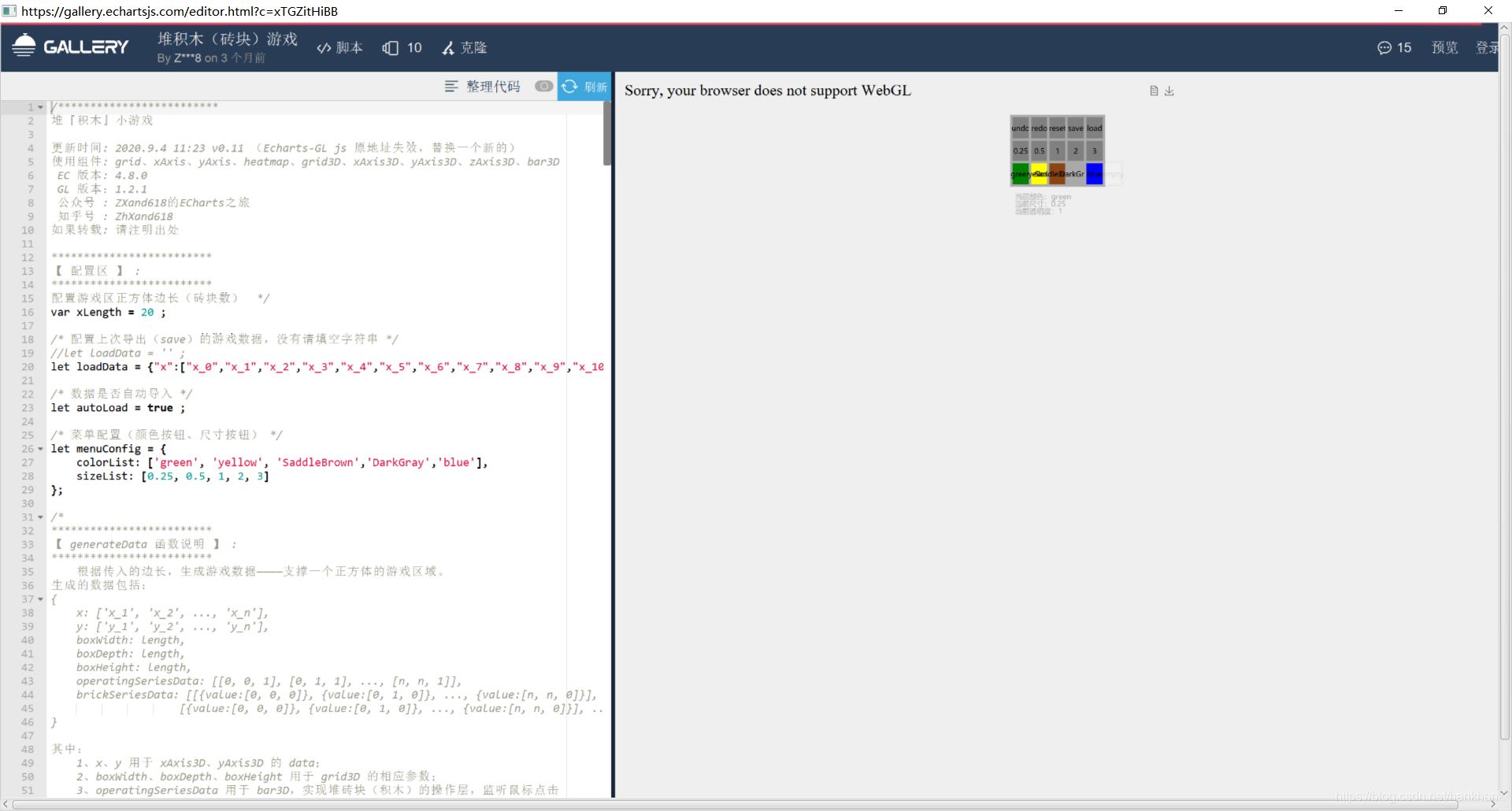

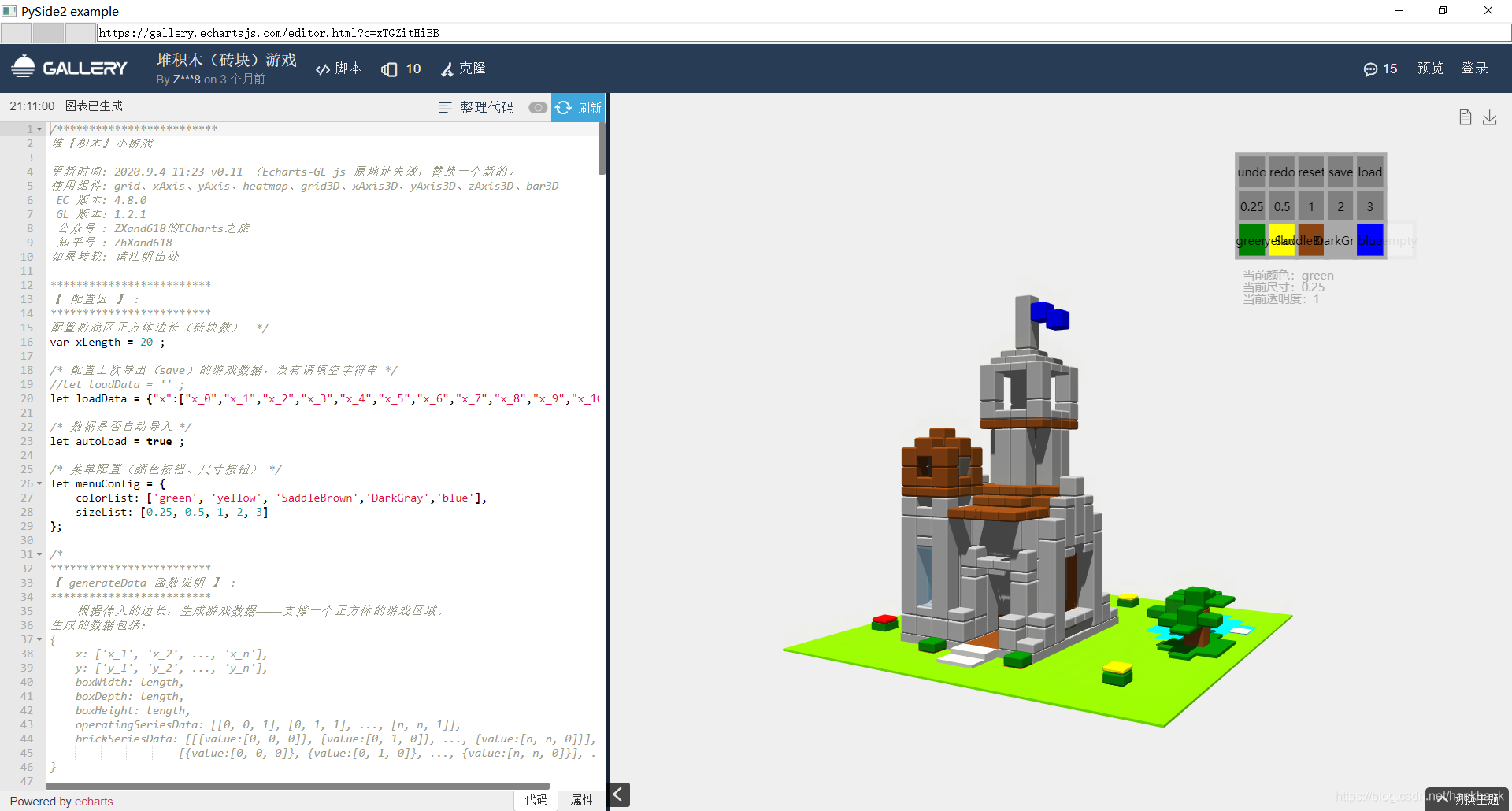

案例2	城堡	不支持WebGL	正常	909 : 715 : 635

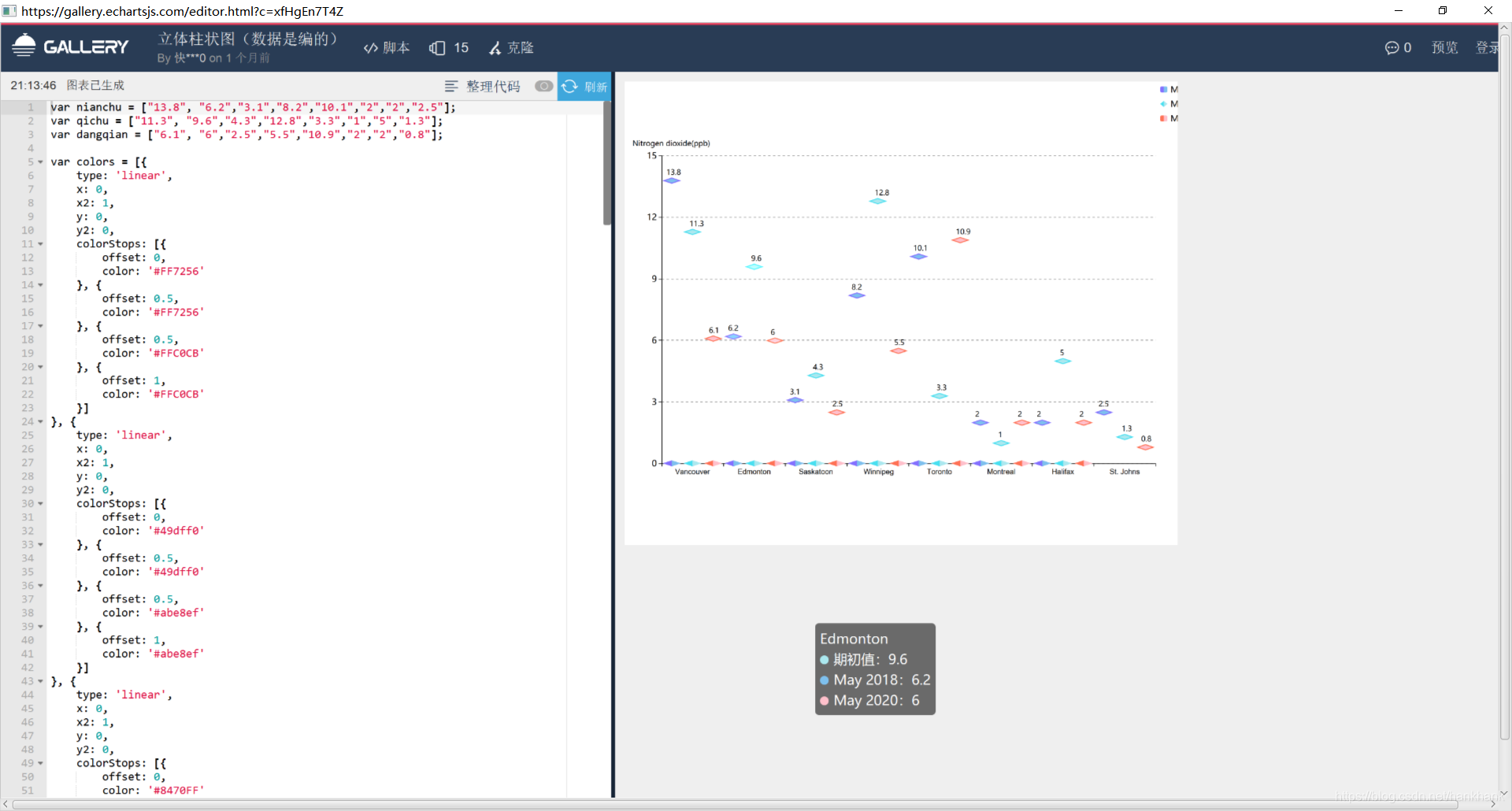

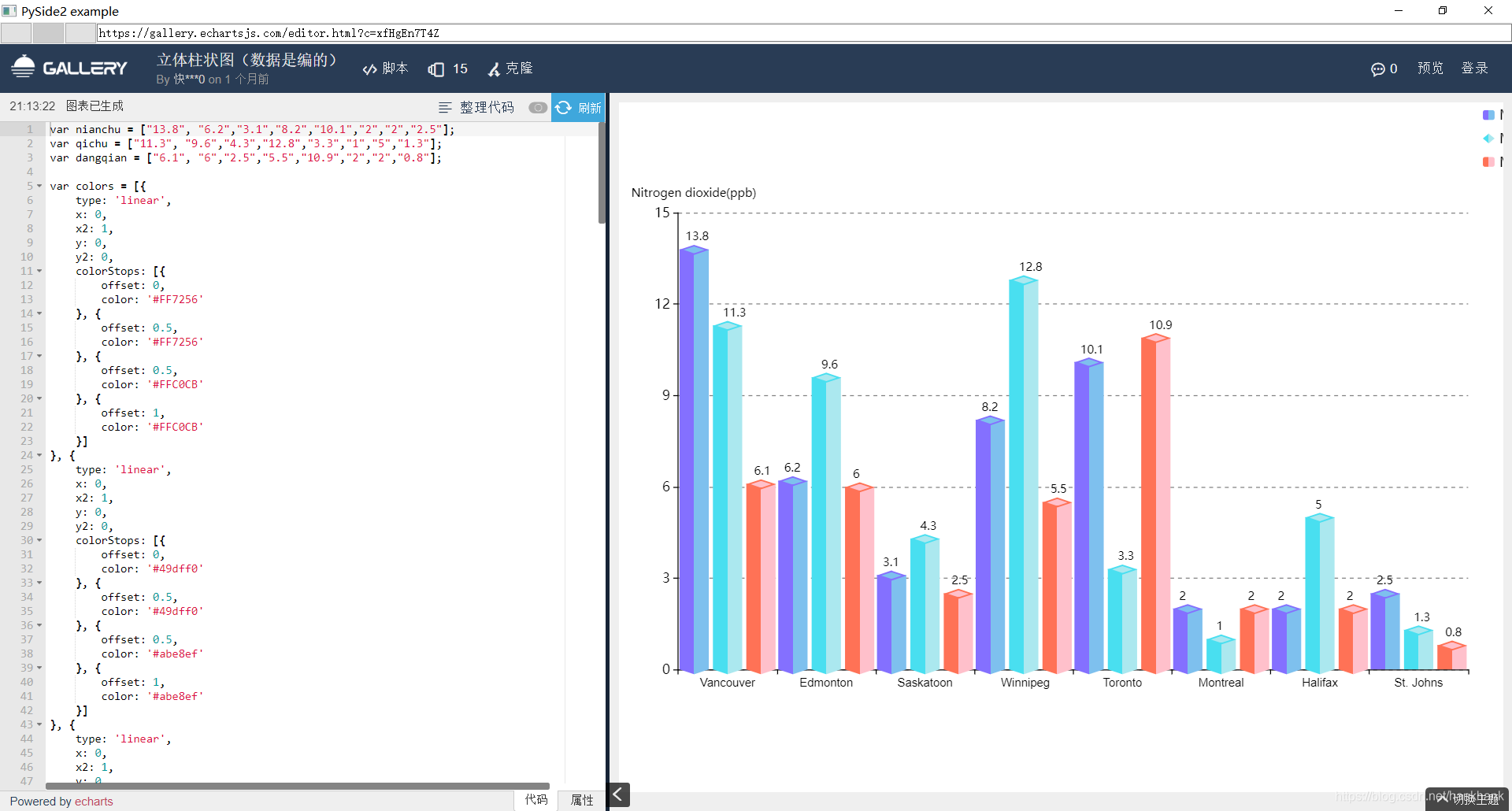

案例3	立体柱状图	显示不全	正常	704 : 240 : 430

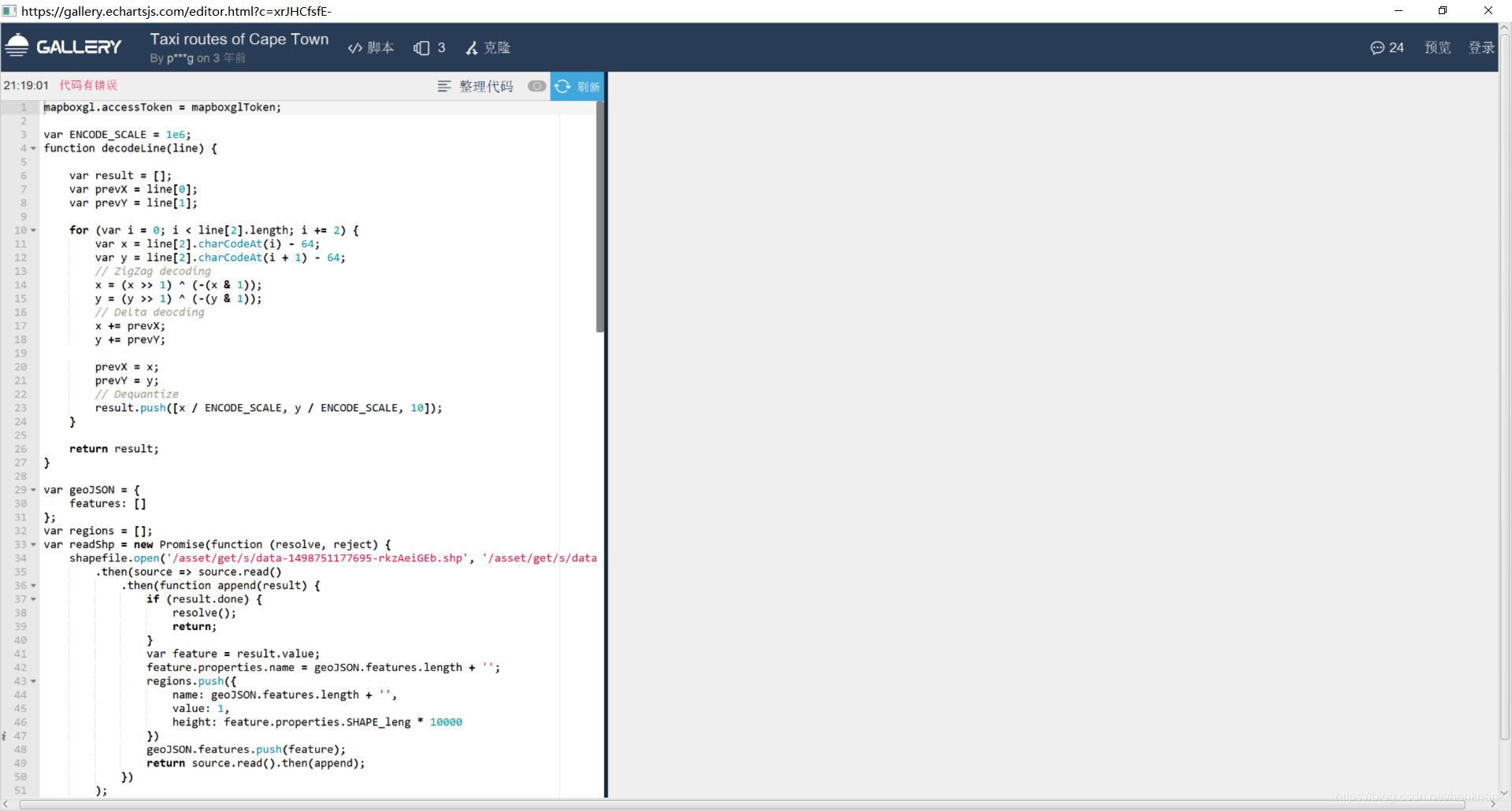

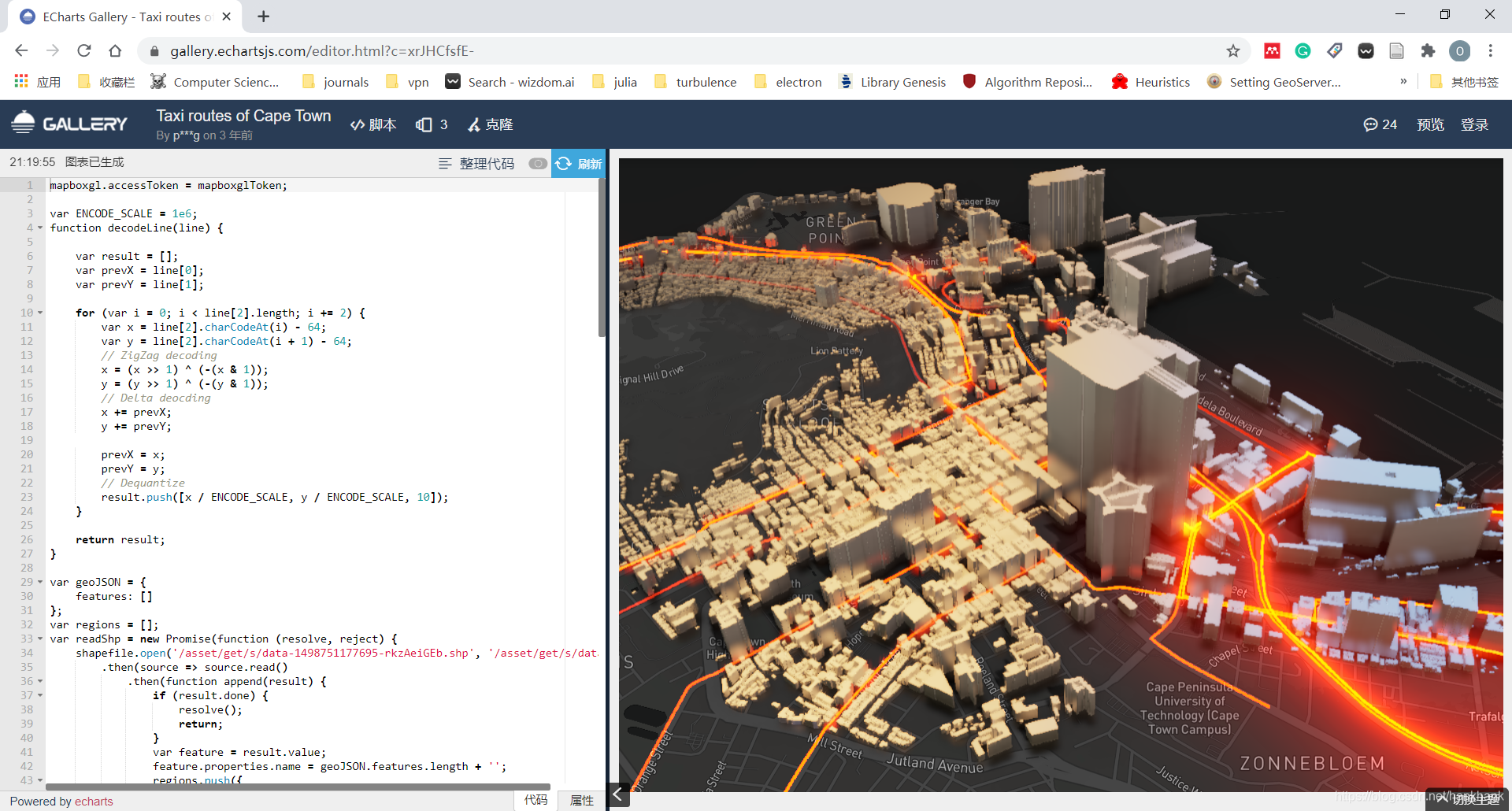

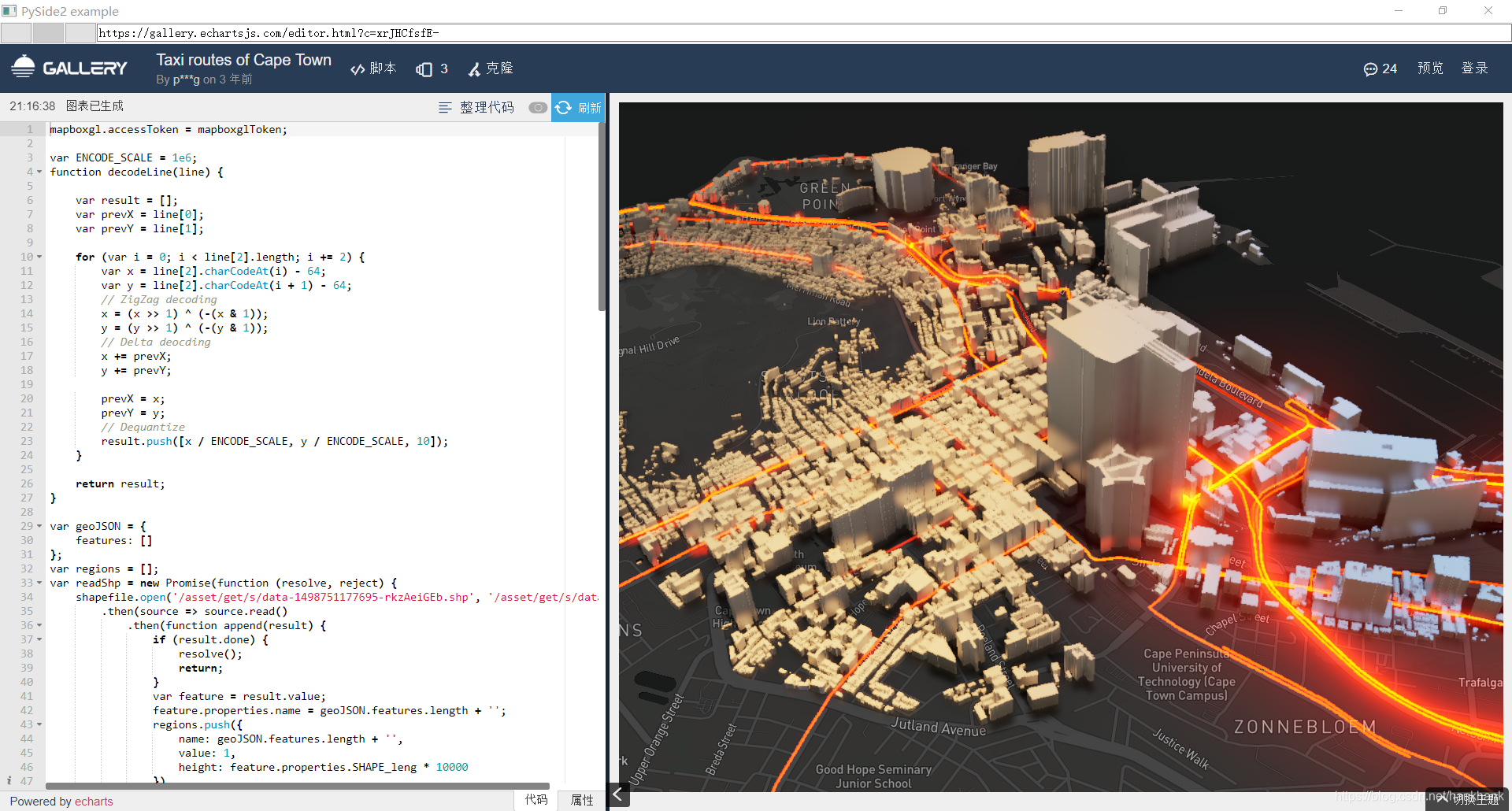

案例4	出租车立体流动热图	不显示	正常	665 : 1681 : 1510

从上表可以看出，JavaFX WebView不支持一些显示效果和WebGL，且在有显示时耗费的内除大约时cefpython的1.2~3倍。在所示案例中cefpython都能正常显示效果图，且加载速度远快于JavaFX WebView。需要指出cefpython后端采用c++实现与chrome内存消耗类似。

示例代码

JavaFX WebView

import javafx.application.Application;
import javafx.beans.value.ChangeListener;
import javafx.beans.value.ObservableValue;
import javafx.concurrent.Worker;
import javafx.concurrent.Worker.State;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.control.ScrollPane;
import javafx.scene.layout.StackPane;

import javafx.scene.web.WebEngine;
import javafx.scene.web.WebView;
import javafx.stage.Stage;
//  w  w  w.j av a2s  . c  o m
public class Main extends Application {
    @Override
    public void start(final Stage stage) {
        stage.setWidth(400);
        stage.setHeight(500);
        Scene scene = new Scene(new Group());


        final WebView browser = new WebView();
        final WebEngine webEngine = browser.getEngine();

        ScrollPane scrollPane = new ScrollPane(); //ScrollPane scrollPane = new ScrollPane();
        scrollPane.setContent(browser);

        browser.prefHeightProperty().bind(stage.heightProperty());
        browser.prefWidthProperty().bind(stage.widthProperty());

        webEngine.getLoadWorker().stateProperty()
                .addListener(new ChangeListener<State>() {
                    @Override
                    public void changed(ObservableValue ov, State oldState, State newState) {

                        if (newState == Worker.State.SUCCEEDED) {
                            stage.setTitle(webEngine.getLocation());
                        }

                    }
                });
        webEngine.load("https://gallery.echartsjs.com/");

        scene.setRoot(scrollPane);

        stage.setScene(scene);
        stage.show();
    }

    public static void main(String[] args) {
        launch(args);
    }
}

cefpython


from cefpython3 import cefpython as cef
import ctypes
import os
import platform
import sys

# GLOBALS
PYQT4 = False
PYQT5 = False
PYSIDE = False
PYSIDE2 = True # False
sys.argv.append("pyside2")

if "pyqt4" in sys.argv:
    PYQT4 = True
    # noinspection PyUnresolvedReferences
    from PyQt4.QtGui import *
    # noinspection PyUnresolvedReferences
    from PyQt4.QtCore import *
elif "pyqt5" in sys.argv:
    PYQT5 = True
    # noinspection PyUnresolvedReferences
    from PyQt5.QtGui import *
    # noinspection PyUnresolvedReferences
    from PyQt5.QtCore import *
    # noinspection PyUnresolvedReferences
    from PyQt5.QtWidgets import *
elif "pyside" in sys.argv:
    PYSIDE = True
    # noinspection PyUnresolvedReferences
    import PySide
    # noinspection PyUnresolvedReferences
    from PySide import QtCore
    # noinspection PyUnresolvedReferences
    from PySide.QtGui import *
    # noinspection PyUnresolvedReferences
    from PySide.QtCore import *
elif "pyside2" in sys.argv:
    PYSIDE2 = True
    # noinspection PyUnresolvedReferences
    import PySide2
    # noinspection PyUnresolvedReferences
    from PySide2 import QtCore
    # noinspection PyUnresolvedReferences
    from PySide2.QtGui import *
    # noinspection PyUnresolvedReferences
    from PySide2.QtCore import *
    # noinspection PyUnresolvedReferences
    from PySide2.QtWidgets import *
else:
    print("USAGE:")
    print("  qt.py pyqt4")
    print("  qt.py pyqt5")
    print("  qt.py pyside")
    print("  qt.py pyside2")
    sys.exit(1)

# Fix for PyCharm hints warnings when using static methods
WindowUtils = cef.WindowUtils()

# Platforms
WINDOWS = (platform.system() == "Windows")
LINUX = (platform.system() == "Linux")
MAC = (platform.system() == "Darwin")

# Configuration
WIDTH = 800
HEIGHT = 600

# OS differences
CefWidgetParent = QWidget
if LINUX and (PYQT4 or PYSIDE):
    # noinspection PyUnresolvedReferences
    CefWidgetParent = QX11EmbedContainer


def main():
    check_versions()
    sys.excepthook = cef.ExceptHook  # To shutdown all CEF processes on error
    settings = {}
    if MAC:
        # Issue #442 requires enabling message pump on Mac
        # in Qt example. Calling cef.DoMessageLoopWork in a timer
        # doesn't work anymore.
        settings["external_message_pump"] = True

    cef.Initialize(settings)
    app = CefApplication(sys.argv)
    main_window = MainWindow()
    main_window.show()
    main_window.activateWindow()
    main_window.raise_()
    app.exec_()
    if not cef.GetAppSetting("external_message_pump"):
        app.stopTimer()
    del main_window  # Just to be safe, similarly to "del app"
    del app  # Must destroy app object before calling Shutdown
    cef.Shutdown()


def check_versions():
    print("[qt.py] CEF Python {ver}".format(ver=cef.__version__))
    print("[qt.py] Python {ver} {arch}".format(
            ver=platform.python_version(), arch=platform.architecture()[0]))
    if PYQT4 or PYQT5:
        print("[qt.py] PyQt {v1} (qt {v2})".format(
              v1=PYQT_VERSION_STR, v2=qVersion()))
    elif PYSIDE:
        print("[qt.py] PySide {v1} (qt {v2})".format(
              v1=PySide.__version__, v2=QtCore.__version__))
    elif PYSIDE2:
        print("[qt.py] PySide2 {v1} (qt {v2})".format(
              v1=PySide2.__version__, v2=QtCore.__version__))
    # CEF Python version requirement
    assert cef.__version__ >= "55.4", "CEF Python v55.4+ required to run this"


class MainWindow(QMainWindow):
    def __init__(self):
        # noinspection PyArgumentList
        super(MainWindow, self).__init__(None)
        # Avoids crash when shutting down CEF (issue #360)
        if PYSIDE:
            self.setAttribute(Qt.WA_DeleteOnClose, True)
        self.cef_widget = None
        self.navigation_bar = None
        if PYQT4:
            self.setWindowTitle("PyQt4 example")
        elif PYQT5:
            self.setWindowTitle("PyQt5 example")
        elif PYSIDE:
            self.setWindowTitle("PySide example")
        elif PYSIDE2:
            self.setWindowTitle("PySide2 example")
        self.setFocusPolicy(Qt.StrongFocus)
        self.setupLayout()

    def setupLayout(self):
        self.resize(WIDTH, HEIGHT)
        self.cef_widget = CefWidget(self)
        self.navigation_bar = NavigationBar(self.cef_widget)
        layout = QGridLayout()
        # noinspection PyArgumentList
        layout.addWidget(self.navigation_bar, 0, 0)
        # noinspection PyArgumentList
        layout.addWidget(self.cef_widget, 1, 0)
        layout.setContentsMargins(0, 0, 0, 0)
        layout.setSpacing(0)
        layout.setRowStretch(0, 0)
        layout.setRowStretch(1, 1)
        # noinspection PyArgumentList
        frame = QFrame()
        frame.setLayout(layout)
        self.setCentralWidget(frame)

        if (PYSIDE2 or PYQT5) and WINDOWS:
            # On Windows with PyQt5 main window must be shown first
            # before CEF browser is embedded, otherwise window is
            # not resized and application hangs during resize.
            self.show()

        # Browser can be embedded only after layout was set up
        self.cef_widget.embedBrowser()

        if (PYSIDE2 or PYQT5) and LINUX:
            # On Linux with PyQt5 the QX11EmbedContainer widget is
            # no more available. An equivalent in Qt5 is to create
            # a hidden window, embed CEF browser in it and then
            # create a container for that hidden window and replace
            # cef widget in the layout with the container.
            # noinspection PyUnresolvedReferences, PyArgumentList
            self.container = QWidget.createWindowContainer(
                    self.cef_widget.hidden_window, parent=self)
            # noinspection PyArgumentList
            layout.addWidget(self.container, 1, 0)

    def closeEvent(self, event):
        # Close browser (force=True) and free CEF reference
        if self.cef_widget.browser:
            self.cef_widget.browser.CloseBrowser(True)
            self.clear_browser_references()

    def clear_browser_references(self):
        # Clear browser references that you keep anywhere in your
        # code. All references must be cleared for CEF to shutdown cleanly.
        self.cef_widget.browser = None


class CefWidget(CefWidgetParent):
    def __init__(self, parent=None):
        # noinspection PyArgumentList
        super(CefWidget, self).__init__(parent)
        self.parent = parent
        self.browser = None
        self.hidden_window = None  # Required for PyQt5 on Linux
        self.show()

    def focusInEvent(self, event):
        # This event seems to never get called on Linux, as CEF is
        # stealing all focus due to Issue #284.
        if cef.GetAppSetting("debug"):
            print("[qt.py] CefWidget.focusInEvent")
        if self.browser:
            if WINDOWS:
                WindowUtils.OnSetFocus(self.getHandle(), 0, 0, 0)
            self.browser.SetFocus(True)

    def focusOutEvent(self, event):
        # This event seems to never get called on Linux, as CEF is
        # stealing all focus due to Issue #284.
        if cef.GetAppSetting("debug"):
            print("[qt.py] CefWidget.focusOutEvent")
        if self.browser:
            self.browser.SetFocus(False)

    def embedBrowser(self):
        if (PYSIDE2 or PYQT5) and LINUX:
            # noinspection PyUnresolvedReferences
            self.hidden_window = QWindow()
        window_info = cef.WindowInfo()
        rect = [0, 0, self.width(), self.height()]
        window_info.SetAsChild(self.getHandle(), rect)
        self.browser = cef.CreateBrowserSync(window_info,
                                             url="https://gallery.echartsjs.com") #file:///F:/programming/python/TileMapBase/TileMapBase-master/tutorial/html/echart-test.html
                                            #  url="https://www.google.com/")
        self.browser.SetClientHandler(LoadHandler(self.parent.navigation_bar))
        self.browser.SetClientHandler(FocusHandler(self))

    def getHandle(self):
        if self.hidden_window:
            # PyQt5 on Linux
            return int(self.hidden_window.winId())
        try:
            # PyQt4 and PyQt5
            return int(self.winId())
        except:
            # PySide:
            # | QWidget.winId() returns <PyCObject object at 0x02FD8788>
            # | Converting it to int using ctypes.
            if sys.version_info[0] == 2:
                # Python 2
                ctypes.pythonapi.PyCObject_AsVoidPtr.restype = (
                        ctypes.c_void_p)
                ctypes.pythonapi.PyCObject_AsVoidPtr.argtypes = (
                        [ctypes.py_object])
                return ctypes.pythonapi.PyCObject_AsVoidPtr(self.winId())
            else:
                # Python 3
                ctypes.pythonapi.PyCapsule_GetPointer.restype = (
                        ctypes.c_void_p)
                ctypes.pythonapi.PyCapsule_GetPointer.argtypes = (
                        [ctypes.py_object])
                return ctypes.pythonapi.PyCapsule_GetPointer(
                        self.winId(), None)

    def moveEvent(self, _):
        self.x = 0
        self.y = 0
        if self.browser:
            if WINDOWS:
                WindowUtils.OnSize(self.getHandle(), 0, 0, 0)
            elif LINUX:
                self.browser.SetBounds(self.x, self.y,
                                       self.width(), self.height())
            self.browser.NotifyMoveOrResizeStarted()

    def resizeEvent(self, event):
        size = event.size()
        if self.browser:
            if WINDOWS:
                WindowUtils.OnSize(self.getHandle(), 0, 0, 0)
            elif LINUX:
                self.browser.SetBounds(self.x, self.y,
                                       size.width(), size.height())
            self.browser.NotifyMoveOrResizeStarted()


class CefApplication(QApplication):
    def __init__(self, args):
        super(CefApplication, self).__init__(args)
        if not cef.GetAppSetting("external_message_pump"):
            self.timer = self.createTimer()
        self.setupIcon()

    def createTimer(self):
        timer = QTimer()
        # noinspection PyUnresolvedReferences
        timer.timeout.connect(self.onTimer)
        timer.start(10)
        return timer

    def onTimer(self):
        cef.MessageLoopWork()

    def stopTimer(self):
        # Stop the timer after Qt's message loop has ended
        self.timer.stop()

    def setupIcon(self):
        icon_file = os.path.join(os.path.abspath(os.path.dirname(__file__)),
                                 "resources", "{0}.png".format(sys.argv[1]))
        if os.path.exists(icon_file):
            self.setWindowIcon(QIcon(icon_file))


class LoadHandler(object):
    def __init__(self, navigation_bar):
        self.initial_app_loading = True
        self.navigation_bar = navigation_bar

    def OnLoadingStateChange(self, **_):
        self.navigation_bar.updateState()

    def OnLoadStart(self, browser, **_):
        self.navigation_bar.url.setText(browser.GetUrl())
        if self.initial_app_loading:
            self.navigation_bar.cef_widget.setFocus()
            # Temporary fix no. 2 for focus issue on Linux (Issue #284)
            if LINUX:
                print("[qt.py] LoadHandler.OnLoadStart:"
                      " keyboard focus fix no. 2 (Issue #284)")
                browser.SetFocus(True)
            self.initial_app_loading = False


class FocusHandler(object):
    def __init__(self, cef_widget):
        self.cef_widget = cef_widget

    def OnTakeFocus(self, **_):
        if cef.GetAppSetting("debug"):
            print("[qt.py] FocusHandler.OnTakeFocus")

    def OnSetFocus(self, **_):
        if cef.GetAppSetting("debug"):
            print("[qt.py] FocusHandler.OnSetFocus")

    def OnGotFocus(self, browser, **_):
        if cef.GetAppSetting("debug"):
            print("[qt.py] FocusHandler.OnGotFocus")
        self.cef_widget.setFocus()
        # Temporary fix no. 1 for focus issues on Linux (Issue #284)
        if LINUX:
            browser.SetFocus(True)


class NavigationBar(QFrame):
    def __init__(self, cef_widget):
        # noinspection PyArgumentList
        super(NavigationBar, self).__init__()
        self.cef_widget = cef_widget

        # Init layout
        layout = QGridLayout()
        layout.setContentsMargins(0, 0, 0, 0)
        layout.setSpacing(0)

        # Back button
        self.back = self.createButton("back")
        # noinspection PyUnresolvedReferences
        self.back.clicked.connect(self.onBack)
        # noinspection PyArgumentList
        layout.addWidget(self.back, 0, 0)

        # Forward button
        self.forward = self.createButton("forward")
        # noinspection PyUnresolvedReferences
        self.forward.clicked.connect(self.onForward)
        # noinspection PyArgumentList
        layout.addWidget(self.forward, 0, 1)

        # Reload button
        self.reload = self.createButton("reload")
        # noinspection PyUnresolvedReferences
        self.reload.clicked.connect(self.onReload)
        # noinspection PyArgumentList
        layout.addWidget(self.reload, 0, 2)

        # Url input
        self.url = QLineEdit("")
        # noinspection PyUnresolvedReferences
        self.url.returnPressed.connect(self.onGoUrl)
        # noinspection PyArgumentList
        layout.addWidget(self.url, 0, 3)

        # Layout
        self.setLayout(layout)
        self.updateState()

    def onBack(self):
        if self.cef_widget.browser:
            self.cef_widget.browser.GoBack()

    def onForward(self):
        if self.cef_widget.browser:
            self.cef_widget.browser.GoForward()

    def onReload(self):
        if self.cef_widget.browser:
            self.cef_widget.browser.Reload()

    def onGoUrl(self):
        if self.cef_widget.browser:
            self.cef_widget.browser.LoadUrl(self.url.text())

    def updateState(self):
        browser = self.cef_widget.browser
        if not browser:
            self.back.setEnabled(False)
            self.forward.setEnabled(False)
            self.reload.setEnabled(False)
            self.url.setEnabled(False)
            return
        self.back.setEnabled(browser.CanGoBack())
        self.forward.setEnabled(browser.CanGoForward())
        self.reload.setEnabled(True)
        self.url.setEnabled(True)
        self.url.setText(browser.GetUrl())

    def createButton(self, name):
        resources = os.path.join(os.path.abspath(os.path.dirname(__file__)),
                                 "resources")
        pixmap = QPixmap(os.path.join(resources, "{0}.png".format(name)))
        icon = QIcon(pixmap)
        button = QPushButton()
        button.setIcon(icon)
        button.setIconSize(pixmap.rect().size())
        return button

if __name__ == '__main__':
    main()
