决策树---C4.5

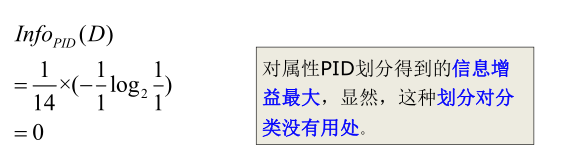

   C4.5 与之前说的ID3以及后续要介绍的CART相比最基本的区别就是分裂属性的选择依据不同，ID3主要根据信息增益来划分决策树，但ID3本身存在一个问题，那就是划分偏向与属性内部很纯的属性，如个人的ID信息，条件熵为0，则信息增益最大，但这样划分没有任何意义，一定会发生过拟合，所以一定要注意在训练过程中，选择合适的特征建模和训练。



   C4.5 和ID3相比主要有以下优点

1，选择信息增益比代替信息增益来进行属性划分

2，一定程度上解决了数据缺失值的问题

3，提出了连续值属性的划分方法

4，提出了减枝的概念（未真正实现）

2.5.1 信息增益比

我们知道信息增益会偏向取值较多的特征，使用信息增益比可以对这一问题进行校正。

定义：特征A对训练数据集D的信息增益比GainRatio(D,A)定义为其信息增益Gain(D,A)与训练数据集D的经验熵H(D)之比：

代码实现

# _*_ coding:utf-8 _*_
import numpy as np
import math
import sys
import operator
def createDataSet():
    """
    outlook->  0: sunny | 1: overcast | 2: rain
    temperature-> 0: hot | 1: mild | 2: cool
    humidity-> 0: high | 1: normal
    windy-> 0: false | 1: true
    """
    dataSet = np.array([[0, 0, 0, 0, 'N'],
                       [0, 0, 0, 1, 'N'],
                       [1, 0, 0, 0, 'Y'],
                       [2, 1, 0, 0, 'Y'],
                       [2, 2, 1, 0, 'Y'],
                       [2, 2, 1, 1, 'N'],
                       [1, 2, 1, 1, 'Y']])
    labels = ['outlook', 'temperature', 'humidity', 'windy']
    return dataSet, labels

def createTestSet():
    """
    outlook->  0: sunny | 1: overcast | 2: rain
    temperature-> 0: hot | 1: mild | 2: cool
    humidity-> 0: high | 1: normal
    windy-> 0: false | 1: true
    """
    testSet = np.array([[0, 1, 0, 0],
               [0, 2, 1, 0],
               [2, 1, 1, 0],
               [0, 1, 1, 1],
               [1, 1, 0, 1],
               [1, 0, 1, 0],
               [2, 1, 0, 1]])
    return testSet

#信息熵计算
def cal_entropy(dataset):
    classlabel = dataset[:,-1]
    label_count = {}
    for i in range(classlabel.size):
        label = classlabel[i]
  #      label_count[label]+=1
        label_count[label] = label_count.get(label,0)+1
    ent=0
    for k,v in label_count.items():
        ent+=-v/classlabel.size*np.log2(v/classlabel.size)
    return ent
#信息熵计算
def cal_ent(data_set):
    num = len(data_set)
    label = data_set[:,-1]
    label_class={}
    for l in label:
        if l not in label_class.keys():
            label_class[l]=1
        else:
            label_class[l]+=1
    ret = 0.0
    for k,v in label_class.items():
        prob = label_class[k]/num
        ret -= prob*math.log(prob,2)
    return ret
#计算信息增益率
def cal_split_info(dataset,i):
    samples = [sample[i] for sample in dataset]
    num = len(data_set)
    label_dic = {}
    prob = 0
    for s in samples:
        if s not in label_dic.keys():
            label_dic[s] = 0
        label_dic[s]+=1
    for k,v in label_dic.items():
        prob -= (v/num)*math.log(v/num)
    return prob

def chooseBestFeature(data_set):

    print(data_set)
    numfeatures = len(data_set[0])-1
    Entropy = cal_ent(data_set)
    bestinfoGain = 0.0

    bestindex = -1
    for i in range(numfeatures):
        feallist = [example[i] for example in data_set]
        unitfeat = set(feallist)
        newEntropy = 0.0
        for val in unitfeat:
            subDataset = split(data_set,i,val)
            prob = len(subDataset) / float(len(data_set))
            newEntropy += prob*cal_ent(subDataset)
        info_gain = Entropy-newEntropy
        split_info = cal_split_info(data_set,i)
        new_gain = info_gain/split_info
        if(new_gain>bestinfoGain):
            bestinfoGain = new_gain
            bestindex = i
    print(bestindex,bestinfoGain)
    return bestindex

def split(dataset,i,value):
    retDataset = []
    for featVec in dataset:
        if featVec[i] == value:
            reduceFeatVec = list(featVec[:i]) #之前的值
        # #   print(type(reduceFeatVec))
            reduceFeatVec.extend(featVec[i+1:])#之后的值
        #    reduceFeatVec = np.delete(featVec,i,axis=1)
            retDataset.append(reduceFeatVec)
    return np.array(retDataset)

def majorityCnt(classList):
    classCount= {}
    for vote in classList:
        if vote not in classCount.keys():
            classCount[vote]=0
        else:
            classCount[vote]+=1
    sortdic = sorted(classCount.items(),key=operator.itemgetter(1),reverse=True)

    return  sortdic
def createTree(dataset,labels,featLabels):
    classList = [example[-1] for example in dataset]
    if classList.count(classList[0])==len(classList):
        return classList[0]
    if(len(dataset[0])==1):
        return majorityCnt(classList)
    best_index = chooseBestFeature(dataset)
    print(best_index)

    bestLabel = labels[best_index]
  #  print(best_index,bestLabel)
    featLabels.append(bestLabel)
 #   print(featLabels)

    mytree = {bestLabel:{}}

    del(labels[best_index])

    featValues = [example[best_index] for example in dataset]
    uniqueVls = set(featValues)
    #print(uniqueVls)
    for value in uniqueVls:
     #   print(best_index,value)
      #  data = split(dataset,best_index,value)
    #    print(data)
        mytree[bestLabel][value]=createTree(split(dataset,best_index,value),labels,featLabels)
    print(mytree)
    return mytree




if __name__ == '__main__':
    data_set,label = createDataSet()
    featLabels = []
    mytree = createTree(data_set,label,featLabels)
