数据埋点日志收集测试环境搭建

1.前置环境安装准备

1.1主机环境

ip地址	主机名称	系统
192.168.199.111	master	centos7
192.168.199.112	node1	centos7
192.168.199.113	node2	centos7

1.2 其他软件版本

软件名称	版本	链接地址
java	1.8.0_161-b12
nginx	nginx-1.9.9	https://nginx.org/download/nginx-1.9.9.tar.gz
flume	1.9.0-cdh6.2.0	https://github.com/cloudera/flume-ng/tree/cdh6.2.0

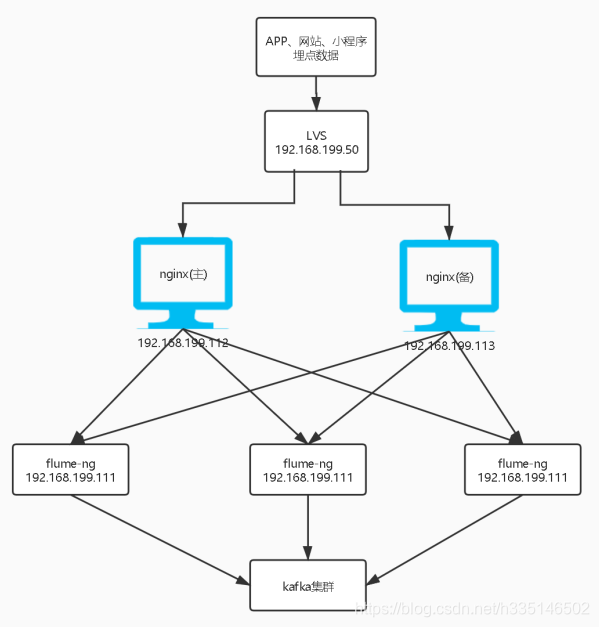

1.3 部署架构图

2.软件安装

2.1nginx安装

1.下载nginux 安装包并解压

wget https://nginx.org/download/nginx-1.9.9.tar.gz
tar -zxvf nginx-1.9.9.tar.gz

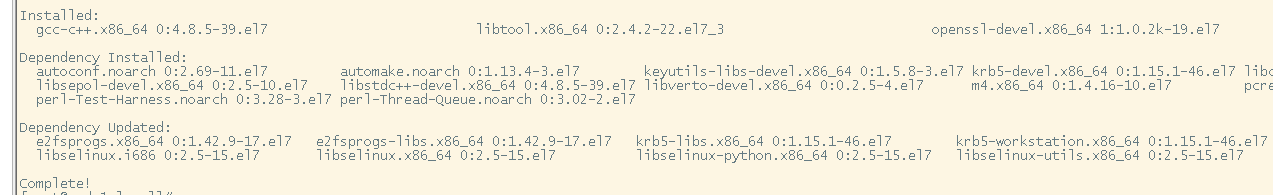

2.使用yum 命令安装nginux 前置依赖代码如下：

 yum -y install make zlib-devel gcc-c++ libtool openssl openssl-devel

3.解压编译并安装nginx

 tar -zxvf nginx-1.9.9.tar.gz
 cd /usr/local/nginx-1.9.9
 ./configure --prefix=/usr/local/nginx
 make && make install

4.启动和测试
安装完成后nginx 在/usr/local/nginx位置
启动nginx

cd /usr/local/nginx
./nginx

服务默认端口为80 ，安装服务器为192.168.0.113 输入地址访问http://192.168.199.113:80/是否配置成功。

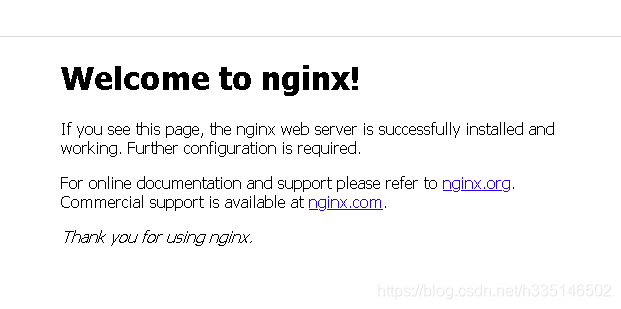

显示以下页面完成配置。

如无法访问检查防火墙开发端口或关闭防火墙

# 查看防火墙开放的端口号列表
firewall-cmd --list-all
# 设置开发的端口号
firewall-cmd --add-service=http --permanent
sudo firewall-cmd --add-port=80/tcp --permanent
# 重启防火墙
firewall-cmd --reload

其他操作命令

# nginx 关闭命令
./nginx -s stop
# 重新加载nginx
./nginx -s reload

5.配置负载均衡
将node1和node2节点配置nginx 负载均衡
向nginx 添加如下配置：

http{
	upstream flumeserver{
		server 192.168.199.111:8080;
		server 192.168.199.112:8080;
		server 192.168.199.113:8080;
	}
	server {
		location / {
            proxy_pass http://flumeserver;
            proxy_connect_timeout 10;
        }
	}

}

6.nginx LVS 配置
keepalived的安装

yum install keepalived -y

主服务器配置：
keepalived 安装进行配置。修改keepalived的配置文件：/etc/keepalived/keepalived.conf

global_defs {
 notification_email {
  acassen@firewall.loc
  failover@firewall.loc
  sysadmin@firewall.loc
 }
 notification_email_from Alexandre.Cassen@firewall.loc
 smtp_server 192.168.200.1
 smtp_connect_timeout 30
 router_id LVS_DEVEL
}
vrrp_script chk_http_port {
 script "/usr/local/src/nginx_check.sh"
 interval 2 #（检测脚本执行的间隔）
 weight 2
}
vrrp_instance VI_1 {
 state MASTER # 备份服务器上将 MASTER 改为 BACKUP
 interface ens33 //网卡
 virtual_router_id 51 # 主、备机的 virtual_router_id 必须相同
 priority 100 # 主、备机取不同的优先级，主机值较大，备份机值较小
 advert_int 1
 authentication {
 auth_type PASS
 auth_pass 1111
}
 virtual_ipaddress {
  192.168.200.50 // VRRP H 虚拟地址
 }
}

配置 nginx 存活检查脚本
vim /usr/local/src/nginx_check.sh

#!/bin/bash
A=`ps -C nginx –no-header |wc -l`
if [ $A -eq 0 ];then
 /usr/local/nginx/sbin/nginx
 sleep 2
 if [ `ps -C nginx --no-header |wc -l` -eq 0 ];then
 killall keepalived
 fi
fi

备用服务器配置
keepalived 安装进行配置。修改keepalived的配置文件：/etc/keepalived/keepalived.conf

global_defs {
 notification_email {
  acassen@firewall.loc
  failover@firewall.loc
  sysadmin@firewall.loc
 }
 notification_email_from Alexandre.Cassen@firewall.loc
 smtp_server 192.168.200.1
 smtp_connect_timeout 30
 router_id LVS_DEVEL
}
vrrp_script chk_http_port {
 script "/usr/local/src/nginx_check.sh"
 interval 2 #（检测脚本执行的间隔）
 weight 2
}
vrrp_instance VI_1 {
 state BACKUP # 备份服务器上将 MASTER 改为 BACKUP
 interface ens33 //网卡
 virtual_router_id 51 # 主、备机的 virtual_router_id 必须相同
 priority 90 # 主、备机取不同的优先级，主机值较大，备份机值较小
 advert_int 1
 authentication {
 auth_type PASS
 auth_pass 1111
}
 virtual_ipaddress {
  192.168.200.50 // VRRP H 虚拟地址
 }
}

在node2 上复制nginx_check.sh 到node1上

scp -r  /usr/local/src/nginx_check.sh root@node1://usr/local/src

分别node1和node2 启动keepalived

 systemctl start keepalived.service

2.2 flume 安装
master ,node1,node2机器上分别部署flume，部署方式非常简单解压即可

cd /usr/local
tar -zxvf apache-flume-1.9.0-cdh6.2.0-bin.tar.gz

配置flume http source,memory channel,kafka sink

vi flume-conf.properties

a1.sources = r1
a1.sinks = k1
a1.channels = c1

# Describe/configure the source
a1.sources.r1.type = http
a1.sources.r1.port = 8080
a1.sources.r1.channels = c1
a1.sources.r1.handler = org.apache.flume.source.http.JSONHandler
a1.sources.r1.handler.nickname = random props
a1.sources.r1.HttpConfiguration.sendServerVersion = false
a1.sources.r1.ServerConnector.idleTimeout = 300

# Describe the sink
a1.sinks.k1.channel = c1
a1.sinks.k1.type = org.apache.flume.sink.kafka.KafkaSink
a1.sinks.k1.kafka.topic = mytopic
a1.sinks.k1.kafka.bootstrap.servers = localhost:9092
a1.sinks.k1.kafka.flumeBatchSize = 20
a1.sinks.k1.kafka.producer.acks = 1
a1.sinks.k1.kafka.producer.linger.ms = 1
a1.sinks.k1.kafka.producer.compression.type = snappy

# Use a channel which buffers events in memory
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

# Bind the source and sink to the channel
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1

３.测试

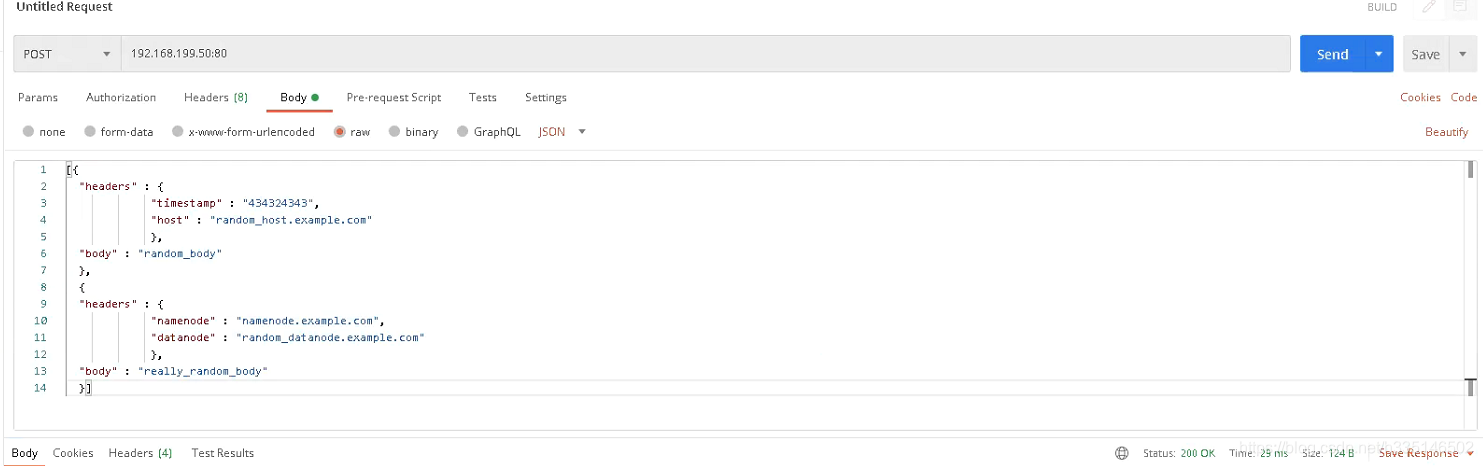

3.1 使用postman 进行测试

输入http url

[{
  "headers" : {
             "timestamp" : "434324343",
             "host" : "random_host.example.com"
             },
  "body" : "random_body"
  },
  {
  "headers" : {
             "namenode" : "namenode.example.com",
             "datanode" : "random_datanode.example.com"
             },
  "body" : "really_random_body"
  }]

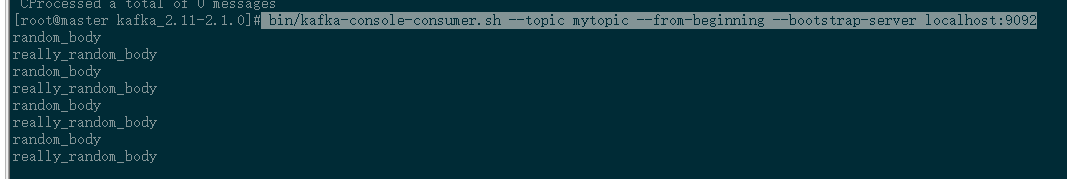

3.2 命令行查看kafka是否消费

 bin/kafka-console-consumer.sh --topic mytopic --from-beginning --bootstrap-server localhost:9092
