本代码是根据开源代码 Clock Shop 将原生的进行转换成的vue3写法，如果需要更多的样式

可以参观 Clock Shophttps://drawcall.github.io/clock-shop/index.html 文档自己进行适配

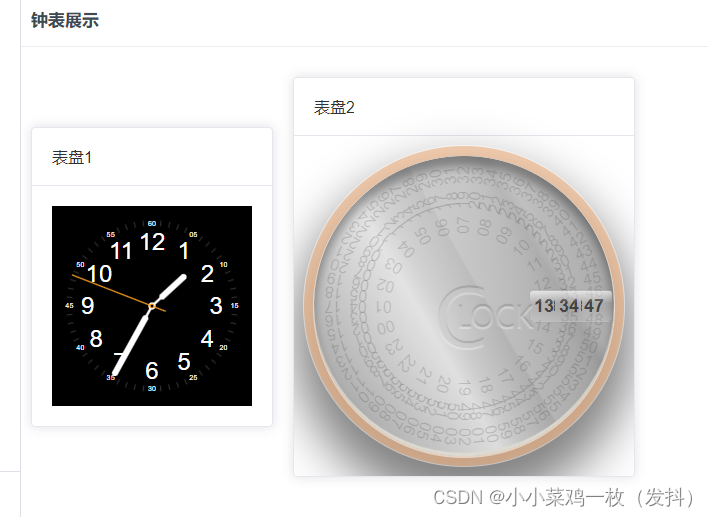

效果展示

网站效果展示：后台管理系统 (hvercel.cn)https://hvercel.cn/login

表盘1代码：

<!-- https://drawcall.github.io/clock-shop/index.html -->
<template>
  <div>
    <div class="fill">
      <div class="reference"></div>
      <div class="clock" ref="clockRef">
        <div class="centre">
          <div class="dynamic"></div>
          <div class="expand round circle-1"></div>
          <div class="anchor hour">
            <div class="element thin-hand"></div>
            <div class="element fat-hand"></div>
          </div>
          <div class="anchor minute">
            <div class="element thin-hand"></div>
            <div class="element fat-hand minute-hand"></div>
          </div>
          <div class="anchor second">
            <div class="element second-hand"></div>
          </div>
          <div class="expand round circle-2"></div>
          <div class="expand round circle-3"></div>
        </div>
      </div>
    </div>
  </div>
</template>

<script setup lang="">
import { ref, onMounted, onBeforeUnmount } from "vue";
const clockRef = ref(null);
onMounted(() => {
  utilityClock(clockRef.value);
  autoResize(clockRef.value, 295 + 32);
});

function utilityClock(container) {
  console.log(container);
  var dynamic = container.querySelector(".dynamic");
  var hourElement = container.querySelector(".hour");
  var minuteElement = container.querySelector(".minute");
  var secondElement = container.querySelector(".second");
  var minute = function (n) {
    return n % 5 == 0 ? minuteText(n) : minuteLine(n);
  };
  var minuteText = function (n) {
    var element = document.createElement("div");
    element.className = "minute-text";
    element.innerHTML = (n < 10 ? "0" : "") + n;
    position(element, n / 60, 135);
    dynamic.appendChild(element);
  };
  var minuteLine = function (n) {
    var anchor = document.createElement("div");
    anchor.className = "anchor";
    var element = document.createElement("div");
    element.className = "element minute-line";
    rotate(anchor, n);
    anchor.appendChild(element);
    dynamic.appendChild(anchor);
  };
  var hour = function (n) {
    var element = document.createElement("div");
    element.className = "hour-text hour-" + n;
    element.innerHTML = n;
    position(element, n / 12, 105);
    dynamic.appendChild(element);
  };
  var position = function (element, phase, r) {
    var theta = phase * 2 * Math.PI;
    element.style.top = (-r * Math.cos(theta)).toFixed(1) + "px";
    element.style.left = (r * Math.sin(theta)).toFixed(1) + "px";
  };
  var rotate = function (element, second) {
    element.style.transform = element.style.webkitTransform =
      "rotate(" + second * 6 + "deg)";
  };
  var animate = function () {
    var now = new Date();
    var time =
      now.getHours() * 3600 +
      now.getMinutes() * 60 +
      now.getSeconds() * 1 +
      now.getMilliseconds() / 1000;
    rotate(secondElement, time);
    rotate(minuteElement, time / 60);
    rotate(hourElement, time / 60 / 12);
    requestAnimationFrame(animate);
  };
  for (var i = 1; i <= 60; i++) minute(i);
  for (var i = 1; i <= 12; i++) hour(i);
  animate();
}

function autoResize(element, nativeSize) {
  var update = function () {
    var parent = element.offsetParent;
    var scale = Math.min(parent?.offsetWidth, parent.offsetHeight) / nativeSize;
    element.style.transform = element.style.webkitTransform =
      "scale(" + scale.toFixed(3) + ")";
  };
  update();
  window.addEventListener("resize", update);
}
</script>
<style>
.hour-text {
  position: absolute;
  font: 40px Hei, Helvetica, Arial, sans-serif;
  color: white;
  transform: translate(-50%, -50%);
  height: auto;
}

.hour-10 {
  padding-left: 0.4ex;
}
.hour-11 {
  padding-left: 0.25ex;
}
.minute-hand {
  height: 112px !important;
}

.minute-text {
  position: absolute;
  font: 12px Avenir Next, Helvetica, Arial, sans-serif;
  color: white;
  transform: translate(-50%, -50%);
}

.minute-line {
  background: white;
  width: 1px;
  height: 9px;
  transform: translate(-50%, -100%) translateY(-131px);
  opacity: 0.34;
}

.anchor {
  position: absolute;
  top: 0;
  left: 0;
  width: 0;
  height: 0;
}
</style>
<style scoped>
.fill {
  position: relative;
  width: 200px;
  height: 200px;
  background: black;
}

.clock {
  position: absolute;
  opacity: 1;
}

.fill .clock {
  left: 50%;
  top: 50%;
}

.centre {
  position: absolute;
  top: 50%;
  left: 50%;
  width: 0;
  height: 0;
}

.expand {
  position: absolute;
  top: 0;
  left: 0;
  transform: translate(-50%, -50%);
}

.element {
  position: absolute;
  top: 0;
  left: 0;
}

.round {
  border-radius: 296px;
}

.circle-1 {
  background: white;
  width: 12px;
  height: 12px;
}

.circle-2 {
  background: #fa9f22;
  width: 8px;
  height: 8px;
}

.circle-3 {
  background: black;
  width: 4px;
  height: 4px;
}

.second {
  transform: rotate(180deg);
}

.minute {
  transform: rotate(54deg);
}

.second-hand {
  width: 2px;
  height: 164px;
  background: #fa9f22;
  transform: translate(-50%, -100%) translateY(24px);
}

.hour {
  transform: rotate(304.5deg);
}

.thin-hand {
  width: 4px;
  height: 50px;
  background: white;
  transform: translate(-50%, -100%);
}

.fat-hand {
  width: 10px;
  height: 57px;
  border-radius: 10px;
  background: white;
  transform: translate(-50%, -100%) translateY(-18px);
}
</style>

表盘2代码

<template>
  <div class="clock_box pr">
    <h1 class="off">C<span>LOCK</span></h1>
    <div id="clock">
      <ul id="s"></ul>
      <ul id="m"></ul>
      <ul id="h"></ul>
    </div>
  </div>
</template>

<script setup>
import $ from "jquery";

function draw() {
  let D;
  for (var i = 0; i < 60; i++) {
    D = i < 10 ? "0" + i : i;
    $("#s").append("<li data-item=" + D + ">" + D + "</li>");
  }
  for (var i = 0; i < 60; i++) {
    D = i < 10 ? "0" + i : i;
    $("#m").append("<li data-item=" + D + ">" + D + "</li>");
  }
  for (var i = 0; i < 24; i++) {
    D = i < 10 ? "0" + i : i;
    $("#h").append("<li data-item=" + D + ">" + D + "</li>");
  }
}
function place() {
  let hdeg = 15;
  let msdeg = 6;
  $("#s li").each(function (index) {
    $(this).css({
      transform:
        "rotateZ(" + msdeg * index + "deg) translateX(" + parseInt(130) + "px)",
    });
  });
  $("#m li").each(function (index) {
    $(this).css({
      transform:
        "rotateZ(" + msdeg * index + "deg) translateX(" + parseInt(105) + "px)",
    });
  });
  $("#h li").each(function (index) {
    $(this).css({
      transform:
        "rotateZ(" + hdeg * index + "deg) translateX(" + parseInt(80) + "px)",
    });
  });
}
//TIMER
function sec(ts, timer) {
  let TS = ts % 60;
  if (ts == 0 && timer) min(0, timer);
  let deg = (360 / 60) * ts;
  $("#s li").removeClass("active");
  $("#s li").eq(TS).addClass("active");
  $("#s").css({ transform: "rotateZ(-" + deg + "deg)" });
  ts++;
  if (timer)
    setTimeout(function () {
      sec(ts, timer);
    }, TIME * 1000);
}
function min(tm, timer) {
  let TM = tm % 60;
  if (tm == 0 && timer) hour(0, timer);
  let deg = (360 / 60) * tm;
  $("#m li").removeClass("active");
  $("#m li").eq(TM).addClass("active");
  $("#m").css({ transform: "rotateZ(-" + deg + "deg)" });
  tm++;
  if (timer)
    setTimeout(function () {
      min(tm, timer);
    }, TIME * 60000);
}
function hour(th, timer) {
  let TH = th % 24;
  let deg = (360 / 24) * th;
  $("#h li").removeClass("active");
  $("#h li").eq(TH).addClass("active");
  $("#h").css({ transform: "rotateZ(-" + deg + "deg)" });
  th++;
  if (timer)
    setTimeout(function () {
      hour(th, timer);
    }, TIME * 3600000);
}
//CLOCK
function clock() {
  let d = new Date();
  let H = d.getHours();
  let M = d.getMinutes();
  let S = d.getSeconds();
  hour(H, 0);
  min(M, 0);
  sec(S, 0);
  setTimeout(function () {
    clock();
  }, 1000);
}

$(document).ready(function () {
  draw();
  place();
  //TIMER
  /*
  TIME = 1;
  sec(0,1);
  */
  //CLOCK
  clock();
  //LIGHT
  $("h1").click(function () {
    $(this).toggleClass("off");
  });
});
</script>

<style lang="less" scoped>
h1.off + #clock {
  background-image: linear-gradient(
      60deg,
      rgba(255, 255, 255, 0.05) 0%,
      rgba(255, 255, 255, 0.7) 40%,
      rgba(255, 255, 255, 0.5) 45%,
      rgba(255, 255, 255, 0.25) 55%,
      rgba(255, 255, 255, 0.35) 55.5%,
      rgba(255, 255, 255, 0.3) 60%,
      rgba(255, 255, 255, 0.2) 68%,
      rgba(255, 255, 255, 0.1) 72%,
      rgba(255, 255, 255, 0.25) 75%,
      rgba(255, 255, 255, 0) 100%
    ),
    radial-gradient(
      circle at 50% 10%,
      rgba(180, 180, 180, 1) 0%,
      rgba(140, 140, 140, 1) 80%
    );
  box-shadow: inset 0 10px 10px 0px rgba(0, 0, 0, 0.35),
    inset 0 -3px 1px rgba(222, 220, 210, 1),
    0 1px 0 1px rgba(255, 255, 255, 0.5), 0 0 0px 10px rgba(222, 98, 0, 0.3),
    0 0 0 11px rgba(255, 255, 255, 0.5), 0 30px 50px 20px rgba(0, 0, 0, 0.5);
}

// :deep(.clock_box) {

h1 {
  margin: 0;
  font-family: "Montserrat";
  position: absolute;
  top: 50%;
  left: 50%;
  height: 100px;
  width: 60px;
  text-align: center;
  line-height: 120px;
  font-size: 80px;
  font-weight: 400;
  color: rgba(230, 230, 230, 1);
  text-shadow: 0 0px 50px rgba(255, 255, 255, 0.75),
    0 0px 150px rgba(255, 255, 255, 0.5), 0 0px 200px rgba(255, 255, 255, 0);
  transform: translate(-55%, -50%);
  transform-origin: 50%;
  cursor: pointer;
  z-index: 100;
  transition: all 0.25s;
}

h1.off {
  color: transparent;
  text-shadow: 0 1px 1px rgba(255, 255, 255, 0.35),
    0 -1px 1px rgba(0, 0, 0, 0.15);
}

h1 span {
  font-size: 30px;
  display: block;
  position: absolute;
  top: 0;
  left: 25px;
}

#clock {
  position: relative;
  top: 150px;
  left: 150px;
  width: 300px;
  height: 300px;
  border-radius: 50%;
  transform: translate(-50%, -50%);
  z-index: 1;
}

#clock::after {
  content: "";
  position: absolute;
  border: 1px solid #000;
  width: 80px;
  height: 30px;
  transition-origin: 50%;
  top: 50%;
  left: 52%;
  box-shadow: inset 0 0 20px 0px rgba(255, 255, 255, 1),
    0 0 100px 1000px rgba(0, 0, 0, 0.75);
  transition: all 0.5s;
  transform: translate(60px, -50%);
}

#clock::before {
  content: "";
  position: absolute;
  border: 1px dashed #000;
  border-top: 0;
  border-bottom: 0;
  width: 26px;
  height: 10px;
  right: -12px;
  top: 50%;
  margin: -5px 44px 0 0;
  animation: pulse 1s infinite;
}

h1.off + #clock::after {
  box-shadow: 0 0 100px 1000px rgba(0, 0, 0, 0), 0 0px 1px rgba(0, 0, 0, 0.25);
  background: linear-gradient(
    to bottom,
    rgba(255, 255, 255, 0.65) 0%,
    rgba(255, 255, 255, 0) 40%,
    rgba(255, 255, 255, 0) 60%,
    rgba(255, 255, 255, 0.15) 100%
  );
  border: 1px solid rgba(0, 0, 0, 0);
  border-bottom: 1px solid rgba(0, 0, 0, 0.15);
  border-radius: 4px;
}

h1.off + #clock::before {
  border: 1px dashed rgba(80, 80, 80, 1);
  border-top: 0;
  border-bottom: 0;
  opacity: 1;
  animation: none;
}

ul {
  position: absolute;
  margin: 0;
  padding: 0;
  top: 50%;
  left: 50%;
  width: 20px;
  height: 20px;
  list-style: none;
  margin: -10px 0 0 -10px;
}

#s,
#m,
#h {
  transform: rotateZ(0deg);
  transition: all 0.5s cubic-bezier(0.5, -0.5, 0.5, 1.5);
}

:deep(li) {
  position: absolute;
  transition: all 0.25s;
  width: 20px;
  height: 20px;
  line-height: 20px;
  text-align: right;
  opacity: 0.2;
  transform-origin: 50%;
  transition: all 0.25s linear 0.25s;
  &.active {
    color: #424242;
    opacity: 1;
    font-weight: 700;
    font-size: 18px;
  }
}

@keyframes pulse {
  0%,
  50% {
    opacity: 1;
  }
  51%,
  100% {
    opacity: 0;
  }
}
// }
</style>
