1. LeNet（1998）



   Figure.1 Data flow in LeNet. The input is a handwritten digit, the output a probability over 10 possible outcomes.

   LeNet是早期成功的神经网络；先使用卷积层来学习图片空间信息，然后通过池化层来降低卷积层对图片的敏感度，最后使用全连接层来转换到类别空间。

2. AlexNet（2012）



   Figure.2 From LeNet (left) to AlexNet (right).

   AlexNet本质上是更大更深的LeNet；主要改进是加入了丢弃法（dropout）、激活函数从sigmoid变到ReLU（减缓梯度消失）、MaxPooling、数据增强；计算机视觉方法论的改变。

3. VGG（2014）



   Figure.3 From AlexNet to VGG that is designed from building blocks.

   VGG可以看作是更大更深的AlexNet（重复的VGG块）；VGG使用可重复使用的卷积块来构建深度神经网络，不同的卷积块个数和超参数可以得到不同复杂度的变种。

   import torch
   from torch import nn


   def vgg_block(num_convs, in_channels, out_channels):
       layers = []
       for _ in range(num_convs):
           layers.append(nn.Conv2d(in_channels, out_channels, kernel_size=3, padding=1))
           layers.append(nn.ReLU())
           in_channels = out_channels
       layers.append(nn.MaxPool2d(kernel_size=2, stride=2))
       return nn.Sequential(*layers)

   conv_arch = ((1, 64), (1, 128), (2, 256), (2, 512), (2, 512))

   def vgg(conv_arch):
       conv_blks = []
       in_channels = 1
       for (num_convs, out_channels) in conv_arch:
           conv_blks.append(vgg_block(num_convs, in_channels, out_channels))
           in_channels = out_channels
       return nn.Sequential(
           *conv_blks, nn.Flatten(),
           nn.Linear(out_channels * 7 * 7, 4096), nn.ReLU(), nn.Dropout(0.5),
           nn.Linear(4096, 4096), nn.ReLU(), nn.Dropout(0.5),
           nn.Linear(4096, 10))


4. NiN （2014）



   Figure.4 Comparing architectures of VGG and NiN, and their blocks.

   NiN块：一个卷积层后面跟两个1x1卷积层 [可以看作按照输入像素逐一去做的全连接层]：步幅1，无填充，输出形状跟卷积层输出一样，起到全连接层的作用。

   NiN架构：无全连接层；交替使用NiN块和步幅为2的最大池化层（逐步减小高宽和增大通道数）；最后使用全局平均池化层得到输出（其输入通道数是类别数）。

   import torch
   from torch import nn


   def nin_block(in_channels, out_channels, kernel_size, strides, padding):
       return nn.Sequential(
           nn.Conv2d(in_channels, out_channels, kernel_size, strides, padding), nn.ReLU(),
           nn.Conv2d(out_channels, out_channels, kernel_size=1), nn.ReLU(),
           nn.Conv2d(out_channels, out_channels, kernel_size=1), nn.ReLU())

   nin_net = nn.Sequential(
       nin_block(1, 96, kernel_size=11, strides=4, padding=0),
       nn.MaxPool2d(3, stride=2),
       nin_block(96, 256, kernel_size=5, strides=1, padding=2),
       nn.MaxPool2d(3, stride=2),
       nin_block(256, 384, kernel_size=3, strides=1, padding=1),
       nn.MaxPool2d(3, stride=2), nn.Dropout(0.5),
       nin_block(384, 10, kernel_size=3, strides=1, padding=1),
       nn.AdaptiveAvgPool2d((1, 1)),
       nn.Flatten())


5. GoogLeNet （2014）

   Inception块：4个路径从不同层面抽取信息，然后在输出通道维合并（通道数会变的很多）；不改变高宽，只改变通道数。

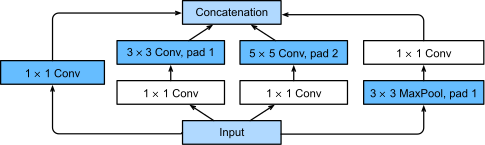

   Figure.5 Structure of the Inception block.

   import torch
   from torch import nn
   from torch.nn import functional as F


   class Inception(nn.Module):
       # `c1`--`c4` are the number of output channels for each path
       def __init__(self, in_channels, c1, c2, c3, c4, **kwargs):
           super(Inception, self).__init__(**kwargs)
           # Path 1 is a single 1 x 1 convolutional layer
           self.p1_1 = nn.Conv2d(in_channels, c1, kernel_size=1)
           # Path 2 is a 1 x 1 convolutional layer followed by a 3 x 3
           # convolutional layer
           self.p2_1 = nn.Conv2d(in_channels, c2[0], kernel_size=1)
           self.p2_2 = nn.Conv2d(c2[0], c2[1], kernel_size=3, padding=1)
           # Path 3 is a 1 x 1 convolutional layer followed by a 5 x 5
           # convolutional layer
           self.p3_1 = nn.Conv2d(in_channels, c3[0], kernel_size=1)
           self.p3_2 = nn.Conv2d(c3[0], c3[1], kernel_size=5, padding=2)
           # Path 4 is a 3 x 3 maximum pooling layer followed by a 1 x 1
           # convolutional layer
           self.p4_1 = nn.MaxPool2d(kernel_size=3, stride=1, padding=1)
           self.p4_2 = nn.Conv2d(in_channels, c4, kernel_size=1)

       def forward(self, x):
           p1 = F.relu(self.p1_1(x))
           p2 = F.relu(self.p2_2(F.relu(self.p2_1(x))))
           p3 = F.relu(self.p3_2(F.relu(self.p3_1(x))))
           p4 = F.relu(self.p4_2(self.p4_1(x)))
           # Concatenate the outputs on the channel dimension
           return torch.cat((p1, p2, p3, p4), dim=1)


   GoogLeNet：分为5段，有9个Inception块。



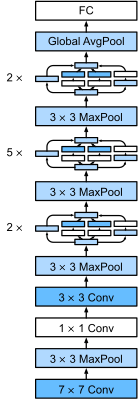

   Figure.6 The GoogLeNet architecture.

   b1 = nn.Sequential(nn.Conv2d(1, 64, kernel_size=7, stride=2, padding=3),
                      nn.ReLU(),
                      nn.MaxPool2d(kernel_size=3, stride=2, padding=1))

   b2 = nn.Sequential(nn.Conv2d(64, 64, kernel_size=1),
                      nn.ReLU(),
                      nn.Conv2d(64, 192, kernel_size=3, padding=1),
                      nn.ReLU(),
                      nn.MaxPool2d(kernel_size=3, stride=2, padding=1))

   b3 = nn.Sequential(Inception(192, 64, (96, 128), (16, 32), 32),
                      Inception(256, 128, (128, 192), (32, 96), 64),
                      nn.MaxPool2d(kernel_size=3, stride=2, padding=1))

   b4 = nn.Sequential(Inception(480, 192, (96, 208), (16, 48), 64),
                      Inception(512, 160, (112, 224), (24, 64), 64),
                      Inception(512, 128, (128, 256), (24, 64), 64),
                      Inception(512, 112, (144, 288), (32, 64), 64),
                      Inception(528, 256, (160, 320), (32, 128), 128),
                      nn.MaxPool2d(kernel_size=3, stride=2, padding=1))

   b5 = nn.Sequential(Inception(832, 256, (160, 320), (32, 128), 128),
                      Inception(832, 384, (192, 384), (48, 128), 128),
                      nn.AdaptiveAvgPool2d((1,1)),
                      nn.Flatten())

   google_net = nn.Sequential(b1, b2, b3, b4, b5, nn.Linear(1024, 10))


6. ResNet（2015）

   • 残差块：$f(x)=x+g(x)$

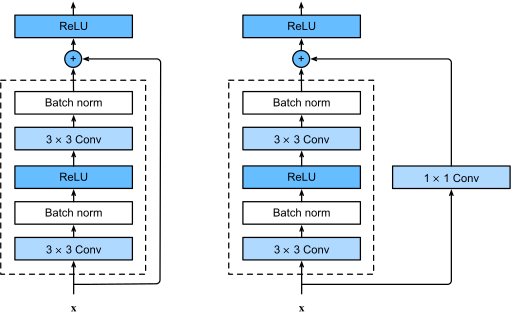

     Figure.7 ResNet block with and without 1x1 convolution.

   • ResNet架构：类似VGG和GoogLeNet的总体架构，但替换成了ResNet块。

   • 残差块使得很深的网络更加容易训练，甚至可以训练一千层的网络；残差网络对随后的深层神经网络设计产生了深远影响，无论是卷积类网络还是全连接类网络。
