简介

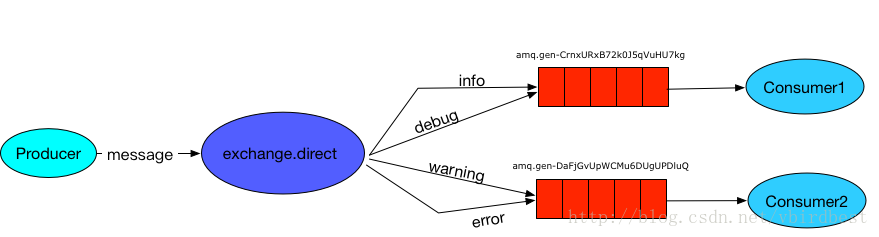

本节主要演示使用直连接类型，将多个路由键绑定到同一个队列上。

è¿éåå¾çæè¿°

生产者

	@Test
	public void produce() throws IOException, TimeoutException {
		ConnectionFactory factory = new ConnectionFactory();
		factory.setHost("localhost");
		factory.setPort(AMQP.PROTOCOL.PORT);
		factory.setUsername("guest");
		factory.setPassword("guest");

		Connection conn = factory.newConnection();
		Channel channel = conn.createChannel();

		// 交换机名
		String EXCHANGE_NAME = "exchange.direct.routing";
		// 路由键名数组
		String[] routings = {"debug", "info", "warning", "error"};
		// 循环将一个交换机绑定多个路由键
		for (int i = 0; i < 20; i++) {
			int random = new Random().nextInt(4);
			String routingKey = routings[random];
			String message = "Hello RabbitMQ---" + routingKey + "-----" + i;
			channel.basicPublish(EXCHANGE_NAME, routingKey, null, message.getBytes());
		}

		channel.close();
		conn.close();
	}

消费者1

	@Test
	public void consume1() throws IOException, TimeoutException, InterruptedException {
		ConnectionFactory factory = new ConnectionFactory();
		factory.setHost("localhost");
		factory.setPort(AMQP.PROTOCOL.PORT);
		factory.setUsername("guest");
		factory.setPassword("guest");

		Connection conn = factory.newConnection();
		Channel channel = conn.createChannel();

		// 交换机名
		String EXCHANGE_NAME = "exchange.direct.routing";
		// 声明一个交换机，使用直连类型
		channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);

		// 生成一个随机的队列名
		String QUEUE_NAME = channel.queueDeclare().getQueue();
		// 将一个队列绑定多个路由键
		String[] routingKeys = {"debug", "info"};
		for (int i = 0; i < routingKeys.length; i++) {
			channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, routingKeys[i]);
		}

		 System.out.println("Consumer1 Wating Receive Message");

		 Consumer consumer = new DefaultConsumer(channel) {
			@Override
			public void handleDelivery(String consumerTag, Envelope envelope, BasicProperties properties, byte[] body)
					throws IOException {
				String message = new String(body, "UTF-8");
				System.out.println("[C] received " + message + "，处理业务中...");
			}
		 };

		 channel.basicConsume(QUEUE_NAME, true, consumer);
		 Thread.sleep(1000000);
	}

消费者2

	@Test
	public void consume2() throws IOException, TimeoutException, InterruptedException {
		ConnectionFactory factory = new ConnectionFactory();
		factory.setHost("localhost");
		factory.setPort(AMQP.PROTOCOL.PORT);
		factory.setUsername("guest");
		factory.setPassword("guest");

		Connection conn = factory.newConnection();
		Channel channel = conn.createChannel();

		// 交换机名
		String EXCHANGE_NAME = "exchange.direct.routing";
		// 声明一个交换机，使用直连类型
		channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);

		// 生成一个随机的队列名
		String QUEUE_NAME = channel.queueDeclare().getQueue();
		// 将一个队列绑定多个路由键
		String[] routingKeys = {"debug", "info"};
		for (int i = 0; i < routingKeys.length; i++) {
			channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, routingKeys[i]);
		}

		 System.out.println("Consumer2 Wating Receive Message");

		 Consumer consumer = new DefaultConsumer(channel) {
			@Override
			public void handleDelivery(String consumerTag, Envelope envelope, BasicProperties properties, byte[] body)
					throws IOException {
				String message = new String(body, "UTF-8");
				System.out.println("[C] received " + message + "，处理业务中...");
			}
		 };

		 channel.basicConsume(QUEUE_NAME, true, consumer);
		 Thread.sleep(1000000);
	}
