1.html形式,支持所有文件夹,不需要考虑cocos版本
上代码
<!-- file: analyze-folder.html -->
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<title>本地文件夹文件大小分析</title>
<style>
body { font-family: Arial, sans-serif; margin: 30px; background: #f8f8f8; }
h2 { color: #333; }
.controls { margin-bottom: 20px; background: #fff; padding: 12px; border-radius: 6px; box-shadow: 0 1px 4px #ccc; display: flex; gap: 20px; align-items: center; }
label { font-size: 14px; }
input[type="number"] { width: 60px; margin: 0 5px; }
button { padding: 6px 16px; background: #409eff; color: #fff; border: none; border-radius: 4px; cursor: pointer; }
button:hover { background: #66b1ff; }
#result { margin-top: 20px; background: #fff; padding: 12px; border-radius: 6px; min-height: 60px; box-shadow: 0 1px 4px #ccc; }
table { width: 100%; border-collapse: collapse; margin-top: 10px; }
th, td { border: 1px solid #e0e0e0; padding: 6px 10px; text-align: left; }
th { background: #f0f0f0; }
tr:nth-child(even) { background: #fafafa; }
.summary { margin-bottom: 10px; font-weight: bold; }
.error { color: #e74c3c; font-weight: bold; }
.path { font-size: 15px; color: #888; }
</style>
</head>
<body>
<h2>本地文件夹文件大小分析</h2>
<div class="controls">
<label>
选择文件夹:
<input type="file" id="folder" webkitdirectory directory multiple>
</label>
<label>
最小文件大小:
<input type="number" id="threshold" value="100"> KB
</label>
<label>
显示前
<input type="number" id="limit" value="20"> 个文件
</label>
<button id="analyze-btn">开始分析</button>
</div>
<div id="result"></div>
<script>
function formatSize(bytes) {
if (bytes < 1024) return bytes + ' B';
if (bytes < 1024 * 1024) return (bytes / 1024).toFixed(2) + ' KB';
return (bytes / (1024 * 1024)).toFixed(2) + ' MB';
}
document.getElementById('analyze-btn').onclick = function () {
const input = document.getElementById('folder');
const files = input.files;
const threshold = parseInt(document.getElementById('threshold').value) * 1024 || 0;
const limit = parseInt(document.getElementById('limit').value) || 20;
const resultDiv = document.getElementById('result');
if (!files || files.length === 0) {
resultDiv.innerHTML = '<div class="error">请先选择一个文件夹!</div>';
return;
}
let fileList = [];
for (let i = 0; i < files.length; i++) {
const f = files[i];
if (f.size >= threshold) {
fileList.push({
name: f.name,
path: f.webkitRelativePath,
size: f.size,
ext: f.name.substring(f.name.lastIndexOf('.') + 1).toLowerCase()
});
}
}
fileList.sort((a, b) => b.size - a.size);
const topFiles = fileList.slice(0, limit);
const totalSize = fileList.reduce((sum, f) => sum + f.size, 0);
let html = `
<div class="summary">
总文件数: ${fileList.length} (≥${formatSize(threshold)})<br>
总大小: ${formatSize(totalSize)}
</div>
<table>
<thead>
<tr>
<th>排名</th>
<th>文件名</th>
<th>大小</th>
<th>类型</th>
<th>路径</th>
</tr>
</thead>
<tbody>
`;
topFiles.forEach((file, idx) => {
html += `
<tr>
<td>${idx + 1}</td>
<td>${file.name}</td>
<td>${formatSize(file.size)}</td>
<td>${file.ext}</td>
<td class="path">${file.path}</td>
</tr>
`;
});
html += '</tbody></table>';
// 添加文件类型统计
const typeStats = getFileTypeStats(files);
html += '<div class="type-stats"><h3>按类型统计</h3><ul>';
for (const [type, size] of Object.entries(typeStats)) {
html += `<li class="textCls">${type}: ${formatSize(size)} (${Math.round(size / totalSize * 100)}%)</li>`;
}
html += '</ul></div>';
resultDiv.innerHTML = html;
function getFileTypeStats(files) {
const stats = {};
for(let i=0;i<fileList.length;i++){
const file = fileList[i];
const type = file.ext || 'other';
stats[type] = (stats[type] || 0) + file.size;
}
return stats;
}
};
</script>
</body>
</html>

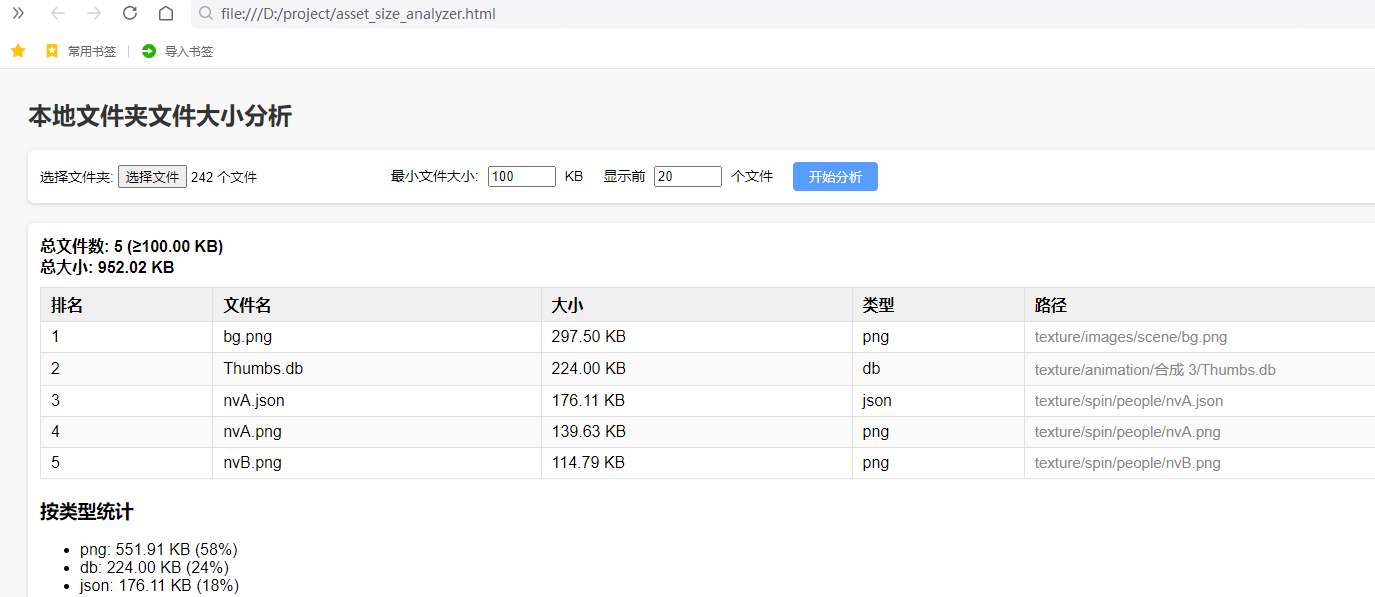

将上面html文件下载到本地,直接浏览器运行,选择要分析的文件夹即可
2.cocos creator插件形式,只支持cocos2.x,可以分析项目assets目录下的所有文件
在cocos creator项目根目标新建文件夹,packages,如果有可以不建,然后在packages中新建插件文件夹,文件夹名字一定要是"cocos-asset-analyzer"
插件结构如下
─ package.json
── main.js
── panel/ ── index.js
── panel/ ── index.html
1.package.json的内容
{
"name": "cocos-asset-analyzer",
"version": "1.0.0",
"description": "Cocos Creator 资源文件大小分析工具",
"author": "wxk",
"main": "main.js",
"panel": {
"title": "资源分析",
"main": "panel/index.js",
"type": "dockable",
"size": {
"width": 800,
"height": 600
}
},
"main-menu": {
"Tools/资源分析": {
"message": "cocos-asset-analyzer:open-panel"
}
},
"dependencies": {
}
}
2.main.js内容
'use strict';
module.exports = {
load() {
// 插件加载时执行
Editor.log('资源分析插件已加载');
},
unload() {
// 插件卸载时执行
Editor.log('资源分析插件已卸载');
},
// 添加消息响应,菜单会调用 open-panel
messages: {
'open-panel'() {
Editor.log('打开资源分析面板');
Editor.Panel.open('cocos-asset-analyzer');
}
}
};
3.index.js内容
'use strict';
const { log } = require('console');
const fs = require('fs');
const path = require('path');
Editor.Panel.extend({
template: fs.readFileSync(Editor.url('packages://cocos-asset-analyzer/panel/index.html'), 'utf8'),
ready() {
const panel = this;
const doc = panel.shadowRoot || panel; // 关键:获取面板文档对象
const root = Editor.Project.path;
const assetsPath = path.join(root, 'assets');
let sizeThreshold = 1024 * 100;
initUI();
doc.getElementById('analyze-btn').addEventListener('click', analyzeAssets);
doc.getElementById('threshold').addEventListener('input', updateThreshold); // 改为input事件
// doc.getElementById('update-threshold').addEventListener('click', updateThreshold);
// panel.addEventListener('click', (event) => {
// Editor.log(`点击事件: ${event.target.id}`);
// if (event.target.id === 'cocos-asset-analyzer') {
// analyzeAssets();
// } else if (event.target.id === 'update-threshold') {
// updateThreshold();
// }
// });
function formatSize(bytes) {
if (bytes < 1024) return bytes + ' B';
if (bytes < 1024 * 1024) return (bytes / 1024).toFixed(2) + ' KB';
if (bytes < 1024 * 1024 * 1024) return (bytes / 1024 / 1024).toFixed(2) + ' MB';
return (bytes / 1024 / 1024 / 1024).toFixed(2) + ' GB';
}
function initUI() {
doc.getElementById('threshold').value = sizeThreshold / 1024;
doc.getElementById('result').innerHTML = '<p>点击"开始分析"按钮分析资源</p>';
}
function updateThreshold() {
Editor.log(`输入了: `);
const newThreshold = parseInt(doc.getElementById('threshold').value);
if (!isNaN(newThreshold)) {
sizeThreshold = newThreshold * 1024;
Editor.log(`更新文件大小阈值为: ${newThreshold}KB`);
}
}
function analyzeAssets() {
Editor.log(`开始分析: ${assetsPath}`);
if (!fs.existsSync(assetsPath)) {
showError('assets目录不存在');
return;
}
doc.getElementById('result').innerHTML = '<p>分析中,请稍候...</p>';
setTimeout(() => {
try {
const files = getAssetFiles(assetsPath);
displayResults(files);
} catch (e) {
showError(`分析失败: ${e.message}`);
}
}, 100);
}
function getAssetFiles(dir) {
const files = [];
function walk(currentDir) {
const entries = fs.readdirSync(currentDir);
entries.forEach(entry => {
if (entry.startsWith('.')) return;
const fullPath = path.join(currentDir, entry);
const stat = fs.statSync(fullPath);
if (stat.isDirectory()) {
walk(fullPath);
} else if (stat.isFile() && stat.size >= sizeThreshold) {
const relativePath = path.relative(assetsPath, fullPath);
files.push({
name: entry,
path: relativePath,
size: stat.size,
ext: path.extname(entry).toLowerCase()
});
}
});
}
walk(dir);
return files.sort((a, b) => b.size - a.size);
}
function displayResults(files) {
const limit = parseInt(doc.getElementById('file-limit').value) || 20;
const topFiles = files.slice(0, limit);
const totalSize = files.reduce((sum, f) => sum + f.size, 0);
let html = `
<div class="summary">
<div>总文件数: ${files.length} (≥${formatSize(sizeThreshold)})</div>
<div>总大小: ${formatSize(totalSize)}</div>
</div>
<table class="result-table">
<thead>
<tr>
<th>排名</th>
<th>文件名</th>
<th>大小</th>
<th>类型</th>
<th>路径</th>
</tr>
</thead>
<tbody>
`;
topFiles.forEach((file, index) => {
html += `
<tr>
<td>${index + 1}</td>
<td>${file.name}</td>
<td>${formatSize(file.size)}</td>
<td>${file.ext}</td>
<td class="path">${file.path}</td>
</tr>
`;
});
html += `</tbody></table>`;
// 添加文件类型统计
const typeStats = getFileTypeStats(files);
html += '<div class="type-stats"><h3>按类型统计</h3><ul>';
for (const [type, size] of Object.entries(typeStats)) {
html += `<li class="textCls">${type}: ${formatSize(size)} (${Math.round(size / totalSize * 100)}%)</li>`;
}
html += '</ul></div>';
doc.getElementById('result').innerHTML = html;
}
function getFileTypeStats(files) {
const stats = {};
files.forEach(file => {
const type = file.ext || 'other';
stats[type] = (stats[type] || 0) + file.size;
});
return stats;
}
function showError(message) {
doc.getElementById('result').innerHTML =
`<div class="error">${message}</div>`;
}
}
});
4.index.html内容
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>资源分析工具</title>
<style>
/* ...你原有的样式... */
.result-table {
max-height: 600px;
width: 100%;
overflow-y: auto;
display: block;
margin-right: 20px;
padding-left: 20px;
padding-right: 20px;
}
.result-table table {
width: 100%;
table-layout: fixed;
border-collapse: collapse;
}
.result-table th,
.result-table td {
padding: 8px 16px;
text-align: left;
word-break: break-all;
}
.type-stats {
max-height: 200px;
overflow-y: auto;
margin-top: 16px;
display: block;
}
#result {
max-height: 800px;
overflow-y: auto;
}
body {
font-family: -apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, Helvetica, Arial, sans-serif;
padding: 15px;
color: #333;
}
.error {
color: #f44336;
padding: 10px;
background: #ffebee;
border-radius: 4px;
}
.summary {
margin: 10px 0;
width: 400px;
padding: 10px;
background: #f5f5f5;
border-radius: 4px;
font-size: 18px;
color: #333;
}
.summary div {
margin: 5px 0;
}
.controls {
margin-bottom: 15px;
padding: 10px;
background: #f5f5f5;
border-radius: 4px;
display: flex;
align-items: center;
flex-wrap: wrap;
gap: 10px;
}
.control-group {
display: flex;
align-items: center;
gap: 5px;
margin-right: 15px;
}
button {
padding: 6px 12px;
background: #1890ff;
color: white;
border: none;
border-radius: 4px;
cursor: pointer;
font-size: 20px;
}
button:hover {
background: #40a9ff;
}
input {
padding: 5px;
border: 1px solid #d9d9d9;
border-radius: 4px;
width: 80px;
font-size: 20px;
}
.path {
max-width: 300px;
overflow: hidden;
text-overflow: ellipsis;
white-space: nowrap;
}
.type-stats {
margin-top: 10px;
font-size: 16px;
}
.type-stats ul {
list-style: none;
padding: 0;
margin: 0;
display: grid;
grid-template-columns: repeat(auto-fill, minmax(200px, 1fr));
gap: 10px;
}
.type-stats li {
padding: 8px;
background: #f5f5f5;
border-radius: 4px;
}
.textCls {
font-size: 20px;
color: #333;
}
</style>
</head>
<body>
<h2>资源文件大小分析</h2>
<div class="controls">
<div class="control-group">
<label class="textCls">最小文件大小:</label>
<input type="number" id="threshold" value="100">
<span class="textCls">KB</span>
<!-- <button id="update-threshold">更新</button> -->
</div>
<div class="control-group">
<label class="textCls">显示前</label>
<input type="number" id="file-limit" value="20">
<span class="textCls">个文件</span>
</div>
<button id="analyze-btn">开始分析</button>
</div>
<div id="result"></div>
</body>
</html>

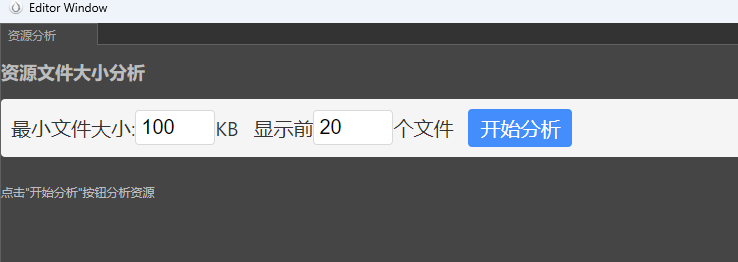

最后重启cocos ,在菜单栏选择 Tools/资源分析 即可
