clang: warning: argument unused during compilation: ‘--gcc-toolchain=Sdk/10/native/llvm/‘

于 2024-11-07 16:13:05 发布
阅读量804 收藏 4
点赞数 7
分类专栏： 鸿蒙开发中的问题总结 文章标签： harmonyos 华为 c++
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.youkuaiyun.com/geesehoward20000/article/details/143598395
版权

编译鸿蒙版的三方库，或自己开发的C/CPP库时，会发现，编译日志里存在一个警告

clang: warning: argument unused during compilation: '--gcc-toolchain=Y:/OpenHarmony/Sdk/10/native/llvm' [-Wunused-command-line-argument]

无论是官方还是网上搜，都没有找到什么解决办法。

今天看了一下cmake相关的脚本，首先，在ohos.toolchain.cmake(位于SDK的native/build/cmake目录下)

# Copyright (c) 2021 Huawei Device Co., Ltd.
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# Description: The configuration of toolchain file supplied to cmake, which specifies
#              locations for compilers and toolchain utilities, and other target
#              platform and compiler related information.

cmake_minimum_required(VERSION 3.6.0)
set(CMAKE_SYSTEM_VERSION 1)
set(CMAKE_ASM_COMPILER_VERSION 15.0.4)

if(DEFINED OHOS_SDK_NATIVE_TOOLCHAIN_DEFINED)
  return()
endif()
set(OHOS_SDK_NATIVE_TOOLCHAIN_DEFINED true)

# Set OHOS_SDK_NATIVE
get_filename_component(OHOS_SDK_NATIVE "${CMAKE_CURRENT_LIST_DIR}/../.." ABSOLUTE)
file(TO_CMAKE_PATH "${OHOS_SDK_NATIVE}" OHOS_SDK_NATIVE)

# Sdk native version
file(STRINGS "${OHOS_SDK_NATIVE}/oh-uni-package.json" NATIVE_VER REGEX "\"version\":.*")
string(REGEX REPLACE "\"version\":(.*)$" "\\1" SDK_NATIVE_VERSION "${NATIVE_VER}")
string(STRIP "${SDK_NATIVE_VERSION}" SDK_NATIVE_VERSION)

# Common default settings
set(OHOS TRUE)
set(CMAKE_SYSTEM_NAME OHOS)

if(NOT DEFINED OHOS_PLATFORM_LEVEL)
  set(OHOS_PLATFORM_LEVEL 1)
endif()

if(NOT DEFINED OHOS_TOOLCHAIN)
  set(OHOS_TOOLCHAIN clang)
endif()

if(NOT DEFINED OHOS_STL)
  set(OHOS_STL c++_shared)
endif()

if(NOT DEFINED OHOS_PIE)
  set(OHOS_PIE TRUE)
endif()

if(NOT DEFINED OHOS_ARM_NEON)
  set(OHOS_ARM_NEON thumb)
endif()

# set the ABI
if(NOT DEFINED OHOS_ARCH)
  set(OHOS_ARCH arm64-v8a)
endif()

# set the undefined symbols
if(DEFINED OHOS_NO_UNDEFINED)
  if(NOT DEFINED OHOS_ALLOW_UNDEFINED_SYMBOLS)
    set(OHOS_ALLOW_UNDEFINED_SYMBOLS "${OHOS_NO_UNDEFINED}")
  endif()
endif()

# set the ccache
if(DEFINED SDK_NATIVE_CCACHE AND NOT DEFINED OHOS_CCACHE)
  set(OHOS_CCACHE "${SDK_NATIVE_CCACHE}")
endif()

# set the sdk native platform
include(${CMAKE_CURRENT_LIST_DIR}/sdk_native_platforms.cmake)
if(NOT DEFINED OHOS_SDK_NATIVE_PLATFORM)
  set(OHOS_SDK_NATIVE_PLATFORM "ohos-${SDK_NATIVE_MIN_PLATFORM_LEVEL}")
endif()

# set the sdk native platform level
string(REPLACE "ohos-" "" OHOS_SDK_NATIVE_PLATFORM_LEVEL ${OHOS_SDK_NATIVE_PLATFORM})

# set find executable programs on the host system path
set(CMAKE_FIND_ROOT_PATH_MODE_PROGRAM NEVER)
set(CMAKE_FIND_ROOT_PATH_MODE_LIBRARY ONLY)
set(CMAKE_FIND_ROOT_PATH_MODE_INCLUDE ONLY)
set(CMAKE_FIND_ROOT_PATH_MODE_PACKAGE ONLY)
list(APPEND CMAKE_FIND_ROOT_PATH "${OHOS_SDK_NATIVE}")

# set the arch abi
set(CMAKE_OHOS_ARCH_ABI ${OHOS_ARCH})

# set arch diff property ...
if(OHOS_ARCH STREQUAL arm64-v8a)
  set(OHOS_TOOLCHAIN_NAME aarch64-linux-ohos)
  set(OHOS_LLVM ${OHOS_TOOLCHAIN_NAME})
  set(CMAKE_SYSTEM_PROCESSOR aarch64)
elseif(OHOS_ARCH STREQUAL armeabi-v7a)
  set(OHOS_TOOLCHAIN_NAME arm-linux-ohos)
  set(OHOS_LLVM ${OHOS_TOOLCHAIN_NAME})
  set(CMAKE_SYSTEM_PROCESSOR arm)
elseif(OHOS_ARCH STREQUAL x86_64)
  set(OHOS_TOOLCHAIN_NAME x86_64-linux-ohos)
  set(OHOS_LLVM ${OHOS_TOOLCHAIN_NAME})
  set(CMAKE_SYSTEM_PROCESSOR x86_64)
else()
  message(FATAL_ERROR "unrecognized ${OHOS_ARCH}")
endif()

set(CMAKE_C_COMPILER_TARGET   ${OHOS_LLVM})
set(CMAKE_CXX_COMPILER_TARGET ${OHOS_LLVM})
set(CMAKE_ASM_COMPILER_TARGET ${OHOS_LLVM})

# Export configurable variables for the try_compile() command.
set(CMAKE_TRY_COMPILE_PLATFORM_VARIABLES
  OHOS_TOOLCHAIN
  OHOS_ARCH
  OHOS_PLATFORM)

# Set the common c flags
set(OHOS_C_COMPILER_FLAGS)
list(APPEND OHOS_C_COMPILER_FLAGS
  -fdata-sections
  -ffunction-sections
  -funwind-tables
  -fstack-protector-strong
  -no-canonical-prefixes
  -fno-addrsig
  -Wa,--noexecstack)
if(OHOS_DISABLE_FORMAT_STRING_CHECKS)
  list(APPEND OHOS_C_COMPILER_FLAGS -Wno-error=format-security)
else()
  list(APPEND OHOS_C_COMPILER_FLAGS -Wformat -Werror=format-security)
endif()
if (OHOS_ARCH STREQUAL armeabi-v7a)
    list(APPEND OHOS_C_COMPILER_FLAGS -march=armv7a)
endif()
if (CMAKE_BUILD_TYPE STREQUAL normal)
    list(APPEND OHOS_C_COMPILER_FLAGS -g)
endif()
if(OHOS_ENABLE_ASAN STREQUAL ON)
	list(APPEND OHOS_C_COMPILER_FLAGS
		-shared-libasan
		-fsanitize=address
		-fno-omit-frame-pointer
		-fsanitize-recover=address)
	if(DEFINED OHOS_ASAN_BLACKLIST)
		list(APPEND OHOS_C_COMPILER_FLAGS -fsanitize-blacklist="${OHOS_ASAN_BLACKLIST}")
	endif()
endif()
string(REPLACE ";" " " OHOS_C_COMPILER_FLAGS "${OHOS_C_COMPILER_FLAGS}")

# set the common c++ flags
set(OHOS_CXX_COMPILER_FLAGS)

# set the common asm flags
set(OHOS_ASM_COMPILER_FLAGS "${OHOS_C_COMPILER_FLAGS}")

# set the debug variant flags
set(OHOS_DEBUG_COMPILER_FLAGS)
list(APPEND OHOS_DEBUG_COMPILER_FLAGS -O0 -g -fno-limit-debug-info)
string(REPLACE ";" " " OHOS_DEBUG_COMPILER_FLAGS   "${OHOS_DEBUG_COMPILER_FLAGS}")

# set the release variant flags
set(OHOS_RELEASE_COMPILER_FLAGS)
list(APPEND OHOS_RELEASE_COMPILER_FLAGS -O2)
list(APPEND OHOS_RELEASE_COMPILER_FLAGS -DNDEBUG)
string(REPLACE ";" " " OHOS_RELEASE_COMPILER_FLAGS "${OHOS_RELEASE_COMPILER_FLAGS}")

# set the common link flags
set(OHOS_COMMON_LINKER_FLAGS)
list(APPEND OHOS_COMMON_LINKER_FLAGS --rtlib=compiler-rt)
list(APPEND OHOS_COMMON_LINKER_FLAGS -fuse-ld=lld)

if(OHOS_STL STREQUAL c++_static)
  list(APPEND OHOS_COMMON_LINKER_FLAGS "-static-libstdc++")
elseif(OHOS_STL STREQUAL none)
  list(APPEND OHOS_CXX_COMPILER_FLAGS "-nostdinc++")
  list(APPEND OHOS_COMMON_LINKER_FLAGS "-nostdlib++")
elseif(OHOS_STL STREQUAL c++_shared)
else()
  message(FATAL_ERROR "Unsupported STL configuration: ${OHOS_STL}.")
endif()

list(APPEND OHOS_COMMON_LINKER_FLAGS
  -Wl,--build-id=sha1
  -Wl,--warn-shared-textrel
  -Wl,--fatal-warnings
  -lunwind)
if(NOT OHOS_ALLOW_UNDEFINED_SYMBOLS)
  list(APPEND OHOS_COMMON_LINKER_FLAGS -Wl,--no-undefined)
endif()
list(APPEND OHOS_COMMON_LINKER_FLAGS -Qunused-arguments -Wl,-z,noexecstack)
string(REPLACE ";" " " OHOS_COMMON_LINKER_FLAGS "${OHOS_COMMON_LINKER_FLAGS}")

# set the executable link flags
set(OHOS_EXE_LINKER_FLAGS)
list(APPEND OHOS_EXE_LINKER_FLAGS -Wl,--gc-sections)
string(REPLACE ";" " " OHOS_EXE_LINKER_FLAGS "${OHOS_EXE_LINKER_FLAGS}")

# set the other flags
set(CMAKE_C_STANDARD_LIBRARIES_INIT "-lm")
set(CMAKE_CXX_STANDARD_LIBRARIES_INIT "-lm")
set(CMAKE_POSITION_INDEPENDENT_CODE TRUE)

# set the cmake global cflags
set(CMAKE_C_FLAGS "" CACHE STRING "Flags for all build types.")
set(CMAKE_C_FLAGS "${OHOS_C_COMPILER_FLAGS} ${CMAKE_C_FLAGS} -D__MUSL__")

set(CMAKE_C_FLAGS_DEBUG "" CACHE STRING "Flags for debug variant builds.")
set(CMAKE_C_FLAGS_DEBUG "${OHOS_DEBUG_COMPILER_FLAGS} ${CMAKE_C_FLAGS_DEBUG}")

set(CMAKE_C_FLAGS_RELEASE "" CACHE STRING "Flags for release variant builds.")
set(CMAKE_C_FLAGS_RELEASE "${OHOS_RELEASE_COMPILER_FLAGS} ${CMAKE_C_FLAGS_RELEASE}")

# set the cmake global cppflags
set(CMAKE_CXX_FLAGS "" CACHE STRING "Flags for all build types.")
set(CMAKE_CXX_FLAGS "${OHOS_C_COMPILER_FLAGS} ${OHOS_CXX_COMPILER_FLAGS} ${CMAKE_CXX_FLAGS} -D__MUSL__")

set(CMAKE_CXX_FLAGS_DEBUG "" CACHE STRING "Flags for debug variant builds.")
set(CMAKE_CXX_FLAGS_DEBUG "${OHOS_DEBUG_COMPILER_FLAGS} ${CMAKE_CXX_FLAGS_DEBUG}")

set(CMAKE_CXX_FLAGS_RELEASE "" CACHE STRING "Flags for release variant builds.")
set(CMAKE_CXX_FLAGS_RELEASE "${OHOS_RELEASE_COMPILER_FLAGS} ${CMAKE_CXX_FLAGS_RELEASE}")

# set the cmake global asmflags
set(CMAKE_ASM_FLAGS "" CACHE STRING "Flags for all build types.")
set(CMAKE_ASM_FLAGS "${OHOS_ASM_COMPILER_FLAGS} ${CMAKE_ASM_FLAGS} -D__MUSL__")

set(CMAKE_ASM_FLAGS_DEBUG "" CACHE STRING "Flags for debug variant builds.")
set(CMAKE_ASM_FLAGS_DEBUG "${OHOS_DEBUG_COMPILER_FLAGS} ${CMAKE_ASM_FLAGS_DEBUG}")

set(CMAKE_ASM_FLAGS_RELEASE "" CACHE STRING "Flags for release variant builds.")
set(CMAKE_ASM_FLAGS_RELEASE "${OHOS_RELEASE_COMPILER_FLAGS} ${CMAKE_ASM_FLAGS_RELEASE}")

# set the link flags
set(CMAKE_SHARED_LINKER_FLAGS "" CACHE STRING "Linker flags to be used to create shared libraries.")
set(CMAKE_SHARED_LINKER_FLAGS "${OHOS_COMMON_LINKER_FLAGS} ${CMAKE_SHARED_LINKER_FLAGS}")

set(CMAKE_MODULE_LINKER_FLAGS "" CACHE STRING "Linker flags to be used to create modules.")
set(CMAKE_MODULE_LINKER_FLAGS "${OHOS_COMMON_LINKER_FLAGS} ${CMAKE_MODULE_LINKER_FLAGS}")

set(CMAKE_EXE_LINKER_FLAGS "" CACHE STRING "Linker flags to be used to create executables.")
set(CMAKE_EXE_LINKER_FLAGS "${OHOS_COMMON_LINKER_FLAGS} ${OHOS_EXE_LINKER_FLAGS} ${CMAKE_EXE_LINKER_FLAGS}")

# set the executable suffix
set(HOST_SYSTEM_EXE_SUFFIX)
if(CMAKE_HOST_SYSTEM_NAME STREQUAL Windows)
  set(HOST_SYSTEM_EXE_SUFFIX .exe)
endif()

# set the toolchain config.
set(TOOLCHAIN_ROOT_PATH "${OHOS_SDK_NATIVE}/llvm")
set(TOOLCHAIN_BIN_PATH  "${OHOS_SDK_NATIVE}/llvm/bin")

set(CMAKE_SYSROOT "${OHOS_SDK_NATIVE}/sysroot")
set(CMAKE_LIBRARY_ARCHITECTURE "${OHOS_TOOLCHAIN_NAME}")
list(APPEND CMAKE_SYSTEM_LIBRARY_PATH "/usr/lib/${OHOS_TOOLCHAIN_NAME}")
set(CMAKE_C_COMPILER_EXTERNAL_TOOLCHAIN   "${TOOLCHAIN_ROOT_PATH}")
set(CMAKE_CXX_COMPILER_EXTERNAL_TOOLCHAIN "${TOOLCHAIN_ROOT_PATH}")
set(CMAKE_ASM_COMPILER_EXTERNAL_TOOLCHAIN "${TOOLCHAIN_ROOT_PATH}")
set(CMAKE_C_COMPILER "${TOOLCHAIN_BIN_PATH}/clang${HOST_SYSTEM_EXE_SUFFIX}")
set(CMAKE_CXX_COMPILER "${TOOLCHAIN_BIN_PATH}/clang++${HOST_SYSTEM_EXE_SUFFIX}")

set(OHOS_AR "${TOOLCHAIN_BIN_PATH}/llvm-ar${HOST_SYSTEM_EXE_SUFFIX}")
set(OHOS_RANLIB "${TOOLCHAIN_BIN_PATH}/llvm-ranlib${HOST_SYSTEM_EXE_SUFFIX}")
set(CMAKE_AR                "${OHOS_AR}" CACHE FILEPATH "Archiver")
set(CMAKE_RANLIB            "${OHOS_RANLIB}" CACHE FILEPATH "Ranlib")

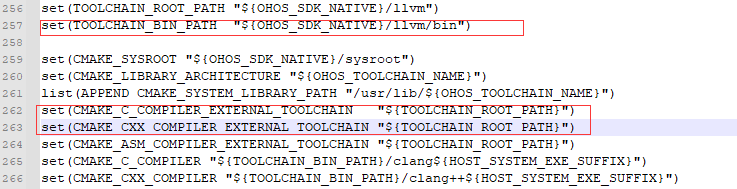

注意到257、262、263行的内容如图


查看clang.cmake(位于Sdk的native/build-tools/cmake/share/cmake-3.16/Modules/Compiler/Clang.cmake)

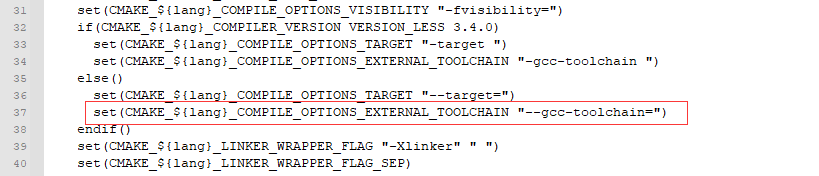

对于COMPILE_OPTIONS_EXTERNAL_TOOLCHAIN如图：


要让警告消失，可以把ohos.toolchain.cmake中262和263行注释掉，一般的C/C++库都可以正常编译通过。

但修改存在一定风险，可能有一些库需要这个扩展依赖参数才能编译，目前还没遇到，有强迫症的可以修改关闭警告，遇到问题放开即可。

鸿蒙NEXT开发【CMake构建工程配置HarmonyOS编译工具链】编译构建
houxiliOH的博客
09-30 978
CMake是一个跨平台的构建工具，用于管理构建过程、编译、链接和打包软件项目，它可以生成Makefile等用于不同操作系统和编译器的构建脚本。CMake的配置过程是跨平台的，因此可以在不同的操作系统上运行，例如Linux、Windows和macOS。
clang-15: error: argument unused during compilation: ‘-pie‘ [-Werror,-Wunused-command-line-argument]
sngzer的博客
07-03 631
-pie
clang: warning: argument unused during compilation: ‘-no-pie‘ [-Wunused-command-line-argument]
Acx7的博客
06-16 4315
mac使用golang出现问题
「android」gomobile argument unused during compilation: '-stdlib=libc++'
weixin_34095889的博客
01-21 1564
【问题】 android基于go的NDK开发中配置gomobile参考官方WIKI：https://github.com/golang/go/wiki/Mobile，大致步骤： 1、下载gomobile：$ go get golang.org/x/mobile/cmd/gomobile 2、初始化 $ gomobile init但是使用gomobile编译官方例子（$ gomobile bu...
xcode/clang: clang: warning: argument unused during compilation: '-fcheck-new'
fishmai的专栏
10-28 3154
This warning can be silenced by adding the flag -Qunused-arguments It's a warning because clang does not support the -fcheck-new argument
NDK开发趟坑之旅
lancelots的博客
09-29 971
Build command failed. Error while executing process /Users/fenglei/Library/Android/sdk/cmake/3.10.2.4988404/bin/ninja with arguments {-C /Users/fenglei/AndroidStudioProjects/FFmpegNdkDemo/app/.cxx/cmake/debug/armeabi-v7a native-lib} ninja: Entering directo
鸿蒙（开发进阶）CMake构建工程配置HarmonyOS编译工具链
最新发布
WEZC156465的博客
10-25 1165
CMake是一个跨平台的构建工具，用于管理构建过程、编译、链接和打包软件项目，它可以生成Makefile等用于不同操作系统和编译器的构建脚本。CMake的配置过程是跨平台的，因此可以在不同的操作系统上运行，例如Linux、Windows和macOS。
龙芯平台的electron开发
ciji4412的博客
06-29 1501
成品 http://ftp.loongnix.org/os/loongnix/1.0/os/Packages/e/electron-4.0.6-2.fc21.loongson.mips64el.rpm 一、环境 　操作系统 　　本文基于fedora 28 for loongs...
Mac下Caffe安装
SnailTyan
12-06 2957
Mac下Caffe安装
解决error: unrecognized command-line option ‘-msse4.1‘
weixin_41821317的博客
01-11 3987
一、问题描述 clion编译源码时报错 error: unrecognized command-line option ‘-msse4.1’ xcode编译源码时报错 argument unused during compilation: ‘-msse4.1’ 二、环境 HEVC源码 https://vcgit.hhi.fraunhofer.de/jvet/HM.git MacBook Pro M1 Pro gcc@11 clion/Xcode 三、解决方法 修改CMakeLists.t
python autopy_安装python autopy时出错
weixin_39571179的博客
12-08 1021
嘿，我已经看过了一个老问题，但它不能回答我的问题我已经安装了libpng，然后尝试安装autopy并得到complie错误。在我对python还不是很在行，所以我不确定如何修复它们。在Ashley:~ ashleyhughes$ sudo easy_install autopySearching for autopyReading http://pypi.python.org/simple/aut...
编译遇到bitcode bundle could not be generated because 调用第三方库造成
chinv9183的博客
06-22 4561
解决办法： 右键这个错误提示，选择reavalinlog（在日志中显示） 1、在BuildSettings中搜索EnableBitcode->设置No 2、Project->Targets->BuildSettings->...
gcc编译参数
weixin_30305735的博客
01-15 259
gcc是gnu compiler collection 的简称，他包含了多种语言的编译器，如C, C++, Objective-C, Objective-C++, Java, Fortran和Ada。但每种编译器的名字不一样，gcc and g++ 分别是 gnu 的 c & c++ 编译器 gcc/g++ 在执行编译工作的时候，总共需要 4 步 1. 预处理, 生成 .i 的文件 [...
NDK版本！clang++: error: unknown argument: ‘-static-openmp‘
model2005的专栏
08-30 2281
cmakelists.txt文件编译ncnn和cpp，在另两台ubuntu机子上运行正常。 同样配置源码，project 载入，gradle初始化也正确，但编译APK 出错。 clang++: error: unknown argument: '-static-openmp' 找了半天，看不到出错的配置，怀疑gradle版本，升级后问题依旧；把AS 版本升级，问题仍然出现。 打开settings，sdk配置，查看sdk tools，重新安装sdk，一下就安装了最新的SDK 23.0，错误消失，但编译
使用 LLVM-for-Arm 工具链编译 RT-Thread 源码
rtthreadiotos的博客
01-12 2010
使用 LLVM 编译 RT-Thread硬件测试环境pdd 不久前搞活动， 99 块买了两块阿里出的 L469 的开发板，最高主频为 80Mhz。所以本次测试硬件就使用该开发板进行测试。工...
APP使用自己的静态库,但在打包时出现的问题解决
tooles的博客
08-26 2357
打开选项如下图 那么问题来了，如果一个工程里面有静态库的引用，那么所有的静态库也需要打开Bitcode后重新编译。 这一切都没有问题，但是在“Archive”的时候就会报错。 这时，就需要给静态库的工程增加一个选项“-fembed-bitcode”。之后就可以正常Archive了。 报错内容 ld: bitcode bundle could not be gene
Machine Learning_安装_caffe
夏大兔的学习笔记
06-02 1862
没装成啊.....哎
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

阿捏利

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
