spring+springmvc+mybatis+quartz 整合demo

1.引入jar包：注意spring3.1以下的版本必须使用quartz1.x系列，3.1以上的版本才支持quartz 2.x，不然会出错

<!-- quartz -->
    <dependency>
       <groupId>org.quartz-scheduler</groupId>
       <artifactId>quartz</artifactId>
       <version>2.2.1</version>
    </dependency>

2.编写任务类：我写了两个任务。注意还有一种是继承QuartzJobBean类的写法感兴趣自己百度，我只介绍一种。

import java.util.Date;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
/**
 * Cron时间触发器
 *
 * @author Administrator
 *
 */
public class MyTaskA {
	 private static final Logger logger = LoggerFactory.getLogger(MyTaskA.class);
    //到了某个时刻就会被调用
    public void autoRunA(){
    	logger.info("定时任务3进行中.......");
    }
}

import java.util.Date;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
/**
 * Cron时间触发器
 *
 * @author Administrator
 *
 */
public class MyTaskB {
	private static final Logger logger = LoggerFactory.getLogger(MyTaskB.class);
	//到了某个时刻就会被调用
    public void autoRunB(){

    	logger.info("定时任务1进行中.......");
    }
}

3.quartz.xml配置：1.任务bean配置  2.触发器配置   3.调度器配置

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans-3.2.xsd">

        <!-- quartz配置：1.任务bean配置  2.触发器配置   3.调度器配置 -->
     <!-- 1.配置任务bean -->
     <bean name="myTaskA" class="org.springframework.scheduling.quartz.MethodInvokingJobDetailFactoryBean">
         <property name="targetObject">
             <bean class="com.wangyun.task.MyTaskA"/>
        </property>
         <property name="targetMethod" value="autoRunA"/>
         <!--作业不并发调度-->
         <property name="concurrent" value="false"/>
    </bean>

    <!-- 1.配置任务bean -->
    <bean name="myTaskB" class="org.springframework.scheduling.quartz.MethodInvokingJobDetailFactoryBean">
         <property name="targetObject">
             <bean class="com.wangyun.task.MyTaskB"/>
        </property>
         <property name="targetMethod" value="autoRunB"/>
         <!--作业不并发调度-->
         <property name="concurrent" value="false"/>
    </bean>

     <!--2.Cron表达式触发器-->
     <bean id="cronTrigger" class="org.springframework.scheduling.quartz.CronTriggerFactoryBean">
         <property name="jobDetail" ref="myTaskA"/>
         <property name="cronExpression" value="0/5 * * * * ?"/>
     </bean>

     <!--2.Cron表达式触发器-->
     <bean id="cronTriggerA" class="org.springframework.scheduling.quartz.CronTriggerFactoryBean">
         <property name="jobDetail" ref="myTaskB"/>
         <property name="cronExpression" value="0/3 * * * * ?"/>
     </bean>

     <!--触发器分类：1.按照一定频率的触发器simpleTrigger  2.Cron表达式触发器cronTriggerA-->
     <!--<bean id="simpleTrigger" class="org.springframework.scheduling.quartz.SimpleTriggerFactoryBean">
         <property name="jobDetail" ref="thirdCron"/>
        <property name="startDelay" value="0"/>
         <property name="repeatInterval" value="2000"/>
     </bean>-->



     <!--3.配置调度工厂-->
     <bean class="org.springframework.scheduling.quartz.SchedulerFactoryBean">
         <property name="triggers">
             <list>
                <!--<ref bean="simpleTrigger"/>-->
                 <ref bean="cronTrigger"/>
                 <ref bean="cronTriggerA"/>
             </list>
         </property>
     </bean>
</beans>

4.加载quartz.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                         http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
                         http://www.springframework.org/schema/context
                         http://www.springframework.org/schema/context/spring-context-4.0.xsd">

    <context:annotation-config />
    <!-- 配置component所在的包，自动加载需要管理的Bean -->
    <context:component-scan base-package="com.wangyun"></context:component-scan>
    <import resource="spring-mybatis.xml" />
    <import resource="quartz.xml" />
</beans>

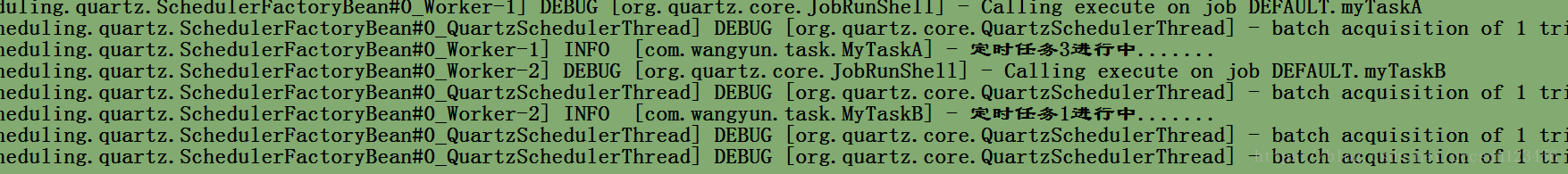

5.运行tomcat出现如下就说明配置成功了。
