前文
本文适合对openGauss源代码有好奇心的爱好者,那么一个友好的openGauss源代码环境应该是怎么样的。openGauss的开发环境是如何设置的?openGauss的编译环境是如何构建的?如何向openGauss提交代码,笔者集合官方和几位博主实践提供友好的openGauss源代码阅读环境。在这个环境,你可以阅读、可以开发、可以调试、可以运行。你可以马上把它提交gitee,也可以选择向openGauss合并。
需要windows主机,linux服务器,gitee帐号各一个,你需要准备以下:
-
centos7.6作为linux服务器,即调试编译环境,
-
Visual Studio code 1.80安装在windows主机上,即开发阅读环境
-
确认已注册gitee帐号,已经拥有gitee用户名和gitee密码
openGauss源代码阅读环境的思路如下,分为4步走。
-
用自己帐号gitee把源码openGauss相关的都fork到自己的仓库下面
-
centos7.6服务器上运行clone,把自己的远端代码全部弄下来。centos7.6服务器安装调试工具,验证调试代码可编译可运行【此刻已经有openGauss安装包生成】
-
windows主机安装vscode,安装 Remote -SSH 和Remote - Development插件。安装后可以友好阅读并修改远端centos7.6的gauss内核代码,修改后保持同步。
-
centos7.6服务器设置git环境,保持与自己的gitee仓库同步,等待自己的gitee仓库与opengauss审核 并合入。
第一步,克隆官方openGauss环境
登陆gitee,把官方openGauss的代码fork过来, openGauss-server: openGauss kernel ~ openGauss is an open source relational database management system.

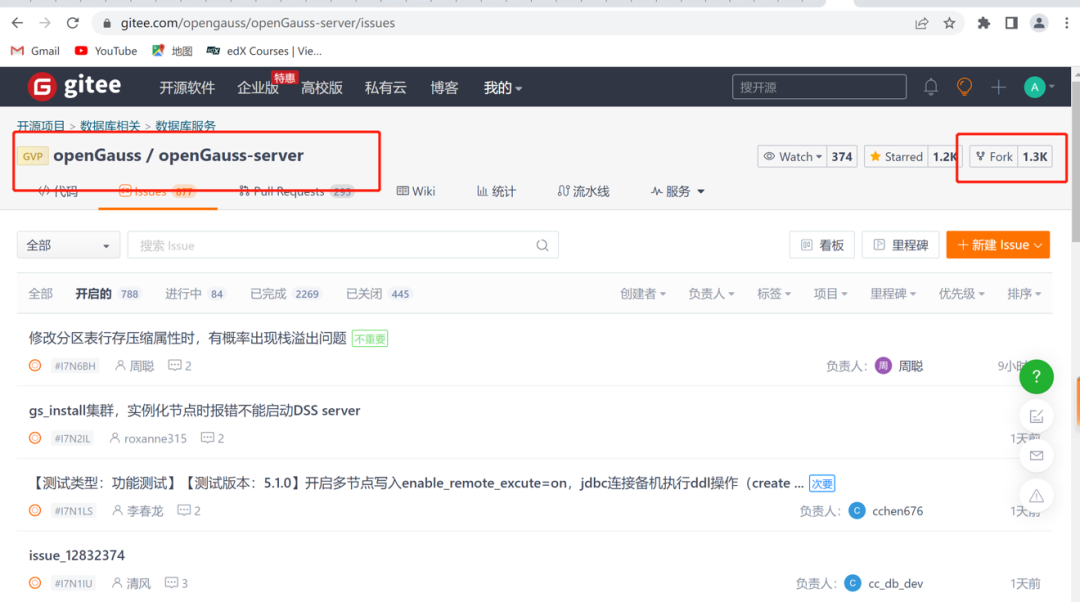

点击fork

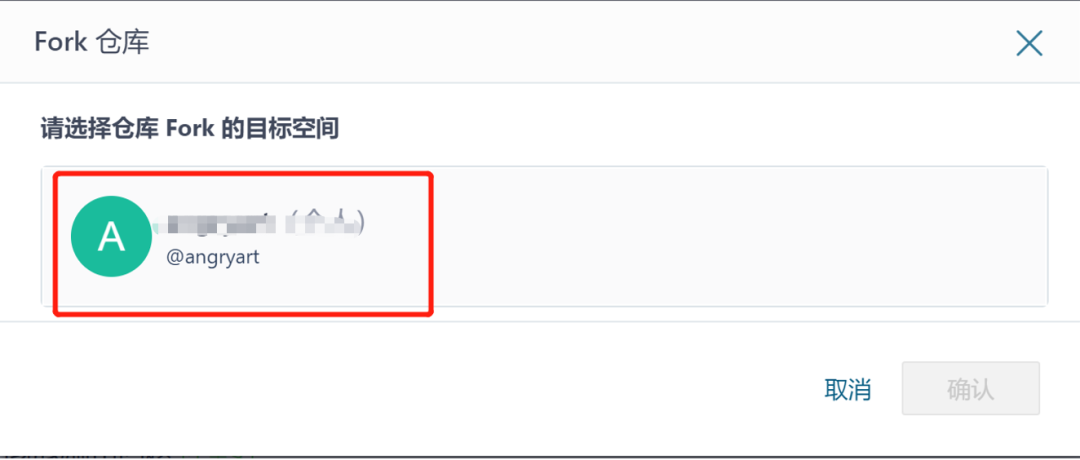

弹出窗口

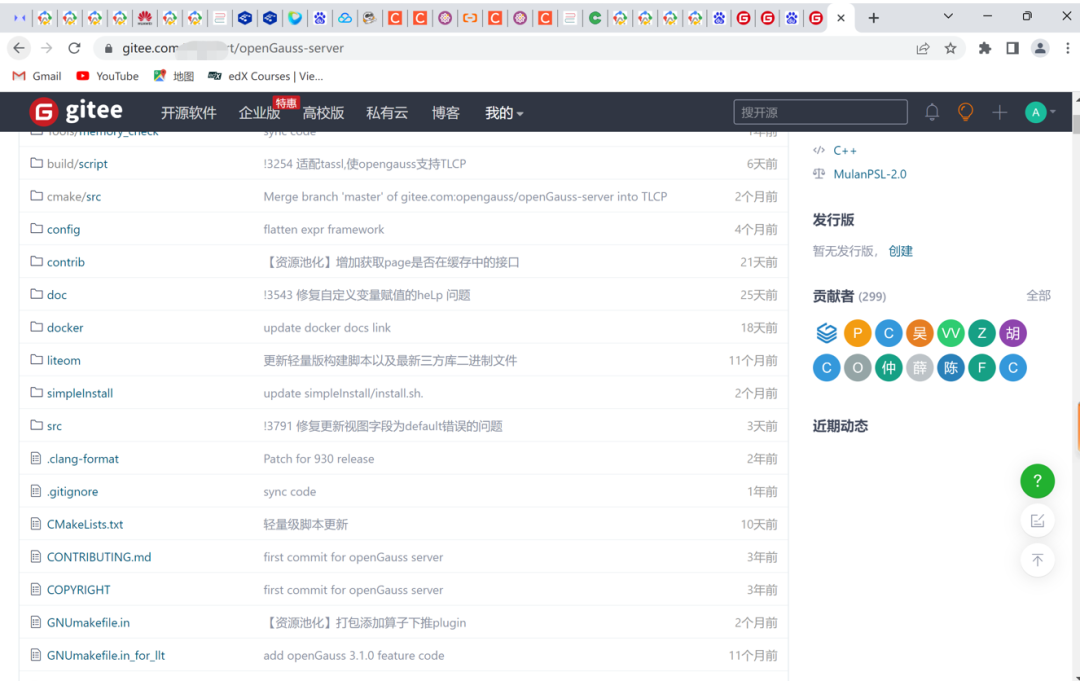

这时可以看到自己的仓库,https://gitee.com/xxxxx/openGauss-server
第二步,centos7.6打造编译开发环境
此处需要openGauss-server、openGauss-OM和openGauss-5.0.0-CentOS-64bit-all.tar.gz
mkdir /tmp/omm500 cd /tmp/omm500git clone https://gitee.com/opengauss/openGauss-OM.git git clone https://gitee.com/angryart/openGauss-server wget https://opengauss.obs.cn-south-1.myhuaweicloud.com/5.0.0/binarylibs/openGauss-third_party_binarylibs_Centos7.6_x86_64.tar.gz tar -xvf openGauss-third_party_binarylibs_Centos7.6_x86_64.tar.gz 注入环境变量 yum remove libaio-devel libaio -y yum install -y git gmp gmp-devel mpfr mpfr-devel libmpc libmpc-devel libaio libaio-devel flex bison ncurese-devel glibc-devel patch rehat-lsb-core readline-devel perl gcc gcc-c++ # 配置环境变量 echo "export CODE_BASE=/tmp/omm500/openGauss-server # Path of the openGauss-server file " >> ~/.bashrc echo "export BINARYLIBS=/tmp/omm500/openGauss-third_party_binarylibs_Centos7.6_x86_64 # Path of the binarylibs file " >> ~/.bashrc echo "export GAUSSHOME=\$CODE_BASE/dest/ " >> ~/.bashrc echo "export GCC_PATH=\$BINARYLIBS/buildtools/gcc7.3/ " >> ~/.bashrc echo "export CC=\$GCC_PATH/gcc/bin/gcc " >> ~/.bashrc echo "export CXX=\$GCC_PATH/gcc/bin/g++ " >> ~/.bashrc echo "export LD_LIBRARY_PATH=\$GAUSSHOME/lib:\$GCC_PATH/gcc/lib64:\$GCC_PATH/isl/lib:\$GCC_PATH/mpc/lib/:\$GCC_PATH/mpfr/lib/:\$GCC_PATH/gmp/lib/:\$LD_LIBRARY_PATH " >> ~/.bashrc echo "export PATH=\$GAUSSHOME/bin:\$GCC_PATH/gcc/bin:\$PATH " >> ~/.bashrc echo "export PGDATA=/opt/omm500/data" >> ~/.bashrc echo "export PGPORT=5432" >> ~/.bashrc echo "export PGDATABASE=postgres" >> ~/.bashrc # 加载环境变量 source ~/.bashrc # 进入源码目录 cd $CODE_BASE # 编译server (这里就是openGauss提供的一键式编译脚本) sh build.sh -m release -3rd $BINARYLIBS -pkg

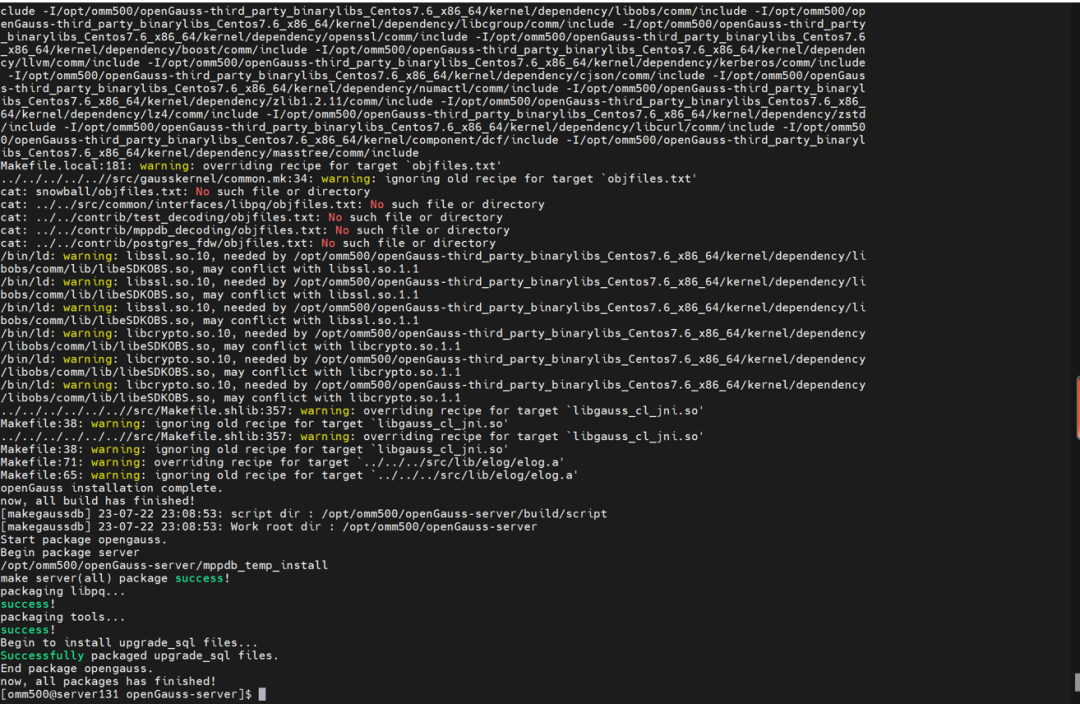

如果成功编译好,如下界面
chmod +x build.sh 这个是opengauss安装的工具 ./build.sh -3rd $BINARYLIBS_PATH

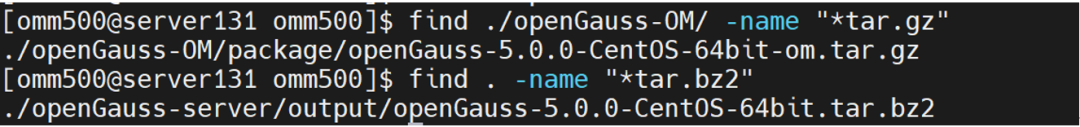

成功后,会有两个文件输出
第三步,windows vs code安装扩展插件连上仓库

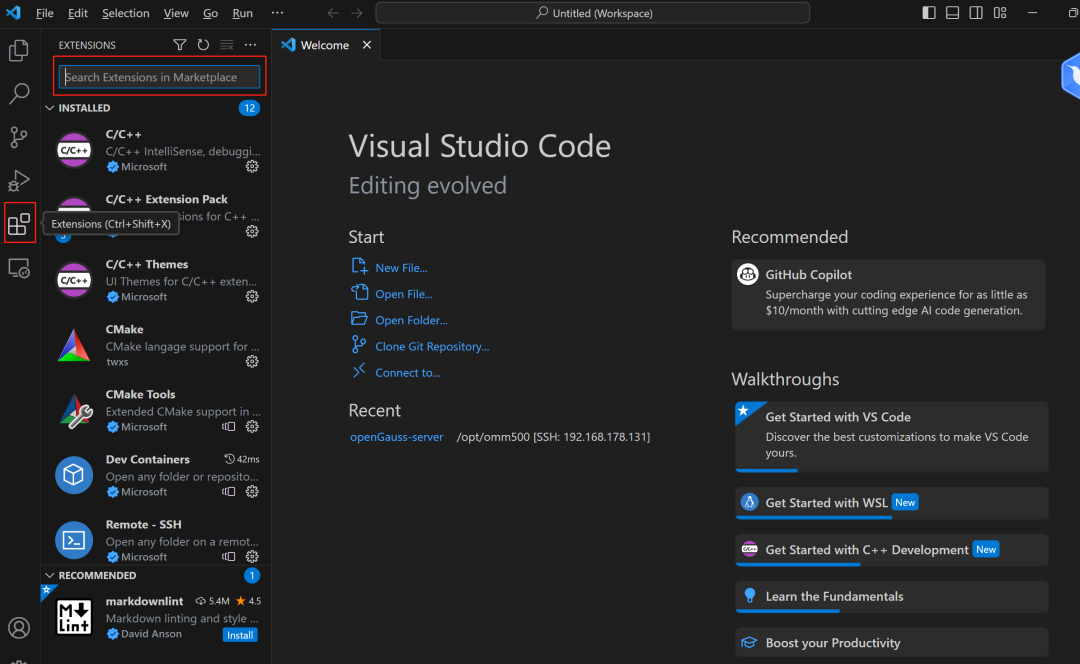

windows下面已经安装好vs code,网上找,直接下一步下一步进行安装,准备安装

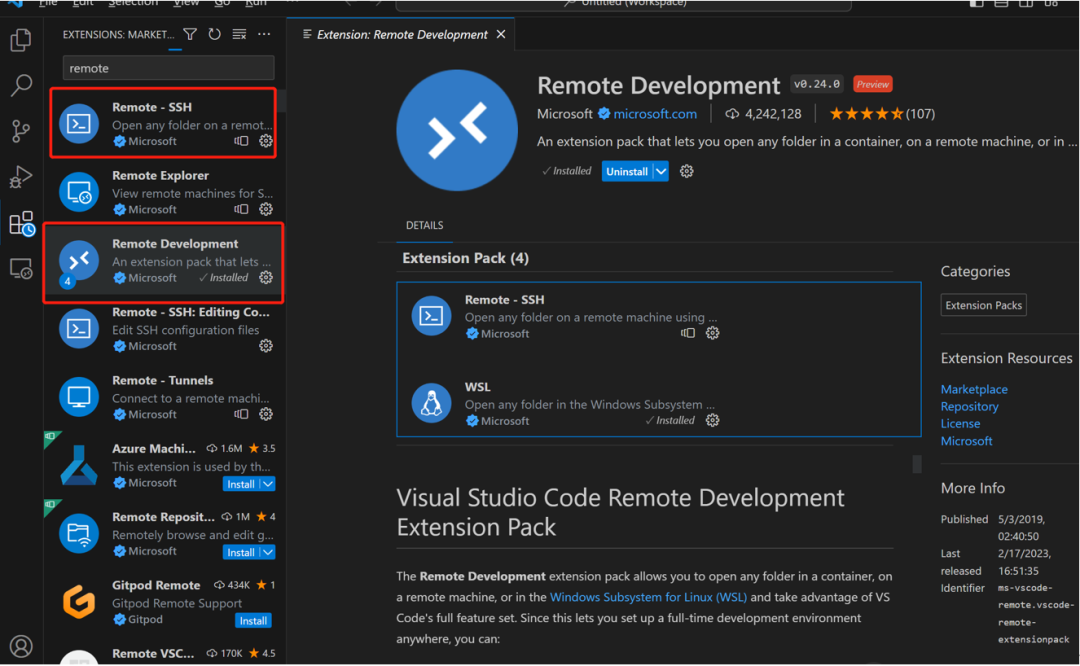

选择Remote-SSH 和 Remote Development

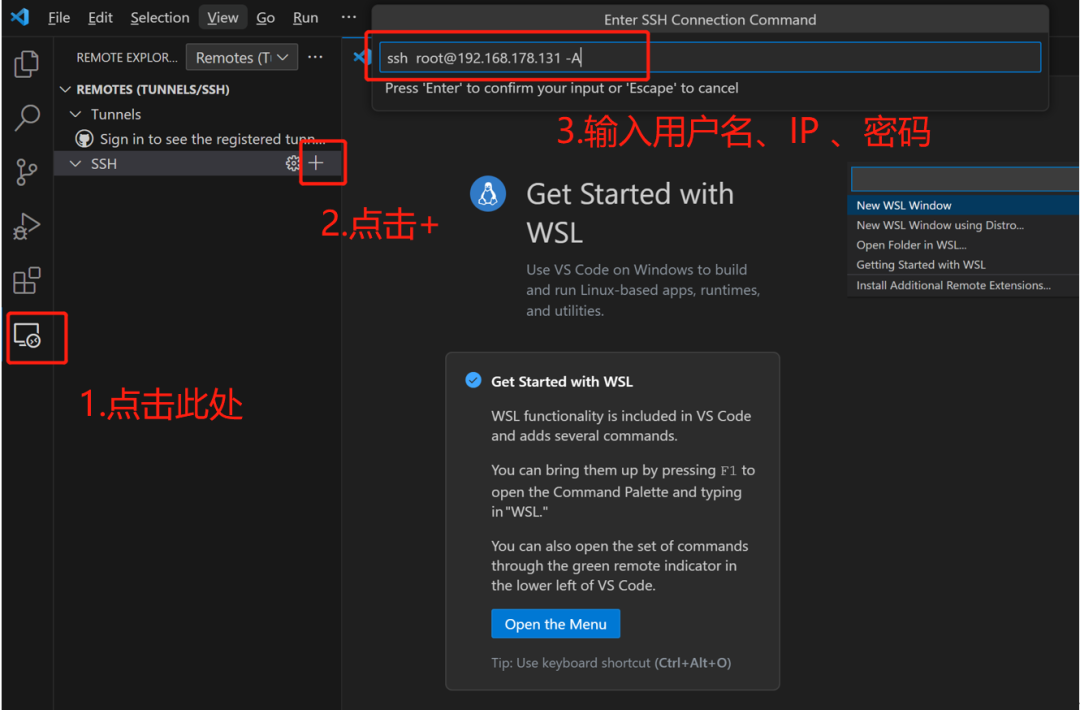

依下图123,对目标服务器进行连接。
点击框中搜索相关openGauss的目录

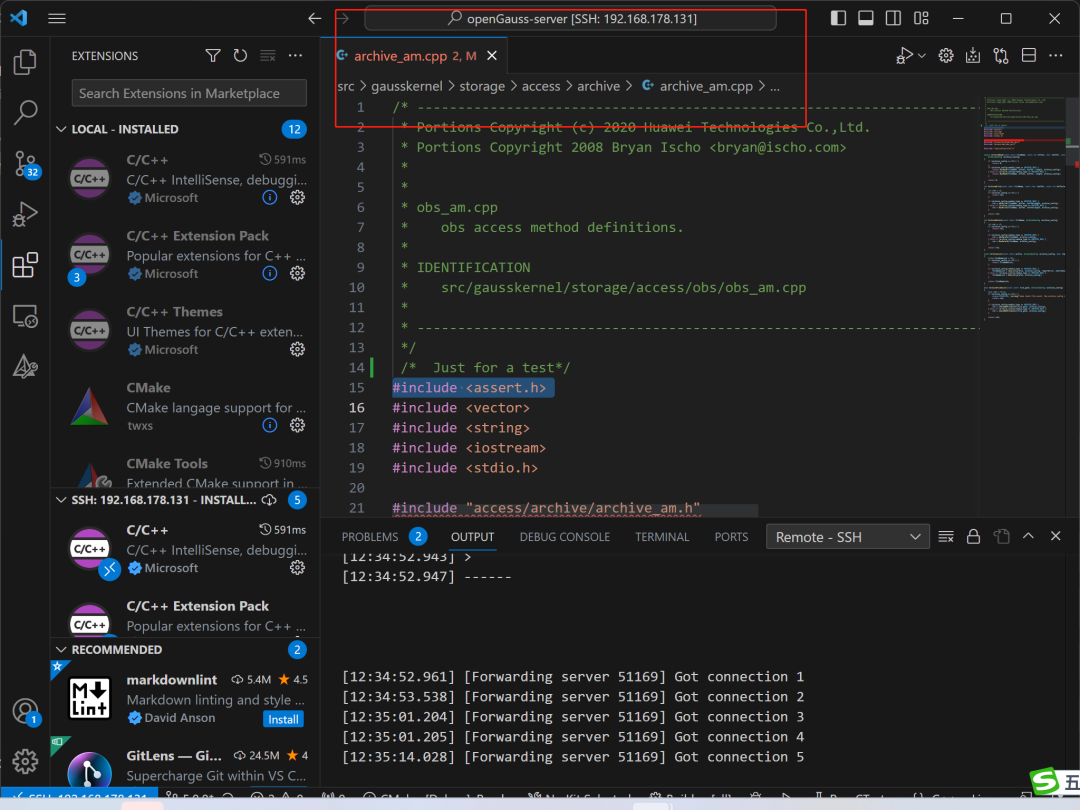

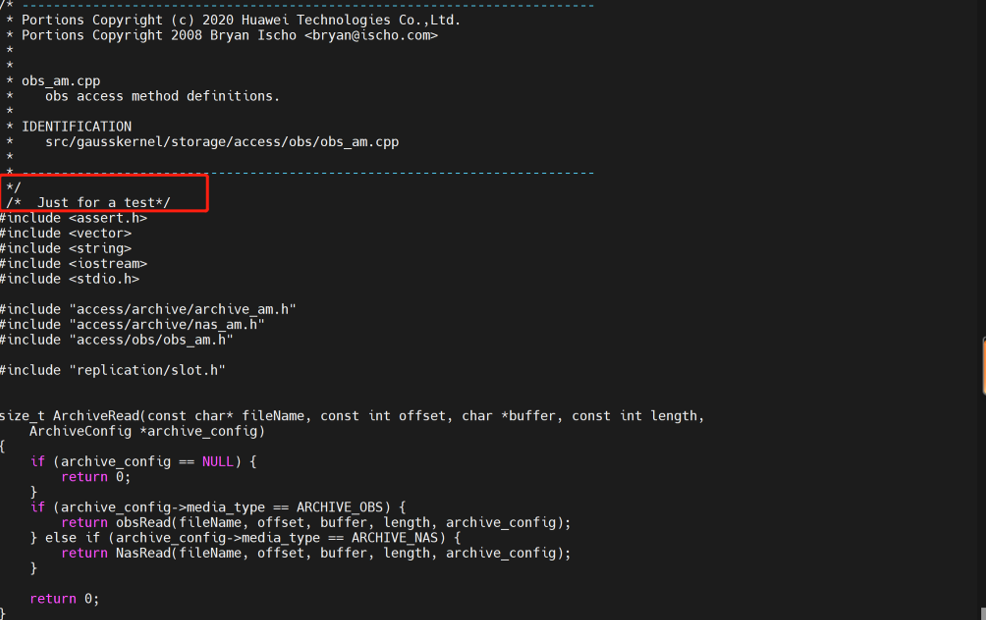

修改源码,openGauss的内核代码是gausskernel下面, src\gausskernel\storage\access\archive\archive_am.cpp,增多一段 “Just for a test”
centos7.6下面查看 src\gausskernel\storage\access\archive\archive_am.cpp ,发现文件的确已经发生变化。
第四步,centos7.6服务器设置git环境
[root@server131 omm500]# git config --global user.name "xxxx" gitee帐号名称 [root@server131 omm500]# git config --global user.email "xxx@139.com" gitee邮箱 [root@server131 omm500]# ssh-keygen -t rsa -C "xxx@139.com" gitee帐号密码 Generating public/private rsa key pair. Enter file in which to save the key (/root/.ssh/id_rsa): Created directory '/root/.ssh'. Enter passphrase (empty for no passphrase): Enter same passphrase again: Your identification has been saved in /root/.ssh/id_rsa. Your public key has been saved in /root/.ssh/id_rsa.pub. The key fingerprint is: SHA256:RDYDta9IiPzK5eZCXu8bU0kOgQuhim9SwvSuZJmsCEI 15920142730@139.com The key's randomart image is: +---[RSA 2048]----+ | .. .oo* | | .. . + + | |.. . .. + | |=..... = o | |+E+.. . S . | |o+=... o . | |+Oooo.+ . | |B+++. .o | |o.o+o.o. | +----[SHA256]-----+ [root@server131 openGauss-server]# git clone https://gitee.com/angryart/openGauss-server [root@server131 openGauss-server]# git remote add upstream https://gitee.com/opengauss/openGauss-server [root@server131 openGauss-server]# git remote set-url --push upstream no_push 提交代码 [root@server131 openGauss-server]# git add . [root@server131 openGauss-server]# git commit -m "message" [root@server131 openGauss-server]# git push origin master

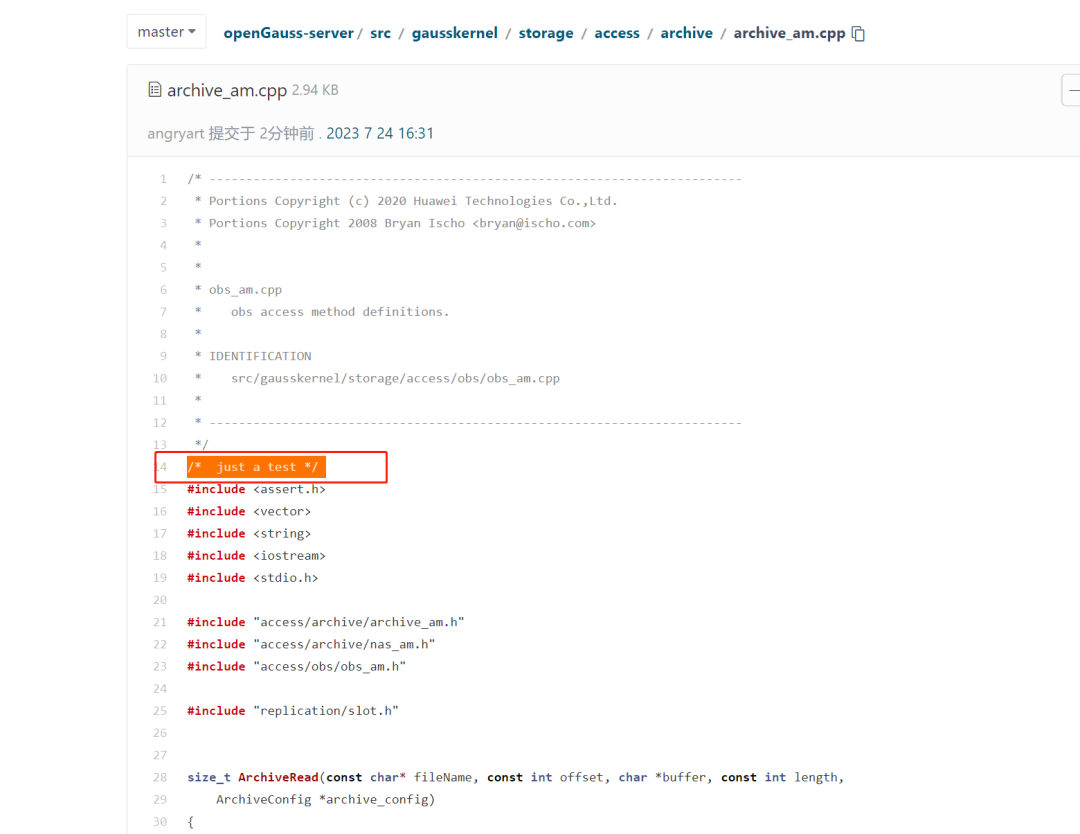

最后检验自己的仓库,已经提交成功

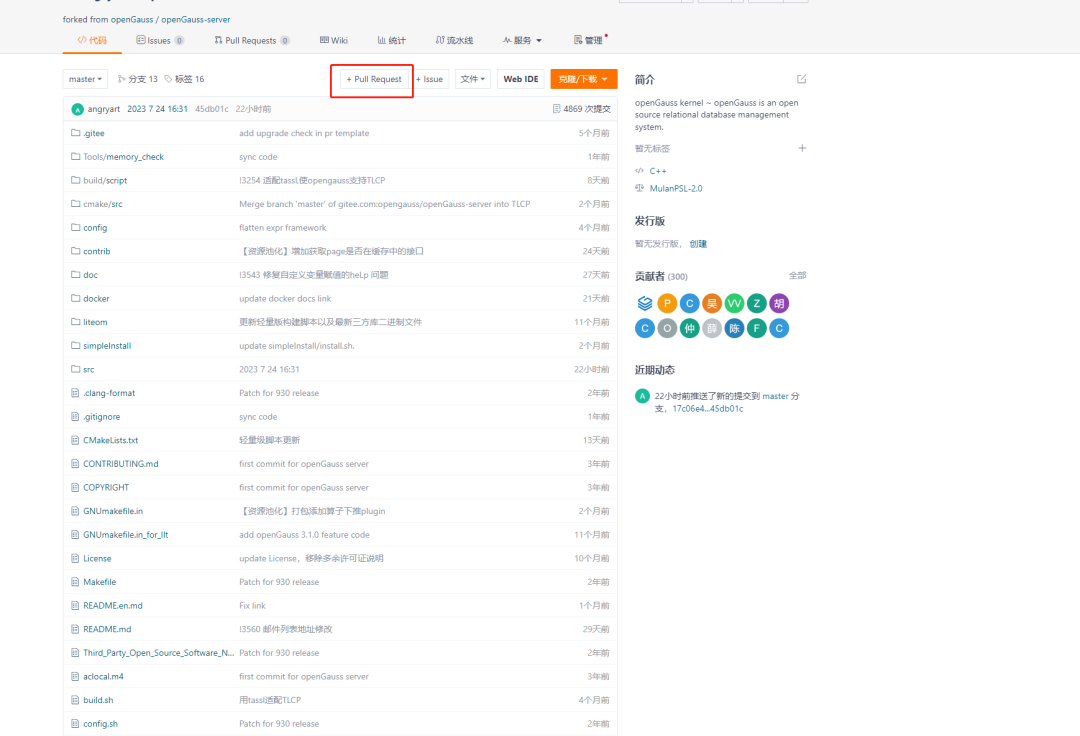

下面是自己的远端仓库与openGauss同步,需要提交pull request
这里要写清楚改了什么,源分支是你修改的源代码, 目标分支是 openGauss侧的的,如果官方同意,就会把你的代码合并到里面去。
