基于Redis和RabbitMQ实现一个异步并发限制工具

淡奶油芝士面包

已于 2022-04-14 17:34:29 修改

阅读量3.9k

点赞数 2

分类专栏： redis 分布式文章标签： java

于 2022-04-14 17:29:22 首次发布

本文链接：https://blog.youkuaiyun.com/future_xiaowu/article/details/124174904

版权

redis 同时被 2 个专栏收录

2 篇文章

订阅专栏

分布式

1 篇文章

订阅专栏

本文介绍了如何在分布式应用中处理报表请求，以防止因高并发导致的报表服务崩溃。通过创建一个专门的应用来接收请求，利用Redis进行限流和计数，并结合RabbitMQ实现消息队列，确保请求按顺序处理。在服务端，使用Redis分布式锁保证原子性，并通过回调方法确保消息正确投递。此外，还提到了基于Redis的纯队列方案和处理死信的考虑。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

背景：

现有一个分布式的应用要与第三方报表服务对接，对方提供restful接口，调用这些接口以获取报表信息或者下载报表文件。首先，如果不需要下载文件，直接在MVC架构的service调用这些rest接口就好。可涉及到文件下载，网络IO耗时可能比较长而报表服务能承受的并发量有限，请求过多可能压垮报表服务的接口

问题分析与解决思路：

专门提供一个应用来接收报表请求，限制报表请求的并发量防止报表服务端报错或者崩溃，将请求参数放入分布式队列，利用redis计数currency，超出并发数量就限流，给出排队提示并将请求打回队列头部，未超出则从队列取出参数调用服务直接放行，随后currency - 1,rest服务调用结束后currency + 1，并使用redis分布式锁保证redis增减的原子性，MQ在服务中自产自消，充当队列

选型：

Redis + RabbitMQ + Springcloud

或Redis + Springcloud

或sentinel

如果是基于sentinel则直接使用控制页面配置即可，这里不多描述

选择MQ或者是redis都可以它们都可以实现分布式队列的效果，MQ自带队列，redis的list数据结构也可以充当队列

选型完毕，开始实现

环境准备：

安装redis，MQ的过程不再进行多余介绍，参考springboot集成Redis和RabbitMQ

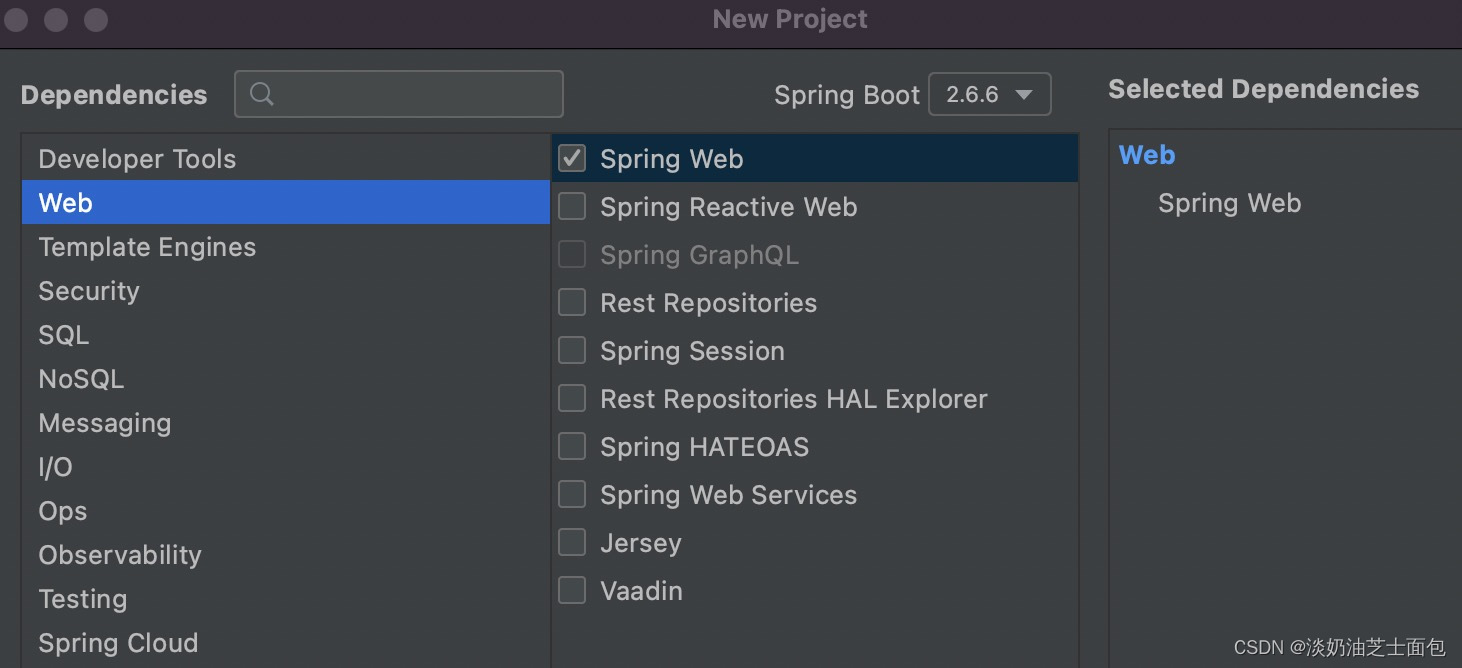

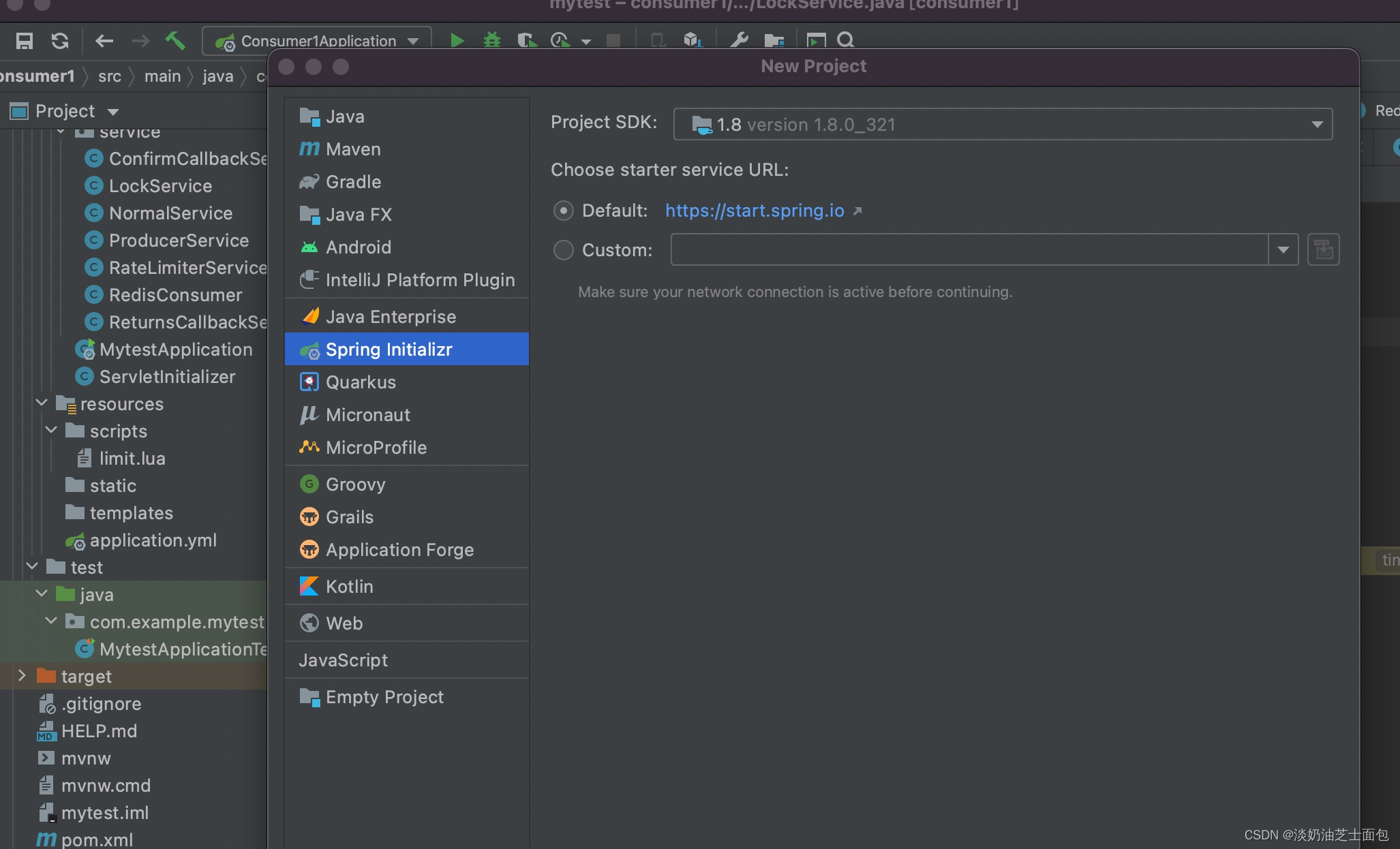

新建一个springboot工程，下一步中选好jdk版本，打包方式选war。因为模拟请求发起端，选择springweb，这样本地启动可以以接口形式访问

直接下一步，创建好工程，本文的MQ和redis都是安装在本地的，如果你装了虚拟机或者docker，自行根据情况修改配置文件

引入MQ，redis的依赖

        <!--rabbitmq-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.data</groupId>
            <artifactId>spring-data-redis</artifactId>
        </dependency>

配置文件

这里，因为作为生产者不需要redis，无redis配置

server:
  port: 8080



spring:

  rabbitmq:
    host: localhost
    port: 5672
    username: guest
    password: guest
    #必须配置这个才会确认回调
    publisher-confirm-type: correlated
    #消息投递到队列失败是否回调
    publisher-returns: true

生产者(报表请求入口)

这里的confirmCallBack和returnsCallBack是MQ自带的方法，继承实现即可，是分别控制消息从生产者->交换机。和从交换机->队列的回调，都是消息发送成功的保障方法

package com.example.mytest.service;

import org.springframework.amqp.core.MessageDeliveryMode;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.UUID;

@Service
public class ProducerService {

    @Resource
    private RabbitTemplate rabbitTemplate;
    @Resource
    private ConfirmCallbackService confirmCallbackService;
    @Resource
    private ReturnsCallbackService returnsCallbackService;
    @Resource
    private RedisTemplate redisTemplate;

    public void sendMessage(String exchange, String routingKey, Object msg) {

        /**
         * 确保消息发送失败后可以重新返回到队列中
         * 注意：yml需要配置 publisher-returns: true
         */
        rabbitTemplate.setMandatory(true);

        /**
         * 消息从生产者到交换机的回调
         */
        rabbitTemplate.setConfirmCallback(confirmCallbackService);

        /**
         * 消息从交换机发送到队列的回调
         */
        rabbitTemplate.setReturnsCallback(returnsCallbackService);

        /**
         * 发送消息
         */
        rabbitTemplate.convertAndSend(exchange, routingKey, msg,
                message -> {
                    message.getMessageProperties().setDeliveryMode(MessageDeliveryMode.NON_PERSISTENT);
                    return message;
                },
                new CorrelationData(UUID.randomUUID().toString()));

    }

    //基于redis实现队列的版本
    public void sendToRedis(String msg){
        // put msg into FIFO queue
        redisTemplate.opsForList().rightPush("redisList", msg);
    }

}

附上其它类

package com.example.mytest.service;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Service;

@Service
public class ConfirmCallbackService implements RabbitTemplate.ConfirmCallback {
    private static final Logger log = LoggerFactory.getLogger(ConfirmCallbackService.class);
    @Override
    public void confirm(CorrelationData correlationData, boolean ack, String cause) {
        if (!ack) {
            log.error("消息发送异常!");
        } else {
            log.info("发送者已经收到确认，correlationData={} ,ack={}, cause={}", correlationData.getId(), ack, cause);
        }
    }
}

package com.example.mytest.service;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.ReturnedMessage;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Service;

@Service
public class ReturnsCallbackService  implements RabbitTemplate.ReturnsCallback{
    private static final Logger log = LoggerFactory.getLogger(ReturnsCallbackService.class);


    @Override
    public void returnedMessage(ReturnedMessage returned) {
        log.info("msg to reportQueue failed! returnedMessage ===> replyCode={} ,replyText={} ,exchange={} ,routingKey={}",returned.getReplyCode(),returned.getReplyText(),returned.getExchange(),returned.getRoutingKey());
    }

}

package com.example.mytest.config;

import org.springframework.amqp.core.Binding;
import org.springframework.amqp.core.BindingBuilder;
import org.springframework.amqp.core.DirectExchange;
import org.springframework.amqp.core.Queue;
import org.springframework.amqp.rabbit.connection.CachingConnectionFactory;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.connection.RabbitConnectionFactoryBean;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.amqp.support.converter.SerializerMessageConverter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Scope;

@Configuration
public class RabbitMQConfig {
    public static final String EXCHANGE_A = "exchange-A";
    public static final String QUEUE_A = "queue-a";
    public static final String ROUTINGKEY_A = "routing-key-A";

    /**
     * 直连交换机
     */
    @Bean
    public DirectExchange exchangeA() {
        return new DirectExchange(EXCHANGE_A);
    }


    /**
     * 设置队列
     */
    @Bean
    public Queue queueA() {
        return new Queue(QUEUE_A, true);
    }

    /**
     * 绑定
     */
    @Bean
    public Binding binding() {
        return BindingBuilder.bind(queueA()).to(exchangeA()).with(ROUTINGKEY_A);
    }
    @Bean
    public ConnectionFactory connectionFactory() throws Exception
    {
        RabbitConnectionFactoryBean rabbitConnectionFactoryBean = new RabbitConnectionFactoryBean();
        rabbitConnectionFactoryBean.setHost("localhost");
        rabbitConnectionFactoryBean.setPort(5672);
        rabbitConnectionFactoryBean.setUsername("guest");
        rabbitConnectionFactoryBean.setPassword("guest");
        rabbitConnectionFactoryBean.afterPropertiesSet();
        CachingConnectionFactory cachingConnectionFactory = new CachingConnectionFactory(
                rabbitConnectionFactoryBean.getObject());
        return cachingConnectionFactory;

    }

    @Bean
    @Scope("prototype")//通知Spring把被注解的Bean变成多例 表示每次获得bean都会生成一个新的对象
    public RabbitTemplate rabbitTemplate(ConnectionFactory connectionFactory) {
        RabbitTemplate template = new RabbitTemplate(connectionFactory);
        template.setMandatory(true);
        template.setMessageConverter(new SerializerMessageConverter());
        return template;
    }


}

附上测试方法，如果执行报错找不到队列和交换机，可在MQ控制页面先手动创建，绑定即可

package com.example.mytest;

import com.example.mytest.config.RabbitMQConfig;
import com.example.mytest.service.ProducerService;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.concurrent.LinkedBlockingDeque;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;


@SpringBootTest(classes = MytestApplication.class)
class MytestApplicationTests {

    @Autowired
    private ProducerService producerService;

    @Test
    void sendMessageTest() throws Exception{
        ThreadPoolExecutor threadPoolExecutor = new ThreadPoolExecutor(20,
                30,
                100,
                TimeUnit.MILLISECONDS,
                new LinkedBlockingDeque<>());
        //消息内加上线程名称
        //消息字符串模拟rest请求参数
        for (int i = 0; i <1; i++) {
        threadPoolExecutor.execute(() ->{
                System.out.println("sending msg!" + Thread.currentThread().getName());
                producerService.sendMessage(RabbitMQConfig.EXCHANGE_A,
                        RabbitMQConfig.ROUTINGKEY_A,
            "paramJSON" + Thread.currentThread().getName());
        });
        }
        Thread.sleep(100000);
        threadPoolExecutor.shutdown();
    }

}

随后创建消费者工程，过程同生产者

消费者类，这里是取消息的地方，也是限制并发和访问rest服务的地方，如有需要，可以新建多个工程模拟分布式应用，流程很简单，请求进入队列，被监听，拿锁判断是否限制，决定是否打回，若不打回则处理请求并继续拿锁操作redis中的currency值

package com.example.consumer1.service;

import com.rabbitmq.client.Channel;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.amqp.support.AmqpHeaders;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageHeaders;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestTemplate;

import javax.annotation.Resource;

@Service
public class Consumer1 {
    private static final String currencyKey = "restCurrency";

    @Autowired
    private RedisTemplate redisTemplate;

    @Autowired
    private LockService lockService;

    @Resource
    RestTemplate restTemplate;

    private static final Logger log = LoggerFactory.getLogger(Consumer1.class);




    @RabbitListener(queues = "queue-a")
    public void processHandler1(String msg, Message message, Channel channel) throws Exception {
        log.info("消费者B收到消息：{}", msg);
        MessageHeaders headers = message.getHeaders();
        Long tag = (Long) headers.get(AmqpHeaders.DELIVERY_TAG);
        while (true) {
            boolean flag = lockService.acquireRedisLock();
            if(flag){
                int currency = Integer.parseInt(redisTemplate.opsForValue().get(currencyKey) + "");
                //限流
                if (currency == 0) {
                    log.info("rate limit occured,please wait，currency now is {}", currency);
                    channel.basicNack(tag, false, true);
                    log.info("msg {} is backing to the queue", msg);
                    return;
                } else {
                    //手动签收消息
                    channel.basicAck(tag, false);
                    redisTemplate.opsForValue().decrement(currencyKey, 1);
                }
                lockService.releaseRedisLock();
                break;
            }

        }
        try {
            //模拟调用外部rest服务
            Thread.sleep(3000);
            while (true) {
                boolean flag = lockService.acquireRedisLock();
                if(flag){
                    redisTemplate.opsForValue().increment(currencyKey, 1);
                    lockService.releaseRedisLock();
                    break;
                }

            }

        } catch (Exception e) {
            log.error("报表业务处理异常Exception" + e);
            boolean flag = (boolean) headers.get(AmqpHeaders.REDELIVERED);
            if (flag) {
                log.error("消息已重复处理失败,拒绝再次接收...");
                channel.basicAck(tag, false);
            } else {
                log.error("消息即将再次返回队列处理...");
                channel.basicNack(tag, false, true);
            }
        } finally {

        }


    }

}

配置文件，注意端口号，本地启动多个工程不要冲突

server:
  port: 8081

spring:

  rabbitmq:
    host: localhost
    port: 5672
    username: guest
    password: guest
    #必须配置这个才会确认回调
    publisher-confirm-type: correlated
    #消息投递到队列失败是否回调
    publisher-returns: true
    #消费端配置
    listener:
      simple:
        # 同一个队列启动几个消费者
        concurrency: 10
        # 限流 多数据量同时只能过来一条
        prefetch: 1
        #手动确认
        acknowledge-mode: manual

  redis:
    database: 0
    # Redis服务器地址
    host: 127.0.0.1
    # Redis服务器连接端口
    port: 6379
    # Redis服务器连接密码（默认为空）
    password:
    # 链接超时时间 单位 ms（毫秒）
    timeout: 3000

注意在redis中初始化下currency的数值，测试时候可以调低一些触发限制效果，随后启动springboot的main方法就可以测试了

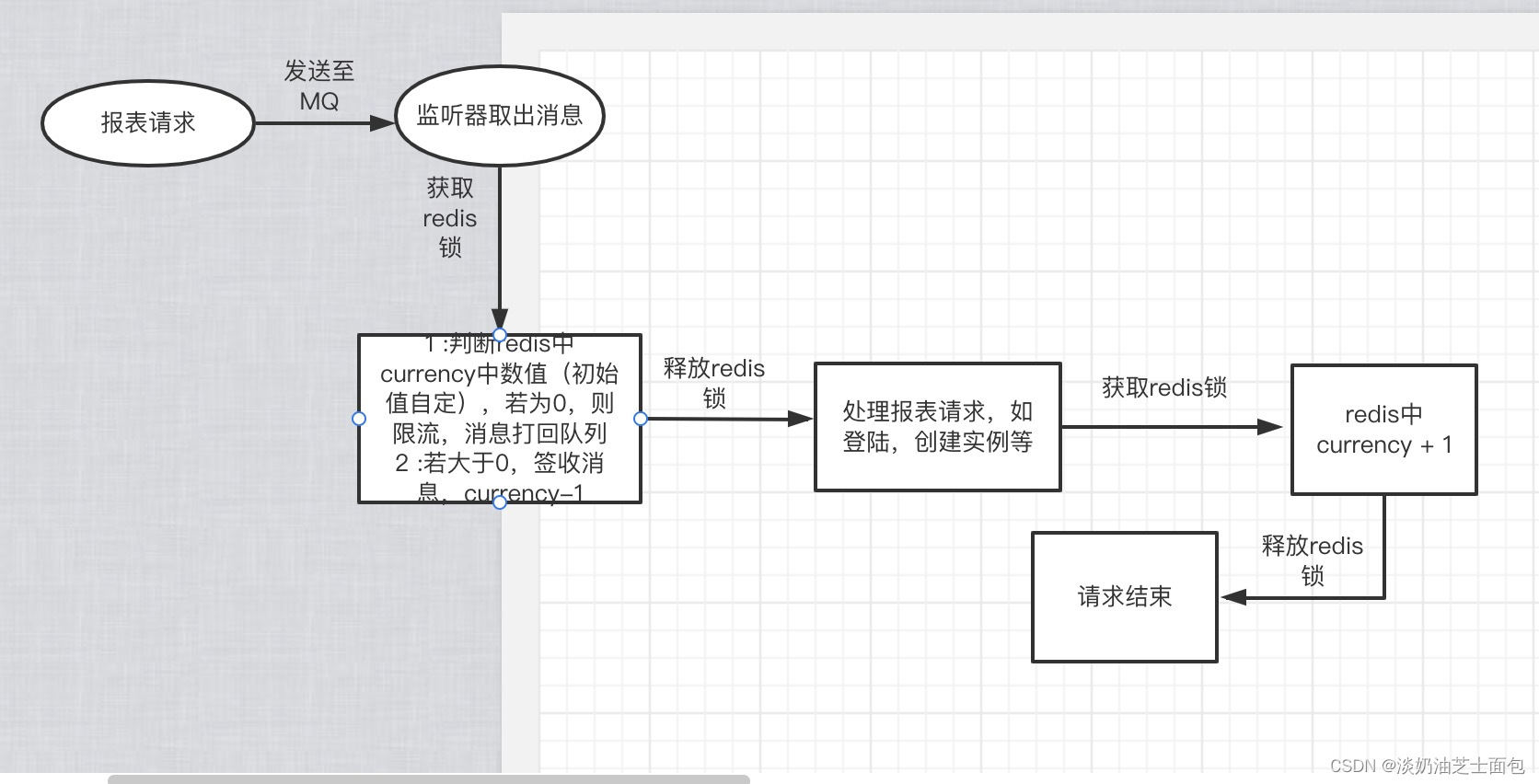

流程图概括如下
