c# 用NOpenCL库调用GPU计算

我的测试环境：

VS2022，.Net5.0

首先到Git上下载NOpenCL源码（GitHub - tunnelvisionlabs/NOpenCL: .NET wrapper for OpenCL with abstraction）

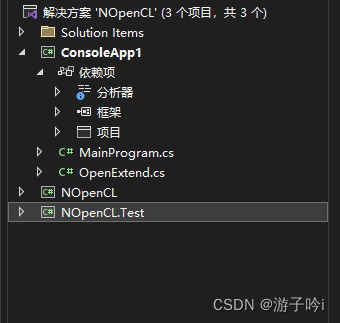

然后在此项目上创建一个控制台，如图：

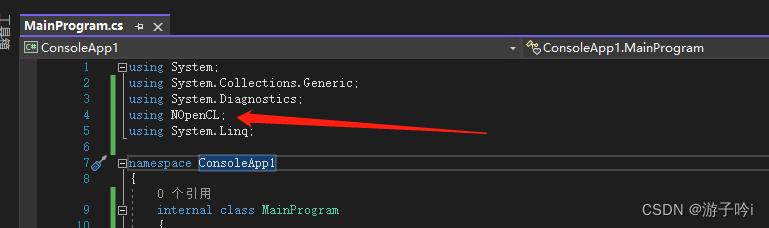

添加项目引用NOpenCL，并且在主类中添加using NOpenCL;



控制台的主文件源码如下：

 internal class MainProgram
    {
        private const int NumElements = 999_999_99;
        static unsafe void Main(string[] args)
        {
            Console.WriteLine("Hello World!");
            int localWorkSize = 256;
            int globalWorkSize = RoundUp(localWorkSize, NumElements);
            //获取平台数量
            var platforms= Platform.GetPlatforms();
            if(platforms==null || platforms.Length==0)
            {
                Console.WriteLine($"{nameof(platforms)}无值");
                return;
            }
            var devs = new List<Device>();
            //枚举所有平台下面的设备(CPU或GPU)
            devs.AddRange(platforms.SelectMany(t => t.GetDevices(DeviceType.Gpu)));

            if (devs == null || devs.Count == 0)
            {
                Console.WriteLine($"{nameof(devs)}无值");
                return;
            }
            //选中运算设备
            var oclDevice = devs[0];
            //根据配置建立上下文,上下文用来描述CPU与运算设备之间的主从关系.
            var oclContext =Context.Create(oclDevice);
            //创建命令队列
            var oclCQ = oclContext.CreateCommandQueue(oclDevice, CommandQueueProperties.ProfilingEnable);
            //定义一个字典用来存放所有核
            var Kernels = new Dictionary<string, Kernel>();
            #region 编译代码并导出核
            var oclProgram = oclContext.CreateProgramWithSource(CLCode);
            try
            {
                oclProgram.Build();
            }
            catch (Exception e)
            {
                Console.WriteLine(e.Message);
                throw e;
                //return null;
            }
            foreach (var item in new[] { "vector_add_gpu", "vector_inc_gpu" })
            {
                Kernels.Add(item, oclProgram.CreateKernel(item));
            }
            oclProgram.Dispose();
            #endregion


           Stopwatch sw = Stopwatch.StartNew();

            #region 调用vector_add_gpu核
            {
                var A = new int[globalWorkSize];
                var B = new int[globalWorkSize];
                var C = new int[globalWorkSize];
                var D = new int[globalWorkSize];
                FillArray(A, NumElements);
                FillArray(B, NumElements);



                sw.Start();
                for (int i = 0; i < A.Length; i++)
                {
                    D[i] = A[i] + B[i];
                }
                sw.Stop();
                Console.WriteLine($"普通代码用时：{sw.ElapsedMilliseconds}ms");


                sw = Stopwatch.StartNew();
                sw.Start();
                //在显存创建缓冲区并把HOST的数据拷贝过去
                var n1 = oclContext.CreateBuffer(MemoryFlags.ReadWrite | MemoryFlags.CopyHostPointer, A.Length * sizeof(int), A.ToIntPtr());
                var n2 = oclContext.CreateBuffer(MemoryFlags.ReadWrite | MemoryFlags.CopyHostPointer, B.Length * sizeof(int), B.ToIntPtr());
                //还有一个缓冲区用来接收回参
                var n3 = oclContext.CreateBuffer(MemoryFlags.ReadWrite, B.Length * sizeof(int), IntPtr.Zero);
                //把参数填进Kernel里
                using (Kernel kernel = Kernels["vector_add_gpu"])
                {
                    kernel.Arguments[0].SetValue(n1);
                    kernel.Arguments[1].SetValue(n2);
                    kernel.Arguments[2].SetValue(n3);
                    // Start core sequence... copy input data to GPU, compute, copy results back
                    fixed (int* psrcA = A, psrcB = B, pdst = C)
                    {
                        // asynchronous write of data to GPU device
                        //using (oclCQ.EnqueueWriteBuffer(n1, false, 0, sizeof(float) * globalWorkSize, (IntPtr)psrcA))
                        //using (oclCQ.EnqueueWriteBuffer(n2, false, 0, sizeof(float) * globalWorkSize, (IntPtr)psrcB))
                        //{
                        //}
                        using (oclCQ.EnqueueNDRangeKernel(kernel, (IntPtr)globalWorkSize, (IntPtr)localWorkSize))
                        {
                        }

                        //把调用请求添加到队列里,参数分别是:Kernel,数据的维度,每个维度的全局工作项ID偏移,每个维度工作项数量(我们这里有4个数据,所以设为4),每个维度的工作组长度(这里设为每4个一组)
                        //oclCQ.EnqueueNDRangeKernel(Kernels["vector_add_gpu"], 1, new[] { 0 }, new[] { 4 }, new[] { 4 });
                        //设置栅栏强制要求上面的命令执行完才继续下面的命令.
                        oclCQ.EnqueueBarrier();
                        //添加一个读取数据命令到队列里,用来读取运算结果
                        oclCQ.EnqueueReadBuffer(n3, true, 0, C.Length * sizeof(int), C.ToIntPtr());
                        //开始执行
                        oclCQ.Finish();
                    }
                }

                sw.Stop();

                n1.Dispose();
                n2.Dispose();
                n3.Dispose();


                //Console.WriteLine(String.Join(',', C));
                Console.WriteLine($"GPU用时：{sw.ElapsedMilliseconds}ms");
                Console.WriteLine($"数组长度：{A.Length}");
            }
            // */
            #endregion


            //按顺序释放之前构造的对象
            oclCQ.Dispose();
            oclContext.Dispose();
            oclDevice.Dispose();
        }

        #region OpenCL代码
        private static string CLCode = @"
                __kernel void vector_add_gpu(__global int* src_a, __global int* src_b, __global int* res)
                {
	                const int idx = get_global_id(0);
	                res[idx] =src_a[idx] + src_b[idx];
                }
                __kernel void vector_inc_gpu(__global int* src_a, __global int* res)
                {
	                const int idx = get_global_id(0);
	                res[idx] =src_a[idx] + 1;
                }
                ";
        #endregion
        private static void FillArray(int[] data, int length)
        {
            Random random = new Random();
            for (int i = 0; i < length; i++)
                data[i] = random.Next(0,255);
        }
        private static int RoundUp(int groupSize, int globalSize)
        {
            int r = globalSize % groupSize;
            if (r == 0)
                return globalSize;

            return globalSize + groupSize - r;
        }
    }

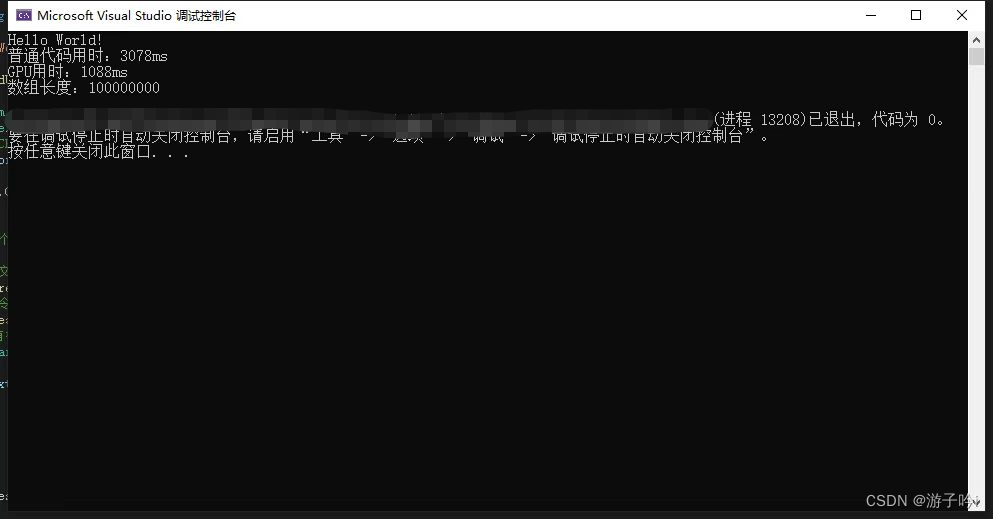

 测试结果：

其中OpenExtend扩展方法：

        /// <summary>
        /// 取指针
        /// </summary>
        /// <param name="obj"></param>
        /// <returns></returns>
        public static unsafe IntPtr ToIntPtr(this int[] obj)
        {
            //IntPtr PtrA = IntPtr.Zero;
            fixed (int* Ap = obj)
                return new IntPtr(Ap);
        }
