RocketMQ4.8(jdk11)部署+springboot2.x实战

springboot2.X整合RocketMQ4.X

一.简介

二.Centos7.x骨架搭建

1.安装jdk11.0.10

下载地址

导入linux进行安装配置
解压：tar -zxvf jdk-11.0.10_linux-x64_bin.tar.gz
重命名：mv xxx jdk11
vim /etc/profile
加入
export JAVA_HOME=/usr/local/software/jdk11
export PATH=$JAVA_HOME/bin:$PATH
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export JAVA_HOME PATH CLASSPATH
使用 source /etc/profile   让配置立刻生效

jdk1.8方式

export JAVA_HOME=/usr/local/software/server/jdk1.8.0_161
export JRE_HOME=${JAVA_HOME}/jre
export PATH=$JAVA_HOME/bin:${JRE_HOME}/bin:$PATH
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib:$CLASSPATH
export JAVA_HOME PATH CLASSPATH

2.安装maven3.6.3

下载地址：https://maven.apache.org/download.cgi
选择 apache-maven-3.6.3-bin.tar.gz

解压：tar -zxvf apache-maven-3.6.0-bin.tar.gz
重命名： mv apache-maven-3.6.0 maven
vim /etc/profile
export PATH=/usr/local/software/maven/bin:$PATH

立刻生效：source /etc/profile
mvn -version
#更新镜像源
 <!-- 阿里云仓库 -->
<mirror>
	<id>alimaven</id>
	<mirrorOf>central</mirrorOf>
	<name>aliyun maven</name>
	<url>http://maven.aliyun.com/nexus/content/repositories/central/</url>
</mirror>

3.安装部署Rocketmq4.8.0

下载地址

• 导入linux进行配置

yum install unzip
unzip rocketmq-all-4.8.0-source-release.zip
mv rocketmq-all-4.8.0-source-release rocketmq
cd rocketmq
mvn -Prelease-all -DskipTests clean install -U
cd /usr/local/software/server/rocketmq/rocketmq-all-4.8.0-source-release/distribution/target/rocketmq-4.8.0/rocketmq-4.8.0/bin

---

修改runserver.sh、runbroker.sh、tools.sh(jdk8无需修改)***

vim runserver.sh*

#!/bin/sh

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

#===========================================================================================
# Java Environment Setting
#===========================================================================================
error_exit ()
{
    echo "ERROR: $1 !!"
    exit 1
}

[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=$HOME/jdk/java
[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=/usr/java
[ ! -e "$JAVA_HOME/bin/java" ] && error_exit "Please set the JAVA_HOME variable in your environment, We need java(x64)!"

export JAVA_HOME
export JAVA="$JAVA_HOME/bin/java"
export BASE_DIR=$(dirname $0)/..
#export CLASSPATH=.:${BASE_DIR}/conf:${CLASSPATH}
export CLASSPATH=${BASE_DIR}/lib/rocketmq-namesrv-4.8.0.jar:${BASE_DIR}/lib/*:${BASE_DIR}/conf:${CLASSPATH}:${CLASS_PATH}
#===========================================================================================
# JVM Configuration
#===========================================================================================
# The RAMDisk initializing size in MB on Darwin OS for gc-log
DIR_SIZE_IN_MB=600

choose_gc_log_directory()
{
    case "`uname`" in
        Darwin)
            if [ ! -d "/Volumes/RAMDisk" ]; then
                # create ram disk on Darwin systems as gc-log directory
                DEV=`hdiutil attach -nomount ram://$((2 * 1024 * DIR_SIZE_IN_MB))` > /dev/null
                diskutil eraseVolume HFS+ RAMDisk ${DEV} > /dev/null
                echo "Create RAMDisk /Volumes/RAMDisk for gc logging on Darwin OS."
            fi
            GC_LOG_DIR="/Volumes/RAMDisk"
        ;;
        *)
            # check if /dev/shm exists on other systems
            if [ -d "/dev/shm" ]; then
                GC_LOG_DIR="/dev/shm"
            else
                GC_LOG_DIR=${BASE_DIR}
            fi
        ;;
    esac
}

choose_gc_options()
{
    # Example of JAVA_MAJOR_VERSION value : '1', '9', '10', '11', ...
    # '1' means releases befor Java 9
    JAVA_MAJOR_VERSION=$("$JAVA" -version 2>&1 | sed -E -n 's/.* version "([0-9]*).*$/\1/p')
    if [[ "$JAVA_MAJOR_VERSION" -lt "9" ]] ; then
      JAVA_OPT="${JAVA_OPT} -XX:+UseConcMarkSweepGC -XX:+UseCMSCompactAtFullCollection -XX:CMSInitiatingOccupancyFraction=70 -XX:+CMSParallelRemarkEnabled -XX:SoftRefLRUPolicyMSPerMB=0 -XX:+CMSClassUnloadingEnabled -XX:SurvivorRatio=8 -XX:-UseParNewGC"
      JAVA_OPT="${JAVA_OPT} -verbose:gc -Xloggc:${GC_LOG_DIR}/rmq_srv_gc_%p_%t.log -XX:+PrintGCDetails"
      JAVA_OPT="${JAVA_OPT} -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=5 -XX:GCLogFileSize=30m"
    else
      JAVA_OPT="${JAVA_OPT} -XX:+UseG1GC -XX:G1HeapRegionSize=16m -XX:G1ReservePercent=25 -XX:InitiatingHeapOccupancyPercent=30 -XX:SoftRefLRUPolicyMSPerMB=0"
      JAVA_OPT="${JAVA_OPT} -Xlog:gc*:file=${GC_LOG_DIR}/rmq_srv_gc_%p_%t.log:time,tags:filecount=5,filesize=30M"
    fi
}

choose_gc_log_directory

JAVA_OPT="${JAVA_OPT} -server -Xms4g -Xmx4g -Xmn2g -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m"
choose_gc_options
JAVA_OPT="${JAVA_OPT} -XX:-OmitStackTraceInFastThrow"
JAVA_OPT="${JAVA_OPT} -XX:-UseLargePages"
#JAVA_OPT="${JAVA_OPT} -Djava.ext.dirs=${JAVA_HOME}/jre/lib/ext:${BASE_DIR}/lib:${JAVA_HOME}/lib/ext"
#JAVA_OPT="${JAVA_OPT} -Xdebug -Xrunjdwp:transport=dt_socket,address=9555,server=y,suspend=n"
JAVA_OPT="${JAVA_OPT} ${JAVA_OPT_EXT}"
JAVA_OPT="${JAVA_OPT} -cp ${CLASSPATH}"

$JAVA ${JAVA_OPT} $@

vim runbroker.sh

#!/bin/sh

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

#===========================================================================================
# Java Environment Setting
#===========================================================================================
error_exit ()
{
    echo "ERROR: $1 !!"
    exit 1
}

#[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=$HOME/jdk/java
#[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=/usr/java
#[ ! -e "$JAVA_HOME/bin/java" ] && error_exit "Please set the JAVA_HOME variable in your environment, We need java(x64)!"

export JAVA_HOME="/usr/local/software/server/jdk11/jdk-11.0.10"
export JAVA="$JAVA_HOME/bin/java"
export BASE_DIR=$(dirname $0)/..
#export CLASSPATH=.:${BASE_DIR}/conf:${CLASSPATH}
export CLASSPATH=${BASE_DIR}/lib/rocketmq-broker-4.8.0.jar:${BASE_DIR}/lib/*:${BASE_DIR}/conf:${CLASSPATH}
#===========================================================================================
# JVM Configuration
#===========================================================================================
# The RAMDisk initializing size in MB on Darwin OS for gc-log
DIR_SIZE_IN_MB=600

choose_gc_log_directory()
{
    case "`uname`" in
        Darwin)
            if [ ! -d "/Volumes/RAMDisk" ]; then
                # create ram disk on Darwin systems as gc-log directory
                DEV=`hdiutil attach -nomount ram://$((2 * 1024 * DIR_SIZE_IN_MB))` > /dev/null
                diskutil eraseVolume HFS+ RAMDisk ${DEV} > /dev/null
                echo "Create RAMDisk /Volumes/RAMDisk for gc logging on Darwin OS."
            fi
            GC_LOG_DIR="/Volumes/RAMDisk"
        ;;
        *)
            # check if /dev/shm exists on other systems
            if [ -d "/dev/shm" ]; then
                GC_LOG_DIR="/dev/shm"
            else
                GC_LOG_DIR=${BASE_DIR}
            fi
        ;;
    esac
}

choose_gc_log_directory

JAVA_OPT="${JAVA_OPT} -server -Xms8g -Xmx8g -Xmn4g"
JAVA_OPT="${JAVA_OPT} --add-exports java.base/jdk.internal.ref=ALL-UNNAMED"
JAVA_OPT="${JAVA_OPT} -XX:+UseG1GC -XX:G1HeapRegionSize=16m -XX:G1ReservePercent=25 -XX:InitiatingHeapOccupancyPercent=30 -XX:SoftRefLRUPolicyMSPerMB=0"
#JAVA_OPT="${JAVA_OPT} -verbose:gc -Xloggc:${GC_LOG_DIR}/rmq_broker_gc_%p_%t.log -XX:+PrintGCDetails -XX:+PrintGCDateStamps -XX:+PrintGCApplicationStoppedTime -XX:+PrintAdaptiveSizePolicy"
JAVA_OPT="${JAVA_OPT} -Xlog:gc*:file=${GC_LOG_DIR}/rmq_broker_gc_%p_%t.log:time,tags:filecount=5,filesize=30M"
#JAVA_OPT="${JAVA_OPT} -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=5 -XX:GCLogFileSize=30m"
JAVA_OPT="${JAVA_OPT} -XX:-OmitStackTraceInFastThrow"
JAVA_OPT="${JAVA_OPT} -XX:+AlwaysPreTouch"
#JAVA_OPT="${JAVA_OPT} -XX:MaxDirectMemorySize=15g"
JAVA_OPT="${JAVA_OPT} -XX:-UseLargePages -XX:-UseBiasedLocking"
#JAVA_OPT="${JAVA_OPT} -Djava.ext.dirs=${JAVA_HOME}/jre/lib/ext:${BASE_DIR}/lib:${JAVA_HOME}/lib/ext"
#JAVA_OPT="${JAVA_OPT} -Xdebug -Xrunjdwp:transport=dt_socket,address=9555,server=y,suspend=n"
JAVA_OPT="${JAVA_OPT} ${JAVA_OPT_EXT}"
JAVA_OPT="${JAVA_OPT} -cp ${CLASSPATH}"

numactl --interleave=all pwd > /dev/null 2>&1
if [ $? -eq 0 ]
then
	if [ -z "$RMQ_NUMA_NODE" ] ; then
		numactl --interleave=all $JAVA ${JAVA_OPT} $@
	else
		numactl --cpunodebind=$RMQ_NUMA_NODE --membind=$RMQ_NUMA_NODE $JAVA ${JAVA_OPT} $@
	fi
else
	$JAVA ${JAVA_OPT} $@
fi

vim tools.sh

#!/bin/sh

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

#===========================================================================================
# Java Environment Setting
#===========================================================================================
error_exit ()
{
    echo "ERROR: $1 !!"
    exit 1
}

[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=$HOME/jdk/java
[ ! -e "$JAVA_HOME/bin/java" ] && JAVA_HOME=/usr/java
[ ! -e "$JAVA_HOME/bin/java" ] && error_exit "Please set the JAVA_HOME variable in your environment, We need java(x64)!"

export JAVA_HOME
export JAVA="$JAVA_HOME/bin/java"
export BASE_DIR=$(dirname $0)/..
#export CLASSPATH=.:${BASE_DIR}/conf:${CLASSPATH}
export CLASSPATH=${BASE_DIR}/lib/rocketmq-tools-4.8.0.jar:${BASE_DIR}/lib/*:${BASE_DIR}/conf:${CLASSPATH}:${CLASS_PATH}

#===========================================================================================
# JVM Configuration
#===========================================================================================
JAVA_OPT="${JAVA_OPT} -server -Xms1g -Xmx1g -Xmn256m -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m"
#JAVA_OPT="${JAVA_OPT} -Djava.ext.dirs=${BASE_DIR}/lib:${JAVA_HOME}/jre/lib/ext:${JAVA_HOME}/lib/ext"
JAVA_OPT="${JAVA_OPT} -cp ${CLASSPATH}"

$JAVA ${JAVA_OPT} "$@"

• 启动nameserver服务：

#启动nameserver

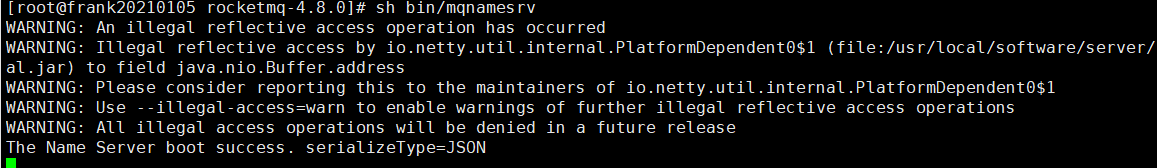

sh bin/mqnamesrv
#nohup sh bin/mqnamesrv &

• 启动broker服务：

启动前修改broker.conf文件（多网卡需修改）

cd /usr/local/software/server/rocketmq/rocketmq-all-4.8.0-source-release/distribution/target/rocketmq-4.8.0/rocketmq-4.8.0/conf

再启动

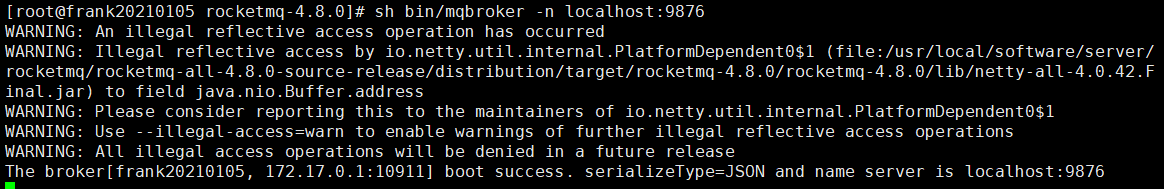

sh bin/mqbroker -n localhost:9876
#nohup sh bin/mqbroker -n localhost:9876 -c ./conf/broker.conf &

• 通过jsp查看进程

• 测试：

#设置名称服务地址
export NAMESRV_ADDR=localhost:9876
#投递消息
sh bin/tools.sh org.apache.rocketmq.example.quickstart.Producer
​
SendResult [sendStatus=SEND_OK, msgId= ...
​
#消费消息
sh bin/tools.sh org.apache.rocketmq.example.quickstart.Consumer

部署完成！
注：如果启动失败，有可能时内存不足，需要进入文件中调整runserver.sh、runbroker.sh即可

1、Caused by: org.apache.rocketmq.remoting.exception.RemotingConnectException: connect to <172.17.42.1:10911> failed

2、com.alibaba.rocketmq.client.exception.MQClientException: Send [1] times, still failed, cost [1647]ms, Topic: TopicTest1, BrokersSent: [broker-a, null, null]

3、org.apache.rocketmq.client.exception.MQClientException: Send [3] times, still failed, cost [497]ms, Topic: TopicTest, BrokersSent: [Book-Air.local, 	MacBook-Air.local, MacBook-Air.local]
解决：多网卡问题处理
	1、设置producer:  producer.setVipChannelEnabled(false);
	2、编辑ROCKETMQ 配置文件：broker.conf（下列ip为自己的ip）
		namesrvAddr = 192.168.0.101:9876
		brokerIP1 = 192.168.0.101

4、DESC: service not available now, maybe disk full, CL:
	解决：修改启动脚本runbroker.sh，在里面增加一句话即可：
	JAVA_OPT="${JAVA_OPT} -Drocketmq.broker.diskSpaceWarningLevelRatio=0.98"
	（磁盘保护的百分比设置成98%，只有磁盘空间使用率达到98%时才拒绝接收producer消息）

常见问题处理
	https://blog.youkuaiyun.com/sqzhao/article/details/54834761
	https://blog.youkuaiyun.com/mayifan0/article/details/67633729
	https://blog.youkuaiyun.com/a906423355/article/details/78192828

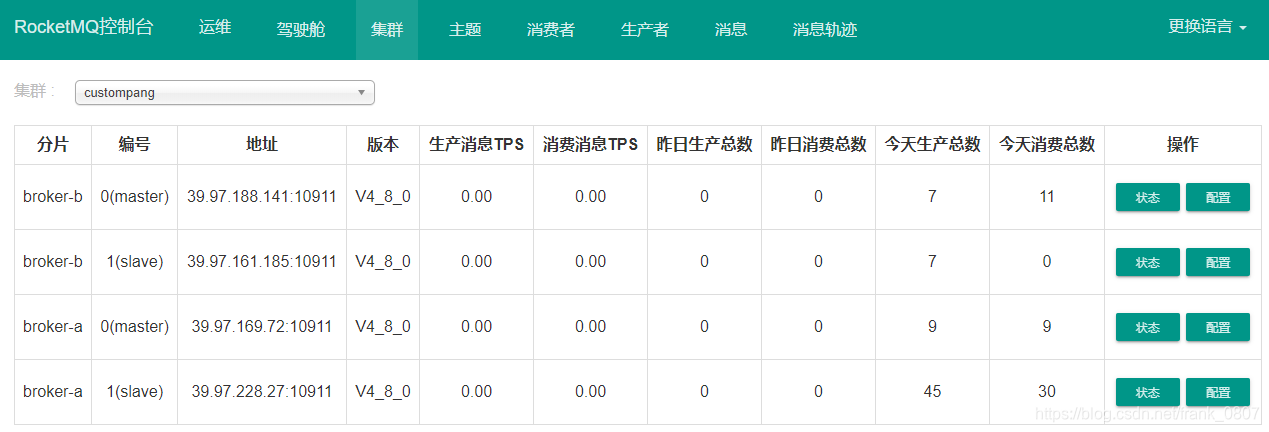

4.安装部署rocketmq控制台

下载 https://github.com/apache/rocketmq-externals

docker pull apacherocketmq/rocketmq-console:2.0.0
docker run -e "JAVA_OPTS=-Drocketmq.namesrv.addr=39.97.169.72:9876;39.97.228.27:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false" -p 8080:8080 -itd apacherocketmq/rocketmq-console:2.0.0
unzip rocketmq-externals-master.zip

部署完成！

三.springboot2.x整合rocketmq4.8.0测试

1.添加依赖

		<dependency>
			<groupId>org.apache.rocketmq</groupId>
			<artifactId>rocketmq-client</artifactId>
			<version>4.8.0</version>
		</dependency>

2.创建配置类

package com.example.demorocketmq.jms;

public class JmsConfig {

    public static final String NAME_SERVER = "x.xxx.xxx.xxx:9876";

    public static final String TOPIC = "pay_topic";
}

3.创建producer组件

package com.example.demorocketmq.jms;

import org.apache.rocketmq.client.exception.MQClientException;
import org.apache.rocketmq.client.producer.DefaultMQProducer;
import org.springframework.stereotype.Component;

@Component
public class PayProducer {

    //生产者组名称
    private String producerGroup = "pay_producer_group";

    private DefaultMQProducer producer;

    public PayProducer(){
        producer = new DefaultMQProducer(producerGroup);
        producer.setNamesrvAddr(JmsConfig.NAME_SERVER);
        start();
    }

    public DefaultMQProducer getProducer(){
        return this.producer;
    }

    /**
     * 对象在使用之前必须要调用一次，只能初始化一次
     */
    private void start(){
        try {
            this.producer.start();
        } catch (MQClientException e) {
            e.printStackTrace();
        }
    }

    /**
     * 一般在应用上下文，使用上下文监听器，进行关闭
     */
    public void shutdown(){
        this.producer.shutdown();
    }
}

4.创建consumer

package com.example.demorocketmq.jms;

import org.apache.rocketmq.client.consumer.DefaultMQPushConsumer;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.client.consumer.listener.MessageListenerConcurrently;
import org.apache.rocketmq.client.exception.MQClientException;
import org.apache.rocketmq.common.consumer.ConsumeFromWhere;
import org.apache.rocketmq.common.message.Message;
import org.springframework.stereotype.Component;

import java.io.UnsupportedEncodingException;

@Component
public class PayConsumer {

    private DefaultMQPushConsumer consumer;

    private String consumerGroup = "pay_consumer_group";

    public PayConsumer() throws MQClientException {

        consumer = new DefaultMQPushConsumer(consumerGroup);
        consumer.setNamesrvAddr(JmsConfig.NAME_SERVER);
        //从最后一个开始消费
        consumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_LAST_OFFSET);
        //订阅主题
        consumer.subscribe(JmsConfig.TOPIC, "*");
        //监听器
        consumer.registerMessageListener((MessageListenerConcurrently) (msgs, context) -> {
            try {
                Message msg = msgs.get(0);
                System.out.printf("%s Receive New Messages: %s %n", Thread.currentThread().getName(), new String(msgs.get(0).getBody()));
                String topic = msg.getTopic();
                String body = new String(msg.getBody(), "utf-8");
                String tags = msg.getTags();
                String keys = msg.getKeys();
                System.out.println("topic=" + topic + ", tags=" + tags + ", keys=" + keys + ", msg=" + body);
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            } catch (UnsupportedEncodingException e) {
                e.printStackTrace();
                return ConsumeConcurrentlyStatus.RECONSUME_LATER;
            }
        });

        consumer.start();
        System.out.println("consumer start ...");
    }
}

5.创建测试方法

package com.example.demorocketmq.controller;

import com.example.demorocketmq.jms.JmsConfig;
import com.example.demorocketmq.jms.PayProducer;

import org.apache.rocketmq.client.exception.MQBrokerException;
import org.apache.rocketmq.client.exception.MQClientException;
import org.apache.rocketmq.client.producer.SendResult;
import org.apache.rocketmq.common.message.Message;
import org.apache.rocketmq.remoting.exception.RemotingException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;


@RestController
public class PayController {
    @Autowired
    private PayProducer producer;

    @RequestMapping("/api/v1/pay_cb")
    public Object callback(String text){

        Message message = new Message(JmsConfig.TOPIC,"taga",("paytest"+text).getBytes());
        SendResult sendResult = null;
        try {
            sendResult = producer.getProducer().send(message);
        } catch (MQClientException e) {
            e.printStackTrace();
        } catch (RemotingException e) {
            e.printStackTrace();
        } catch (MQBrokerException e) {
            e.printStackTrace();
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        System.out.println(sendResult);
        return new HashMap<>();
    }
}

四.完全分布式部署（jdk1.8）

1.一主一从（异步双写，异步刷盘）

开放端口 10909 10911 10912
在第二节安装部署rocketMQ4.8基础上
分别修改
cd /usr/local/software/server/rocketmq/rocketmq-all-4.8.0-source-release/distribution/target/rocketmq-4.8.0/rocketmq-4.8.0/conf
vim 2m-2s-async

• 主节点

namesrvAddr=39.97.169.72:9876;39.97.228.27:9876
brokerClusterName=custompang
brokerName=broker-a
#0为master节点
brokerId=0
brokerIP1=外网地址
brokerIP2=外网地址
deleteWhen=04
fileReservedTime=48
#master异步复制到slaver节点
brokerRole=SYNC_MASTER
#异步刷盘
flushDiskType=ASYNC_FLUSH

启动：
nohup sh bin/mqnamesrv &
nohup sh bin/mqbroker -c conf/2m-2s-async/broker-a.properties &

• 从节点

namesrvAddr=192.168.159.129:9876;192.168.159.130:9876
brokerClusterName=custompang
brokerName=broker-a
brokerId=1
brokerIP1=外网地址
deleteWhen=04
fileReservedTime=48
brokerRole=SLAVE
flushDiskType=ASYNC_FLUSH

启动：
nohup sh bin/mqnamesrv &
nohup sh bin/mqbroker -c conf/2m-2s-async/broker-a-s.properties &

• 管控台启动

docker run -e "JAVA_OPTS=-Drocketmq.namesrv.addr=192.168.159.129:9876;192.168.159.130:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false" -p 8080:8080 -itd apacherocketmq/rocketmq-console:2.0.0
unzip rocketmq-externals-master.zip

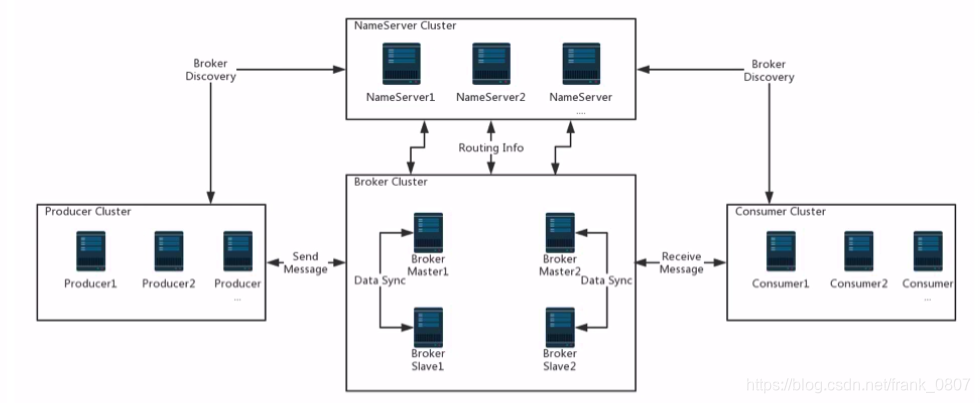

2.双主双从（同步复制，异步刷盘）

• 机器列表

server1 ssh root@192.168.159.133   部署nameServer  Broker-a
server2 ssh root@192.168.159.130   部署nameServer	 Broker-a-s
server3 ssh root@192.168.159.131				  Broker-b
server4 ssh root@192.168.159.132				  Broker-b-s

• 修改runserver.sh 和 runbroker.sh配置

vim runserver.sh
JAVA_OPT="${JAVA_OPT} -server -Xms528m -Xmx528m -Xmn256m -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m"

vim runbroker.sh
JAVA_OPT="${JAVA_OPT} -server -Xms528m -Xmx528m -Xmn256m"


启动两个机器的 nameserver
nohup sh bin/mqnamesrv &

• 修改四个节点的配置

broker-a主节点
nohup sh bin/mqbroker -c conf/2m-2s-async/broker-a.properties &

namesrvAddr=39.97.169.72:9876;39.97.228.27:9876
brokerClusterName=custompang
brokerName=broker-a
brokerId=0
brokerIP1=39.97.169.72
brokerIP2=39.97.169.72
deleteWhen=04
fileReservedTime=48
brokerRole=SYNC_MASTER
flushDiskType=ASYNC_FLUSH

defaultTopicQueueNums=4
#是否允许自动创建Topic，建议线下开启，线上关闭
autoCreateTopicEnable=true
#是否允许自动创建订阅组，建议线下开启，线上关闭
autoCreateSubscriptionGroup=false

#存储路径，根据需求进行配置绝对路径，默认是家目录下面
#storePathRootDir=
#storePathCommitLog

-----------------------------------------------------------------

broker-a从节点
nohup sh bin/mqbroker -c conf/2m-2s-async/broker-a-s.properties &

namesrvAddr=39.97.169.72:9876;39.97.228.27:9876
brokerClusterName=custompang
brokerName=broker-a
brokerId=1
brokerIP1=39.97.228.27
brokerIP2=39.97.228.27
deleteWhen=04
fileReservedTime=48
brokerRole=SLAVE
flushDiskType=ASYNC_FLUSH

defaultTopicQueueNums=4
#是否允许自动创建Topic，建议线下开启，线上关闭
autoCreateTopicEnable=true
#是否允许自动创建订阅组，建议线下开启，线上关闭
autoCreateSubscriptionGroup=false

#存储路径，根据需求进行配置绝对路径，默认是家目录下面
#storePathRootDir=
#storePathCommitLog

-----------------------------------------------------------------

broker-b主节点
nohup sh bin/mqbroker -c conf/2m-2s-async/broker-b.properties &

namesrvAddr=39.97.169.72:9876;39.97.228.27:9876
brokerClusterName=custompang
brokerName=broker-b
brokerId=0
brokerIP1=39.97.188.141
brokerIP2=39.97.188.141
deleteWhen=04
fileReservedTime=48
brokerRole=SYNC_MASTER
flushDiskType=ASYNC_FLUSH

defaultTopicQueueNums=4
#是否允许自动创建Topic，建议线下开启，线上关闭
autoCreateTopicEnable=true
#是否允许自动创建订阅组，建议线下开启，线上关闭
autoCreateSubscriptionGroup=false

#存储路径，根据需求进行配置绝对路径，默认是家目录下面
#storePathRootDir=
#storePathCommitLog

-----------------------------------------------------------------

broker-b从节点
nohup sh bin/mqbroker -c conf/2m-2s-async/broker-b-s.properties &

namesrvAddr=39.97.169.72:9876;39.97.228.27:9876
brokerClusterName=custompang
brokerName=broker-b
brokerId=1
brokerIP1=39.97.161.185
brokerIP2=39.97.161.185
deleteWhen=04
fileReservedTime=48
brokerRole=SLAVE
flushDiskType=ASYNC_FLUSH

defaultTopicQueueNums=4
#是否允许自动创建Topic，建议线下开启，线上关闭
autoCreateTopicEnable=true
#是否允许自动创建订阅组，建议线下开启，线上关闭
autoCreateSubscriptionGroup=false

#存储路径，根据需求进行配置绝对路径，默认是家目录下面
#storePathRootDir=
#storePathCommitLog

• 关闭防火墙

CentOS 6.5关闭防火墙
servcie iptables stop

centos7关闭防火墙
systemctl stop firewalld
systemctl stop firewalld.service

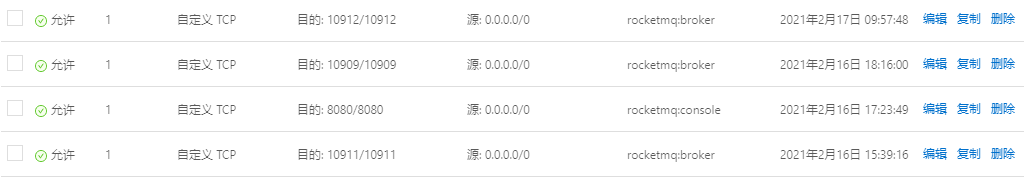

• 开启安全组端口


3.常见错误

• 常见错误一

org.apache.rocketmq.remoting.exception.RemotingTooMuchRequestException:
sendDefaultImpl call timeout
原因：阿里云存在多网卡，rocketmq都会根据当前网卡选择一个IP使用，当你的机器有多块网卡时，很有可能会有问题。比如，我遇到的问题是我机器上有两个IP，一个公网IP，一个私网IP, 因此需要配置broker.conf 指定当前的公网ip, 然后重新启动broker
新增配置：conf/broker.conf  (属性名称brokerIP1=broker所在的公网ip地址 )
新增这个配置：brokerIP1=120.76.62.13

启动命令：nohup sh bin/mqbroker -n localhost:9876  -c ./conf/broker.conf &

• 常见错误二

MQClientException: No route info of this topic, TopicTest1
原因：Broker 禁止自动创建 Topic，且用户没有通过手工方式创建 此Topic, 或者broker和Nameserver网络不通
解决：
通过 sh bin/mqbroker -m  查看配置
autoCreateTopicEnable=true 则自动创建topic

Centos7关闭防火墙  systemctl stop firewalld

• 常见错误三

控制台查看不了数据，提示连接 10909错误

原因：Rocket默认开启了VIP通道，VIP通道端口为10911-2=10909

解决：阿里云安全组需要增加一个端口 10909
其他错误:

https://blog.youkuaiyun.com/qq_14853889/article/details/81053145
https://blog.youkuaiyun.com/wangmx1993328/article/details/81588217#%E5%BC%82%E5%B8%B8%E8%AF%B4%E6%98%8E
https://www.jianshu.com/p/bfd6d849f156
https://blog.youkuaiyun.com/wangmx1993328/article/details/81588217

五.springboot2.x+rocketmq4.8.0实战

1.重试机制实战

• 生产者实战

 public PayProducer(){
        producer = new DefaultMQProducer(producerGroup);
        //投递失败默认重试次数是2，这里设置为3
        producer.setRetryTimesWhenSendFailed(3);
        producer.setNamesrvAddr(JmsConfig.NAME_SERVER);
        start();
    }

• 消费者实战

consumer.registerMessageListener((MessageListenerConcurrently) (msgs, context) -> {
            MessageExt msg = msgs.get(0);
            //默认重试次数是16，广播模式不支持重试
            int times = msg.getReconsumeTimes();
            System.out.println("重试次数="+times);
            try {
                System.out.printf("%s Receive New Messages: %s %n", Thread.currentThread().getName(), new String(msgs.get(0).getBody()));
                String topic = msg.getTopic();
                String body = new String(msg.getBody(), "utf-8");
                String tags = msg.getTags();
                //相当于订单编号等唯一标识
                String keys = msg.getKeys();
                System.out.println("topic=" + topic + ", tags=" + tags + ", keys=" + keys + ", msg=" + body);
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            } catch (UnsupportedEncodingException e) {
                System.out.println("消费异常");
                //TODO 如果重试2此不成功，则记录数据库，发短信人工介入，并记录到日志
                if(times>=2){
                    return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
                }
                e.printStackTrace();
                return ConsumeConcurrentlyStatus.RECONSUME_LATER;
            }
        });

2.异步发送消息实战（比如发放优惠券操作,不丢失）

• 生产者：

 //异步发送消息
            producer.getProducer().send(message, new SendCallback() {
                @Override
                public void onSuccess(SendResult sendResult) {
                    System.out.printf("发送结果=%s,body=%s",sendResult.getSendStatus(),sendResult.toString());
                }

                @Override
                public void onException(Throwable throwable) {
                    //可以做补偿机制，根据业务情况进行使用，看是否进行重试
                }
            });

3.OneWay发送消息实战（日志收集，可能丢失）

• 生产者：

payProducer.getProducer().sendOneway(message);

4.延时消费实战

• 使用场景:
  1.提醒某人的生日
  2.在某时间之内完成某个操作（超时未支付）
  默认级别表如下（18个级别 分别是1-18）

"1s 5s 10s 30s 1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 20m 30m 1h 2h";

 Message message = new Message(JmsConfig.TOPIC,"taga","可以是一个订单号",("paytest"+text).getBytes());
        //设置延迟消费策略 级别2是 5s后进行消费
        message.setDelayTimeLevel(2);

5.MessageQueueSelector实战（顺序消息，分担负载）

• 场景：指定某个队列对某个类型的业务进行消费
• 支持同步、异步发送
• 生产者：

		//0,1,2,3对应队列的下标,将消息发送到0队列中
	    //同步发送（顺序消息）
        SendResult sendResult = producer.getProducer().send(message, new MessageQueueSelector() {
            @Override
            public MessageQueue select(List<MessageQueue> mqs, Message msg, Object arg) {
                int queueNum = Integer.parseInt(arg.toString());
                return mqs.get(queueNum);
            }
        },0);
        //异步发送（不能保证顺序消息）
        producer.getProducer().send(message, new MessageQueueSelector() {
            @Override
            public MessageQueue select(List<MessageQueue> mqs, Message msg, Object arg) {
                int queueNum = Integer.parseInt(arg.toString());
                return mqs.get(queueNum);
            }
        }, 0, new SendCallback() {
            @Override
            public void onSuccess(SendResult sendResult) {

            }

            @Override
            public void onException(Throwable throwable) {

            }
        });

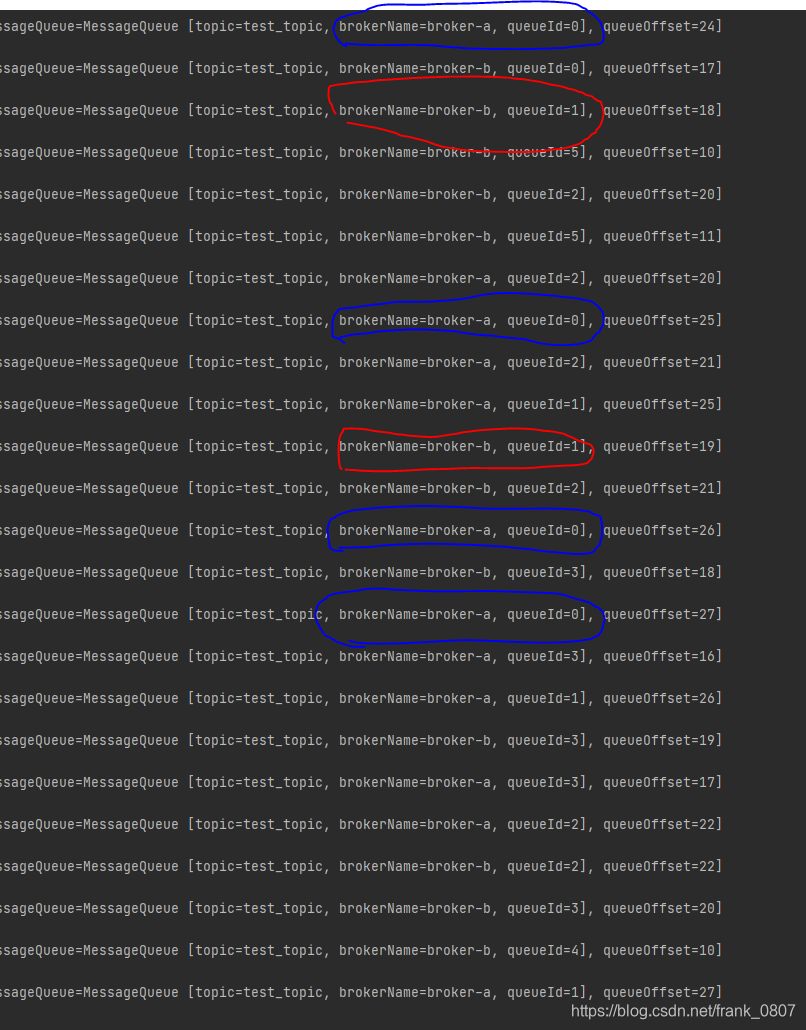

6.顺序发送/消费消息实战

原理：给局部队列加锁，使得不能并发消费相同的队列
场景：相同订单号的消息发送到相同的队列中

• 订单对象

package com.example.demorocketmq.domain;

import java.io.Serializable;
import java.util.ArrayList;
import java.util.List;

public class ProductOrder implements Serializable {

    /**
     * 订单id
     */
    private long orderId;

    /**
     * 订单类型
     */
    private String type;

    public long getOrderId() {
        return orderId;
    }

    public void setOrderId(long orderId) {
        this.orderId = orderId;
    }

    public String getType() {
        return type;
    }

    public void setType(String type) {
        this.type = type;
    }

    public ProductOrder(){}

    public ProductOrder(long orderId,String type){
        this.orderId = orderId;
        this.type = type;
    }

    /**
     * 测试方法
     * @return
     */
    public static List<ProductOrder> getOrderList(){
        List<ProductOrder> list = new ArrayList<>();
        list.add(new ProductOrder(111L,"创建订单"));
        list.add(new ProductOrder(222L,"创建订单"));
        list.add(new ProductOrder(111L,"支付订单"));
        list.add(new ProductOrder(222L,"支付订单"));
        list.add(new ProductOrder(111L,"完成订单"));
        list.add(new ProductOrder(333L,"创建订单"));
        list.add(new ProductOrder(222L,"完成订单"));
        list.add(new ProductOrder(333L,"支付订单"));
        list.add(new ProductOrder(333L,"完成订单"));
        return list;
    }

    @Override
    public String toString() {
        return "ProductOrder{" +
                "orderId=" + orderId +
                ", type='" + type + '\'' +
                '}';
    }
}

• 生产者

		 @RequestMapping("/api/v1/pay_cb")
    public Object callback(String text) throws Exception{
        List<ProductOrder> list = ProductOrder.getOrderList();
        for(int i=0;i<list.size();i++){
            ProductOrder order = list.get(i);
            Message message = new Message(JmsConfig.TOPIC,"",order.getOrderId()+"",order.toString().getBytes());
            //相同的订单id会进入同一个
            SendResult sendResult = producer.getProducer().send(message, new MessageQueueSelector() {
                @Override
                public MessageQueue select(List<MessageQueue> mqs, Message msg, Object arg) {
                    Long id = (Long) arg;
                    long index = id % mqs.size();
                    return mqs.get((int)index);
                }
            },order.getOrderId());

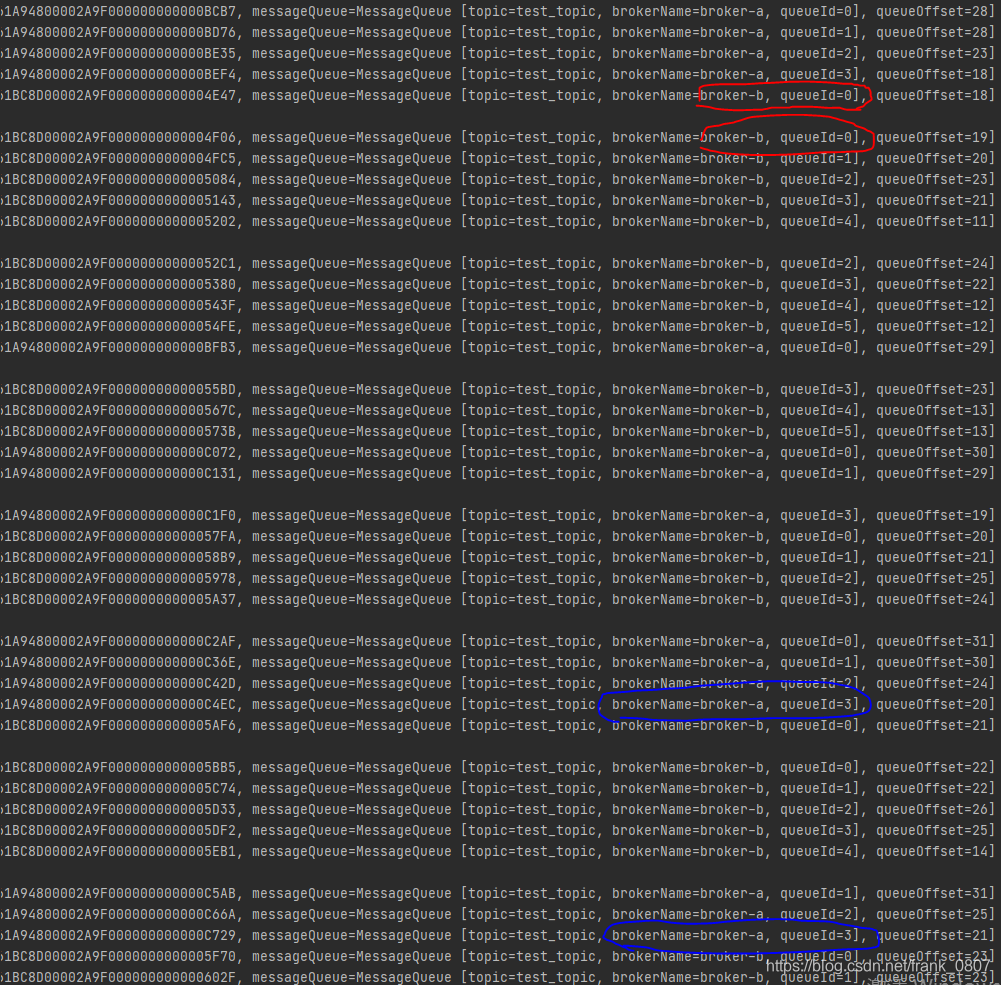

            System.out.printf("发送结果=%s\n",sendResult);
        }
        return new HashMap<>();

• 消费者

package com.example.demorocketmq.jms;

import org.apache.rocketmq.client.consumer.DefaultMQPushConsumer;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.client.consumer.listener.ConsumeOrderlyStatus;
import org.apache.rocketmq.client.consumer.listener.MessageListenerConcurrently;
import org.apache.rocketmq.client.consumer.listener.MessageListenerOrderly;
import org.apache.rocketmq.client.exception.MQClientException;
import org.apache.rocketmq.common.consumer.ConsumeFromWhere;
import org.apache.rocketmq.common.message.MessageExt;
import org.apache.rocketmq.common.protocol.heartbeat.MessageModel;
import org.springframework.stereotype.Component;

import java.io.UnsupportedEncodingException;

@Component
public class PayOrderlyConsumer {

    private DefaultMQPushConsumer consumer;

    private String consumerGroup = "pay_orderly_consumer_group";

    public PayOrderlyConsumer() throws MQClientException {

        consumer = new DefaultMQPushConsumer(consumerGroup);
        consumer.setNamesrvAddr(JmsConfig.NAME_SERVER);

        consumer.setMessageModel(MessageModel.CLUSTERING);
        //从最后一个开始消费
        consumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_LAST_OFFSET);
        //订阅主题,监听所有的tag
        consumer.subscribe(JmsConfig.TOPIC, "*");
        //监听器
        consumer.registerMessageListener((MessageListenerOrderly) (msgs, context) -> {
            MessageExt msg = msgs.get(0);
            //默认重试次数是16，广播模式不支持重试
            int times = msg.getReconsumeTimes();
            System.out.println("重试次数="+times);
            try {
                System.out.printf("%s Receive New Messages: %s %n", Thread.currentThread().getName(), new String(msgs.get(0).getBody()));

                return ConsumeOrderlyStatus.SUCCESS;
            } catch (Exception e) {
                if(times>=2){
                    //TODO 写入日志
                    return ConsumeOrderlyStatus.SUCCESS;
                }
                e.printStackTrace();
                return ConsumeOrderlyStatus.SUSPEND_CURRENT_QUEUE_A_MOMENT;
            }
        });
        consumer.start();
        System.out.println("consumer start ...");
    }
}

7.Tag二级过滤实战（topic是一级过滤）

• 简介：

一个Message只有一个Tag，tag是二级分类

订单：数码类订单、食品类订单
过滤分为Broker端和Consumer端过滤

Broker端过滤，减少了无用的消息的进行网络传输，增加了broker的负担
Consumer端过滤，完全可以根据业务需求进行实习，但是增加了很多无用的消息传输


一般是监听 * ,或者指定 tag，|| 运算 , SLQ92 , FilterServer等；

tag性能高，逻辑简单

SQL92 性能差点，支持复杂逻辑（只支持PushConsumer中使用） MessageSelector.bySql

语法：> , < = ，IS NULL, AND, OR, NOT 等，sql where后续的语法即可(大部分)


注意：消费者订阅关系要一致，不然会消费混乱，甚至消息丢失

订阅关系一致：订阅关系由 Topic和 Tag 组成，同一个 group name，订阅的 topic和tag 必须是一样的


在Broker 端进行MessageTag过滤，遍历message queue存储的 message tag和 订阅传递的tag 的hashcode不一样则跳过，符合的则传输给Consumer，在consumer queue存储的是对应的hashcode, 对比也是通过hashcode对比； Consumer收到过滤消息后也会进行匹配操作，但是是对比真实的message tag而不是hashcode

consume queue存储使用hashcode定长，节约空间
过滤中不访问commit log，可以高效过滤
如果存在hash冲突，Consumer端可以进行再次确认
如果想使用多个Tag，可以使用sql表达式，但是不建议，单一职责，多个队列

• tag模式实战

consumer.subscribe(JmsConfig.TOPIC, "order_pay || order_create");

• SQL92模式实战：
• 1.生产端：

Message message = new Message(JmsConfig.TOPIC,"",order.getOrderId()+"",order.toString().getBytes());
            message.putUserProperty("amount","5");

• 2.消费端：

//类似sql where后的语法
consumer.subscribe(JmsConfig.TOPIC, MessageSelector.bySql(" amount > 5 "));

常见错误：The broker does not support consumer to filter message by SQL92

解决：broker.conf 里面配置如下

enablePropertyFilter=true
备注，修改之后要重启Broker
master节点配置：vim conf/2m-2s-async/broker-a.properties
slave节点配置：vim conf/2m-2s-async/broker-a-s.properties

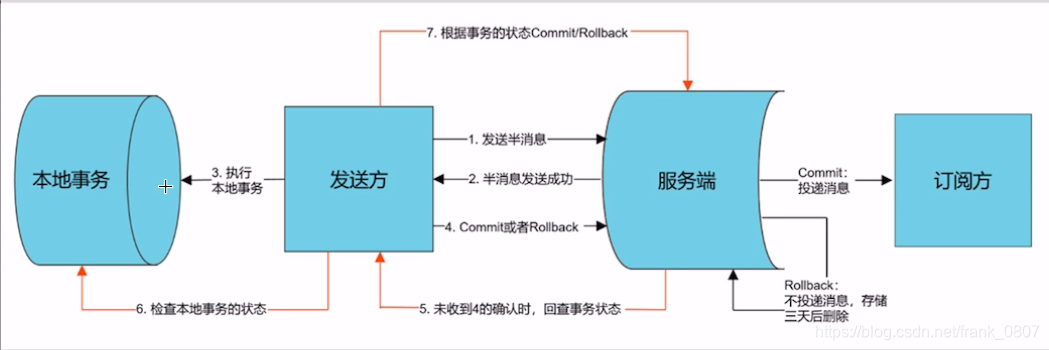

8.分布式事务实战

RocketMQ事务消息的状态

COMMIT_MESSAGE: 提交事务消息，消费者可以消费此消息
ROLLBACK_MESSAGE：回滚事务消息，消息会在broker中删除，消费者不能消费
UNKNOW：Broker需要回查确认消息的状态

• 生产端配置

package com.example.demorocketmq.jms;

import org.apache.rocketmq.client.exception.MQClientException;
import org.apache.rocketmq.client.producer.LocalTransactionState;
import org.apache.rocketmq.client.producer.TransactionListener;
import org.apache.rocketmq.client.producer.TransactionMQProducer;
import org.apache.rocketmq.common.message.Message;
import org.apache.rocketmq.common.message.MessageExt;
import org.springframework.stereotype.Component;
import java.util.concurrent.*;

@Component
public class TransactionProducer {

    //生产者组名称
    private String producerGroup = "trac_producer_group";

    //事务监听器
    private TransactionListener transactionListener = new TransactionListenerImpl();

    private TransactionMQProducer transactionProducer = null;

    //创建自定义线程池
    //@param corePoolSize       池中所保存的核心线程数
    //@param maximumPoolSize    池中允许的最大线程数
    //@param keepActiveTime     非核心线程空闲等待新任务的最长时间
    //@param timeunit           keepActiveTime参数的时间单位
    //@param blockingqueue      任务队列
    private ExecutorService executorService = new ThreadPoolExecutor(2, 5, 100, TimeUnit.SECONDS,
            new ArrayBlockingQueue<Runnable>(2000), new ThreadFactory() {
        @Override
        public Thread newThread(Runnable r) {
            Thread thread = new Thread(r);
            thread.setName("client-transaction-msg-check-thread");
            return thread;
        }
    });

    public TransactionProducer(){
        transactionProducer = new TransactionMQProducer(producerGroup);
        //投递失败默认重试次数是2，这里设置为3
        transactionProducer.setRetryTimesWhenSendFailed(3);
        transactionProducer.setNamesrvAddr(JmsConfig.NAME_SERVER);
        transactionProducer.setTransactionListener(transactionListener);
        transactionProducer.setExecutorService(executorService);
        start();
    }

    public TransactionMQProducer getProducer(){
        return this.transactionProducer;
    }

    /**
     * 对象在使用之前必须要调用一次，只能初始化一次
     */
    private void start(){
        try {
            this.transactionProducer.start();
        } catch (MQClientException e) {
            e.printStackTrace();
        }
    }

    /**
     * 一般在应用上下文，使用上下文监听器，进行关闭
     */
    public void shutdown(){
        this.transactionProducer.shutdown();
    }
}

class TransactionListenerImpl implements TransactionListener{
    /**
     * 当半消息发送成功后，执行本地事务
     * @param message
     * @param arg == otherParam
     * @return
     */
    @Override
    public LocalTransactionState executeLocalTransaction(Message message, Object arg) {

        System.out.println("===========executeLocalTransaction===========");
        String body = new String(message.getBody());
        String key = message.getKeys();
        String transactionId = message.getTransactionId();
        System.out.println("transactionId="+transactionId+", key="+key+", body="+body);
        //执行事务 TODO 执行本地事务操作数据库 begin
        //增删改查
        //执行事务 TODO 执行本地事务操作数据库 end

        int status = Integer.parseInt(arg.toString());
        //二次确认消息，然后消费者可以消费
        if(status == 1){
            return LocalTransactionState.COMMIT_MESSAGE;
        }
        //回滚消息，broker端会删除半消息
        if(status == 2){
            return LocalTransactionState.ROLLBACK_MESSAGE;
        }
        //broker端会进行回查消息（在不确认情况下）
        if(status == 3){
            return LocalTransactionState.UNKNOW;
        }

        return null;
    }

    /**
     * 当无半消息响应时，broker会发送消息进行检查状态回查
     * 回查消息，要么commit要么rollback,reconsumeTimes不生效
     * @param message
     * @return
     */
    @Override
    public LocalTransactionState checkLocalTransaction(MessageExt message) {

        System.out.println("===========checkLocalTransaction===========");
        //回查确认事务是否执行成功
        String body = new String(message.getBody());
        //通过key去检查本地事务是否完成 查询操作
        String key = message.getKeys();
        String transactionId = message.getTransactionId();
        System.out.println("transactionId="+transactionId+", key="+key+", body="+body);
        return LocalTransactionState.COMMIT_MESSAGE;
    }
}

• 消费端配置

package com.example.demorocketmq.jms;

import org.apache.rocketmq.client.consumer.DefaultMQPushConsumer;
import org.apache.rocketmq.client.consumer.listener.ConsumeConcurrentlyStatus;
import org.apache.rocketmq.client.consumer.listener.MessageListenerConcurrently;
import org.apache.rocketmq.client.exception.MQClientException;
import org.apache.rocketmq.common.consumer.ConsumeFromWhere;
import org.apache.rocketmq.common.message.MessageExt;
import org.springframework.stereotype.Component;

import java.io.UnsupportedEncodingException;

@Component
public class PayConsumer {

    private DefaultMQPushConsumer consumer;

    private String consumerGroup = "trac_consumer_group";

    public PayConsumer() throws MQClientException {

        consumer = new DefaultMQPushConsumer(consumerGroup);
        consumer.setNamesrvAddr(JmsConfig.NAME_SERVER);
        //广播模式，默认集群
        //consumer.setMessageModel(MessageModel.BROADCASTING);
        //从最后一个开始消费
        consumer.setConsumeFromWhere(ConsumeFromWhere.CONSUME_FROM_LAST_OFFSET);
        //订阅主题
        consumer.subscribe(JmsConfig.TOPIC, "*");
        //监听器
        consumer.registerMessageListener((MessageListenerConcurrently) (msgs, context) -> {
            MessageExt msg = msgs.get(0);
            //默认重试次数是16，广播模式不支持重试
            int times = msg.getReconsumeTimes();
            System.out.println("重试次数="+times);
            try {
                System.out.printf("%s Receive New Messages: %s %n", Thread.currentThread().getName(), new String(msgs.get(0).getBody()));
                String topic = msg.getTopic();
                String body = new String(msg.getBody(), "utf-8");
                String tags = msg.getTags();
                String keys = msg.getKeys();
                System.out.println("topic=" + topic + ", tags=" + tags + ", keys=" + keys + ", msg=" + body);
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            } catch (UnsupportedEncodingException e) {
                System.out.println("消费异常");
                //TODO 如果重试2此不成功，则记录数据库，发短信人工介入，并记录到日志
                if(times>=2){
                    return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
                }
                e.printStackTrace();
                return ConsumeConcurrentlyStatus.RECONSUME_LATER;
            }
        });
        consumer.start();
        System.out.println("consumer start ...");
    }
}

业务层代码：

import com.example.demorocketmq.jms.JmsConfig;
import com.example.demorocketmq.jms.TransactionProducer;
import org.apache.rocketmq.client.producer.SendResult;
import org.apache.rocketmq.common.message.Message;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import java.util.HashMap;



@RestController
public class PayController {
    @Autowired
    private TransactionProducer transactionProducer;

    @RequestMapping("/api/v1/pay_cb")
    public Object callback(String text,String tag,String otherParam) throws Exception{
        Message message = new Message(JmsConfig.TOPIC,tag,tag+"_key",text.getBytes());
        SendResult sendResult = transactionProducer.getProducer().
                sendMessageInTransaction(message,otherParam);
        return new HashMap<>();
    }
}

六.消费者常见配置

消息队列RocketMQ4.X消费者核心配置讲解

consumeFromWhere配置(某些情况失效：参考https://blog.csdn.net/a417930422/article/details/83585397)

CONSUME_FROM_FIRST_OFFSET： 初次从消息队列头部开始消费，即历史消息（还储存在broker的）全部消费一遍，后续再启动接着上次消费的进度开始消费
CONSUME_FROM_LAST_OFFSET： 默认策略，初次从该队列最尾开始消费，即跳过历史消息，后续再启动接着上次消费的进度开始消费
CONSUME_FROM_TIMESTAMP : 从某个时间点开始消费，默认是半个小时以前，后续再启动接着上次消费的进度开始消费


allocateMessageQueueStrategy:
负载均衡策略算法，即消费者分配到queue的算法，默认值是AllocateMessageQueueAveragely即取模平均分配

offsetStore：消息消费进度存储器 offsetStore 有两个策略：

LocalFileOffsetStore 和 RemoteBrokerOffsetStor 广播模式默认使用LocalFileOffsetStore 集群模式默认使用RemoteBrokerOffsetStore

consumeThreadMin 最小消费线程池数量
consumeThreadMax 最大消费线程池数量
pullBatchSize: 消费者去broker拉取消息时，一次拉取多少条。可选配置

consumeMessageBatchMaxSize: 单次消费时一次性消费多少条消息，批量消费接口才有用，可选配置

messageModel : 消费者消费模式， CLUSTERING——默认是集群模式CLUSTERING BROADCASTING——广播模式

七. PushConsumer、PullConsumer消费模式分析

• PushConsumer本质是长轮训(rocketmq默认策略)

Push和Pull优缺点分析

Push：
 实时性高；但增加服务端负载，消费端能力不同，如果Push推送过快，消费端会出现很多问题

Pull：
 消费者从Server端拉取消息，主动权在消费者端，可控性好；但 间隔时间不好设置，间隔太短，则空请求，浪费资源；间隔时间太长，则消息不能及时处理

长轮询：
 Client请求Server端也就是Broker的时候， Broker会保持当前连接一段时间 默认是15s，如果这段时间内有消息到达，则立刻返回给Consumer.没消息的话 超过15s，则返回空，再进行重新请求；主动权在Consumer中，Broker即使有大量的消息 也不会主动提送Consumer， 缺点：服务端需要保持Consumer的请求，会占用资源，需要客户端连接数可控 否则会一堆连接

PushConsumer本质是长轮训(rocketmq默认策略)
系统收到消息后自动处理消息和offset，如果有新的Consumer加入会自动做负载均衡,
在broker端可以通过longPollingEnable=true来开启长轮询
消费端代码：DefaultMQPushConsumerImpl->pullMessage->PullCallback
服务端代码：broker.longpolling
虽然是push，但是代码里面大量使用了pull，是因为使用长轮训方式达到Push效果，既有pull有的，又有Push的实时性
优雅关闭：主要是释放资源和保存Offset, 调用shutdown()即可 ，参考 @PostConstruct、@PreDestroy

PullConsumer需要自己维护Offset(参考官方例子)
官方例子路径：org.apache.rocketmq.example.simple.PullConsumer
获取MessageQueue遍历
客户维护Offset,需用用户本地存储Offset，存储内存、磁盘、数据库等
处理不同状态的消息 FOUND、NO_NEW_MSG、OFFSET_ILLRGL、NO_MATCHED_MSG、4种状态
灵活性高可控性强，但是编码复杂度会高
优雅关闭：主要是释放资源和保存Offset，需用程序自己保存好Offset，特别是异常处理的时候

八.总结

• 总结：官网说生产者发送数据到队列默认是轮询机制是针对整体队列，但如果是：
• 一个请求一条数据发送，并不是轮询，如图：

• 一个请求多次发送 ，也不是轮询，如图：

• 从上看出，在一次请求中，producer是轮询发送给队列的，多次请求并不一定
• 如果broker-a分片的主从都挂了，那么只能发送和消费broker-b的，等broker-a的其中一个恢复才能继续
• 如果broker的主节点挂了，那么producer不能发送消息，consumer可以消费
• 如果broker的从节点挂了，不受影响都正常
  如果需要按顺序消费，只有给队列加锁来实现，详见实战部分内容。
