Mujoco有限状态机以及轨迹追踪

原创

已于 2022-02-12 17:55:59 修改 · 1.3k 阅读

3 ·

CC 4.0 BY-SA版权

文章标签：

#Mujoco

于 2022-02-12 16:20:10 首次发布

在这里插入图片描述

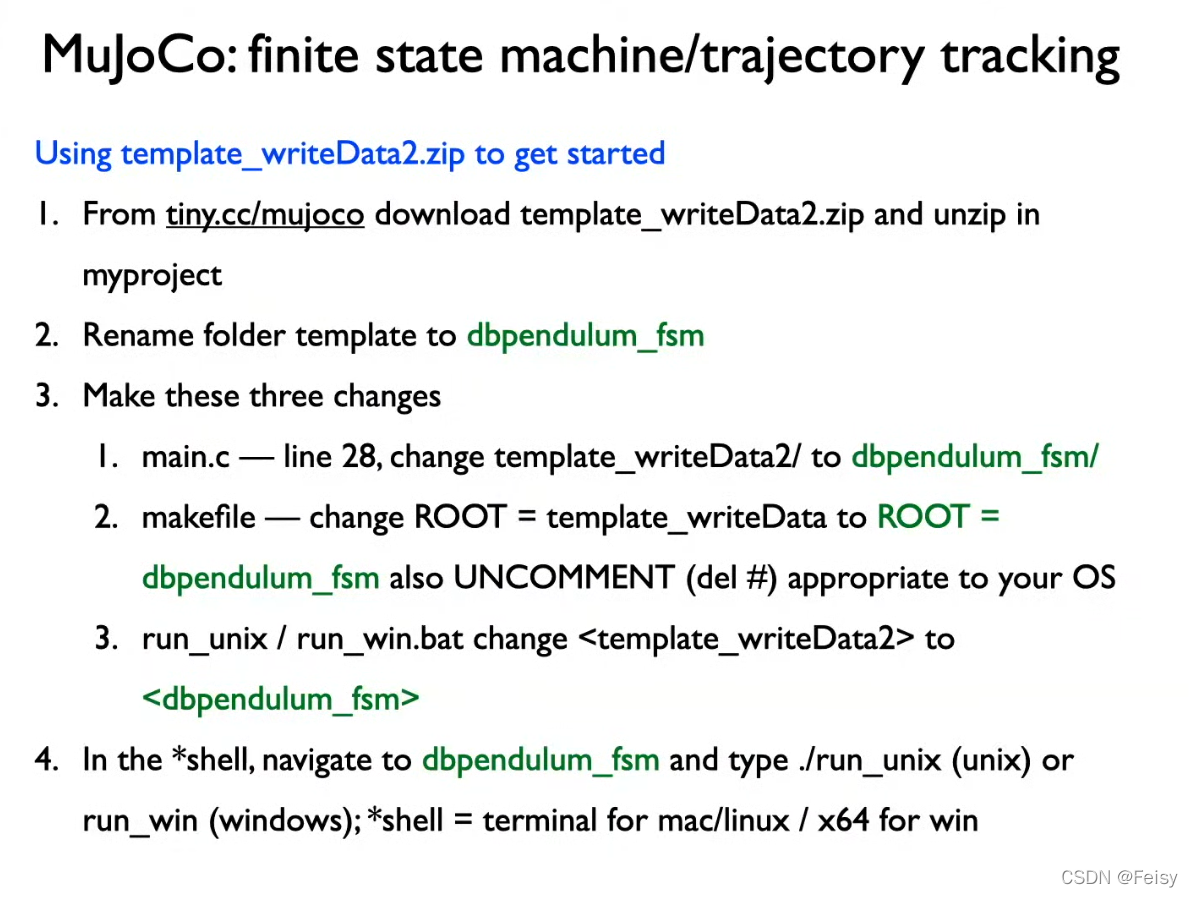

教程内容

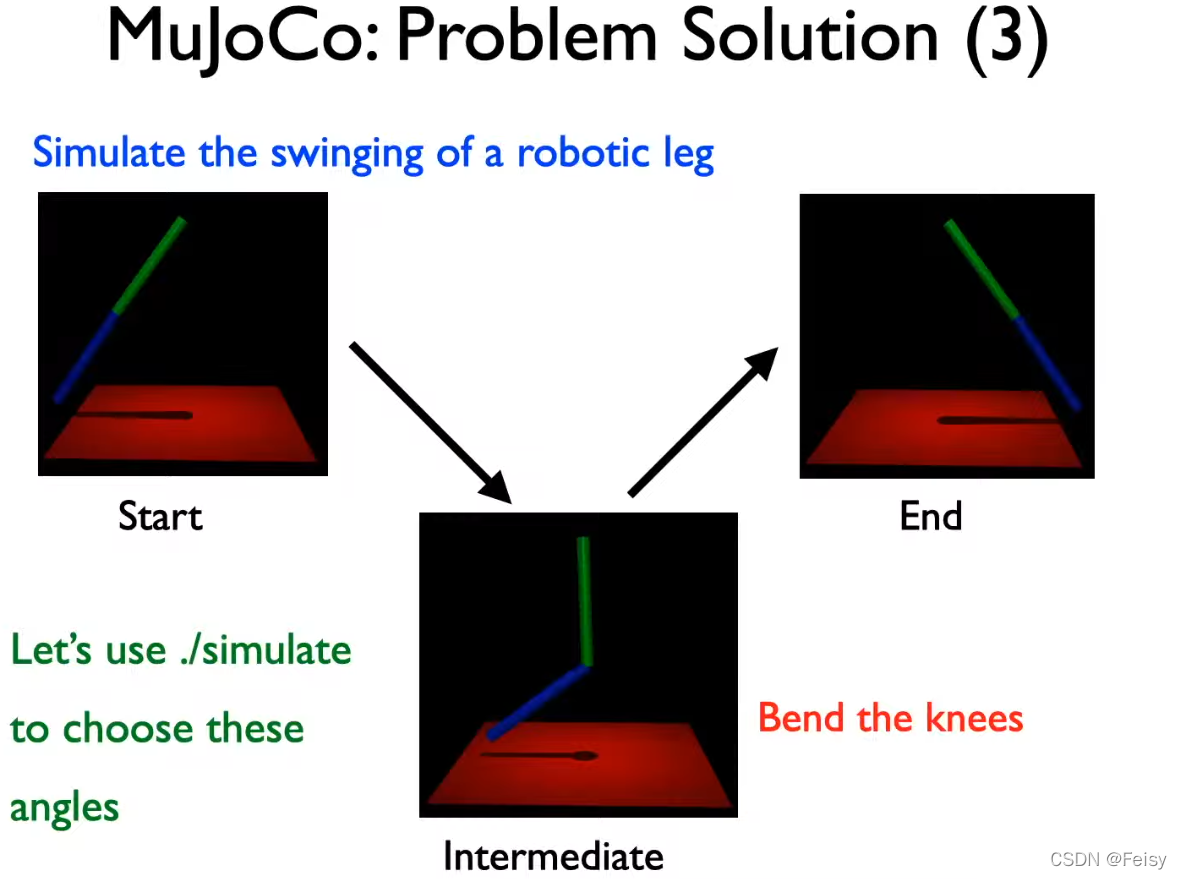

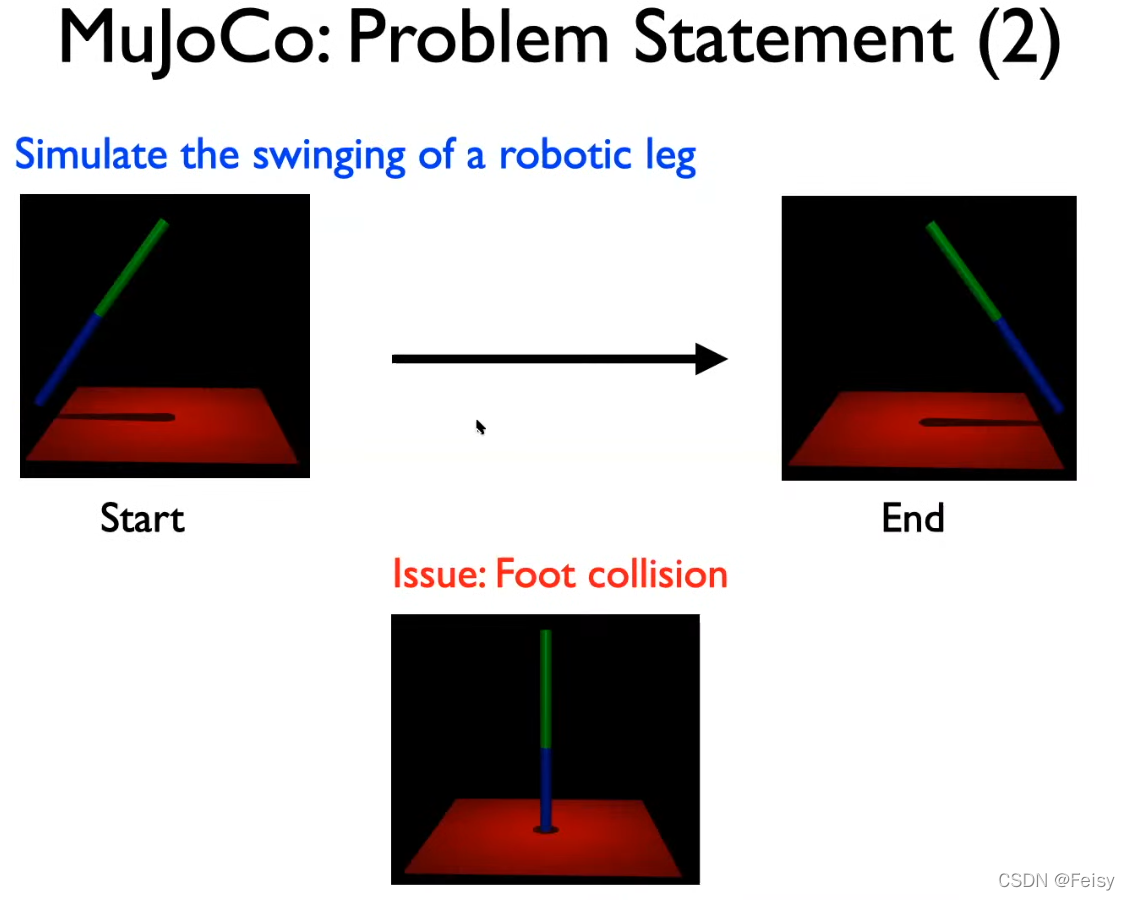

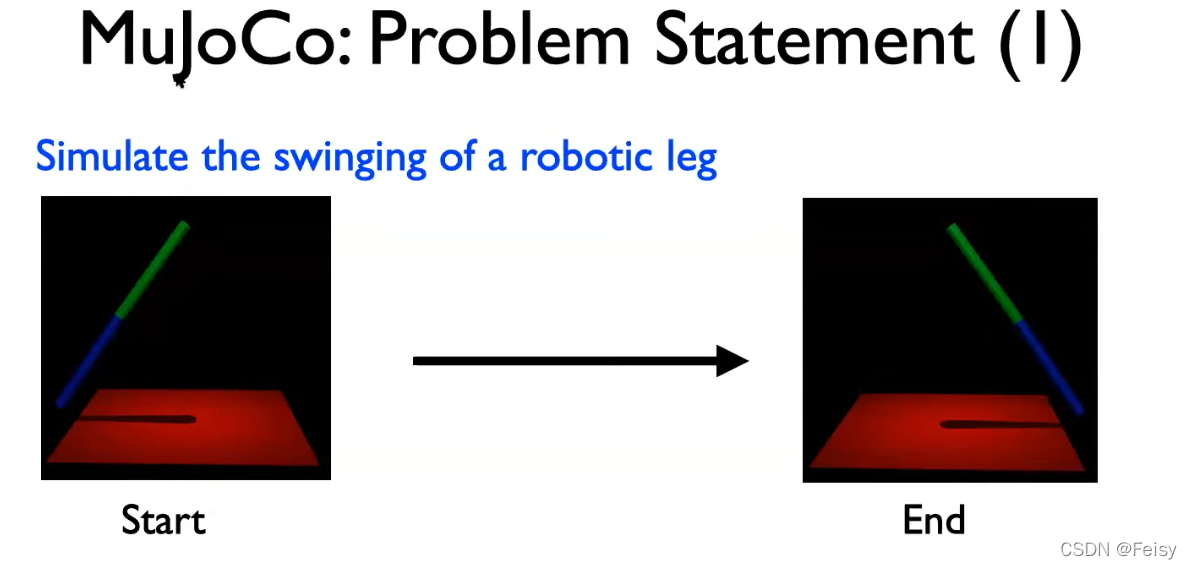

实现 hold swing1 swing2 stop 四个状态的切换
不同状态的轨迹使用不同的方法生成

用电机来实现位置的变化

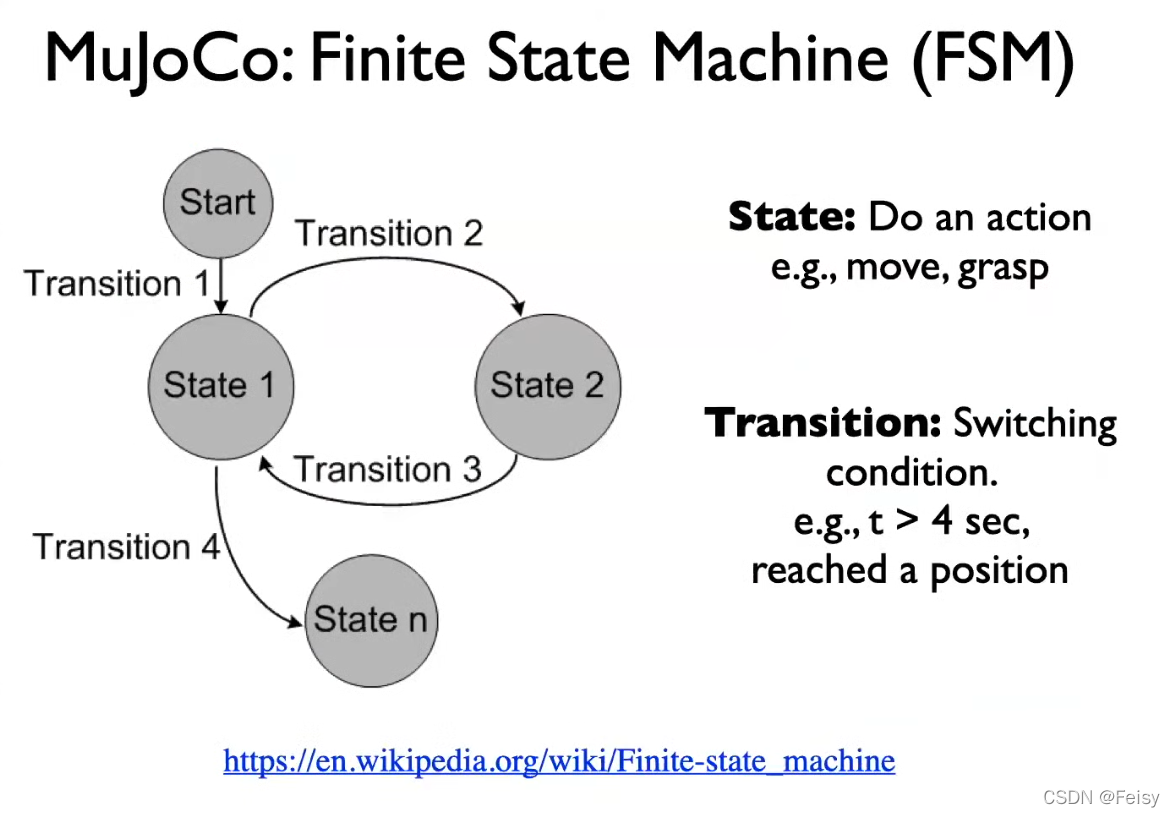

mujoco 有限状态机的演示

使用外力来实现位置的变化

如果我们取消关节的电机，采用外力来控制，效果如下

Mujoco采用外力来实现状态机

看起来和有电机的一模一样。所以电机的输入和外力的输入的功能是一样的

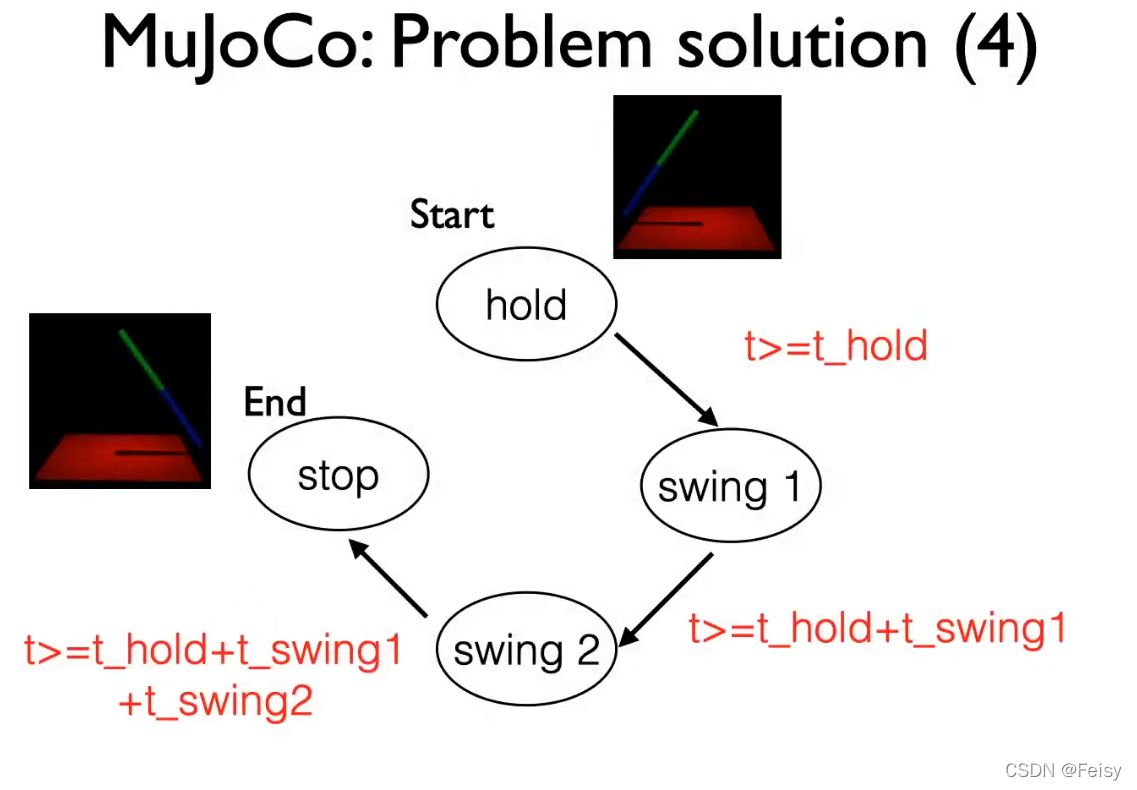

状态机图示

在这里插入图片描述

代码



#include<stdbool.h> //for bool
//#include<unistd.h> //for usleep
//#include <math.h>

//start: q0 = -1; q1 = 0
//intermediate: q0 = 0; q1 = -1.57 (pi/2)
//end: q0 = 1; q1 = 0;

double a0[2]={

   0},a1[2]={

   0},a2[2]={

   0},a3[2]={

   0};
double qref[2]={

   0}, uref[2]={

   0};

#include "mujoco.h"
#include "glfw3.h"
#include "stdio.h"
#include "stdlib.h"
#include "string.h"

//simulation end time
double simend = 5;

//state machine
int fsm_state;

#define fsm_hold 0
//const int fsm_hold = 0;
#define fsm_swing1 1
#define fsm_swing2 2
#define fsm_stop 3

const double t_hold = 0.5;
const double t_swing1 = 1;
const double t_swing2 = 1;

//related to writing data to a file
FILE *fid;
int loop_index = 0;
const int data_frequency = 10; //frequency at which data is written to a file


// char xmlpath[] = "../myproject/template_writeData/pendulum.xml";
// char datapath[] = "../myproject/template_writeData/data.csv";


//Change the path <template_writeData>
//Change the xml file
char path[] = "../myproject/dbpendulum_fsm/";
char xmlfile[] = "doublependulum.xml";


char datafile[] = "data.csv";


// MuJoCo data structures
mjModel* m = NULL;                  // MuJoCo model
mjData* d = NULL;                   // MuJoCo data
mjvCamera cam;                      // abstract camera
mjvOption opt;                      // visualization options
mjvScene scn;                       // abstract scene
mjrContext con;                     // custom GPU context

// mouse interaction
bool button_left = false;
bool button_middle = false;
bool button_right =  false;
double lastx = 0;
double lasty = 0;

// holders of one step history of time and position to calculate dertivatives
mjtNum position_history = 0;
mjtNum previous_time = 0;

// controller related variables
float_t ctrl_update_freq = 100;
mjtNum last_update = 0.0;
mjtNum ctrl;

// keyboard callback
void keyboard(GLFWwindow* window, int key, int scancode, int act, int mods)
{


    // backspace: reset simulation
    if( act==GLFW_PRESS && key==GLFW_KEY_BACKSPACE )
    {


        mj_resetData(m, d);
        mj_forward(m, d);
    }
}

// mouse button callback
void mouse_button(GLFWwindow* window, int button, int act, int mods)
{


    // update button state
    button_left =   (glfwGetMouseButton(window, GLFW_MOUSE_BUTTON_LEFT)==GLFW_PRESS);
    button_middle = (glfwGetMouseButton(window, GLFW_MOUSE_BUTTON_MIDDLE)==GLFW_PRESS);
    button_right =  (glfwGetMouseButton(window, GLFW_MOUSE_BUTTON_RIGHT)==GLFW_PRESS);

    // update mouse position
    glfwGetCursorPos(window, &lastx, &lasty);
}


// mouse move callback
void mouse_move(GLFWwindow* window, double xpos, double ypos)
{


    // no buttons down: nothing to do
    if( !button_left && !button_middle && !button_right )
        return;

    // compute mouse displacement, save
    double dx =
