thrift 入门 + 配置证书

1.thrift中定义枚举

enum Operation {
  ADD = 1,
  SUBTRACT = 2,
  MULTIPLY = 3,
  DIVIDE = 4
}

# enum定义枚举
# Operation 枚举类名称
# ADD 具体某一个枚举的名称
# 1 每个枚举定义序号

2.thrift中的数据类型

 *  bool        Boolean, one byte
 *  i8 (byte)   Signed 8-bit integer
 *  i16         Signed 16-bit integer
 *  i32         Signed 32-bit integer
 *  i64         Signed 64-bit integer
 *  double      64-bit floating point value
 *  string      String
 *  binary      Blob (byte array)
 *  map<t1,t2>  Map from one type to another
 *  list<t1>    Ordered list of one type
 *  set<t1>     Set of unique elements of one type

3.thrift中定义对象

struct Work {
  1: i32 num1 = 0,
  2: i32 num2,
  3: Operation op,
  4: optional string comment,
}

4.thrift中定义异常

exception InvalidOperation {
  1: i32 whatOp,
  2: string why
}

5.定义service

/**
 * service 可以继承
 * void 返回值为空
 * （）中的参数也要指定序号
 * throws 抛出异常
 * oneway 关键字客户端不用监听返回值
 */
service Calculator extends shared.SharedService {

  /**
   * A method definition looks like C code. It has a return type, arguments,
   * and optionally a list of exceptions that it may throw. Note that argument
   * lists and exception lists are specified using the exact same syntax as
   * field lists in struct or exception definitions.
   */

   void ping(),

   i32 add(1:i32 num1, 2:i32 num2),

   i32 calculate(1:i32 logid, 2:Work w) throws (1:InvalidOperation ouch),

   /**
    * This method has a oneway modifier. That means the client only makes
    * a request and does not listen for any response at all. Oneway methods
    * must be void.
    */
   oneway void zip()

}

6. 名称空间

# namespace 名称空间关键字
# java 对应的语言
# tutorial生成代码的包名，多级用点(.)分隔，如：com.xxx.tutorial
namespace cl tutorial
namespace cpp tutorial
namespace d tutorial
namespace dart tutorial
namespace java tutorial
namespace php tutorial
namespace perl tutorial
namespace haxe tutorial
namespace netstd tutorial

7. 下载练习用的tutorial.thrift文件，安装thrift后使用命令生成java代码

https://github.com/apache/thrift/blob/master/tutorial/tutorial.thrift

https://github.com/apache/thrift/blob/master/tutorial/shared.thrift

# 生成java代码
thrift -r gen java tutorial.thrift

8.java生成公私钥证书和客户端证书

keytool -genkeypair -alias certificatekey -keyalg RSA -validity 365 -keystore server.jks

### 说明：
# -genkeypair 生成密钥对
# -alias 别名
# certificatekey 别名 名称
# -keyalg 生成密钥的方式
# -validity 有效期，单位天
# -keystore 生成密钥对文件

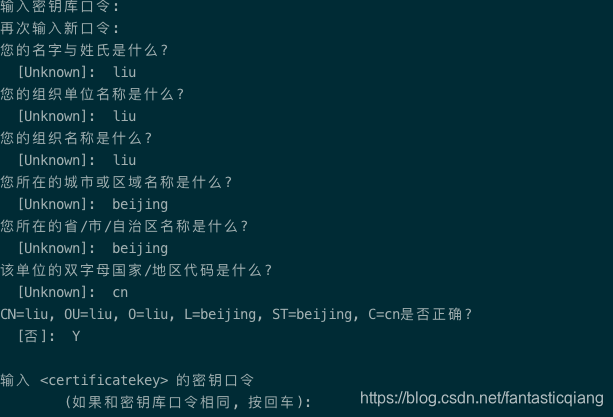

输入一些信息

证书导出公钥，公钥生成密钥文件

keytool -export -alias certificatekey -keystore server.jks -rfc -file public.cer

### 说明
# -keystore 指定密钥文件
# -rfc指定以可查看编码的方式输出，可省略
# -file 指定生成的文件

2. ### 公钥生成密钥文件
keytool -import -alias certificatekey -file public.cer  -keystore public.jks

9. 编写生成java service的实现类

import org.apache.thrift.TException;

// Generated code
import tutorial.*;
import shared.*;

import java.util.HashMap;

public class CalculatorHandler implements Calculator.Iface {

    private HashMap<Integer,SharedStruct> log;

    public CalculatorHandler() {
        log = new HashMap<Integer, SharedStruct>();
    }

    public void ping() {
        System.out.println("ping()");
    }

    public int add(int n1, int n2) {
        System.out.println("add(" + n1 + "," + n2 + ")");
        return n1 + n2;
    }

    public int calculate(int logid, Work work) throws InvalidOperation {
        System.out.println("calculate(" + logid + ", {" + work.op + "," + work.num1 + "," + work.num2 + "})");
        int val = 0;
        switch (work.op) {
            case ADD:
                val = work.num1 + work.num2;
                break;
            case SUBTRACT:
                val = work.num1 - work.num2;
                break;
            case MULTIPLY:
                val = work.num1 * work.num2;
                break;
            case DIVIDE:
                if (work.num2 == 0) {
                    InvalidOperation io = new InvalidOperation();
                    io.whatOp = work.op.getValue();
                    io.why = "Cannot divide by 0";
                    throw io;
                }
                val = work.num1 / work.num2;
                break;
            default:
                InvalidOperation io = new InvalidOperation();
                io.whatOp = work.op.getValue();
                io.why = "Unknown operation";
                throw io;
        }

        SharedStruct entry = new SharedStruct();
        entry.key = logid;
        entry.value = Integer.toString(val);
        log.put(logid, entry);

        return val;
    }

    public SharedStruct getStruct(int key) {
        System.out.println("getStruct(" + key + ")");
        return log.get(key);
    }

    public void zip() {
        System.out.println("zip()");
    }

}

10. 服务端启动类

代码需要修改证书的路径和密码

import org.apache.thrift.server.TServer;
import org.apache.thrift.server.TServer.Args;
import org.apache.thrift.server.TSimpleServer;
import org.apache.thrift.transport.TSSLTransportFactory;
import org.apache.thrift.transport.TSSLTransportFactory.TSSLTransportParameters;
import org.apache.thrift.transport.TServerSocket;
import org.apache.thrift.transport.TServerTransport;
import tutorial.Calculator;

// Generated code

public class JavaServer {

    public static CalculatorHandler handler;

    public static Calculator.Processor processor;

    public static void main(String[] args) {
        try {
            handler = new CalculatorHandler();
            processor = new Calculator.Processor(handler);

            Runnable simple = new Runnable() {
                public void run() {
                    simple(processor);
                }
            };
            Runnable secure = new Runnable() {
                public void run() {
                    secure(processor);
                }
            };

            new Thread(simple).start();
            new Thread(secure).start();
        } catch (Exception x) {
            x.printStackTrace();
        }
    }

    public static void simple(Calculator.Processor processor) {
        try {
            TServerTransport serverTransport = new TServerSocket(9090);
            TServer server = new TSimpleServer(new Args(serverTransport).processor(processor));

            // Use this for a multithreaded server
            // TServer server = new TThreadPoolServer(new TThreadPoolServer.Args(serverTransport).processor(processor));

            System.out.println("Starting the simple server...");
            server.serve();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    public static void secure(Calculator.Processor processor) {
        try {
            /*
             * Use TSSLTransportParameters to setup the required SSL parameters. In this example
             * we are setting the keystore and the keystore password. Other things like algorithms,
             * cipher suites, client auth etc can be set.
             */
            TSSLTransportParameters params = new TSSLTransportParameters();
            // The Keystore contains the private key
            params.setKeyStore("/**/**/server.jks", "123456", null, null);

            /*
             * Use any of the TSSLTransportFactory to get a server transport with the appropriate
             * SSL configuration. You can use the default settings if properties are set in the command line.
             * Ex: -Djavax.net.ssl.keyStore=.keystore and -Djavax.net.ssl.keyStorePassword=thrift
             *
             * Note: You need not explicitly call open(). The underlying server socket is bound on return
             * from the factory class.
             */
            TServerTransport serverTransport = TSSLTransportFactory.getServerSocket(9091, 0, null, params);
            TServer server = new TSimpleServer(new Args(serverTransport).processor(processor));

            // Use this for a multi threaded server
            // TServer server = new TThreadPoolServer(new TThreadPoolServer.Args(serverTransport).processor(processor));

            System.out.println("Starting the secure server...");
            server.serve();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

11. 客户端调用类

代码需要修改证书的路径和密码

import tutorial.*;
import shared.*;
import org.apache.thrift.TException;
import org.apache.thrift.transport.TSSLTransportFactory;
import org.apache.thrift.transport.TTransport;
import org.apache.thrift.transport.TSocket;
import org.apache.thrift.transport.TSSLTransportFactory.TSSLTransportParameters;
import org.apache.thrift.protocol.TBinaryProtocol;
import org.apache.thrift.protocol.TProtocol;


public class TestClient {

    public static void main(String[] args) {
        if (args.length != 1) {
            System.out.println("Please enter 'simple' or 'secure'");
            System.exit(0);
        }
        try {
            TTransport transport;
            if (args[0].contains("simple")) {
                transport = new TSocket("localhost", 9090);
                transport.open();
            } else {
                TSSLTransportParameters params = new TSSLTransportParameters();
                params.setTrustStore("/**/**/public.jks", "123456", "SunX509", "JKS");
                transport = TSSLTransportFactory.getClientSocket("localhost", 9091, 0, params);
            }
            TProtocol protocol = new  TBinaryProtocol(transport);
            Calculator.Client client = new Calculator.Client(protocol);

            perform(client);

            transport.close();
        } catch (TException e) {
            e.printStackTrace();
        }
    }

    private static void perform(Calculator.Client client) throws TException
    {
        client.ping();
        System.out.println("ping()");

        int sum = client.add(1,1);
        System.out.println("1+1=" + sum);

        Work work = new Work();

        work.op = Operation.DIVIDE;
        work.num1 = 1;
        work.num2 = 0;
        try {
            int quotient = client.calculate(1, work);
            System.out.println("Whoa we can divide by 0");
        } catch (InvalidOperation io) {
            System.out.println("Invalid operation: " + io.why);
        }

        work.op = Operation.SUBTRACT;
        work.num1 = 15;
        work.num2 = 10;
        try {
            int diff = client.calculate(1, work);
            System.out.println("15-10=" + diff);
        } catch (InvalidOperation io) {
            System.out.println("Invalid operation: " + io.why);
        }

        SharedStruct log = client.getStruct(1);
        System.out.println("Check log: " + log.value);
    }
}

12. 测试

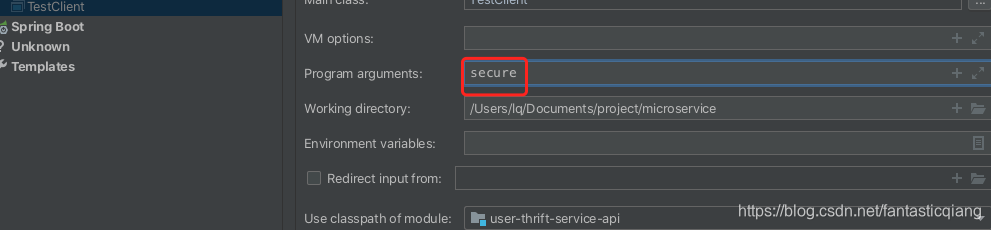

客户端指定main方法的参数，simple 或者 secure

返回结果
