StringRedisTemplate与RedisTemplate异同源码探秘

StringRedisTemplate与RedisTemplate异同

1、两者的关系是StringRedisTemplate继承RedisTemplate

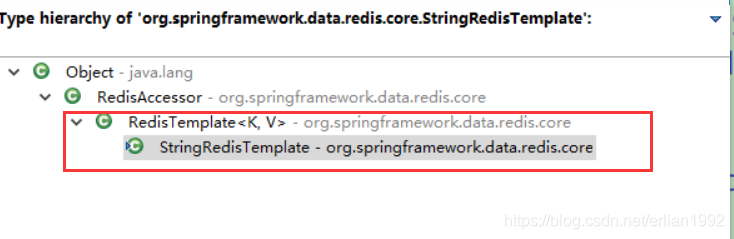

从继承关系层次图来看：

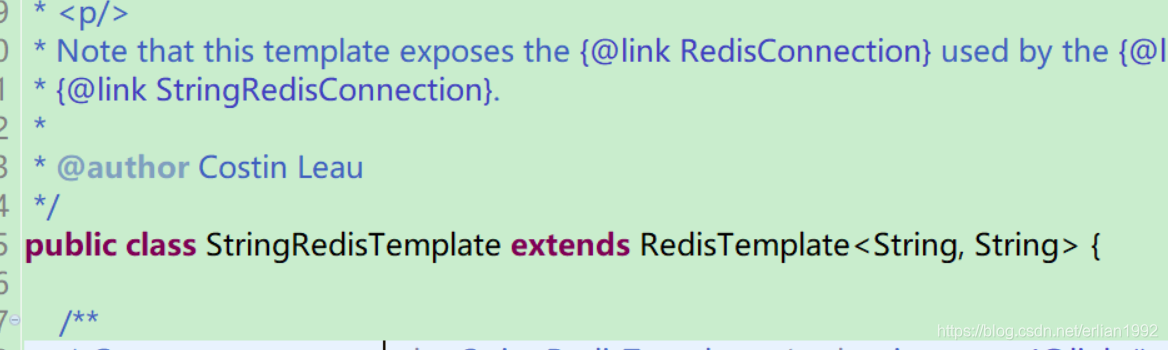

从源码层次来看：

2、两者的数据是不共通的；也就是说StringRedisTemplate只能管理StringRedisTemplate里面的数据，RedisTemplate只能管理RedisTemplate中的数据。

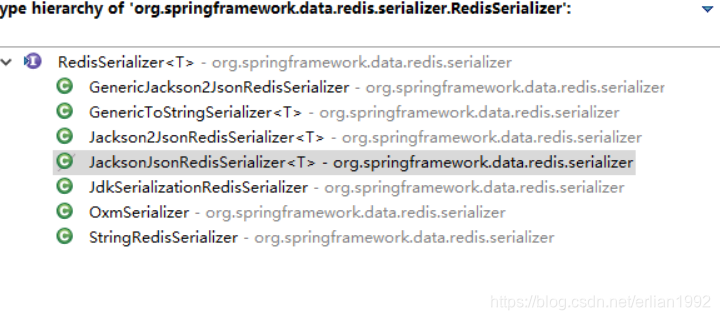

3、SDR默认采用的序列化策略有两种，一种是String的序列化策略，一种是JDK的序列化策略。

StringRedisTemplate默认采用的是String的序列化策略，保存的key和value都是采用此策略序列化保存的。

RedisTemplate默认采用的是JDK的序列化策略，保存的key和value都是采用此策略序列化保存的。

上述第三点是第二点的原因，我们来看源码是怎么实现上述区别的：

来看Spring容器中的StringRedisTemplate实例和RedisTemplate<Object, Object>实例是怎么被创建出来的？

RedisAutoConfiguration类存在的静态内部类：

package org.springframework.boot.autoconfigure.data.redis;

import java.net.URI;
import java.net.URISyntaxException;
import java.net.UnknownHostException;
import java.util.ArrayList;
import java.util.List;

import org.apache.commons.pool2.impl.GenericObjectPool;
import redis.clients.jedis.Jedis;
import redis.clients.jedis.JedisPoolConfig;

import org.springframework.beans.factory.ObjectProvider;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.boot.autoconfigure.condition.ConditionalOnClass;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.autoconfigure.data.redis.RedisProperties.Cluster;
import org.springframework.boot.autoconfigure.data.redis.RedisProperties.Sentinel;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisClusterConfiguration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.connection.RedisNode;
import org.springframework.data.redis.connection.RedisSentinelConfiguration;
import org.springframework.data.redis.connection.jedis.JedisConnection;
import org.springframework.data.redis.connection.jedis.JedisConnectionFactory;
import org.springframework.data.redis.core.RedisOperations;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.util.Assert;
import org.springframework.util.StringUtils;

/**
 * {@link EnableAutoConfiguration Auto-configuration} for Spring Data's Redis support.
 *
 * @author Dave Syer
 * @author Andy Wilkinson
 * @author Christian Dupuis
 * @author Christoph Strobl
 * @author Phillip Webb
 * @author Eddú Meléndez
 * @author Stephane Nicoll
 * @author Marco Aust
 */
@Configuration
@ConditionalOnClass({ JedisConnection.class, RedisOperations.class, Jedis.class })
@EnableConfigurationProperties(RedisProperties.class)
public class RedisAutoConfiguration {

	/**
	 * Redis connection configuration.
	 */
	@Configuration
	@ConditionalOnClass(GenericObjectPool.class)
	protected static class RedisConnectionConfiguration {

		private final RedisProperties properties;

		private final RedisSentinelConfiguration sentinelConfiguration;

		private final RedisClusterConfiguration clusterConfiguration;

		public RedisConnectionConfiguration(RedisProperties properties,
				ObjectProvider<RedisSentinelConfiguration> sentinelConfiguration,
				ObjectProvider<RedisClusterConfiguration> clusterConfiguration) {
			this.properties = properties;
			this.sentinelConfiguration = sentinelConfiguration.getIfAvailable();
			this.clusterConfiguration = clusterConfiguration.getIfAvailable();
		}

		@Bean
		@ConditionalOnMissingBean(RedisConnectionFactory.class)
		public JedisConnectionFactory redisConnectionFactory()
				throws UnknownHostException {
			return applyProperties(createJedisConnectionFactory());
		}

		protected final JedisConnectionFactory applyProperties(
				JedisConnectionFactory factory) {
			configureConnection(factory);
			if (this.properties.isSsl()) {
				factory.setUseSsl(true);
			}
			factory.setDatabase(this.properties.getDatabase());
			if (this.properties.getTimeout() > 0) {
				factory.setTimeout(this.properties.getTimeout());
			}
			return factory;
		}

		private void configureConnection(JedisConnectionFactory factory) {
			if (StringUtils.hasText(this.properties.getUrl())) {
				configureConnectionFromUrl(factory);
			}
			else {
				factory.setHostName(this.properties.getHost());
				factory.setPort(this.properties.getPort());
				if (this.properties.getPassword() != null) {
					factory.setPassword(this.properties.getPassword());
				}
			}
		}

		private void configureConnectionFromUrl(JedisConnectionFactory factory) {
			String url = this.properties.getUrl();
			if (url.startsWith("rediss://")) {
				factory.setUseSsl(true);
			}
			try {
				URI uri = new URI(url);
				factory.setHostName(uri.getHost());
				factory.setPort(uri.getPort());
				if (uri.getUserInfo() != null) {
					String password = uri.getUserInfo();
					int index = password.lastIndexOf(":");
					if (index >= 0) {
						password = password.substring(index + 1);
					}
					factory.setPassword(password);
				}
			}
			catch (URISyntaxException ex) {
				throw new IllegalArgumentException("Malformed 'spring.redis.url' " + url,
						ex);
			}
		}

		protected final RedisSentinelConfiguration getSentinelConfig() {
			if (this.sentinelConfiguration != null) {
				return this.sentinelConfiguration;
			}
			Sentinel sentinelProperties = this.properties.getSentinel();
			if (sentinelProperties != null) {
				RedisSentinelConfiguration config = new RedisSentinelConfiguration();
				config.master(sentinelProperties.getMaster());
				config.setSentinels(createSentinels(sentinelProperties));
				return config;
			}
			return null;
		}

		/**
		 * Create a {@link RedisClusterConfiguration} if necessary.
		 * @return {@literal null} if no cluster settings are set.
		 */
		protected final RedisClusterConfiguration getClusterConfiguration() {
			if (this.clusterConfiguration != null) {
				return this.clusterConfiguration;
			}
			if (this.properties.getCluster() == null) {
				return null;
			}
			Cluster clusterProperties = this.properties.getCluster();
			RedisClusterConfiguration config = new RedisClusterConfiguration(
					clusterProperties.getNodes());

			if (clusterProperties.getMaxRedirects() != null) {
				config.setMaxRedirects(clusterProperties.getMaxRedirects());
			}
			return config;
		}

		private List<RedisNode> createSentinels(Sentinel sentinel) {
			List<RedisNode> nodes = new ArrayList<RedisNode>();
			for (String node : StringUtils
					.commaDelimitedListToStringArray(sentinel.getNodes())) {
				try {
					String[] parts = StringUtils.split(node, ":");
					Assert.state(parts.length == 2, "Must be defined as 'host:port'");
					nodes.add(new RedisNode(parts[0], Integer.valueOf(parts[1])));
				}
				catch (RuntimeException ex) {
					throw new IllegalStateException(
							"Invalid redis sentinel " + "property '" + node + "'", ex);
				}
			}
			return nodes;
		}

		private JedisConnectionFactory createJedisConnectionFactory() {
			JedisPoolConfig poolConfig = this.properties.getPool() != null
					? jedisPoolConfig() : new JedisPoolConfig();

			if (getSentinelConfig() != null) {
				return new JedisConnectionFactory(getSentinelConfig(), poolConfig);
			}
			if (getClusterConfiguration() != null) {
				return new JedisConnectionFactory(getClusterConfiguration(), poolConfig);
			}
			return new JedisConnectionFactory(poolConfig);
		}

		private JedisPoolConfig jedisPoolConfig() {
			JedisPoolConfig config = new JedisPoolConfig();
			RedisProperties.Pool props = this.properties.getPool();
			config.setMaxTotal(props.getMaxActive());
			config.setMaxIdle(props.getMaxIdle());
			config.setMinIdle(props.getMinIdle());
			config.setMaxWaitMillis(props.getMaxWait());
			return config;
		}

	}

	/**
	 * Standard Redis configuration.
	 */
	@Configuration
	protected static class RedisConfiguration {

		@Bean
		@ConditionalOnMissingBean(name = "redisTemplate")
		public RedisTemplate<Object, Object> redisTemplate(
				RedisConnectionFactory redisConnectionFactory)
						throws UnknownHostException {
			RedisTemplate<Object, Object> template = new RedisTemplate<Object, Object>();
			template.setConnectionFactory(redisConnectionFactory);
			return template;
		}

		@Bean
		@ConditionalOnMissingBean(StringRedisTemplate.class)
		public StringRedisTemplate stringRedisTemplate(
				RedisConnectionFactory redisConnectionFactory)
						throws UnknownHostException {
			StringRedisTemplate template = new StringRedisTemplate();
			template.setConnectionFactory(redisConnectionFactory);
			return template;
		}

	}

}

最后的一个静态内部类就是创建这两个Bean，接着来看

RedisTemplate<Object, Object>类部分源码：

public class RedisTemplate<K, V> extends RedisAccessor implements RedisOperations<K, V>, BeanClassLoaderAware {

	private boolean enableTransactionSupport = false;
	private boolean exposeConnection = false;
	private boolean initialized = false;
	private boolean enableDefaultSerializer = true;
	private RedisSerializer<?> defaultSerializer;
	private ClassLoader classLoader;

	private RedisSerializer keySerializer = null;
	private RedisSerializer valueSerializer = null;
	private RedisSerializer hashKeySerializer = null;
	private RedisSerializer hashValueSerializer = null;
	private RedisSerializer<String> stringSerializer = new StringRedisSerializer();

	private ScriptExecutor<K> scriptExecutor;

	// cache singleton objects (where possible)
	private ValueOperations<K, V> valueOps;
	private ListOperations<K, V> listOps;
	private SetOperations<K, V> setOps;
	private ZSetOperations<K, V> zSetOps;
	private GeoOperations<K, V> geoOps;
	private HyperLogLogOperations<K, V> hllOps;

	/**
	 * Constructs a new <code>RedisTemplate</code> instance.
	 */
	public RedisTemplate() {}

	public void afterPropertiesSet() {

		super.afterPropertiesSet();

		boolean defaultUsed = false;

		if (defaultSerializer == null) {

			defaultSerializer = new JdkSerializationRedisSerializer(
					classLoader != null ? classLoader : this.getClass().getClassLoader());
		}

		if (enableDefaultSerializer) {

			if (keySerializer == null) {
				keySerializer = defaultSerializer;
				defaultUsed = true;
			}
			if (valueSerializer == null) {
				valueSerializer = defaultSerializer;
				defaultUsed = true;
			}
			if (hashKeySerializer == null) {
				hashKeySerializer = defaultSerializer;
				defaultUsed = true;
			}
			if (hashValueSerializer == null) {
				hashValueSerializer = defaultSerializer;
				defaultUsed = true;
			}
		}

		if (enableDefaultSerializer && defaultUsed) {
			Assert.notNull(defaultSerializer, "default serializer null and not all serializers initialized");
		}

		if (scriptExecutor == null) {
			this.scriptExecutor = new DefaultScriptExecutor<K>(this);
		}

		initialized = true;
	}

}

因为RedisTemplate继承自RedisAccessor类，而RedisAccessor实现了InitializingBean接口，它的源码是：

package org.springframework.beans.factory;

/**
 * Interface to be implemented by beans that need to react once all their
 * properties have been set by a BeanFactory: for example, to perform custom
 * initialization, or merely to check that all mandatory properties have been set.
 *
 * <p>An alternative to implementing InitializingBean is specifying a custom
 * init-method, for example in an XML bean definition.
 * For a list of all bean lifecycle methods, see the BeanFactory javadocs.
 *
 * @author Rod Johnson
 * @see BeanNameAware
 * @see BeanFactoryAware
 * @see BeanFactory
 * @see org.springframework.beans.factory.support.RootBeanDefinition#getInitMethodName
 * @see org.springframework.context.ApplicationContextAware
 */
public interface InitializingBean {

	/**
	 * Invoked by a BeanFactory after it has set all bean properties supplied
	 * (and satisfied BeanFactoryAware and ApplicationContextAware).
	 * <p>This method allows the bean instance to perform initialization only
	 * possible when all bean properties have been set and to throw an
	 * exception in the event of misconfiguration.
	 * @throws Exception in the event of misconfiguration (such
	 * as failure to set an essential property) or if initialization fails.
	 */
	void afterPropertiesSet() throws Exception;

}

该接口为bean提供了初始化方法的方式，它只包括afterPropertiesSet方法，凡是继承该接口的类，在初始化bean的时候会执行该方法。

那么在初始化RedisTemplate类时候就会触发它的afterPropertiesSet()方法，接着它的父类RedisAccessor中的afterPropertiesSet()方法，源码为：

package org.springframework.data.redis.core;

import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.util.Assert;

/**
 * Base class for {@link RedisTemplate} defining common properties. Not intended to be used directly.
 *
 * @author Costin Leau
 */
public class RedisAccessor implements InitializingBean {

	/** Logger available to subclasses */
	protected final Log logger = LogFactory.getLog(getClass());

	private RedisConnectionFactory connectionFactory;

	public void afterPropertiesSet() {
		Assert.notNull(getConnectionFactory(), "RedisConnectionFactory is required");
	}

	/**
	 * Returns the connectionFactory.
	 *
	 * @return Returns the connectionFactory
	 */
	public RedisConnectionFactory getConnectionFactory() {
		return connectionFactory;
	}

	/**
	 * Sets the connection factory.
	 *
	 * @param connectionFactory The connectionFactory to set.
	 */
	public void setConnectionFactory(RedisConnectionFactory connectionFactory) {
		this.connectionFactory = connectionFactory;
	}
}

那么我们来看最终要执行的afterPropertiesSet()方法的逻辑：

首先是执行父类的afterPropertiesSet()方法

接着是判断本来的属性defaultSerializer是否为空，如果为空则设置defaultSerializer为新创建的JdkSerializationRedisSerializer实例，这个是JDK序列化方式，

接着是如果enableDefaultSerializer为true则设置keySerializer、valueSerializer、hashKeySerializer、hashValueSerializer的序列化方式为defaultSerializer，也就是JdkSerializationRedisSerializer，

接着设置scriptExecutor

最后才是真正的初始化完成，设置initialized为true。

由此我们就知道了RedisTemplate的序列化方式是JdkSerializationRedisSerializer

那么StringRedisTemplate的序列化方式又是什么呢？

StringRedisTemplate类源码：

package org.springframework.data.redis.core;

import org.springframework.data.redis.connection.DefaultStringRedisConnection;
import org.springframework.data.redis.connection.RedisConnection;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.connection.StringRedisConnection;
import org.springframework.data.redis.serializer.RedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;

/**
 * String-focused extension of RedisTemplate. Since most operations against Redis are String based, this class provides
 * a dedicated class that minimizes configuration of its more generic {@link RedisTemplate template} especially in terms
 * of serializers.
 * <p/>
 * Note that this template exposes the {@link RedisConnection} used by the {@link RedisCallback} as a
 * {@link StringRedisConnection}.
 *
 * @author Costin Leau
 */
public class StringRedisTemplate extends RedisTemplate<String, String> {

	/**
	 * Constructs a new <code>StringRedisTemplate</code> instance. {@link #setConnectionFactory(RedisConnectionFactory)}
	 * and {@link #afterPropertiesSet()} still need to be called.
	 */
	public StringRedisTemplate() {
		RedisSerializer<String> stringSerializer = new StringRedisSerializer();
		setKeySerializer(stringSerializer);
		setValueSerializer(stringSerializer);
		setHashKeySerializer(stringSerializer);
		setHashValueSerializer(stringSerializer);
	}

	/**
	 * Constructs a new <code>StringRedisTemplate</code> instance ready to be used.
	 *
	 * @param connectionFactory connection factory for creating new connections
	 */
	public StringRedisTemplate(RedisConnectionFactory connectionFactory) {
		this();
		setConnectionFactory(connectionFactory);
		afterPropertiesSet();
	}

	protected RedisConnection preProcessConnection(RedisConnection connection, boolean existingConnection) {
		return new DefaultStringRedisConnection(connection);
	}
}

从上面创建StringRedisTemplate的无参构造方法可以看出，此时将keySerializer、valueSerializer、hashKeySerializer、hashValueSerializer的序列化方式为stringSerializer，也就是StringRedisSerializer序列化方式，此时执行完整个方法后，还需要接着执行setConnectionFactory()方法和afterPropertiesSet()方法，这时候会转向他的父类RedisTemplate中的afterPropertiesSet方法，此时上述四个序列化方式已经设置，逻辑稍微有点区别，就是不会再进行赋值，那么只有defaultSerializer是JdkSerializationRedisSerializer，其余的keySerializer、valueSerializer、hashKeySerializer、hashValueSerializer的序列化方式为stringSerializer

这就是上述第二点和第三点的解释，因为序列化方式不同，那么存储的二进制数据也就会不同，因此两者是不能进行数据互通的。

可以延伸一下redis序列化方式

来看RedisSerializer接口源码：

package org.springframework.data.redis.serializer;

/**
 * Basic interface serialization and deserialization of Objects to byte arrays (binary data). It is recommended that
 * implementations are designed to handle null objects/empty arrays on serialization and deserialization side. Note that
 * Redis does not accept null keys or values but can return null replies (for non existing keys).
 *
 * @author Mark Pollack
 * @author Costin Leau
 */
public interface RedisSerializer<T> {

	/**
	 * Serialize the given object to binary data.
	 *
	 * @param t object to serialize
	 * @return the equivalent binary data
	 */
	byte[] serialize(T t) throws SerializationException;

	/**
	 * Deserialize an object from the given binary data.
	 *
	 * @param bytes object binary representation
	 * @return the equivalent object instance
	 */
	T deserialize(byte[] bytes) throws SerializationException;
}

这个接口只有两个方法，序列化和反序列化，那么接口下面有7个具体的实现策略，如下图：

那么我们可以查看两个序列化方式的根本区别：

StringRedisSerializer源码：

package org.springframework.data.redis.serializer;

import java.nio.charset.Charset;

import org.springframework.util.Assert;

/**
 * Simple String to byte[] (and back) serializer. Converts Strings into bytes and vice-versa using the specified charset
 * (by default UTF-8).
 * <p>
 * Useful when the interaction with the Redis happens mainly through Strings.
 * <p>
 * Does not perform any null conversion since empty strings are valid keys/values.
 *
 * @author Costin Leau
 * @author Christoph Strobl
 */
public class StringRedisSerializer implements RedisSerializer<String> {

	private final Charset charset;

	public StringRedisSerializer() {
		this(Charset.forName("UTF8"));
	}

	public StringRedisSerializer(Charset charset) {
		Assert.notNull(charset, "Charset must not be null!");
		this.charset = charset;
	}

	public String deserialize(byte[] bytes) {
		return (bytes == null ? null : new String(bytes, charset));
	}

	public byte[] serialize(String string) {
		return (string == null ? null : string.getBytes(charset));
	}
}

JdkSerializationRedisSerializer源码：

package org.springframework.data.redis.serializer;

import org.springframework.core.convert.converter.Converter;
import org.springframework.core.serializer.DefaultDeserializer;
import org.springframework.core.serializer.DefaultSerializer;
import org.springframework.core.serializer.support.DeserializingConverter;
import org.springframework.core.serializer.support.SerializingConverter;
import org.springframework.util.Assert;

/**
 * Java Serialization Redis serializer. Delegates to the default (Java based) {@link DefaultSerializer serializer} and
 * {@link DefaultDeserializer}. This {@link RedisSerializer serializer} can be constructed with either custom
 * {@link ClassLoader} or own {@link Converter converters}.
 *
 * @author Mark Pollack
 * @author Costin Leau
 * @author Mark Paluch
 * @author Christoph Strobl
 */
public class JdkSerializationRedisSerializer implements RedisSerializer<Object> {

	private final Converter<Object, byte[]> serializer;
	private final Converter<byte[], Object> deserializer;

	/**
	 * Creates a new {@link JdkSerializationRedisSerializer} using the default class loader.
	 */
	public JdkSerializationRedisSerializer() {
		this(new SerializingConverter(), new DeserializingConverter());
	}

	/**
	 * Creates a new {@link JdkSerializationRedisSerializer} using a {@link ClassLoader}.
	 *
	 * @param classLoader
	 * @since 1.7
	 */
	public JdkSerializationRedisSerializer(ClassLoader classLoader) {
		this(new SerializingConverter(), new DeserializingConverter(classLoader));
	}

	/**
	 * Creates a new {@link JdkSerializationRedisSerializer} using a {@link Converter converters} to serialize and
	 * deserialize objects.
	 *
	 * @param serializer must not be {@literal null}
	 * @param deserializer must not be {@literal null}
	 * @since 1.7
	 */
	public JdkSerializationRedisSerializer(Converter<Object, byte[]> serializer, Converter<byte[], Object> deserializer) {

		Assert.notNull(serializer, "Serializer must not be null!");
		Assert.notNull(deserializer, "Deserializer must not be null!");

		this.serializer = serializer;
		this.deserializer = deserializer;
	}

	public Object deserialize(byte[] bytes) {
		if (SerializationUtils.isEmpty(bytes)) {
			return null;
		}

		try {
			return deserializer.convert(bytes);
		} catch (Exception ex) {
			throw new SerializationException("Cannot deserialize", ex);
		}
	}

	public byte[] serialize(Object object) {
		if (object == null) {
			return SerializationUtils.EMPTY_ARRAY;
		}
		try {
			return serializer.convert(object);
		} catch (Exception ex) {
			throw new SerializationException("Cannot serialize", ex);
		}
	}
}

从上面的代码看出StringRedisSerializer方式是String类本身的序列化方式，而JdkSerializationRedisSerializer序列化方式是SerializingConverter和DeserializingConverter，这个两个都是和本身的数据类型有关的序列化方式。

具体的的序列化可参考下面文章：

https://blog.youkuaiyun.com/notsaltedfish/article/details/75948281

参考文章

https://blog.youkuaiyun.com/maclaren001/article/details/37039749

https://blog.youkuaiyun.com/notsaltedfish/article/details/75948281
