NM Restart功能详解与源码解析

https://issues.apache.org/jira/browse/YARN-1336
版本不一致可能存在的问题
https://issues.apache.org/jira/browse/YARN-5630

nm重启

NMNullStateStoreService：功能未开启时候使用这个实例
NMLeveldbStateStoreService：功能开启后使用这个实例

nm重启利用将状态存储到levelDB库中，存储在磁盘上，在启动时候读取状态，重新和app等关联起来
重启不会导致container马上失败，但等心跳超时（yarn.nodemanager.health-checker.interval-ms=600s）后将在nm上运行的Container标记为dead状态，并在其他的正常的节点上进行调度。FairScheduler remove 这个节点，不会再为这个nm分配任何容器。

nm退役

nm利用黑名单文件，当使用refreshNodes命令时候，会将节点标记为Decommission

1.直接退役

nm直接关闭，所有容器全部退出

2.优雅退役

nm不直接关闭，等到所有容器运行结束后（在一定范围内yarn.resourcemanager.nodemanager-graceful-decommission-timeout-secs，默认1小时）退出

nm重启配置

<property>
   <name>yarn.nodemanager.recovery.enabled</name>
   <value>true</value>
</property>
<property>
   <name>yarn.nodemanager.recovery.dir</name>
   <value>/xxxx/yarn-nm-recovery</value>
</property>
<!--该配置开启后，nm关闭时不会马上关闭容器
该配置不开启，nm关闭时会马上关闭容器（除非正在滚动升级）
-->
<property>
   <name>yarn.nodemanager.recovery.supervised</name>
   <value>true</value>
</property>
<property>
   <name>yarn.nodemanager.address</name>
   <value>${yarn.nodemanager.hostname}:port</value>
</property>

1.目录设置好

2022-03-01 17:43:39,562 INFO org.apache.hadoop.service.AbstractService: Service org.apache.hadoop.yarn.server.nodemanager.recovery.NMLeveldbStateStoreService failed in state INITED; cause: org.fusesource.leveldbjni.internal.NativeDB$DBException: IO error: /xxxxxx/yarn-nm-recovery/yarn-nm-state/LOCK: No such file or directory
org.fusesource.leveldbjni.internal.NativeDB$DBException: IO error: /xxxx/yarn-nm-recovery/yarn-nm-state/LOCK: No such file or directory

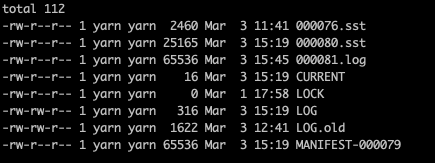

levelDB

sst扩展名的文件是LevelDB的磁盘数据文件；

log扩展名的文件是操作日志文件，记录了最近一段时间的操作日志；

CURRENT文件内容只有一个：当前 MANIFEST 的文件名，LevelDB 首先读取 CURRENT 文件才知道哪个MANIFEST文件是有效文件；

LOCK文件防止其它进程意外对这个目录文件进行读写操作，进程结束时，锁就会自动释放;

LOG文件记录了数据库的一系列关键性操作日志，例如每一次 Minor 和 Major Compaction 的相关信息;

MANIFEST 文件存放所有文件的Key取值范围、层级和其它元信息，MANIFEST文件的后缀为版本号。每一次重新打开数据库，都会生成一个新的 MANIFEST 文件，具有不同的版本号，然后还需要将老的 MANIFEST 文件删除;

LevelDB 的删除操作并不是真的立即删除键值对，而是将删除操作转换成了更新操作写进去了一个特殊的键值对，这个键值对的值部分是一个特殊的删除标记，待 LevelDB 在某种条件下触发数据合并（compact）时才会真的删除相应的键值对;

实例日志

当容器运行时候，关闭nm，容器依然在运行，运行完毕，进程消失，map显示完成度100%，am还存在，当nm重启后，am汇报完成，退出

日志如下

大概意思就是nm初始化的时候进行恢复操作，恢复应用信息，恢复容器的信息，与之前对应的app、进程等关联，恢复log等等；
将app、容器状态转换为running，如果发现运行完成了，就开始关闭对应容器；
nm启动时向rm注册，获取nm的ContainerStatuses等等

2022-03-02 19:42:37,469 INFO org.apache.hadoop.yarn.server.nodemanager.containermanager.launcher.RecoveredContainerLaunch: Recovered container container_e38_1645523508350_0038_01_000002 succeeded


2022-03-02 19:42:39,895 INFO org.apache.hadoop.yarn.server.nodemanager.NodeStatusUpdaterImpl: Sending out 2 NM container statuses: [[container_e38_1645523508350_0038_01_000001, CreateTime: xxxxxxxx

2022-03-02 19:42:39,901 INFO org.apache.hadoop.yarn.server.nodemanager.containermanager.monitor.ContainersMonitorImpl: container_e38_1645523508350_0038_01_000001's xxxxxxxx
2022-03-02 19:42:39,904 INFO org.apache.hadoop.yarn.server.nodemanager.NodeStatusUpdaterImpl: Registering with RM using containers :[[container_e38_1645523508350_0038_01_000001, CreateTime: xxxxxx

am所在的节点存活

当任务运行的时候将nm关闭，kill掉容器，nm启动后加载容器状态，觉得它失败了，在其他的节点上启动

2022-03-02 20:33:50,173 INFO org.apache.hadoop.yarn.server.nodemanager.containermanager.container.ContainerImpl: Container container_e38_1645523508350_0039_01_000002 transitioned from RUNNING to EXITED_WITH_FAILURE

当任务运行的时候将nm关闭，kill掉容器，nm不启动，rm认为节点丢失了，am创新启动一个container在其他节点上

AttemptID:attempt_1645523508350_0040_m_000000_0 Timed out after 600 secs Container released on a *lost* node cleanup failed for container container_e38_1645523508350_0040_01_000002 : java.net.ConnectException: Call From xxxxxx failed on connection exception: java.net.ConnectException: Connection refused;

当任务运行的时候将nm关闭，不kill掉容器，reduce容器失败，去fetch shuffle数据的时候异常，nm启动秒好

22/03/03 11:06:20 INFO mapreduce.Job: Task Id : attempt_1645523508350_0041_r_000000_1, Status : FAILED
Error: org.apache.hadoop.mapreduce.task.reduce.Shuffle$ShuffleError: error in shuffle in fetcher#2

2022-03-03 11:03:13,875 WARN [fetcher#3] org.apache.hadoop.mapreduce.task.reduce.Fetcher: Failed to connect to xxx with 1 map outputs
java.net.ConnectException: Connection refused (Connection refused)

当任务运行的时候将nm关闭，不kill掉容器，reduce尝试shuffle失败，等nm成为lostnode后，container在另外的节点上启动，任务完成

cleanup failed for container container_e38_1645523508350_0043_01_000002 : java.net.ConnectException: Call From xxx failed on connection exception: java.net.ConnectException: Connection refused;

am所在的节点关闭

当任务运行的时候将nm关闭，不kill掉am，任务直接完成

当任务运行的时候将nm关闭，kill掉am，无限次尝试连接节点，当节点上线时候，在其他节点上重新执行任务

22/03/03 13:31:46 INFO ipc.Client: Retrying connect to server: xxx. Already tried 0 time(s); retry policy is RetryUpToMaximumCountWithFixedSleep(maxRetries=3, sleepTime=1000 MILLISECONDS)

am/container所在节点关闭

当任务运行的时候将nm关闭，不kill am和contianer，reduce尝试shuffle失败，等nm成为lostnode后，am/container在另外的节点上启动，任务完成
退役方式
当任务运行的时候，退役方式关闭nm，容器直接关闭
并且levelDB库目录被清空
优雅退役
当任务运行的时候，优雅退役方式关闭nm，容器运行后关闭，nm等所有容器运行完毕后关闭
并且levelDB库目录被清空

源码解析

初始化

nodemanager启动
serviceInit方法中initAndStartRecoveryStore(conf);

private void initAndStartRecoveryStore(Configuration conf)
  throws IOException {
  // 获取conf中的yarn.nodemanager.recovery.enabled，true表示开启nm 重启功能
  boolean recoveryEnabled = conf.getBoolean(
    YarnConfiguration.NM_RECOVERY_ENABLED,
    YarnConfiguration.DEFAULT_NM_RECOVERY_ENABLED);
  if (recoveryEnabled) {
    FileSystem recoveryFs = FileSystem.getLocal(conf);
    // 获取conf中的yarn.nodemanager.recovery.dir
    String recoveryDirName = conf.get(YarnConfiguration.NM_RECOVERY_DIR);
    if (recoveryDirName == null) {
      throw new IllegalArgumentException("Recovery is enabled but " +
                                         YarnConfiguration.NM_RECOVERY_DIR + " is not set.");
    }
    Path recoveryRoot = new Path(recoveryDirName);
    // 创建状态存储目录，权限700
    recoveryFs.mkdirs(recoveryRoot, new FsPermission((short)0700));
    // 初始化NMLeveldbStateStoreService
    nmStore = new NMLeveldbStateStoreService();
  } else {
    nmStore = new NMNullStateStoreService();
  }
  nmStore.init(conf);
  // 调用NMLeveldbStateStoreService的父类NMStateStoreService中的方法，
  // 在该方法中调用了NMLeveldbStateStoreService的startStorage()，该方法是空方法
  nmStore.start();
}

nmStore.init(conf)的serviceInit

实际上调用NMLeveldbStateStoreService的父类NMStateStoreService中的方法
在该方法中调用了NMLeveldbStateStoreService的initStorage(conf);

protected void initStorage(Configuration conf)
  throws IOException {
  // 获取levelDB实例
  db = openDatabase(conf);
  // 判断CURRENT_VERSION_INFO，也就是判断state-store的兼容性
  // 兼容视为小版本更新，不兼容视为大版本更新
  checkVersion();
  // 获取yarn.nodemanager.recovery.compaction-interval-secs，默认3600s，启动一个定时调度器，调度器中做db.compactRange(null, null);
  // 调用该方法时，levelDb进行合并，删除历史（特殊）键值对，与levelDb的删除机制有关
  startCompactionTimer(conf);
}

db = openDatabase(conf);

protected DB openDatabase(Configuration conf) throws IOException {
  // 创建目录/xxx/yarn-nm-recovery/yarn-nm-state
  // /xxxx/yarn-nm-recovery/nm-aux-services/mapreduce_shuffle/mapreduce_shuffle_state
  Path storeRoot = createStorageDir(conf);
  Options options = new Options();
  options.createIfMissing(false);
  options.logger(new LeveldbLogger());
  LOG.info("Using state database at " + storeRoot + " for recovery");
  File dbfile = new File(storeRoot.toString());
  try {
    // 打开数据库
    db = JniDBFactory.factory.open(dbfile, options);
  } catch (NativeDB.DBException e) {
    // 没有则创建
    if (e.isNotFound() || e.getMessage().contains(" does not exist ")) {
      LOG.info("Creating state database at " + dbfile);
      isNewlyCreated = true;
      options.createIfMissing(true);
      try {
        db = JniDBFactory.factory.open(dbfile, options);
        // 插入key为nm-schema-version，value为版本协议,经过解析后得到的是版本号1.2
        storeVersion();
      } catch (DBException dbErr) {
        throw new IOException(dbErr.getMessage(), dbErr);
      }
    } else {
      throw e;
    }
  }
  return db;
}

checkVersion();

protected void checkVersion() throws IOException {
  // 从levelDB中加载版本协议数据，解析后得到版本号
  Version loadedVersion = loadVersion();
  LOG.info("Loaded NM state version info " + loadedVersion);
  // 与系统的版本号对比，相等无事发生
  if (loadedVersion.equals(getCurrentVersion())) {
    return;
  }
  // 如果大版本相等也无事发生
  if (loadedVersion.isCompatibleTo(getCurrentVersion())) {
    LOG.info("Storing NM state version info " + getCurrentVersion());
    // 将系统的版本协议存入levelDB中，也就是替换之前的版本协议
    storeVersion();
  } else {
    // 如果大版本不想等，抛出异常让用户单独使用升级工具或者删除不兼容状态
    throw new IOException(
      "Incompatible version for NM state: expecting NM state version "
      + getCurrentVersion() + ", but loading version " + loadedVersion);
  }
}

存储

容器启动命令是由各个ApplicationMaster通过RPC函数ContainerManagementProtocol#startContainer向NodeManager发起的，NodeManager中的ContainerManager组件（组件实现为ContainerManagerImpl） 负责接收并处理该请求。

startContainers

@Override
public StartContainersResponse startContainers(
  StartContainersRequest requests) throws YarnException, IOException {
  // 启动容器
  startContainerInternal(containerTokenIdentifier, request);
}


protected void startContainerInternal(
  ContainerTokenIdentifier containerTokenIdentifier,
  StartContainerRequest request) throws YarnException, IOException {

  // 如果找不到applicationID就创建一个，将app的状态存储起来
  if (!context.getApplications().containsKey(applicationID)) {
    // Create the application
    // populate the flow context from the launch context if the timeline
    // service v.2 is enabled
    Application application =
      new ApplicationImpl(dispatcher, user, flowContext,
                          applicationID, credentials, context);
    // key是ContainerManager/applications/appId，value是ContainerManagerApplicationProto
    context.getNMStateStore().storeApplication(applicationID,
                                               buildAppProto(applicationID, user, credentials, appAcls,
                                                             logAggregationContext, flowContext));
  }

  // 存储容器的状态
  this.context.getNMStateStore().storeContainer(containerId,
                                                containerTokenIdentifier.getVersion(), containerStartTime, request);
}

看一下value有啥

// ContainerManagerApplicationProto set Id/User/LogAggregationContext/Credentials/Acls等等
static ContainerManagerApplicationProto buildAppProto(ApplicationImpl app)
  throws IOException {
  ContainerManagerApplicationProto.Builder builder =
    ContainerManagerApplicationProto.newBuilder();
  builder.setId(((ApplicationIdPBImpl) app.appId).getProto());
  builder.setUser(app.getUser());

  if (app.logAggregationContext != null) {
    builder.setLogAggregationContext((
      (LogAggregationContextPBImpl)app.logAggregationContext).getProto());
  }

  builder.clearCredentials();
  if (app.credentials != null) {
    DataOutputBuffer dob = new DataOutputBuffer();
    app.credentials.writeTokenStorageToStream(dob);
    builder.setCredentials(ByteString.copyFrom(dob.getData()));
  }

  builder.clearAcls();
  if (app.applicationACLs != null) {
    for (Map.Entry<ApplicationAccessType, String> acl :  app
         .applicationACLs.entrySet()) {
      YarnProtos.ApplicationACLMapProto p = YarnProtos
        .ApplicationACLMapProto.newBuilder()
        .setAccessType(ProtoUtils.convertToProtoFormat(acl.getKey()))
        .setAcl(acl.getValue())
        .build();
      builder.addAcls(p);
    }
  }

  builder.setAppLogAggregationInitedTime(app.applicationLogInitedTimestamp);

  builder.clearFlowContext();
  if (app.flowContext != null && app.flowContext.getFlowName() != null
      && app.flowContext.getFlowVersion() != null) {
    FlowContextProto fcp = FlowContextProto.newBuilder()
      .setFlowName(app.flowContext.getFlowName())
      .setFlowVersion(app.flowContext.getFlowVersion())
      .setFlowRunId(app.flowContext.getFlowRunId()).build();
    builder.setFlowContext(fcp);
  }

  return builder.build();
}

// optional .hadoop.yarn.ApplicationIdProto id = 1;
// optional string user = 2;
// optional bytes credentials = 3;
// repeated .hadoop.yarn.ApplicationACLMapProto acls = 4;
// optional .hadoop.yarn.LogAggregationContextProto log_aggregation_context = 5;
// optional int64 appLogAggregationInitedTime = 6 [default = -1];
// optional .hadoop.yarn.FlowContextProto flowContext = 7;

storeApplication

@Override
public void storeApplication(ApplicationId appId,
                             ContainerManagerApplicationProto p) throws IOException {
  if (LOG.isDebugEnabled()) {
    LOG.debug("storeApplication: appId=" + appId
              + ", proto=" + p);
  }

  // key是ContainerManager/applications/appId，value是ContainerManagerApplicationProto
  String key = APPLICATIONS_KEY_PREFIX + appId;
  try {
    db.put(bytes(key), p.toByteArray());
  } catch (DBException e) {
    throw new IOException(e);
  }
}

删除

removeApplication
application运行结束后删除对应的键值对

@Override
  public void removeApplication(ApplicationId appId)
      throws IOException {
    if (LOG.isDebugEnabled()) {
      LOG.debug("removeApplication: appId=" + appId);
    }

    try {
      WriteBatch batch = db.createWriteBatch();
      try {
        String key = APPLICATIONS_KEY_PREFIX + appId;
        batch.delete(bytes(key));
        db.write(batch);
      } finally {
        batch.close();
      }
    } catch (DBException e) {
      throw new IOException(e);
    }
  }

storeContainer

@Override
  public void storeContainer(ContainerId containerId, int containerVersion,
      long startTime, StartContainerRequest startRequest) throws IOException {
    String idStr = containerId.toString();
    if (LOG.isDebugEnabled()) {
      LOG.debug("storeContainer: containerId= " + idStr
          + ", startRequest= " + startRequest);
    }

    String keyRequest = getContainerKey(idStr, CONTAINER_REQUEST_KEY_SUFFIX);
    String keyVersion = getContainerVersionKey(idStr);
    String keyStartTime =
        getContainerKey(idStr, CONTAINER_START_TIME_KEY_SUFFIX);
    try {
      WriteBatch batch = db.createWriteBatch();
      try {
        // key是ContainerManager/containers/containerId/request value是StartContainerRequest
        batch.put(bytes(keyRequest),
            ((StartContainerRequestPBImpl) startRequest).getProto().
                toByteArray());
        // key是ContainerManager/containers/starttime，value是启动时间
        batch.put(bytes(keyStartTime), bytes(Long.toString(startTime)));
        if (containerVersion != 0) {
          // key是containerId/version，value是版本号
          batch.put(bytes(keyVersion),
              bytes(Integer.toString(containerVersion)));
        }
        db.write(batch);
      } finally {
        batch.close();
      }
    } catch (DBException e) {
      throw new IOException(e);
    }
  }

removeApplication

当任务结束，删除levelDB的数据

@Override
public void removeApplication(ApplicationId appId)
    throws IOException {
  if (LOG.isDebugEnabled()) {
    LOG.debug("removeApplication: appId=" + appId);
  }

  try {
    WriteBatch batch = db.createWriteBatch();
    try {
      String key = APPLICATIONS_KEY_PREFIX + appId;
      batch.delete(bytes(key));
      db.write(batch);
    } finally {
      batch.close();
    }
  } catch (DBException e) {
    throw new IOException(e);
  }
}

removeContainer

当容器运行完毕，删除所有相关的levelDB数据

@Override
public void removeContainer(ContainerId containerId)
    throws IOException {
  if (LOG.isDebugEnabled()) {
    LOG.debug("removeContainer: containerId=" + containerId);
  }

  String keyPrefix = CONTAINERS_KEY_PREFIX + containerId.toString();
  try {
    WriteBatch batch = db.createWriteBatch();
    try {
      batch.delete(bytes(keyPrefix + CONTAINER_REQUEST_KEY_SUFFIX));
      batch.delete(bytes(keyPrefix + CONTAINER_DIAGS_KEY_SUFFIX));
      batch.delete(bytes(keyPrefix + CONTAINER_LAUNCHED_KEY_SUFFIX));
      batch.delete(bytes(keyPrefix + CONTAINER_QUEUED_KEY_SUFFIX));
      batch.delete(bytes(keyPrefix + CONTAINER_PAUSED_KEY_SUFFIX));
      batch.delete(bytes(keyPrefix + CONTAINER_KILLED_KEY_SUFFIX));
      batch.delete(bytes(keyPrefix + CONTAINER_EXIT_CODE_KEY_SUFFIX));
      batch.delete(bytes(keyPrefix + CONTAINER_UPDATE_TOKEN_SUFFIX));
      List<String> unknownKeysForContainer = containerUnknownKeySuffixes
          .removeAll(containerId);
      for (String unknownKeySuffix : unknownKeysForContainer) {
        batch.delete(bytes(keyPrefix + unknownKeySuffix));
      }
      db.write(batch);
    } finally {
      batch.close();
    }
  } catch (DBException e) {
    throw new IOException(e);
  }
}

恢复

当nm重启时，ContainerManagerImpl服务创新初始化初始化时，recover();

private void recover() throws IOException, URISyntaxException {
    NMStateStoreService stateStore = context.getNMStateStore();
    if (stateStore.canRecover()) {
        // 加载本地状态
        rsrcLocalizationSrvc.recoverLocalizedResources(
            stateStore.loadLocalizationState());

        // 加载app状态
        RecoveredApplicationsState appsState = stateStore.loadApplicationsState();
        for (ContainerManagerApplicationProto proto :
             appsState.getApplications()) {
            if (LOG.isDebugEnabled()) {
                LOG.debug("Recovering application with state: " + proto.toString());
            }
            // 恢复app
            recoverApplication(proto);
        }

        // 加载容器状态
        for (RecoveredContainerState rcs : stateStore.loadContainersState()) {
            if (LOG.isDebugEnabled()) {
                LOG.debug("Recovering container with state: " + rcs);
            }
            // 恢复容器
            recoverContainer(rcs);
        }

        // Recovery AMRMProxy state after apps and containers are recovered
        if (this.amrmProxyEnabled) {
            this.getAMRMProxyService().recover();
        }

        //Dispatching the RECOVERY_COMPLETED event through the dispatcher
        //so that all the paused, scheduled and queued containers will
        //be scheduled for execution on availability of resources.
        dispatcher.getEventHandler().handle(
            new ContainerSchedulerEvent(null,
                                        ContainerSchedulerEventType.RECOVERY_COMPLETED));
    } else {
        LOG.info("Not a recoverable state store. Nothing to recover.");
  }

加载Applications状态

通过LeveldbIterator和key前缀ContainerManager/applications/来加载

 @Override
  public RecoveredApplicationsState loadApplicationsState()
      throws IOException {
    RecoveredApplicationsState state = new RecoveredApplicationsState();
    state.applications = new ArrayList<ContainerManagerApplicationProto>();
    String keyPrefix = APPLICATIONS_KEY_PREFIX;
    LeveldbIterator iter = null;
    try {
      iter = new LeveldbIterator(db);
      iter.seek(bytes(keyPrefix));
      while (iter.hasNext()) {
        Entry<byte[], byte[]> entry = iter.next();
        String key = asString(entry.getKey());
        if (!key.startsWith(keyPrefix)) {
          break;
        }
        state.applications.add(
            ContainerManagerApplicationProto.parseFrom(entry.getValue()));
      }
    } catch (DBException e) {
      throw new IOException(e);
    } finally {
      if (iter != null) {
        iter.close();
      }
    }
    // 删除过期完成的app
    cleanupDeprecatedFinishedApps();
    return state;
  }

恢复app状态，将加载的app的value，重新构建出来

private void recoverApplication(ContainerManagerApplicationProto p)
  throws IOException {
  ApplicationId appId = new ApplicationIdPBImpl(p.getId());
  Credentials creds = new Credentials();
  creds.readTokenStorageStream(
    new DataInputStream(p.getCredentials().newInput()));

  List<ApplicationACLMapProto> aclProtoList = p.getAclsList();
  Map<ApplicationAccessType, String> acls =
    new HashMap<ApplicationAccessType, String>(aclProtoList.size());
  for (ApplicationACLMapProto aclProto : aclProtoList) {
    acls.put(ProtoUtils.convertFromProtoFormat(aclProto.getAccessType()),
             aclProto.getAcl());
  }

  LogAggregationContext logAggregationContext = null;
  if (p.getLogAggregationContext() != null) {
    logAggregationContext =
      new LogAggregationContextPBImpl(p.getLogAggregationContext());
  }

  FlowContext fc = null;
  if (p.getFlowContext() != null) {
    FlowContextProto fcp = p.getFlowContext();
    fc = new FlowContext(fcp.getFlowName(), fcp.getFlowVersion(),
                         fcp.getFlowRunId());
    if (LOG.isDebugEnabled()) {
      LOG.debug(
        "Recovering Flow context: " + fc + " for an application " + appId);
    }
  } else {
    // in upgrade situations, where there is no prior existing flow context,
    // default would be used.
    fc = new FlowContext(TimelineUtils.generateDefaultFlowName(null, appId),
                         YarnConfiguration.DEFAULT_FLOW_VERSION, appId.getClusterTimestamp());
    if (LOG.isDebugEnabled()) {
      LOG.debug(
        "No prior existing flow context found. Using default Flow context: "
        + fc + " for an application " + appId);
    }
  }

  LOG.info("Recovering application " + appId);
  ApplicationImpl app = new ApplicationImpl(dispatcher, p.getUser(), fc,
                                            appId, creds, context, p.getAppLogAggregationInitedTime());
  context.getApplications().put(appId, app);
  app.handle(new ApplicationInitEvent(appId, acls, logAggregationContext));
}

加载容器状态，同理，加载levelDB库内状态

loadContainersState

@Override
public List<RecoveredContainerState> loadContainersState()
  throws IOException {
  ArrayList<RecoveredContainerState> containers =
    new ArrayList<RecoveredContainerState>();
  ArrayList<ContainerId> containersToRemove =
    new ArrayList<ContainerId>();
  LeveldbIterator iter = null;
  try {
    iter = new LeveldbIterator(db);
    iter.seek(bytes(CONTAINERS_KEY_PREFIX));

    while (iter.hasNext()) {
      Entry<byte[],byte[]> entry = iter.peekNext();
      String key = asString(entry.getKey());
      if (!key.startsWith(CONTAINERS_KEY_PREFIX)) {
        break;
      }

      int idEndPos = key.indexOf('/', CONTAINERS_KEY_PREFIX.length());
      if (idEndPos < 0) {
        throw new IOException("Unable to determine container in key: " + key);
      }
      ContainerId containerId = ContainerId.fromString(
        key.substring(CONTAINERS_KEY_PREFIX.length(), idEndPos));
      String keyPrefix = key.substring(0, idEndPos+1);
      RecoveredContainerState rcs = loadContainerState(containerId,
                                                       iter, keyPrefix);
      // Don't load container without StartContainerRequest
      // 将无需启动的contianer移除掉，仅恢复需要恢复的容器信息
      if (rcs.startRequest != null) {
        containers.add(rcs);
      } else {
        containersToRemove.add(containerId);
      }
    }
  } catch (DBException e) {
    throw new IOException(e);
  } finally {
    if (iter != null) {
      iter.close();
    }
  }

  // remove container without StartContainerRequest
  for (ContainerId containerId : containersToRemove) {
    LOG.warn("Remove container " + containerId +
             " with incomplete records");
    try {
      removeContainer(containerId);
      // TODO: kill and cleanup the leaked container
    } catch (IOException e) {
      LOG.error("Unable to remove container " + containerId +
                " in store", e);
    }
  }

  return containers;
}

loadContainerState，加载container的键值对，根据数据获取对应状态

private RecoveredContainerState loadContainerState(ContainerId containerId,
      LeveldbIterator iter, String keyPrefix) throws IOException {
    RecoveredContainerState rcs = new RecoveredContainerState();
    rcs.status = RecoveredContainerStatus.REQUESTED;
    while (iter.hasNext()) {
      Entry<byte[],byte[]> entry = iter.peekNext();
      String key = asString(entry.getKey());
      if (!key.startsWith(keyPrefix)) {
        break;
      }
      iter.next();

      String suffix = key.substring(keyPrefix.length()-1);  // start with '/'
      if (suffix.equals(CONTAINER_REQUEST_KEY_SUFFIX)) {
        rcs.startRequest = new StartContainerRequestPBImpl(
            StartContainerRequestProto.parseFrom(entry.getValue()));
      } else if (suffix.equals(CONTAINER_VERSION_KEY_SUFFIX)) {
        rcs.version = Integer.parseInt(asString(entry.getValue()));
      } else if (suffix.equals(CONTAINER_START_TIME_KEY_SUFFIX)) {
        rcs.setStartTime(Long.parseLong(asString(entry.getValue())));
      } else if (suffix.equals(CONTAINER_DIAGS_KEY_SUFFIX)) {
        rcs.diagnostics = asString(entry.getValue());
      } else if (suffix.equals(CONTAINER_QUEUED_KEY_SUFFIX)) {
        if (rcs.status == RecoveredContainerStatus.REQUESTED) {
          rcs.status = RecoveredContainerStatus.QUEUED;
        }
      } else if (suffix.equals(CONTAINER_PAUSED_KEY_SUFFIX)) {
        if ((rcs.status == RecoveredContainerStatus.LAUNCHED)
            ||(rcs.status == RecoveredContainerStatus.QUEUED)
            ||(rcs.status == RecoveredContainerStatus.REQUESTED)) {
          rcs.status = RecoveredContainerStatus.PAUSED;
        }
      } else if (suffix.equals(CONTAINER_LAUNCHED_KEY_SUFFIX)) {
        if ((rcs.status == RecoveredContainerStatus.REQUESTED)
            || (rcs.status == RecoveredContainerStatus.QUEUED)
            ||(rcs.status == RecoveredContainerStatus.PAUSED)) {
          rcs.status = RecoveredContainerStatus.LAUNCHED;
        }
      } else if (suffix.equals(CONTAINER_KILLED_KEY_SUFFIX)) {
        rcs.killed = true;
      } else if (suffix.equals(CONTAINER_EXIT_CODE_KEY_SUFFIX)) {
        rcs.status = RecoveredContainerStatus.COMPLETED;
        rcs.exitCode = Integer.parseInt(asString(entry.getValue()));
      } else if (suffix.equals(CONTAINER_UPDATE_TOKEN_SUFFIX)) {
        ContainerTokenIdentifierProto tokenIdentifierProto =
            ContainerTokenIdentifierProto.parseFrom(entry.getValue());
        Token currentToken = rcs.getStartRequest().getContainerToken();
        Token updatedToken = Token
            .newInstance(tokenIdentifierProto.toByteArray(),
                ContainerTokenIdentifier.KIND.toString(),
                currentToken.getPassword().array(), currentToken.getService());
        rcs.startRequest.setContainerToken(updatedToken);
        rcs.capability = new ResourcePBImpl(tokenIdentifierProto.getResource());
        rcs.version = tokenIdentifierProto.getVersion();
      } else if (suffix.equals(CONTAINER_REMAIN_RETRIES_KEY_SUFFIX)) {
        rcs.setRemainingRetryAttempts(
            Integer.parseInt(asString(entry.getValue())));
      } else if (suffix.equals(CONTAINER_WORK_DIR_KEY_SUFFIX)) {
        rcs.setWorkDir(asString(entry.getValue()));
      } else if (suffix.equals(CONTAINER_LOG_DIR_KEY_SUFFIX)) {
        rcs.setLogDir(asString(entry.getValue()));
      } else {
        LOG.warn("the container " + containerId
            + " will be killed because of the unknown key " + key
            + " during recovery.");
        containerUnknownKeySuffixes.put(containerId, suffix);
        rcs.setRecoveryType(RecoveredContainerType.KILL);
      }
    }
    return rcs;
  }

恢复container

private void recoverContainer(RecoveredContainerState rcs)
  throws IOException {
  StartContainerRequest req = rcs.getStartRequest();
  ContainerLaunchContext launchContext = req.getContainerLaunchContext();
  ContainerTokenIdentifier token = null;
  if(rcs.getCapability() != null) {
    ContainerTokenIdentifier originalToken =
      BuilderUtils.newContainerTokenIdentifier(req.getContainerToken());
    token = new ContainerTokenIdentifier(originalToken.getContainerID(),
                                         originalToken.getVersion(), originalToken.getNmHostAddress(),
                                         originalToken.getApplicationSubmitter(), rcs.getCapability(),
                                         originalToken.getExpiryTimeStamp(), originalToken.getMasterKeyId(),
                                         originalToken.getRMIdentifier(), originalToken.getPriority(),
                                         originalToken.getCreationTime(),
                                         originalToken.getLogAggregationContext(),
                                         originalToken.getNodeLabelExpression(),
                                         originalToken.getContainerType(), originalToken.getExecutionType());

  } else {
    token = BuilderUtils.newContainerTokenIdentifier(req.getContainerToken());
  }

  ContainerId containerId = token.getContainerID();
  ApplicationId appId =
    containerId.getApplicationAttemptId().getApplicationId();

  LOG.info("Recovering " + containerId + " in state " + rcs.getStatus()
           + " with exit code " + rcs.getExitCode());

  Application app = context.getApplications().get(appId);
  // 如果app还在
  if (app != null) {
    // 恢复container
    recoverActiveContainer(launchContext, token, rcs);
    // 如果type是kill那就将container kill掉
    if (rcs.getRecoveryType() == RecoveredContainerType.KILL) {
      dispatcher.getEventHandler().handle(
        new ContainerKillEvent(containerId, ContainerExitStatus.ABORTED,
                               "Due to invalid StateStore info container was killed"
                               + " during recovery"));
    }
  } else {
    // 没有对应的app
    if (rcs.getStatus() != RecoveredContainerStatus.COMPLETED) {
      LOG.warn(containerId + " has no corresponding application!");
    }
    // 如果container COMPLETED，那么会进行关闭
    LOG.info("Adding " + containerId + " to recently stopped containers");
    nodeStatusUpdater.addCompletedContainer(containerId);
  }
}

关闭

nm关闭时

@Override
protected void serviceStop() throws Exception {
  if (isStopping.getAndSet(true)) {
    return;
  }
  try {
    super.serviceStop();
    DefaultMetricsSystem.shutdown();
  } finally {
    // YARN-3641: NM's services stop get failed shouldn't block the
    // release of NMLevelDBStore.
    stopRecoveryStore();
  }
}
stopRecoveryStore()调用nmStore.stop()，实际上调用的是NMStateStoreService的closeStorage()
protected void closeStorage() throws IOException {
  // 关闭定时任务
  if (compactionTimer != null) {
    compactionTimer.cancel();
    compactionTimer = null;
  }
  // 关闭db
  if (db != null) {
    db.close();
  }
}
