本文档详细介绍了如何使用二进制方式部署Kubernetes，包括单Master和多Master结构的设置，涵盖环境初始化、自签证书、ETCD集群、Kubernetes组件（如kube-apiserver、kube-controller-manager和kube-scheduler）以及工作节点的配置，如kubelet和kube-proxy。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

01 | Kubernetes | 部署Kubernetes（二进制）

预留30%的资源。

官方提供

Minikube：可以在本地快速运行一个单点的Kubernetes,仅用于日常尝试或者开发
部署地址：https://kubernetes.io/docs/setup/minikube/

Kubeadm：提供Kubeadm init和kubeadm join,用于快速部署Kubernetes。
部署地址：https://kubernetes.io/docs/reference/setup-tools/kubeadm/kubeadm/

二级制：从官方下载发行的包，手动部署每个组件，组成Kubernetes组件
下载地址: https://github.com/kubernetes/kubernetes/releases

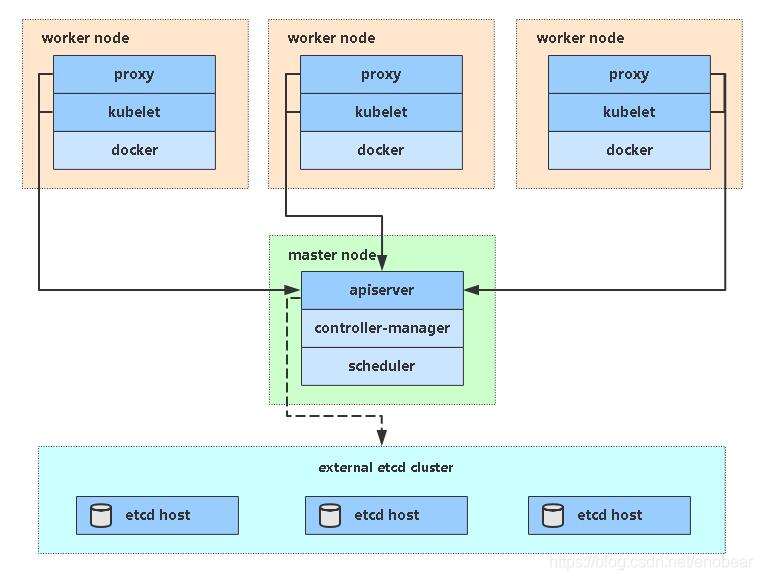

单Master结构

在这里插入图片描述

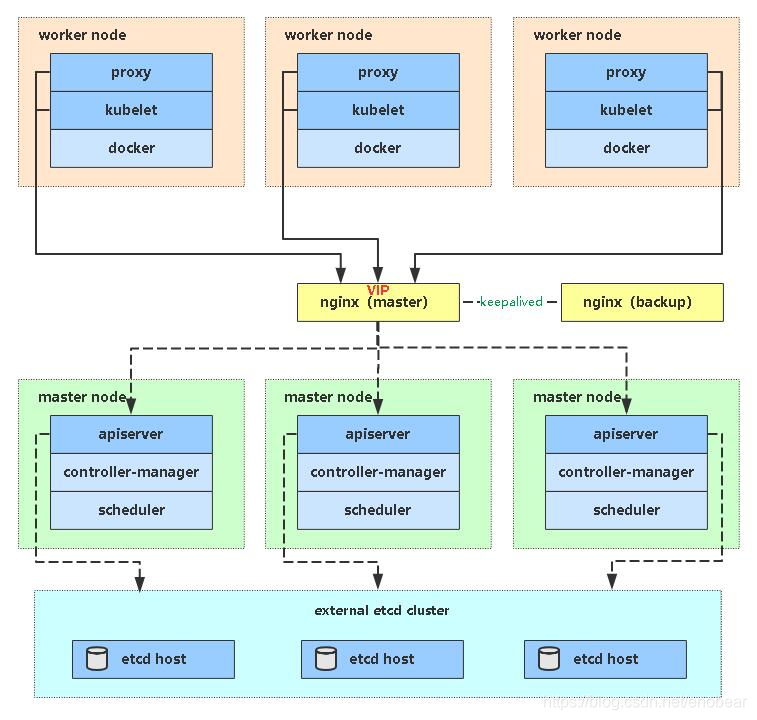

多Master结构

在这里插入图片描述

环境初始化

# 关闭防火墙
systemctl stop firewalld
systemctl disable firewalld

# 关闭selinux
sed -i 's/enforcing/disabled/' /etc/selinux/config  # 永久
setenforce 0  # 临时

# 关闭swap
swapoff -a  # 临时
sed -ri 's/.*swap.*/#&/' /etc/fstab    # 永久

# 根据规划设置主机名
hostnamectl set-hostname <hostname>
hostnamectl set-hostname k8s-master
hostnamectl set-hostname k8s-node1
hostnamectl set-hostname k8s-node2

# 在master添加hosts
cat >> /etc/hosts << EOF
192.168.31.71 k8s-master
192.168.31.72 k8s-node1
192.168.31.73 k8s-node2
EOF

# 将桥接的IPv4流量传递到iptables的链
cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
EOF
sysctl --system  # 生效

# 时间同步
yum install ntpdate -y
ntpdate time.windows.com

自签证书

官方地址：https://pkg.cfssl.org/

crt：证书
key：私钥

# 联网操作
curl -L https://pkg.cfssl.org/R1.2/cfssl_linux-amd64 -o /usr/local/bin/cfssl

curl -L https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64 -o /usr/local/bin/cfssljson

curl -L https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64 -o /usr/local/bin/cfssl-certinfo

# 未联网操作
手动下载
mv cfssl_linux-amd64 cfssl
mv cfssljson_linux-amd64 cfssljson
mv cfssl-certinfo_linux-amd64 cfssl-certinfo

cp -rf cfssl cfssljson cfssl-certinfo /usr/local/bin
chmod +x /usr/local/bin/cfssl*

mkdir -p /opt/ssl/{etcd,kubernetes}
cd /opt/ssl/etcd

cat > ca-config.json << EOF
{
  "signing": {
    "default": {
      "expiry": "87600h"
    },
    "profiles": {
      "www": {
         "expiry": "87600h",
         "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ]
      }
    }
  }
}
EOF

cat > ca-csr.json << EOF
{
    "CN": "etcd CA",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Shanghai",
            "ST": "Shanghai"
        }
    ]
}
EOF

cat > server-csr.json << EOF
{
    "CN": "etcd",
    "hosts": [
    "10.19.151.240",
    "10.19.151.241",
    "10.19.151.242"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Shanghai",
            "ST": "Shanghai"
        }
    ]
}
EOF

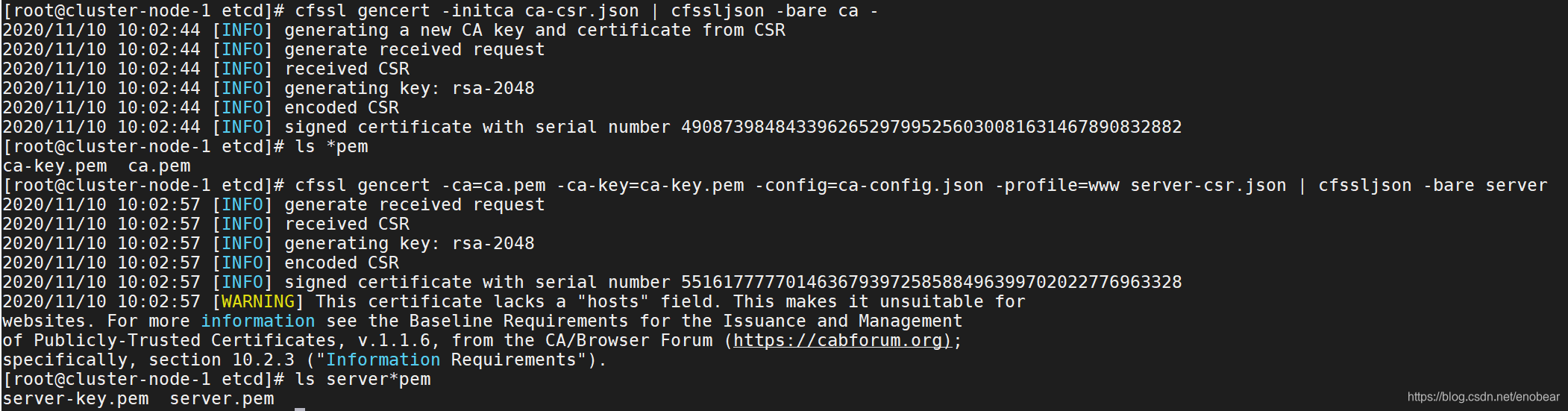

cfssl gencert -initca ca-csr.json | cfssljson -bare ca -
ls *pem

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes server-csr.json | cfssljson -bare server
ls server*pem

在这里插入图片描述

ETCD集群

官方地址：https://github.com/etcd-io/etcd/releases/tag/v3.4.13

奇数节点：3,5,7
主节点负责写
集群节点间通信通过端口2380进行

下载ETCD
mkdir -p /opt/etcd/{bin,cfg,ssl}
tar -zxf etcd-v3.4.13-linux-amd64.tar.gz
mv etcd-v3.4.13-linux-amd64/{etcd,etcdctl} /opt/etcd/bin/

cat > /opt/etcd/cfg/etcd.conf << EOF
#[Member]
ETCD_NAME="etcd-1"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://10.19.151.240:2380"
ETCD_LISTEN_CLIENT_URLS="https://10.19.151.240:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://10.19.151.240:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://10.19.151.240:2379"
ETCD_INITIAL_CLUSTER="etcd-1=https://10.19.151.240:2380,etcd-2=https://10.19.151.241:2380,etcd-3=https://10.19.151.242:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
EOF

ETCD_NAME：节点名称，集群中唯一
ETCD_DATA_DIR：数据目录
ETCD_LISTEN_PEER_URLS：集群通信监听地址
ETCD_LISTEN_CLIENT_URLS：客户端访问监听地址
ETCD_INITIAL_ADVERTISE_PEER_URLS：集群通告地址
ETCD_ADVERTISE_CLIENT_URLS：客户端通告地址
ETCD_INITIAL_CLUSTER：集群节点地址
ETCD_INITIAL_CLUSTER_TOKEN：集群Token
ETCD_INITIAL_CLUSTER_STATE：加入集群的当前状态，new是新集群，existing表示加入已有集群

cat > /usr/lib/systemd/system/etcd.service << EOF
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target

[Service]
Type=notify
EnvironmentFile=/opt/etcd/cfg/etcd.conf
ExecStart=/opt/etcd/bin/etcd \
--name=${ETCD_NAME} \
--data-dir=${ETCD_DATA_DIR} \
--listen-peer-urls=${ETCD_LISTEN_PEER_URLS} \
--listen-client-urls=${ETCD_LISTEN_CLIENT_URLS},http://127.0.0.1:2379 \
--advertise-client-urls=${ETCD_ADVERTISE_CLIENT_URLS} \
--initial-advertise-peer-urls=${ETCD_INITIAL_ADVERTISE_PEER_URLS} \
--initial-cluster=${ETCD_INITIAL_CLUSTER} \
--initial-cluster-token=${ETCD_INITIAL_CLUSTER} \
--initial-cluster-state=new \
--cert-file=/opt/etcd/ssl/server.pem \
--key-file=/opt/etcd/ssl/server-key.pem \
--peer-cert-file=/opt/etcd/ssl/server.pem \
--peer-key-file=/opt/etcd/ssl/server-key.pem \
--trusted-ca-file=/opt/etcd/ssl/ca.pem \
--peer-trusted-ca-file=/opt/etcd/ssl/ca.pem \
--logger=zap
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

cp /opt/ssl/etcd/{ca,server,server-key}.pem /opt/etcd/ssl/

scp -r /opt/etcd root@cluster-node-2:/opt
scp -r /opt/etcd root@cluster-node-3:/opt
scp /usr/lib/systemd/system/etcd.service root@cluster-node-2:/usr/lib/systemd/system/
scp /usr/lib/systemd/system/etcd.service root@cluster-node-3:/usr/lib/systemd/system/

systemctl daemon-reload
systemctl start etcd
systemctl enable etcd

ETCDCTL_API=3 /opt/etcd/bin/etcdctl --cacert=/opt/etcd/ssl/ca.pem --cert=/opt/etcd/ssl/server.pem --key=/opt/etcd/ssl/server-key.pem --endpoints="https://10.19.151.240:2379,https://10.19.151.241:2379,https://10.19.151.242:2379" endpoint health

Kubernetes认证

cd /opt/ssl/kubernetes/

cat > ca-config.json << EOF
{
  "signing": {
    "default": {
      "expiry": "87600h"
    },
    "profiles": {
      "kubernetes": {
         "expiry": "87600h",
         "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ]
      }
    }
  }
}
EOF


cat > ca-csr.json << EOF
{
    "CN": "kubernetes",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Shanghai",
            "ST": "Shanghai",
            "O": "k8s",
            "OU": "System"
        }
    ]
}
EOF

cfssl gencert -initca ca-csr.json | cfssljson -bare ca -

ls *pem

cd /opt/ssl/kubernetes/

cat > server-csr.json << EOF
{
    "CN": "kubernetes",
    "hosts": [
      "10.0.0.1",
      "127.0.0.1",
      "10.19.151.240",
      "10.19.151.241",
      "10.19.151.242",
      "10.19.151.243",
      "10.19.151.244",
      "10.19.151.245",
      "kubernetes",
      "kubernetes.default",
      "kubernetes.default.svc",
      "kubernetes.default.svc.cluster",
      "kubernetes.default.svc.cluster.local"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Shanghai",
            "ST": "Shanghai",
            "O": "k8s",
            "OU": "System"
        }
    ]
}
EOF

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes server-csr.json | cfssljson -bare server

ls server*pem

cat > kube-proxy-csr.json << EOF
{
  "CN": "system:kube-proxy",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "L": "BeiJing",
      "ST": "BeiJing",
      "O": "k8s",
      "OU": "System"
    }
  ]
}
EOF

cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-proxy-csr.json | cfssljson -bare kube-proxy

ls kube-proxy*pem

scp ca.pem kube-proxy*pem root@Node节点:/opt/kubernetes/ssl

Kubernetes（Master节点）

官方地址：https://github.com/kubernetes/kubernetes/blob/master/CHANGELOG/CHANGELOG-1.19.md#downloads-for-v1193

下载Kubernetes
mkdir -p /opt/kubernetes/{bin,cfg,ssl,logs}
tar -zxf kubernetes-server-linux-amd64.tar.gz
cd kubernetes/server/bin
cp kube-apiserver kube-scheduler kube-controller-manager /opt/kubernetes/bin
cp kubectl /usr/local/bin
cp /opt/ssl/kubernetes/*pem /opt/kubernetes/ssl

head -c 16 /dev/urandom | od -An -t x | tr -d ' '

cat > /opt/kubernetes/cfg/token.csv << EOF
b7acda4d7bf28c972b77f3ac243fad78,kubelet-bootstrap,10001,"system:node-bootstrapper"
EOF

kube-apiserver

cat > /opt/kubernetes/cfg/kube-apiserver.conf << EOF
KUBE_APISERVER_OPTS="--logtostderr=false \\
--v=2 \\
--log-dir=/opt/kubernetes/logs \\
--etcd-servers=https://10.19.151.240:2379,https://10.19.151.241:2379,https://10.19.151.242:2379 \\
--bind-address=10.19.151.240 \\
--secure-port=6443 \\
--advertise-address=10.19.151.240 \\
--allow-privileged=true \\
--service-cluster-ip-range=10.0.0.0/24 \\
--enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,ResourceQuota,NodeRestriction \\
--authorization-mode=RBAC,Node \\
--enable-bootstrap-token-auth=true \\
--token-auth-file=/opt/kubernetes/cfg/token.csv \\
--service-node-port-range=30000-32767 \\
--kubelet-client-certificate=/opt/kubernetes/ssl/server.pem \\
--kubelet-client-key=/opt/kubernetes/ssl/server-key.pem \\
--tls-cert-file=/opt/kubernetes/ssl/server.pem  \\
--tls-private-key-file=/opt/kubernetes/ssl/server-key.pem \\
--client-ca-file=/opt/kubernetes/ssl/ca.pem \\
--service-account-key-file=/opt/kubernetes/ssl/ca-key.pem \\
--etcd-cafile=/opt/etcd/ssl/ca.pem \\
--etcd-certfile=/opt/etcd/ssl/server.pem \\
--etcd-keyfile=/opt/etcd/ssl/server-key.pem \\
--audit-log-maxage=30 \\
--audit-log-maxbackup=3 \\
--audit-log-maxsize=100 \\
--audit-log-path=/opt/kubernetes/logs/k8s-audit.log"
EOF

–logtostderr：启用日志
—v：日志等级
–log-dir：日志目录
–etcd-servers：etcd集群地址
–bind-address：监听地址
–secure-port：https安全端口
–advertise-address：集群通告地址
–allow-privileged：启用授权
–service-cluster-ip-range：Service虚拟IP地址段
–enable-admission-plugins：准入控制模块
–authorization-mode：认证授权，启用RBAC授权和节点自管理
–enable-bootstrap-token-auth：启用TLS bootstrap机制
–token-auth-file：bootstrap token文件
–service-node-port-range：Service nodeport类型默认分配端口范围
–kubelet-client-xxx：apiserver访问kubelet客户端证书
–tls-xxx-file：apiserver https证书
–etcd-xxxfile：连接Etcd集群证书
–audit-log-xxx：审计日志

cat > /usr/lib/systemd/system/kube-apiserver.service << EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-apiserver.conf
ExecStart=/opt/kubernetes/bin/kube-apiserver \$KUBE_APISERVER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl start kube-apiserver
systemctl enable kube-apiserver

kube-controller-manager

cat > /opt/kubernetes/cfg/kube-controller-manager.conf << EOF
KUBE_CONTROLLER_MANAGER_OPTS="--logtostderr=false \\
--v=2 \\
--log-dir=/opt/kubernetes/logs \\
--leader-elect=true \\
--master=127.0.0.1:8080 \\
--bind-address=127.0.0.1 \\
--allocate-node-cidrs=true \\
--cluster-cidr=10.244.0.0/16 \\
--service-cluster-ip-range=10.0.0.0/24 \\
--cluster-signing-cert-file=/opt/kubernetes/ssl/ca.pem \\
--cluster-signing-key-file=/opt/kubernetes/ssl/ca-key.pem  \\
--root-ca-file=/opt/kubernetes/ssl/ca.pem \\
--service-account-private-key-file=/opt/kubernetes/ssl/ca-key.pem \\
--experimental-cluster-signing-duration=87600h0m0s"
EOF

–master：通过本地非安全本地端口8080连接apiserver。
–leader-elect：当该组件启动多个时，自动选举（HA）
–cluster-signing-cert-file/–cluster-signing-key-file：自动为kubelet颁发证书的CA，与apiserver保持一致

cat > /usr/lib/systemd/system/kube-controller-manager.service << EOF
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-controller-manager.conf
ExecStart=/opt/kubernetes/bin/kube-controller-manager \$KUBE_CONTROLLER_MANAGER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl start kube-controller-manager
systemctl enable kube-controller-manager

kube-scheduler

cat > /opt/kubernetes/cfg/kube-scheduler.conf << EOF
KUBE_SCHEDULER_OPTS="--logtostderr=false \
--v=2 \
--log-dir=/opt/kubernetes/logs \
--leader-elect \
--master=127.0.0.1:8080 \
--bind-address=127.0.0.1"
EOF

–master：通过本地非安全本地端口8080连接apiserver。
–leader-elect：当该组件启动多个时，自动选举（HA）

cat > /usr/lib/systemd/system/kube-scheduler.service << EOF
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-scheduler.conf
ExecStart=/opt/kubernetes/bin/kube-scheduler \$KUBE_SCHEDULER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl start kube-scheduler
systemctl enable kube-scheduler

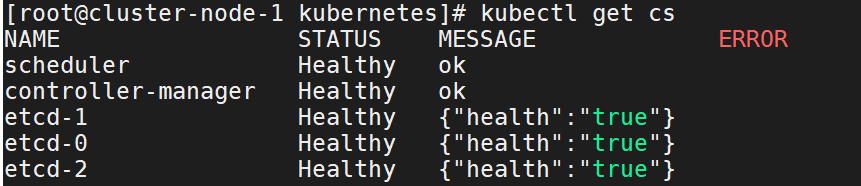

kubectl get cs

在这里插入图片描述

kubectl create clusterrolebinding kubelet-bootstrap \
--clusterrole=system:node-bootstrapper \
--user=kubelet-bootstrap

Work Node（Node节点）

docker

官方地址：
https://download.docker.com/linux/static/stable/x86_64/docker-19.03.9.tgz

下载docker
tar -zxf docker-19.03.9.tgz
mv docker/* /usr/local/bin
mkdir /etc/docker

cat > /usr/lib/systemd/system/docker.service << EOF
[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service
Wants=network-online.target

[Service]
Type=notify
ExecStart=/usr/local/bin/dockerd
ExecReload=/bin/kill -s HUP $MAINPID
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
TimeoutStartSec=0
Delegate=yes
KillMode=process
Restart=on-failure
StartLimitBurst=3
StartLimitInterval=60s

[Install]
WantedBy=multi-user.target
EOF

cat > /etc/docker/daemon.json << EOF
{
  "registry-mirrors": ["https://b9pmyelo.mirror.aliyuncs.com"]
}
EOF

systemctl daemon-reload
systemctl start docker
systemctl enable docker

docker info

kubernetes

conf 基本配置文件
kubeconfig 连接apiserver的配置文件
yml 主要配置文件

mkdir -p /opt/kubernetes/{bin,cfg,ssl,logs}
cd kubernetes/server/bin
cp kubelet kube-proxy /opt/kubernetes/bin

kubelet

cat > /opt/kubernetes/cfg/kubelet.conf << EOF
KUBELET_OPTS="--logtostderr=false \\
--v=2 \\
--log-dir=/opt/kubernetes/logs \\
--hostname-override=k8s-master \\
--network-plugin=cni \\
--kubeconfig=/opt/kubernetes/cfg/kubelet.kubeconfig \\
--bootstrap-kubeconfig=/opt/kubernetes/cfg/bootstrap.kubeconfig \\
--config=/opt/kubernetes/cfg/kubelet-config.yml \\
--cert-dir=/opt/kubernetes/ssl \\
--pod-infra-container-image=lizhenliang/pause-amd64:3.0"
EOF

–hostname-override：显示名称，集群中唯一
–network-plugin：启用CNI
–kubeconfig：空路径，会自动生成，后面用于连接apiserver
–bootstrap-kubeconfig：首次启动向apiserver申请证书
–config：配置参数文件
–cert-dir：kubelet证书生成目录
–pod-infra-container-image：管理Pod网络容器的镜像

KUBE_APISERVER="https://192.168.31.71:6443"
TOKEN="b7acda4d7bf28c972b77f3ac243fad78"

kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=bootstrap.kubeconfig
kubectl config set-credentials "kubelet-bootstrap" \
  --token=${TOKEN} \
  --kubeconfig=bootstrap.kubeconfig
kubectl config set-context default \
  --cluster=kubernetes \
  --user="kubelet-bootstrap" \
  --kubeconfig=bootstrap.kubeconfig
kubectl config use-context default --kubeconfig=bootstrap.kubeconfig

cp bootstrap.kubeconfig /opt/kubernetes/cfg

cat > /opt/kubernetes/cfg/kubelet-config.yml << EOF
kind: KubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
cgroupDriver: cgroupfs
clusterDNS:
- 10.0.0.2
clusterDomain: cluster.local
failSwapOn: false
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /opt/kubernetes/ssl/ca.pem
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
evictionHard:
  imagefs.available: 15%
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%
maxOpenFiles: 1000000
maxPods: 110
EOF

cat > /usr/lib/systemd/system/kubelet.service << EOF
[Unit]
Description=Kubernetes Kubelet
After=docker.service

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kubelet.conf
ExecStart=/opt/kubernetes/bin/kubelet \$KUBELET_OPTS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl start kubelet
systemctl enable kubelet

kubectl get csr
kubectl certificate approve node-csr-uCEGPOIiDdlLODKts8J658HrFq9CZ--K6M4G7bjhk8A
kubectl get node

kube-proxy

cat > /opt/kubernetes/cfg/kube-proxy.conf << EOF
KUBE_PROXY_OPTS="--logtostderr=false \\
--v=2 \\
--log-dir=/opt/kubernetes/logs \\
--config=/opt/kubernetes/cfg/kube-proxy-config.yml"
EOF

KUBE_APISERVER="https://192.168.31.71:6443"

kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/kubernetes/ssl/ca.pem \
  --embed-certs=true \
  --server=${KUBE_APISERVER} \
  --kubeconfig=kube-proxy.kubeconfig
kubectl config set-credentials kube-proxy \
  --client-certificate=./kube-proxy.pem \
  --client-key=./kube-proxy-key.pem \
  --embed-certs=true \
  --kubeconfig=kube-proxy.kubeconfig
kubectl config set-context default \
  --cluster=kubernetes \
  --user=kube-proxy \
  --kubeconfig=kube-proxy.kubeconfig
kubectl config use-context default --kubeconfig=kube-proxy.kubeconfig

cp kube-proxy.kubeconfig /opt/kubernetes/cfg/

cat > /opt/kubernetes/cfg/kube-proxy-config.yml << EOF
kind: KubeProxyConfiguration
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
metricsBindAddress: 0.0.0.0:10249
clientConnection:
  kubeconfig: /opt/kubernetes/cfg/kube-proxy.kubeconfig
hostnameOverride: k8s-master
clusterCIDR: 10.0.0.0/24
EOF

cat > /usr/lib/systemd/system/kube-proxy.service << EOF
[Unit]
Description=Kubernetes Proxy
After=network.target

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-proxy.conf
ExecStart=/opt/kubernetes/bin/kube-proxy \$KUBE_PROXY_OPTS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl start kube-proxy
systemctl enable kube-proxy
