Qt Quick - GIS地图绘制

一、Location模块

        Qt Location模块可用于轻量级的地图应用开发；

        在QML中使用Qt Location模块，还需要引入Qt Positioning模块，因为Qt Location依赖它：

                import QtPositioning 5.12

                import QtLocation 5.12

二、瓦片地图源

高德地图源：

https://wprd01.is.autonavi.com/appmaptile?&style=6&lang=zh_cn&scl=1<ype=0&x={x}&y={y}&z={z} https://wprd01.is.autonavi.com/appmaptile?&style=7&lang=zh_cn&scl=1<ype=0&x={x}&y={y}&z={z} https://wprd01.is.autonavi.com/appmaptile?&style=8&lang=zh_cn&scl=1<ype=0&x={x}&y={y}&z={z} https://wprd01.is.autonavi.com/appmaptile?&style=9&lang=zh_cn&scl=1<ype=0&x={x}&y={y}&z={z}

Bing地图源：

http://dynamic.t0.tiles.ditu.live.com/comp/ch/a{q}.jpg?it=G,OS,L&mkt=zh-cn&cstl=w4c&ur=cn http://dynamic.t0.tiles.ditu.live.com/comp/ch/r{q}.jpg?it=G,OS,L&mkt=zh-cn&cstl=w4c&ur=cn http://dynamic.t0.tiles.ditu.live.com/comp/ch/h{q}.jpg?it=G,OS,L&mkt=zh-cn&cstl=w4c&ur=cn http://dynamic.t0.tiles.ditu.live.com/comp/ch/h{q}.jpg?it=G,OS,L&mkt=zh-cn&cstl=vbd&ur=cn https://r0.tiles.ditu.live.com/tiles/a{q}.jpg?g=1001&mkt=zh-cn

三、Map类

        Map 类型用于显示地球的地图或图像，还能够显示与地图表面关联的交互式对象；

        Map 类型包括对捏合和轻拂手势的支持，以控制缩放和平移，尤其适合触摸屏；

        Map使用OpenGL（ES）和Qt Scene Graph堆栈来渲染地图，因此在可以使用GL加速硬件的情况下，其表现非常出色。

1、基础示例

        要想展示一个地图，需要使用Map组件，并为其设置Plugin，Plugin指定了相关的位置服务插件，有esri、mapbox、osm等（默认只有OSM服务），osm 要把openssl动态库放到运行目录。

import QtQuick 2.9
import QtQuick.Window 2.3
import QtQuick.Controls 2.12
import QtQuick.Layouts 1.3
import QtPositioning 5.12
import QtLocation 5.12

Window  {
    id: rootWindow

    flags: Qt.Window | Qt.FramelessWindowHint
    visible: true

    title: qsTr("NavGuard")

    minimumWidth: 800; minimumHeight: 480
    width: minimumWidth; height: minimumHeight;

    Plugin {
        id: mapPlugin
        name: "osm"

    }

    Map {
        anchors.fill: parent

        plugin: mapPlugin

        // 初始中心点
        center: QtPositioning.coordinate(30.67, 104.07)
        // 初始缩放等级
        zoomLevel: 12
        // 最小缩放等级
        minimumZoomLevel: 1
        // 最大缩放等级
        maximumZoomLevel: 14
        // 背景色，没有正常加载时显色的图块颜色
        color: "green"
        // 地图方位0-360
        bearing: 0
        // 垂直视角0-60
        tilt: 30
    }
}

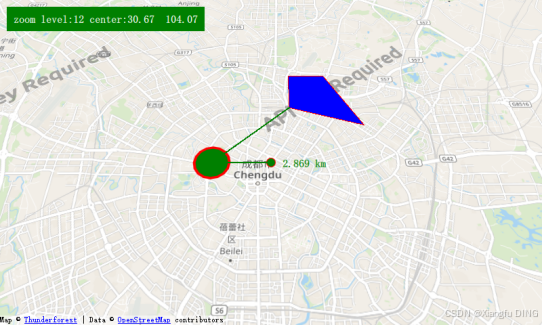

2、添加图元

        QtLocation 模块中定义了很多小部件的类型，可以在 Map 中绘制点线等图元；

        MapQuickItem 可以在地图上显示任意 Qt Quick 对象，通过 sourceItem 属性指定 Qt Quick 对象，coordinate 标定坐标点，anchorPoint 表示sourceItem左上角相对于coordinate的偏移（(0,0)的话左上角是在coordinate的位置），zoomLevel 表示缩放等级，0则不会缩放，否则是和对应的地图缩放等级一起放大缩小的。

import QtQuick 2.9
import QtQuick.Window 2.3
import QtQuick.Controls 2.12
import QtQuick.Layouts 1.3
import QtPositioning 5.12
import QtLocation 5.12

Window  {
    id: rootWindow

    flags: Qt.Window | Qt.FramelessWindowHint
    visible: true

    title: qsTr("NavGuard")

    minimumWidth: 800; minimumHeight: 480
    width: minimumWidth; height: minimumHeight;

    Plugin {
        id: mapPlugin
        name: "osm"

        PluginParameter {
            name: "osm.mapping.custom.host"
            value: "https://tile.openstreetmap.org/{z}/{x}/{y}.png"
        }
    }

    Map {
        id: item_map
        anchors.fill: parent

        plugin: mapPlugin

        // 初始中心点
        center: QtPositioning.coordinate(30.67, 104.07)
        // 初始缩放等级
        zoomLevel: 12
        // 最小缩放等级
        minimumZoomLevel: 1
        // 最大缩放等级
        maximumZoomLevel: 14
        // 背景色，没有正常加载时显色的图块颜色
//        color: "green"
        // 地图方位0-360
        bearing: 0
        // 垂直视角0-60
        tilt: 30

        // 在地图上显示任意Qt Quick对象
        MapQuickItem {
            id: point_1
            // 缩放等级默认0固定大小，否则会和缩放等级一起放大缩小
            zoomLevel: 0
            // 指示的坐标点
            coordinate: QtPositioning.coordinate(30.67, 104.07)
            // sourceItem左上角相对于coordinate的偏移
            anchorPoint: Qt.point(sourceItem.width/2,sourceItem.height/2)
            // Qt Quick对象
            sourceItem: Rectangle{
                width: 14
                height: 14
                radius: 7
                color: "green"
                border.color: "red"
                border.width: 1
                MouseArea{
                    anchors.fill: parent
                    onClicked: console.log("click")
                }
                // coordinate类型有经纬度高度三个属性
                // latitude 纬度
                // longitude 经度
                // altitude 海拔高度，单位米
                // 以及计算距离和方位角的方法
                // 这里用文本显示两个点的距离
                Text{
                    text: "   "+Math.round(point_1.coordinate.distanceTo(
                                               point_2.coordinate))/1000+" km"
                    color: "green"
                    font.bold: true
                    font.pixelSize: 16
                }
            }
        }

        MapQuickItem {
            id: point_2
            zoomLevel: 10 // 和缩放等级一起放大缩小
            coordinate: QtPositioning.coordinate(30.67, 104.04)
            anchorPoint: Qt.point(sourceItem.width/2,sourceItem.height/2)
            sourceItem: Rectangle{
                width: 14
                height: 14
                radius: 7
                color: "green"
                border.color: "red"
                border.width: 1
            }
        }

        // 此外，还有MapCircle，MapRectangle，MapPolygon等图元类型，和地图成比例的
        // 画多边形
        MapPolygon {
            id: point_3
            color: "blue"
            border.width: 1
            border.color: "red"
            // 根据坐标点绘制多边形
            path:[QtPositioning.coordinate(30.70, 104.08)]
            Component.onCompleted: {
                point_3.addCoordinate(QtPositioning.coordinate(30.72, 104.08))
                point_3.addCoordinate(QtPositioning.coordinate(30.72, 104.10))
                point_3.addCoordinate(QtPositioning.coordinate(30.69, 104.12))
            }
        }

        // 绘制折线
        MapPolyline {
            line.width: 2
            line.color: "green"
            // 路径列表 path : list<coordinate>
            path: [point_1.coordinate, point_2.coordinate, point_3.path[0]]
        }

        Rectangle {
            x: 10
            y: 10
            height: item_center.height+20
            width: item_center.width+20
            color: "green"
            Text {
                id: item_center
                x: 10
                y: 10
                color: "white"
                font.pixelSize: 16
                font.bold: true
                // 展示缩放等级 和 map的中心点经纬度
                text: "zoom level:"+Math.floor(item_map.zoomLevel)+
                      " center:"+item_map.center.latitude+
                      "  "+item_map.center.longitude
            }
        }
    }
}

3、自定义图元

        依靠canvas实现地图复杂图元自定义绘制，通过fromCoordinate()方法实现Map组件将地图的坐标转换为屏幕坐标（经纬度（地理坐标）转换为像素位置（屏幕坐标））。

        虚线绘制：

// MapDashLine.qml

import QtQuick 2.9
import QtPositioning 5.12

Item {
    id: mapDashLine
    anchors.fill: parent

    property var beginCoordinate: QtPositioning.coordinate()
    property var endCoordinate: QtPositioning.coordinate()
    property var lineDash: [4,4]
    property color lineColor: "crimson"
    property int lineWidth: 2
    property color textColor: "crimson"
    property int textPixelSize: 14

    readonly property var mapItem: mapDashLine.parent

    Canvas {
        id: myCanvas
        anchors.fill: parent
        onPaint: {
            if(!mapDashLine.beginCoordinate.isValid || !mapDashLine.endCoordinate.isValid)
                return
            var ctx = getContext("2d")
            ctx.clearRect(0, 0, myCanvas.width, myCanvas.height)
            ctx.strokeStyle = mapDashLine.lineColor
            ctx.lineWidth = mapDashLine.lineWidth
            ctx.setLineDash(mapDashLine.lineDash)
            // 绘制虚线
            ctx.beginPath()
            var beginPos = mapDashLine.mapItem.fromCoordinate(mapDashLine.beginCoordinate, false)
            ctx.moveTo(beginPos.x, beginPos.y)
            var endPos = mapDashLine.mapItem.fromCoordinate(mapDashLine.endCoordinate, false)
            ctx.lineTo(endPos.x, endPos.y)
            ctx.stroke()
            ctx.save()
            // 绘制文字
            var azimuth = endCoordinate.azimuthTo(beginCoordinate)
            if(azimuth>=180)
                azimuth = azimuth - 180
            var distance = endCoordinate.distanceTo(beginCoordinate)
            var text = (distance/1000).toFixed(0)+"Km"
            ctx.fillStyle = mapDashLine.textColor
            ctx.font = mapDashLine.textPixelSize+"px Arial"
            ctx.textAlign = "center"
            var centerX = (beginPos.x+endPos.x)/2
            var centerY = (beginPos.y+endPos.y)/2
            ctx.translate(centerX,centerY)
            ctx.rotate(azimuth*Math.PI/180-Math.PI/2)
            ctx.fillText(text,0,-mapDashLine.textPixelSize/2)
            ctx.restore()
        }
    }

    onBeginCoordinateChanged: {
        update()
    }
    onEndCoordinateChanged: {
        update()
    }
    onLineDashChanged: {
        update()
    }
    onLineColorChanged: {
        update()
    }
    onLineWidthChanged: {
        update()
    }
    onTextColorChanged: {
        update()
    }
    onTextPixelSizeChanged: {
        update()
    }

    Connections {
        target: mapDashLine.mapItem
        function onZoomLevelChanged() {
            update()
        }
        function onVisibleRegionChanged() {
            update()
        }
    }

    function update() {
        myCanvas.requestPaint()
    }
}

// 使用示例

MapDashLine {
	id: mapDashLine
	beginCoordinate: QtPositioning.coordinate(36.31806729, 120.44627839)
	endCoordinate: QtPositioning.coordinate(36.31806729, 121.44627839)
}

四、地图插件（Bing瓦片请求/无需Key）

1、插件构建（CMakeLists）

cmake_minimum_required(VERSION 3.5) project(NavGuard) set(CMAKE_INCLUDE_CURRENT_DIR ON) set(CMAKE_AUTOUIC ON) set(CMAKE_AUTOMOC ON) set(CMAKE_AUTORCC ON) set(CMAKE_CXX_STANDARD 11) set(CMAKE_CXX_STANDARD_REQUIRED ON) find_package(Qt5 REQUIRED COMPONENTS     Core     Widgets     Quick     Concurrent     Network     Positioning     Location ) add_definitions(-DQT_LOCATION_PRIVATE_HEADERS) include_directories(${Qt5Location_PRIVATE_INCLUDE_DIRS}) add_definitions(-DNavGuardPlugin_Static) if(NavGuardPlugin_Static)     set(NAVGUARD_PLUGIN_PATH ${PROJECT_SOURCE_DIR}/src/navguardplugin)     include_directories(${NAVGUARD_PLUGIN_PATH})     add_subdirectory(${NAVGUARD_PLUGIN_PATH}) endif() set(SRC_FILES     ${PROJECT_SOURCE_DIR}/src/main.cpp     ${PROJECT_SOURCE_DIR}/src/navguardcore/navguardcore.cpp     ${PROJECT_SOURCE_DIR}/src/navguardplugin/navguardfactory.cpp     ${PROJECT_SOURCE_DIR}/src/navguardplugin/navguardengine.cpp     ${PROJECT_SOURCE_DIR}/src/navguardplugin/navguardfetcher.cpp     ${PROJECT_SOURCE_DIR}/src/navguardplugin/navguardreply.cpp ) qt5_add_resources(RESOURCE_FILES     ${PROJECT_SOURCE_DIR}/src/appforms/appforms.qrc ) add_executable(${PROJECT_NAME}     ${SRC_FILES}     ${RESOURCE_FILES} ) target_link_libraries(${CMAKE_PROJECT_NAME} PRIVATE     Qt5::Core     Qt5::Widgets     Qt5::Quick     Qt5::Concurrent     Qt5::Network     Qt5::Positioning     Qt5::Location )

2、插件文件（json）

插件文件示例（navguardplugin.json）：

{     "Keys": ["navguard"],     "Provider": "navguard",     "Version": 100,     "Experimental": false,     "Features": [         "OnlineMappingFeature"     ] }

其中"Features"表示该插件支持的哪些特性,比如"OnlineMappingFeature"表示支持在线地图显示、则我们需要实现一个QGeoMappingManagerEngine引擎； 每个引擎能支持的所有功能介绍如下所示： QGeoRoutingManagerEngine NoRoutingFeatures - Routing is not supported (KO: this option can be omitted) OnlineRoutingFeature - Online routing support OfflineRoutingFeature - Offline routing support LocalizedRoutingFeature - Localized routing support RouteUpdatesFeature - Support for dynamic path update AlternativeRoutesFeature - Support for multiple alternative routes ExcludeAreasRoutingFeature - Support for excluding routing factors AnyRoutingFeatures - Supports anything your heart desires for routing QGeoCodingManagerEngine NoGeocodingFeatures - Geocoding is not supported OnlineGeocodingFeature - Online geocoding support OfflineGeocodingFeature - Offline geocoding support ReverseGeocodingFeature - Reverse geocoding support LocalizedGeocodingFeature - Localized geocoding support AnyGeocodingFeatures - All of the above except NoGeocodingFeatures QGeoMappingManagerEngine NoMappingFeatures - No mapping supported OnlineMappingFeature - Support for online maps OfflineMappingFeature - Support for offline maps LocalizedMappingFeature - Support for maps with localization AnyMappingFeatures - All of the above except NoMappingFeatures QPlaceManagerEngine NoPlacesFeatures - Point-of-interest is not supported OnlinePlacesFeature - Online Point-of-interest support OfflinePlacesFeature - Offline Point-of-interest support SavePlaceFeature - Support for saving custom points to the map RemovePlaceFeature - Support for removing Point-of-interes on a map SaveCategoryFeature - Create and save custom Point-of-interest categories RemoveCategoryFeature - Remove Point-of-interest categories PlaceRecommendationsFeature - Support for Recommended Point-of-interest according to keywords SearchSuggestionsFeature - Suggestions support according to the search query part LocalizedPlacesFeature - Localization support for Point-of-interes NotificationsFeature - Support for Point-of-interes change notifications PlaceMatchingFeature - Support for Point-of-interes comparison from two different providers AnyPlacesFeatures - It's Time for You to Relax

3、插件入口（QGeoServiceProviderFactory）

实现一个QT地图服务插件,我们需要子类化QGeoServiceProviderFactory，以及实现 4个接口虚函数: QGeoCodingManagerEngine* createGeocodingManagerEngine() : 位置搜索引擎,实现位置地理编码,比如配置文件有"OnlineGeocodingFeature"相关特性,则需要实现该虚函数 QGeoMappingManagerEngine* createMappingManagerEngine() : 地图映射管理器引擎,实现地图显示,比如配置文件有"OnlineMappingFeature"相关特性,则需要实现该虚函数 QGeoRoutingManagerEngine* createRoutingManagerEngine() : 路径规划引擎,实现路径规划,比如配置文件有"OnlineRoutingFeature"相关特性,则需要实现该虚函数 QPlaceManagerEngine* createPlaceManagerEngine() : 位置搜索引擎,实现位置搜索,比如配置文件有"OnlinePlacesFeature"相关特性,则需要实现该虚函数

navguardfactory.h

#pragma once #include <QtCore/QObject> #include <QtLocation/QGeoServiceProviderFactory> QT_BEGIN_NAMESPACE class NavGuardFactory : public QObject, public QGeoServiceProviderFactory {     Q_OBJECT     Q_INTERFACES(QGeoServiceProviderFactory)     Q_PLUGIN_METADATA(IID "org.qt-project.qt.geoservice.serviceproviderfactory/5.0"                       FILE "navguardplugin.json") public:     NavGuardFactory(); //    QGeoCodingManagerEngine *createGeocodingManagerEngine(const QVariantMap ¶meters, //                                                        QGeoServiceProvider::Error *error, //                                                        QString *errorString) const; //    QGeoRoutingManagerEngine *createRoutingManagerEngine(const QVariantMap ¶meters, //                                                        QGeoServiceProvider::Error *error, //                                                        QString *errorString) const; //    QPlaceManagerEngine *createPlaceManagerEngine(const QVariantMap ¶meters, //                                                        QGeoServiceProvider::Error *error, //                                                        QString *errorString) const;     QGeoMappingManagerEngine *createMappingManagerEngine(const QVariantMap &parameters,                                                         QGeoServiceProvider::Error *error,                                                         QString *errorString) const; }; QT_END_NAMESPACE

navguardfactory.cpp

#include "navguardfactory.h" #include "navguardengine.h" #include <QtLocation/private/qgeotiledmappingmanagerengine_p.h> #ifdef NavGuardPlugin_Static Q_EXTERN_C Q_DECL_EXPORT const char *qt_plugin_query_metadata(); Q_EXTERN_C Q_DECL_EXPORT QT_PREPEND_NAMESPACE(QObject) *qt_plugin_instance(); const QT_PREPEND_NAMESPACE(QStaticPlugin) qt_static_plugin_NavGuardPlugin() {     QT_PREPEND_NAMESPACE(QStaticPlugin) plugin = { qt_plugin_instance, qt_plugin_query_metadata};     return plugin; } #endif QT_USE_NAMESPACE NavGuardFactory::NavGuardFactory() {} QGeoMappingManagerEngine *NavGuardFactory::createMappingManagerEngine(     const QVariantMap &parameters, QGeoServiceProvider::Error *error, QString *errorString) const {     return new NavGuardEngine(parameters, error, errorString); }

4、地图服务（QGeoTiledMappingManagerEngine）

地图瓦片管理类、设置地图一些属性。

navguardengine.h

#pragma once #include <QtLocation/QGeoServiceProvider> #include <QtLocation/private/qgeotiledmappingmanagerengine_p.h> QT_BEGIN_NAMESPACE class NavGuardEngine : public QGeoTiledMappingManagerEngine {     Q_OBJECT public:     NavGuardEngine(             const QVariantMap &parameters,             QGeoServiceProvider::Error *error,             QString *errorString);     ~NavGuardEngine();     QGeoMap *createMap() override; }; QT_END_NAMESPACE

navguardengine.cpp

#include "navguardengine.h" #include "navguardfetcher.h" #include <QtLocation/private/qgeocameracapabilities_p.h> #include <QtLocation/private/qgeomaptype_p.h> #include <QtLocation/private/qgeotiledmap_p.h> #include <QtLocation/private/qgeofiletilecache_p.h> QT_BEGIN_NAMESPACE NavGuardEngine::NavGuardEngine(         const QVariantMap &parameters,         QGeoServiceProvider::Error *error,         QString *errorString) {     // 地图视角相关设置，对应到QMLMap类型属性     QGeoCameraCapabilities camera_caps;     camera_caps.setMinimumZoomLevel(1.0);     camera_caps.setMaximumZoomLevel(18.0);     camera_caps.setSupportsBearing(true);     camera_caps.setSupportsTilting(true);     camera_caps.setMinimumTilt(0);     camera_caps.setMaximumTilt(60);     camera_caps.setMinimumFieldOfView(20.0);     camera_caps.setMaximumFieldOfView(120.0);     camera_caps.setOverzoomEnabled(true);     setCameraCapabilities(camera_caps);     // 瓦片大小     setTileSize(QSize(256, 256));     // 瓦片获取，默认接口是通过网络请求获取     //parameters 就是QML中设置的 PluginParameter     NavGuardFetcher *tile_fetcher = new NavGuardFetcher(parameters, this);     setTileFetcher(tile_fetcher);     // 瓦片缓存-参考QtLocation的esri部分源码     // 如果没有用QGeoFileTileCache，默认加载地缓存不会释放，详情需分析他的源码     QString cache_dir;     if (parameters.contains("mode")) {         QString navGuardMode = parameters.value("mode").toString();         QString navGuardPath = parameters.value("path").toString();         cache_dir = navGuardPath + QString("/Cache");     } else {         qWarning() << "mode not set!";         cache_dir = QAbstractGeoTileCache::baseLocationCacheDirectory() + QString("Cache");     }     qInfo() << "cache_dir: " << cache_dir;     // 自定义QGeoFileTileCache     QGeoFileTileCache *tile_cache = new QGeoFileTileCache(cache_dir, this);     const int cache_size = 512 * 1024 * 1024;     tile_cache->setMaxDiskUsage(cache_size);     const int memory_size = 36 * 1024 * 1024;     tile_cache->setMaxMemoryUsage(memory_size);     setTileCache(tile_cache);     m_prefetchStyle = QGeoTiledMap::NoPrefetching;     *error = QGeoServiceProvider::NoError;     errorString->clear(); } NavGuardEngine::~NavGuardEngine() {} QGeoMap *NavGuardEngine::createMap() {     // todo自定义QGeoTiledMap     QGeoTiledMap *map = new QGeoTiledMap(this, nullptr);     map->setPrefetchStyle(m_prefetchStyle);     return map; } QT_END_NAMESPACE

5、瓦片请求（QGeoTileFetcher）

navguardfetcher.h

#pragma once #include <QtLocation/private/qgeotilefetcher_p.h> #include <QNetworkAccessManager> QT_BEGIN_NAMESPACE class NavGuardFetcher : public QGeoTileFetcher {     Q_OBJECT public:     NavGuardFetcher(             const QVariantMap ¶meters,             QGeoMappingManagerEngine *parent); private:     QGeoTiledMapReply* getTileImage(const QGeoTileSpec &spec) override;     QString getUrl(const QGeoTileSpec &spec) const;     QString tileXYToQuadKey(int tileX, int tileY, int zoomLevel) const; private:     QString mapUrl;     QString style{"bright"};     QString format{"png"};     QNetworkAccessManager* networkManager; }; QT_END_NAMESPACE

navguardfetcher.cpp

#include "navguardfetcher.h" #include "navguardreply.h" #include <QtNetwork/QNetworkAccessManager> #include <QtNetwork/QNetworkRequest> #include <QtLocation/private/qgeotilespec_p.h> #include <QtLocation/private/qgeotilefetcher_p_p.h> #include <QUrl> #include <QDebug> QT_BEGIN_NAMESPACE NavGuardFetcher::NavGuardFetcher(         const QVariantMap &parameters,         QGeoMappingManagerEngine *parent)     : QGeoTileFetcher(parent)     , networkManager(new QNetworkAccessManager(this)) {     // 链接地址     if (parameters.contains("mode")) {         QString navGuardMode = parameters.value("mode").toString();         if (navGuardMode != "online") {             qInfo() << "offline mode.";             mapUrl = QUrl::fromLocalFile(parameters.value("path").toString()).toString();         } else {             qInfo() << "online mode.";             mapUrl = "online";         }     }     // 瓦片风格     if(parameters.contains("style")) {         style = parameters.value("style").toString();     } } QGeoTiledMapReply *NavGuardFetcher::getTileImage(const QGeoTileSpec &spec) {     // 设置网络请求头     QNetworkRequest request;     request.setRawHeader("Accept", "*/*");     request.setUrl(getUrl(spec));     QNetworkReply *reply = networkManager->get(request);     return new NavGuardReply(reply, spec, format); } QString NavGuardFetcher::getUrl(const QGeoTileSpec &spec) const {     if (mapUrl == "online") {         // Bing 瓦片 URL 处理         QString quadKey = tileXYToQuadKey(spec.x(), spec.y(), spec.zoom());         QString url;         if(style == "bright")            url = QString("http://dynamic.t0.tiles.ditu.live.com/comp/ch/a%1.jpg?it=G,OS,L&mkt=zh-cn&cstl=w4c&ur=cn")                    .arg(quadKey);         else            url = QString("http://dynamic.t0.tiles.ditu.live.com/comp/ch/h%1.jpg?it=G,OS,L&mkt=zh-cn&cstl=vbd&ur=cn")                    .arg(quadKey);         return url;     } else {         // 本地文件 URL 处理         const QString zz = QString("%1").arg(spec.zoom(), 2, 10, QLatin1Char('0')).toUpper();         const QString yy = QString("%1").arg(spec.y(), 8, 16, QLatin1Char('0')).toUpper();         const QString xx = QString("%1").arg(spec.x(), 8, 16, QLatin1Char('0')).toUpper();         return QString("%1/L%2/R%3/C%4.%5")                 .arg(mapUrl)                 .arg(zz)                 .arg(yy)                 .arg(xx)                 .arg(format);     } } // Bing QuadKey 生成函数 QString NavGuardFetcher::tileXYToQuadKey(int tileX, int tileY, int zoomLevel) const {     QString quadKey;     for (int i = zoomLevel; i > 0; i--) {         int digit = 0;         int mask = 1 << (i - 1);         if ((tileX & mask) != 0) {             digit++;         }         if ((tileY & mask) != 0) {             digit += 2;         }         quadKey.append(QString::number(digit));     }     return quadKey; } QT_END_NAMESPACE

6、请求响应（QGeoTiledMapReply）

navguardreply.h

#pragma once #include <QtNetwork/QNetworkReply> #include <QtLocation/private/qgeotiledmapreply_p.h> QT_BEGIN_NAMESPACE class NavGuardReply: public QGeoTiledMapReply {     Q_OBJECT public:     NavGuardReply(QNetworkReply *reply, const QGeoTileSpec &spec,                           const QString &imageFormat, QObject *parent = nullptr); private Q_SLOTS:     void networkReplyFinished();     void networkReplyError(QNetworkReply::NetworkError error); }; QT_END_NAMESPACE

navguardreply.cpp

#include "navguardreply.h" QT_BEGIN_NAMESPACE NavGuardReply::NavGuardReply(         QNetworkReply *reply,         const QGeoTileSpec &spec,         const QString &imageFormat,         QObject *parent)     :QGeoTiledMapReply(spec, parent) {     if (!reply) {         setError(UnknownError, QStringLiteral("Null reply"));         return;     }     connect(reply, SIGNAL(finished()), this, SLOT(networkReplyFinished()));     connect(reply, SIGNAL(error(QNetworkReply::NetworkError)),             this, SLOT(networkReplyError(QNetworkReply::NetworkError)));     connect(this, &QGeoTiledMapReply::aborted, reply, &QNetworkReply::abort);     connect(this, &QObject::destroyed, reply, &QObject::deleteLater);     setMapImageFormat(imageFormat); } void NavGuardReply::networkReplyFinished() {     QNetworkReply *reply = static_cast<QNetworkReply *>(sender());     reply->deleteLater();     // Already handled in networkReplyError     if (reply->error() != QNetworkReply::NoError)         return;     setMapImageData(reply->readAll());     setFinished(true); } void NavGuardReply::networkReplyError(QNetworkReply::NetworkError error) {     QNetworkReply *reply = static_cast<QNetworkReply *>(sender());     reply->deleteLater();     if (error == QNetworkReply::OperationCanceledError)         setFinished(true);     else         setError(QGeoTiledMapReply::CommunicationError, reply->errorString());     // 可以在这里返回自定义的图片 } QT_END_NAMESPACE

​​​​​​​7、离线瓦片

本地瓦片存储示例： <mapUrl>/L<zz>/R<yy>/C<xx>.<format> /tiles/L12/R0000012A/C0000034F.png 表示层级为 12，行号为 0x12A，列号为 0x34F 的瓦片文件。

​​​​​​​8、QML插件调用

main.cpp

#include <QGuiApplication> #include <QQmlApplicationEngine> #include <QQmlContext> #ifdef NavGuardPlugin_Static #include <QtPlugin> Q_IMPORT_PLUGIN(NavGuardPlugin); #endif #include "src/navguardcore/navguardcore.h" int main(int argc, char *argv[]) {     QGuiApplication app(argc, argv);     qmlRegisterType<NavGuardCore>("moudelNavGuardCore", 1, 0, "NavGuardCore");     QQmlApplicationEngine engine;     engine.rootContext()->setContextProperty("applicationDirPath", QCoreApplication::applicationDirPath());     const QUrl url(QStringLiteral("qrc:/Main.qml"));     QObject::connect(&engine, &QQmlApplicationEngine::objectCreated,                      &app, [url](QObject *obj, const QUrl &objUrl) {         if (!obj && url == objUrl)             QCoreApplication::exit(-1);     }, Qt::QueuedConnection);     engine.load(url);     return app.exec(); }

Main.qml

import QtQuick 2.9 import QtQuick.Window 2.3 import QtQuick.Controls 2.12 import QtQuick.Layouts 1.3 import QtPositioning 5.12 import QtLocation 5.12 import moudelNavGuardCore 1.0 Window  {     id: rootWindow     flags: Qt.Window | Qt.FramelessWindowHint     visible: true     title: qsTr("NavGuard")     minimumWidth: 800; minimumHeight: 480     width: minimumWidth; height: minimumHeight;     property string mapMode: "offline"     property string mapStyle: "bright"     property string mapCachePath: applicationDirPath+"/NavGuard_Cache"     NavGuardCore { id: navguardcore }     Component.onCompleted: {         navguardcore.setCachePath(mapCachePath)     }     Rectangle {         anchors.fill: parent         Map {             id: map             anchors.fill: parent             plugin: Plugin {                 id: mapPlugin                 name: "navguard"                 // 模式 - online offline                 PluginParameter {                     name: "mode"                     value: mapMode                 }                 // 主题 - bright dark                 PluginParameter {                     name: "style"                     value: mapStyle                 }                 // 路径                 PluginParameter {                     name: "path"                     value: mapCachePath                 }             }             // 初始中心点             center: QtPositioning.coordinate(36.31804845, 120.44626736)             // 初始缩放等级             zoomLevel: 12             // 最小缩放等级             minimumZoomLevel: 1             // 最大缩放等级             maximumZoomLevel: 18             // 垂直视角0-60             tilt: 0             // 地图方位0-360             bearing: 0             MapQuickItem {                 id: point_1                 zoomLevel: 0                 coordinate: QtPositioning.coordinate(36.31806729, 120.44627839)                 anchorPoint: Qt.point(sourceItem.width/2, sourceItem.height/2)                 sourceItem: Rectangle {                     width: 14                     height: 14                     radius: 7                     color: "blue"                     border.color: "red"                     border.width: 1                     Text {                         text: "XiangfuDING"                         color: "green"                         font.bold: true                         font.pixelSize: 16                         x: 5                         y: -20                     }                 }             }         }         Slider {             id: levelControl             anchors.top: parent.top             anchors.right: parent.right             anchors.margins: 10             width: 200             from: map.minimumZoomLevel             to: map.maximumZoomLevel             value: map.zoomLevel             onValueChanged: {                 map.zoomLevel = value             }         }         Slider {             id: tiltControl             anchors.top: levelControl.bottom             anchors.right: parent.right             anchors.margins: 10             width: 200             from: 0             to: 60             value: map.tilt             onValueChanged: {                 map.tilt = value             }         }         Slider {             id: bearingControl             anchors.top: tiltControl.bottom             anchors.right: parent.right             anchors.margins: 10             width: 200             from: 0             to: 360             value: map.bearing             onValueChanged: {                 map.bearing = value             }         }     } }
