Kettle任务并发执行导致日志表行锁问题

官网文档：

https://wiki.pentaho.com/display/EAI/Configuring+log+tables+for+concurrent+access?showComments=false

本文档由官网文档整理得出，请参阅官网文档，但是国内访问pentaho网站不太稳定，特此整理

环境：

kettle 8.3和Pentaho-Server 8.3

背景：

使用kettle 的服务器端Pentaho-Server ,做定时任务时，发现假如多个任务同时并发，并启用了kettle自带的日志时，会因为日志表的行锁造成任务执行失败。

问题特征：

前端发现数据异常，后台检查Pentaho-Server后台日志，发现如下报错：

2021-04-01 00:10:03.729 ERROR <Thread-134959> [/home/LGETL/DMS/job/JOB_DMS_MAC_TMP_NEW.kjb]  Unable to write log record to log table [log_job1]
2021-04-01 00:10:03.729 ERROR <Thread-134959> [/home/LGETL/DMS/job/JOB_DMS_MAC_TMP_NEW.kjb]  Unable to write log record to log table [log_job1]
2021-04-01 00:10:03.730 ERROR <Thread-134959> [/home/LGETL/DMS/job/JOB_DMS_MAC_TMP_NEW.kjb]  org.pentaho.di.core.exception.KettleDatabaseException:
Error inserting/updating row
(conn=7837) Deadlock found when trying to get lock; try restarting transaction

        at org.pentaho.di.core.database.Database.insertRow(Database.java:1324)
        at org.pentaho.di.core.database.Database.insertRow(Database.java:1248)
        at org.pentaho.di.core.database.Database.insertRow(Database.java:1236)
        at org.pentaho.di.core.database.Database.insertRow(Database.java:1224)
        at org.pentaho.di.core.database.Database.insertRow(Database.java:1187)
        at org.pentaho.di.core.database.Database.writeLogRecord(Database.java:3598)
        at org.pentaho.di.job.Job.beginProcessing(Job.java:1009)
        at org.pentaho.di.job.Job.execute(Job.java:472)
        at org.pentaho.di.job.Job.run(Job.java:384)
Caused by: java.sql.SQLTransactionRollbackException: (conn=7837) Deadlock found when trying to get lock; try restarting transaction
        at org.mariadb.jdbc.internal.util.exceptions.ExceptionMapper.get(ExceptionMapper.java:179)
        at org.mariadb.jdbc.internal.util.exceptions.ExceptionMapper.getException(ExceptionMapper.java:110)
        at org.mariadb.jdbc.MariaDbStatement.executeExceptionEpilogue(MariaDbStatement.java:228)
        at org.mariadb.jdbc.MariaDbPreparedStatementClient.executeInternal(MariaDbPreparedStatementClient.java:216)
        at org.mariadb.jdbc.MariaDbPreparedStatementClient.execute(MariaDbPreparedStatementClient.java:150)
        at org.mariadb.jdbc.MariaDbPreparedStatementClient.executeUpdate(MariaDbPreparedStatementClient.java:183)
        at org.pentaho.di.core.database.Database.insertRow(Database.java:1291)
        ... 8 more
Caused by: java.sql.SQLException: Deadlock found when trying to get lock; try restarting transaction
Query is: INSERT INTO log_job1 (ID_JOB, CHANNEL_ID, JOBNAME, STATUS, LINES_READ, LINES_WRITTEN, LINES_UPDATED, LINES_INPUT, LINES_OUTPUT, LINES_REJECTED, ERRORS, STARTDATE, ENDDATE, LOGDATE,
DEPDATE, REPLAYDATE, LOG_FIELD) VALUES ( ?,  ?,  ?,  ?,  ?,  ?,  ?,  ?,  ?,  ?,  ?,  ?,  ?,  ?,  ?,  ?,  ?), parameters [4394,'e3fd0d67-5aca-44f0-a6e0-7714bd889213','JOB_DMS_MAC_TMP_NEW','sta
rt',<null>,<null>,<null>,<null>,<null>,<null>,<null>,'2021-03-31 00:10:02.0','2021-04-01 00:10:03.682','2021-04-01 00:10:03.682','2021-04-01 00:10:03.682','2021-04-01 00:10:03.682','2021/03/3
1 20:20:00 - RepositoriesMeta - Reading repositories XML file: FromInputStream

问题原因：

kettle设计时，未妥善处理并发任务，插入BATCH_ID值时，只是简单的select max(ID_JOB)+1,当同一时间内多个任务执行时，获取的新一个BATCH_ID是重复的，这样就造成了行锁。

解决方案：

由于kettle并未指定后台日志表的种类，针对不同的数据库，使用额外的BATCH ID生成表，或者序列来解决

方案1：使用额外的BATCH ID生成表

该方案适合无sequence类型的数据库，我们使用的MariaDB，同理MySQL也适用该方案

在日志表的库中创建ID生成表LOG_COUNTER

create table LOG_COUNTER(ID INTEGER NOT NULL AUTO_INCREMENT PRIMARY KEY, NAME VARCHAR(100)) engine=InnoDB;

插入一行数据，注意有且仅有一行

insert into LOG_COUNTER(ID,NAME) values(100000,'LOG_TABLES');
commit;

--注意：这里的100000，是因为我之前的任务表中已经有25000行数据了，我打算让新的日志BATCH_ID从10万开始计数，总之一定要确保让这里的ID大于之前的日志表中最大BATCH_ID

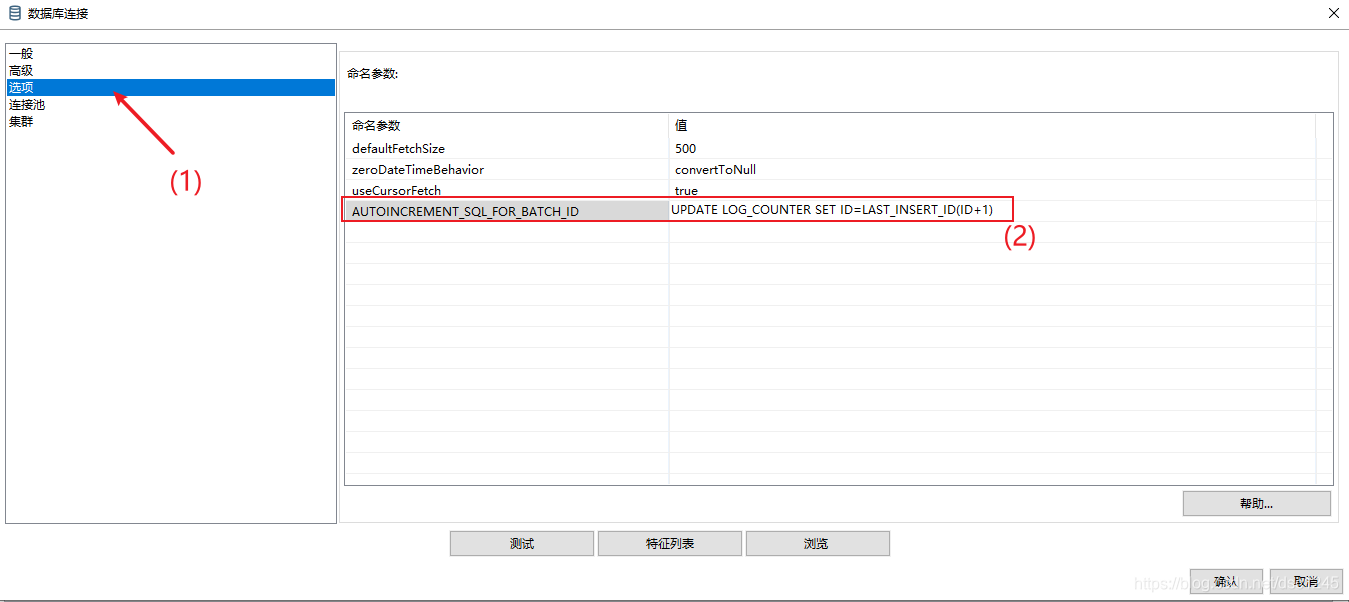

然后修改kettle中日志表的数据库连接选项：

在选项中添加参数

参数名：AUTOINCREMENT_SQL_FOR_BATCH_ID

参数值：UPDATE LOG_COUNTER SET ID=LAST_INSERT_ID(ID+1)

原文中说：

This will explain to PDI to use a value from the LOG_COUNTER table every time a new batch ID needs to be generated for a transformation or a job table.

这将向 PDI 解释每次需要为转换或作业表生成新batch ID 时使用 LOG_COUNTER 表中的值

然后尝试在本地和SERVER端执行任务，可以发现每执行一次后，LOG_COUNTER中的ID值也会随之更新，同时日志表中的新的最大ID变成了LOG_COUNTER表中的当前ID值

方案2：使用序列Sequence

 --未测试，直接放上原文，请结合源文档自己测试：适用于ORACLE等支持Sequence类型的日志表

You can use a database sequence if your database supports this.  To enable support for this, create a sequence like this (Oracle example):

CREATE SEQUENCE LOGGINGSEQ START WITH 10000;

In the logging database connection in Pentaho Data Integration (Spoon), add the following line in the Options panel:

Parameter: SEQUENCE_FOR_BATCH_ID

Value: LOGGINGSEQ

This will explain to PDI to use a value from the LOGGINGSEQ sequence every time a new batch ID needs to be generated for a transformation or a job table.
