关键代码为：

var xyzMapLayer = new ol.layer.Tile({
	source: new ol.source.XYZ({
		url: 'https://iserver.supermap.io/iserver/services/map-china400/rest/maps/ChinaDark/zxyTileImage.png?z={z}&x={x}&y={y}&width=256&height=256',
	}),
});

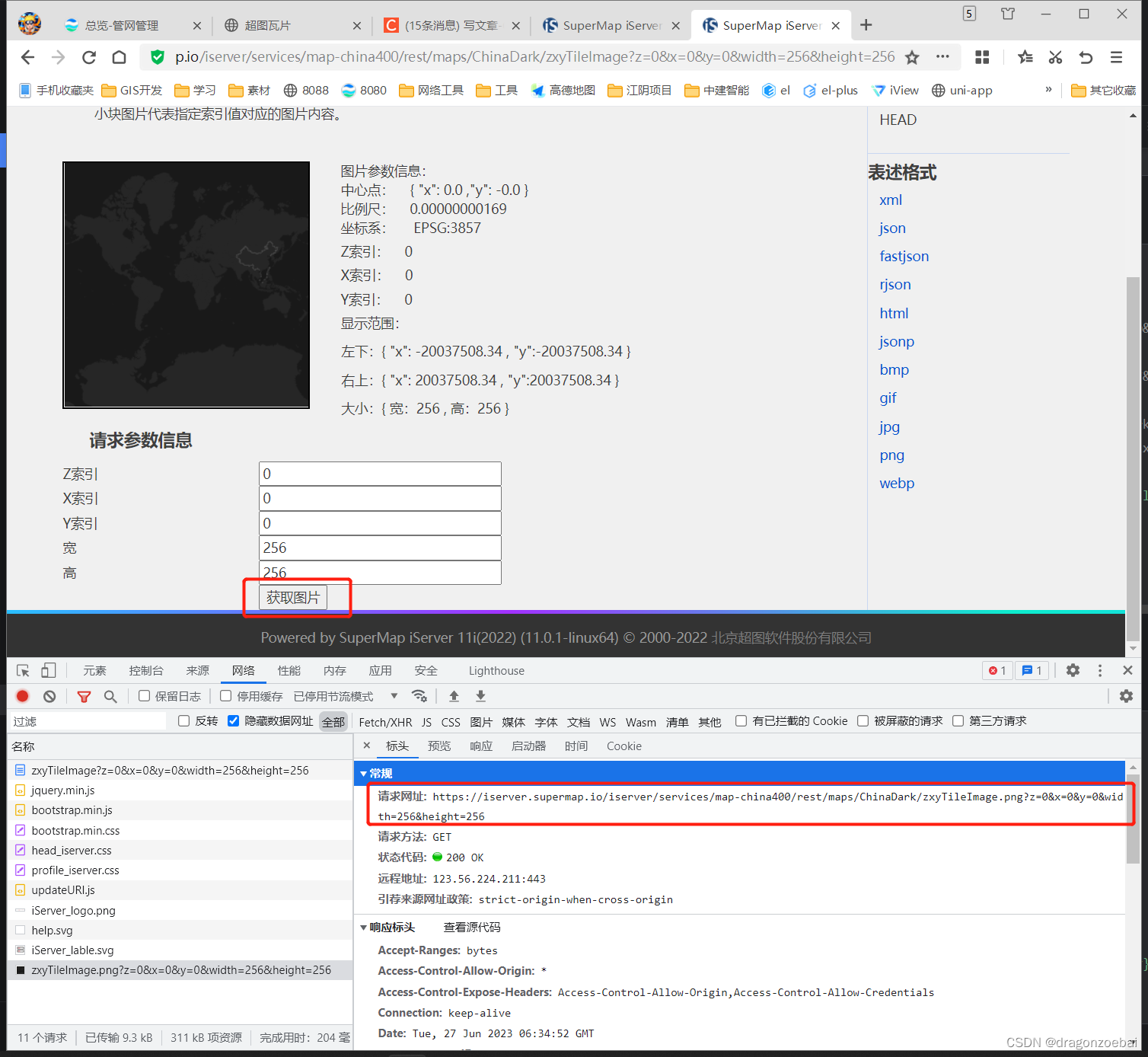

主要是使用zxyTileImage服务

SuperMap iServer REST API

openlayer加载超图iserver的xyz瓦片完整代码如下：

<html>
	<head>
		<title>超图瓦片</title>
		<link rel="stylesheet"
			href="https://cdn.jsdelivr.net/gh/openlayers/openlayers.github.io@master/en/v6.5.0/css/ol.css"
			type="text/css">
		<script src="https://cdn.jsdelivr.net/gh/openlayers/openlayers.github.io@master/en/v6.5.0/build/ol.js"></script>
		<script src="https://cdn.bootcdn.net/ajax/libs/jquery/3.6.0/jquery.min.js"></script>
		<style type="text/css">
			html,
			body,
			#map {
				margin: 0px;
				padding: 0px;
				width: 100%;
				height: 100%;
			}
		</style>
	</head>
	<body>
		<div id="map"></div>
	</body>
	<script type="text/javascript">
		var xyzMapLayer = new ol.layer.Tile({
			source: new ol.source.XYZ({
				// 天地图
				// url: 'http://t0.tianditu.com/vec_w/wmts?service=wmts&request=GetTile&version=1.0.0&LAYER=vec&tileMatrixSet=w&TileMatrix={z}&TileRow={y}&TileCol={x}&style=default&format=tiles&tk=40b190683706230fade806c1ac8c14e8'
				// 高德
				// url: 'http://wprd0{1-4}.is.autonavi.com/appmaptile?lang=zh_cn&size=1&scl=2&style=7&x={x}&y={y}&z={z}'
				// 超图
				url: 'https://iserver.supermap.io/iserver/services/map-china400/rest/maps/ChinaDark/zxyTileImage.png?z={z}&x={x}&y={y}&width=256&height=256',
				// url: 'http://www.supermapol.com/realspace/services/map-sample/rest/maps/WorldMap/zxyTileImage.png?z={z}&x={x}&y={y}&width=256&height=256',
				// arcgis
				// url: 'https://server.arcgisonline.com/arcgis/rest/services/World_Imagery/MapServer/tile/{z}/{y}/{x}'
			}),
			opacity: 1,
			visible: true
		});
		var view = new ol.View({
			center: ol.proj.fromLonLat([103.6, 36.1]),
			zoom: 4,
		});
		var map = new ol.Map({
			layers: [xyzMapLayer],
			target: 'map',
			view: view
		});
	</script>
</html>
