[MFC]界面线程和工作线程 1.前言MFC提供了2中线程的实现方式，一种是界面线程，可以处理来自系统的消息，比如窗口的点击事件；一种是工作线程，用于处理繁琐的计算或者长时间的任务，例如后台打印，计算等。2.界面线程界限线程的创建需要继承父类CWinThread，并继承与重写部分父类方法。见下表所示：方法说明 ExitInstance 线程退出所需的工作 InitInstance 线程创建的时候需要的工阅读详情

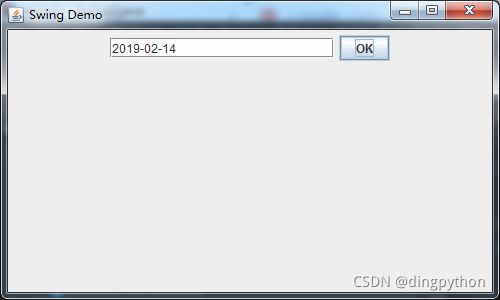

事件循环

在这里插入图片描述

package my;

import java.awt.Container;
import java.awt.FlowLayout;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;

public class Swing2
{
	private static void createGUI()
	{
		// JFrame指一个窗口，构造方法的参数为窗口标题
		// 语法：因为MyFrame是JFrame的子类，所以可以这么写
		JFrame frame = new MyFrame("Swing Demo");
		frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);


		// 设置窗口的其他参数，如窗口大小
		frame.setSize(500, 300);

		// 显示窗口
		frame.setVisible(true);


	}

	public static void main(String[] args)
	{
		// 此段代码间接地调用了 createGUI()，具体原理在 Swing高级篇 里讲解
		// 初学者先照抄此代码框架即可
		javax.swing.SwingUtilities.invokeLater(new Runnable() {
			public void run()
			{
				createGUI();
			}
		});

	}
}

package my;

import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.Dimension;
import java.awt.FlowLayout;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.awt.event.MouseListener;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JTextField;

public class MyFrame extends JFrame
{
	JTextField textField = new JTextField(20);
	JButton okButton = new JButton("OK");

	public MyFrame(String title)
	{
		super(title);

		// Content Pane
		JPanel root = new JPanel();
		this.setContentPane(root);
		root.setLayout(new FlowLayout());

		root.add(textField);
		root.add(okButton);

		okButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseClicked(MouseEvent e)
			{
				textField.setText("2019-02-14");
			}
		});
	}


}

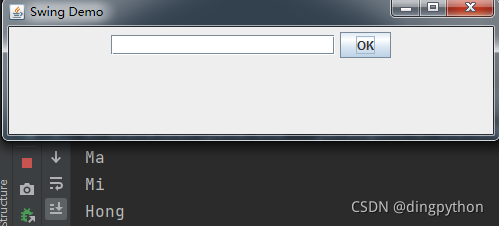

界面卡顿

在这里插入图片描述

package my;

import java.awt.FlowLayout;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JTextField;

public class MyFrame extends JFrame
{
	JTextField textField = new JTextField(20);
	JButton okButton = new JButton("OK");

	public MyFrame(String title)
	{
		super(title);

		// Content Pane
		JPanel root = new JPanel();
		this.setContentPane(root);
		root.setLayout(new FlowLayout());

		root.add(textField);
		root.add(okButton);

		okButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseClicked(MouseEvent e)
			{
				onMouseClicked();
			}
		});
	}

	// 按钮点击事件处理
	private void onMouseClicked()
	{
		try
		{
			System.out.println("Ma");
			Thread.sleep(3000);

			System.out.println("Mi");
			Thread.sleep(3000);

			System.out.println("Hong");
			Thread.sleep(3000);

		} catch (Exception e1){}
	}
}

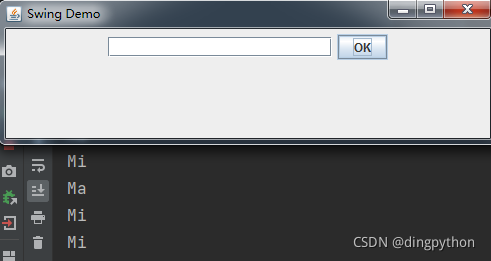

创建工作线程

在这里插入图片描述

package my;

import java.awt.FlowLayout;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JTextField;

public class MyFrame extends JFrame
{
	JTextField textField = new JTextField(20);
	JButton okButton = new JButton("OK");

	public MyFrame(String title)
	{
		super(title);

		// Content Pane
		JPanel root = new JPanel();
		this.setContentPane(root);
		root.setLayout(new FlowLayout());

		root.add(textField);
		root.add(okButton);

		okButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseClicked(MouseEvent e)
			{
				onMouseClicked();
			}
		});
	}

	// 按钮点击事件处理
	private void onMouseClicked()
	{
		MyWorkThread th = new MyWorkThread();
		th.start();
	}

	private class MyWorkThread extends Thread
	{

		@Override
		public void run()
		{
			try
			{
				System.out.println("Ma");
				Thread.sleep(3000);

				System.out.println("Mi");
				Thread.sleep(3000);

				System.out.println("Hong");
				Thread.sleep(3000);

			} catch (Exception e1){}
		}

	}
}

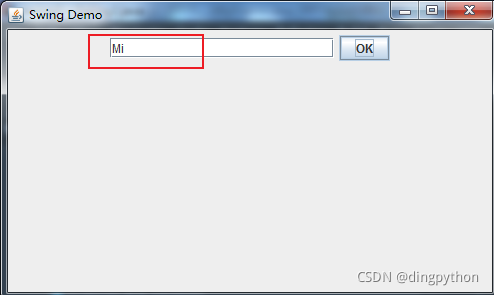

更新界面

在这里插入图片描述

package my;

import java.awt.FlowLayout;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JTextField;
import javax.swing.SwingUtilities;

public class MyFrame extends JFrame
{
	JTextField textField = new JTextField(20);
	JButton okButton = new JButton("OK");

	public MyFrame(String title)
	{
		super(title);

		// Content Pane
		JPanel root = new JPanel();
		this.setContentPane(root);
		root.setLayout(new FlowLayout());

		root.add(textField);
		root.add(okButton);

		okButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseClicked(MouseEvent e)
			{
				onMouseClicked();
			}
		});
	}

	// 按钮点击事件处理
	private void onMouseClicked()
	{
		MyWorkThread th = new MyWorkThread();
		th.start();
	}

	private class MyWorkThread extends Thread
	{

		@Override
		public void run()
		{
			try
			{
				updateUI("Ma");
				Thread.sleep(3000);

				updateUI("Mi");
				Thread.sleep(3000);

				updateUI("Hong");
				Thread.sleep(3000);

			} catch (Exception e1){}
		}

		// 更新界面
		private void updateUI(String progress)
		{
			SwingUtilities.invokeLater( new Runnable() {
				@Override
				public void run()
				{
					// 在匿名类里，也可以直接访问上层方法里的局部变量
					// 比如， progress就是一个局部变量
					// 这个语法真要解释起来比较复杂，大家直接用就行，先不要管那么多
					textField.setText( progress );
				}
			});
		}
	}
}

倒计时练习

在这里插入图片描述

package my;

import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.FlowLayout;
import java.awt.Font;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.SwingConstants;
import javax.swing.SwingUtilities;

public class MyFrame extends JFrame
{
	JLabel display = new JLabel("准备");
	JButton okButton = new JButton("开始");

	public MyFrame(String title)
	{
		super(title);

		// Content Pane
		JPanel root = new JPanel();
		this.setContentPane(root);
		root.setLayout(new BorderLayout());

		root.add(okButton, BorderLayout.PAGE_START);
		root.add(display, BorderLayout.CENTER);

		display.setFont(new Font("宋体", Font.PLAIN, 80));
		display.setHorizontalAlignment(SwingConstants.CENTER);
		display.setOpaque(true);
		display.setBackground(Color.WHITE);
		display.setForeground(Color.BLUE);

		okButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseClicked(MouseEvent e)
			{
				onMouseClicked();
			}
		});
	}

	// 按钮点击事件处理
	private void onMouseClicked()
	{
		okButton.setEnabled(false); // 禁用按钮

		MyWorkThread th = new MyWorkThread();
		th.start();
	}

	private class MyWorkThread extends Thread
	{
		@Override
		public void run()
		{
			int n = 5;
			while(n > 0)
			{
				// 更新界面：显示倒计时

				// 语法：传到内部类使用的局部变量，必须为final ( 默认final)
				final String text = String.valueOf(n);
				SwingUtilities.invokeLater ( ()->{
					//在内部类里可以直接使用外部方法的final局部变量
					display.setText( text );
				});

				n -= 1;
				try { Thread.sleep(1000);}catch(Exception e) {}
			}

			// 结束时最后更新界面
			SwingUtilities.invokeLater ( ()->{
				display.setText("新年快乐");
				okButton.setEnabled(true);
			});
		}

	}
}

匿名内部类访问局部变量

package my;

import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.FlowLayout;
import java.awt.Font;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;

import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.SwingConstants;
import javax.swing.SwingUtilities;

public class MyFrame extends JFrame
{
	JLabel display = new JLabel("准备");
	JButton okButton = new JButton("开始");

	public MyFrame(String title)
	{
		super(title);

		// Content Pane
		JPanel root = new JPanel();
		this.setContentPane(root);
		root.setLayout(new BorderLayout());

		root.add(okButton, BorderLayout.PAGE_START);
		root.add(display, BorderLayout.CENTER);

		display.setFont(new Font("宋体", Font.PLAIN, 80));
		display.setHorizontalAlignment(SwingConstants.CENTER);
		display.setOpaque(true);
		display.setBackground(Color.WHITE);
		display.setForeground(Color.BLUE);

		okButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseClicked(MouseEvent e)
			{
				onMouseClicked();
			}
		});
	}

	// 按钮点击事件处理
	private void onMouseClicked()
	{
		okButton.setEnabled(false); // 禁用按钮

		MyWorkThread th = new MyWorkThread();
		th.start();
	}

	private class MyWorkThread extends Thread
	{
		@Override
		public void run()
		{
			int n = 5;
			while(n > 0)
			{
				// 更新界面：显示倒计时
				final String text = String.valueOf(n);

				SwingUtilities.invokeLater ( new Runnable() {
					@Override
					public void run()
					{
						// 语法：匿名类可以直接访问外面的final局部变量
						display.setText( text );
					}
				});

				n -= 1;
				try { Thread.sleep(1000);}catch(Exception e) {}
			}
		}
	}

	private class MyUpdater implements Runnable
	{
		String text;

		public MyUpdater(String text)
		{
			this.text = text;
		}

		@Override
		public void run()
		{
			display.setText( text );
		}
	}
}
