Lisp简介：lisp是解释性的语言，是人工智能语言。lisp程序类型扩展名*.lsp

AutoLisp有好多函数，IDL也有好多函数。

；用来注释

（setq x (+ 5 9))回车，输入! x来查x的值。

前缀表示法（即谓词表示法），""在程序文件中表示回车。

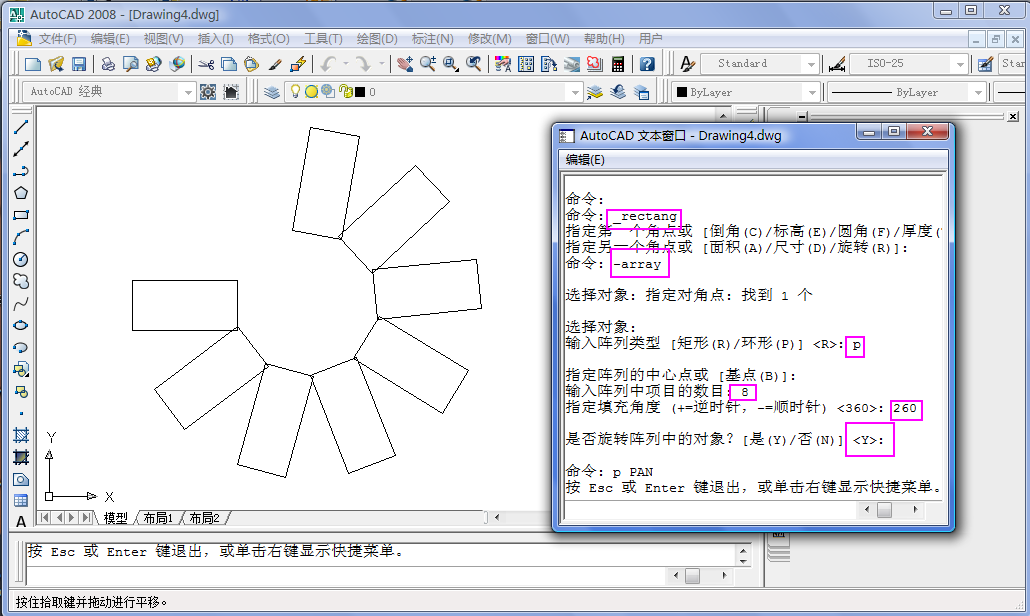

阵列命令：array打开对话框，-array在命令行界面设置。阵列

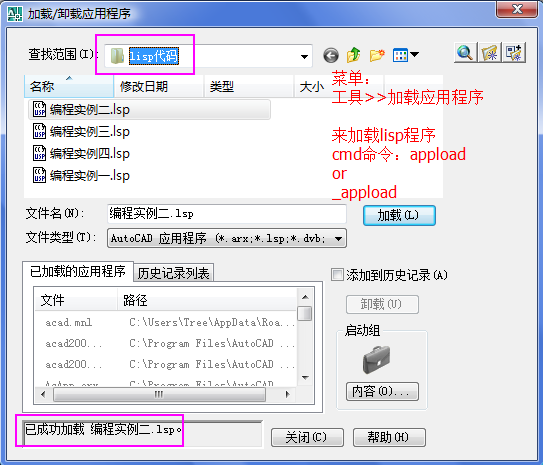

Command命令下：输入appload命令打开如下对话框

 1 ;编程实例CH17-2.lsp

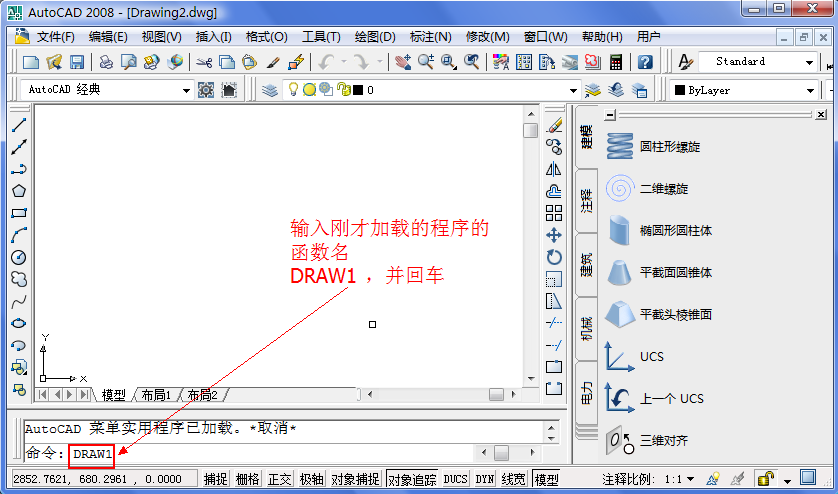

 2 (defun C:DRAW1()
 3   (setq pt (getpoint "Enter circle center:\n"))
 4   (setq r1 3 r2 6 r3 9 r4 1.5)
 5   (setq ptt (polar Pt 0 (+ r3 2)))
 6 ;设置点划线所在层、颜色和线型
 7   (command "layer" "m" "center" "c" "3" "" "LT" "center" "" "")
 8   (set_ltscale 2)
 9   (command "LINE" pt ptt "")
10   (command "select" pt "")
11   (command "ARRAY" "p" "" "P" pt 8 360 "y")
12   (command "CIRCLE" pt r2)
13 ;设置轮廓线所在层、颜色和线型
14   (command "layer" "m" "轮廓线" "c" "1" "" "")
15   (command "CIRCLE" pt r1)
16   (command "CIRCLE" pt r3)
17   (command "CIRCLE" (polar pt 0  r2) r4)
18 ;设置文字所在层、颜色和线型
19   (command "ARRAY" "L" "" "P" PT 8 360 "N")
20   (command "layer" "m" "文本层" "c" "4" "" "")
21   (setq stpt (getpoint "输入文字书写位置:\n"))
22   (command "-STYLE" "standard" "simsun.ttf" "" "" "" "" "")

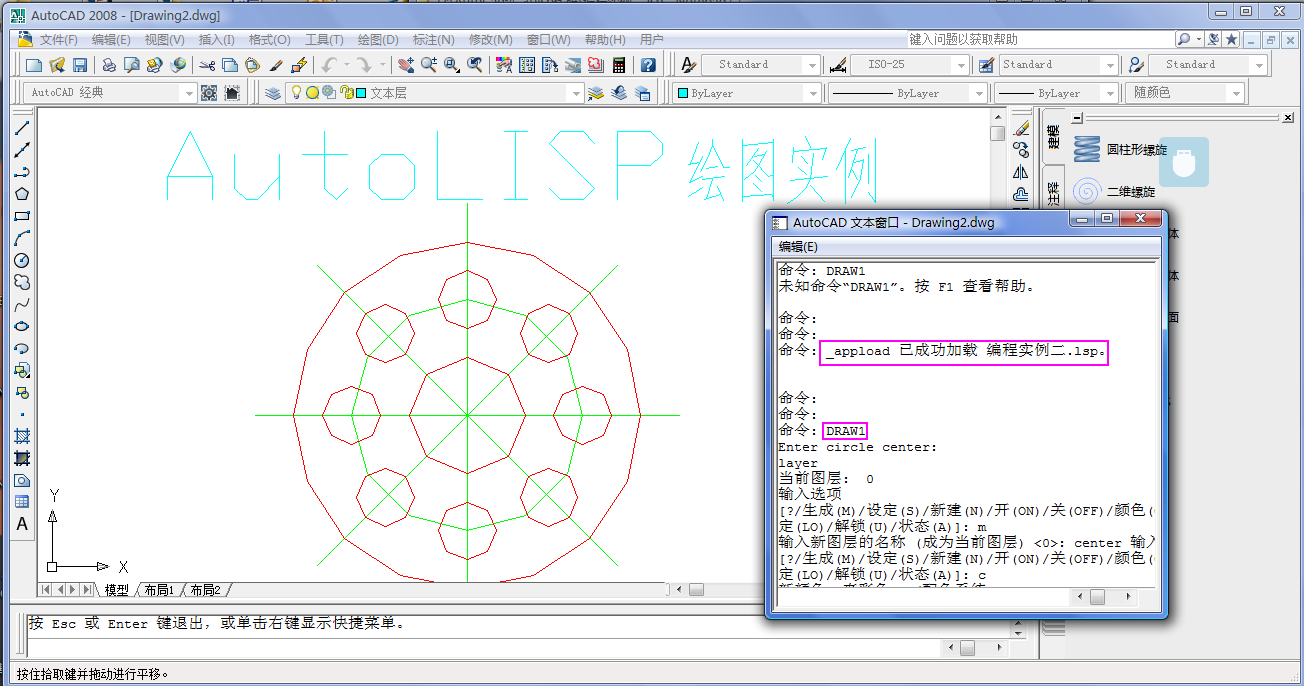

23   (command "text" "j" "mc" stpt "3.5" "0" "AutoLISP绘图实例" "")
24 ;计算图形挖去圆孔后的面积
25   (setq area (* PI (- (* r3 r3) (* r1 r1) (* 8 r4 r4))))
26 ;在屏幕显示面积的计算结果
27   (print "area value:")
28   (prin1 area)
29   (print \n)
30 ;在屏幕上最大范围显示图形
31   (command  "zoom" "e")
32 )
33 (defun set_ltscale(scale)
34     (command "ltscale" scale)
35 )
