spring-cloud-starter-security + spring-cloud-starter-oauth2 实现认证授权

参考：https://blog.youkuaiyun.com/qq_30359369/article/details/103329481

https://blog.youkuaiyun.com/yx444535180/article/details/119924836

OAuth（开发授权）是一个开放标准，允许用户授权第三方应用，访问他们存储在另外的服务提供者上的信息。（OAuth1.0已被完全废止）。

OAuth2主要用于校验客户端合法性、产生token、校验token

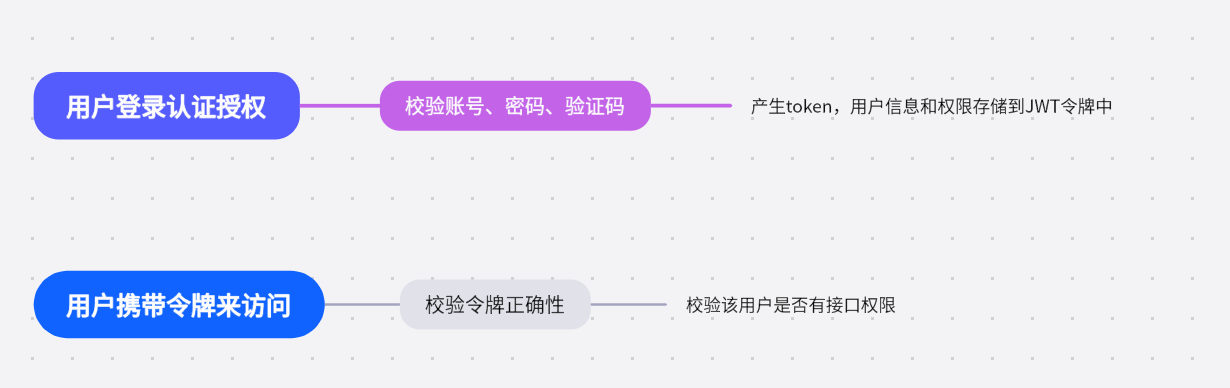

因此OAuth2与Sercurity整合之后，校验顺序：
校验客户端合法性——校验用户名密码——产生token——校验token——校验接口权限

OAuth2 协议

介绍

https://fugangqiang.github.io/posts/web/%E6%B7%B1%E5%85%A5%E7%90%86%E8%A7%A3OAuth2.0%E5%8D%8F%E8%AE%AE.html

引入依赖

spring-cloud-starter-oauth2依赖了spring-cloud-starter-security

但也可以两个都引入，配置它版本

            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-starter-security</artifactId>
                <version>2.2.2.RELEASE</version>
            </dependency>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-starter-oauth2</artifactId>
                <version>2.2.2.RELEASE</version>
            </dependency>

添加配置类

BeanConfig

package com.collect.auth.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
import org.springframework.security.oauth2.provider.token.store.JwtTokenStore;


@Configuration
public class BeanConfig {
    private String SIGNING_KEY = "mq123";
    @Bean
    public JwtAccessTokenConverter accessTokenConverter() {
        JwtAccessTokenConverter converter = new JwtAccessTokenConverter();
        converter.setSigningKey(SIGNING_KEY);
        return converter;
    }

    @Bean
    public TokenStore tokenStore() {
        return new JwtTokenStore(accessTokenConverter());
    }
}

注入配置的Bean

TokenConfig

package com.collect.auth.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.oauth2.provider.token.AuthorizationServerTokenServices;
import org.springframework.security.oauth2.provider.token.DefaultTokenServices;
import org.springframework.security.oauth2.provider.token.TokenEnhancerChain;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;

import java.util.Arrays;

/**
 * @author Administrator
 * @version 1.0
 **/
@Configuration
public class TokenConfig {
    @Autowired
    TokenStore tokenStore;

//    @Bean
//    public TokenStore tokenStore() {
//        //使用内存存储令牌（普通令牌）
//        return new InMemoryTokenStore();
//    }

    @Autowired
    private JwtAccessTokenConverter accessTokenConverter;


    //令牌管理服务
    @Bean(name="authorizationServerTokenServicesCustom")
    public AuthorizationServerTokenServices tokenService() {
        DefaultTokenServices service = new DefaultTokenServices();
        service.setSupportRefreshToken(true);//支持刷新令牌
        service.setTokenStore(tokenStore);//令牌存储策略

        TokenEnhancerChain tokenEnhancerChain = new TokenEnhancerChain();
        tokenEnhancerChain.setTokenEnhancers(Arrays.asList(accessTokenConverter));
        service.setTokenEnhancer(tokenEnhancerChain);

        service.setAccessTokenValiditySeconds(7200); // 令牌默认有效期2小时
        service.setRefreshTokenValiditySeconds(259200); // 刷新令牌默认有效期3天
        return service;
    }


}

配置令牌的相关策略，比如设置密钥、有效期、刷新令牌有效期

WebSecurityConfig

package com.collect.auth.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.NoOpPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;

import javax.annotation.Resource;

/**
 * @author Mr.M
 * @version 1.0
 * @description 安全管理配置
 * @date 2022/9/26 20:53
 */
@EnableWebSecurity
@EnableGlobalMethodSecurity(securedEnabled = true,prePostEnabled = true)
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {


    @Bean
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }

    //配置用户信息服务
//    @Bean
//    public UserDetailsService userDetailsService() {
//        //这里配置用户信息,这里暂时使用这种方式将用户存储在内存中
//        InMemoryUserDetailsManager manager = new InMemoryUserDetailsManager();
//        manager.createUser(User.withUsername("zhangsan").password("123").authorities("p1").build());
//        manager.createUser(User.withUsername("lisi").password("456").authorities("p2").build());
//        return manager;
//    }

    @Bean
    public PasswordEncoder passwordEncoder() {
//        //密码为明文方式
//        return NoOpPasswordEncoder.getInstance();
        return new BCryptPasswordEncoder();
    }

    @Autowired
    private DaoAuthenticationProviderCustom daoAuthenticationProviderCustom;


    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.authenticationProvider(daoAuthenticationProviderCustom);
    }

    //配置安全拦截机制
    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .antMatchers("/r/**").authenticated()//访问/r开始的请求需要认证通过
                .anyRequest().permitAll()//其它请求全部放行
                .and()
                .formLogin().successForwardUrl("/login-success");//登录成功跳转到/login-success
    }

    public static void main(String[] args) {
        String password = "111111";
        PasswordEncoder passwordEncoder = new BCryptPasswordEncoder();
        for (int i = 0; i < 5; i++) {
            //生成密码
            String encode = passwordEncoder.encode(password);
            System.out.println(encode);
            //校验密码,参数1是输入的明文 ，参数2是正确密码加密后的串
            boolean matches = passwordEncoder.matches(password, encode);
            System.out.println(matches);
        }

        boolean matches = passwordEncoder.matches("1234", "$2a$10$fb2RlvFwr9HsRu9vH1OxCu/YiMRw6wy5UI6u3s0A.0bVSuR1UqdHK");
        System.out.println(matches);
    }



}

配置secuity的拦截规则、密码的验证方式

oauth 协议常用的两种授权模式测试

授权码模式

本文不演示授权码模式

密码模式

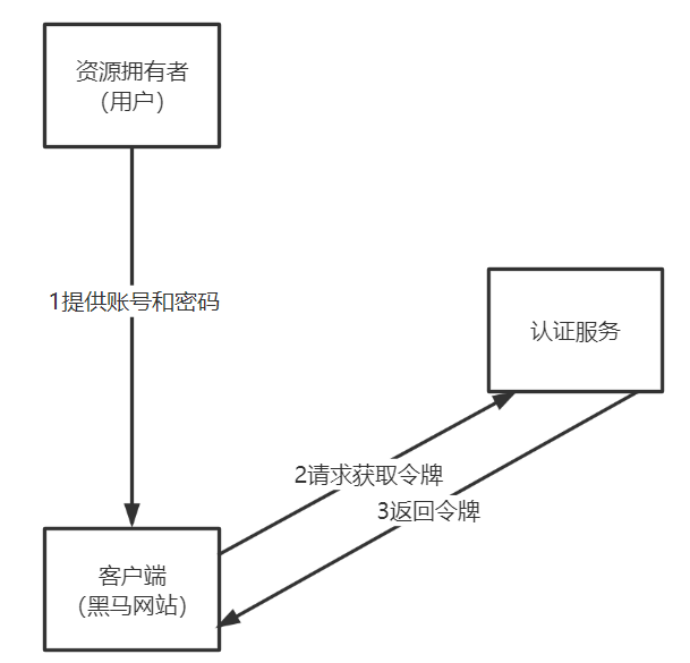

密码模式相对授权码模式简单，授权码模式需要借助浏览器供用户亲自授权，密码模式不用借助浏览器，如下图：

POST请求获取令牌

服务器地址 /oauth/token?client_id=XcWebApp&client_secret=XcWebApp&grant_type=password&username=shangsan&password=123

参数列表如下：

• client_id：客户端准入标识。

• grant_type：授权类型，填写password表示密码模式

• username：资源拥有者用户名。

• password：资源拥有者密码。

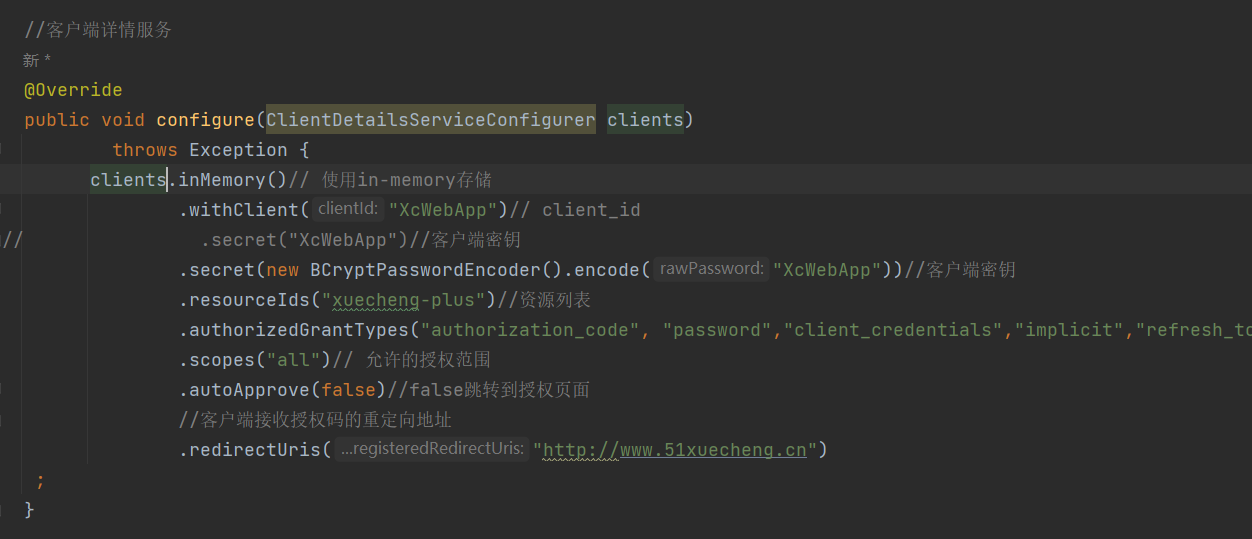

client_id、grant_type 均可在此配置动态设置

使用密码模式授权：https://blog.youkuaiyun.com/danfeng827/article/details/138351701

实现统一认证

统一认证包括：

1. 普通的认证
2. 第三方认证

第三方认证不需要校验密码

所以要实现统一认证，需要重写 DaoAuthenticationProvider 类里的additionalAuthenticationChecks 方法，不需要让它进行密码校验，我们自己进行即可

package com.collect.auth.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.authentication.dao.DaoAuthenticationProvider;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.stereotype.Component;

/**
 * @author Mr.M
 * @version 1.0
 * @description 重写了DaoAuthenticationProvider的校验的密码的方法，因为我们统一认证入口，有一些认证方式不需要校验密码
 * @date 2023/2/24 11:40
 */
@Component
public class DaoAuthenticationProviderCustom extends DaoAuthenticationProvider {
 @Autowired
 public void setUserDetailsService(UserDetailsService userDetailsService) {
  super.setUserDetailsService(userDetailsService);
 }

 @Override
 protected void additionalAuthenticationChecks(UserDetails userDetails, UsernamePasswordAuthenticationToken authentication) throws AuthenticationException {

 }
}

设置成我们自己的 DaoAuthenticationProvider 对象即可

    @Autowired
    private DaoAuthenticationProviderCustom daoAuthenticationProviderCustom;


    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.authenticationProvider(daoAuthenticationProviderCustom);
    }

通过工厂模式实现统一认证

新增一个 AuthService 接口

package com.collect.ucenter.service;

import com.collect.ucenter.model.dto.AuthParamsDto;
import com.collect.ucenter.model.dto.XcUserExt;

/**
 * @author Mr.M
 * @version 1.0
 * @description 统一的认证接口
 * @date 2023/2/24 11:55
 */
public interface AuthService {

 /**
  * @description 认证方法
  * @param authParamsDto 认证参数
  * @return com.xuecheng.ucenter.model.po.XcUser 用户信息
  * @author Mr.M
  * @date 2022/9/29 12:11
  */
 XcUserExt execute(AuthParamsDto authParamsDto);

}

后续需要认证时只需要继承该接口，并对bean名称按固定规则起名

package com.collect.ucenter.service.impl;

import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.collect.ucenter.feignclient.CheckCodeClient;
import com.collect.ucenter.mapper.XcUserMapper;
import com.collect.ucenter.model.dto.AuthParamsDto;
import com.collect.ucenter.model.dto.XcUserExt;
import com.collect.ucenter.model.po.User;
import com.collect.ucenter.service.AuthService;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;
import org.springframework.util.StringUtils;


/**
 * @author Mr.M
 * @version 1.0
 * @description 账号名密码方式
 * @date 2023/2/24 11:56
 */
@Service("password_authservice")
public class PasswordAuthServiceImpl implements AuthService {

 @Autowired
 XcUserMapper xcUserMapper;

 @Autowired
 PasswordEncoder passwordEncoder;

 @Autowired
 CheckCodeClient checkCodeClient;

 @Override
 public XcUserExt execute(AuthParamsDto authParamsDto) {
  //账号
  String username = authParamsDto.getUsername();

  //输入的验证码
  String checkcode = authParamsDto.getCheckcode();
  //验证码对应的key
  String checkcodekey = authParamsDto.getCheckcodekey();

  if(StringUtils.isEmpty(checkcode) || StringUtils.isEmpty(checkcodekey)){
   throw new RuntimeException("请输入的验证码");
  }

  //远程调用验证码服务接口去校验验证码
  Boolean verify = checkCodeClient.verify(checkcodekey, checkcode);
  if(verify == null || !verify){
   throw new RuntimeException("验证码输入错误");
  }


  //账号是否存在
  //根据username账号查询数据库
  User xcUser = xcUserMapper.selectOne(new LambdaQueryWrapper<User>().eq(User::getUsername, username));

  //查询到用户不存在，要返回null即可，spring security框架抛出异常用户不存在
  if(xcUser==null){
   throw new RuntimeException("账号不存在");
  }

  //验证密码是否正确
  //如果查到了用户拿到正确的密码
  String passwordDb = xcUser.getPassword();
  //拿 到用户输入的密码
  String passwordForm = authParamsDto.getPassword();
  //校验密码
  boolean matches = passwordEncoder.matches(passwordForm, passwordDb);
  if( !matches ){
   throw new RuntimeException("账号或密码错误");
  }
  XcUserExt xcUserExt = new XcUserExt();
  BeanUtils.copyProperties(xcUser,xcUserExt);

  return xcUserExt;
 }
}

前端在传参时增加一个 authType 认证类型的参数，通过该参数拼接得到不同 Bean 对应的实现类

    @Autowired
    ApplicationContext applicationContext;

//认证类型，有password，wx。。。
        String authType = authParamsDto.getAuthType();


        //根据认证类型从spring容器取出指定的bean
        String beanName = authType+"_authservice";
        AuthService authService = applicationContext.getBean(beanName, AuthService.class);

密码模式校验逻辑

package com.collect.ucenter.service.impl;

import com.alibaba.fastjson.JSON;
import com.collect.ucenter.mapper.XcMenuMapper;
import com.collect.ucenter.mapper.XcUserMapper;
import com.collect.ucenter.model.dto.AuthParamsDto;
import com.collect.ucenter.model.dto.XcUserExt;
import com.collect.ucenter.model.po.XcMenu;
import com.collect.ucenter.service.AuthService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.ApplicationContext;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Component;

import javax.annotation.Resource;
import java.util.ArrayList;
import java.util.List;

/**
 * @author Mr.M
 * @version 1.0
 * @description TODO
 * @date 2023/2/24 10:37
 */
@Slf4j
@Component
public class UserServiceImpl implements UserDetailsService {

    @Resource
    XcMenuMapper xcMenuMapper;
    @Autowired
    ApplicationContext applicationContext;



    //传入的请求认证的参数就是AuthParamsDto
    @Override
    public UserDetails loadUserByUsername(String s) throws UsernameNotFoundException {
        //将传入的json转成AuthParamsDto对象
        AuthParamsDto authParamsDto = null;
        try {
            authParamsDto = JSON.parseObject(s, AuthParamsDto.class);
        } catch (Exception e) {
            throw new RuntimeException("请求认证参数不符合要求");
        }

        //认证类型，有password，wx。。。
        String authType = authParamsDto.getAuthType();


        //根据认证类型从spring容器取出指定的bean
        String beanName = authType+"_authservice";
        AuthService authService = applicationContext.getBean(beanName, AuthService.class);
        //调用统一execute方法完成认证
        XcUserExt xcUserExt = authService.execute(authParamsDto);
        //封装xcUserExt用户信息为UserDetails
        //根据UserDetails对象生成令牌
        UserDetails userPrincipal = getUserPrincipal(xcUserExt);

        return userPrincipal;
    }

    /**
     * @description 查询用户信息
     * @param xcUser  用户id，主键
     * @return com.xuecheng.ucenter.model.po.XcUser 用户信息
     * @author Mr.M
     * @date 2022/9/29 12:19
     */
    public UserDetails getUserPrincipal(XcUserExt xcUser){
        String password = xcUser.getPassword();
        //权限
        String[] authorities=  {};
        //根据用户id查询用户的权限
        List<XcMenu> xcMenus = xcMenuMapper.selectPermissionByUserId(xcUser.getId());
        if(xcMenus.size()>0){
            List<String> permissions =new ArrayList<>();
            xcMenus.forEach(m->{
                //拿到了用户拥有的权限标识符
                permissions.add(m.getCode());
            });
            //将permissions转成数组
            authorities = permissions.toArray(new String[0]);
        }


        xcUser.setPassword(null);
        //将用户信息转json
        String userJson = JSON.toJSONString(xcUser);
        UserDetails userDetails = User.withUsername(userJson).password(password).authorities(authorities).build();
        return  userDetails;
    }


}

当请求密码模式接口时：继承 UserDetailsService 接口并实现 loadUserByUsername 方法，OAUTH2 底层会调用我们实现的方法

配置资源服务器

一般的场景是使用密码模式授权成功后会返回一个令牌，此时我们要通过此令牌来访问其他的资源服务，OAuth 给我们提供了资源服务器的配置以及它自己的拦截器，只要按照它的方式加上请求头就可以绕过。

只需要在资源服务器加上这两个配置类即可

SIGNING_KEY 一定要跟认证服务的配置类对应的 SIGNING_KEY 一样

package com.collect.manage_file.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.oauth2.provider.token.AuthorizationServerTokenServices;
import org.springframework.security.oauth2.provider.token.DefaultTokenServices;
import org.springframework.security.oauth2.provider.token.TokenEnhancerChain;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
import org.springframework.security.oauth2.provider.token.store.JwtTokenStore;

import java.util.Arrays;

/**
 * @author Administrator
 * @version 1.0
 **/
@Configuration
public class TokenConfig {

    String SIGNING_KEY = "mq123";


//    @Bean
//    public TokenStore tokenStore() {
//        //使用内存存储令牌（普通令牌）
//        return new InMemoryTokenStore();
//    }

    @Bean
    public TokenStore tokenStore() {
        return new JwtTokenStore(accessTokenConverter());
    }

    @Bean
    public JwtAccessTokenConverter accessTokenConverter() {
        JwtAccessTokenConverter converter = new JwtAccessTokenConverter();
        converter.setSigningKey(SIGNING_KEY);
        return converter;
    }


}

package com.collect.manage_file.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;
import org.springframework.security.oauth2.config.annotation.web.configuration.ResourceServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configurers.ResourceServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.token.TokenStore;

/**
 * @description 资源服务配置
 * @author Mr.M
 * @date 2022/10/18 16:33
 * @version 1.0
 */
 @Configuration
 @EnableResourceServer
 @EnableGlobalMethodSecurity(securedEnabled = true,prePostEnabled = true)
 public class ResouceServerConfig extends ResourceServerConfigurerAdapter {

  //资源服务标识
  public static final String RESOURCE_ID = "collect_url";

  @Autowired
  private TokenStore tokenStore;

  @Override
  public void configure(ResourceServerSecurityConfigurer resources) {
   resources.resourceId(RESOURCE_ID)//资源 id
           .tokenStore(tokenStore)
           .stateless(true);
  }

 @Override
 public void configure(HttpSecurity http) throws Exception {
  http.csrf().disable()
          .authorizeRequests()
          .antMatchers().permitAll()  //放行的地址
            .anyRequest().authenticated()  //除了配置放行的地址其他的所有请求必须认证通过
          ;
 }

 }

最主要是加上了 EnableResourceServer 这个注解，标识了这是资源服务器

参考：https://cloud.tencent.com/developer/article/2264103

https://www.cnblogs.com/wuzhenzhao/p/13232530.html

https://juejin.cn/post/7160554181156306958#heading-6

带上令牌的请求头格式请遵守： 请求头名称：Authorization，内容前缀为 Bearer 后接一个空格，最后再加上令牌

流程图

最后，整个流程图如下：

此图解释的是正确的流程，如果失败将会在那一步返回错误信息
