大屏可视化组件

今天分享的是我们在开发大屏可视化项目时，常用到的组件。

自适应组件

• 始终铺满全屏

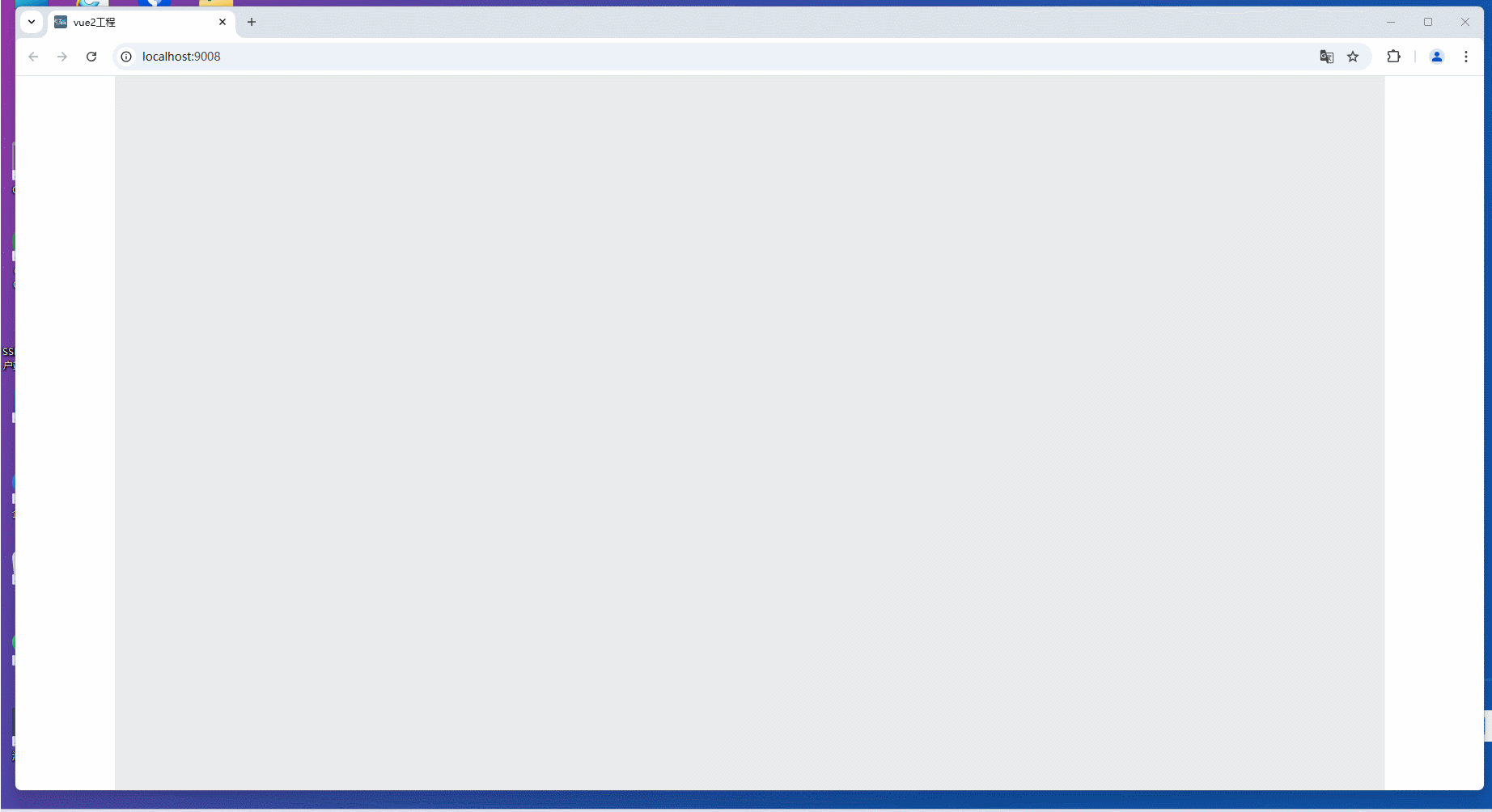

  效果图如下：



  源码

  // full-screen-scale.js

  export default {
      data() {
          return {
              resizeFn: null,
          }
      },
      methods: {
          debounce(fn, delay) {
              let timer = null;
              return function (...args) {
                  timer = setTimeout(
                      () => {
                          typeof fn === "function" && fn.apply(null, args);
                          clearTimeout(timer);
                      },
                      delay > 0 ? delay : 100
                  );
              };
          }
      },
      mounted() {
          const documentWidth = document.body.offsetWidth;
          const ratio = documentWidth / 1920;
          if (documentWidth > 1920) {
              document.body.style.transform = `scale(${ratio}, ${ratio})`
          }
          this.resizeFn = this.debounce(function () {
              const documentWidth = document.body.offsetWidth;
              const ratio = documentWidth / 1920;
              if (documentWidth > 1920) {
                  document.body.style.transform = `scale(${ratio}, ${ratio})`
              }
          }, 200)
          window.addEventListener('resize',this.resizeFn);
      },
      beforeDestroy() {
          window.removeEventListener('resize', this.resizeFn);
      },
  }


  使用

  <template>
  	<div class="full-screen-scale">
  			<el-row class="listTop" :gutter="20">
  				<el-col :span="7">
  					<div class="leftTop"></div>
  				</el-col>
  				<el-col :span="10">
  					<div class="leftMiddle"></div>
  				</el-col>
  				<el-col :span="7">
  					<div class="leftFooter"></div>
  				</el-col>
  			</el-row>
  			<el-row class="listBottom" :gutter="20">
  				<el-col :span="9">
                      <div class="bottomLeft"></div>
                  </el-col>
  				<el-col :span="4">
                      <div class="bottomLeft"></div>
                  </el-col>
  				<el-col :span="4">
                      <div class="bottomLeft"></div>
                  </el-col>
  				<el-col :span="7">
                      <div class="bottomLeft"></div>
                  </el-col>
  			</el-row>
  		</div>
  </template>
  <script>
  import fullScreenScale from "@/mixins/full-screen-scale";

  export default {
  	mixins: [fullScreenScale],
  }
  </script>
  <style lang="less" scoped>
  .full-screen-scale {
      height: 100%;
      width: 100%;
      padding: 14px 20px 20px;
      background: #03044A;
      overflow: hidden;
      .listTop {
          height: 60%;
          display: flex;
          .el-col {
              height: 100%;
              width: 100%;
          }
          .leftTop {
              width: 100%;
              height: 100%;
              border: 1px solid #0D2451;
              background-color: #ebebeb;
          }
          .leftMiddle {
              width: 100%;
              height: 100%;
              border: 1px solid #0D2451;
              background-color: #ebebeb;
          }
          .leftFooter {
              width: 100%;
              height: 100%;
              border: 1px solid #0D2451;
              background-color: #ebebeb;
          }
      }
      .listBottom {
          height: 40%;
          display: flex;
          .el-col {
              height: 100%;
              width: 100%;
          }
          .bottomLeft {
              width: 100%;
              height: 100%;
              border: 1px solid #0D2451;
              background-color: #ebebeb;
          }
      }
  }
  </style>


• 根据宽高比例，自适应

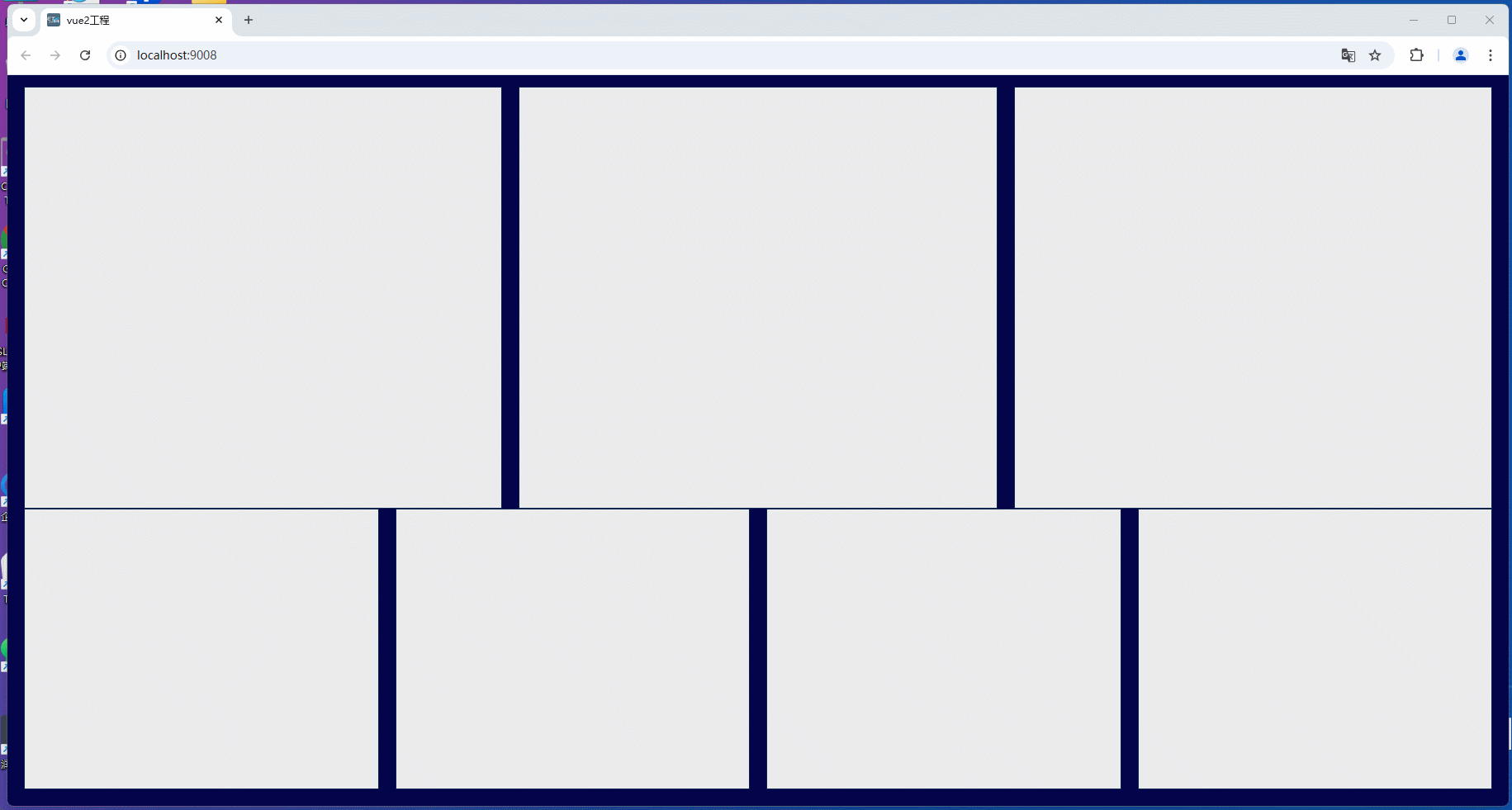

  效果图如下：



  源码

  // scale-screen.vue

  <!--
   * @Author: duanfanchao
   * @description: 大屏自适应容器组件
  -->
  <template>
  	<div class="screen-wrapper" ref="screenWrapper" :style="wrapperStyle">
  		<slot></slot>
  	</div>
  </template>

  <script>
  /**
   * 防抖函数
   * @param {T} fn
   * @param {number} delay
   * @return
   */
  function debounce(fn, delay) {
  	let timer = null;
  	return function (...args) {
  		timer = setTimeout(
  			() => {
  				typeof fn === "function" && fn.apply(null, args);
  				clearTimeout(timer);
  			},
  			delay > 0 ? delay : 100
  		);
  	};
  }

  export default {
  	name: "VScaleScreen",
  	props: {
  		width: {
  			type: [String, Number],
  			default: 1920,
  		},
  		height: {
  			type: [String, Number],
  			default: 1080,
  		},
  		fullScreen: {
  			type: Boolean,
  			default: false,
  		},
  		autoScale: {
  			type: [Object, Boolean],
  			default: true,
  		},
  		delay: {
  			type: Number,
  			default: 500,
  		},
  		boxStyle: {
  			type: Object,
  			default: () => ({}),
  		},
  		wrapperStyle: {
  			type: Object,
  			default: () => ({}),
  		},
  	},
  	data() {
  		return {
  			currentWidth: 0,
  			currentHeight: 0,
  			originalWidth: 0,
  			originalHeight: 0,
  			onResize: null,
  			observer: null,
  		};
  	},
  	computed: {
  		screenWrapper() {
  			return this.$refs["screenWrapper"];
  		},
  	},
  	methods: {
  		initSize() {
  			return new Promise((resolve, reject) => {
  				//给父元素设置 overflow:hidden
  				this.screenWrapper.parentNode.style.overflow = "hidden";
  				this.screenWrapper.parentNode.scrollLeft = 0;
  				this.screenWrapper.parentNode.scrollTop = 0;

  				this.$nextTick(() => {
  					// region 获取大屏真实尺寸
  					if (this.width && this.height) {
  						this.currentWidth = this.width;
  						this.currentHeight = this.height;
  					} else {
  						this.currentWidth = this.screenWrapper.clientWidth;
  						this.currentHeight = this.screenWrapper.clientHeight;
  					}
  					// endregion
  					// region 获取画布尺寸
  					if (!this.originalHeight || !this.originalWidth) {
  						this.originalWidth = window.screen.width;
  						this.originalHeight = window.screen.height;
  					}
  					// endregion
  					resolve();
  				});
  			});
  		},
  		updateSize() {
  			if (this.currentWidth && this.currentHeight) {
  				this.screenWrapper.style.width = `${this.currentWidth}px`;
  				this.screenWrapper.style.height = `${this.currentHeight}px`;
  			} else {
  				this.screenWrapper.style.width = `${this.originalWidth}px`;
  				this.screenWrapper.style.height = `${this.originalHeight}px`;
  			}
  		},
  		handleAutoScale(scale) {
  			if (!this.autoScale) return;
  			const screenWrapper = this.screenWrapper;
  			const domWidth = screenWrapper.clientWidth;
  			const domHeight = screenWrapper.clientHeight;
  			const currentWidth = document.body.clientWidth;
  			const currentHeight = document.body.clientHeight;
  			screenWrapper.style.transform = `scale(${scale},${scale}) `;
  			let mx = Math.max((currentWidth - domWidth * scale) / 2, 0);
  			let my = Math.max((currentHeight - domHeight * scale) / 2, 0);
  			if (typeof this.autoScale === "object") {
  				// @ts-ignore
  				!this.autoScale.x && (mx = 0);
  				// @ts-ignore
  				!this.autoScale.y && (my = 0);
  			}
  			this.screenWrapper.style.margin = `${my}px ${mx}px`;
  		},
  		updateScale() {
  			const screenWrapper = this.screenWrapper;
  			// 获取真实视口尺寸
  			const currentWidth = document.body.clientWidth;
  			const currentHeight = document.body.clientHeight;
  			// 获取大屏最终的宽高onResize
  			const realWidth = this.currentWidth || this.originalWidth;
  			const realHeight = this.currentHeight || this.originalHeight;
  			// 计算缩放比例
  			const widthScale = currentWidth / realWidth;
  			const heightScale = currentHeight / realHeight;

  			// 若要铺满全屏，则按照各自比例缩放
  			if (this.fullScreen) {
  				screenWrapper.style.transform = `scale(${widthScale},${heightScale})`;
  				return false;
  			}
  			// 按照宽高最小比例进行缩放
  			const scale = Math.min(widthScale, heightScale);
  			this.handleAutoScale(scale);
  		},
  		initMutationObserver() {
  			const screenWrapper = this.screenWrapper;
  			const observer = (this.observer = new MutationObserver(() => {
  				this.onResize();
  			}));

  			observer.observe(screenWrapper, {
  				attributes: true,
  				attributeFilter: ["style"],
  				attributeOldValue: true,
  			});
  		},
  		clearListener() {
  			window.removeEventListener("resize", this.onResize);
  		},
  		addListener() {
  			window.addEventListener("resize", this.onResize);
  		},
  		clearStyle() {
  			const screenWrapper = this.screenWrapper;
  			screenWrapper.parentNode.style.overflow = "auto";

  			screenWrapper.style = "";
  		},
  		async resize() {
  			await this.initSize();
  			this.updateSize();
  			this.updateScale();
  		},
  	},
  	mounted() {
  		this.onResize = debounce(() => {
  			this.resize();
  		}, this.delay);
  		this.$nextTick(() => {
  			this.resize();
  			this.addListener();
  		});
  	},
  	beforeDestroy() {
  		this.clearListener();
  	},
  };
  </script>

  <style scoped>
  .screen-box {
  	overflow: hidden;
  	background-size: 100% 100%;
  	background: #000;
  	width: 100vw;
  	height: 100vh;
  }

  .screen-wrapper {
  	transition-property: all;
  	transition-timing-function: cubic-bezier(0.4, 0, 0.2, 1);
  	transition-duration: 500ms;
  	position: relative;
  	overflow: hidden;
  	z-index: 100;
  	transform-origin: left top;
  }
  </style>


  使用

  <template>
      <scale-screen :width="1920" :height="1080" class="scale-wrap">
  		<div class="bg"></div>
  	</scale-screen>
  </template>

  <script>
  import scaleScreen from "@/components/scale-screen/index.vue";

  export default {
      components: {
      	scaleScreen
      },
  }
  </script>

  <style lang="less" scoped>
  .scale-wrap {
      color: #d3d6dd;
      width: 1920px;
      height: 1080px;
      overflow: hidden;
      background-color: #03050C;
      .bg {
          width: 100%;
          height: 100%;
          padding: 16px 16px 10px 16px;
          box-sizing: border-box;
          background-color: #ebebeb;
      }
  }
  </style>


无缝滚动效果组件

vue-seamless-scroll 是一个用于实现无缝滚动效果的 Vue.js 插件，常用于创建水平或垂直的自动滚动视图。它可以使得内容循环滚动，并且无缝衔接，看起来像是一个连续的流动内容，适用于展示例如图片、广告条、新闻轮播等。

// 安装
npm install vue-seamless-scroll --save

// 使用
import VueSeamlessScroll from 'vue-seamless-scroll';

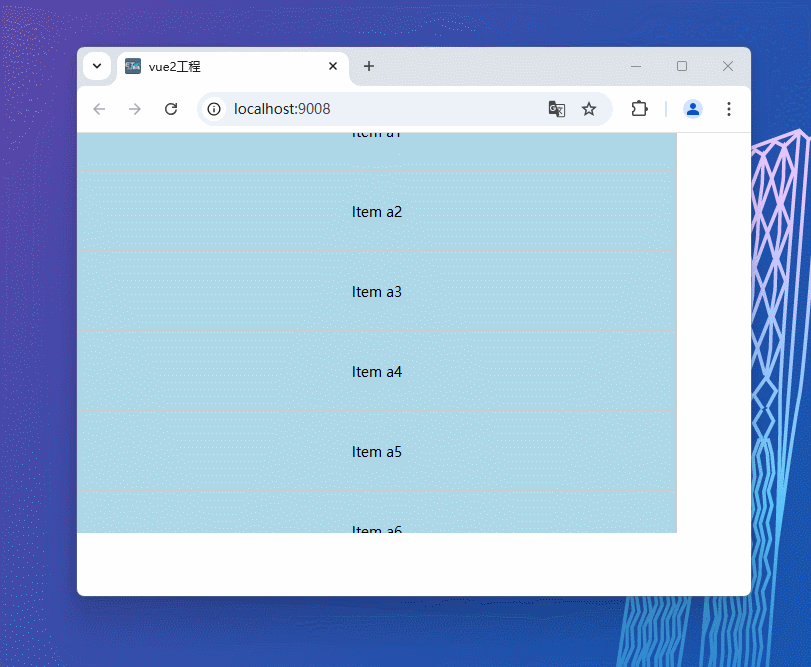

效果图如下：

样例

<template>
	<div class="container">
		<vue-seamless-scroll
			:class-option="scrollOptions"
			:data="notices"
			class="content"
		>
			<div class="item" v-for="item in notices" :key="item.name">
				Item {{ item.name }}
			</div>
		</vue-seamless-scroll>
	</div>
</template>
<script>
import VueSeamlessScroll from 'vue-seamless-scroll';

export default {
  name: 'App',
  components: {
    VueSeamlessScroll
  },
  data() {
    return {
      	notices: [
			{ name: "a1" },
			{ name: "a2" },
			{ name: "a3" },
			{ name: "a4" },
			{ name: "a5" },
			{ name: "a6" },
			{ name: "a7" },
			{ name: "a8" },
			{ name: "a9" },
		],
		scrollOptions: {
			step: 0.3, // 数值越大速度滚动越快
			limitMoveNum: 2, // 开始无缝滚动的数据量 this.dataList.length
			hoverStop: true, // 是否开启鼠标悬停stop
			direction: 1, // 0向下 1向上 2向左 3向右
			openWatch: true, // 开启数据实时监控刷新dom
			singleHeight: 0, // 单步运动停止的高度(默认值0是无缝不停止的滚动) direction => 0/1
			singleWidth: 0, // 单步运动停止的宽度(默认值0是无缝不停止的滚动) direction => 2/3
			waitTime: 1000, // 单步运动停止的时间(默认值1000ms)
		},
    };
  }
};
</script>
<style lang="less" scoped>
.container {
    height: 400px;
    width: 600px;
    background: pink;
}
.item {
  display: flex;
  align-items: center;
  justify-content: center;
  background-color: lightblue;
  border: 1px solid #ccc;
  height: 80px;
}
</style>

版本："vue": "2.6.14","vue-seamless-scroll": "^1.1.23",
