复习自定制布局 UICollectionViewFlowLayout

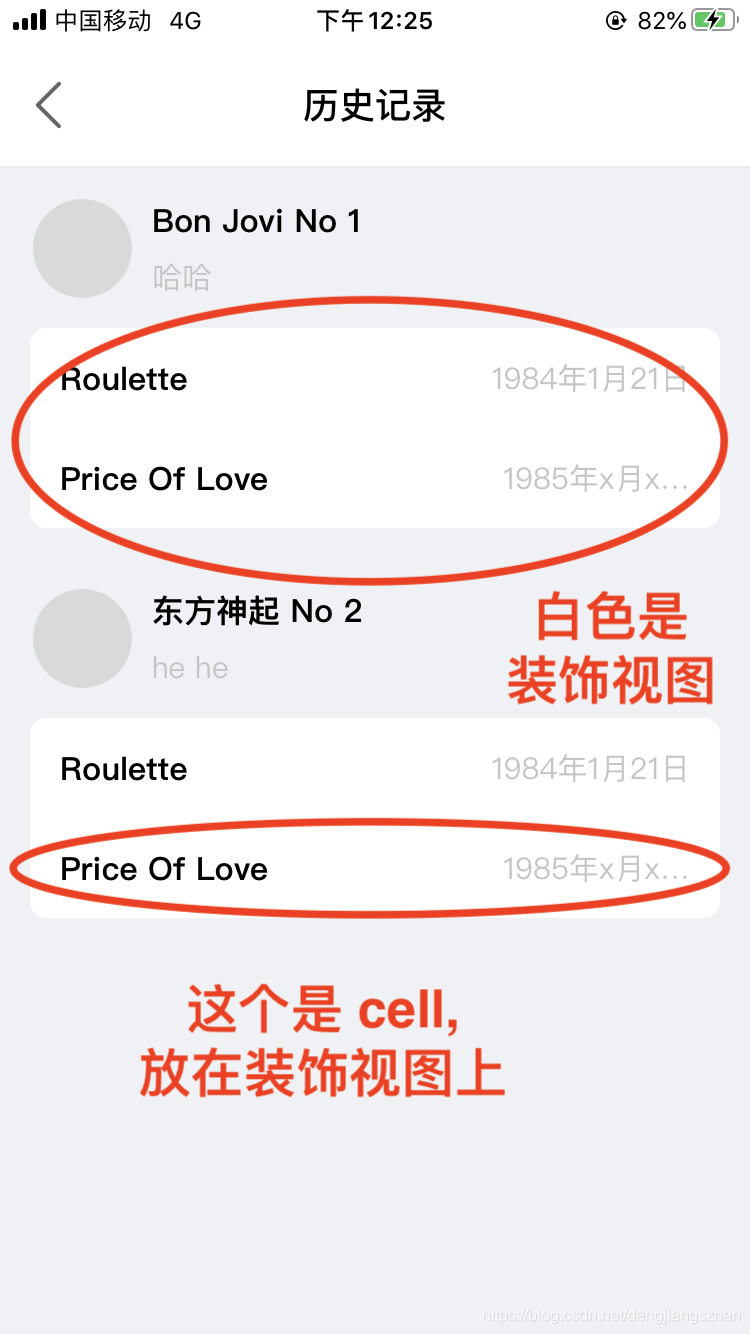

复习自定制布局 UICollectionViewFlowLayout，这里做装饰视图

class DecorationFlow: UICollectionViewFlowLayout {

    private var cache = [IndexPath: UICollectionViewLayoutAttributes]()


    override func prepare() {
        super.prepare()
        register(HistoDecorationV.self, forDecorationViewOfKind: HistoDecorationV.id)


        let originX: CGFloat = 15
        let widH: CGFloat = UI.std.width - originX * 2


        guard let collect = collectionView else{
            return
        }
        let sections = collect.numberOfSections
        var originY: CGFloat = 0
        for sect in 0..<sections{
            let sectionFirst = IndexPath(item: 0, section: sect)
            let attributes = UICollectionViewLayoutAttributes(forDecorationViewOfKind: HistoDecorationV.id, with: sectionFirst)
            let itemCount = collect.numberOfItems(inSection: sect)
            originY = originY + 80
            let h: CGFloat = 50 * CGFloat(itemCount)
            attributes.frame = CGRect(x: originX, y: originY, width: widH, height: h)
            originY = originY + h + 15
            cache[sectionFirst] = attributes
        }


    }



    override func shouldInvalidateLayout(forBoundsChange newBounds: CGRect) -> Bool {
        return true
    }


    private func prepareCache() {
      cache.removeAll(keepingCapacity: true)
      cache = [IndexPath: UICollectionViewLayoutAttributes]()
    }




    // 同时不影响我们正常的 UICollectionViewDelegateFlowLayout 代理，设置布局信息
    override func layoutAttributesForDecorationView(ofKind elementKind: String, at indexPath: IndexPath) -> UICollectionViewLayoutAttributes? {

        return cache[indexPath]

    }
    // 涂色大法好，解决涂色部分



    override func layoutAttributesForElements(in rect: CGRect) -> [UICollectionViewLayoutAttributes]? {
        var array = super.layoutAttributesForElements(in: rect)
        guard let collection = collectionView, collection.numberOfSections > 0 else{
            return array
        }

        var z = 0

        array?.forEach({
            $0.zIndex = z + 100
            z += 1
        })

        z = 0
        for (_, attributes) in cache {

            if attributes.frame.intersects(rect){
                attributes.zIndex = z + 10
                array?.append(attributes)
            }
            z += 1
        }


        return array

    }
}

代码很简单，
自定制的 UICollectionViewFlowLayout，继承自 UICollectionViewFlowLayout
计算坐标，赋值就完了
注意一下视图的 zIndex

代码见 github repo

BoxDengJZ/UICollectionViewLeftAlignedLayout

​

---
