本文提供了使用QtCharts模块绘制极坐标下散点图、曲线图及折线图的示例代码。通过这些示例，读者可以了解如何利用Qt进行数据可视化，并掌握不同系列的数据展示方法。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

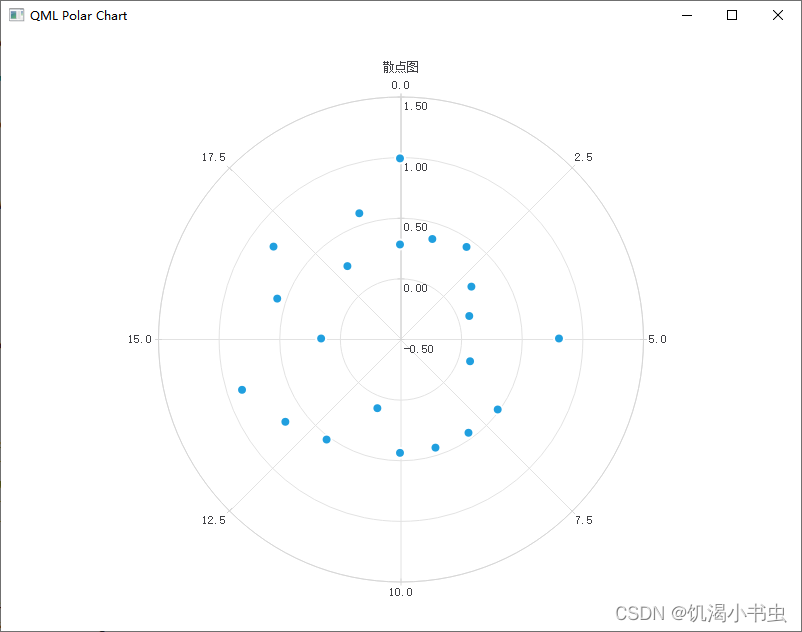

实例一：散点图

如图：

代码：

import QtQuick 2.0
import QtCharts 2.0

Item {
    anchors.fill: parent
    PolarChartView {
        title: "散点图"
        anchors.fill: parent
        legend.visible: false
        antialiasing: true

        ValueAxis {
            id: axisAngular
            min: 0
            max: 20
            tickCount: 9
        }

        ValueAxis {
            id: axisRadial
            min: -0.5
            max: 1.5
        }

        ScatterSeries {
            id: series1
            axisAngular: axisAngular
            axisRadial: axisRadial
            markerSize: 10
        }
    }

    Component.onCompleted: {
        for (var i = 0; i <= 20; i++) {
            series1.append(i, Math.random());
        }
    }
}

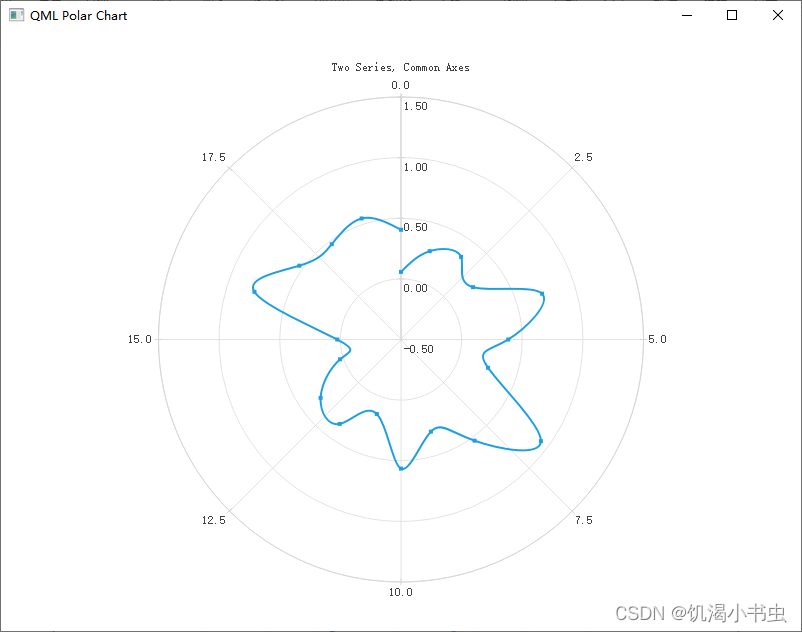

实例二：曲线图

如图：

代码：

import QtQuick 2.0
import QtCharts 2.0

Item {
    anchors.fill: parent
    PolarChartView {
        title: "Two Series, Common Axes"
        anchors.fill: parent
        legend.visible: false
        antialiasing: true

        ValueAxis {
            id: axisAngular
            min: 0
            max: 20
            tickCount: 9
        }

        ValueAxis {
            id: axisRadial
            min: -0.5
            max: 1.5
        }

        SplineSeries {
            id: series1
            axisAngular: axisAngular
            axisRadial: axisRadial
            pointsVisible: true
        }
    }

    Component.onCompleted: {
        for (var i = 0; i <= 20; i++) {
            series1.append(i, Math.random());
        }
    }
}

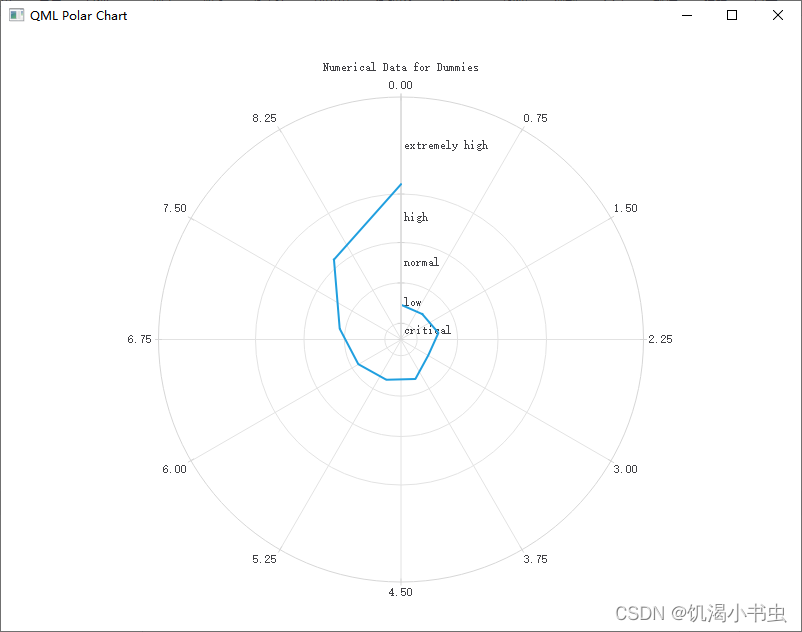

实例三：折线图

如图：

代码：

import QtQuick 2.0
import QtCharts 2.0

Item {
    anchors.fill: parent

    PolarChartView {
        title: "Numerical Data for Dummies"
        anchors.fill: parent
        legend.visible: false
        antialiasing: true

        LineSeries {
            axisRadial: CategoryAxis {
                min: 0
                max: 30
                CategoryRange {
                    label: "critical"
                    endValue: 2
                }
                CategoryRange {
                    label: "low"
                    endValue: 7
                }
                CategoryRange {
                    label: "normal"
                    endValue: 12
                }
                CategoryRange {
                    label: "high"
                    endValue: 18
                }
                CategoryRange {
                    label: "extremely high"
                    endValue: 30
                }
            }

            axisAngular: ValueAxis {
                tickCount: 13
            }

            XYPoint { x: 0; y: 4.3 }
            XYPoint { x: 1; y: 4.1 }
            XYPoint { x: 2; y: 4.7 }
            XYPoint { x: 3; y: 3.9 }
            XYPoint { x: 4; y: 5.2 }
            XYPoint { x: 5; y: 5.3 }
            XYPoint { x: 6; y: 6.1 }
            XYPoint { x: 7; y: 7.7 }
            XYPoint { x: 8; y: 12.9 }
            XYPoint { x: 9; y: 19.2 }
        }
    }
}
