D3.js的V5版本-Vue框架中使用(第十章) ---流程图

本文介绍了如何在Vue框架中利用D3.js的V5版本创建流程图,重点讲解了使用dagre-d3库进行流程图绘制的过程。包括安装dagre-d3库,设置流程图的方向,以及封装组件的关键代码,如设置节点和连接。建议读者查阅官方文档以获取更详细的使用信息。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

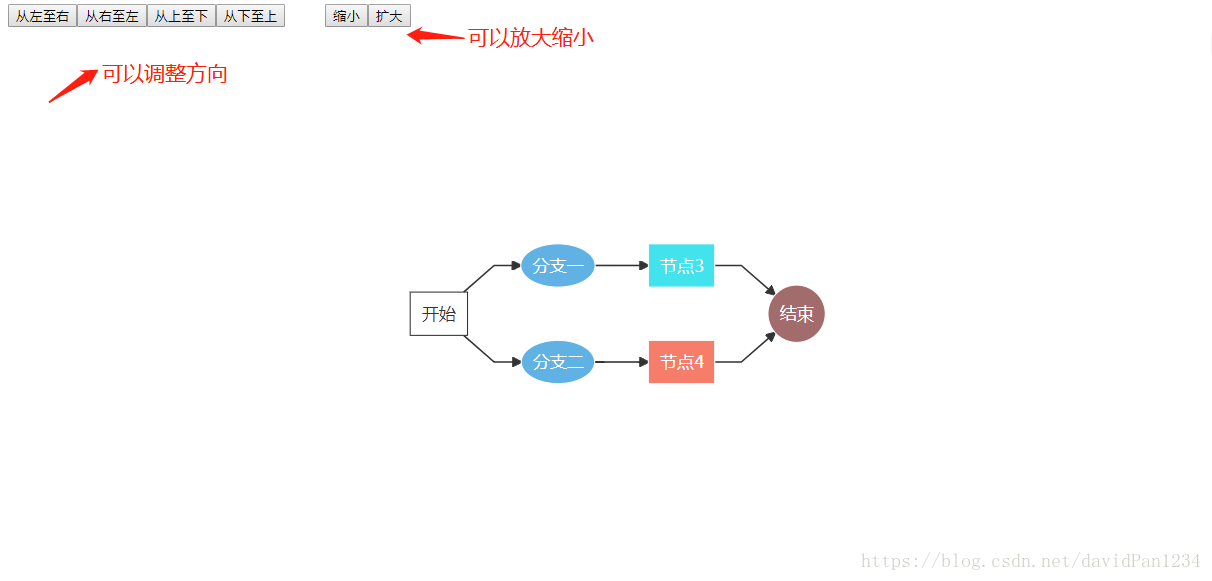

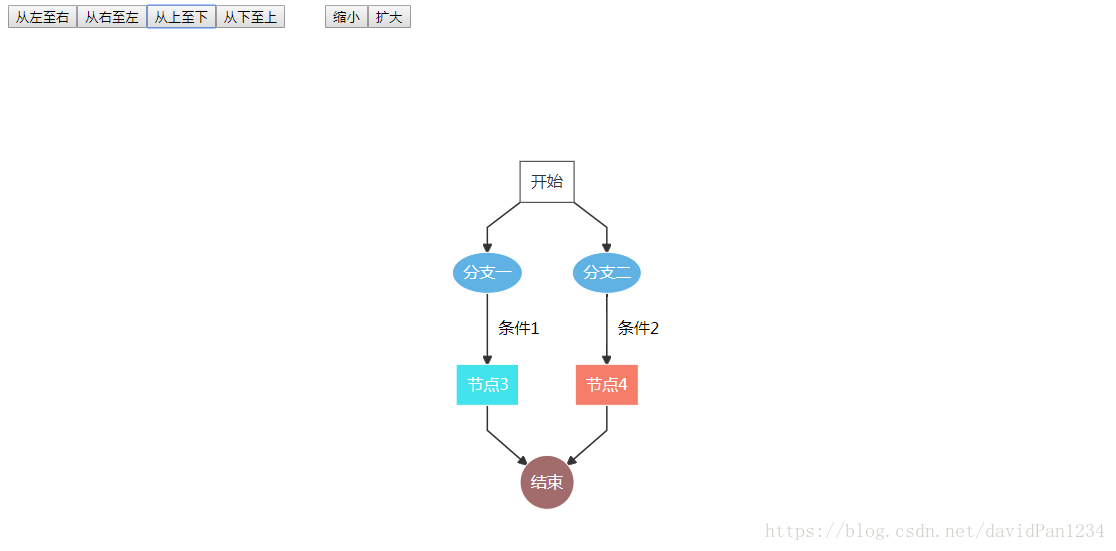

1. 效果展示

2. 使用dagre-d3

需要安装dagre-d3库,d3的流程图库。

3. 代码示例(封装组件)

主要代码讲解:

//得到流程图绘制对象

this.graph = new dagreD3.graphlib.Graph().setGraph({

     // 控制方向

     rankdir: this.direction

}).setDefaultEdgeLabel(function () { return {} })

//绘制节点

this.graph.setNode()

//绘制连接

this.graph.setEdge()

温馨提示:详细使用可以去官网查询

<template lang="pug">
  div.dagre-graph-container(:id="containerId")
    div.zoom-div
        button(v-for="item in directions" :key="item.prop" @click="direction = item.prop") {

  {item.label}}
        button.zoom(@click="zoomCtrl('in')") 缩小
        button(@click="zoomCtrl('out')") 扩大
    svg.dagre
        g.container
</template>
<script>
/**
 * 流程图
 */
import * as d3 from 'd3'
import dagreD3 from 'dagre-d3'
let container = null
export default {
    name: 'DagreGraph',
    props: ['nodes', 'edges'],
    data() {
        return {
            id: '',
            renderer: null,
            graph: null,
            direction: 'LR',
            directions: [
                {
                    prop: 'LR',
                    label: '从左至右'
                },
                {
                    prop: 'RL',
                    label: '从右至左'
                },
                {
                    prop: 'TB',
                    label: '从上至下'
                },
                {
                    prop: 'BT',
                    label: '从下至上'
                }
            ],
            zoom: null,
            containerId: '',
            width: 0,
            height: 0
        }
    },
    created() {
        this.containerId = this.uuid()
        this.graph = new dagreD3.graphlib.Graph().setGraph({
            rankdir: this.direction
        }).setDefaultEdgeLabel(function () { return {} })
    },
    methods: {
        uuid () {
            function s4 () {
                return Math.floor((1 + Math.random()) * 0
