Springcloud_H版-alibaba学习笔记(二) 支付模块

顺序：
1.建module
2.改pom
3.写yml
4.编写主启动类
5.业务类

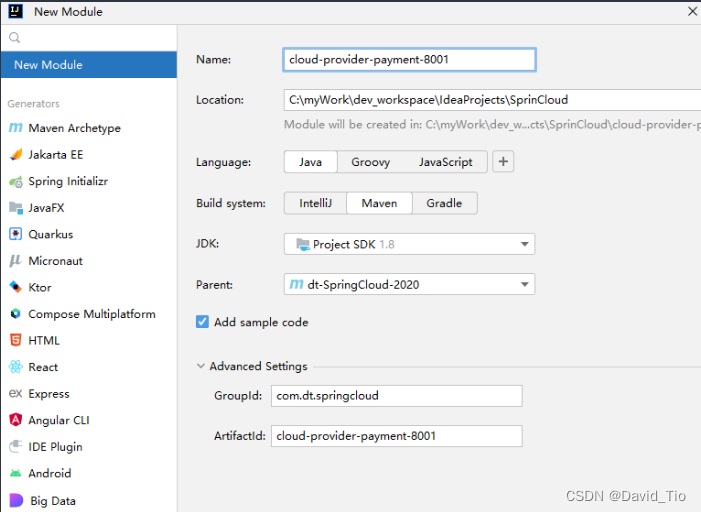

1.工程下创建支付模块

2.编写pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent> <!-- 父级信息 -->
        <artifactId>dt-SpringCloud-2020</artifactId>
        <groupId>com.dt.springcloud</groupId>
        <version>1.0.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <!-- 模块ID-->
    <artifactId>cloud-provider-payment8001</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-jdbc -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-devtools -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-test -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

3.resource目录下新application.yml

driver-class-name说明：
版本5.1.47以前可以使用 : org.gjt.mm.mysql.Driver
版本6-以下可以使用 : com.mysql.jdbc.Driver
版本6+以上可以使用 : com.mysql.cj.jdbc.Driver

server:
  port: 8001  #服务端口

spring:
  application:
    name: cloud-payment-service  #服务名

  ## org.gjt.mm.mysql.Driver 版本5.1.47以前可以使用
  ## com.mysql.jdbc.Driver 版本6-以下可以使用
  ## com.mysql.cj.jdbc.Driver 版本6+以上可以使用
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource    #当前数据源类型
    driver-class-name: com.mysql.cj.jdbc.Driver  #数据库驱动包
    url: jdbc:mysql://192.168.28.xx:3306/springcloud?useUnicode=true&characterEncoding=utf-8&useSSL=false
    username: root
    password: xxxxx

  devtools:
    restart:
      enabled: true #是否支持热部署

mybatis:
  # 用于将配置路径下的*.xml文件加载到mybatis中
  mapper-locations: classpath:mapper/*.xml
  #所有Entity别名类所在包
  type-aliases-package: com.dt.springcloud.entities


4.新建启动类 PaymentMain8001

package com.dt.springcloud;


import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Configuration;


/**
 * @ClassName: PaymentMain8001 * @description: PaymentMain8001主启动类
 * @author: wenbo
 **/@SpringBootApplication
public class PaymentMain8001 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class, args);
    }
}

5.编写业务

顺序：
建表->entities->dao->service->controller

1.创建数据库

CREATE DATABASE /*!32312 IF NOT EXISTS*/`springcloud` /*!40100 DEFAULT CHARACTER SET utf8 COLLATE utf8_unicode_ci */;
​
USE `springcloud`;
​
/*Table structure for table `payment` */
​
DROP TABLE IF EXISTS `payment`;
​
CREATE TABLE `payment` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'ID',
  `serial` varchar(200) COLLATE utf8_unicode_ci DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8 COLLATE=utf8_unicode_ci;
​
/*Data for the table `payment` */
​
insert  into `payment`(`id`,`serial`) values (1,'尚硅谷'),(2,'alibaba'),(3,'京东'),(4,'头条');

2.创建实体类Entities

Payment实体类

@Data 由于引入了loombook包， 省去了get/set方法；
@AllArgsConstructor 就是用这个注解修饰的类会把里面的变量都生成全参数的构造器
@NoArgsConstructor 生成无参构造器

package com.dt.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.io.Serializable;

/**
 * Payment实体类
 *  Data 由于引入了loombook包， 省去了get/set方法；
 *  AllArgsConstructor 就是用这个注解修饰的类会把里面的变量都生成全参数的构造器
 *  NoArgsConstructor 生成无参构造器
 */
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment implements Serializable {
    private Long id ;
    private String serial;
}

通用返回前端的实体

package com.dt.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * 通用返回前端的实体
 *
 * @param <T>
 */
@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T> {
    private Integer code;
    private String message;
    private T data;

    public CommonResult(Integer code , String message)
    {
        this(code, message,null);
    }
}

3.Dao层开发

1.编写Dao

package com.dt.springcloud.dao;

import com.dt.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

/**
 * PaymentDao * */@Mapper
public interface PaymentDao {
    public int create(Payment payment);
    public Payment getPaymentById(@Param("id") Long id);

}

2.编写PaymentMapper

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!--Mapper对应哪个接口 -->
<mapper namespace="com.dt.springcloud.dao.PaymentDao">

    <!--resultMap 实体类映射 -->
    <resultMap id="BaseResultMap" type="com.dt.springcloud.entities.Payment">
        <id column="id" property="id" jdbcType="BIGINT"></id>
        <id column="serial" property="serial" jdbcType="VARCHAR"></id>
    </resultMap>


    <insert id="create" parameterType="com.dt.springcloud.entities.Payment" useGeneratedKeys="true" keyProperty="id">
        insert into payment(serial)        values (#{serial});    </insert>
    <select id="getPaymentById" parameterType="Long" resultMap="BaseResultMap">
        select *        from payment        where id = #{id}    </select>
</mapper>

4.Service层开发

1.Service接口

package com.dt.springcloud.service;

import com.dt.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Service;

/**
 * 支付PaymentService接口
 */

public interface PaymentService  {
    public int create(Payment payment);
    public Payment getPaymentById(Long id);
}

2.Service实现类

package com.dt.springcloud.service.impl;

import com.dt.springcloud.dao.PaymentDao;
import com.dt.springcloud.entities.Payment;
import com.dt.springcloud.service.PaymentService;
import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

/***
 * 支付PaymentService 实现类
 */
@Service
public class PaymentServiceImpl implements PaymentService {
    @Resource
    private PaymentDao paymentDao;

    public int create(Payment payment) {
        return this.paymentDao.create(payment);
    }

    public Payment getPaymentById(Long id) {

        return this.paymentDao.getPaymentById(id);
    }

}

5.Controller开发

package com.dt.springcloud.controller;

import com.dt.springcloud.entities.CommonResult;
import com.dt.springcloud.entities.Payment;
import com.dt.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.apache.ibatis.annotations.Param;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

/**
 * PaymentController * slf4j:日志注解
 */
@RestController
@Slf4j
public class PaymentController {

    @Resource
    private PaymentService paymentService;

    /**
     * 保存
     *
     * @param payment
     * @return CommonResult 统一返回格式
     */
    @PostMapping(value = "/payment/create")
    public CommonResult create(Payment payment) {
        int result = this.paymentService.create(payment);
        log.info("插入结果为：" + result);
        if (result > 0) {
            return new CommonResult(200, "插入数据库成功", result);
        } else {
            return new CommonResult(444, "插入数据库成功", null);
        }
    }

    /**
     * 查询
     *
     * @param id
     * @return CommonResult 统一返回格式
     */
    @GetMapping(value = "/payment/get/{id}")
    public CommonResult getPaymentById(@PathVariable("id") Long id) {
        Payment payment = this.paymentService.getPaymentById(id);
        log.info("插入结果为：" + payment);
        if (payment != null) {
            return new CommonResult(200, "查询数据库成功", payment);
        } else {
            return new CommonResult(444, "查询数据库成功", null);
        }
    }
}
