设计数据密集型应用

一. 可靠可扩展与可维护的应用系统

许多新型应用, CPU的处理能力往往不是第一限制因素, 关键在于数据量, 数据复杂度以及数据的快速多变

1. Tweeter问题

Pull

SELECT tweets.*, users.*
  FROM tweets
  JOIN users   ON tweets.sender_id = users.id
  JOIN follows ON follows.followee_id = users.id
  WHERE follows.follower_id = current_user

Push

Push/Pull相结合

Pull & Push 大V用户特殊处理.
正常用户发Tweeter进行Push处理, 大V用户的Tweeter

2. Response Time

后续作者主要会讨论数据密集型应用的设计, 如何提升系统的可靠性, 可扩展性和可维护性

二. 数据模型与查询语言

语言的边界就是世界的边界

2.1 数据查询语言(声明式/命令式)

// 命令式
function getSharks() {
    var sharks = [];
    for (var i = 0; i < animals.length; i++) {
        if (animals[i].family === "Sharks") {
            sharks.push(animals[i]);
        }
    }
    return sharks;
}

// Sql声明式
SELECT * FROM animals WHERE family ='Sharks';

// css声明式
li.selected > p {
	background-color: blue;
}

// js命令式
var liElements = document.getElementsByTagName("li");
for (var i = 0; i < liElements.length; i++) {
    if (liElements[i].className === "selected") {
        var children = liElements[i].childNodes;
        for (var j = 0; j < children.length; j++) {
            var child = children[j];
            if (child.nodeType === Node.ELEMENT_NODE && child.tagName === "P") {
                child.setAttribute("style", "background-color: blue");
            }
        }
    }
}


// postgresql
SELECT
	date_trunc('month', observation_timestamp) AS observation_month,
	sum(num_animals)                           AS total_animals
FROM observations
WHERE family = 'Sharks'
GROUP BY observation_month;

// mongodb mapreduce
db.observations.mapReduce(function map() {
        var year = this.observationTimestamp.getFullYear();
        var month = this.observationTimestamp.getMonth() + 1;
        emit(year + "-" + month, this.numAnimals);
    },
    function reduce(key, values) {
        return Array.sum(values);
    },
    {
        query: {
          family: "Sharks"
        },
        out: "monthlySharkReport"
    });

// mongodb 聚合管道
db.observations.aggregate([
  { $match: { family: "Sharks" } },
  { $group: {
    _id: {
      year:  { $year:  "$observationTimestamp" },
      month: { $month: "$observationTimestamp" }
    },
    totalAnimals: { $sum: "$numAnimals" } }}
]);

2.2 图模型查询语言

// 人物出生地点和生活地点
CREATE
    (NAmerica:Location {name:'North America', type:'continent'}),
    (USA:Location      {name:'United States', type:'country'  }),
    (Idaho:Location    {name:'Idaho',         type:'state'    }),
    (Lucy:Person       {name:'Lucy' }),
    (Idaho) -[:WITHIN]->  (USA)  -[:WITHIN]-> (NAmerica),
    (Lucy)  -[:BORN_IN]-> (Idaho)
// 查找移民的人
MATCH
    (person) -[:BORN_IN]->  () -[:WITHIN*0..]-> (us:Location {name:'United States'}),
    (person) -[:LIVES_IN]-> () -[:WITHIN*0..]-> (eu:Location {name:'Europe'})
RETURN person.name
// With Recursive
WITH RECURSIVE
  -- in_usa 包含所有的美国境内的位置ID
    in_usa(vertex_id) AS (
    SELECT vertex_id FROM vertices WHERE properties ->> 'name' = 'United States'
    UNION
    SELECT edges.tail_vertex FROM edges
      JOIN in_usa ON edges.head_vertex = in_usa.vertex_id
      WHERE edges.label = 'within'
  ),
  -- in_europe 包含所有的欧洲境内的位置ID
    in_europe(vertex_id) AS (
    SELECT vertex_id FROM vertices WHERE properties ->> 'name' = 'Europe'
    UNION
    SELECT edges.tail_vertex FROM edges
      JOIN in_europe ON edges.head_vertex = in_europe.vertex_id
      WHERE edges.label = 'within' ),
  -- born_in_usa 包含了所有类型为Person，且出生在美国的顶点
    born_in_usa(vertex_id) AS (
      SELECT edges.tail_vertex FROM edges
        JOIN in_usa ON edges.head_vertex = in_usa.vertex_id
        WHERE edges.label = 'born_in' ),
  -- lives_in_europe 包含了所有类型为Person，且居住在欧洲的顶点。
    lives_in_europe(vertex_id) AS (
      SELECT edges.tail_vertex FROM edges
        JOIN in_europe ON edges.head_vertex = in_europe.vertex_id
        WHERE edges.label = 'lives_in')
  SELECT vertices.properties ->> 'name'
  FROM vertices
    JOIN born_in_usa ON vertices.vertex_id = born_in_usa.vertex_id
    JOIN lives_in_europe ON vertices.vertex_id = lives_in_europe.vertex_id;

2.3 三元组

// Turtle格式
@prefix : <urn:example:>.
_:lucy     a       :Person.
_:lucy     :name   "Lucy".
_:lucy     :bornIn _:idaho.
_:idaho    a       :Location.
_:idaho    :name   "Idaho".
_:idaho    :type   "state".
_:idaho    :within _:usa.
_:usa      a       :Location
_:usa      :name   "United States"
_:usa      :type   "country".
_:usa      :within _:namerica.
_:namerica a       :Location
_:namerica :name   "North America"
_:namerica :type   :"continent"
// 简洁模式
@prefix : <urn:example:>.
_:lucy      a :Person;   :name "Lucy";          :bornIn _:idaho.
_:idaho     a :Location; :name "Idaho";         :type "state";   :within _:usa
_:usa       a :Loaction; :name "United States"; :type "country"; :within _:namerica.
_:namerica  a :Location; :name "North America"; :type "continent".
// RDF
<rdf:RDF xmlns="urn:example:"
         xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#">
    <Location rdf:nodeID="idaho">
        <name>Idaho</name>
        <type>state</type>
        <within>
            <Location rdf:nodeID="usa">
                <name>United States</name>
                <type>country</type>
                <within>
                    <Location rdf:nodeID="namerica">
                        <name>North America</name>
                        <type>continent</type>
                    </Location>
                </within>
            </Location>
        </within>
    </Location>
    <Person rdf:nodeID="lucy">
        <name>Lucy</name>
        <bornIn rdf:nodeID="idaho"/>
    </Person>
</rdf:RDF>
// SPARQL
PREFIX : <urn:example:>
SELECT ?personName WHERE {
  ?person :name ?personName.
  ?person :bornIn  / :within* / :name "United States".
  ?person :livesIn / :within* / :name "Europe".
}
(person) -[:BORN_IN]-> () -[:WITHIN*0..]-> (location)   # Cypher
?person :bornIn / :within* ?location.                   # SPARQL
(usa {name:'United States'})   # Cypher
?usa :name "United States".    # SPARQL
// Datalog
name(namerica, 'North America').
type(namerica, continent).
name(usa, 'United States').
type(usa, country).
within(usa, namerica).
name(idaho, 'Idaho').
type(idaho, state).
within(idaho, usa).
name(lucy, 'Lucy').
born_in(lucy, idaho).

NoSql:
文档数据库: 文档间关联很少
图数据库: 所有数据可能互连

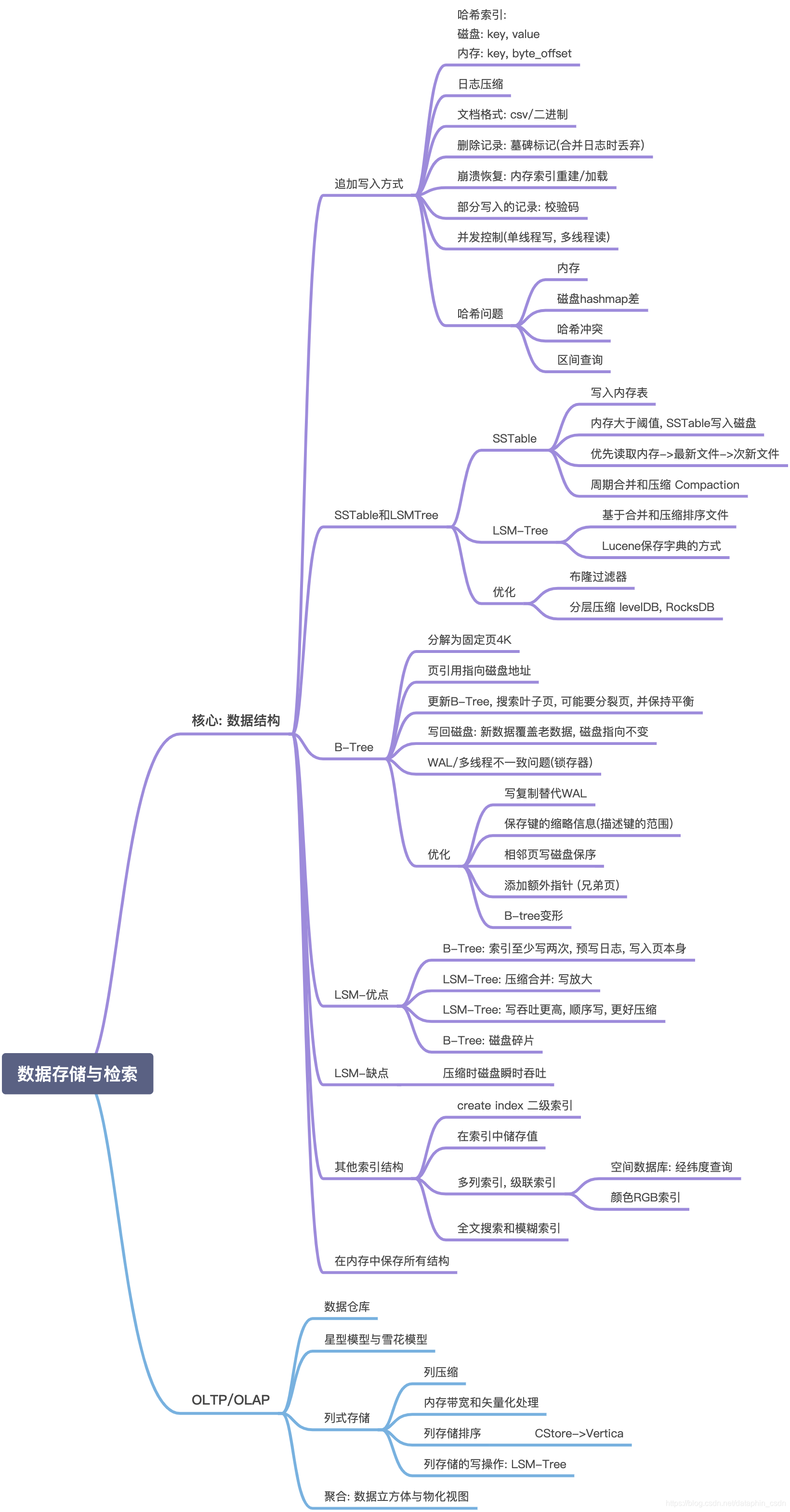

三. 数据存储与检索

3.1 数据库设计&哈希索引

#!/bin/bash
db_set () {
	echo "$1,$2" >> database
}

db_get () {
	grep "^$1," database | sed -e "s/^$1,//" | tail -n 1
}

$ db_set 42 '{"name":"San Francisco","attractions":["Exploratorium"]}'

$ db_get 42
{"name":"San Francisco","attractions":["Exploratorium"]}

$ cat database
123456,{"name":"London","attractions":["Big Ben","London Eye"]}
42,{"name":"San Francisco","attractions":["Golden Gate Bridge"]}
42,{"name":"San Francisco","attractions":["Exploratorium"]}

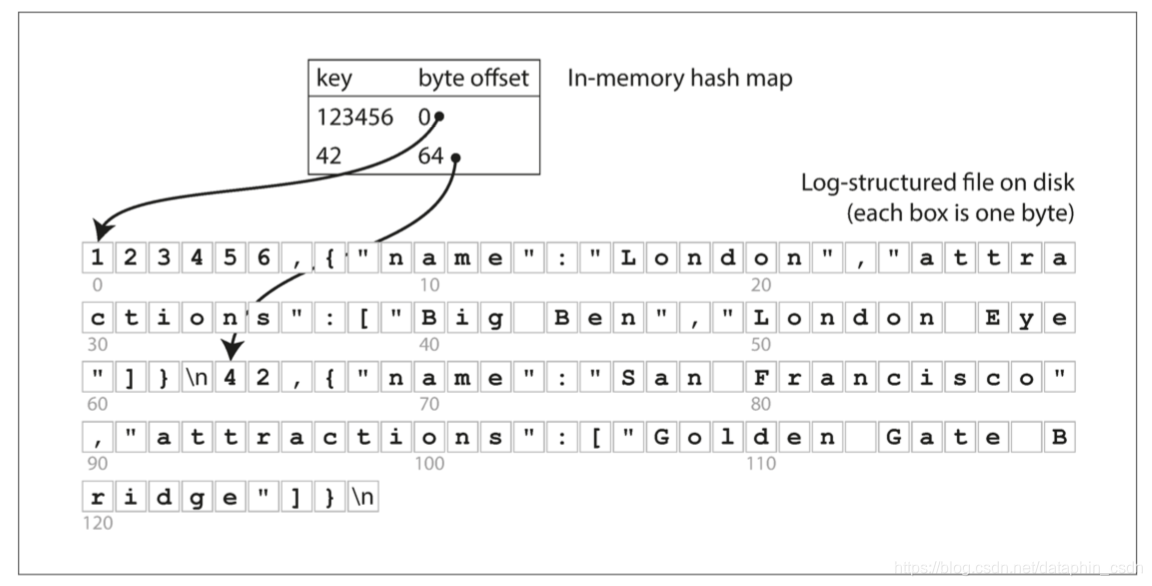

图3-1. 内存哈希表示例

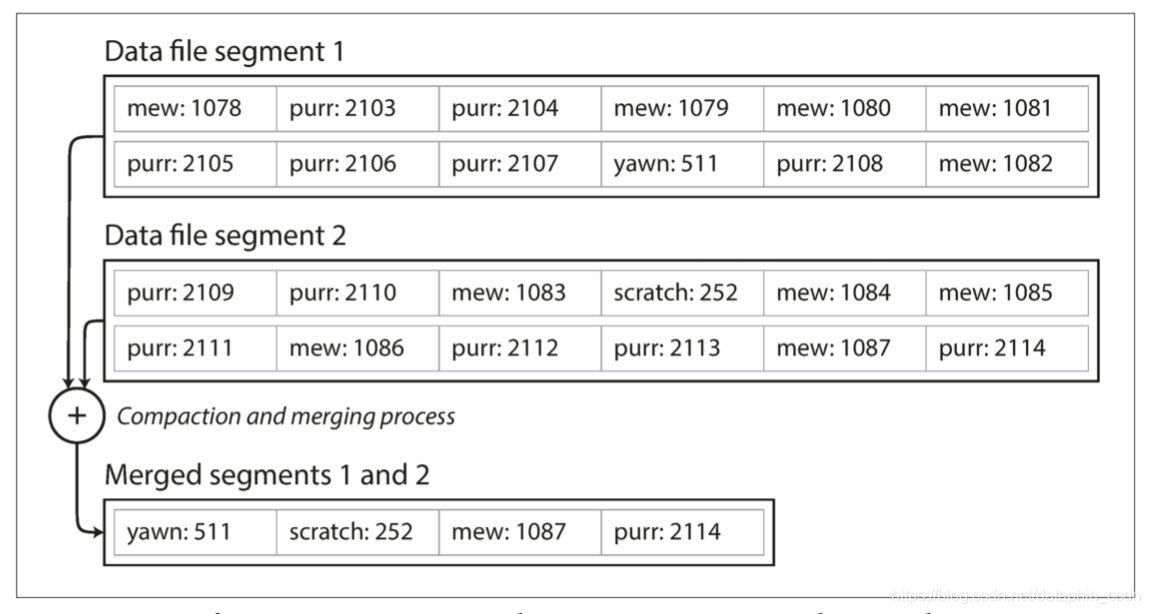

图3-2. 数据压缩

3.2 SSTable

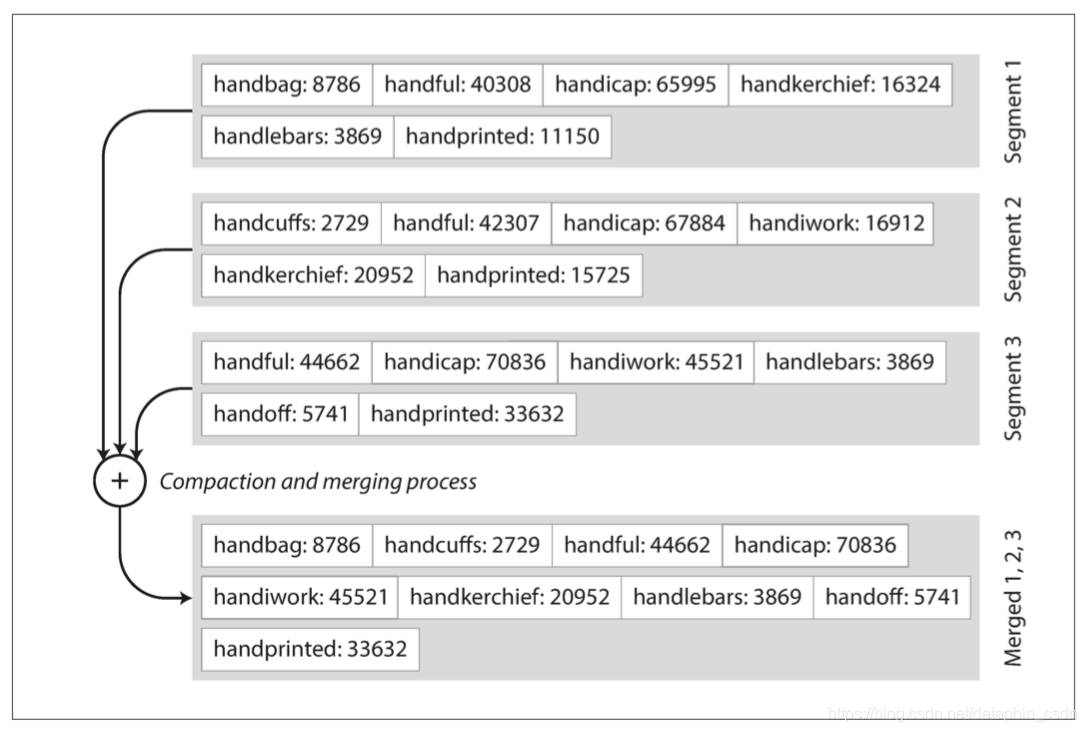

图3-3. SSTable 示例

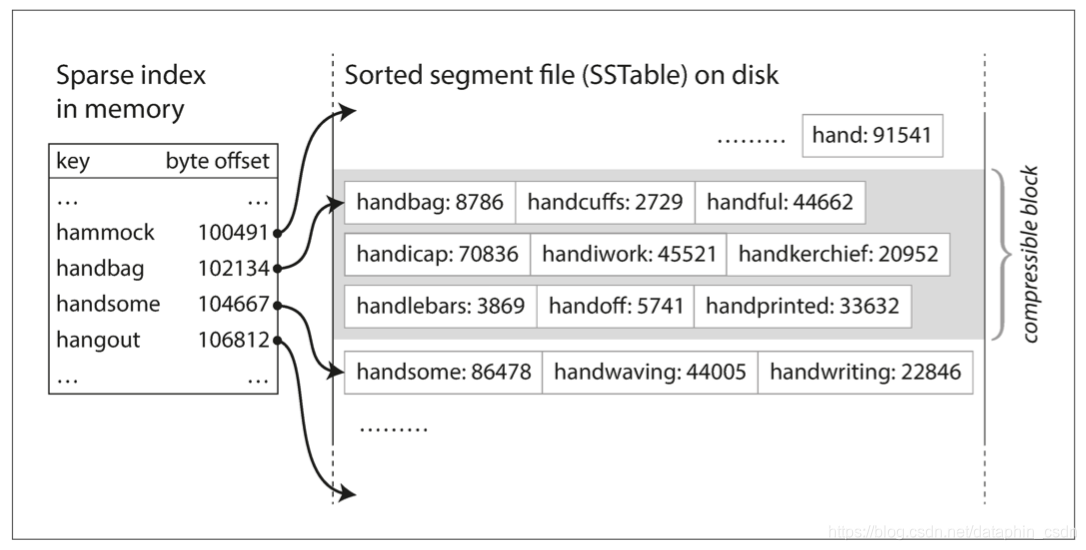

图3-4. 稀疏索引及SSTable存储对应关系

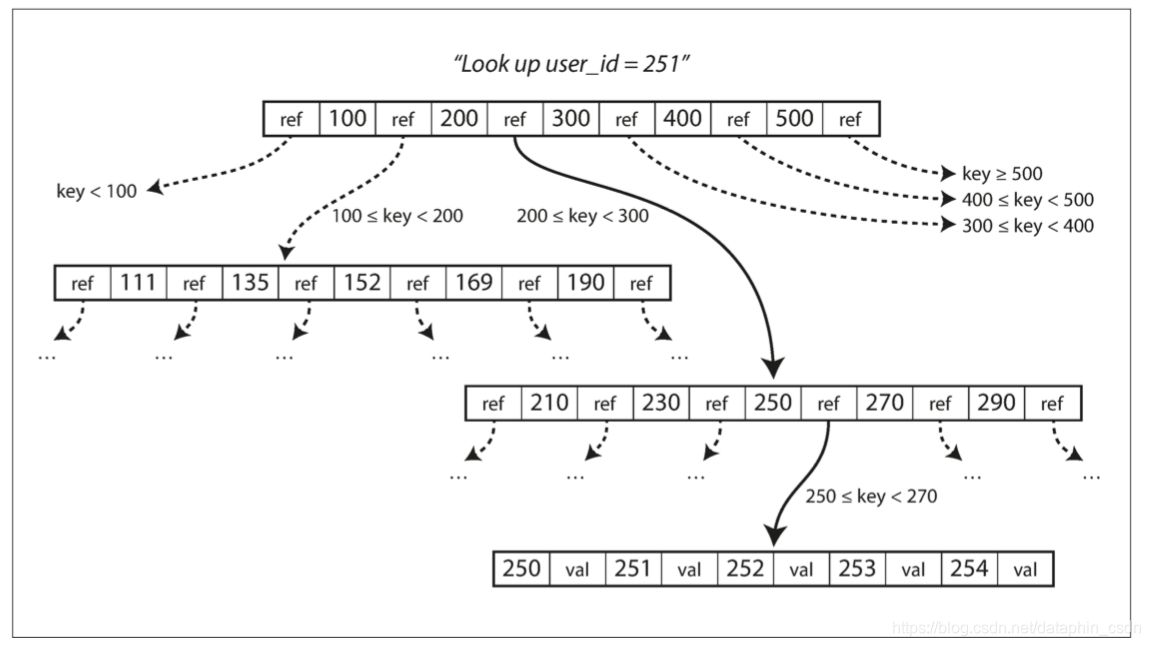

图3-5. B树索引的页面树示例

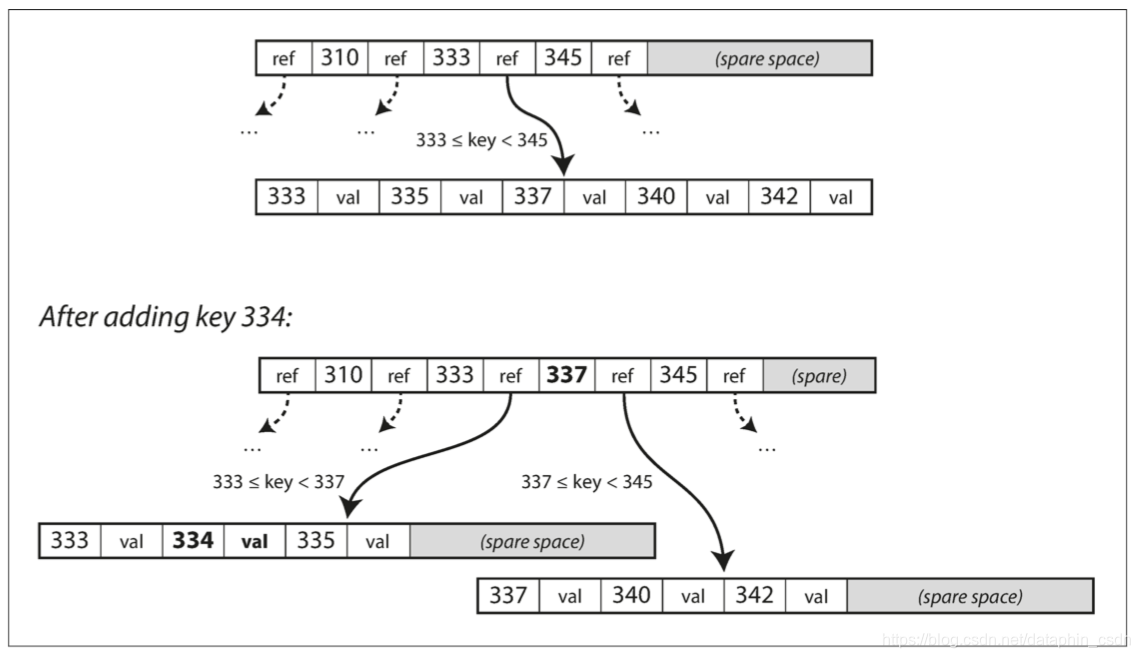

图3-6. B树插入新数据示意图

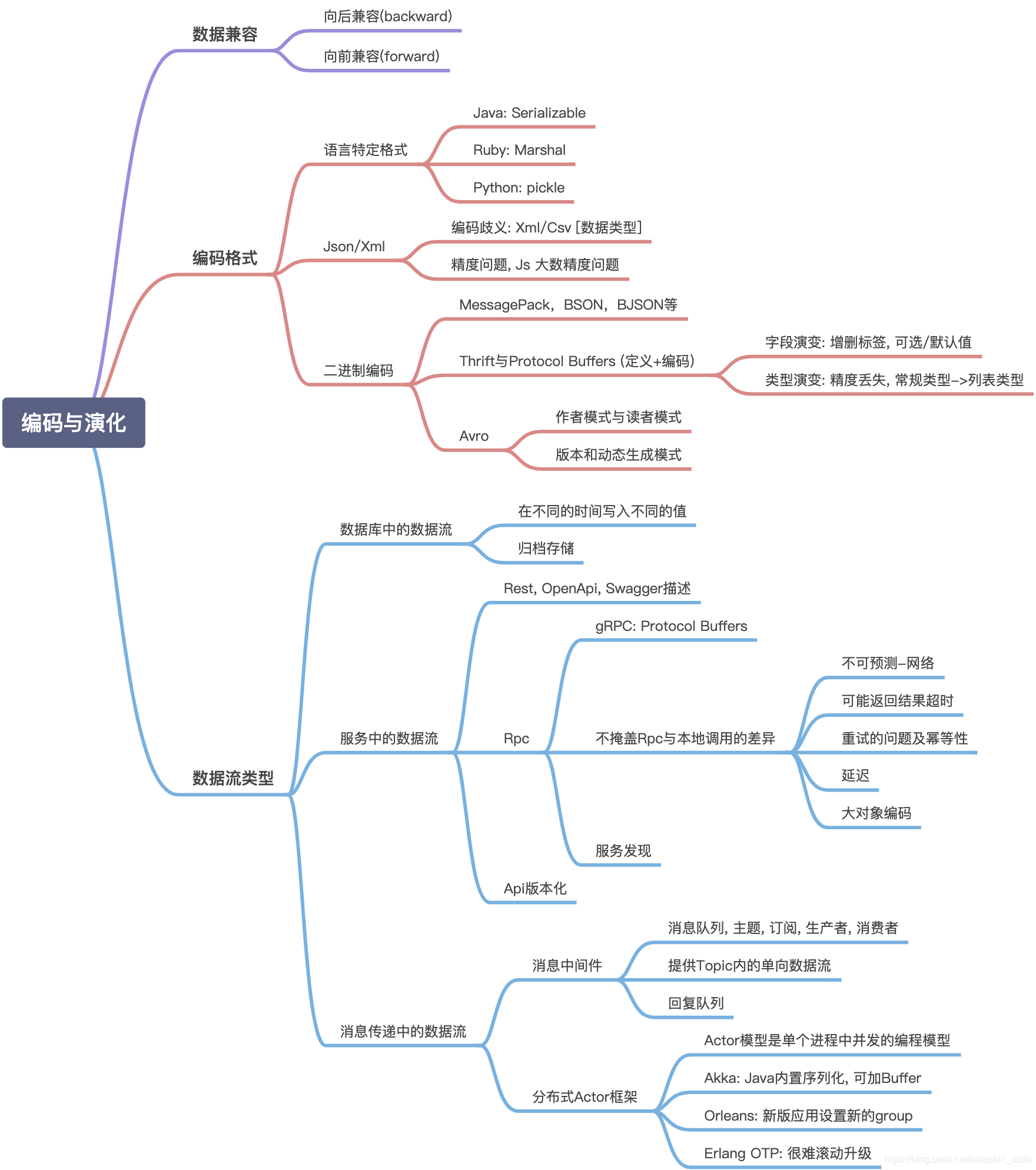

四. 数据编码与演化

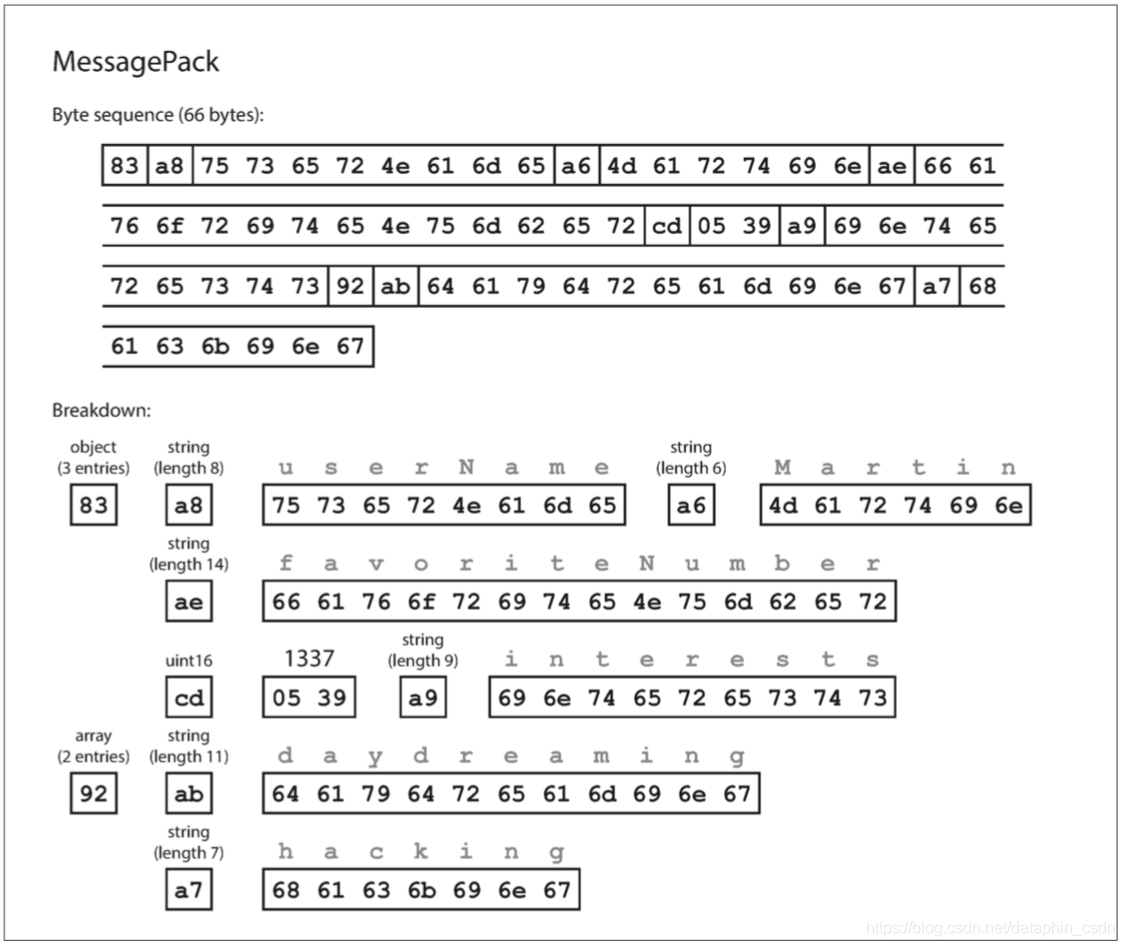

4.1 Json和二进制编码

// json
{
    "userName": "Martin",
    "favoriteNumber": 1337,
    "interests": ["daydreaming", "hacking"]
}

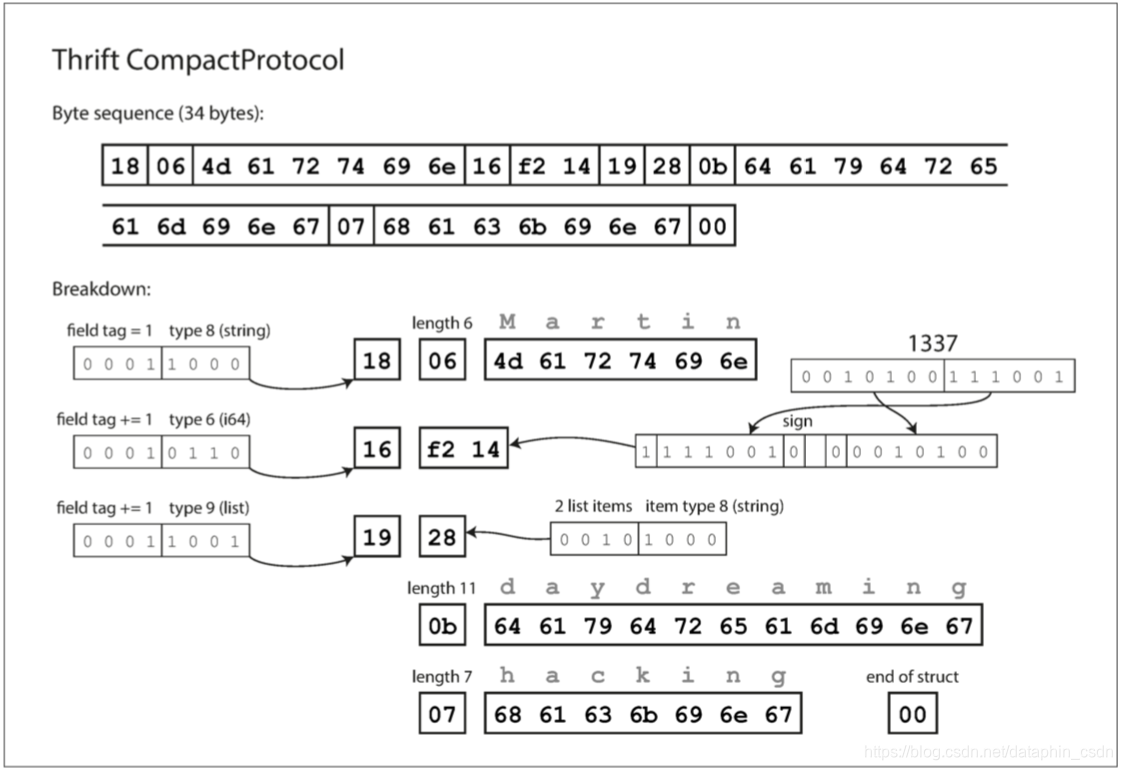

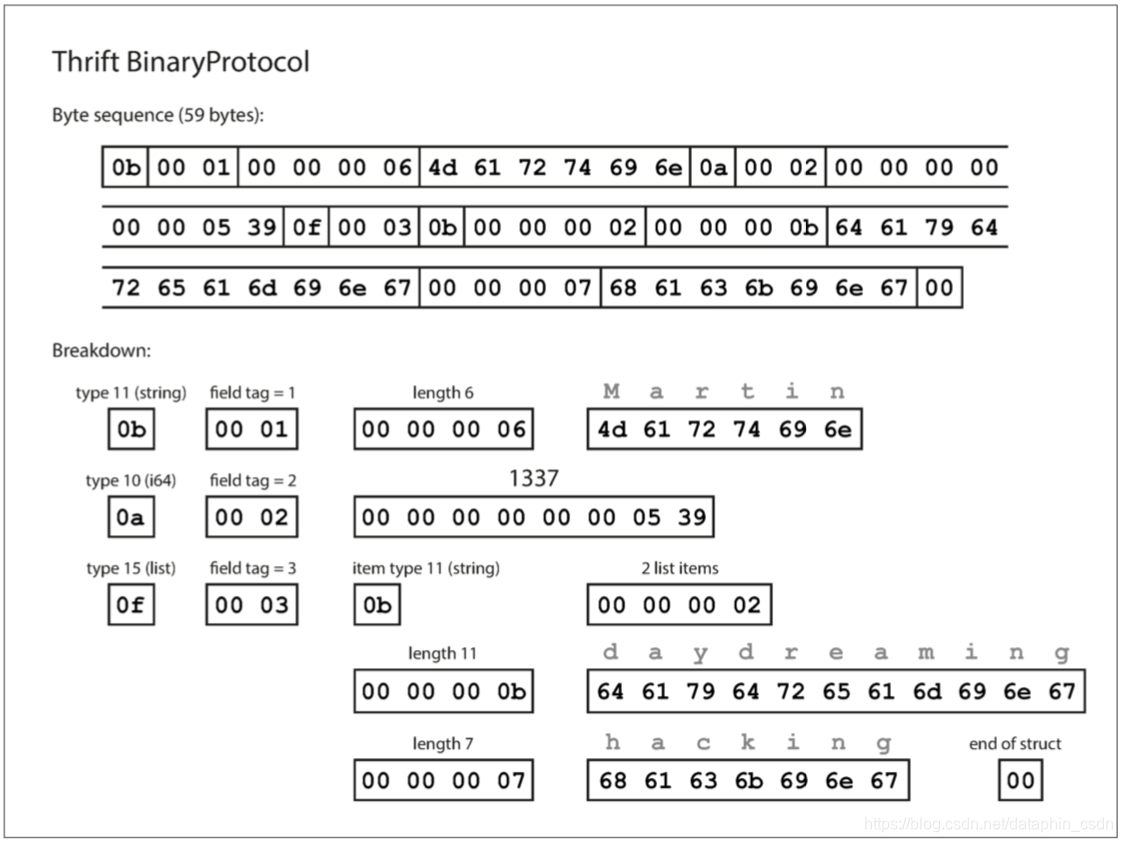

4.2 Thift和Protocol Buffers

// Thrift
struct Person {
    1: required string       userName,
    2: optional i64          favoriteNumber,
    3: optional list<string> interests
}
// Protocol Buffers
message Person {
    required string user_name       = 1;
    optional int64  favorite_number = 2;
    repeated string interests       = 3;
}

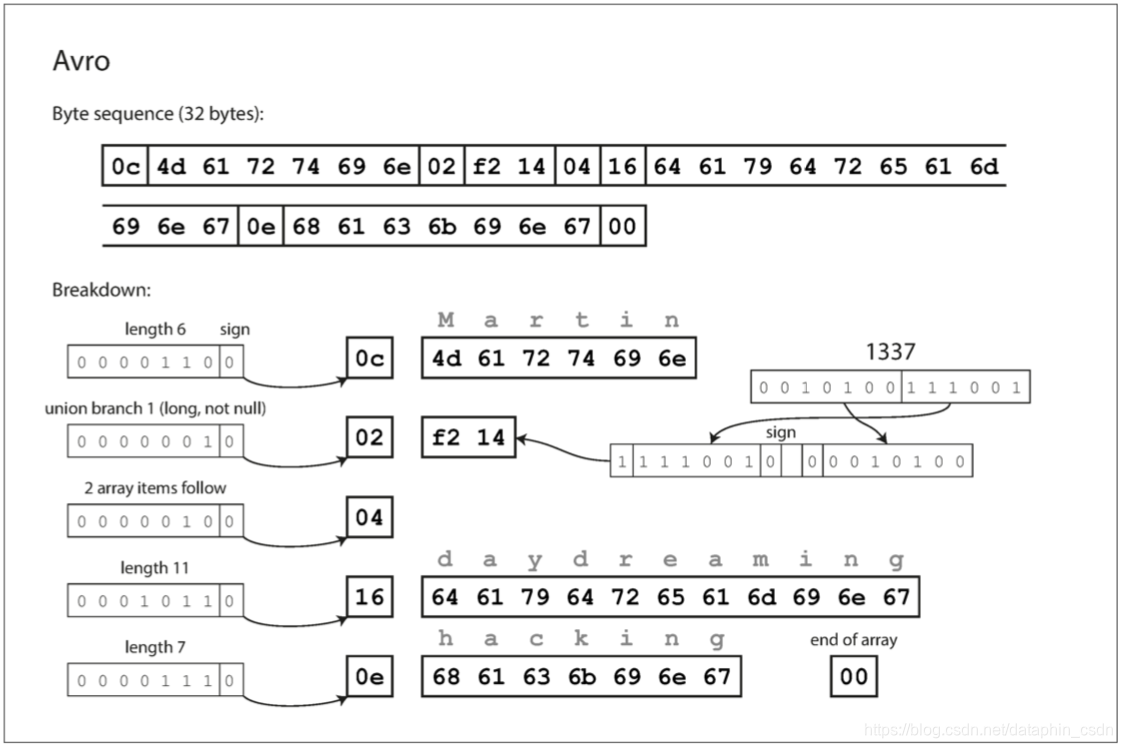

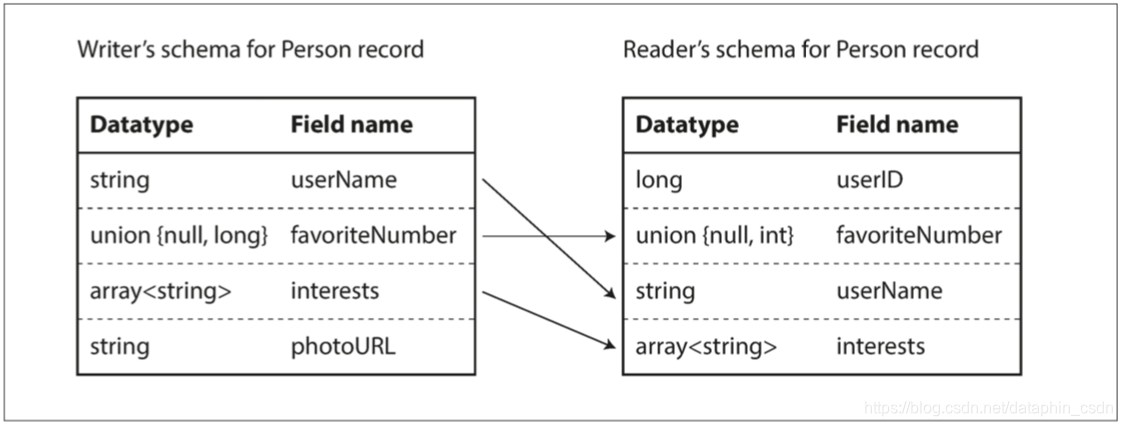

4.3 Avro

record Person {
    string                userName;
    union { null, long }  favoriteNumber = null;
    array<string>         interests;
}

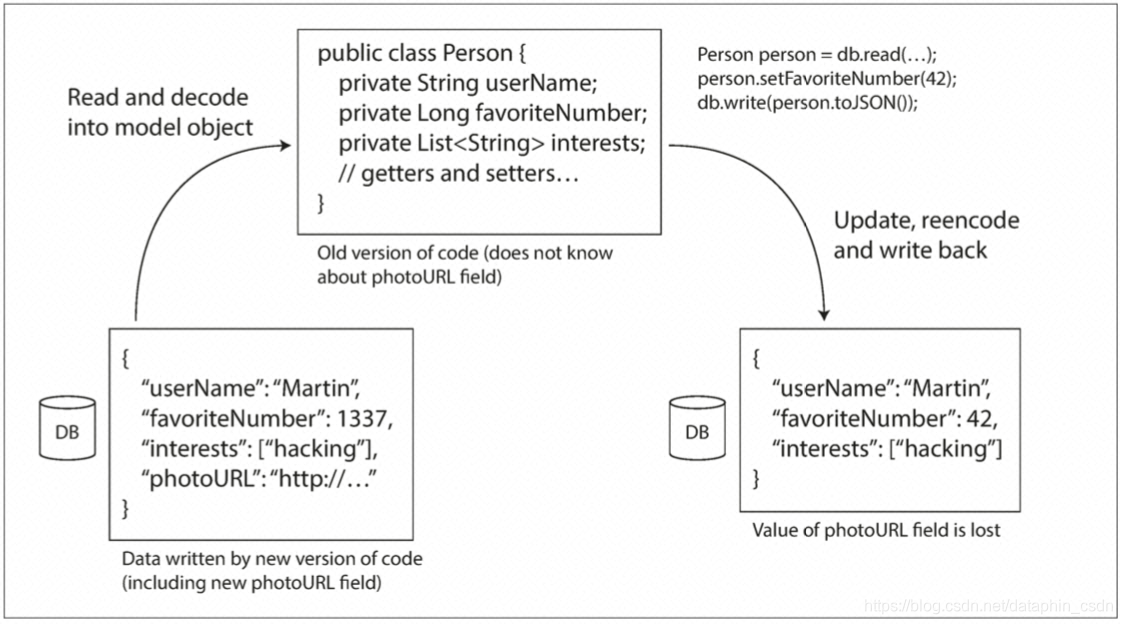

图4-7 当较旧版本的应用程序更新以前由较新版本的应用程序编写的数据时，如果不小心，数据可能会丢失。

附录

DDIA中文翻译: https://github.com/Vonng/ddia
