SurfaceView源码分析

SV继承自View，但是并不是利用View的Draw来进行绘制。而是直接跟SurfaceFlinger进行通信。那么看下具体SV是怎么实现这个功能的，它的用法如何？
还是先从构造方法开始看起。

  public SurfaceView(Context context, AttributeSet attrs, int defStyleAttr, int defStyleRes) {
        super(context, attrs, defStyleAttr, defStyleRes);
        //Enable callbacks for position changes.
        mRenderNode.requestPositionUpdates(this);
        //此方法规定不会走正常的draw方法。
        setWillNotDraw(true);
    }

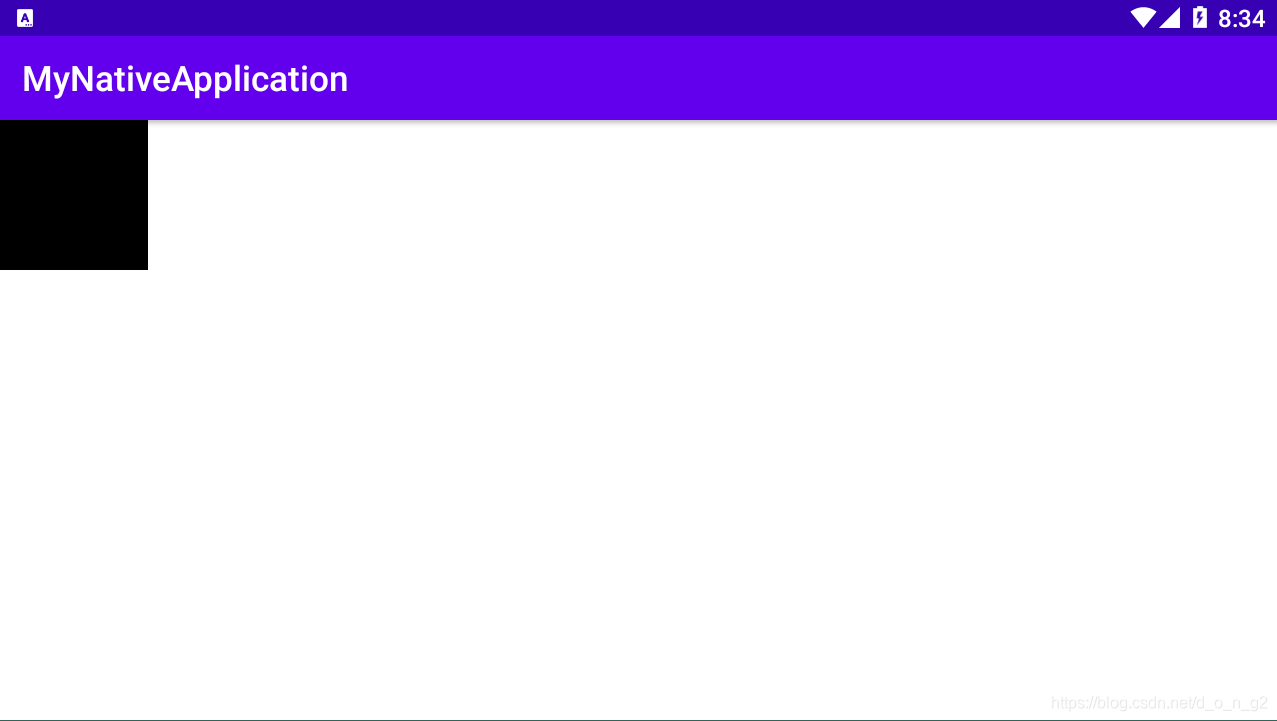

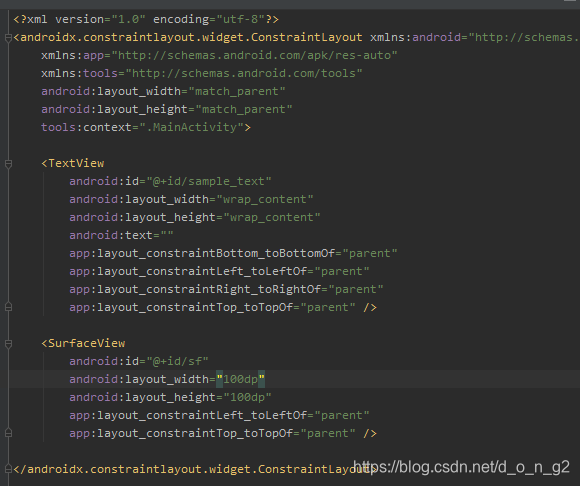

假设我们直接贴一个SurfaceView 到布局中，给SV一定宽高，SV会形成一个"黑洞"区域。如图。

现在来分析下这是如何形成的。
由于SV也是一个View，只是绘制的时候会走自己的绘制机制。对于常规的onMesure和onLayout还是一样会跑的。这个也是SV得以能够进行绘制的前提条件，因为你必须首先有大小，然后有位置，其次才是在具体位置利用画笔（paint）进行绘制的。那么先来看看onMeasure。

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    //mRequestedWidth 由setFixedSize设置，默认情况是-1。那么默认是走getDefaultSize.也就是基本的测量方法。
        int width = mRequestedWidth >= 0
                ? resolveSizeAndState(mRequestedWidth, widthMeasureSpec, 0)
                : getDefaultSize(0, widthMeasureSpec);
        int height = mRequestedHeight >= 0
                ? resolveSizeAndState(mRequestedHeight, heightMeasureSpec, 0)
                : getDefaultSize(0, heightMeasureSpec);
        setMeasuredDimension(width, height);
    }

所以onMeasure可以说平平无奇。
接下来看下布局。发现SV并没有重写这个onLayout方法。但是有重写setFrame方法，这个方法是View中，layout过程调用的。所以布局的时候必然会走到这个setFrame方法。

/** @hide */
@Override
protected boolean setFrame(int left, int top, int right, int bottom) {
    boolean result = super.setFrame(left, top, right, bottom);
    updateSurface();
    return result;
}

这里面的关键方法就是updateSurface方法.

    /** @hide */
    protected void updateSurface() {
    //判断是否有长宽。经历了measure之后mHaveFrame为true.
        if (!mHaveFrame) {
            return;
        }
        //获取View 根。
        ViewRootImpl viewRoot = getViewRootImpl();
        //主要看最后一个就是说View的mSurface是否准备完毕。也就是说，必须ViewTree的surface准备完毕才会走到后面的方法。正常流程经历了onResume，surface准备完毕，才会发起requestlayout，才会有布局的。
        if (viewRoot == null || viewRoot.mSurface == null || !viewRoot.mSurface.isValid()) {
            return;
        }
 // mTranslator 属于一个转换器。
        mTranslator = viewRoot.mTranslator;
        if (mTranslator != null) {
            mSurface.setCompatibilityTranslator(mTranslator);
        }

        int myWidth = mRequestedWidth;
        if (myWidth <= 0) myWidth = getWidth();
        int myHeight = mRequestedHeight;
        if (myHeight <= 0) myHeight = getHeight();

        final boolean formatChanged = mFormat != mRequestedFormat;
        final boolean visibleChanged = mVisible != mRequestedVisible;
        //判断Surface是否正在创建状态，但是没有创建完毕。从这里也可以看到SF的surface和ViewRoot的surfcace并不是同一个。
        final boolean creating = (mSurfaceControl == null || formatChanged || visibleChanged)
                && mRequestedVisible;
        final boolean sizeChanged = mSurfaceWidth != myWidth || mSurfaceHeight != myHeight;
        final boolean windowVisibleChanged = mWindowVisibility != mLastWindowVisibility;
        boolean redrawNeeded = false;

        if (creating || formatChanged || sizeChanged || visibleChanged || windowVisibleChanged) {
        //获取sf控件在其整个屏幕上的坐标位置，并且存储在mLocation中。
            getLocationInWindow(mLocation);
            try {
                final boolean visible = mVisible = mRequestedVisible;
                mWindowSpaceLeft = mLocation[0];
                mWindowSpaceTop = mLocation[1];
                mSurfaceWidth = myWidth;
                mSurfaceHeight = myHeight;
                mFormat = mRequestedFormat;
                mLastWindowVisibility = mWindowVisibility;

                mScreenRect.left = mWindowSpaceLeft;
                mScreenRect.top = mWindowSpaceTop;
                mScreenRect.right = mWindowSpaceLeft + getWidth();
                mScreenRect.bottom = mWindowSpaceTop + getHeight();
                if (mTranslator != null) {
                    mTranslator.translateRectInAppWindowToScreen(mScreenRect);
                }

                final Rect surfaceInsets = getParentSurfaceInsets();
                mScreenRect.offset(surfaceInsets.left, surfaceInsets.top);

                if (creating) {
                //通过ViewRoot的surface创建mSurfaceSession，这个变量用于根SurfaceFlinger进行交互。
                    mSurfaceSession = new SurfaceSession(viewRoot.mSurface);
                    mDeferredDestroySurfaceControl = mSurfaceControl;

                    updateOpaqueFlag();
                    //mSurfaceControl 从字面来看就是Surface的管理类，里面主要都是native方法。
                    mSurfaceControl = new SurfaceControlWithBackground(mSurfaceSession,
                            "SurfaceView - " + viewRoot.getTitle().toString(),
                            mSurfaceWidth, mSurfaceHeight, mFormat,
                            mSurfaceFlags);
                } else if (mSurfaceControl == null) {
                    return;
                }

                boolean realSizeChanged = false;

                mSurfaceLock.lock();
                try {
                    mDrawingStopped = !visible;

                    if (DEBUG) Log.i(TAG, System.identityHashCode(this) + " "
                            + "Cur surface: " + mSurface);
                    //SC开启一次事务。
                    SurfaceControl.openTransaction();
                    try {
                    //mSublayout属于一个type。SV的类型为APPLICATION_MEDIA_SUBLAYER
                        mSurfaceControl.setLayer(mSubLayer);
                        if (mViewVisibility) {
                            mSurfaceControl.show();
                        } else {
                            mSurfaceControl.hide();
                        }
                        //设置Surface的位置。矩阵。
                        if (sizeChanged || creating || !mRtHandlingPositionUpdates) {
                            mSurfaceControl.setPosition(mScreenRect.left, mScreenRect.top);
                            mSurfaceControl.setMatrix(mScreenRect.width() / (float) mSurfaceWidth,
                                    0.0f, 0.0f,
                                    mScreenRect.height() / (float) mSurfaceHeight);
                        }
                        if (sizeChanged) {
                            mSurfaceControl.setSize(mSurfaceWidth, mSurfaceHeight);
                        }
                    } finally {
                        SurfaceControl.closeTransaction();
                    }

                    if (sizeChanged || creating) {
                        redrawNeeded = true;
                    }

                    mSurfaceFrame.left = 0;
                    mSurfaceFrame.top = 0;
                    if (mTranslator == null) {
                        mSurfaceFrame.right = mSurfaceWidth;
                        mSurfaceFrame.bottom = mSurfaceHeight;
                    } else {
                        float appInvertedScale = mTranslator.applicationInvertedScale;
                        mSurfaceFrame.right = (int) (mSurfaceWidth * appInvertedScale + 0.5f);
                        mSurfaceFrame.bottom = (int) (mSurfaceHeight * appInvertedScale + 0.5f);
                    }

                    final int surfaceWidth = mSurfaceFrame.right;
                    final int surfaceHeight = mSurfaceFrame.bottom;
                    realSizeChanged = mLastSurfaceWidth != surfaceWidth
                            || mLastSurfaceHeight != surfaceHeight;
                    mLastSurfaceWidth = surfaceWidth;
                    mLastSurfaceHeight = surfaceHeight;
                } finally {
                    mSurfaceLock.unlock();
                }

                try {
                    redrawNeeded |= visible && !mDrawFinished;

                    SurfaceHolder.Callback callbacks[] = null;

                    final boolean surfaceChanged = creating;
                    if (mSurfaceCreated && (surfaceChanged || (!visible && visibleChanged))) {
                        mSurfaceCreated = false;
                        if (mSurface.isValid()) {
                           //需要重建mSurface
                            callbacks = getSurfaceCallbacks();
                            for (SurfaceHolder.Callback c : callbacks) {
                                c.surfaceDestroyed(mSurfaceHolder);
                            }

                            if (mSurface.isValid()) {
                                mSurface.forceScopedDisconnect();
                            }
                        }
                    }
                   //如果正在创建，直接copyFrom
                    if (creating) {
                        mSurface.copyFrom(mSurfaceControl);
                    }
                   //如果size改变。并且考虑兼容性，需要直接createFrom
                    if (sizeChanged && getContext().getApplicationInfo().targetSdkVersion
                            < Build.VERSION_CODES.O) {
                        mSurface.createFrom(mSurfaceControl);
                    }
                   //此时mSurface已经可以用了。可以愉快的进行lockCanvas
                    if (visible && mSurface.isValid()) {
                        if (!mSurfaceCreated && (surfaceChanged || visibleChanged)) {
                            mSurfaceCreated = true;
                            mIsCreating = true;

                            if (callbacks == null) {
                                callbacks = getSurfaceCallbacks();
                            }
                            //此处就是回调callback，我们自定义SV可以在这个方法里面拿到surface。
                            for (SurfaceHolder.Callback c : callbacks) {
                                c.surfaceCreated(mSurfaceHolder);
                            }
                        }
                        //size 改变的情形。
                        if (creating || formatChanged || sizeChanged
                                || visibleChanged || realSizeChanged) {
                            if (DEBUG) Log.i(TAG, System.identityHashCode(this) + " "
                                    + "surfaceChanged -- format=" + mFormat
                                    + " w=" + myWidth + " h=" + myHeight);
                            if (callbacks == null) {
                                callbacks = getSurfaceCallbacks();
                            }
                            for (SurfaceHolder.Callback c : callbacks) {
                                c.surfaceChanged(mSurfaceHolder, mFormat, myWidth, myHeight);
                            }
                        }
                        //需要重新绘制的情形。
                        if (redrawNeeded) {
                            if (DEBUG) Log.i(TAG, System.identityHashCode(this) + " "
                                    + "surfaceRedrawNeeded");
                            if (callbacks == null) {
                                callbacks = getSurfaceCallbacks();
                            }

                            mPendingReportDraws++;
                            viewRoot.drawPending();
                            SurfaceCallbackHelper sch =
                                    new SurfaceCallbackHelper(this::onDrawFinished);
                            sch.dispatchSurfaceRedrawNeededAsync(mSurfaceHolder, callbacks);
                        }
                    }
                } finally {

                    mIsCreating = false;
                    //如果到这里还是没有创建成功，那么需要释放mSurface。
                    if (mSurfaceControl != null && !mSurfaceCreated) {
                        mSurface.release();
                        // If we are not in the stopped state, then the destruction of the Surface
                        // represents a visual change we need to display, and we should go ahead
                        // and destroy the SurfaceControl. However if we are in the stopped state,
                        // we can just leave the Surface around so it can be a part of animations,
                        // and we let the life-time be tied to the parent surface.
                        if (!mWindowStopped) {
                            mSurfaceControl.destroy();
                            mSurfaceControl = null;
                        }
                    }
                }
            } catch (Exception ex) {
                Log.e(TAG, "Exception configuring surface", ex);
            }
        } else {
            //此处else，是针对surface非初始化创建的情形，也就是surface可利用的情形。
            getLocationInSurface(mLocation);
            final boolean positionChanged = mWindowSpaceLeft != mLocation[0]
                    || mWindowSpaceTop != mLocation[1];
            final boolean layoutSizeChanged = getWidth() != mScreenRect.width()
                    || getHeight() != mScreenRect.height();
            if (positionChanged || layoutSizeChanged) { // Only the position has changed
                mWindowSpaceLeft = mLocation[0];
                mWindowSpaceTop = mLocation[1];
                // For our size changed check, we keep mScreenRect.width() and mScreenRect.height()
                // in view local space.
                mLocation[0] = getWidth();
                mLocation[1] = getHeight();

                mScreenRect.set(mWindowSpaceLeft, mWindowSpaceTop,
                        mWindowSpaceLeft + mLocation[0], mWindowSpaceTop + mLocation[1]);

                if (mTranslator != null) {
                    mTranslator.translateRectInAppWindowToScreen(mScreenRect);
                }

                if (mSurfaceControl == null) {
                    return;
                }

                if (!isHardwareAccelerated() || !mRtHandlingPositionUpdates) {
                    try {
                        setParentSpaceRectangle(mScreenRect, -1);
                    } catch (Exception ex) {
                        Log.e(TAG, "Exception configuring surface", ex);
                    }
                }
            }
        }
    }

通过这个方法，surface已经创建完毕，并且位置和大小也确定了，所以会留下一个黑洞。如果想要绘制内容，需要实现 SurfaceHolder.Callback。下面是个demo，结合我上面的分析，能够对SV的绘制机制有更深入了解。

public class SurfaceViewDemo extends SurfaceView implements SurfaceHolder.Callback{
    private SurfaceHolder mSurfaceHolder;
    private Canvas mCanvas;
    private Paint paint;

    public SurfaceViewDemo(Context context) {
        this(context,null,0);
    }

    public SurfaceViewDemo(Context context, AttributeSet attrs) {
        this(context, attrs,0);
    }

    public SurfaceViewDemo(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }

    private void init() {
        mSurfaceHolder = getHolder();
        mSurfaceHolder.addCallback(this);
        setFocusable(true);
        setFocusableInTouchMode(true);
        this.setKeepScreenOn(true);
        paint = new Paint(Paint.ANTI_ALIAS_FLAG);
        paint.setColor(Color.RED);
        paint.setStrokeWidth(5);
        paint.setStyle(Paint.Style.STROKE);
    }

    @Override
    public void surfaceCreated(SurfaceHolder holder) {
        System.out.println("=========surfaceCreated========");
        new Thread(new Runnable() {
            @Override
            public void run() {
                draw();
            }
        }).start();
    }

    private void draw() {
        try {
            System.out.println("============draw========");
            mCanvas = mSurfaceHolder.lockCanvas();
            mCanvas.drawCircle(500,500,300,paint);
            mCanvas.drawCircle(100,100,20,paint);
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            if (mCanvas != null)
                mSurfaceHolder.unlockCanvasAndPost(mCanvas);
        }
    }

    @Override
    public void surfaceChanged(SurfaceHolder holder, int format, int width, int height) {
        System.out.println("=========surfaceChanged========");
    }

    @Override
    public void surfaceDestroyed(SurfaceHolder holder) {
        System.out.println("=========surfaceDestroyed========");
    }
}

通过对SurfaceView机制的分析，可以得知，实际上SV是自己独占一个Surface。好处就是摆脱了View自带的绘制机制，比如说主线程绘制，必须是VSYNC 才能绘制等缺点。
