Netty简介：
Netty是JBOSS 基于Java NIO开源的提供异步、事件驱动的网络通信框架，用于开发高性能网络服务器
Zookeeper RocketMq Dubbo ShardingSphere 底层通信都有用到它
服务端代码实例
public class DiscardServer {
private int port;
public DiscardServer(int port) {
this.port = port;
}
public void run() throws Exception {
EventLoopGroup bossGroup = new NioEventLoopGroup(); // (1)
EventLoopGroup workerGroup = new NioEventLoopGroup();
try {
ServerBootstrap b = new ServerBootstrap(); // (2)
b.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class) // (3)
.childHandler(new ChannelInitializer<SocketChannel>() { // (4)
@Override
public void initChannel(SocketChannel ch) throws Exception {
ch.pipeline().addLast(new DiscardServerHandler());
}
})
.option(ChannelOption.SO_BACKLOG, 128) // (5)
.childOption(ChannelOption.SO_KEEPALIVE, true); // (6)
// Bind and start to accept incoming connections.
ChannelFuture f = b.bind(port).sync(); // (7)
// Wait until the server socket is closed.
// In this example, this does not happen, but you can do that to gracefully
// shut down your server.
f.channel().closeFuture().sync();
} finally {
workerGroup.shutdownGracefully();
bossGroup.shutdownGracefully();
}
}
public static void main(String[] args) throws Exception {
int port = 8080;
if (args.length > 0) {
port = Integer.parseInt(args[0]);
}
new DiscardServer(port).run();
}
}
public class DiscardServerHandler extends ChannelInboundHandlerAdapter { // (1)
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) { // (2)
// Discard the received data silently.
((ByteBuf) msg).release(); // (3)
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) { // (4)
// Close the connection when an exception is raised.
cause.printStackTrace();
ctx.close();
}
}
这个是netty官网上的代码，服务端的netty代码基本都是这个模板，在执行bind操作后就可以监听端口接收客户端请求了
这个模板代码里面主要有以下几个步骤
- 创建服务端启动引导类 ServerBootstrap
- ServerBootstrap 绑定两个EventLoopGroup ，第一个处理网络连接，另外一个处理业务请求(约定处理连接的叫bossGroup ，处理业务的叫workerGroup )
- 绑定Channel
- 设置workerGroup 的业务逻辑处理Handler
- 设置网络相关参数
- 执行bind操作,开始监听端口接收客户端请求
netty组件

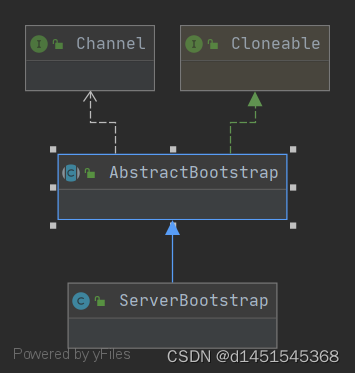

ServerBootstrap：
服务端引导程序启动类，继承了AbstractBootstrap
内部属性
| 属性 | 描述 |
|---|---|
| Map<ChannelOption<?>, Object> childOptions | work线程channel相关参数 |
| EventLoopGroup childGroup | 实际处理业务的工作者 事件循环线程池 |
| ChannelHandler childHandler | 处理添加到工作者事件循环线程的Channel |
AbstractBootstrap：
内部属性
| 属性 | 描述 |
|---|---|
| EventLoopGroup group | 事件循环线程池负责接收外部请求，一般内部只要一个NioEventLoop就可以 |
| ChannelFactory<? extends C> channelFactory | 实际处理业务的工作者 事件循环线程池 |
| SocketAddress localAddress | Socket地址可通过构造函数或者localAddress方法赋值，这个属性有值可以调用bind方法不用传端口信息 |
| ChannelFactory<? extends C> channelFactory | 实现类是ReflectiveChannelFactory ，负责创建Channel NioServerSocketChannel 或者NioSocketChannel ,channel方法传入具体Channel类构建 |
| Map<ChannelOption<?>, Object> | 定义了一些网络有关的参数 |
| ChannelHandler handler | BossGroup绑定的ChannelHandler处理类 |
Bootstrap
客户端引导类同样父类继承了AbstractBootstrap，只需要一个事件循环线程池
内部属性
| 属性 | 描述 |
|---|---|
| AddressResolverGroup<?> | 地址解析器 |
| SocketAddress remoteAddress | 服务端远程地址 |
NioEventLoopGroup
事件循环线程池 Bootstrap内部处理任务的线程池组

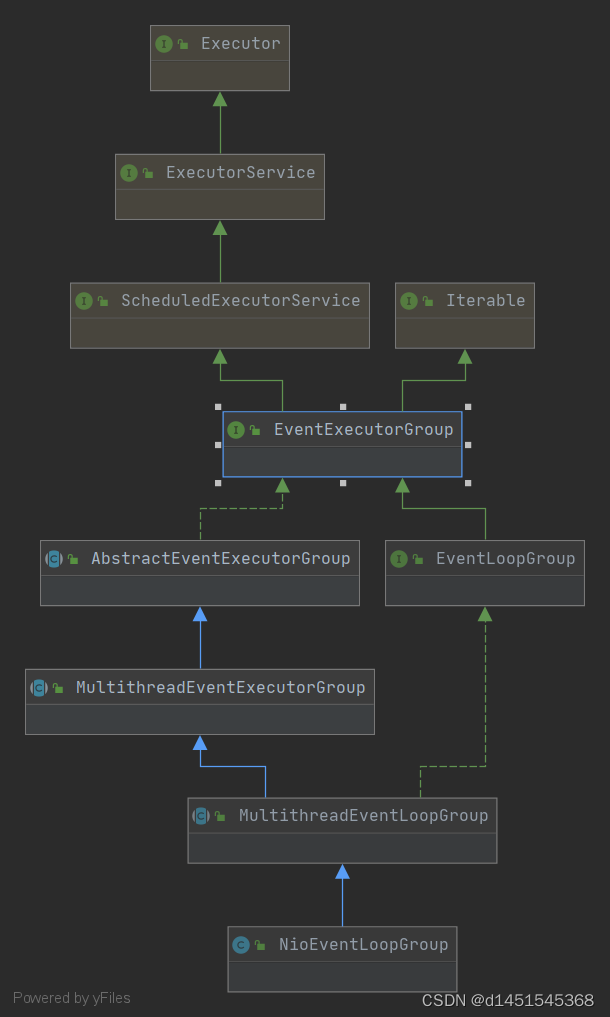

类继承体系及作用
| 类或者接口 | 作用 |
|---|---|
| Executor | 执行器接口 NioEventLoopGroup可以执行execute方法 |
| ExecutorService | 扩展执行器接口 定义了shutdown submit invokeAll invokeAny等方法 |
| ScheduledExecutorService | 表示NioEventLoopGroup可执行调度任务 |
| Iterable | 迭代器接口 |
| EventExecutorGroup | 定义了next方法 获取Group内的下一个事件循环线程 |
| AbstractEventExecutorGroup | 实现了一些执行submit invokeAll schedule 执行任务的方法 ，next()方法获取下一个事件循环线程实际执行 |
| EventLoopGroup | 定义next方法获取Group里面的线程 另外提供了三个register重载方法 将Channel具体绑定到一个 EventLoop |
| MultithreadEventExecutorGroup | 有集合记录了具体的EventLoop 实现了next方法的功能 |
| MultithreadEventLoopGroup | 实现了Channel注册功能 |
| NioEventLoopGroup | newChild 方法创建一个NioEventLoop |
NioEventLoop

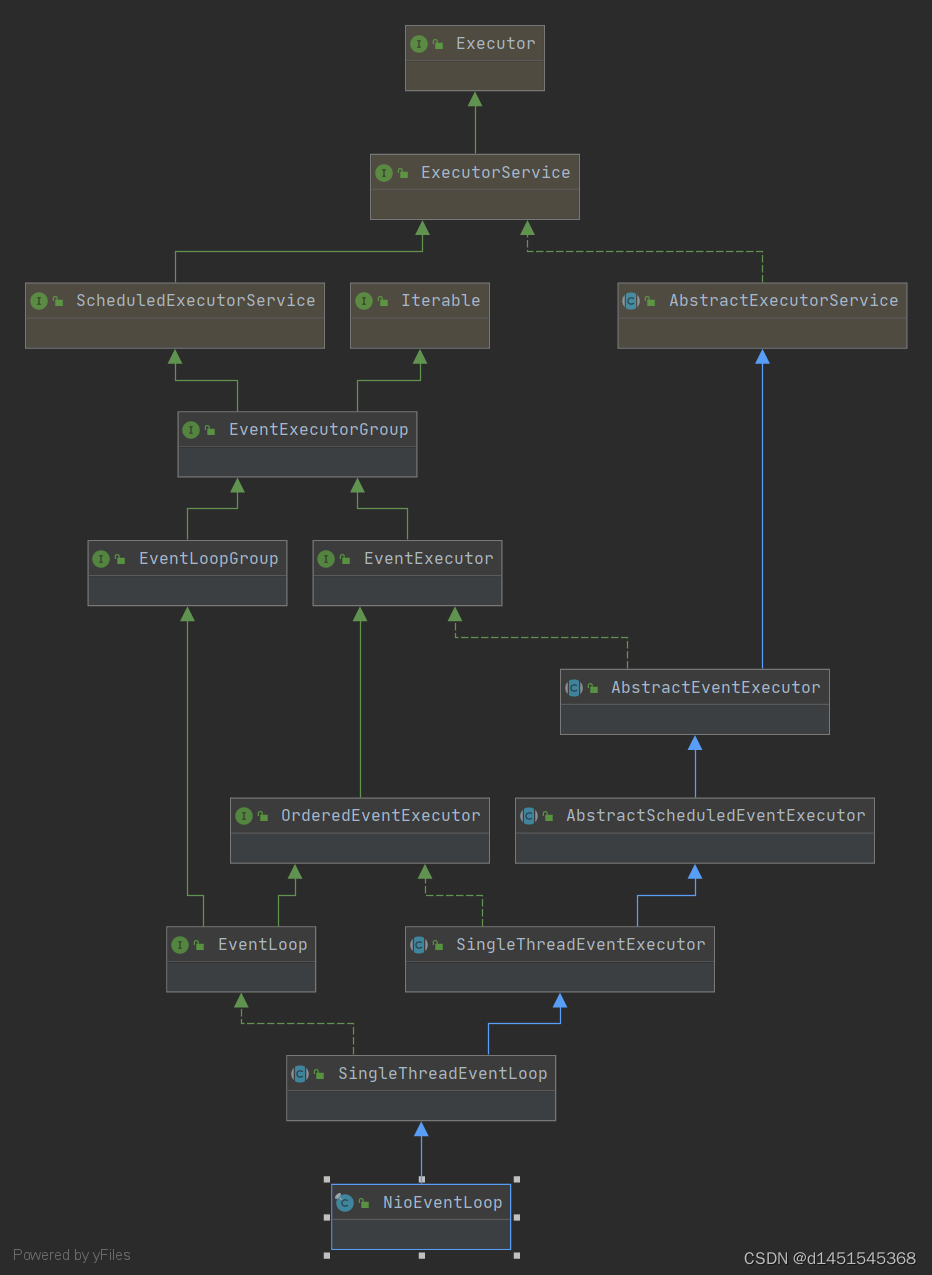

类继承体系及作用
| 类或者接口 | 作用 |
|---|---|
| EventExecutorGroup | 接口 : 提供了获取下一个EventExecutor的方法 EventExecutor迭代器的方法 |
| EventExecutor | 接口 起到标记作用 定义了inEventLoop方法 |
| AbstractEventExecutor | 实现了submit提交任务方法 交由父类AbstractExecutorService 执行 |
| AbstractExecutorService | JDK并发包里面的类 实现了 submit invokeAny 提交，执行任务的方法， 包装Runnable Callable 接口成FutureTask 的newTaskFo方法 |
| AbstractScheduledEventExecutor | 实现了ScheduledExecutorService的方法 内部有一个ScheduledFutureTask 的优先级队列 提供一些获取 ScheduledFutureTask 的方法给子类调用 |
| SingleThreadEventExecutor | 提供抽象方法run 调用NioEventLoop Run方法 ，实现了线程池的大部分方法 |
| SingleThreadEventLoop | register 方法将Channel绑定到一个事件循环线程 |
| NioEventLoop | 有Nio 的Selector选择器类，run方法筛选注册在Selector上的Channel |

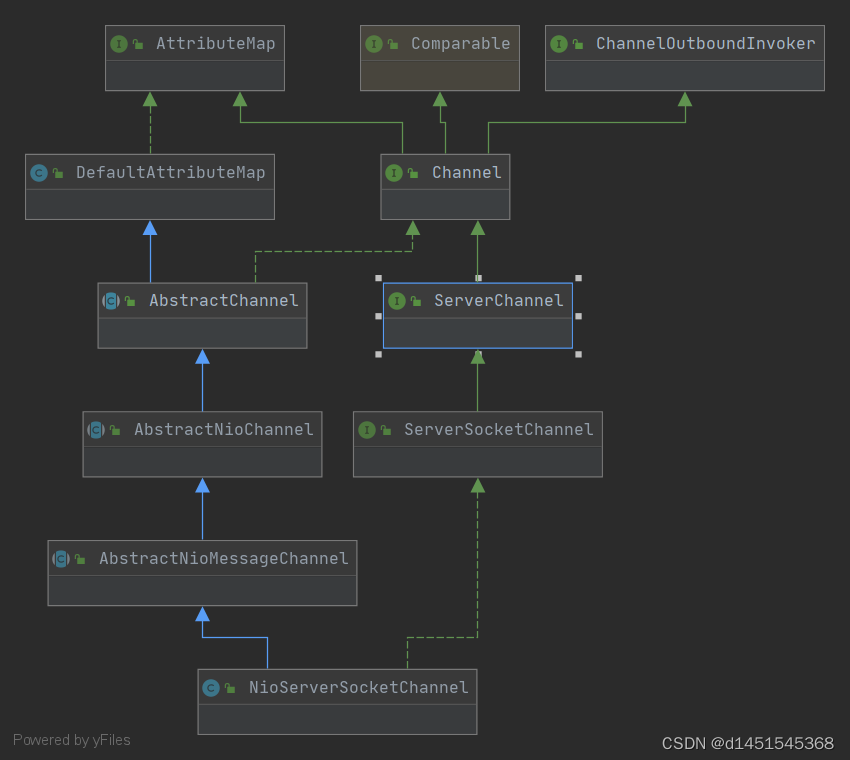

NioServerSocketChannel
服务端Channel
类继承体系及作用
| 类或接口 | 作用 |
|---|---|
| AbstractChannel | 比较顶层的实现，这个类定义了DefaultChannelPipeline Unsafe对象 没有涉及到Java NIO方面的概念 |
| AbstractNioChannel | 这里开始关联到jJava NIO方面的概念 有提供方法往事件循环线程池对应Selector注册SelectionKey |
| AbstractNioMessageChannel | 实现了读方法，接收到客户端请求后交给workGroup执行 |

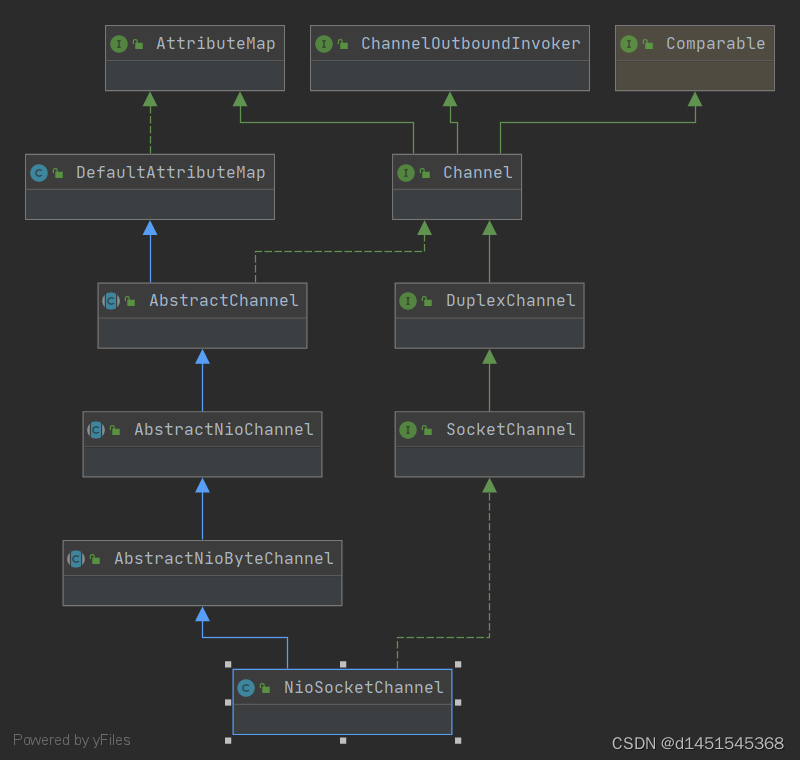

NioSocketChannel

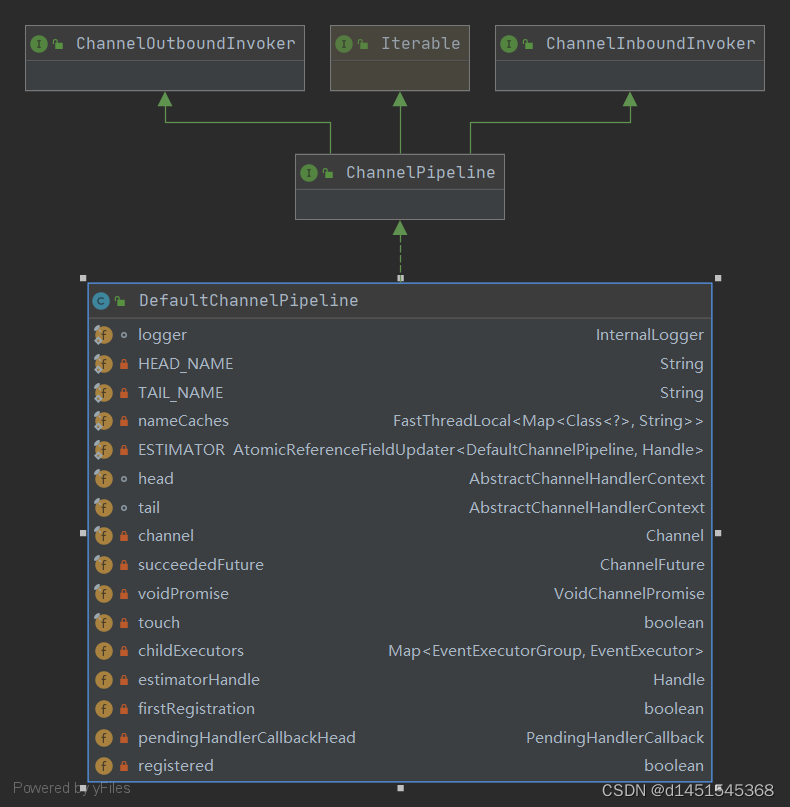

DefaultChannelPipeline
AbstractChannel (NioSocketChannel NioServerSocketChannel 都继承了这个类) 类有一个 DefaultChannelPipeline 属性
DefaultChannelPipeline 有两个 AbstractChannelHandlerContext属性,分别是hean tail，看命名就知道 AbstractChannelHandlerContext的数据能组成一个链表结构（也就是Netty中的Channel内部有一个链表来处理请求）

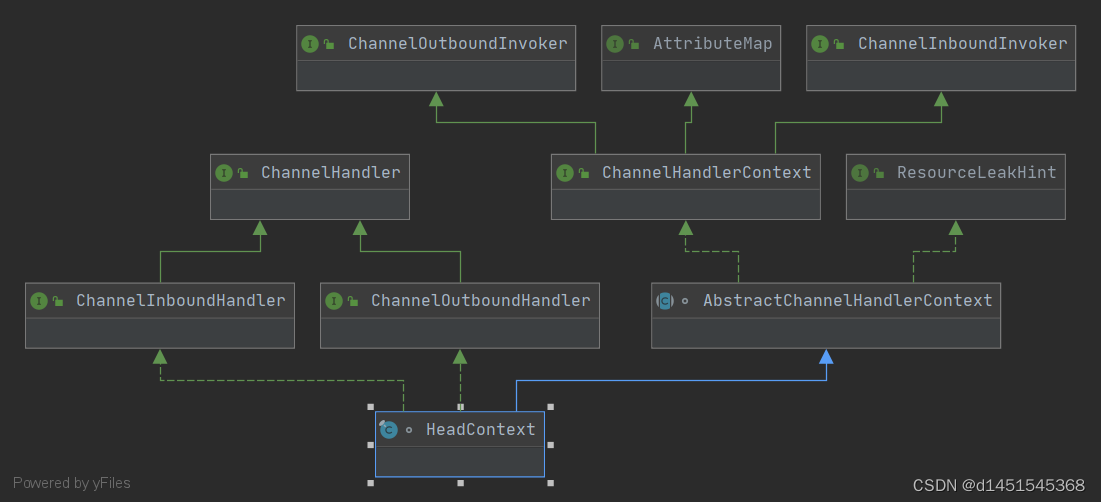

HeadContext

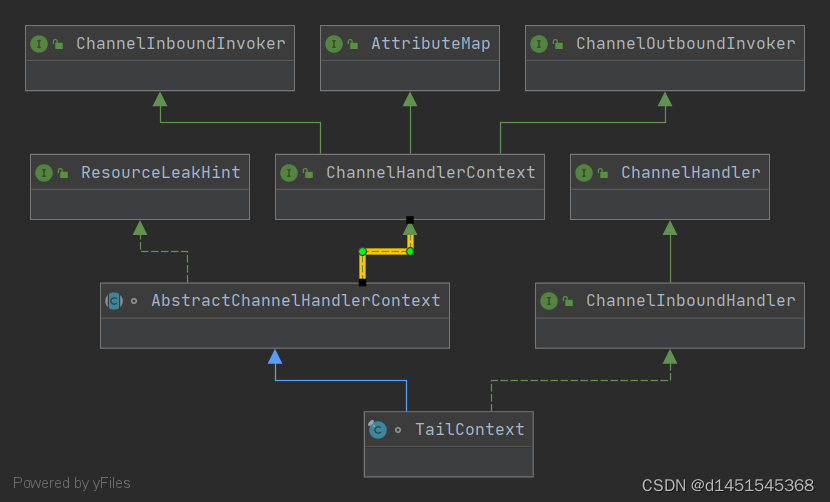

TailContext
可以看到 HeadContext 比TailContext多继承了一个ChannelOutboundHandler接口(提供write flush方法)，所以向网络的另外一端写出数据最终是通过HeadContext
服务端bind过程
bind之后可以监听端口,我们来看看具体过程，代码入口在AbstractBootstrap doBind方法
private ChannelFuture doBind(final SocketAddress localAddress) {
final ChannelFuture regFuture = initAndRegister();
final Channel channel = regFuture.channel();
if (regFuture.cause() != null) {
return regFuture;
}
if (regFuture.isDone()) {
// At this point we know that the registration was complete and successful.
ChannelPromise promise = channel.newPromise();
doBind0(regFuture, channel, localAddress, promise);
return promise;
} else {
// Registration future is almost always fulfilled already, but just in case it's not.
final PendingRegistrationPromise promise = new PendingRegistrationPromise(channel);
regFuture.addListener(new ChannelFutureListener() {
@Override
public void operationComplete(ChannelFuture future) throws Exception {
Throwable cause = future.cause();
if (cause != null) {
// Registration on the EventLoop failed so fail the ChannelPromise directly to not cause an
// IllegalStateException once we try to access the EventLoop of the Channel.
promise.setFailure(cause);
} else {
// Registration was successful, so set the correct executor to use.
// See https://github.com/netty/netty/issues/2586
promise.registered();
doBind0(regFuture, channel, localAddress, promise);
}
}
});
return promise;
}
}
第2-3行通过initAndRegister方法创建一个Channel (这里的Channel 模板方法channel传进来的对象，服务端启动传的是NioServerSocketChannel)跟ChannelFuture ，ChannelFuture 实现了JDK里面的Future接口，这个是在后面Channel注册到事件循环线程池结束后来回调的
我们接着看doBind 后面的代码第4到6 ，7到12行代码分别判断这个异步Future是否异常 或者完成
在netty服务端启动流程中，正常情况下都是走到13行的else分支代码的，这里创建了一个PendingRegistrationPromise对象，并在前面返回的Future对象上添加一个监听,这个监听在什么时候执行呢,就是Channel注册到事件循环线程池的逻辑完成后(无论成功注册或者异常都会回调)，当然注册成功之后会执行doBind0方法
private static void doBind0(
final ChannelFuture regFuture, final Channel channel,
final SocketAddress localAddress, final ChannelPromise promise) {
// This method is invoked before channelRegistered() is triggered. Give user handlers a chance to set up
// the pipeline in its channelRegistered() implementation.
channel.eventLoop().execute(new Runnable() {
@Override
public void run() {
if (regFuture.isSuccess()) {
channel.bind(localAddress, promise).addListener(ChannelFutureListener.CLOSE_ON_FAILURE);
} else {
promise.setFailure(regFuture.cause());
}
}
});
}
这个doBind0会提交一个任务到Channel绑定的事件循环线程池等待执行(如果线程池没启动的话会先启动)，然后我们具体看看这个后面要被线程池执行的任务具体做了什么，调用Channel的bind方法,这里的Channel 还是Netty层面的channel,bind操作现在Channel DefaultChannelPipeline上传递，从TailContext节点开始，HeadContext 通过Unsafe bind方法最终调用到Channel的doBind方法
在NioServerSocketChannel里面这个方法的实现是
// NioServerSocketChannel
protected void doBind(SocketAddress localAddress) throws Exception {
if (PlatformDependent.javaVersion() >= 7) {
javaChannel().bind(localAddress, config.getBacklog());
} else {
javaChannel().socket().bind(localAddress, config.getBacklog());
}
}
// AbstractNioChannel
protected SelectableChannel javaChannel() {
return ch;
}
代码执行到这就可以监听端口接收客户端请求
前面说到，bind方法是在Channel注册完成后才会调用，我们再回头看看Channel怎么注册的
服务端Channel注册流程
创建跟注册Channel的代码是AbstractBootstrap initAndRegister
final ChannelFuture initAndRegister() {
Channel channel = null;
try {
channel = channelFactory.newChannel();
init(channel);
} catch (Throwable t) {
if (channel != null) {
// channel can be null if newChannel crashed (eg SocketException("too many open files"))
channel.unsafe().closeForcibly();
// as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
return new DefaultChannelPromise(channel, GlobalEventExecutor.INSTANCE).setFailure(t);
}
return new DefaultChannelPromise(new FailedChannel(), GlobalEventExecutor.INSTANCE).setFailure(t);
}
ChannelFuture regFuture = config().group().register(channel);
if (regFuture.cause() != null) {
if (channel.isRegistered()) {
channel.close();
} else {
channel.unsafe().closeForcibly();
}
}
return regFuture;
}
- 第4行创建了一个Channel
- 第5行子类ServerBootstrap实现，在Channel的DefaultChannelPromise处理链表上增加了一个Handler节点
p.addLast(new ChannelInitializer<Channel>() {
@Override
public void initChannel(final Channel ch) {
final ChannelPipeline pipeline = ch.pipeline();
ChannelHandler handler = config.handler();
if (handler != null) {
pipeline.addLast(handler);
}
ch.eventLoop().execute(new Runnable() {
@Override
public void run() {
pipeline.addLast(new ServerBootstrapAcceptor(
ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs));
}
});
}
});
public void channelRead(ChannelHandlerContext ctx, Object msg) {
final Channel child = (Channel) msg;
child.pipeline().addLast(childHandler);
setChannelOptions(child, childOptions, logger);
setAttributes(child, childAttrs);
try {
childGroup.register(child).addListener(new ChannelFutureListener() {
@Override
public void operationComplete(ChannelFuture future) throws Exception {
if (!future.isSuccess()) {
forceClose(child, future.cause());
}
}
});
} catch (Throwable t) {
forceClose(child, t);
}
}
ServerBootstrapAcceptor 处理读事件的方法channelRead，将接收到的消息(这个消息可以转成Channel 实际是accept接收客户端请求后包装的Channel)注册到childGroup,也就实现了将接收到的请求提交到workGroup执行，具体在哪里传递消息过来的，后面会提到
- 将channel注册到BossGroup
ChannelFuture regFuture = config().group().register(channel);
是的,这里的group就是BossGroup，专门负责处理网络请求的
// SingleThreadEventLoop
public ChannelFuture register(final ChannelPromise promise) {
ObjectUtil.checkNotNull(promise, "promise");
promise.channel().unsafe().register(this, promise);
return promise;
}
netty 里面的这些 register bind write最后都是通过Channel内部的Unsafe来处理
// AbstractChannel 的 AbstractUnsafe内部类
public final void register(EventLoop eventLoop, final ChannelPromise promise) {
ObjectUtil.checkNotNull(eventLoop, "eventLoop");
if (isRegistered()) {
promise.setFailure(new IllegalStateException("registered to an event loop already"));
return;
}
if (!isCompatible(eventLoop)) {
promise.setFailure(
new IllegalStateException("incompatible event loop type: " + eventLoop.getClass().getName()));
return;
}
AbstractChannel.this.eventLoop = eventLoop;
if (eventLoop.inEventLoop()) {
register0(promise);
} else {
try {
eventLoop.execute(new Runnable() {
@Override
public void run() {
register0(promise);
}
});
} catch (Throwable t) {
logger.warn(
"Force-closing a channel whose registration task was not accepted by an event loop: {}",
AbstractChannel.this, t);
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
}

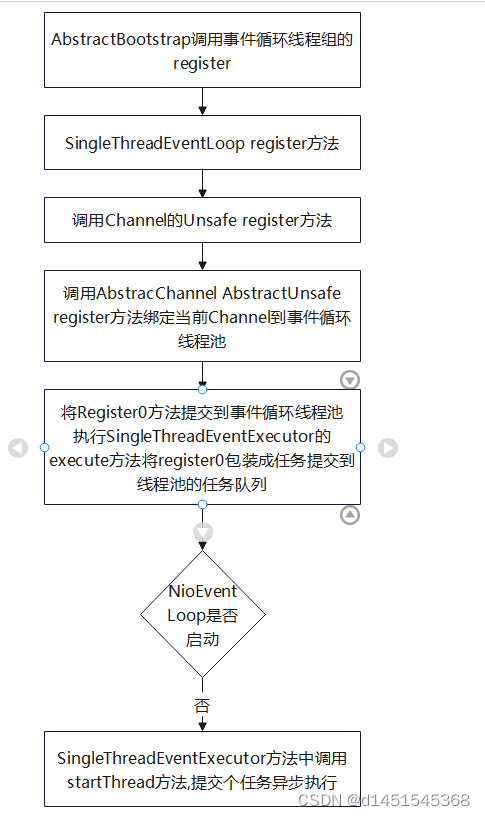

注册方法掉到了AbstractCannel register方法，
第15至16行如果当前线程是事件循环线程里面的线程，直接调用register0方法，这里执行到这里的时候是main线程,所以走的是else分支我们把register0包装成一个任务取异步执行，
这里的register0 调用了doRegister方法，实现了在Selector中注册一个Key的功能
// AbstractNioChannel
selectionKey = javaChannel().register(eventLoop().unwrappedSelector(), 0, this);
// SingleThreadEventExecutor
private void execute(Runnable task, boolean immediate) {
boolean inEventLoop = inEventLoop();
addTask(task);
if (!inEventLoop) {
startThread();
if (isShutdown()) {
boolean reject = false;
try {
if (removeTask(task)) {
reject = true;
}
} catch (UnsupportedOperationException e) {
// The task queue does not support removal so the best thing we can do is to just move on and
// hope we will be able to pick-up the task before its completely terminated.
// In worst case we will log on termination.
}
if (reject) {
reject();
}
}
}
if (!addTaskWakesUp && immediate) {
wakeup(inEventLoop);
}
}
// SingleThreadEventExecutor
private void startThread() {
if (state == ST_NOT_STARTED) {
if (STATE_UPDATER.compareAndSet(this, ST_NOT_STARTED, ST_STARTED)) {
boolean success = false;
try {
doStartThread();
success = true;
} finally {
if (!success) {
STATE_UPDATER.compareAndSet(this, ST_STARTED, ST_NOT_STARTED);
}
}
}
}
}
如果NioEventLoop 没启动调用doStartThread方法
在startThread 方法里面提交了个异步任务调用到了NioEventloop的run方法
总结下Channel注册到事件循环线程池的流程
NioEventloop run方法
protected void run() {
int selectCnt = 0;
for (;;) {
try {
int strategy;
try {
strategy = selectStrategy.calculateStrategy(selectNowSupplier, hasTasks());
switch (strategy) {
case SelectStrategy.CONTINUE:
continue;
case SelectStrategy.BUSY_WAIT:
// fall-through to SELECT since the busy-wait is not supported with NIO
case SelectStrategy.SELECT:
long curDeadlineNanos = nextScheduledTaskDeadlineNanos();
if (curDeadlineNanos == -1L) {
curDeadlineNanos = NONE; // nothing on the calendar
}
nextWakeupNanos.set(curDeadlineNanos);
try {
if (!hasTasks()) {
strategy = select(curDeadlineNanos);
}
} finally {
// This update is just to help block unnecessary selector wakeups
// so use of lazySet is ok (no race condition)
nextWakeupNanos.lazySet(AWAKE);
}
// fall through
default:
}
} catch (IOException e) {
// If we receive an IOException here its because the Selector is messed up. Let's rebuild
// the selector and retry. https://github.com/netty/netty/issues/8566
rebuildSelector0();
selectCnt = 0;
handleLoopException(e);
continue;
}
selectCnt++;
cancelledKeys = 0;
needsToSelectAgain = false;
final int ioRatio = this.ioRatio;
boolean ranTasks;
if (ioRatio == 100) {
try {
if (strategy > 0) {
processSelectedKeys();
}
} finally {
// Ensure we always run tasks.
ranTasks = runAllTasks();
}
} else if (strategy > 0) {
final long ioStartTime = System.nanoTime();
try {
processSelectedKeys();
} finally {
// Ensure we always run tasks.
final long ioTime = System.nanoTime() - ioStartTime;
ranTasks = runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
}
} else {
ranTasks = runAllTasks(0); // This will run the minimum number of tasks
}
if (ranTasks || strategy > 0) {
if (selectCnt > MIN_PREMATURE_SELECTOR_RETURNS && logger.isDebugEnabled()) {
logger.debug("Selector.select() returned prematurely {} times in a row for Selector {}.",
selectCnt - 1, selector);
}
selectCnt = 0;
} else if (unexpectedSelectorWakeup(selectCnt)) { // Unexpected wakeup (unusual case)
selectCnt = 0;
}
} catch (CancelledKeyException e) {
// Harmless exception - log anyway
if (logger.isDebugEnabled()) {
logger.debug(CancelledKeyException.class.getSimpleName() + " raised by a Selector {} - JDK bug?",
selector, e);
}
} catch (Error e) {
throw (Error) e;
} catch (Throwable t) {
handleLoopException(t);
} finally {
// Always handle shutdown even if the loop processing threw an exception.
try {
if (isShuttingDown()) {
closeAll();
if (confirmShutdown()) {
return;
}
}
} catch (Error e) {
throw (Error) e;
} catch (Throwable t) {
handleLoopException(t);
}
}
}
}

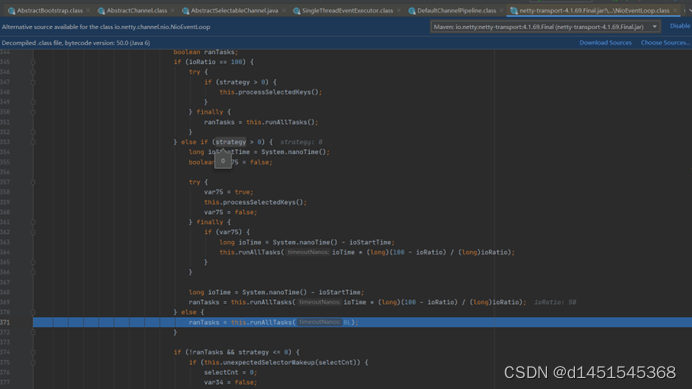

第7行代码 调用到selector.selectNow() 返回是0，这个方法非阻塞往下执行到54行，调用runAllTasks 执行提交到线程池队列中的任务，前面ServerSocketChannel注册到NioEventLoop的流程中就提交了一个register0任务
strategy = selectStrategy.calculateStrategy(selectNowSupplier, hasTasks());
前面的runAllTasks方法就会执行到register0
doRegister 向事件循环线程池的Selector注册了一个Key(AbstractNioChannel实现)
private void register0(ChannelPromise promise) {
try {
// check if the channel is still open as it could be closed in the mean time when the register
// call was outside of the eventLoop
if (!promise.setUncancellable() || !ensureOpen(promise)) {
return;
}
boolean firstRegistration = neverRegistered;
doRegister();
neverRegistered = false;
registered = true;
// Ensure we call handlerAdded(...) before we actually notify the promise. This is needed as the
// user may already fire events through the pipeline in the ChannelFutureListener.
pipeline.invokeHandlerAddedIfNeeded();
safeSetSuccess(promise);
pipeline.fireChannelRegistered();
// Only fire a channelActive if the channel has never been registered. This prevents firing
// multiple channel actives if the channel is deregistered and re-registered.
if (isActive()) {
if (firstRegistration) {
pipeline.fireChannelActive();
} else if (config().isAutoRead()) {
// This channel was registered before and autoRead() is set. This means we need to begin read
// again so that we process inbound data.
//
// See https://github.com/netty/netty/issues/4805
beginRead();
}
}
} catch (Throwable t) {
// Close the channel directly to avoid FD leak.
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
register0执行完后再次进入NioEventLoop的run方法，这时候第7行代码会返回-1，代码就执行到23行，这里面会调用到selector.select（没有添加调度任务）这个方法会阻塞，客户端有请求进来后会解除阻塞，
客户端有请求进来后解除阻塞，代码往下执行到processSelectedKeys
private void processSelectedKeys() {
if (selectedKeys != null) {
processSelectedKeysOptimized();
} else {
processSelectedKeysPlain(selector.selectedKeys());
}
}
对于这个selectedKeys openSelector又给它赋值，所有我们直接关注下processSelectedKeysOptimized方法
private void processSelectedKeysOptimized() {
for (int i = 0; i < selectedKeys.size; ++i) {
final SelectionKey k = selectedKeys.keys[i];
// null out entry in the array to allow to have it GC'ed once the Channel close
// See https://github.com/netty/netty/issues/2363
selectedKeys.keys[i] = null;
final Object a = k.attachment();
if (a instanceof AbstractNioChannel) {
processSelectedKey(k, (AbstractNioChannel) a);
} else {
@SuppressWarnings("unchecked")
NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
processSelectedKey(k, task);
}
if (needsToSelectAgain) {
// null out entries in the array to allow to have it GC'ed once the Channel close
// See https://github.com/netty/netty/issues/2363
selectedKeys.reset(i + 1);
selectAgain();
i = -1;
}
}
}
前面提到在AbstractNioChannel doRegister方法里面往NioEventLoop的Selector注册了一个selectionKey,第三个参数就是attachment，这里是NioServerSocketChannel
selectionKey = javaChannel().register(eventLoop().unwrappedSelector(), 0, this);
我们接下来看看processSelectedKey方法
private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe();
if (!k.isValid()) {
final EventLoop eventLoop;
try {
eventLoop = ch.eventLoop();
} catch (Throwable ignored) {
// If the channel implementation throws an exception because there is no event loop, we ignore this
// because we are only trying to determine if ch is registered to this event loop and thus has authority
// to close ch.
return;
}
// Only close ch if ch is still registered to this EventLoop. ch could have deregistered from the event loop
// and thus the SelectionKey could be cancelled as part of the deregistration process, but the channel is
// still healthy and should not be closed.
// See https://github.com/netty/netty/issues/5125
if (eventLoop == this) {
// close the channel if the key is not valid anymore
unsafe.close(unsafe.voidPromise());
}
return;
}
try {
int readyOps = k.readyOps();
// We first need to call finishConnect() before try to trigger a read(...) or write(...) as otherwise
// the NIO JDK channel implementation may throw a NotYetConnectedException.
if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
// remove OP_CONNECT as otherwise Selector.select(..) will always return without blocking
// See https://github.com/netty/netty/issues/924
int ops = k.interestOps();
ops &= ~SelectionKey.OP_CONNECT;
k.interestOps(ops);
unsafe.finishConnect();
}
// Process OP_WRITE first as we may be able to write some queued buffers and so free memory.
if ((readyOps & SelectionKey.OP_WRITE) != 0) {
// Call forceFlush which will also take care of clear the OP_WRITE once there is nothing left to write
ch.unsafe().forceFlush();
}
// Also check for readOps of 0 to workaround possible JDK bug which may otherwise lead
// &都为1时为1 ！=0 说明当前是OP_READ 或者OP_ACCEPT NioServerSocket注册的是0
// to a spin loop
if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
unsafe.read();
}
} catch (CancelledKeyException ignored) {
unsafe.close(unsafe.voidPromise());
}
}
NioMessageUnsafe 第25行拿到的值就是AbstractNioChannel doRegister方法里面注册selectionKey传的第二个参数,也就是0，进入到第48行代码 unsafe.read();
第41行在当前Channel（NioServerSocketChannel）的ChannelPipeline处理链表上传递读事件，参数是NioSocketChannel(这个是Netty的Channel 内部有一个java nio的SocketChannel)，这个读事件传递下去后续的逻辑是怎么处理的呢，这也就是前面说的在ServerSocketChannel初始化过程中在它的处理链表中加了一个ServerBootstrapAcceptor ，把客户端SocketChannel包装后的NioSocketChannel注册到了workGroup当中，绑定了具体的业务逻辑处理Handler,这样Netty就实现了bossGroup负责接入请求，workGroup负责处理请求的逻辑
在AbstractNioMessageChannel(NioServerSocketChannel)实现了read
private final class NioMessageUnsafe extends AbstractNioUnsafe {
private final List<Object> readBuf = new ArrayList<Object>();
@Override
public void read() {
assert eventLoop().inEventLoop();
final ChannelConfig config = config();
final ChannelPipeline pipeline = pipeline();
// ServerSocketChannel创建时 创建了一个ServerSocketChannelConfig 传入了一个AdaptiveRecvByteBufAllocator对象，unsafe().recvBufAllocHandle()拿到的就是这个Allocator的一个内部类HandleImpl
final RecvByteBufAllocator.Handle allocHandle = unsafe().recvBufAllocHandle();
allocHandle.reset(config);
boolean closed = false;
Throwable exception = null;
try {
try {
do {
// 这里ServerSocketChannel重写方法，accept等待客户端请求接入拿到一个SocketChannel客户端对象
int localRead = doReadMessages(readBuf);
if (localRead == 0) {
break;
}
if (localRead < 0) {
closed = true;
break;
}
allocHandle.incMessagesRead(localRead);
} while (allocHandle.continueReading());
} catch (Throwable t) {
exception = t;
}
int size = readBuf.size();
for (int i = 0; i < size; i ++) {
readPending = false;
/**
* readBuf 包装了Nio 的NioSocketChannel
*/
pipeline.fireChannelRead(readBuf.get(i));
}
readBuf.clear();
allocHandle.readComplete();
pipeline.fireChannelReadComplete();
if (exception != null) {
closed = closeOnReadError(exception);
pipeline.fireExceptionCaught(exception);
}
if (closed) {
inputShutdown = true;
if (isOpen()) {
close(voidPromise());
}
}
} finally {
// Check if there is a readPending which was not processed yet.
// This could be for two reasons:
// * The user called Channel.read() or ChannelHandlerContext.read() in channelRead(...) method
// * The user called Channel.read() or ChannelHandlerContext.read() in channelReadComplete(...) method
//
// See https://github.com/netty/netty/issues/2254
if (!readPending && !config.isAutoRead()) {
removeReadOp();
}
}
}
}
protected int doReadMessages(List<Object> buf) throws Exception {
/**
* 对于非阻塞(设置为false) 没有请求进来 accept也会往下走
*/
SocketChannel ch = SocketUtils.accept(javaChannel());
try {
if (ch != null) {
buf.add(new NioSocketChannel(this, ch));
return 1;
}
} catch (Throwable t) {
logger.warn("Failed to create a new channel from an accepted socket.", t);
try {
ch.close();
} catch (Throwable t2) {
logger.warn("Failed to close a socket.", t2);
}
}
return 0;
}
扫一扫
752
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
