自定义mvc框架

原创已于 2022-06-27 11:17:11 修改 · 111 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#java #前端 #servlet

于 2022-06-27 11:14:43 首次发布

本文介绍了如何通过反射优化传统的增删改查操作，减少了大量重复类的创建，实现了一个通用的Servlet来处理不同的CRUD请求。同时，解释了MVC模式的工作原理，展示了DispatcherServlet如何作为中央控制器分发请求，Action接口和ActionSupport类如何协同处理业务逻辑，实现了代码的复用和模块化。

1.初版的增删改查改进

2.反射优化

3.mvc工作原理及对应打码

1.初版的增删改查改进

上述问题
1.关于单个实体类/表操做场越多，需要新建的类也就越多，造成了项目中类的数量过于庞大

<h3>目前增删该查的方法</h3>
<a href="${pageContext.request.contextPath }/book/add">增加</a>
<a href="${pageContext.request.contextPath }/book/del">删除</a>
<a href="${pageContext.request.contextPath }/book/edit">修改</a>
<a href="${pageContext.request.contextPath }/book/list">查看</a>

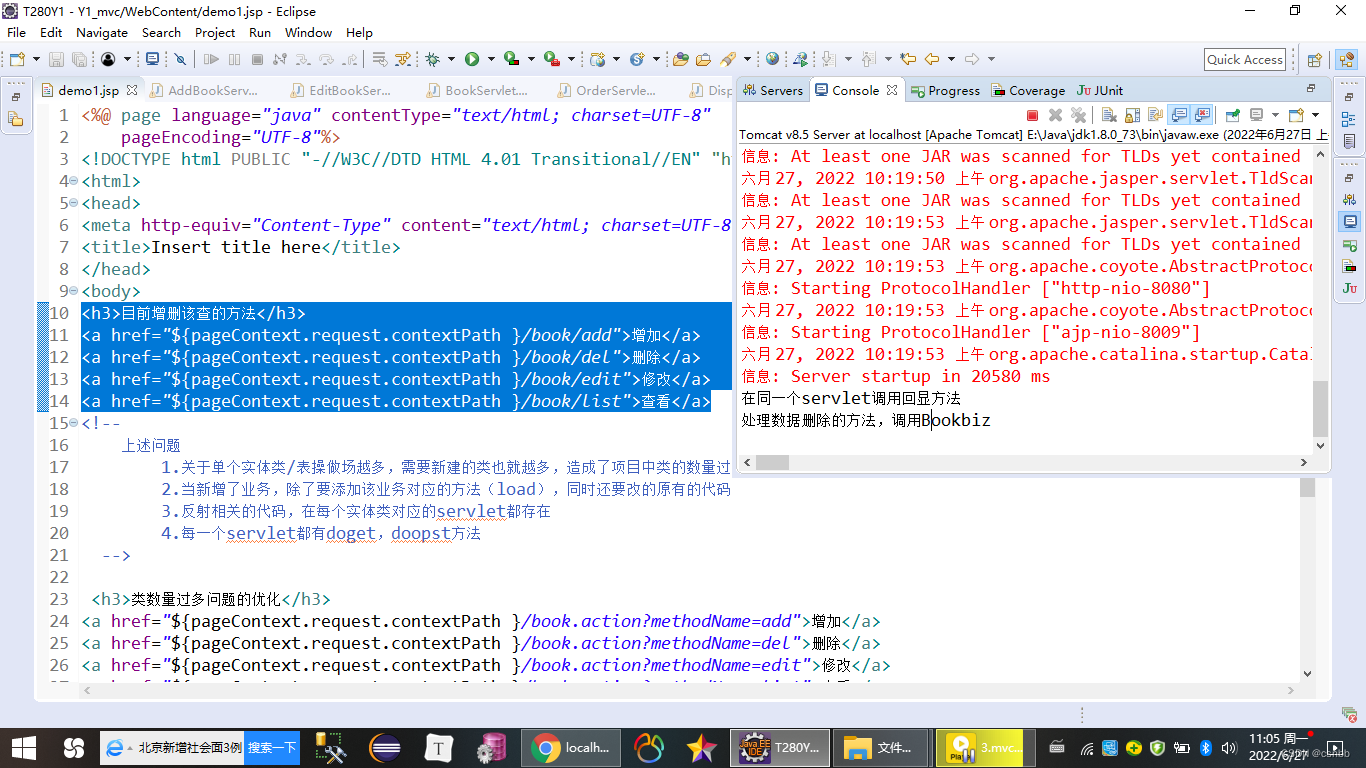

实际操作

2.反射优化

<h3>类数量过多问题的优化</h3>
<a href="${pageContext.request.contextPath }/book.action?methodName=add">增加</a>
<a href="${pageContext.request.contextPath }/book.action?methodName=del">删除</a>
<a href="${pageContext.request.contextPath }/book.action?methodName=edit">修改</a>
<a href="${pageContext.request.contextPath }/book.action?methodName=list">查看</a>
<a href="${pageContext.request.contextPath }/book.action?methodName=load">回显</a>

servlet展示

protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
		doPost(request, response);
	}

	/**
	 * @see HttpServlet#doPost(HttpServletRequest request, HttpServletResponse response)
	 */
	protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//		为了区分当前请求的目的，增删改查的目的，就从前台要调用的方法名传递到后台
		String methodName=request.getParameter("methodName");
//		methodNamek可能是add/del/edit
//		前台传递什么方法就调用当前类的对应方法
		try {
			Method m = this.getClass()//BookSerlvet
				.getDeclaredMethod(methodName, HttpServletRequest.class,HttpServletResponse.class);
			m.setAccessible(true);
//			调用当前类实例的methodName方法
			m.invoke(this,request,response);
		} catch (Exception  e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
//		if("add".equals(methodName)) {
////			如果前台传递到后台是一个增加的请求，那么后台就调用增加的方法
//			add(request,response);
//		}
//		else if("del".equals(methodName)) {
//			del(request,response);
//		}
//		else if("edit".equals(methodName)) {
//			edit(request,response);
//		}
//		else if("list".equals(methodName)) {
//			list(request,response);
//		}
	}


//	方法

	private void list(HttpServletRequest request, HttpServletResponse response) {
		System.out.println("在同一个orderservlet调用查看方法");
	}

	private void edit(HttpServletRequest request, HttpServletResponse response) {
		System.out.println("在同一个orderservlet调用修改方法");

	}

	private void del(HttpServletRequest request, HttpServletResponse response) {
		// TODO Auto-generated method stub
		System.out.println("在同一个orderservlet调用删除方法");
	}

	private void add(HttpServletRequest request, HttpServletResponse response) {
		// TODO Auto-generated method stub
		System.out.println("在同一个orderservlet调用增加方法");

	}

	private void load(HttpServletRequest request, HttpServletResponse response) {
		// TODO Auto-generated method stub
		System.out.println("在同一个orderservlet调用回显方法");

	}

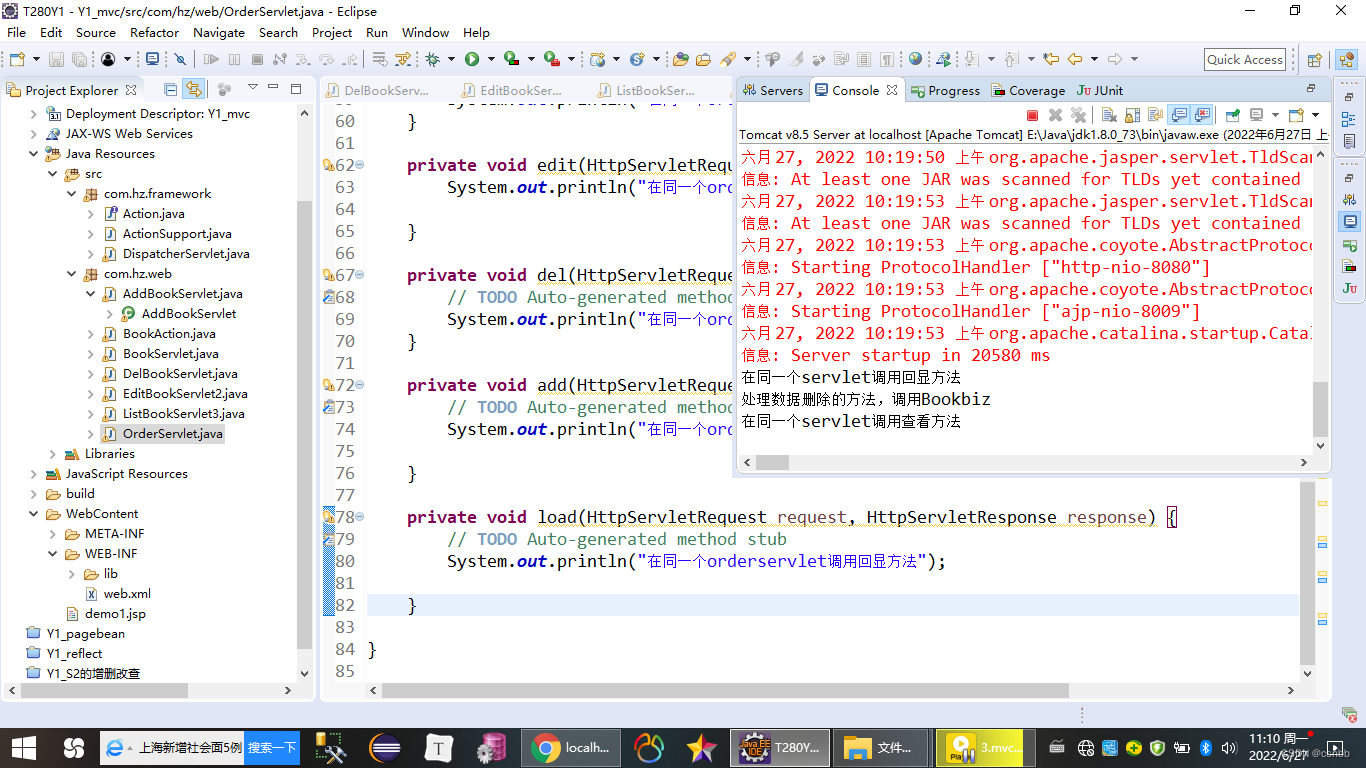

代码执行

3.mvc工作原理及对应打码

package com.hz.framework;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * 子控制器
 * 	对应请求的处理人
 * @author Administrator
 *
 */
public interface Action {
	void execute(HttpServletRequest request, HttpServletResponse response);

}


--------------------------------------------------------------------------------
package com.hz.framework;

import java.lang.reflect.Method;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class ActionSupport implements Action{

	@Override
	public void execute(HttpServletRequest request, HttpServletResponse response) {
		String methodName=request.getParameter("methodName");
//		methodNamek可能是add/del/edit
//		前台传递什么方法就调用当前类的对应方法
		try {
			Method m = this.getClass()//BookSerlvet
				  .getDeclaredMethod(methodName, HttpServletRequest.class,HttpServletResponse.class);
			m.setAccessible(true);
//			调用当前类实例的methodName方法
			m.invoke(this,request,response);
		} catch (Exception  e) {
			// TODO Auto-generated catch block
			e.printStackTrace();
		}
	}

}


-----------------------------------------------------------------------------------
package com.hz.framework;

import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.hz.web.BookAction;

/**
 * 中央控制器
 * 	主要职能：接收浏览器请求，找到对应的处理人
 *
 * @author Administrator
 *
 */
@WebServlet("*.action")
public class DispatcherServlet extends HttpServlet{
	private Map<String, Action> action=new HashMap<String, Action>();

//	程序启动时只会加载一次
	@Override
	public void init() throws ServletException {
		action.put("/book", new BookAction());
	}

	@Override
	protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
		doPost(req, resp);
	}

	@Override
	protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
		//http//localhost:8080/mvc/book.action?methodName=list
		String uri = req.getRequestURI();
//		要拿到/book. 接收最后一个/到最后一个点的位置
		uri=uri.substring(uri.lastIndexOf("/"),uri.lastIndexOf("."));

		Action action2 = action.get(uri);
		action2.execute(req, resp);
	}
}


--------------------------------------------------------------------------------------
package com.hz.web;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.hz.framework.Action;
import com.hz.framework.ActionSupport;

public class BookAction extends ActionSupport{
	private void list(HttpServletRequest request, HttpServletResponse response) {
		System.out.println("在同一个servlet调用查看方法");
	}

	private void edit(HttpServletRequest request, HttpServletResponse response) {
		System.out.println("在同一个servlet调用修改方法");

	}

	private void del(HttpServletRequest request, HttpServletResponse response) {
		// TODO Auto-generated method stub
		System.out.println("在同一个servlet调用删除方法");
	}

	private void add(HttpServletRequest request, HttpServletResponse response) {
		// TODO Auto-generated method stub
		System.out.println("在同一个servlet调用增加方法");

	}

	private void load(HttpServletRequest request, HttpServletResponse response) {
		// TODO Auto-generated method stub
		System.out.println("在同一个servlet调用回显方法");

	}


}
