camunda_14_swagger

预编译软件包支持Swagger

命令行启动官方预编译, 缺省情况下就已经启动了 swagger ui.

PS C:\my_program\camunda-bpm-run-7.17.0> .\start.bat
Setting JAVA property to "C:\Program Files\RedHat\java-1.8.0-openjdk-1.8.0.302-1\\bin\java"
REST API enabled
WebApps enabled
Swagger UI enabled
Invoice Example included - needs to be enabled in application configuration as well

常用的地址是:

• Camunda web : http://localhost:8080/camunda/
• REST API: http://localhost:8080/engine-rest/
• Swagger UI: http://localhost:8080/swaggerui/

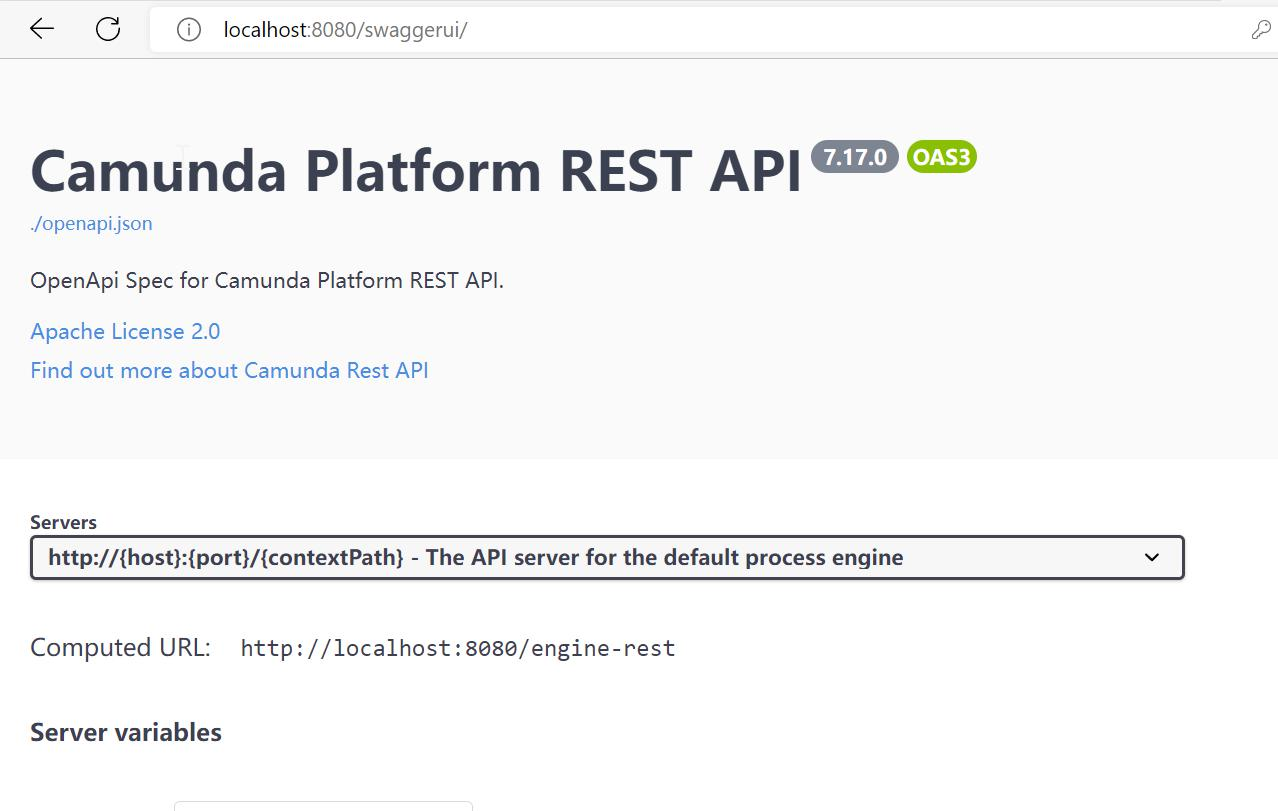

Swagger UI 截图:

应用系统内嵌流程引擎支持Swagger

内嵌流程引擎的应用系统, 要支持Swagger可参考预编译包额外做一些工作,
