spring源码分析-DI

spring源码分析-IOC

上次我们分析到了springIOC部分的源码，接下来，我们继续分析spring DI部分的源码

BeanFactory是创建Bean的工厂，它是spring的一个顶层接口，定义了获取bean的方法getBean，DI操作也是在getBean的时候触发的，接下来，我们便来分析DI的具体内容

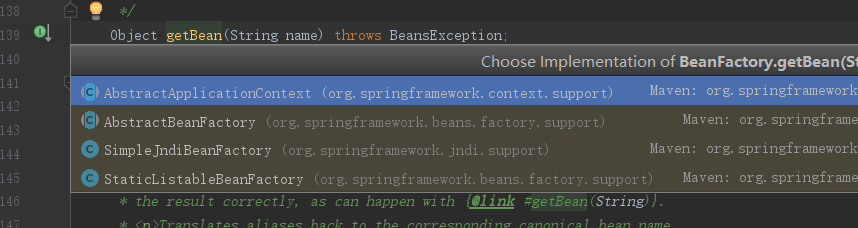

通过之前的分析，我们可以看到，接下来应该进入的类AbstractBeanFactory

public Object getBean(String name) throws BeansException {
    // 真正创建bean的方法
   return doGetBean(name, null, null, false);
}

在这段代码中，我们又看到了一个关键的方法doGetBean，这又是一个以do开头的方法，在上一篇文章中，我们也说过，在spring中，以do开头的方法都是具体干活的方法

protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
      @Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {

   // 省略。。。
    // 是否为单例的bean
    if (mbd.isSingleton()) {
        sharedInstance = getSingleton(beanName, () -> {
            try {
                return createBean(beanName, mbd, args);
            }
            catch (BeansException ex) {
                // Explicitly remove instance from singleton cache: It might have been put there
                // eagerly by the creation process, to allow for circular reference resolution.
                // Also remove any beans that received a temporary reference to the bean.
                destroySingleton(beanName);
                throw ex;
            }
        });
        bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
    }
	// 原型的bean
    else if (mbd.isPrototype()) {
        // It's a prototype -> create a new instance.
        Object prototypeInstance = null;
        try {
            beforePrototypeCreation(beanName);
            prototypeInstance = createBean(beanName, mbd, args);
        }
        finally {
            afterPrototypeCreation(beanName);
        }
        bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
    }
	// 其他类型的bean
    else {
        String scopeName = mbd.getScope();
        final Scope scope = this.scopes.get(scopeName);
        if (scope == null) {
            throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
        }
        try {
            Object scopedInstance = scope.get(beanName, () -> {
                beforePrototypeCreation(beanName);
                try {
                    return createBean(beanName, mbd, args);
                }
                finally {
                    afterPrototypeCreation(beanName);
                }
            });
            bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
        }
        catch (IllegalStateException ex) {
            throw new BeanCreationException(beanName,
                                            "Scope '" + scopeName + "' is not active for the current thread; consider " +
                                            "defining a scoped proxy for this bean if you intend to refer to it from a singleton",
                                            ex);
        }
    }

   return (T) bean;
}

这段代码比较长，我们可以看到关键的createBean,这个就是创建bean的方法,同时，在这个方法中，我们也看到了spring中两个不同的scope，singleton（单例），prototype,这两种类型，使我们在spring中常用的作用域

protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
      throws BeanCreationException {
    // 省略。。。
   try {
       // 创建bean
      Object beanInstance = doCreateBean(beanName, mbdToUse, args);
      if (logger.isTraceEnabled()) {
         logger.trace("Finished creating instance of bean '" + beanName + "'");
      }
      return beanInstance;
   }
   catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
      // A previously detected exception with proper bean creation context already,
      // or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.
      throw ex;
   }
   catch (Throwable ex) {
      throw new BeanCreationException(
            mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
   }
}

在这个方法中，我们再次看到了以do开头的方法，这又是一个创建bean的关键方法，我们接着往下找

protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final @Nullable Object[] args)
      throws BeanCreationException {

   // Instantiate the bean.
   BeanWrapper instanceWrapper = null;
   if (mbd.isSingleton()) {
      instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
   }
   if (instanceWrapper == null) {
      // 通过反射创建bean的实例，并将beanInstance包装成BeanWrapper
      instanceWrapper = createBeanInstance(beanName, mbd, args);
   }
   final Object bean = instanceWrapper.getWrappedInstance();
   Class<?> beanType = instanceWrapper.getWrappedClass();
   if (beanType != NullBean.class) {
      mbd.resolvedTargetType = beanType;
   }

   // Allow post-processors to modify the merged bean definition.
   synchronized (mbd.postProcessingLock) {
      if (!mbd.postProcessed) {
         try {
            applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
         }
         catch (Throwable ex) {
            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                  "Post-processing of merged bean definition failed", ex);
         }
         mbd.postProcessed = true;
      }
   }

   // Eagerly cache singletons to be able to resolve circular references
   // even when triggered by lifecycle interfaces like BeanFactoryAware.
   boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
         isSingletonCurrentlyInCreation(beanName));
   if (earlySingletonExposure) {
      if (logger.isTraceEnabled()) {
         logger.trace("Eagerly caching bean '" + beanName +
               "' to allow for resolving potential circular references");
      }
      addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
   }

   // Initialize the bean instance.
   Object exposedObject = bean;
   try {
      // 进行依赖注入
      populateBean(beanName, mbd, instanceWrapper);
      exposedObject = initializeBean(beanName, exposedObject, mbd);
   }
   // 省略。。。
   return exposedObject;
}

首先，我们来看一下创建createBeanInstance方法，这个方法的作用是创建bean的实例

protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
	// 省略。。。
   // 创建bean
   return instantiateBean(beanName, mbd);
}

protected BeanWrapper instantiateBean(final String beanName, final RootBeanDefinition mbd) {
   try {
      Object beanInstance;
      final BeanFactory parent = this;
      if (System.getSecurityManager() != null) {
         beanInstance = AccessController.doPrivileged((PrivilegedAction<Object>) () ->
               getInstantiationStrategy().instantiate(mbd, beanName, parent),
               getAccessControlContext());
      }
      else {
          // 通过bean的创建策略创建bean
         beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent);
      }
       // 将bean包装成BeanWrapperImpl
      BeanWrapper bw = new BeanWrapperImpl(beanInstance);
      initBeanWrapper(bw);
      return bw;
   }
   catch (Throwable ex) {
      throw new BeanCreationException(
            mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
   }
}

在这里我们看到了一个创建bean的策略，SimpleInstantiationStrategy类，它会通过反射来创建类

// 通过反射创建bean
public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner) {
   // Don't override the class with CGLIB if no overrides.
   if (!bd.hasMethodOverrides()) {
      Constructor<?> constructorToUse;
      synchronized (bd.constructorArgumentLock) {
         constructorToUse = (Constructor<?>) bd.resolvedConstructorOrFactoryMethod;
         if (constructorToUse == null) {
            final Class<?> clazz = bd.getBeanClass();
            if (clazz.isInterface()) {
               throw new BeanInstantiationException(clazz, "Specified class is an interface");
            }
            try {
               if (System.getSecurityManager() != null) {
                  constructorToUse = AccessController.doPrivileged(
                        (PrivilegedExceptionAction<Constructor<?>>) clazz::getDeclaredConstructor);
               }
               else {
                  constructorToUse = clazz.getDeclaredConstructor();
               }
               bd.resolvedConstructorOrFactoryMethod = constructorToUse;
            }
            catch (Throwable ex) {
               throw new BeanInstantiationException(clazz, "No default constructor found", ex);
            }
         }
      }
      return BeanUtils.instantiateClass(constructorToUse);
   }
   else {
      // Must generate CGLIB subclass.
      return instantiateWithMethodInjection(bd, beanName, owner);
   }
}

我们终于揭开了bean是如何创建的神秘面纱，它实际上就是通过反射来创建bean

我们返回上面的doCreateBean方法中，在这个方法里面还调用了populateBean，这个方法就是用来做依赖注入的类

protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
   // 省略。。。
   // 按照name注入或者按照type注入
   if (resolvedAutowireMode == AUTOWIRE_BY_NAME || resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
      MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
      // Add property values based on autowire by name if applicable.
      if (resolvedAutowireMode == AUTOWIRE_BY_NAME) {
         autowireByName(beanName, mbd, bw, newPvs);
      }
      // Add property values based on autowire by type if applicable.
      if (resolvedAutowireMode == AUTOWIRE_BY_TYPE) {
         autowireByType(beanName, mbd, bw, newPvs);
      }
      pvs = newPvs;
   }

   boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
   boolean needsDepCheck = (mbd.getDependencyCheck() != AbstractBeanDefinition.DEPENDENCY_CHECK_NONE);

   PropertyDescriptor[] filteredPds = null;
   if (hasInstAwareBpps) {
      if (pvs == null) {
         pvs = mbd.getPropertyValues();
      }
      for (BeanPostProcessor bp : getBeanPostProcessors()) {
         if (bp instanceof InstantiationAwareBeanPostProcessor) {
            InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
            PropertyValues pvsToUse = ibp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);
            if (pvsToUse == null) {
               if (filteredPds == null) {
                  filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
               }
               pvsToUse = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
               if (pvsToUse == null) {
                  return;
               }
            }
            pvs = pvsToUse;
         }
      }
   }
   if (needsDepCheck) {
      if (filteredPds == null) {
         filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
      }
      checkDependencies(beanName, mbd, filteredPds, pvs);
   }

   if (pvs != null) {
       // 对属性进行依赖注入
      applyPropertyValues(beanName, mbd, bw, pvs);
   }

在这个方法中，我们看到了在spring中，我们常用的注入类型：Autowired（按照类型注入）、@Resource(name = “demoService”)，按照名字注入，最后，通过调用applyPropertyValues，将需要注入的属性设置到BeanWrapperImpl（这个是bean的包装类BeanWrapper的一个实现类）中

protected void applyPropertyValues(String beanName, BeanDefinition mbd, BeanWrapper bw, PropertyValues pvs) {
   if (pvs.isEmpty()) {
      return;
   }

   if (System.getSecurityManager() != null && bw instanceof BeanWrapperImpl) {
      ((BeanWrapperImpl) bw).setSecurityContext(getAccessControlContext());
   }

   MutablePropertyValues mpvs = null;
   List<PropertyValue> original;

   if (pvs instanceof MutablePropertyValues) {
      mpvs = (MutablePropertyValues) pvs;
      if (mpvs.isConverted()) {
         // Shortcut: use the pre-converted values as-is.
         try {
            bw.setPropertyValues(mpvs);
            return;
         }
         catch (BeansException ex) {
            throw new BeanCreationException(
                  mbd.getResourceDescription(), beanName, "Error setting property values", ex);
         }
      }
      original = mpvs.getPropertyValueList();
   }
   else {
      original = Arrays.asList(pvs.getPropertyValues());
   }

   // 省略

   // Set our (possibly massaged) deep copy.
   try {
       // 进行赋值
      bw.setPropertyValues(new MutablePropertyValues(deepCopy));
   }
   catch (BeansException ex) {
      throw new BeanCreationException(
            mbd.getResourceDescription(), beanName, "Error setting property values", ex);
   }
}

走到这里，我们看到了setPropertyValues的方法，他会将依赖的属性设置到BeanWrapper中，

public void setPropertyValues(PropertyValues pvs) throws BeansException {
   setPropertyValues(pvs, false, false);
}

public void setPropertyValues(PropertyValues pvs, boolean ignoreUnknown, boolean ignoreInvalid)
      throws BeansException {

   List<PropertyAccessException> propertyAccessExceptions = null;
   List<PropertyValue> propertyValues = (pvs instanceof MutablePropertyValues ?
         ((MutablePropertyValues) pvs).getPropertyValueList() : Arrays.asList(pvs.getPropertyValues()));
   for (PropertyValue pv : propertyValues) {
      try {
         // This method may throw any BeansException, which won't be caught
         // here, if there is a critical failure such as no matching field.
         // We can attempt to deal only with less serious exceptions.
         setPropertyValue(pv);
      }

}

在这里，我们进入当前类，发现最终调用的是一个抽象的方法，因此，应该进入其子类

public void setPropertyValue(PropertyValue pv) throws BeansException {
   PropertyTokenHolder tokens = (PropertyTokenHolder) pv.resolvedTokens;
   if (tokens == null) {
      String propertyName = pv.getName();
      AbstractNestablePropertyAccessor nestedPa;
      try {
         nestedPa = getPropertyAccessorForPropertyPath(propertyName);
      }
      catch (NotReadablePropertyException ex) {
         throw new NotWritablePropertyException(getRootClass(), this.nestedPath + propertyName,
               "Nested property in path '" + propertyName + "' does not exist", ex);
      }
      tokens = getPropertyNameTokens(getFinalPath(nestedPa, propertyName));
      if (nestedPa == this) {
         pv.getOriginalPropertyValue().resolvedTokens = tokens;
      }
      nestedPa.setPropertyValue(tokens, pv);
   }
   else {
      setPropertyValue(tokens, pv);
   }
}

protected void setPropertyValue(PropertyTokenHolder tokens, PropertyValue pv) throws BeansException {
   if (tokens.keys != null) {
      processKeyedProperty(tokens, pv);
   }
   else {
      processLocalProperty(tokens, pv);
   }
}

private void processLocalProperty(PropertyTokenHolder tokens, PropertyValue pv) {
   PropertyHandler ph = getLocalPropertyHandler(tokens.actualName);
   // 省略。。。
      ph.setValue(valueToApply);
   // 省略。。。
}

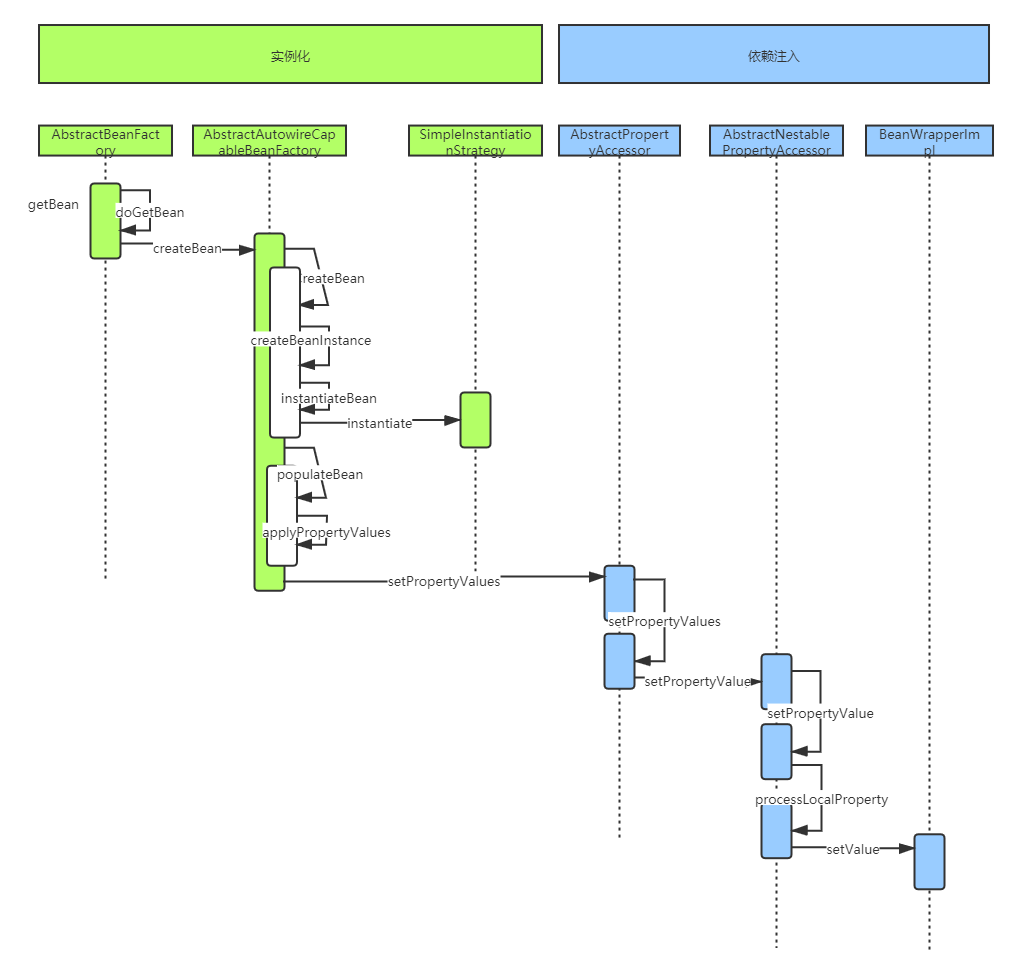

找到这里，我们看到了setValue方法,这个方法最终调用的就是BeanWrapperImpl的一个内部类的方法，他会对bean进行赋值

public void setValue(final @Nullable Object value) throws Exception {
   final Method writeMethod = (this.pd instanceof GenericTypeAwarePropertyDescriptor ?
         ((GenericTypeAwarePropertyDescriptor) this.pd).getWriteMethodForActualAccess() :
         this.pd.getWriteMethod());
   if (System.getSecurityManager() != null) {
      AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
         ReflectionUtils.makeAccessible(writeMethod);
         return null;
      });
      try {
         AccessController.doPrivileged((PrivilegedExceptionAction<Object>) () ->
               writeMethod.invoke(getWrappedInstance(), value), acc);
      }
      catch (PrivilegedActionException ex) {
         throw ex.getException();
      }
   }
   else {
      ReflectionUtils.makeAccessible(writeMethod);
      writeMethod.invoke(getWrappedInstance(), value);
   }
}

最后，我们附上DI整个过程的时序图
