Swagger
SpringBoot整合Swagger2:
-
添加swagger-spring-boot-starter依赖
<dependency> <groupId>com.spring4all</groupId> <artifactId>swagger-spring-boot-starter</artifactId》 <version>1.9.0.RELEASE</version> </dependency>
-
应用主类中添加
@EnableSwagger2Doc
注解 -
application.properties
中配置文档相关内容,如:swagger.title=spring-boot-starter-swagger swagger.description=Starter for swagger 2.x swagger.version=1.4.0.RELEASE swagger.license=Apache License, Version 2.0 swagger.licenseUrl=https://www.apache.org/licenses/LICENSE-2.0.html swagger.termsOfServiceUrl=https://github.com/dyc87112/spring-boot-starter-swagger swagger.contact.name=didi swagger.contact.url=http://blog.didispace.com swagger.contact.email=dyc87112@qq.com swagger.base-package=com.didispace swagger.base-path=/**
各参数配置含义如下:
swagger.title
:标题swagger.description
:描述swagger.version
:版本swagger.license
:许可证swagger.licenseUrl
:许可证URLswagger.termsOfServiceUrl
:服务条款URLswagger.contact.name
:维护人swagger.contact.url
:维护人URLswagger.contact.email
:维护人emailswagger.base-package
:swagger扫描的基础包,默认:全扫描swagger.base-path
:需要处理的基础URL规则,默认:/**
-
启动应用,访问:
http://localhost:8080/swagger-ui.html
-

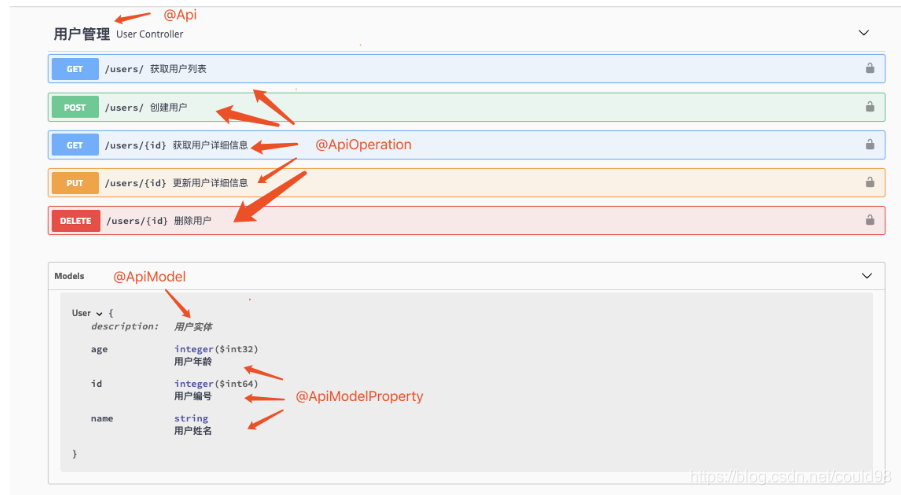

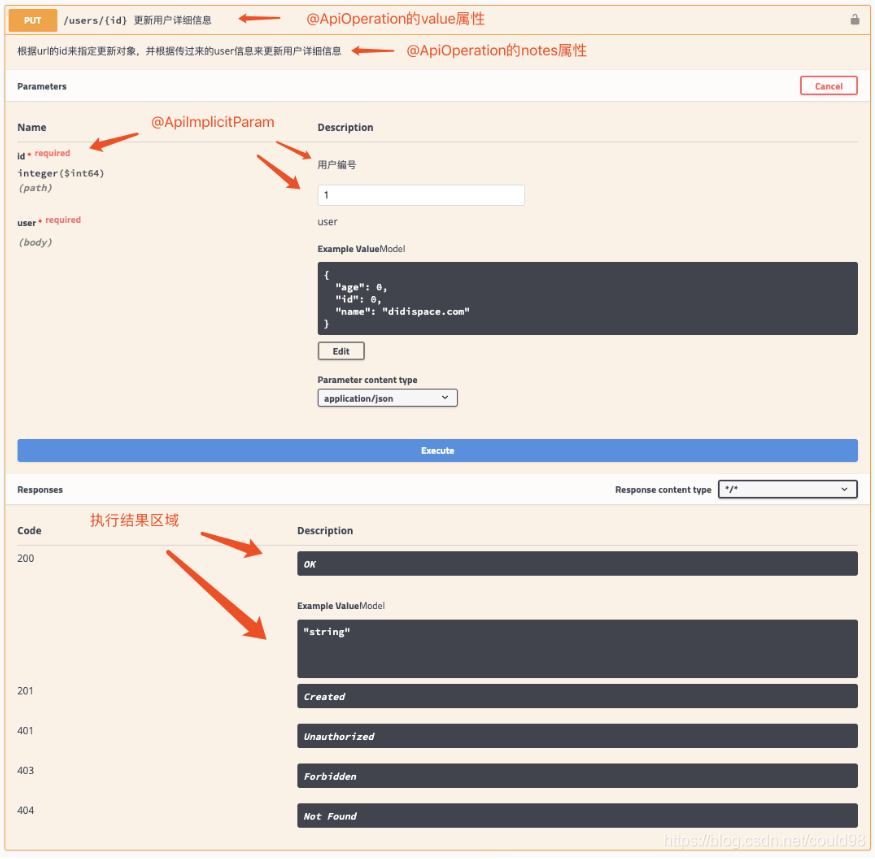

@Api(tags="")
,@ApiOperation("value="")
注解来给API增加说明、通过@ApiImplicitParam
、@ApiModel
、@ApiModelProperty
注解来给参数增加说明。
Swagger2Markup简介
Swagger2Markup是Github上的一个开源项目。该项目主要用来将Swagger自动生成的文档转换成几种流行的格式以便于静态部署和使用,比如:AsciiDoc、Markdown、Confluence。
使用SpringFox 3生成Swagger文档
-
添加依赖
<dependency> <groupId>io.springfox</groupId> <artifactId>springfox-boot-starter</artifactId> <version>3.0.0</version> </dependency>
-
应用主类增加注解
@EnableOpenApi
(上面的方式是用@EnableSwagger2Doc
) -
其余注解相同
-
启动应用!访问swagger页面:
http://localhost:8081/swagger-ui/index.html
-
两个可访问路径:
http://host/context-path/swagger-ui/index.html
和http://host/context-path/swagger-ui/
,以前老版本的文档接口/v2/api-docs
之外,还多了一个新版本的/v3/api-docs
接口。
