C#使用SqlCipher以及使用Costura.Fody合并DLL进EXE

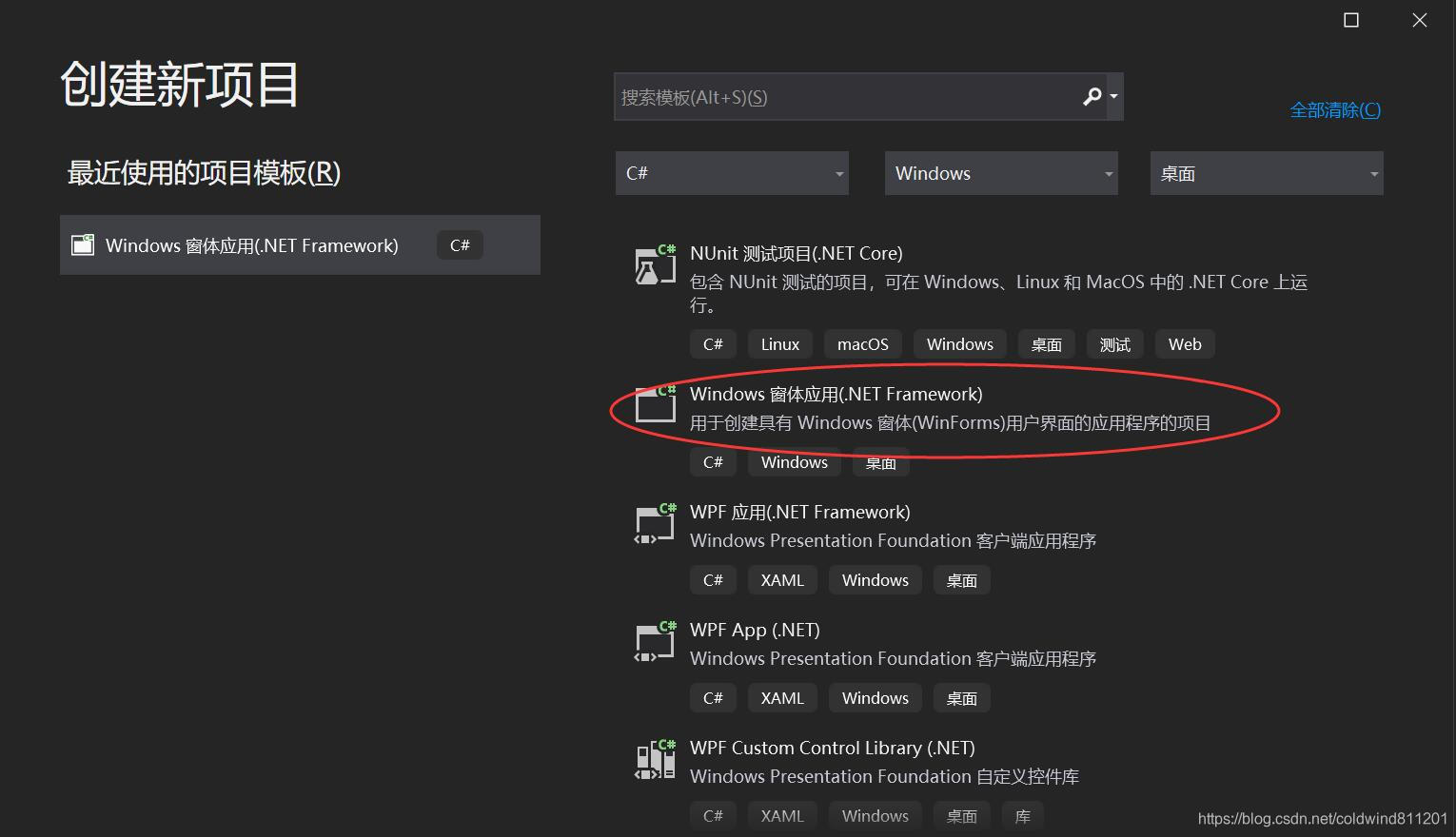

创建C# Windows 桌面 窗体应用

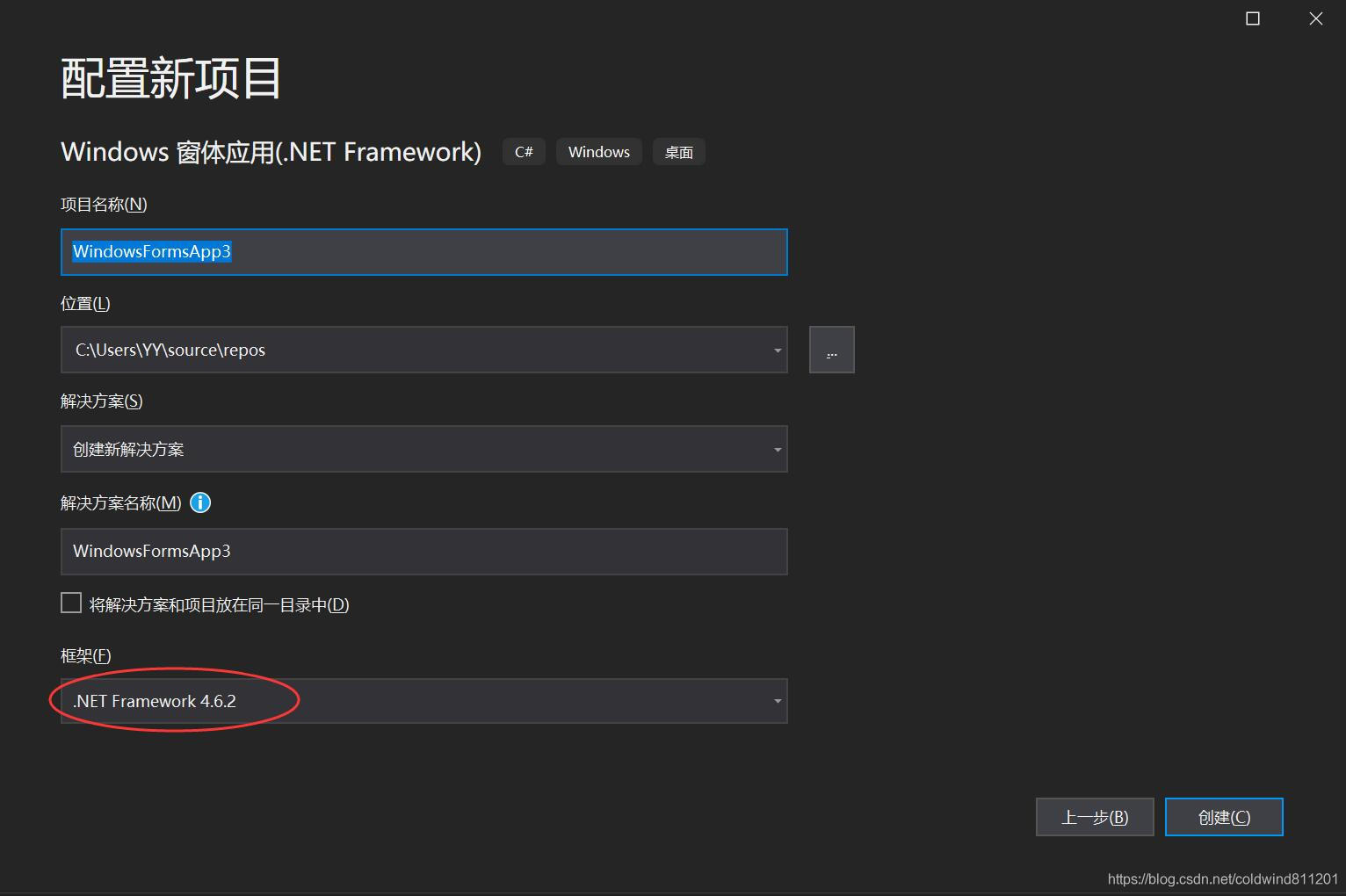

框架.NET Framework 4.6.2

使程序支持长路径

4.6.2以后才System.IO模块才开始支持长路径
参看：
https://www.cnblogs.com/zerodai/p/10224946.html#idx_13
https://devblogs.microsoft.com/dotnet/announcing-net-framework-4-6-2/

默认项目属性的BUG

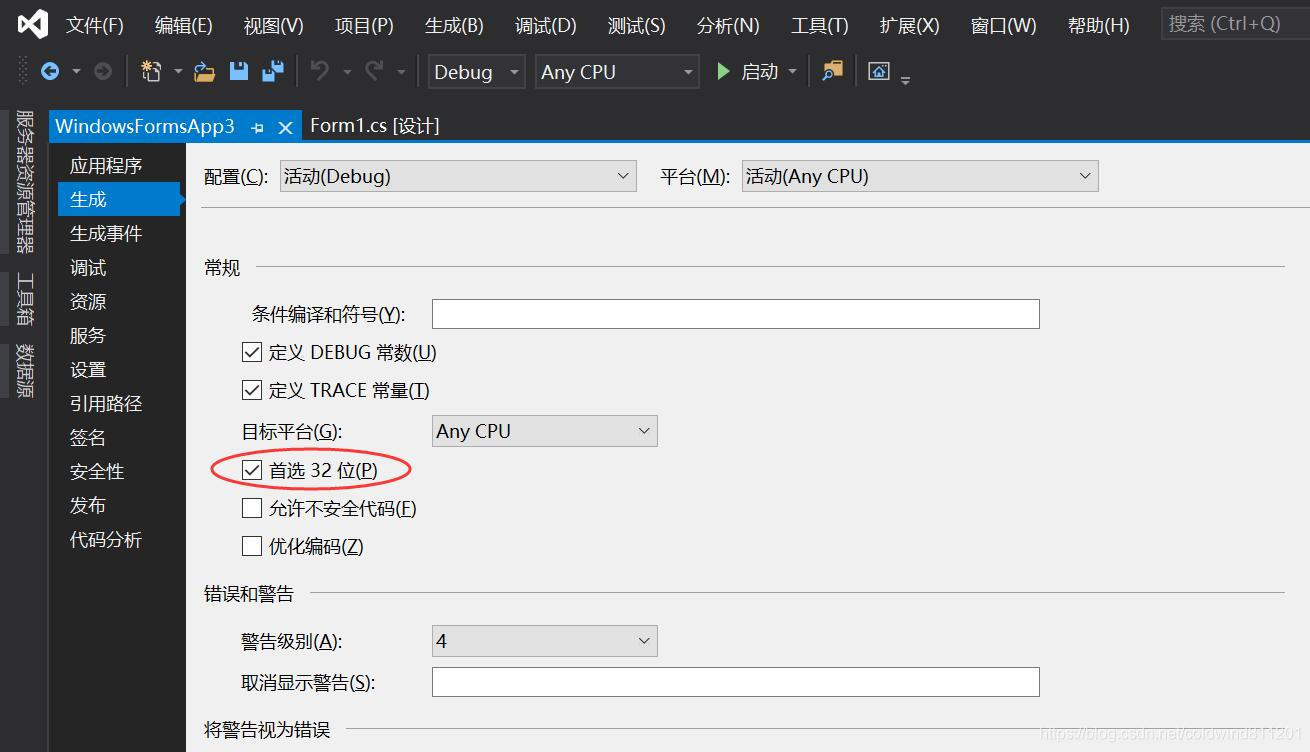

项目属性->生成->下面这个勾(首选32位)一定要去掉 一定要去掉 一定要去掉 这是个VS默认设置的BUG 不去掉这个 简单的获取文件大小就会出现问题

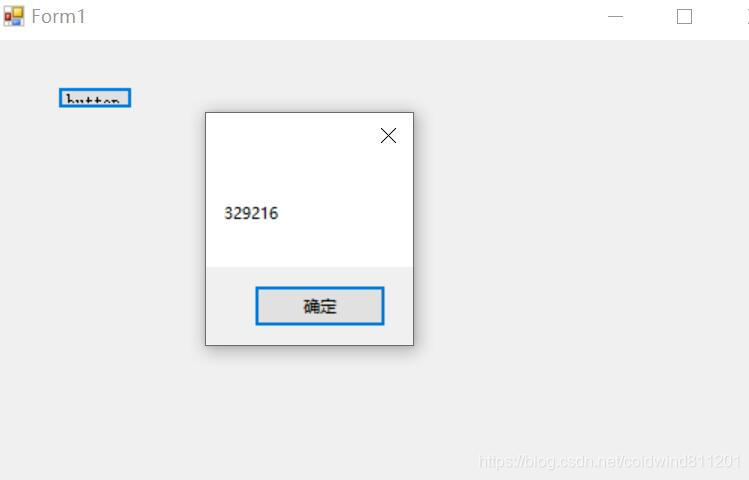

在勾选上首选32位后，测试如下代码：

        private void button1_Click(object sender, EventArgs e)
        {
            System.IO.FileInfo fi = new System.IO.FileInfo(@"c:\windows\regedit.exe");
            MessageBox.Show(Convert.ToString(fi.Length));
        }

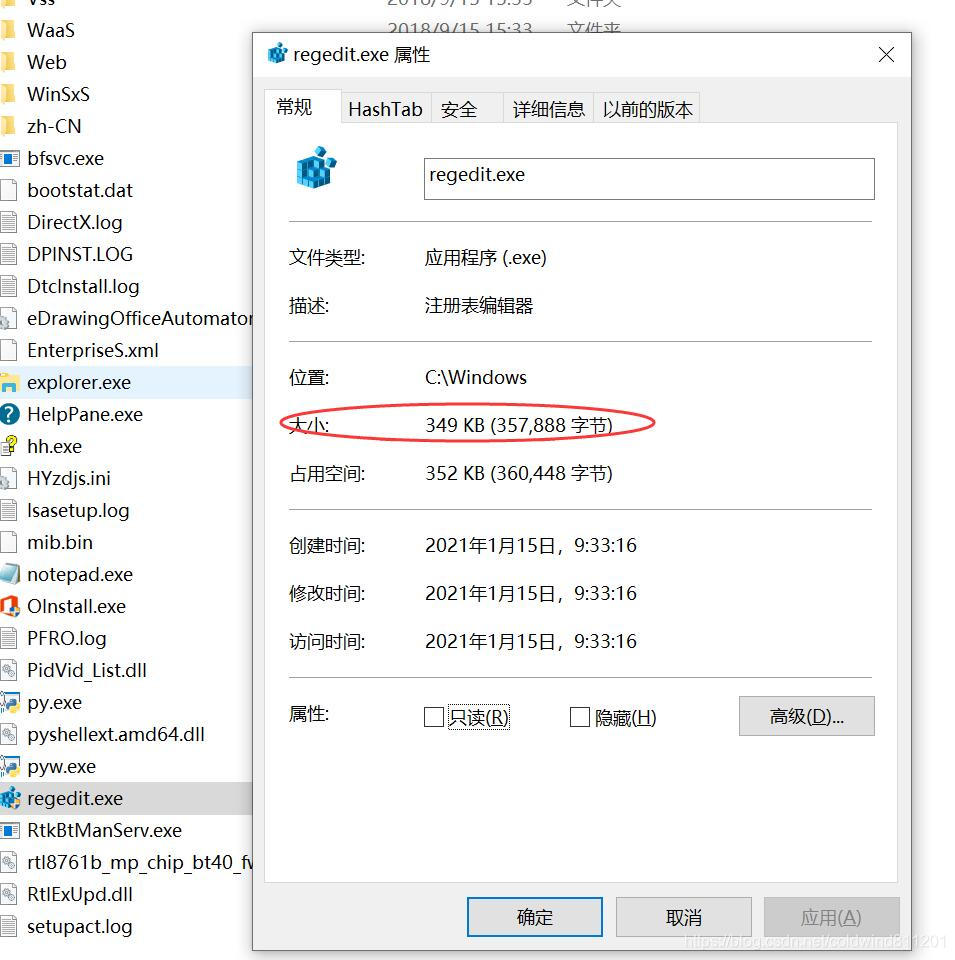

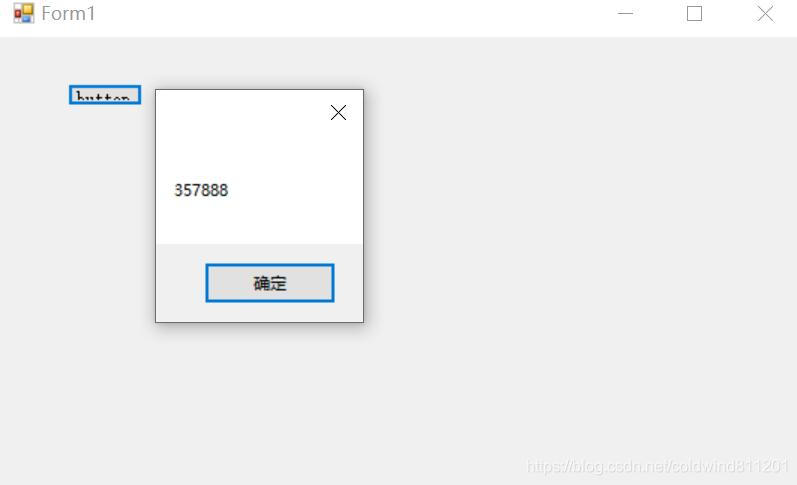

实际大小为 357888：

去除首选32位后就正常了

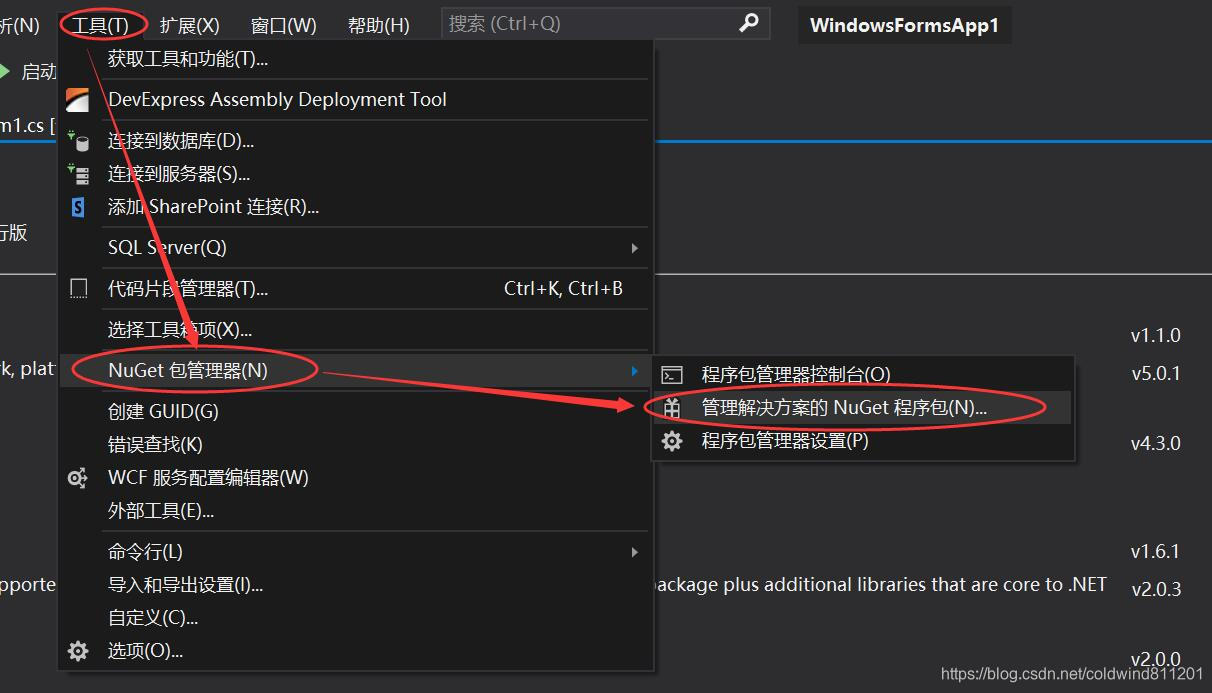

使用NuGet

SqlCipher的使用

用途：加密SQLite数据库

加载方法：

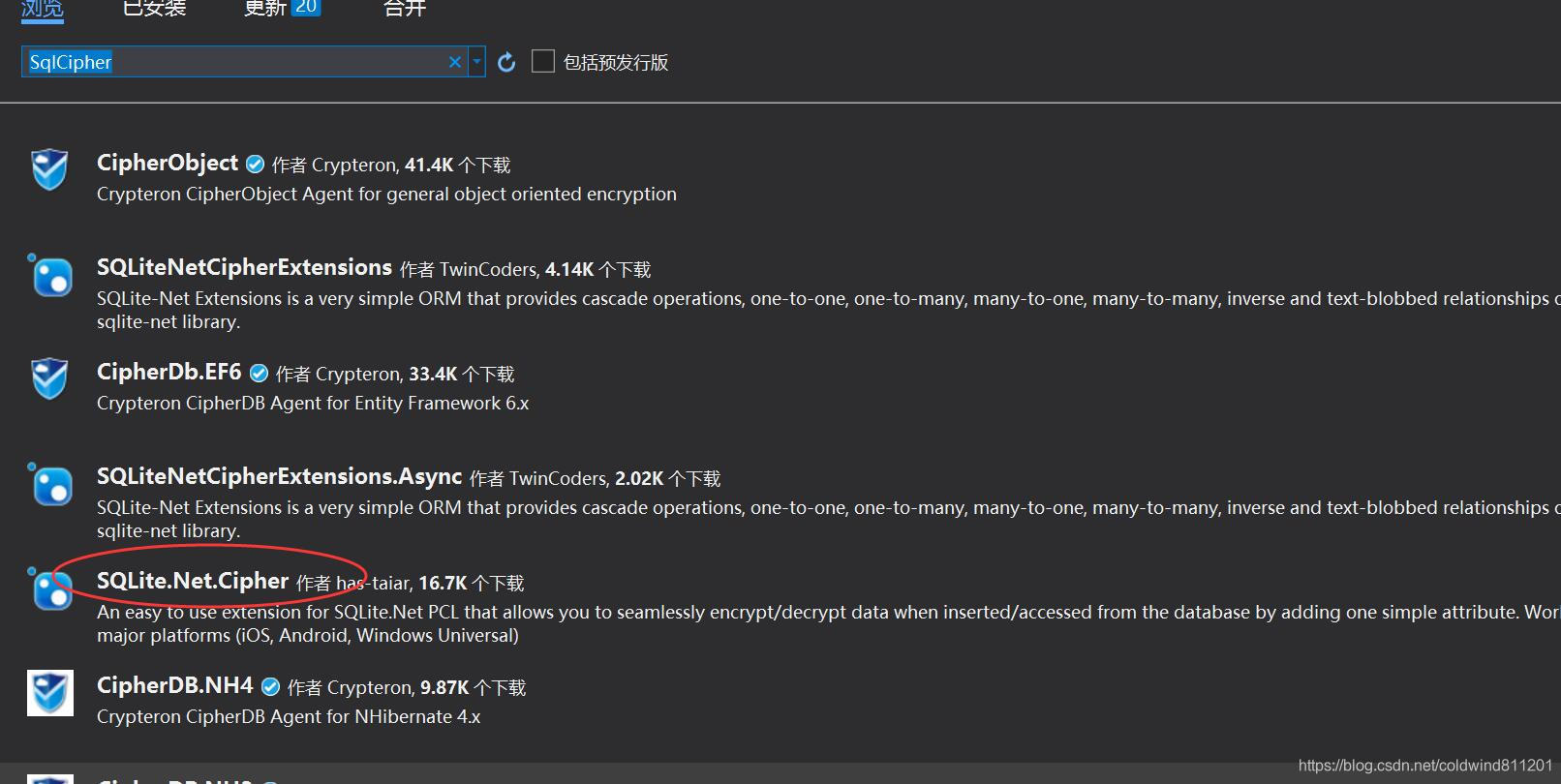

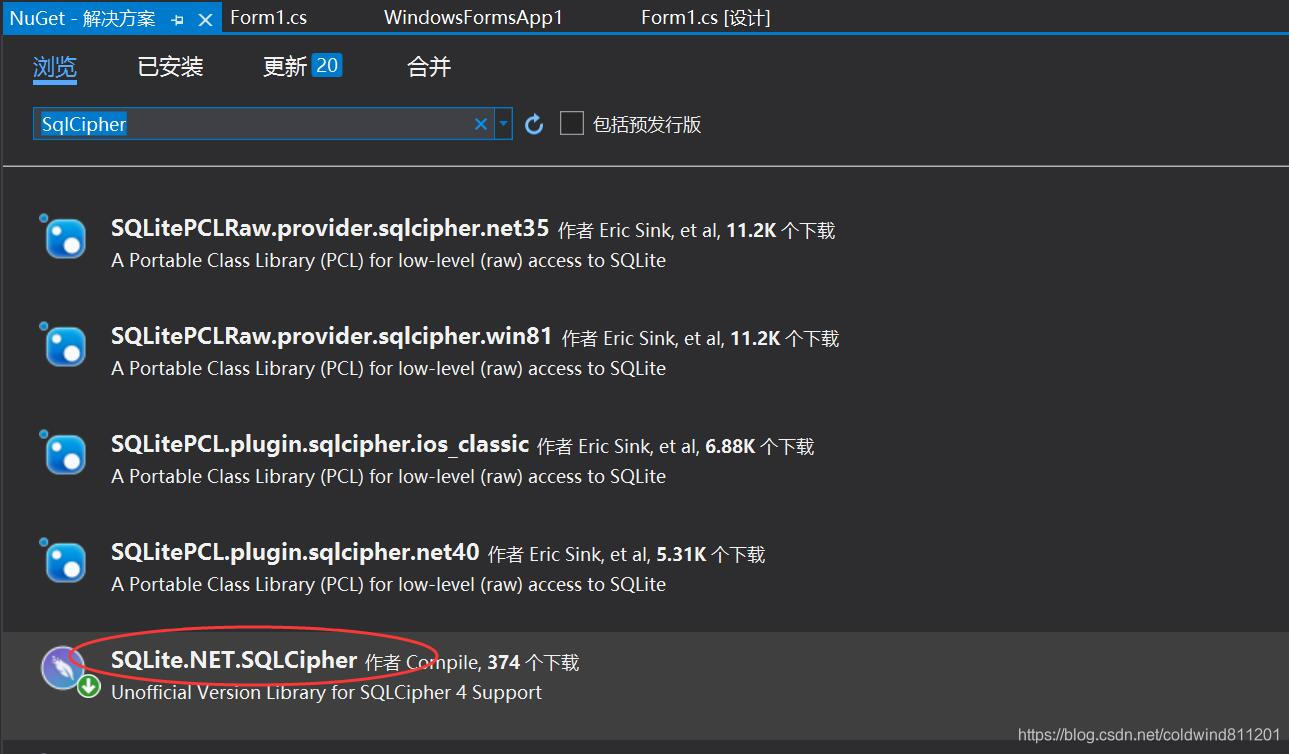

搜索SqlCipher 发现有3个相关

区别暂不清楚，目前使用作者为官方SQLite-net
URL:https://github.com/praeclarum/sqlite-net

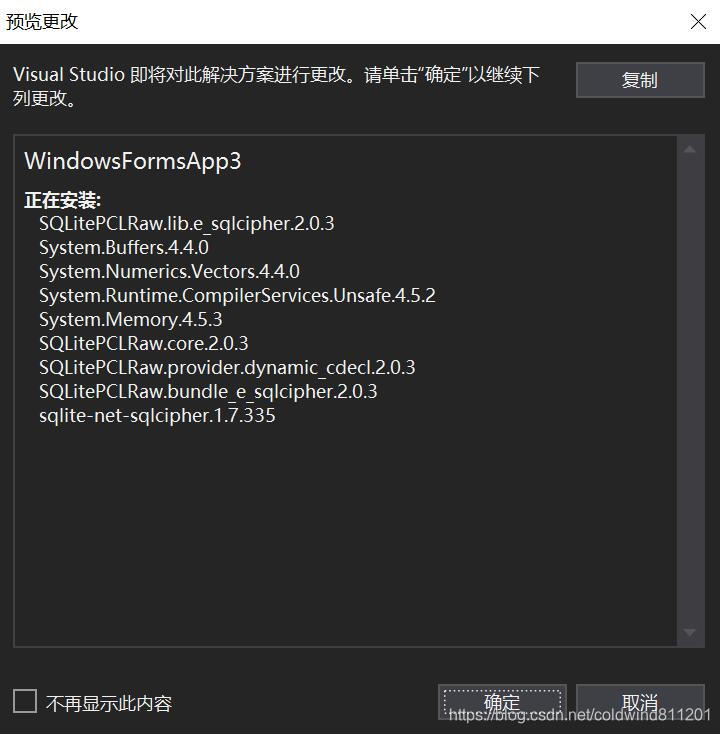

加载后会自动引入一大堆相关的DLL

SQLitePCLRaw.lib.e_sqlcipher.2.0.3
System.Buffers.4.4.0
System.Numerics.Vectors.4.4.0
System.Runtime.CompilerServices.Unsafe.4.5.2
System.Memory.4.5.3
SQLitePCLRaw.core.2.0.3
SQLitePCLRaw.provider.dynamic_cdecl.2.0.3
SQLitePCLRaw.bundle_e_sqlcipher.2.0.3
sqlite-net-sqlcipher.1.7.335

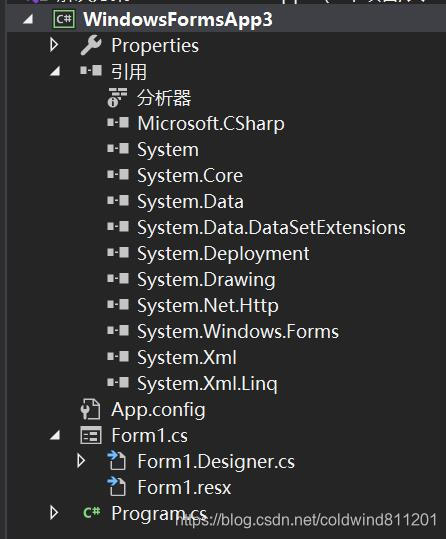

引入前：

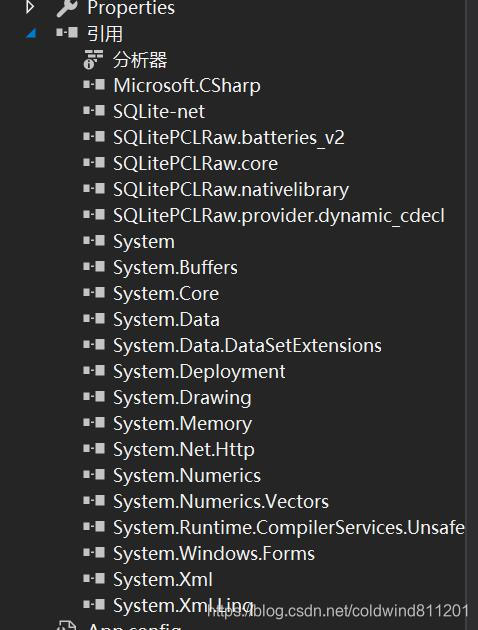

引入后：

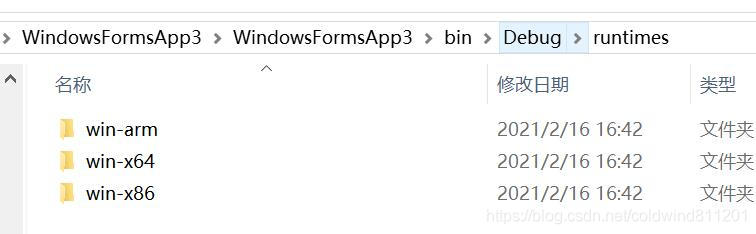

编译后除一堆DLL外，还有一个runtimes目录

使用方法：

		using SQLite;

        [Table("stock")]
        public class Stock
        {
            [PrimaryKey, AutoIncrement]
            [Column("id")]
            public int Id { get; set; }

            [Column("symbol")]
            public string Symbol { get; set; }
        }


        [Table("valuation")]
        public class Valuation
        {
            [PrimaryKey, AutoIncrement]
            [Column("id")]
            public int Id { get; set; }

            [Indexed]
            [Column("stock_id")]
            public int StockId { get; set; }

            [Column("time")]
            public DateTime Time { get; set; }

            [Column("price")]
            public decimal Price { get; set; }
        }

            var options = new SQLiteConnectionString(@"d:\test1.db", true, key: "password");
            SQLiteAsyncConnection encryptedDb = new SQLiteAsyncConnection(options);

            encryptedDb.CreateTableAsync<Stock>();
            encryptedDb.CreateTableAsync<Valuation>();

Costura.Fody的使用(合并SqlCipher的一大堆DLL)

用途：合并DLL文件进EXE，减少目录下一堆三方DLL

加载方法：

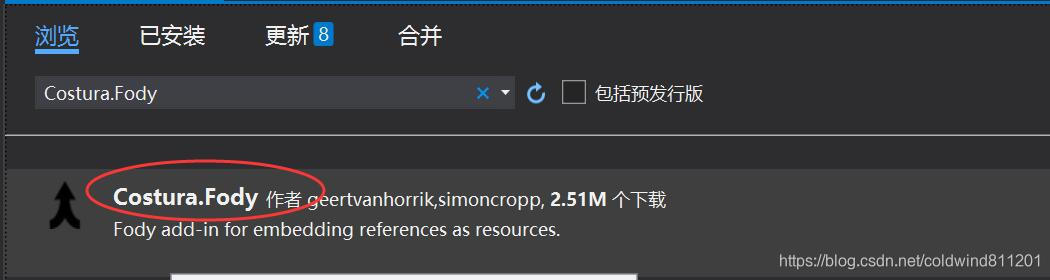

搜索Costura.Fody

URL:https://github.com/Fody/Costura

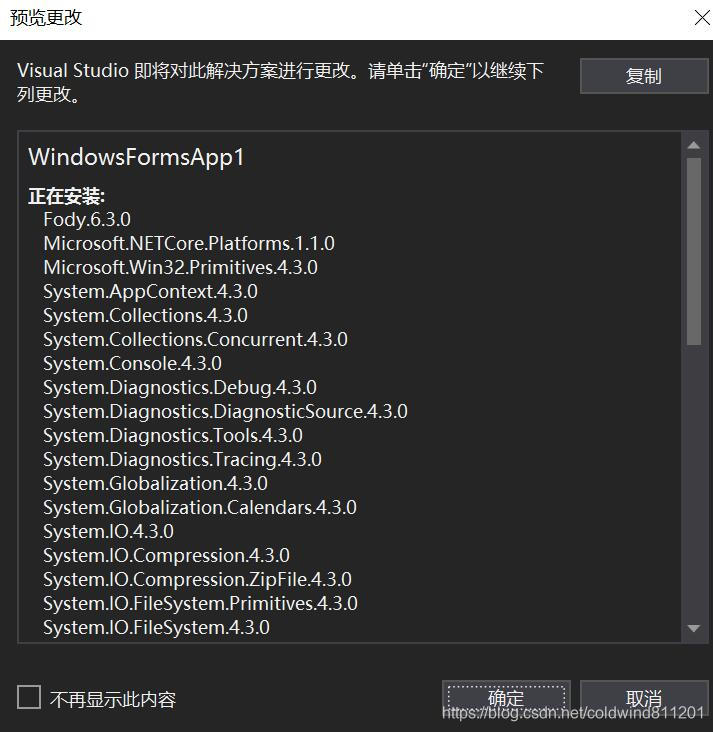

会增加如下DLL：

Fody.6.3.0
Microsoft.NETCore.Platforms.1.1.0
Microsoft.Win32.Primitives.4.3.0
System.AppContext.4.3.0
System.Collections.4.3.0
System.Collections.Concurrent.4.3.0
System.Console.4.3.0
System.Diagnostics.Debug.4.3.0
System.Diagnostics.DiagnosticSource.4.3.0
System.Diagnostics.Tools.4.3.0
System.Diagnostics.Tracing.4.3.0
System.Globalization.4.3.0
System.Globalization.Calendars.4.3.0
System.IO.4.3.0
System.IO.Compression.4.3.0
System.IO.Compression.ZipFile.4.3.0
System.IO.FileSystem.Primitives.4.3.0
System.IO.FileSystem.4.3.0
System.Linq.4.3.0
System.Linq.Expressions.4.3.0
System.Net.Primitives.4.3.0
System.Net.Sockets.4.3.0
System.ObjectModel.4.3.0
System.Reflection.4.3.0
System.Reflection.Extensions.4.3.0
System.Reflection.Primitives.4.3.0
System.Resources.ResourceManager.4.3.0
System.Runtime.4.3.0
System.Runtime.Extensions.4.3.0
System.Runtime.Handles.4.3.0
System.Runtime.InteropServices.4.3.0
System.Runtime.InteropServices.RuntimeInformation.4.3.0
System.Runtime.Numerics.4.3.0
System.Security.Cryptography.Encoding.4.3.0
System.Security.Cryptography.Primitives.4.3.0
System.Security.Cryptography.Algorithms.4.3.0
System.Security.Cryptography.X509Certificates.4.3.0
System.Net.Http.4.3.0
System.Text.Encoding.4.3.0
System.Text.Encoding.Extensions.4.3.0
System.Text.RegularExpressions.4.3.0
System.Threading.4.3.0
System.Threading.Tasks.4.3.0
System.Threading.Timer.4.3.0
System.Xml.ReaderWriter.4.3.0
System.Xml.XDocument.4.3.0
NETStandard.Library.1.6.1
Costura.Fody.5.0.2

使用参看：https://www.itsvse.com/thread-4677-1-1.html
直接编译后，所有的DLL文件直接合并入EXE文件，不需要任何代码

修改：FodyWeavers.xml
默认生成的：

<Weavers xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="FodyWeavers.xsd">
  <Costura />
</Weavers>

CreateTemporaryAssemblies 可有可无
注意SqlCipher的SQLitePCLRaw.core不能打包进exe，需要加入到ExcludeAssemblies参数中
DisableCleanup参数用于清理用不到的dll

<Weavers xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="FodyWeavers.xsd">
  <Costura CreateTemporaryAssemblies="true" ExcludeAssemblies="SQLitePCLRaw.core" DisableCleanup="false" />
</Weavers>

不修改的后果：
1、SqlCipher使用Async不会出错引发中断，但没有效果
2、SqlCipher若不使用Async

            var options = new SQLiteConnectionString(@"d:\test1.db", true, key: "password");
            SQLiteConnection encryptedDb = new SQLiteConnection(options);

            encryptedDb.CreateTable<Stock>();
            encryptedDb.CreateTable<Valuation>();

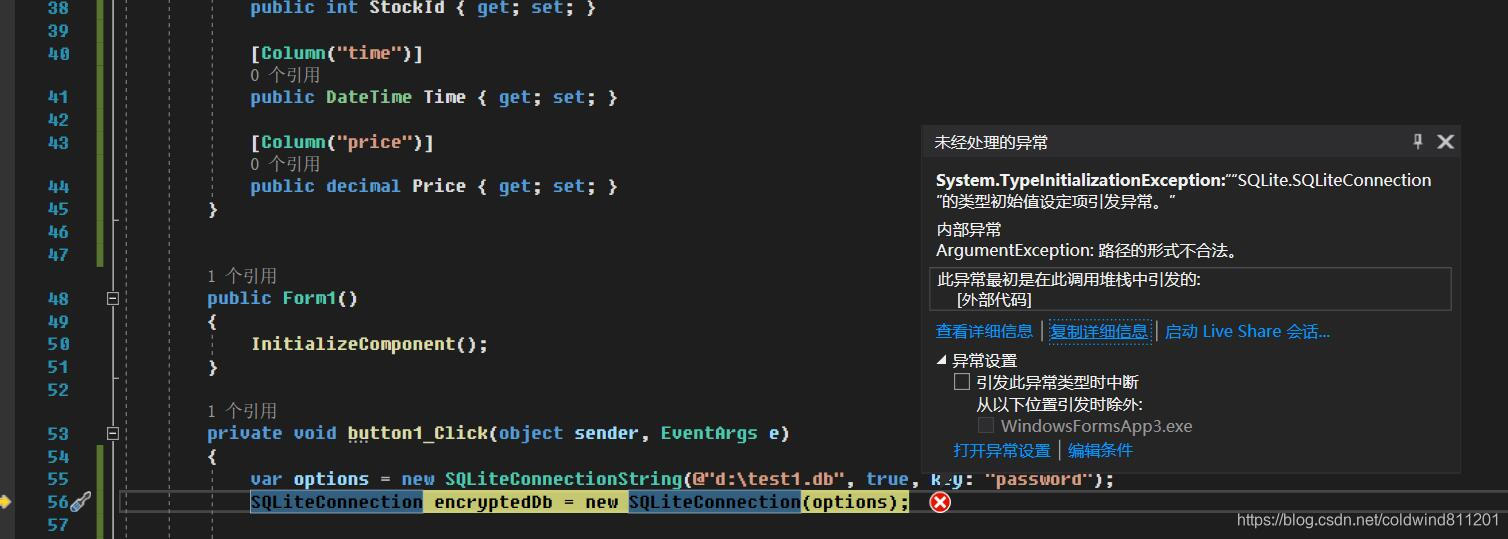

在new SQLiteConnection的时候会引发路径形式不合法的错误，错误如下：

System.TypeInitializationException
HResult=0x80131534
Message=“SQLite.SQLiteConnection”的类型初始值设定项引发异常。
Source=SQLite-net
StackTrace:
at SQLite.SQLiteConnection…ctor(SQLiteConnectionString connectionString)
at WindowsFormsApp3.Form1.button1_Click(Object sender, EventArgs e) in C:\Users\YY\source\repos\WindowsFormsApp3\WindowsFormsApp3\Form1.cs:line 56
at System.Windows.Forms.Control.OnClick(EventArgs e)
at System.Windows.Forms.Button.OnClick(EventArgs e)
at System.Windows.Forms.Button.OnMouseUp(MouseEventArgs mevent)
at System.Windows.Forms.Control.WmMouseUp(Message& m, MouseButtons button, Int32 clicks)
at System.Windows.Forms.Control.WndProc(Message& m)
at System.Windows.Forms.ButtonBase.WndProc(Message& m)
at System.Windows.Forms.Button.WndProc(Message& m)
at System.Windows.Forms.NativeWindow.DebuggableCallback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)
at System.Windows.Forms.UnsafeNativeMethods.DispatchMessageW(MSG& msg)
at System.Windows.Forms.Application.ComponentManager.System.Windows.Forms.UnsafeNativeMethods.IMsoComponentManager.FPushMessageLoop(IntPtr dwComponentID, Int32 reason, Int32 pvLoopData)
at System.Windows.Forms.Application.ThreadContext.RunMessageLoopInner(Int32 reason, ApplicationContext context)
at System.Windows.Forms.Application.ThreadContext.RunMessageLoop(Int32 reason, ApplicationContext context)
at WindowsFormsApp3.Program.Main() in C:\Users\YY\source\repos\WindowsFormsApp3\WindowsFormsApp3\Program.cs:line 19

此异常最初是在此调用堆栈中引发的:
[外部代码]

内部异常 1:
ArgumentException: 路径的形式不合法。
