SpringCloud框架搭建（十） 断路器聚合监控

看单个的Hystrix Dashboard的数据并没有什么多大的价值，要想看这个系统的Hystrix Dashboard数据就需要用到Hystrix Turbine。Hystrix Turbine将每个服务Hystrix Dashboard数据进行了整合。

turbine是聚合服务器发送事件流数据的一个工具，hystrix的监控中，只能监控单个节点，实际生产中都为集群，因此可以通过 turbine来监控集群下hystrix的metrics情况，通过eureka来发现hystrix服务。

新建一个maven项目eureka-turbine

pom添加依赖spring-cloud-starter-netflix-turbine

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>parent</artifactId>
        <groupId>com.cjc.spring.cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.cjc.spring.cloud</groupId>
    <artifactId>eureka-turbine</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix-dashboard</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-turbine</artifactId>
        </dependency>
    </dependencies>

</project>

启动类添加注解

@EnableHystrix @EnableHystrixDashboard @EnableCircuitBreaker @EnableTurbine



package com.cjc.spring.cloud.turbine.main;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.hystrix.EnableHystrix;
import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;
import org.springframework.cloud.netflix.turbine.EnableTurbine;

@SpringBootApplication
@EnableEurekaClient
@EnableHystrix
@EnableHystrixDashboard
@EnableCircuitBreaker
@EnableTurbine
public class ApplicationMain {
    public static void  main(String arg[]){
        SpringApplication.run(ApplicationMain.class);
    }
}

application.yml中添加配置

server:
  port: 8087

spring:
  application:
    name: eureka-turbine

eureka:
  client:
    register-with-eureka: true     #false表示不向注册中心注册自己。
    fetch-registry: true          #false表示自己端就是注册中心，我的职责就是维护服务实例，并不需要去检索服务
    serviceUrl:
      defaultZone: http://localhost:8081/eureka/

management:
  endpoints:
    web:
      exposure:
        include: "*"
      cors:
        allowed-origins: "*"
        allowed-methods: "*"

turbine:
  app-config: eureka-points,eureka-user  #需要监控的服务名
  aggregator:
    clusterConfig: default #需要监控的服务集群名
  clusterNameExpression: new String("default")
  combine-host: true
  instanceUrlSuffix:
    default: actuator/hystrix.stream



启动eureka-turbine，访问http://localhost:8087/turbine.stream



依次访问http://localhost:8083/getUserPoints和http://localhost:8082/getConfig。

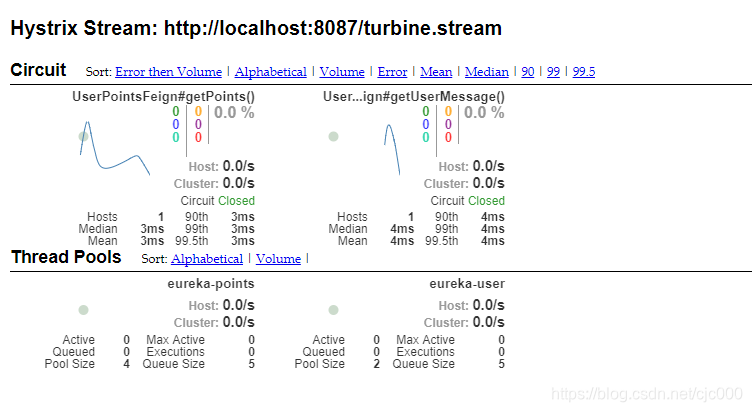

在任意一个hystrix界面如http://localhost:8087/hystrix/中输入http://localhost:8087/turbine.stream



由此可见eureka-turbine中聚合了两个服务类型的断路器监控



源码下载：https://github.com/cxsummer/springcloud
