一问题提出

当我们在集群中部署应用之后，应用请求的日志被分散记录在了不同应用服务器的文件系统上，这样分散的存储并不利于我们对日志内容的检索。解决日志分散问题的方案多种多样，本篇的解决方案是：扩展log4j实现将日志写入MongoDB。

二实战

1 新建依赖

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
        <exclusions>
            <exclusion>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-logging</artifactId>
            </exclusion>
        </exclusions>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-log4j</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-aop</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>org.mongodb</groupId>
        <artifactId>mongodb-driver</artifactId>
        <version>3.2.2</version>
    </dependency>
</dependencies>

2 自定义appender

log4j提供的输出器实现自Appender接口，要自定义appender输出到MongoDB，只需要继承AppenderSkeleton类，并实现几个方法即可完成。

 package com.didispace.log;

import com.mongodb.BasicDBObject;
import com.mongodb.MongoClient;
import com.mongodb.MongoClientURI;
import com.mongodb.client.MongoCollection;
import com.mongodb.client.MongoDatabase;
import org.apache.log4j.AppenderSkeleton;
import org.apache.log4j.spi.LoggingEvent;


public class MongoAppender  extends AppenderSkeleton {

    // 定义MongoDB的连接和操作对象，根据log4j.properties配置的参数初始化
    private MongoClient mongoClient;  // mongodb的连接客户端
    private MongoDatabase mongoDatabase;  // 记录日志的数据库
    private MongoCollection<BasicDBObject> logsCollection;  // 记录日志的集合

    // 定义MongoDB的配置参数，可通过log4j.properties配置
    private String connectionUrl;   // 连接mongodb的串
    private String databaseName;  // 数据库名
    private String collectionName; // 集合名

    /*
    根据log4j.properties中的配置创建mongodb连接
    LoggingEvent提供getMessage()函数来获取日志消息
    往配置的记录日志的collection中插入日志消息

    */
    // 重写append函数
    @Override
    protected void append(LoggingEvent loggingEvent) {

        if(mongoDatabase == null) {
            MongoClientURI connectionString = new MongoClientURI(connectionUrl);
            mongoClient = new MongoClient(connectionString);
            mongoDatabase = mongoClient.getDatabase(databaseName);
            logsCollection = mongoDatabase.getCollection(collectionName, BasicDBObject.class);
        }
        logsCollection.insertOne((BasicDBObject) loggingEvent.getMessage());

    }
    // 重写close函数：关闭mongodb
    @Override
    public void close() {
        if(mongoClient != null) {
            mongoClient.close();
        }
    }

    @Override
    public boolean requiresLayout() {
        return false;
    }

    public String getConnectionUrl() {
        return connectionUrl;
    }

    public void setConnectionUrl(String connectionUrl) {
        this.connectionUrl = connectionUrl;
    }

    public String getDatabaseName() {
        return databaseName;
    }

    public void setDatabaseName(String databaseName) {
        this.databaseName = databaseName;
    }

    public String getCollectionName() {
        return collectionName;
    }

    public void setCollectionName(String collectionName) {
        this.collectionName = collectionName;
    }

}

3 配置log4j.properties

# LOG4J配置
log4j.rootCategory=INFO, stdout
log4j.logger.mongodb=INFO, mongodb

# 控制台输出
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{yyyy-MM-dd HH:mm:ss,SSS} %5p %c{1}:%L - %m%n

# mongodb输出
log4j.appender.mongodb=com.didispace.log.MongoAppender
log4j.appender.mongodb.connectionUrl=mongodb://localhost:27017
log4j.appender.mongodb.databaseName=logs
log4j.appender.mongodb.collectionName=logs_request

4 Web层日志切面定义

package com.didispace.aspect;

import com.mongodb.BasicDBObject;
import org.apache.log4j.Logger;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.aspectj.lang.annotation.Pointcut;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import javax.servlet.http.HttpServletRequest;
import java.util.Arrays;
import java.util.Enumeration;
import java.util.HashMap;
import java.util.Map;


@Aspect
@Order(1)
@Component
public class WebLogAspect {

    //logger取名为mongodb
    private Logger logger = Logger.getLogger("mongodb");

    @Pointcut("execution(public * com.didispace.web..*.*(..))")
    public void webLog(){}

    @Before("webLog()")
    public void doBefore(JoinPoint joinPoint) throws Throwable {
        // 获取HttpServletRequest
        ServletRequestAttributes attributes = (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
        HttpServletRequest request = attributes.getRequest();
        // 获取要记录的日志内容
        BasicDBObject logInfo = getBasicDBObject(request, joinPoint);
        //输出BasicDBObject对象的信息到mongodb
        logger.info(logInfo);
    }

    //通过getBasicDBObject函数从HttpServletRequest和JoinPoint对象中获取请求信息，并组装成BasicDBObject
    private BasicDBObject getBasicDBObject(HttpServletRequest request, JoinPoint joinPoint) {
        // 基本信息
        BasicDBObject r = new BasicDBObject();
        r.append("requestURL", request.getRequestURL().toString());
        r.append("requestURI", request.getRequestURI());
        r.append("queryString", request.getQueryString());
        r.append("remoteAddr", request.getRemoteAddr());
        r.append("remoteHost", request.getRemoteHost());
        r.append("remotePort", request.getRemotePort());
        r.append("localAddr", request.getLocalAddr());
        r.append("localName", request.getLocalName());
        r.append("method", request.getMethod());
        r.append("headers", getHeadersInfo(request));
        r.append("parameters", request.getParameterMap());
        r.append("classMethod", joinPoint.getSignature().getDeclaringTypeName() + "." + joinPoint.getSignature().getName());
        r.append("args", Arrays.toString(joinPoint.getArgs()));
        return r;
    }

    /**
     * getHeadersInfo函数从HttpServletRequest中获取header信息
     *
     * @param request
     * @return
     */
    private Map<String, String> getHeadersInfo(HttpServletRequest request) {
        Map<String, String> map = new HashMap<>();
        Enumeration headerNames = request.getHeaderNames();
        while (headerNames.hasMoreElements()) {
            String key = (String) headerNames.nextElement();
            String value = request.getHeader(key);
            map.put(key, value);
        }
        return map;
    }

}

5 定义启动类

package com.didispace;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class Application {

    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }

}

6 控制器

package com.didispace.web;

import org.springframework.web.bind.annotation.*;

@RestController
public class HelloController {

    @RequestMapping(value = "/hello", method = RequestMethod.GET)
    @ResponseBody
    public String hello(@RequestParam String name) {
        return "Hello " + name;
    }

}

三测试

1 浏览器输入

http://localhost:8080/hello?name=didi

2 控制台输出

package com.didispace.web;

import org.springframework.web.bind.annotation.*;

@RestController
public class HelloController {

    @RequestMapping(value = "/hello", method = RequestMethod.GET)
    @ResponseBody
    public String hello(@RequestParam String name) {
        return "Hello " + name;
    }

}

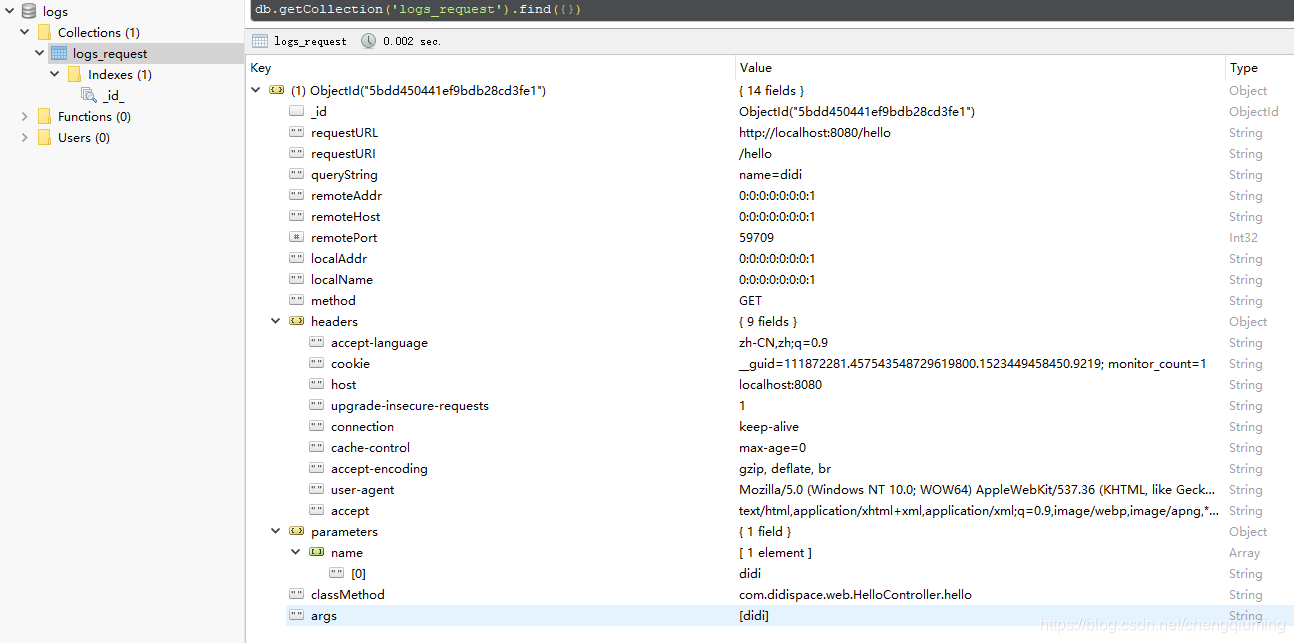

3 mongodb产生的数据
