Spring系列-Spring IoC容器概述

Spring IoC是Spring Framework的核心。

控制反转和依赖注入：
早在2004年，Martin Fowler就提出了“哪些方面的控制被反转了？”，后来得出的结论是：依赖对象的获得被反转了。基于这个结论，他为控制反转创造了一个更好的名字：依赖注入。

不过我们平时会同时说到控制反转和依赖注入两个概念，控制反转指的就是把对象的获得交给容器，这样就反转了。依赖注入指的是容器把对象之间的依赖注入进去。

控制反转的实现有多种方式，可以在对象生成或初始化的时候，直接将数据注入到对象中。也可以把对象的引用注入进去。

Spring IoC：
Spring IoC容器的设计，最关键的就是两个接口，BeanFactory和ApplicationContext。
BeanFactory接口定义了IoC容器基本的功能规范，ApplicationContext在BeanFactory的基础上，增加了许多面向框架的特性，对应用环境做了很多适配，是容器的高级形态。

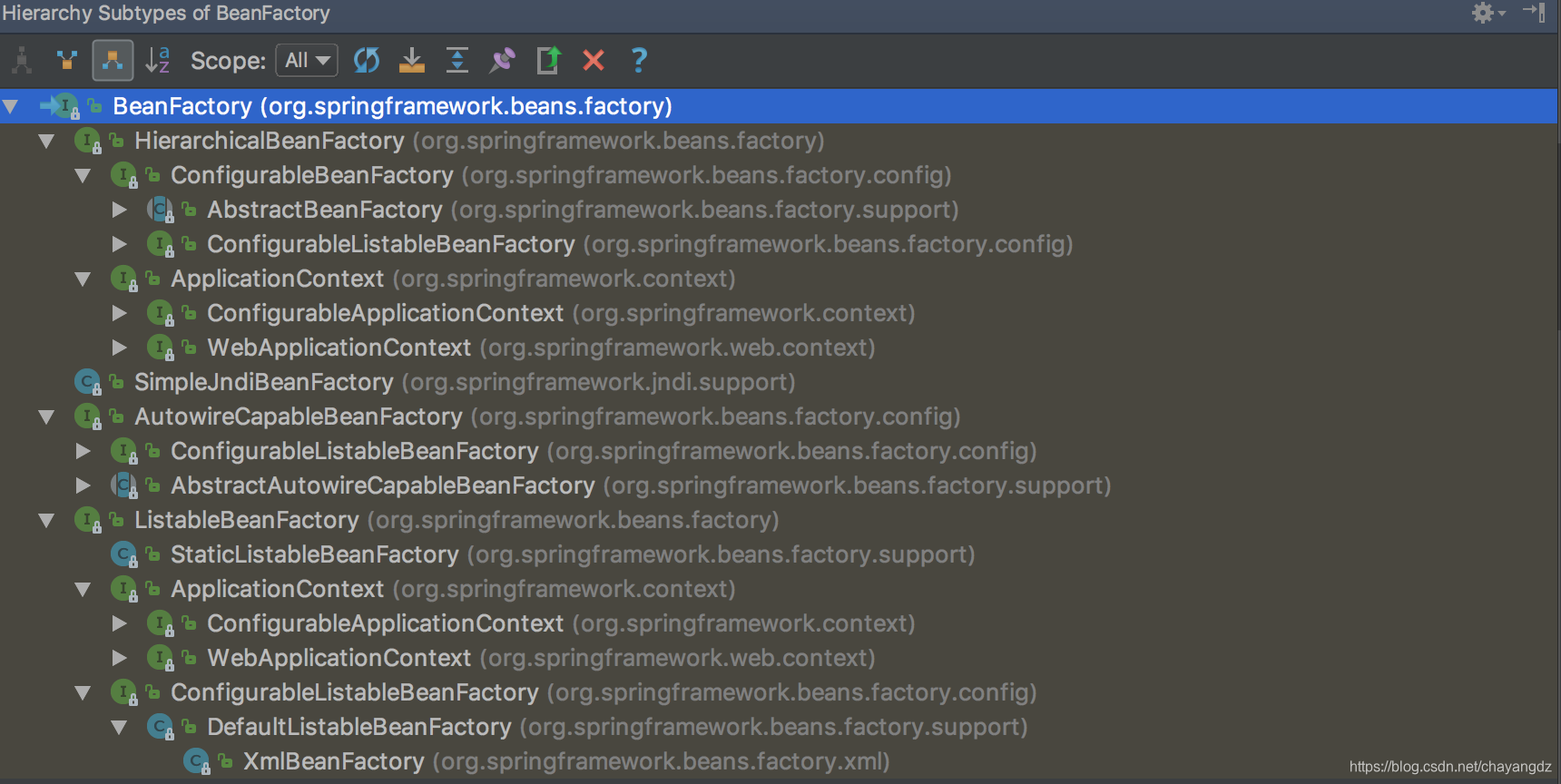

在Idea中，通过control+H快捷键，可以看到BeanFactory的继承情况。

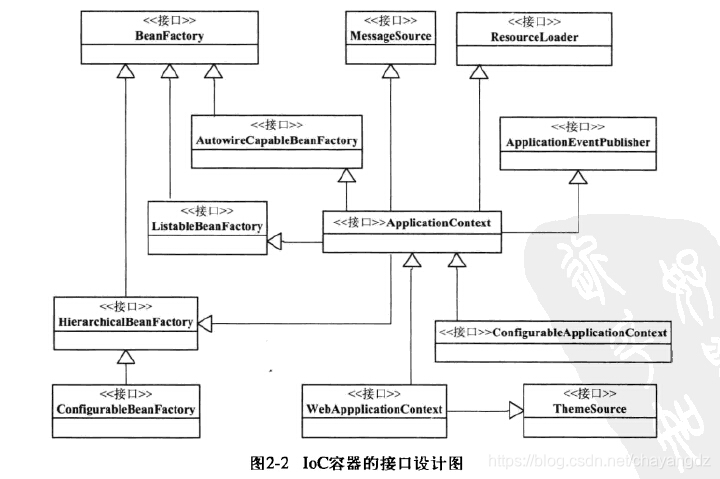

网上也可以搜到Spring IoC容器的接口设计图。

在Spring IoC容器中，有两条线路，一条是BeanFactory，一条是ApplicationContext。BeanFactory这条线是简单的IoC容器，ApplicationContext继承了ListableBeanFactory，具备了简单IoC容器的功能，同时又继承了MessageSource、ResourcePatternResolver、ApplicationEventPublisher等接口，拥有了更高级的IoC容器特性。

下面先看下BeanFactory这条线：
BeanFactory算是IoC容器中最顶级的一个接口了，它定义了IoC容器最基本的形式，提供了最基本的功能。比如，接口中定义了getBean方法，用来获取IoC容器中的一个Bean。

下面是BeanFactory的源码：

public interface BeanFactory {

	/**
	 * Used to dereference a {@link FactoryBean} instance and distinguish it from
	 * beans <i>created</i> by the FactoryBean. For example, if the bean named
	 * {@code myJndiObject} is a FactoryBean, getting {@code &myJndiObject}
	 * will return the factory, not the instance returned by the factory.
	 */
	String FACTORY_BEAN_PREFIX = "&";


	/**
	 * Return an instance, which may be shared or independent, of the specified bean.
	 * <p>This method allows a Spring BeanFactory to be used as a replacement for the
	 * Singleton or Prototype design pattern. Callers may retain references to
	 * returned objects in the case of Singleton beans.
	 * <p>Translates aliases back to the corresponding canonical bean name.
	 * Will ask the parent factory if the bean cannot be found in this factory instance.
	 * @param name the name of the bean to retrieve
	 * @return an instance of the bean
	 * @throws NoSuchBeanDefinitionException if there is no bean definition
	 * with the specified name
	 * @throws BeansException if the bean could not be obtained
	 */
	Object getBean(String name) throws BeansException;

	/**
	 * Return an instance, which may be shared or independent, of the specified bean.
	 * <p>Behaves the same as {@link #getBean(String)}, but provides a measure of type
	 * safety by throwing a BeanNotOfRequiredTypeException if the bean is not of the
	 * required type. This means that ClassCastException can't be thrown on casting
	 * the result correctly, as can happen with {@link #getBean(String)}.
	 * <p>Translates aliases back to the corresponding canonical bean name.
	 * Will ask the parent factory if the bean cannot be found in this factory instance.
	 * @param name the name of the bean to retrieve
	 * @param requiredType type the bean must match. Can be an interface or superclass
	 * of the actual class, or {@code null} for any match. For example, if the value
	 * is {@code Object.class}, this method will succeed whatever the class of the
	 * returned instance.
	 * @return an instance of the bean
	 * @throws NoSuchBeanDefinitionException if there is no such bean definition
	 * @throws BeanNotOfRequiredTypeException if the bean is not of the required type
	 * @throws BeansException if the bean could not be created
	 */
	<T> T getBean(String name, Class<T> requiredType) throws BeansException;

	/**
	 * Return the bean instance that uniquely matches the given object type, if any.
	 * @param requiredType type the bean must match; can be an interface or superclass.
	 * {@code null} is disallowed.
	 * <p>This method goes into {@link ListableBeanFactory} by-type lookup territory
	 * but may also be translated into a conventional by-name lookup based on the name
	 * of the given type. For more extensive retrieval operations across sets of beans,
	 * use {@link ListableBeanFactory} and/or {@link BeanFactoryUtils}.
	 * @return an instance of the single bean matching the required type
	 * @throws NoSuchBeanDefinitionException if no bean of the given type was found
	 * @throws NoUniqueBeanDefinitionException if more than one bean of the given type was found
	 * @throws BeansException if the bean could not be created
	 * @since 3.0
	 * @see ListableBeanFactory
	 */
	<T> T getBean(Class<T> requiredType) throws BeansException;

	/**
	 * Return an instance, which may be shared or independent, of the specified bean.
	 * <p>Allows for specifying explicit constructor arguments / factory method arguments,
	 * overriding the specified default arguments (if any) in the bean definition.
	 * @param name the name of the bean to retrieve
	 * @param args arguments to use when creating a bean instance using explicit arguments
	 * (only applied when creating a new instance as opposed to retrieving an existing one)
	 * @return an instance of the bean
	 * @throws NoSuchBeanDefinitionException if there is no such bean definition
	 * @throws BeanDefinitionStoreException if arguments have been given but
	 * the affected bean isn't a prototype
	 * @throws BeansException if the bean could not be created
	 * @since 2.5
	 */
	Object getBean(String name, Object... args) throws BeansException;

	/**
	 * Return an instance, which may be shared or independent, of the specified bean.
	 * <p>Allows for specifying explicit constructor arguments / factory method arguments,
	 * overriding the specified default arguments (if any) in the bean definition.
	 * @param requiredType type the bean must match; can be an interface or superclass.
	 * {@code null} is disallowed.
	 * <p>This method goes into {@link ListableBeanFactory} by-type lookup territory
	 * but may also be translated into a conventional by-name lookup based on the name
	 * of the given type. For more extensive retrieval operations across sets of beans,
	 * use {@link ListableBeanFactory} and/or {@link BeanFactoryUtils}.
	 * @param args arguments to use when creating a bean instance using explicit arguments
	 * (only applied when creating a new instance as opposed to retrieving an existing one)
	 * @return an instance of the bean
	 * @throws NoSuchBeanDefinitionException if there is no such bean definition
	 * @throws BeanDefinitionStoreException if arguments have been given but
	 * the affected bean isn't a prototype
	 * @throws BeansException if the bean could not be created
	 * @since 4.1
	 */
	<T> T getBean(Class<T> requiredType, Object... args) throws BeansException;


	/**
	 * Does this bean factory contain a bean definition or externally registered singleton
	 * instance with the given name?
	 * <p>If the given name is an alias, it will be translated back to the corresponding
	 * canonical bean name.
	 * <p>If this factory is hierarchical, will ask any parent factory if the bean cannot
	 * be found in this factory instance.
	 * <p>If a bean definition or singleton instance matching the given name is found,
	 * this method will return {@code true} whether the named bean definition is concrete
	 * or abstract, lazy or eager, in scope or not. Therefore, note that a {@code true}
	 * return value from this method does not necessarily indicate that {@link #getBean}
	 * will be able to obtain an instance for the same name.
	 * @param name the name of the bean to query
	 * @return whether a bean with the given name is present
	 */
	boolean containsBean(String name);

	/**
	 * Is this bean a shared singleton? That is, will {@link #getBean} always
	 * return the same instance?
	 * <p>Note: This method returning {@code false} does not clearly indicate
	 * independent instances. It indicates non-singleton instances, which may correspond
	 * to a scoped bean as well. Use the {@link #isPrototype} operation to explicitly
	 * check for independent instances.
	 * <p>Translates aliases back to the corresponding canonical bean name.
	 * Will ask the parent factory if the bean cannot be found in this factory instance.
	 * @param name the name of the bean to query
	 * @return whether this bean corresponds to a singleton instance
	 * @throws NoSuchBeanDefinitionException if there is no bean with the given name
	 * @see #getBean
	 * @see #isPrototype
	 */
	boolean isSingleton(String name) throws NoSuchBeanDefinitionException;

	/**
	 * Is this bean a prototype? That is, will {@link #getBean} always return
	 * independent instances?
	 * <p>Note: This method returning {@code false} does not clearly indicate
	 * a singleton object. It indicates non-independent instances, which may correspond
	 * to a scoped bean as well. Use the {@link #isSingleton} operation to explicitly
	 * check for a shared singleton instance.
	 * <p>Translates aliases back to the corresponding canonical bean name.
	 * Will ask the parent factory if the bean cannot be found in this factory instance.
	 * @param name the name of the bean to query
	 * @return whether this bean will always deliver independent instances
	 * @throws NoSuchBeanDefinitionException if there is no bean with the given name
	 * @since 2.0.3
	 * @see #getBean
	 * @see #isSingleton
	 */
	boolean isPrototype(String name) throws NoSuchBeanDefinitionException;

	/**
	 * Check whether the bean with the given name matches the specified type.
	 * More specifically, check whether a {@link #getBean} call for the given name
	 * would return an object that is assignable to the specified target type.
	 * <p>Translates aliases back to the corresponding canonical bean name.
	 * Will ask the parent factory if the bean cannot be found in this factory instance.
	 * @param name the name of the bean to query
	 * @param typeToMatch the type to match against (as a {@code ResolvableType})
	 * @return {@code true} if the bean type matches,
	 * {@code false} if it doesn't match or cannot be determined yet
	 * @throws NoSuchBeanDefinitionException if there is no bean with the given name
	 * @since 4.2
	 * @see #getBean
	 * @see #getType
	 */
	boolean isTypeMatch(String name, ResolvableType typeToMatch) throws NoSuchBeanDefinitionException;

	/**
	 * Check whether the bean with the given name matches the specified type.
	 * More specifically, check whether a {@link #getBean} call for the given name
	 * would return an object that is assignable to the specified target type.
	 * <p>Translates aliases back to the corresponding canonical bean name.
	 * Will ask the parent factory if the bean cannot be found in this factory instance.
	 * @param name the name of the bean to query
	 * @param typeToMatch the type to match against (as a {@code Class})
	 * @return {@code true} if the bean type matches,
	 * {@code false} if it doesn't match or cannot be determined yet
	 * @throws NoSuchBeanDefinitionException if there is no bean with the given name
	 * @since 2.0.1
	 * @see #getBean
	 * @see #getType
	 */
	boolean isTypeMatch(String name, Class<?> typeToMatch) throws NoSuchBeanDefinitionException;

	/**
	 * Determine the type of the bean with the given name. More specifically,
	 * determine the type of object that {@link #getBean} would return for the given name.
	 * <p>For a {@link FactoryBean}, return the type of object that the FactoryBean creates,
	 * as exposed by {@link FactoryBean#getObjectType()}.
	 * <p>Translates aliases back to the corresponding canonical bean name.
	 * Will ask the parent factory if the bean cannot be found in this factory instance.
	 * @param name the name of the bean to query
	 * @return the type of the bean, or {@code null} if not determinable
	 * @throws NoSuchBeanDefinitionException if there is no bean with the given name
	 * @since 1.1.2
	 * @see #getBean
	 * @see #isTypeMatch
	 */
	Class<?> getType(String name) throws NoSuchBeanDefinitionException;

	/**
	 * Return the aliases for the given bean name, if any.
	 * All of those aliases point to the same bean when used in a {@link #getBean} call.
	 * <p>If the given name is an alias, the corresponding original bean name
	 * and other aliases (if any) will be returned, with the original bean name
	 * being the first element in the array.
	 * <p>Will ask the parent factory if the bean cannot be found in this factory instance.
	 * @param name the bean name to check for aliases
	 * @return the aliases, or an empty array if none
	 * @see #getBean
	 */
	String[] getAliases(String name);

}

实现了BeanFactory接口的类，我们最常见的是XmlBeanFactory：

@Deprecated
@SuppressWarnings({"serial", "all"})
public class XmlBeanFactory extends DefaultListableBeanFactory {

	private final XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(this);


	/**
	 * Create a new XmlBeanFactory with the given resource,
	 * which must be parsable using DOM.
	 * @param resource XML resource to load bean definitions from
	 * @throws BeansException in case of loading or parsing errors
	 */
	public XmlBeanFactory(Resource resource) throws BeansException {
		this(resource, null);
	}

	/**
	 * Create a new XmlBeanFactory with the given input stream,
	 * which must be parsable using DOM.
	 * @param resource XML resource to load bean definitions from
	 * @param parentBeanFactory parent bean factory
	 * @throws BeansException in case of loading or parsing errors
	 */
	public XmlBeanFactory(Resource resource, BeanFactory parentBeanFactory) throws BeansException {
		super(parentBeanFactory);
		this.reader.loadBeanDefinitions(resource);
	}

}

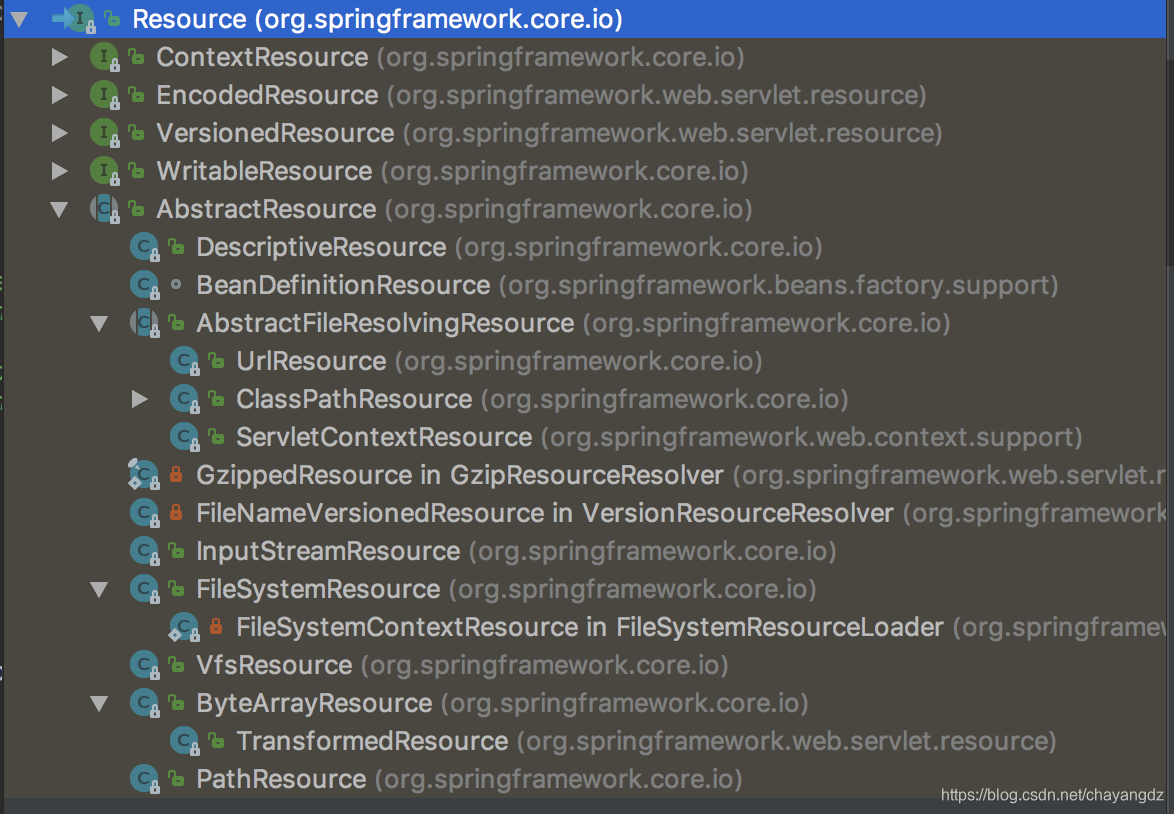

从代码中可以看到，XmlBeanFactory类继承了DefaultListableBeanFactory ，而DefaultListableBeanFactory类可以看成一个默认的功能完整的IoC容器。XmlBeanFactory在继承了DefaultListableBeanFactory的基础上，定义了一个XmlBeanDefinitionReader，然后通过reader.loadBeanDefinitions方法，来加载xml文件中定义的Bean。可以看到XmlBeanFactory的构造函数需要传入一个Resource类型的参数，这个参数就是指定我们xml文件的来源的。Resource是一个接口，我们可以传入具体的某个实现类来指定xml文件路径。

接下来再看下ApplicationContext：
ApplicationContext是一个高级形态的IoC容器，和BeanFactory相比，由于ApplicationContext继承了MessageSource、ResourcePatternResolver、ApplicationEventPublisher等接口，使得ApplicationContext可以拥有BeanFactory不具备的特性，比如支持不同的信息源，访问资源，支持应用事件，提供附加服务，所以在开发应用中，推荐使用ApplicationContext作为IoC容器的基本形式。

public interface ApplicationContext extends EnvironmentCapable, ListableBeanFactory, HierarchicalBeanFactory,
		MessageSource, ApplicationEventPublisher, ResourcePatternResolver {

	/**
	 * Return the unique id of this application context.
	 * @return the unique id of the context, or {@code null} if none
	 */
	String getId();

	/**
	 * Return a name for the deployed application that this context belongs to.
	 * @return a name for the deployed application, or the empty String by default
	 */
	String getApplicationName();

	/**
	 * Return a friendly name for this context.
	 * @return a display name for this context (never {@code null})
	 */
	String getDisplayName();

	/**
	 * Return the timestamp when this context was first loaded.
	 * @return the timestamp (ms) when this context was first loaded
	 */
	long getStartupDate();

	/**
	 * Return the parent context, or {@code null} if there is no parent
	 * and this is the root of the context hierarchy.
	 * @return the parent context, or {@code null} if there is no parent
	 */
	ApplicationContext getParent();

	/**
	 * Expose AutowireCapableBeanFactory functionality for this context.
	 * <p>This is not typically used by application code, except for the purpose of
	 * initializing bean instances that live outside of the application context,
	 * applying the Spring bean lifecycle (fully or partly) to them.
	 * <p>Alternatively, the internal BeanFactory exposed by the
	 * {@link ConfigurableApplicationContext} interface offers access to the
	 * {@link AutowireCapableBeanFactory} interface too. The present method mainly
	 * serves as a convenient, specific facility on the ApplicationContext interface.
	 * <p><b>NOTE: As of 4.2, this method will consistently throw IllegalStateException
	 * after the application context has been closed.</b> In current Spring Framework
	 * versions, only refreshable application contexts behave that way; as of 4.2,
	 * all application context implementations will be required to comply.
	 * @return the AutowireCapableBeanFactory for this context
	 * @throws IllegalStateException if the context does not support the
	 * {@link AutowireCapableBeanFactory} interface, or does not hold an
	 * autowire-capable bean factory yet (e.g. if {@code refresh()} has
	 * never been called), or if the context has been closed already
	 * @see ConfigurableApplicationContext#refresh()
	 * @see ConfigurableApplicationContext#getBeanFactory()
	 */
	AutowireCapableBeanFactory getAutowireCapableBeanFactory() throws IllegalStateException;

}

实现了ApplicationContext的类中，比较常见的是FileSystemXmlApplicationContext：

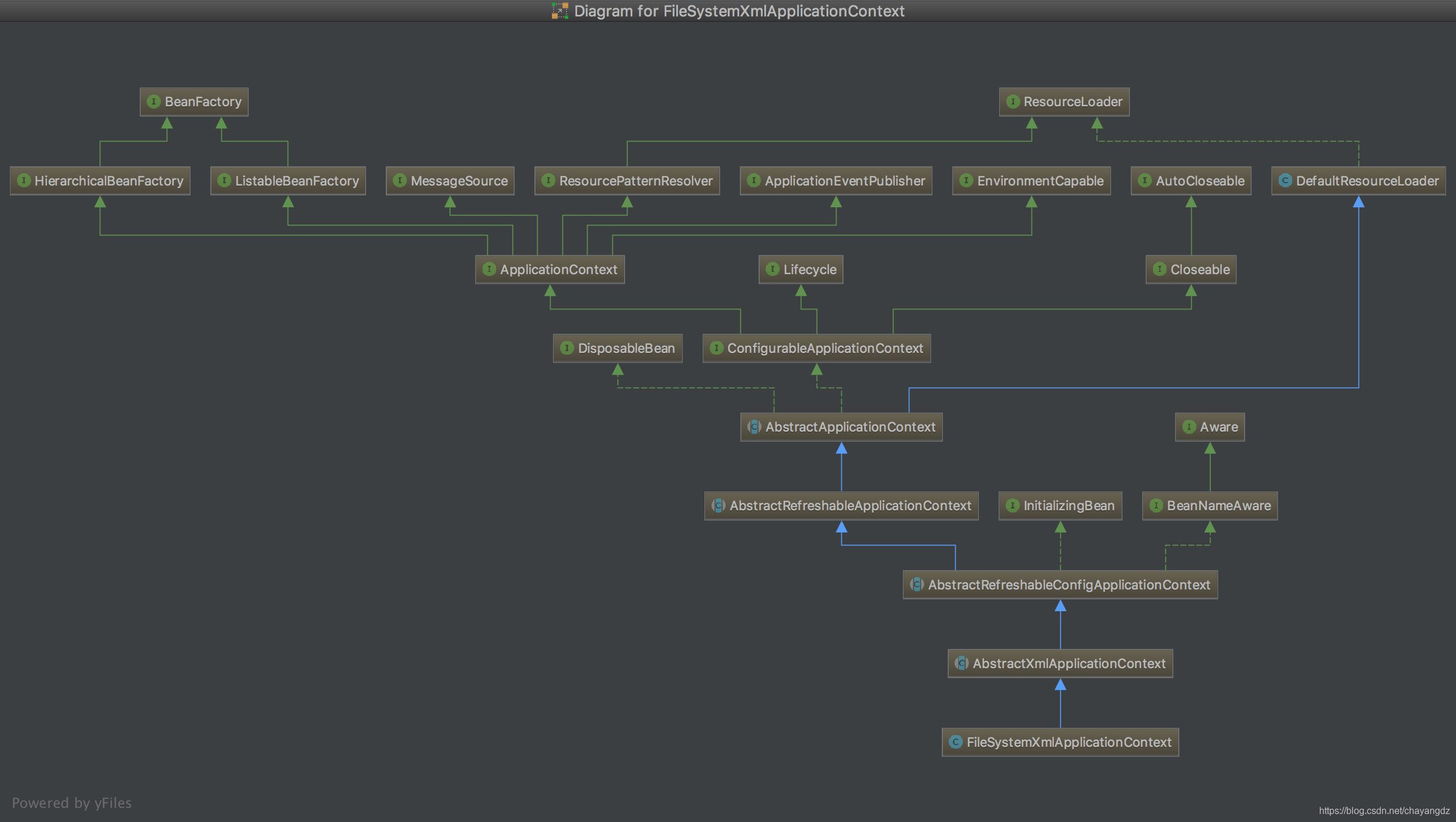

FileSystemXmlApplicationContext继承了AbstractXmlApplicationContext，主要的功能都是在AbstractXmlApplicationContext中实现的，可以看到在FileSystemXmlApplicationContext的构造方法中，有这么一个方法：

	/**
	 * Create a new FileSystemXmlApplicationContext with the given parent,
	 * loading the definitions from the given XML files.
	 * @param configLocations array of file paths
	 * @param refresh whether to automatically refresh the context,
	 * loading all bean definitions and creating all singletons.
	 * Alternatively, call refresh manually after further configuring the context.
	 * @param parent the parent context
	 * @throws BeansException if context creation failed
	 * @see #refresh()
	 */
	public FileSystemXmlApplicationContext(String[] configLocations, boolean refresh, ApplicationContext parent)
			throws BeansException {

		super(parent);
		setConfigLocations(configLocations);
		if (refresh) {
			refresh();
		}
	}

如果有人想直接使用FileSystemXmlApplicationContext的话，这个构造方法就会调用refresh()，来启动IoC容器。

IoC容器的初始化过程分为三个阶段：
1.Resource定位
2.BeanDefinition载入
3.在IoC容器中注册BeanDefinition

Resource的定位指的是我们定义的那些Bean的配置文件，比如定义在classpath下的一些xml。IoC容器首先得能够定位到这些文件，才能从中读取配置。

BeanDefinition的载入，就是把我们定义的Bean，转换成IoC容器内部的数据结构（因为作为一个容器来说，肯定不会和我们业务自己定义的那些Bean耦合，容器会自己定义一种类型，可以用来表示所有的Bean），也就是BeanDefinition的类型。通过这个BeanDefinition，IoC容器就可以方便的进行管理。

IoC容器注册BeanDefinition：把Bean解析成BeanDefinition之后，还要向IoC容器注册，这样IoC收到了这个注册信息，就会把这个BeanDefinition维护起来（通过HashMap方式），这样在使用的时候，就可以直接找到这个BeanDefinition了。

这里先对IoC容器进行了大体的介绍，介绍了BeanFactory和ApplicationContext这两条线路，并且说明了IoC容器初始化的过程，接下来会对初始化过程的这三个阶段详细的分析。

参考资料：
1.《Spring技术内幕》 计文柯 著
