1. Janus启动及线程

Created with Raphaël 2.2.0 开始 ...... 启动Session处理线程 启动请求处理线程 创建异步请求处理线程池 ...... 结束

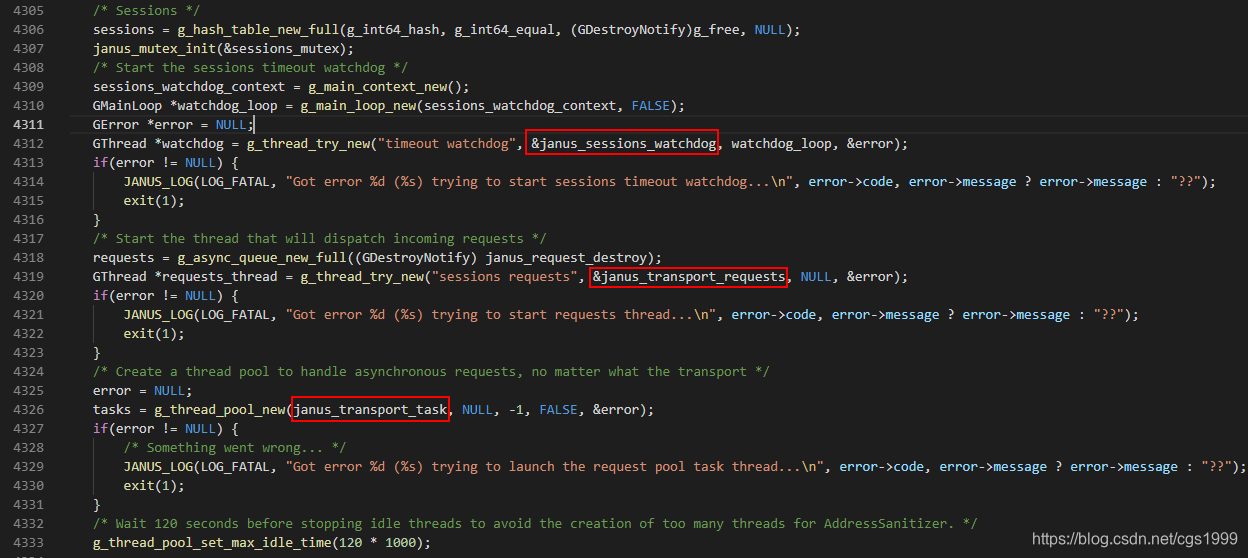

1.1 线程处理代码

主入口main函数位于 janus.c 文件中，下面为线程部分：
在这里插入图片描述
其中：需要特别注意~~janus_sessions_watchdog~~、janus_transport_requests、janus_transport_task几个处理函数

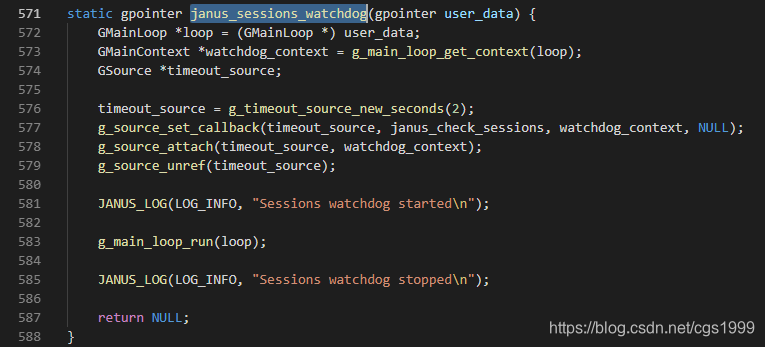

1.2 Session处理函数janus_sessions_watchdog（非本文重点）

在这里插入图片描述

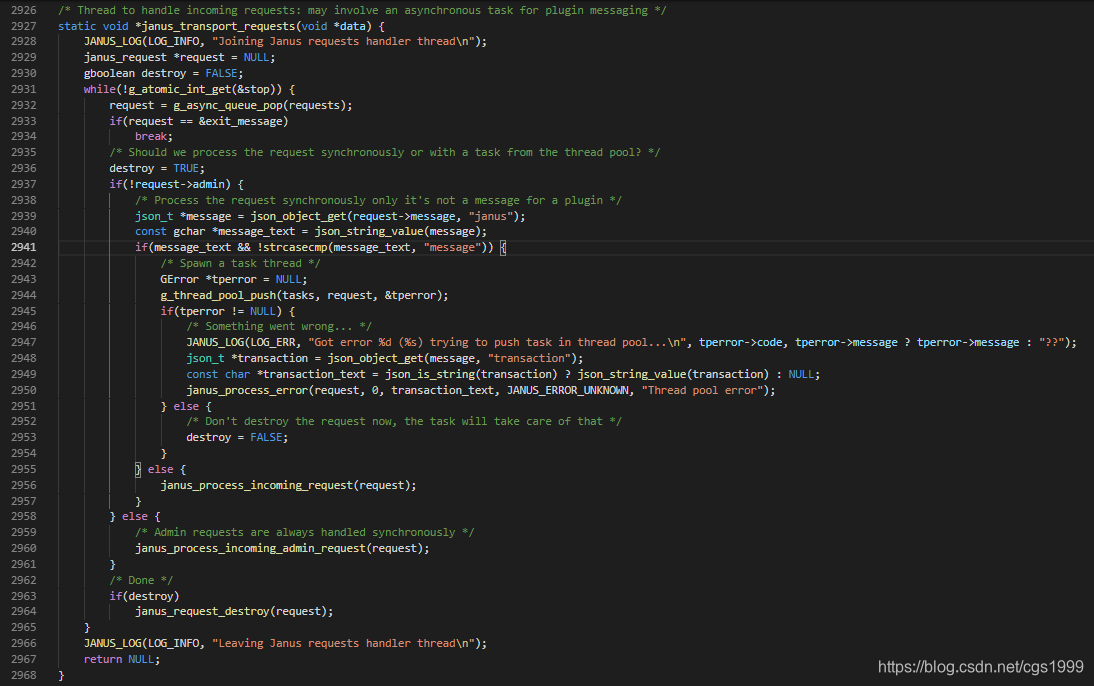

1.3 请求处理函数janus_transport_requests

在这里插入图片描述

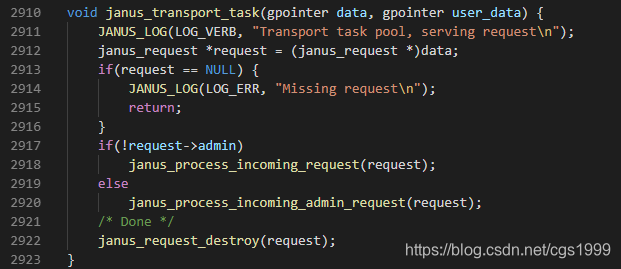

1.4 异步请求处理函数janus_transport_task

在这里插入图片描述

2. Janus启动及组件

Created with Raphaël 2.2.0 开始 ...... 加载并初始化所有EventHandlers 加载并初始化所有Plugins 加载并初始化所有Transports ...... 结束

2.1 组件回调处理

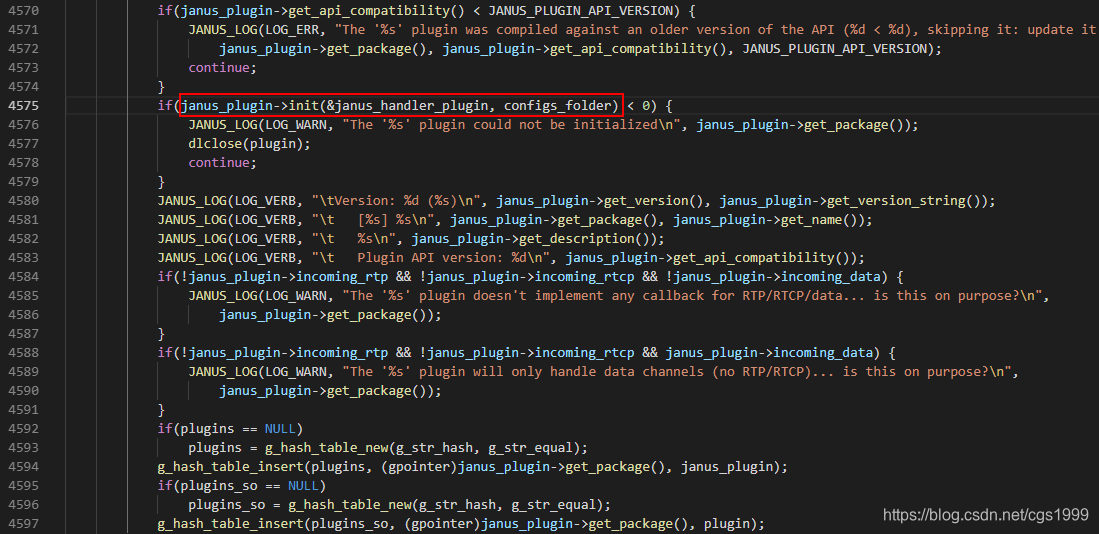

2.1.1 Plugin回调处理

在这里插入图片描述

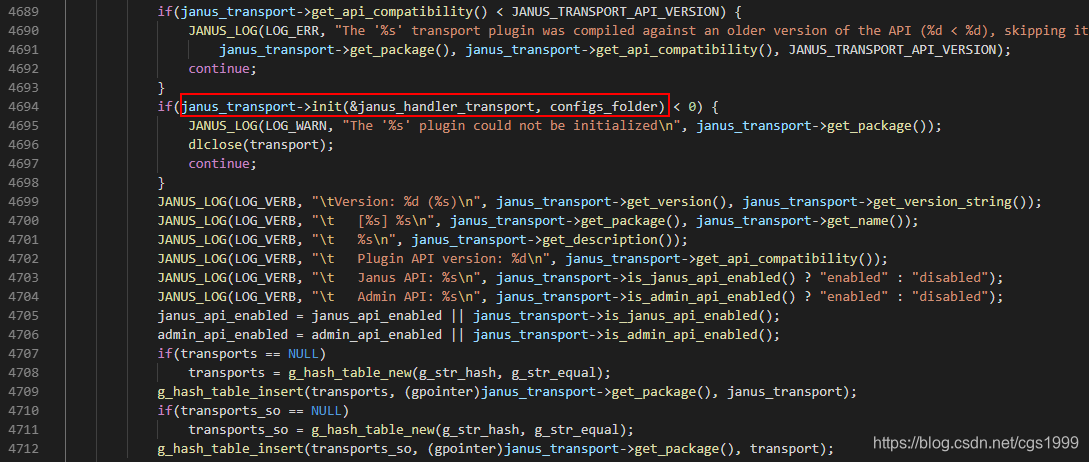

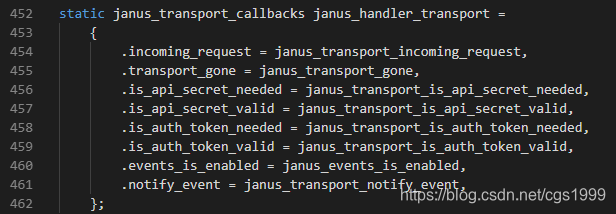

2.1.2 Transport回调处理

在这里插入图片描述

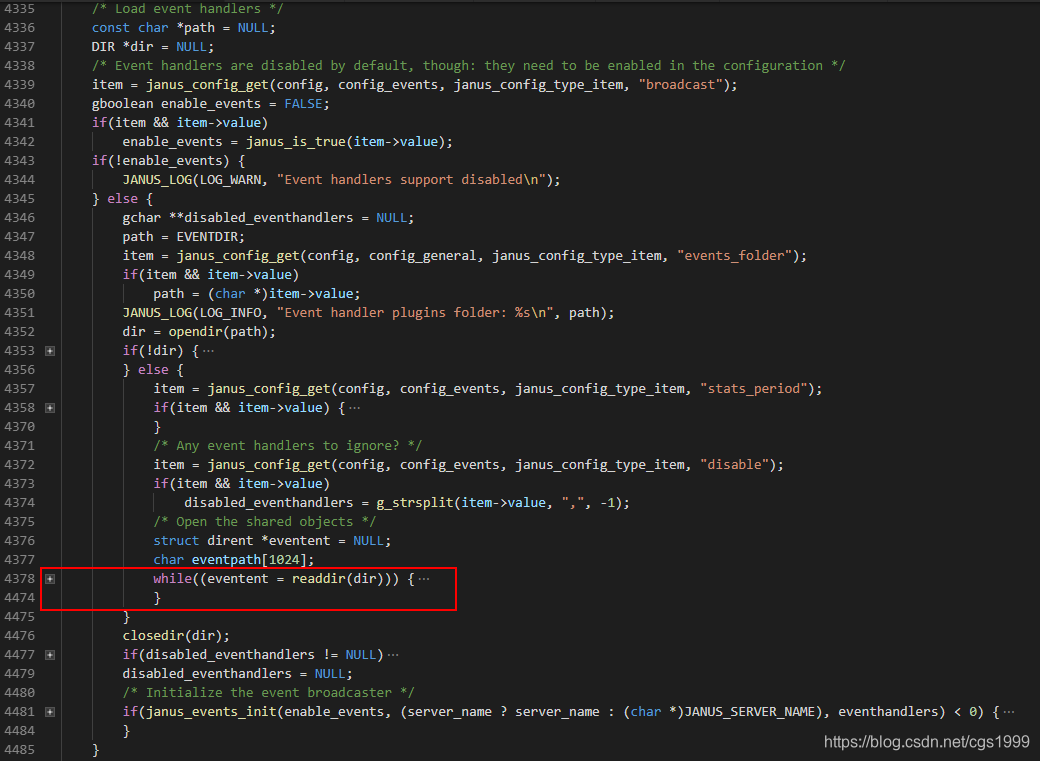

2.2 EventHandlers处理代码

在这里插入图片描述
详细代码：

	/* Load event handlers */
	const char *path = NULL;
	DIR *dir = NULL;
	/* Event handlers are disabled by default, though: they need to be enabled in the configuration */
	item = janus_config_get(config, config_events, janus_config_type_item, "broadcast");
	gboolean enable_events = FALSE;
	if(item && item->value)
		enable_events = janus_is_true(item->value);
	if(!enable_events) {


		JANUS_LOG(LOG_WARN, "Event handlers support disabled\n");
	} else {


		gchar **disabled_eventhandlers = NULL;
		path = EVENTDIR;
		item = janus_config_get(config, config_general, janus_config_type_item, "events_folder");
		if(item && item->value)
			path = (char *)item->value;
		JANUS_LOG(LOG_INFO, "Event handler plugins folder: %s\n", path);
		dir = opendir(path);
		if(!dir) {


			/* Not really fatal, we don't care and go on anyway: event handlers are not fundamental */
			JANUS_LOG(LOG_FATAL, "\tCouldn't access event handler plugins folder...\n");
		} else {


			item = janus_config_get(config, config_events, janus_config_type_item, "stats_period");
			if(item && item->value) {


				/* Check if we need to use a larger period for pushing statistics to event handlers */
				int period = atoi(item->value);
				if(period < 0) {


					JANUS_LOG(LOG_WARN, "Invalid event handlers statistics period, using default value (1 second)\n");
				} else if(period == 0) {


					janus_ice_set_event_stats_period(0);
					JANUS_LOG(LOG_WARN, "Disabling event handlers statistics period, no media statistics will be pushed to event handlers\n");
				} else {


					janus_ice_set_event_stats_period(period);
					JANUS_LOG(LOG_INFO, "Setting event handlers statistics period to %d seconds\n", period);
				}
			}
			/* Any event handlers to ignore? */
			item = janus_config_get(config, config_events, janus_config_type_item, "disable");
			if(item && item->value)
				disabled_eventhandlers = g_strsplit(item->value, ",", -1);
			/* Open the shared objects */
			struct dirent *eventent = NULL;
			char eventpath[1024];
			while((eventent = readdir(dir))) {


				int len = strlen(eventent->d_name);
				if (len < 4) {


					continue;
				}
				if (strcasecmp(eventent->d_name+len-strlen(SHLIB_EXT), SHLIB_EXT)) {


					continue;
				}
				/* Check if this event handler has been disabled in the configuration file */
				if(disabled_eventhandlers != NULL) {


					gchar *index = disabled_eventhandlers[0];
					if(index != NULL) {


						int i=0;
						gboolean skip = FALSE;
						while(index != NULL) {


							while(isspace(*index))
								index++;
							if(strlen(index) && !strcmp(index, eventent->d_name)) {


								JANUS_LOG(LOG_WARN, "Event handler plugin '%s' has been disabled, skipping...\n", eventent->d_name);
								skip = TRUE;
								break;
							}
							i++;
							index = disabled_eventhandlers[i];
						}
						if(skip)
							continue;
					}
				}
				JANUS_LOG(LOG_INFO, "Loading event handler plugin '%s'...\n", eventent->d_name);
				memset(eventpath, 0, 1024);
				g_snprintf(eventpath, 1024, "%s/%s", path, eventent->d_name);
				void *event = dlopen(eventpath, RTLD_NOW | RTLD_GLOBAL);
				if (!event) {


					JANUS_LOG(LOG_ERR, "\tCouldn't load event handler plugin '%s': %s\n", eventent->d_name, dlerror());
				} else {


					create_e *create = (create_e*) dlsym(event, "create");
					const char *dlsym_error = dlerror();
					if (dlsym_error) {


						JANUS_LOG(LOG_ERR, "\tCouldn't load symbol 'create': %s\n", dlsym_error);
						continue;
					}
					janus_eventhandler *janus_eventhandler = create();
					if(!janus_eventhandler) {


						JANUS_LOG(LOG_ERR, "\tCouldn't use function 'create'...\n");
						continue;
					}
					/* Are all the mandatory methods and callbacks implemented? */
					if(!janus_eventhandler->init || !janus_eventhandler->destroy ||
							!janus_eventhandler->get_api_compatibility ||
							!janus_eventhandler->get_version ||
							!janus_eventhandler->get_version_string ||
							!janus_eventhandler->get_description ||
							!janus_eventhandler->get_package ||
							!janus_eventhandler->get_name ||
							!janus_eventhandler->incoming_event) {


						JANUS_LOG(LOG_ERR, "\tMissing some mandatory methods/callbacks, skipping this event handler plugin...\n");
						continue;
					}
					if(janus_eventhandler->get_api_compatibility() < JANUS_EVENTHANDLER_API_VERSION) {


						JANUS_LOG(LOG_ERR, "The '%s' event handler plugin was compiled against an older version of the API (%d < %d), skipping it: update it to enable it again\n",
							janus_eventhandler->get_package(), janus_eventhandler->get_api_compatibility(), JANUS_EVENTHANDLER_API_VERSION);
						continue;
					}
					janus_eventhandler->init(configs_folder);
					JANUS_LOG(LOG_VERB, "\tVersion: %d (%s)\n", janus_eventhandler->get_version(), janus_eventhandler->get_version_string());
					JANUS_LOG(LOG_VERB, "\t   [%s] %s\n", janus_eventhandler->get_package(), janus_eventhandler->get_name());
					JANUS_LOG(LOG_VERB, "\t   %s\n", janus_eventhandler->get_description());
					JANUS_LOG(LOG_VERB, "\t   Plugin API version: %d\n", janus_eventhandler->get_api_compatibility());
					JANUS_LOG(LOG_VERB, "\t   Subscriptions:");
					if(janus_eventhandler->events_mask == 0) {


						JANUS_LOG(LOG_VERB, " none");
					} else {


						if(janus_flags_is_set(&janus_eventhandler->events_mask, JANUS_EVENT_TYPE_SESSION))
							JANUS_LOG(LOG_VERB, " sessions");
						if(janus_flags_is_set(&janus_eventhandler->events_mask, JANUS_EVENT_TYPE_HANDLE))
							JANUS_LOG(LOG_VERB, " handles");
						if(janus_flags_is_set(&janus_eventhandler->events_mask, JANUS_EVENT_TYPE_JSEP))
							JANUS_LOG(LOG_VERB, " jsep");
						if(janus_flags_is_set(&janus_eventhandler->events_mask, JANUS_EVENT_TYPE_WEBRTC))
							JANUS_LOG(LOG_VERB, " webrtc");
						if(janus_flags_is_set(&janus_eventhandler->events_mask, JANUS_EVENT_TYPE_MEDIA))
							JANUS_LOG(LOG_VERB, " media");
						if(janus_flags_is_set(&janus_eventhandler->events_mask, JANUS_EVENT_TYPE_PLUGIN))
							JANUS_LOG(LOG_VERB, " plugins");
						if(janus_flags_is_set(&janus_eventhandler->events_mask, JANUS_EVENT_TYPE_TRANSPORT))
							JANUS_LOG(LOG_VERB, " transports");
					}
					JANUS_LOG(LOG_VERB, "\n");
					if(eventhandlers == NULL)
						eventhandlers = g_hash_table_new(g_str_hash, g_str_equal);
					g_hash_table_insert(eventhandlers, (gpointer)janus_eventhandler->get_package(), janus_eventhandler);
					if(eventhandlers_so == NULL)
						eventhandlers_so = g_hash_table_new(g_str_hash, g_str_equal);
					g_hash_table_insert(eventhandlers_so, (gpointer)janus_eventhandler->get_package(), event);
				}
			}
		}
		closedir(dir);
		if(disabled_eventhandlers != NULL)
			g_strfreev(disabled_eventhandlers);
		disabled_eventhandlers = NULL;
		/* Initialize the event broadcaster */
		if(janus_events_init(enable_events, (server_name ? server_name : (char *)JANUS_SERVER_NAME), eventhandlers) < 0) {


			JANUS_LOG(LOG_FATAL, "Error initializing the Event handlers mechanism...\n");
			exit(1);
		}
	}

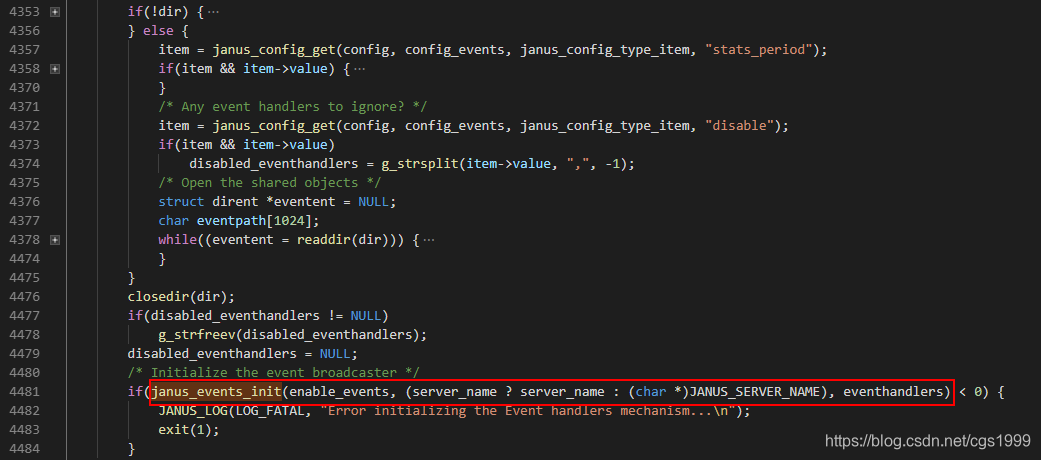

其中，janus_events_init(enable_events, (server_name ? server_name : (char *)JANUS_SERVER_NAME), eventhandlers)初始化启动了全局的事件处理线程 janus_events_thread
在这里插入图片描述

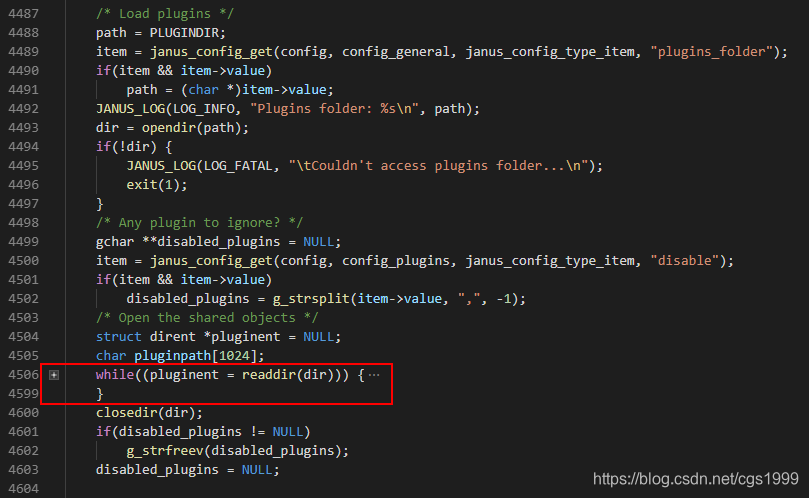

2.3 Plugins处理代码

在这里插入图片描述

详细代码：

	/* Load plugins */
	path = PLUGINDIR;
	item = janus_config_get(config, config_general, janus_config_type_item, "plugins_folder");
	if(item && item->value)
		path = (char *)item->value;
	JANUS_LOG(LOG_INFO, "Plugins folder: %s\n", path);
	dir = opendir(path);
	if(!dir) {


		JANUS_LOG(LOG_FATAL, "\tCouldn't access plugins folder...\n");
		exit(1);
	}
	/* Any plugin to ignore? */
	gchar **disabled_plugins = NULL;
	item = janus_config_get(config, config_plugins, janus_config_type_item, "disable");
	if(item && item->value)
		disabled_plugins = g_strsplit(item->value, ",", -1);
	/* Open the shared objects */
	struct dirent *pluginent = NULL;
	char pluginpath[1024];
	while((pluginent = readdir(dir))) {


		int len = strlen(pluginent->d_name);
		if (len < 4) {


			continue;
		}
		if (strcasecmp(pluginent->d_name+len-strlen(SHLIB_EXT), SHLIB_EXT)) {


			continue;
		}
		/* Check if this plugins has been disabled in the configuration file */
		if(disabled_plugins != NULL) {


			gchar *index = disabled_plugins[0];
			if(index != NULL) {


				int i=0;
				gboolean skip = FALSE;
				while(index != NULL) {


					while(isspace(*index))
						index++;
					if(strlen(index) && !strcmp(index, pluginent->d_name)) {


						JANUS_LOG(LOG_WARN, "Plugin '%s' has been disabled, skipping...\n", pluginent->d_name);
						skip = TRUE;
						break;
					}
					i++;
					index = disabled_plugins[i];
				}
				if(skip)
					continue;
			}
		}
		JANUS_LOG(LOG_INFO, "Loading plugin '%s'...\n", pluginent->d_name);
		memset(pluginpath, 0, 1024);
		g_snprintf(pluginpath, 1024, "%s/%s", path, pluginent->d_name);
		void *plugin = dlopen(pluginpath, RTLD_NOW | RTLD_GLOBAL);
		if (!plugin) {


			JANUS_LOG(LOG_ERR, "\tCouldn't load plugin '%s': %s\n", pluginent->d_name, dlerror());
		} else {


			create_p *create = (create_p*) dlsym(plugin, "create");
			const char *dlsym_error = dlerror();
			if (dlsym_error) {


				JANUS_LOG(LOG_ERR, "\tCouldn't load symbol 'create': %s\n", dlsym_error);
				continue;
			}
			janus_plugin *janus_plugin = create();
			if(!janus_plugin) {


				JANUS_LOG(LOG_ERR, "\tCouldn't use function 'create'...\n");
				continue;
			}
			/* Are all the mandatory methods and callbacks implemented? */
			if(!janus_plugin->init || !janus_plugin->destroy ||
					!janus_plugin->get_api_compatibility ||
					!janus_plugin->get_version ||
					!janus_plugin->get_version_string ||
					!janus_plugin->get_description ||
					!janus_plugin->get_package ||
					!janus_plugin->get_name ||
					!janus_plugin->create_session ||
					!janus_plugin->query_session ||
					!janus_plugin->destroy_session ||
					!janus_plugin->handle_message ||
					!janus_plugin->setup_media ||
					!janus_plugin->hangup_media) {


				JANUS_LOG(LOG_ERR, "\tMissing some mandatory methods/callbacks, skipping this plugin...\n");
				continue;
			}
			if(janus_plugin->get_api_compatibility() < JANUS_PLUGIN_API_VERSION) {


				JANUS_LOG(LOG_ERR, "The '%s' plugin was compiled against an older version of the API (%d < %d), skipping it: update it to enable it again\n",
					janus_plugin->get_package(), janus_plugin->get_api_compatibility(), JANUS_PLUGIN_API_VERSION);
				continue;
			}
			if(janus_plugin->init(&janus_handler_plugin, configs_folder) < 0) {


				JANUS_LOG(LOG_WARN, "The '%s' plugin could not be initialized\n", janus_plugin->get_package());
				dlclose(plugin);
				continue;
			}
			JANUS_LOG(LOG_VERB, "\tVersion: %d (%s)\n", janus_plugin->get_version(), janus_plugin->get_version_string());
			JANUS_LOG(LOG_VERB, "\t   [%s] %s\n", janus_plugin->get_package(), janus_plugin->get_name());
			JANUS_LOG(LOG_VERB, "\t   %s\n", janus_plugin->get_description());
			JANUS_LOG(LOG_VERB, "\t   Plugin API version: %d\n", janus_plugin->get_api_compatibility());
			if(!janus_plugin->incoming_rtp && !janus_plugin->incoming_rtcp && !janus_plugin->incoming_data) {


				JANUS_LOG(LOG_WARN, "The '%s' plugin doesn't implement any callback for RTP/RTCP/data... is this on purpose?\n",
					janus_plugin->get_package());
			}
			if(!janus_plugin->incoming_rtp && !janus_plugin->incoming_rtcp && janus_plugin->incoming_data) {


				JANUS_LOG(LOG_WARN, "The '%s' plugin will only handle data channels (no RTP/RTCP)... is this on purpose?\n",
					janus_plugin->get_package());
			}
			if(plugins == NULL)
				plugins = g_hash_table_new(g_str_hash, g_str_equal);
			g_hash_table_insert(plugins, (gpointer)janus_plugin->get_package(), janus_plugin);
			if(plugins_so == NULL)
				plugins_so = g_hash_table_new(g_str_hash, g_str_equal);
			g_hash_table_insert(plugins_so, (gpointer)janus_plugin->get_package(), plugin);
		}
	}
	closedir(dir);
	if(disabled_plugins != NULL)
		g_strfreev(disabled_plugins);
	disabled_plugins = NULL;

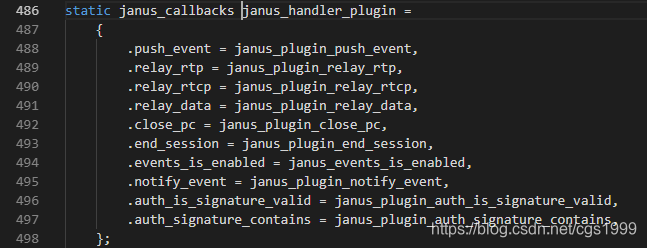

其中，janus_plugin->init(&janus_handler_plugin, configs_folder)初始化设置了插件的回调处理 janus_handler_plugin
在这里插入图片描述

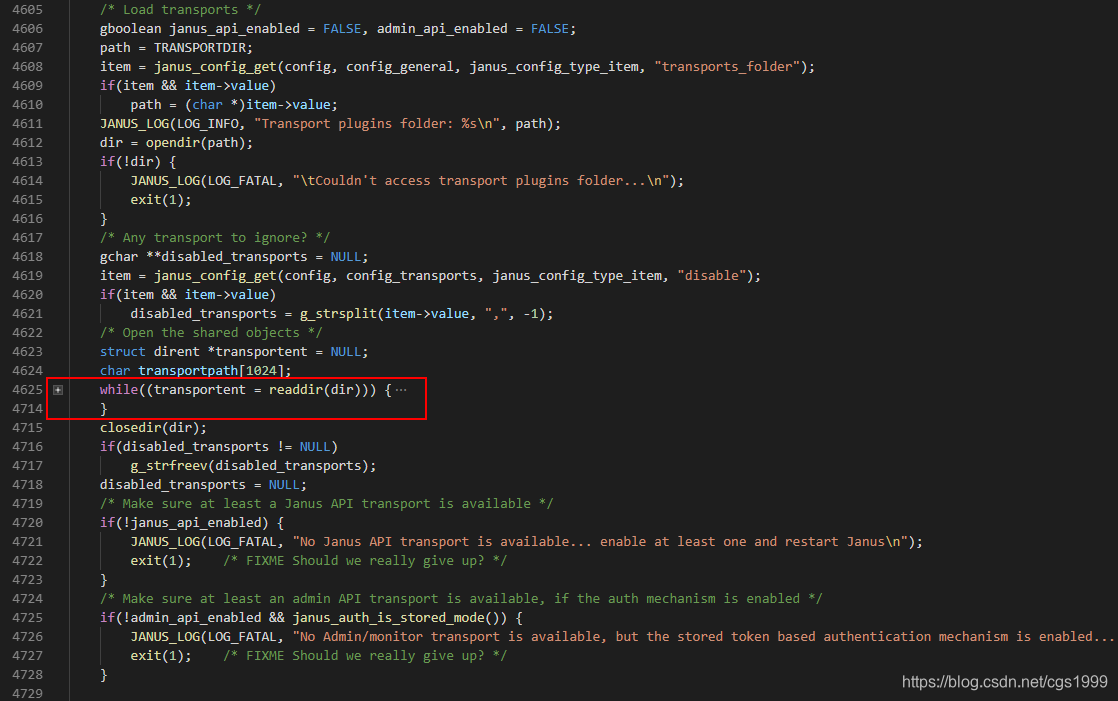

2.4 Transports处理代码

在这里插入图片描述

详细代码：

	/* Load transports */
	gboolean janus_api_enabled = FALSE, admin_api_enabled = FALSE;
	path = TRANSPORTDIR;
	item = janus_config_get(config, config_general, janus_config_type_item, "transports_folder");
	if(item && item->value)
		path = (char *)item->value;
	JANUS_LOG(LOG_INFO, "Transport plugins folder: %s\n", path);
	dir = opendir(path);
	if(!dir) {


		JANUS_LOG(LOG_FATAL, "\tCouldn't access transport plugins folder...\n");
		exit(1);
	}
	/* Any transport to ignore? */
	gchar **disabled_transports = NULL;
	item = janus_config_get(config, config_transports, janus_config_type_item, "disable");
	if(item && item->value)
		disabled_transports = g_strsplit(item->value, ",", -1);
	/* Open the shared objects */
	struct dirent *transportent = NULL;
	char transportpath[1024];
	while((transportent = readdir(dir))) {


		int len = strlen(transportent->d_name);
		if (len < 4) {


			continue;
		}
		if (strcasecmp(transportent->d_name+len-strlen(SHLIB_EXT), SHLIB_EXT)) {


			continue;
		}
		/* Check if this transports has been disabled in the configuration file */
		if(disabled_transports != NULL) {


			gchar *index = disabled_transports[0];
			if(index != NULL) {


				int i=0;
				gboolean skip = FALSE;
				while(index != NULL) {


					while(isspace(*index))
						index++;
					if(strlen(index) && !strcmp(index, transportent->d_name)) {


						JANUS_LOG(LOG_WARN, "Transport plugin '%s' has been disabled, skipping...\n", transportent->d_name);
						skip = TRUE;
						break;
					}
					i++;
					index = disabled_transports[i];
				}
				if(skip)
					continue;
			}
		}
		JANUS_LOG(LOG_INFO, "Loading transport plugin '%s'...\n", transportent->d_name);
		memset(transportpath, 0, 1024);
		g_snprintf(transportpath, 1024, "%s/%s", path, transportent->d_name);
		void *transport = dlopen(transportpath, RTLD_NOW | RTLD_GLOBAL);
		if (!transport) {


			JANUS_LOG(LOG_ERR, "\tCouldn't load transport plugin '%s': %s\n", transportent->d_name, dlerror());
		} else {


			create_t *create = (create_t*) dlsym(transport, "create");
			const char *dlsym_error = dlerror();
			if (dlsym_error) {


				JANUS_LOG(LOG_ERR, "\tCouldn't load symbol 'create': %s\n", dlsym_error);
				continue;
			}
			janus_transport *janus_transport = create();
			if(!janus_transport) {


				JANUS_LOG(LOG_ERR, "\tCouldn't use function 'create'...\n");
				continue;
			}
			/* Are all the mandatory methods and callbacks implemented? */
			if(!janus_transport->init || !janus_transport->destroy ||
					!janus_transport->get_api_compatibility ||
					!janus_transport->get_version ||
					!janus_transport->get_version_string ||
					!janus_transport->get_description ||
					!janus_transport->get_package ||
					!janus_transport->get_name ||
					!janus_transport->send_message ||
					!janus_transport->is_janus_api_enabled ||
					!janus_transport->is_admin_api_enabled ||
					!janus_transport->session_created ||
					!janus_transport->session_over ||
					!janus_transport->session_claimed) {


				JANUS_LOG(LOG_ERR, "\tMissing some mandatory methods/callbacks, skipping this transport plugin...\n");
				continue;
			}
			if(janus_transport->get_api_compatibility() < JANUS_TRANSPORT_API_VERSION) {


				JANUS_LOG(LOG_ERR, "The '%s' transport plugin was compiled against an older version of the API (%d < %d), skipping it: update it to enable it again\n",
					janus_transport->get_package(), janus_transport->get_api_compatibility(), JANUS_TRANSPORT_API_VERSION);
				continue;
			}
			if(janus_transport->init(&janus_handler_transport, configs_folder) < 0) {


				JANUS_LOG(LOG_WARN, "The '%s' plugin could not be initialized\n", janus_transport->get_package());
				dlclose(transport);
				continue;
			}
			JANUS_LOG(LOG_VERB, "\tVersion: %d (%s)\n", janus_transport->get_version(), janus_transport->get_version_string());
			JANUS_LOG(LOG_VERB, "\t   [%s] %s\n", janus_transport->get_package(), janus_transport->get_name());
			JANUS_LOG(LOG_VERB, "\t   %s\n", janus_transport->get_description());
			JANUS_LOG(LOG_VERB, "\t   Plugin API version: %d\n", janus_transport->get_api_compatibility());
			JANUS_LOG(LOG_VERB, "\t   Janus API: %s\n", janus_transport->is_janus_api_enabled() ? "enabled" : "disabled");
			JANUS_LOG(LOG_VERB, "\t   Admin API: %s\n", janus_transport->is_admin_api_enabled() ? "enabled" : "disabled");
			janus_api_enabled = janus_api_enabled || janus_transport->is_janus_api_enabled();
			admin_api_enabled = admin_api_enabled || janus_transport->is_admin_api_enabled();
			if(transports == NULL)
				transports = g_hash_table_new(g_str_hash, g_str_equal);
			g_hash_table_insert(transports, (gpointer)janus_transport->get_package(), janus_transport);
			if(transports_so == NULL)
				transports_so = g_hash_table_new(g_str_hash, g_str_equal);
			g_hash_table_insert(transports_so, (gpointer)janus_transport->get_package(), transport);
		}
	}
	closedir(dir);
	if(disabled_transports != NULL)
		g_strfreev(disabled_transports);
	disabled_transports = NULL;

其中，janus_transport->init(&janus_handler_transport, configs_folder)初始化设置了Transport的回调处理 janus_handler_transport
在这里插入图片描述

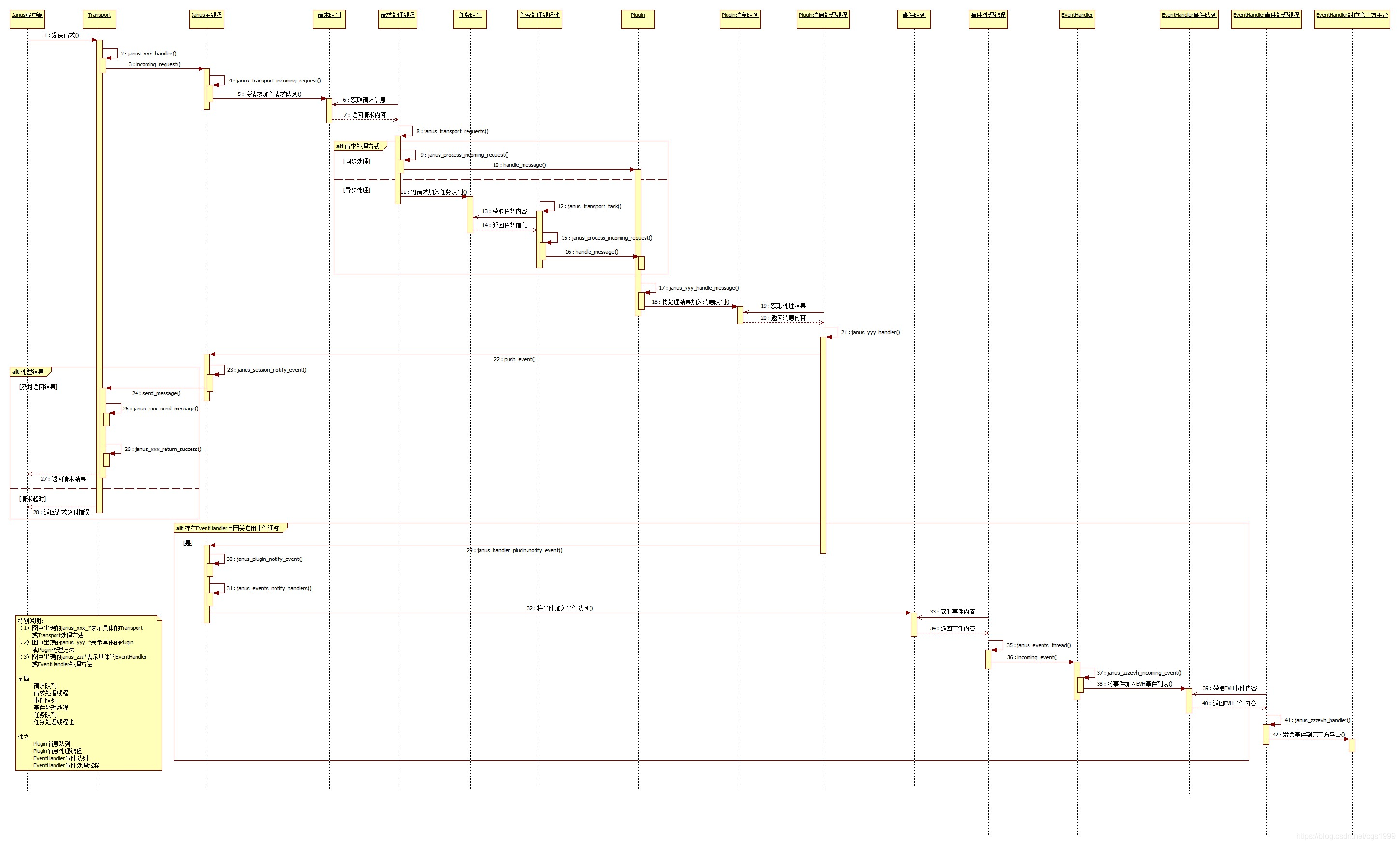

3. 请求处理过程

在这里插入图片描述

过程如下所述：

  1. Janus客户端连接Transport发起请求；
  2. Transport收到请求后，执行janus_xxx_handler处理，调用Janus主线程的回调函数incoming_request;
  3. Janus主线程的incoming_request将请求加入请求队列;
  4. 请求处理线程从请求队列中获取请求信息，执行janus_transport_requests处理；
    • 若请求需同步处理，请求处理线程执行janus_process_incoming_request，调用Plugin的handle_message函数进行处理；
    • 若请求需异步处理，请求处理线程将请求加入任务列表，任务处理线程池执行janus_transport_task函数，执行janus_process_incoming_request，调用Plugin的handle_message函数进行处理；
  5. Plugin的handle_message将处理结果加入Plugin消息队列;
  6. Plugin消息处理线程从Plugin消息队列获取处理结果，执行janus_yyy_handler处理，调用Janus主线程的回调函数push_event；
  7. Janus主线程的push_event调用Transport的send_message进行处理；
  8. Transport将处理完的结果返回给Janus客户端；

3.1 Transport启动服务时设置请求处理函数（以transport/janus_http.c为例）

在这里插入图片描述

janus_http_handler 详细代码：

/* WebServer requests handler */
int janus_http_handler(void *cls, struct MHD_Connection *connection, const char *url, const char *method, const char *version, const char *upload_data, size_t *upload_data_size, void **ptr)
{


	char *payload = NULL;
	json_t *root = NULL;
	struct MHD_Response *response = NULL;
	int ret = MHD_NO;
	gchar *session_path = NULL, *handle_path = NULL;
	gchar **basepath = NULL, **path = NULL;
	guint64 session_id = 0, handle_id = 0;

	/* Is this the first round? */
	int firstround = 0;
	janus_transport_session *ts = (janus_transport_session *)*ptr;
	janus_http_msg *msg = NULL;
	if(ts == NULL) {


		firstround = 1;
		JANUS_LOG(LOG_DBG, "Got a HTTP %s request on %s...\n", method, url);
		JANUS_LOG(LOG_DBG, " ... Just parsing headers for now...\n");
		msg = g_malloc0(sizeof(janus_http_msg));
		msg->connection = connection;
		janus_mutex_init(&msg->wait_mutex);
		janus_condition_init(&msg->wait_cond);
		ts = janus_transport_session_create(msg, janus_http_msg_destroy);
		janus_mutex_lock(&messages_mutex);
		g_hash_table_insert(messages, ts, ts);
		janus_mutex_unlock(&messages_mutex);
		*ptr = ts;
		MHD_get_connection_values(connection, MHD_HEADER_KIND, &janus_http_headers, msg);
		ret = MHD_YES;
		/* Notify handlers about this new transport instance */
		if(notify_events && gateway->events_is_enabled()) {


			json_t *info = json_object();
			json_object_set_new(info, "event", json_string("request"));
			json_object_set_new(info, "admin_api", json_false());
			const union MHD_ConnectionInfo *conninfo = MHD_get_connection_info(connection, MHD_CONNECTION_INFO_CLIENT_ADDRESS);
			if(conninfo != NULL) {


				janus_network_address addr;
				janus_network_address_string_buffer addr_buf;
				if(janus_network_address_from_sockaddr((struct sockaddr *)conninfo->client_addr, &addr) == 0 &&
						janus_network_address_to_string_buffer(&addr, &addr_buf) == 0) {


					const char *ip = janus_network_address_string_from_buffer(&addr_buf);
					json_object_set_new(info, "ip", json_string(ip));
				}
				uint16_t port = janus_http_sockaddr_to_port((struct sockaddr *)conninfo->client_addr);
				json_object_set_new(info, "port", json_integer(port));
			}
			gateway->notify_event(&janus_http_transport, ts, info);
		}
	} else {


		JANUS_LOG(LOG_DBG, "Processing HTTP %s request on %s...\n", method, url);
		msg = (janus_http_msg *)ts->transport_p;
	}
	/* Parse request */
	if (strcasecmp(method, "GET") && strcasecmp(method, "POST") && strcasecmp(method, "OPTIONS")) {


		ret = janus_http_return_error(ts, 0, NULL, JANUS_ERROR_TRANSPORT_SPECIFIC, "Unsupported method %s", method);
		goto done;
	}
	if (!strcasecmp(method, "OPTIONS")) {


		response = MHD_create_response_from_buffer(0, NULL, MHD_RESPMEM_PERSISTENT);
		janus_http_add_cors_headers(msg, response);
		ret = MHD_queue_response(connection, MHD_HTTP_OK, response);
		MHD_destroy_response(response);
	}
	/* Get path components */
	if(strcasecmp(url, ws_path)) {


		if(strlen(ws_path) > 1) {


			basepath = g_strsplit(url, ws_path, -1);
		} else {


			/* The base path is the web server too itself, we process the url itself */
			basepath = g_malloc_n(3, sizeof(char *));
			basepath[0] = g_strdup("/");
			basepath[1] = g_strdup(url);
			basepath[2] = NULL;
		}
		if(basepath[0] == NULL || basepath[1] == NULL || basepath[1][0] != '/') {


			JANUS_LOG(LOG_ERR, "Invalid url %s\n", url);
			response = MHD_create_response_from_buffer(0, NULL, MHD_RESPMEM_PERSISTENT);
			janus_http_add_cors_headers(msg, response);
			ret = MHD_queue_response(connection, MHD_HTTP_NOT_FOUND, response);
			MHD_destroy_response(response);
		}
		if(firstround) {


			g_strfreev(basepath);
			return ret;
		}
		path = g_strsplit(basepath[1], "/", -1);
		if(path == NULL || path[1] == NULL) {


			JANUS_LOG(LOG_ERR, "Invalid path %s (%s)\n", basepath[1], path ? path[1] : "");
			response = MHD_create_response_from_buffer(0, NULL, MHD_RESPMEM_PERSISTENT);
			janus_http_add_cors_headers(msg, response);
			ret = MHD_queue_response(connection, MHD_HTTP_NOT_FOUND, response);
			MHD_destroy_response(response);
			g_strfreev(basepath);
			g_strfreev(path);
			return ret;
		}
	}
	if(firstround) {


		g_strfreev(basepath);
		g_strfreev(path);
		return ret;
	}
	JANUS_LOG(LOG_DBG, " ... parsing request...\n");
	if(path != NULL && path[1] != NULL && strlen(path[1]) > 0) {


		session_path = g_strdup(path[1]);
		JANUS_LOG(LOG_HUGE, "Session: %s\n", session_path);
	}
	if(session_path != NULL && path[2] != NULL && strlen(path[2]) > 0) {


		handle_path = g_strdup(path[2]);
		JANUS_LOG(LOG_HUGE, "Handle: %s\n", handle_path);
	}
	if(session_path != NULL && handle_path != NULL && path[3] != NULL && strlen(path[3]) > 0) {


		JANUS_LOG(LOG_ERR, "Too many components...\n");
		response = MHD_create_response_from_buffer(0, NULL, MHD_RESPMEM_PERSISTENT);
		janus_http_add_cors_headers(msg, response);
		ret = MHD_queue_response(connection, MHD_HTTP_NOT_FOUND, response);
		MHD_destroy_response(response);
		goto done;
	}
	/* Get payload, if any */
	if(!strcasecmp(method, "POST")) {


		JANUS_LOG(LOG_HUGE, "Processing POST data (%s) (%zu bytes)...\n", msg->contenttype, *upload_data_size);
		if(*upload_data_size != 0) {


			msg->payload = g_realloc(msg->payload, msg->len+*upload_data_size+1);
			memcpy(msg->payload+msg->len, upload_data, *upload_data_size);
			msg->len += *upload_data_size;
			memset(msg->payload + msg->len, '\0', 1);
			JANUS_LOG(LOG_DBG, "  -- Data we have now (%zu bytes)\n", msg->len);
			*upload_data_size = 0;	/* Go on */
			ret = MHD_YES;
			goto done;
		}
		JANUS_LOG(LOG_DBG, "Done getting payload, we can answer\n");
		if(msg->payload == NULL) {


			JANUS_LOG(LOG_ERR, "No payload :-(\n");
			ret = MHD_NO;
			goto done;
		}
		payload = msg->payload;
		JANUS_LOG(LOG_HUGE, "%s\n", payload);
	}

	/* Is this a generic request for info? */
	if(session_path != NULL && !strcmp(session_path, "info")) {


		/* The info REST endpoint, if contacted through a GET, provides information on the Janus core */
		if(strcasecmp(method, "GET")) {


			response = MHD_create_response_from_buffer(0, NULL, MHD_RESPMEM_PERSISTENT);
			janus_http_add_cors_headers(msg, response);
			ret = MHD_queue_response(connection, MHD_HTTP_BAD_REQUEST, response);
			MHD_destroy_response(response);
			goto done;
		}
		/* Turn this into a fake "info" request */
		method = "POST";
		char tr[12];
		janus_http_random_string(12, (char *)&tr);
		root = json_object();
		json_object_set_new(root, "janus", json_string("info"));
		json_object_set_new(root, "transaction", json_string(tr));
		goto parsingdone;
	}

	/* Or maybe a long poll */
	if(!strcasecmp(method, "GET") || !payload) {


		session_id = session_path ? g_ascii_strtoull(session_path, NULL, 10) : 0;
		if(session_id < 1) {


			JANUS_LOG(LOG_ERR, "Invalid session %s\n", session_path);
			response = MHD_create_response_from_buffer(0, NULL, MHD_RESPMEM_PERSISTENT);
			janus_http_add_cors_headers(msg, response);
			ret = MHD_queue_response(connection, MHD_HTTP_NOT_FOUND, response);
			MHD_destroy_response(response);
最低0.47元/天 解锁文章

200万优质内容无限畅学
Janus源码分析：janus_plugin_push_event
fdsafwagdagadg6576的专栏
02-06 432
janus_plugin_push_event: 输入是videoroom 等plugin.自身是业务逻辑出口，将结果转给下一阶段。下一阶段可能转给relay thread,可能转给http通信层. 作用： 3个部分 1 sdp 处理并发送给http 通信层 2 非sdp消息直接发送给http通信层 3 relay消息发给relay线程。relay消息和1,2消息没有任何关联。应该写成一个独立函数 janus_plugin_push_event调用janus_ice_setup_local 建..
Janus源码分析janus.c--janus_process_message_request
fdsafwagdagadg6576的专栏
01-30 536
Janus.c 输入message来自janus_transport_task线程池. janus_message_process_request是janus.c消息处理中心.分发消息.主要是控制逻辑，调用ice和videoroom, 控制relay, 处理返回结果。 ICE是通信层，videoroom是流媒体业务逻辑处理. 绿色模块： janus_ice_setup_local 建立ice janus_start_relay start relay janus_relay_room_cre...
Janus源码分析（1）——源码结构
点点滴滴
06-24 6041
1. 模块结构 分5个模块： 核心 Core 插件 Plugins 传输 Transports 事件处理 Event Handlers 实用工具 Tools and utilities 2. 源码分析 2.1 核心模块（Core） 包含： 协议 DTLS ICE RTCP RTP SCTP SDP 其它 请求认证、配置文件解析、日志、事件处理通知、录音录像、抓包…等 2.2...
janus客户端源码分析
最新发布
m0_73359068的博客
06-06 740
Janus客户端框架摘要（150字）： Janus WebRTC客户端开发流程包含7个关键步骤：加载janus.js库→初始化配置→创建会话→绑定插件→信令交互→资源释放→销毁会话。核心通过Janus.create()建立WebSocket连接生成session_id，使用janus.attach()绑定视频会议等插件，handle.send()实现信令交互，结合createOffer/Answer完成WebRTC媒体协商。最后需按序销毁handle和session释放资源。该框架封装了底层复杂度，开发者
janus源码分析(1)--代码结构整理
littleboy_IT
05-09 1588
janus代码梳理
Janus源码分析.7z
11-05
从main函数入手, 分析了jansu如何加载各个模块, 以及相关模块如何交互。主要分析了通信部分, 事件部分, 启动逻辑, plugin加载逻辑。小部分内容分析了video_room。并没有分析webrtc如何完成p2p的过程, 如果只是为了这部分, 请慎重下载。
Janus源码分析（4）——信令交互过程
点点滴滴
07-02 7310
1. Janus插件交互流程 Janus中所有插件都遵循以下基本数据流程： 客户端发送create创建一个Janus会话； Janus回复success返回Janus会话句柄； 客户端发送attach命令在Janus会话上attach指定插件； Janus回复success返回插件的句柄； 客户端给指定的插件发送message进行信令控制； Janus上的插件发送event通知事件给客户端； 客...
Janus源码分析（2）——主入口main
点点滴滴
07-01 3466
1. 主入口main位置 主入口main函数位于 janus.c 文件中 特别说明： 通过 Makefile.am 创建依赖文件：cmdline.h、cmdline.c、version.c 版本号、编译时间及Git源码版本：janus_version、janus_version_string、janus_build_git_time、janus_build_git_sha 等相关信息是在编译时...
Janus.js源码浅分析
weixin_45774558的博客
02-07 3014
最近做了一个关于音视频的项目，对Janus有了一个初步的认识，期间查阅了许多资料，现在进行一个总结
Janus源码分析ice.c janus_ice_process_incoming_rtcp_packet
fdsafwagdagadg6576的专栏
03-22 341
共分成6个部分,fir/pli/remb,rtt,fec，video_sendside_cc，janus_rtcp_calculate_sender_lost，nack.
Janus源码分析（6）——Streaming分析
点点滴滴
07-08 4081
1. 运行效果图 Streaming演示的是播放视频或音频流，可用于网络直播或转播，效果如下图所示： 2. Streaming插件API分析 2.1 会议配置信息及API分类 1、插件配置文件位置 conf/janus.plugin.streaming.jcfg，流配置格式如下： stream-name: { type = rtp|live|ondemand|rtsp rtp = s...
janus源码（web前端音视频会议系统）
06-09
janus完整的音视频会议系统，包括了WebRTC流媒体服务器和客户端API两大部分。该文件为janus源码
Janus-开源
07-05
用于简化 C 编程语言开发的软件库。
janus原理介绍
11-20
janus的架构、基本原理等介绍，适合初学者能对janus有个基本认识
janus（webrtc server）源码分析一：解析命令行参数
glw@glw的博客
02-03 1029
janus的main函数在janus.c文件里面，从这里开始一点一点分析。
Janus源码分析（5）——echotest分析
点点滴滴
07-03 2618
1、运行效果图 Echo测试演示的是发送给服务器网关的音频和视频，服务器会回传给你，效果如下图所示： 2、代码分析 2.1 代码结构 2.2 源码分析 2.2.1 创建线程 在janus = new Janus()时，调用Janus(gatewayCallbacks)在其中有函数createSession，并且传入下面的回调函数： createSession创建请求，成功建立一次httpAP...
janus源码分析5-几个复杂操作分析
qq_32140547的博客
11-08 2254
查询操作 之前已经遇到过很多查询操作 mgmt.containsVertexLabel(vType.toString()) transaction.containsVertexLabel(name); return getSchemaVertex(JanusGraphSchemaCategory.VERTEXLABEL.getSchemaName(name))!=null;...
Janus http处理流程
fdsafwagdagadg6576的专栏
01-29 2365
分成两个线程：http线程和线程池。两者是N对1 http线程处理同步消息 request: http线程将消息放入线程池；线程池内业务逻辑处理. respond: 将msg放入线程池，respond也是基于msg.wait 找到对应的http线程 基于消息N:1，不同于以往将对象放入线程池 新模型 ...
评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
