如何从RTP包的AP类型包，获取h265的PPS、SPS、VPS信息

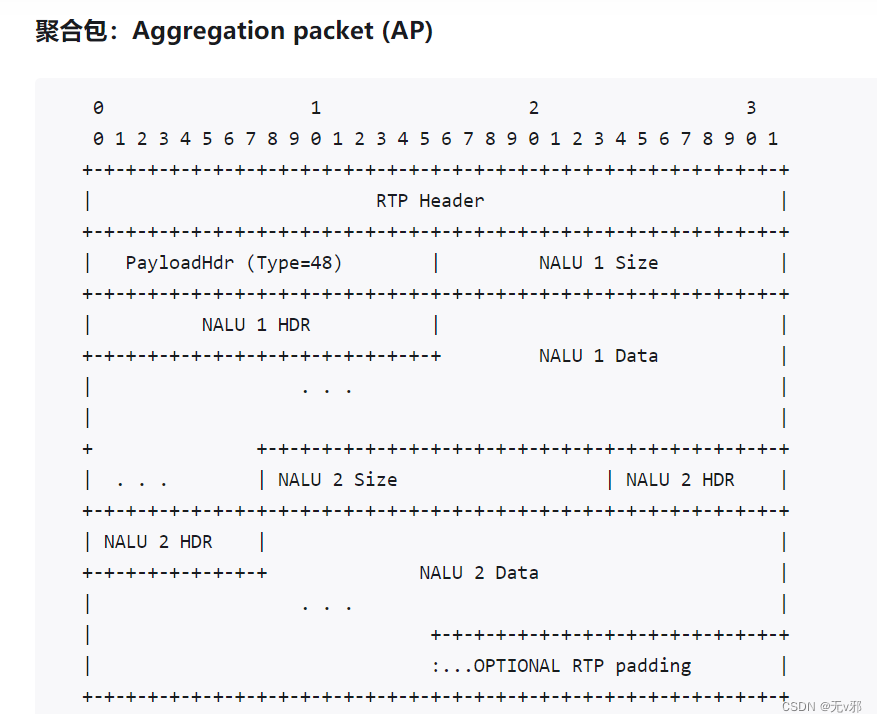

ffmpeg播放rtp流，为了降低首开延迟，需要在SDP文件中指定PPS、SPS、VPS信息。抓包后发现wireshark无法解析AP包。需要自己进行AP包解析。RTP协议AP包格式如下：

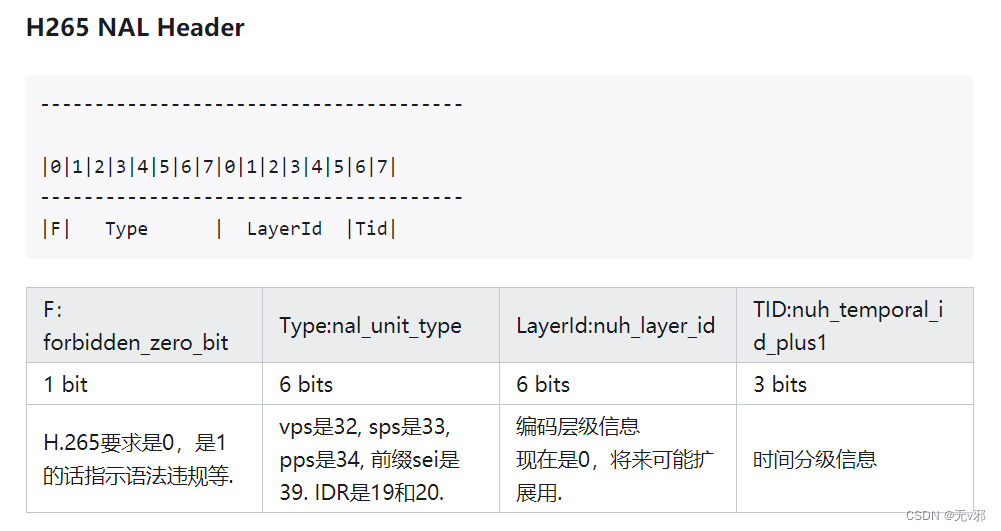

根据如上信息，我们可以解析AP包，效果如下

• 40 01，type=32,VPS(视频参数集)
• 42 01，type=33,SPS(序列参数集)
• 44 01，type=34,PPS(图像参数集)
• 4E 01, type=39,SEI(补充增强信息)
• 26 01，type=19,可能有RADL图像的IDR图像的SS编码数据 IDR
• 02 01, type=01,被参考的后置图像，且非TSA、非STSA的SS编码数据
• 46 01，type=35,分隔符，没用。

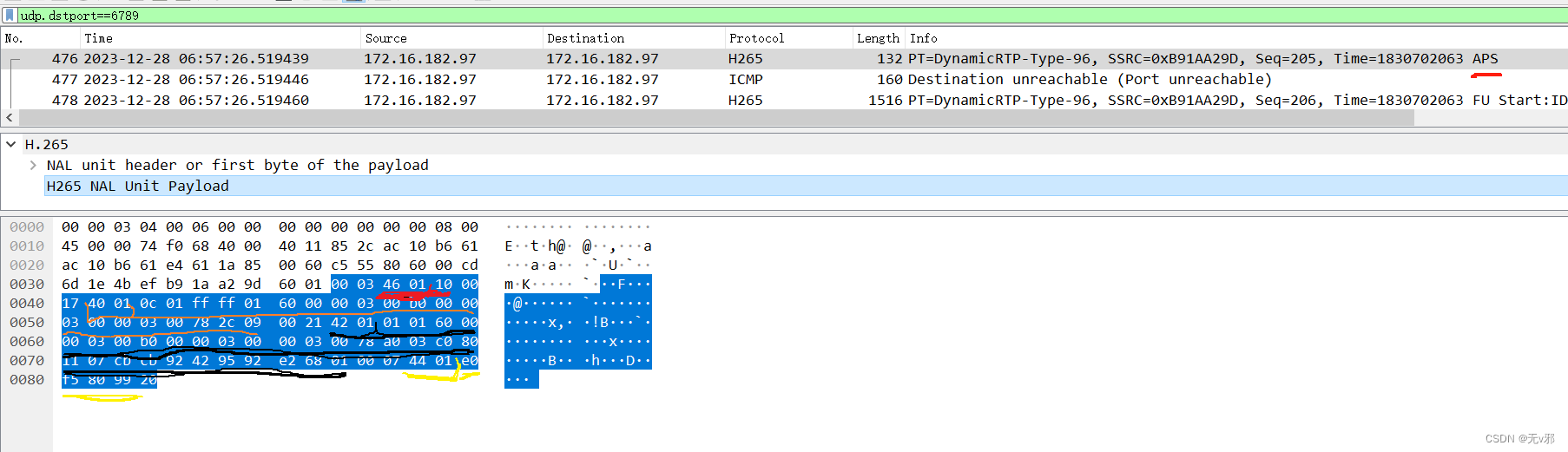

下图中红色部分是分隔符，橙色是VPS，黑色是SPS，黄色为PPS

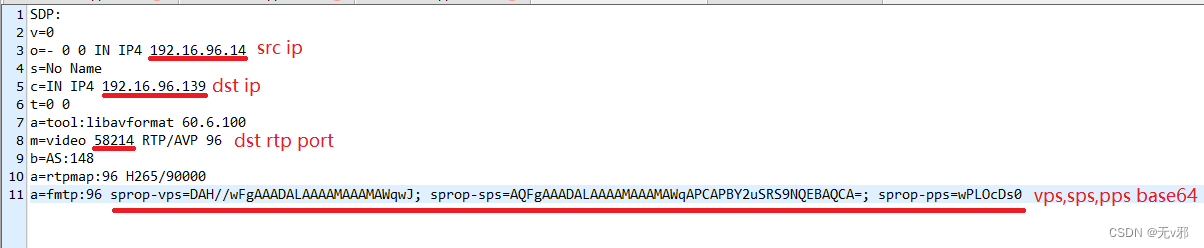

SDP中的VPS等信息需要转换成base64。使用下面的函数可转换
#include <stdio.h>
#include <inttypes.h>
#include <math.h>
#include <limits.h>
#include <signal.h>
#include <stdint.h>
#include <string>
#include <string.h>
#include <iostream>

#define AV_BASE64_SIZE(x)  (((x)+2) / 3 * 4 + 1)
#   define AV_RB32(x)                                \
    (((uint32_t)((const uint8_t*)(x))[0] << 24) |    \
               (((const uint8_t*)(x))[1] << 16) |    \
               (((const uint8_t*)(x))[2] <<  8) |    \
                ((const uint8_t*)(x))[3])
using namespace std;
char *av_base64_encode(char *out, int out_size, const uint8_t *in, int in_size)
{
    static const char b64[] =
        "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/";
    char *ret, *dst;
    unsigned i_bits = 0;
    int i_shift = 0;
    int bytes_remaining = in_size;

    if (in_size >= UINT_MAX / 4 ||
        out_size < AV_BASE64_SIZE(in_size))
        return NULL;
    ret = dst = out;
    while (bytes_remaining > 3) {
        i_bits = AV_RB32(in);
        in += 3; bytes_remaining -= 3;
        *dst++ = b64[ i_bits>>26        ];
        *dst++ = b64[(i_bits>>20) & 0x3F];
        *dst++ = b64[(i_bits>>14) & 0x3F];
        *dst++ = b64[(i_bits>>8 ) & 0x3F];
    }
    i_bits = 0;
    while (bytes_remaining) {
        i_bits = (i_bits << 8) + *in++;
        bytes_remaining--;
        i_shift += 8;
    }
    while (i_shift > 0) {
        *dst++ = b64[(i_bits << 6 >> i_shift) & 0x3f];
        i_shift -= 6;
    }
    while ((dst - ret) & 3)
        *dst++ = '=';
    *dst = '\0';

    return ret;
}

static int doLog = 0;
void hexDump(uint8_t* data,int len){
  if(doLog == 0)
    return;
  printf("[%d]",len);
  int pos = 0;
  uint8_t d = 0;
  while(pos<len){
    d = *(data+pos);
    printf("0x%02x,",(int)d);
    pos++;
  }
  printf("[%d]\n",len);
}
//sprop-vps=QAEMAf//AWAAAAMAkAAAAwAAAwBalZgJ; sprop-sps=QgEBAWAAAAMAkAAAAwAAAwBaoAeCAIh95ZWaSTK8BacIAAADAAgAAAMA8EA=; sprop-pps=RAHBcrRiQA==
//sprop-vps=DAH//wFgAAADALAAAAMAAAMAWqwJ; sprop-sps=AQFgAAADALAAAAMAAAMAWqAPCAPBY2uSRS9NQEBAQCA=; sprop-pps=wPLOcDs0
void getXPSfromAP(uint8_t* ap){
  int pos = 0;
  while(true){
    uint16_t hdr = (ap[pos+2]<<8)|(ap[pos+3]);
    int typ = (hdr>>9)&0x3f;
    int siz = (ap[pos+0]<<8)|(ap[pos+1])-2;
    switch(typ){
      case 32:
      {
        char str_vps[100]={0};
        uint8_t* vps = (uint8_t*)malloc(siz);
        memcpy(vps,ap+pos+4,siz);
        av_base64_encode(str_vps,100,vps,siz);
        cout<<"sprop-vps="<<str_vps;
        hexDump(vps,siz);
        free(vps);
        break;
      }
      case 33:
      {
        char str_sps[100]={0};
        uint8_t* sps = (uint8_t*)malloc(siz);
        memcpy(sps,ap+pos+4,siz);
        av_base64_encode(str_sps,100,sps,siz);
        cout<<"; sprop-sps="<<str_sps;
        hexDump(sps,siz);
        free(sps);
        break;
      }
      case 34:
      {
        char str_pps[100]={0};
        uint8_t* pps = (uint8_t*)malloc(siz);
        memcpy(pps,ap+pos+4,siz);
        av_base64_encode(str_pps,100,pps,siz);
        cout<<"; sprop-pps="<<str_pps<<endl;
        hexDump(pps,siz);
        free(pps);
        return;
        break;
      }
      default:
        break;
    }
    pos += 4;
    pos += siz;
  }
}
int main(int argc, char *argv[]) {
  if(argc>=2){
    doLog = atoi(argv[1]);
  }

  uint8_t in[]={0x67, 0x42,0xc0,0x14,0xf4,0x0b,0x04,0xb4,0x20,0x00,0x00,0x03,0x00,0x20,0x00,0x00,0x03,0x03,0xd1,0xe2,0x85,0x54};
    char str_sps[100]={0};
    av_base64_encode(str_sps,100,in,22);
    cout<<"sps'sbasecode:"<<str_sps<<endl;
    uint8_t pps[]={0x68 ,0xce ,0x04 ,0xf2};
  char str_sps2[100]={0};
    av_base64_encode(str_sps2,100,pps,4);
    cout<<"pps'sbasecode:"<<str_sps2<<endl;

  uint8_t ap[] = {0x00,0x17,0x40,0x01,0x0c,0x01,0xff,0xff,0x01,0x60,0x00,0x00,0x03,0x00,0xb0,0x00,0x00,0x03,0x00,0x00,0x03,0x00,0x5a,0xac,0x09,0x00,0x22,0x42,
    0x01,0x01,0x01,0x60,0x00,0x00,0x03,0x00,0xb0,0x00,0x00,0x03,0x00,0x00,0x03,0x00,0x5a,0xa0,0x0f,0x08,0x03,0xc1,0x63,0x6b,0x92,0x45,0x2f,
    0x4d,0x40,0x40,0x40,0x40,0x20,0x00,0x08,0x44,0x01,0xc0,0xf2,0xce,0x70,0x3b,0x34,0x00,0x09,0x4e,0x01,0xe5,0x04,0x00,0x00,0x70,0x00,0x80,0x00,
    0x1e,0x4e,0x01,0x89,0x18,0x3a,0x98,0x75,0x30,0x1d,0x4c,0x0b,0xb8,0x7d,0x00,0x40,0x74,0x3d,0x13,0x40,0x42,0x00,0x00,0x04,0xb0,0x00,0x00,0x03,0x00,0xc8,0x80};
  getXPSfromAP(ap);
  return 0;
}
