数据结构实验：图

一、实验目的

理解和掌握图的概念、邻接矩阵存储结构、邻接表存储结构及图的建立、图的深度优先遍历、图的广度优先遍历的算法等基本理论知识，同时验证图的建立算法、图的深度优先遍历、图的广度优先遍历的算法。

二、实验题目

图的建立和遍历

分别建立一个用邻接矩阵和邻接表存储的图，并对其进行深度优先遍历和广度优先遍历，将遍历序列输出到显示器上。

三、问题分析

邻接矩阵

深度：选择一个顶点一直向下探索直到不能进行回退到上一个

广度：在同一层依次遍历

邻接表

深度：选择一个节点，便将其标志数组对应位置置1，然后访问其邻接结点以此类推

广度：每访问一个节点，便将其标志数组对应位置置1，然后访问其所有未被访问的邻接结点以此类推

四、源程序

#include <stdio.h>

#include <malloc.h>

#define TRUE 1

#define FALSE 0

typedef struct

{

    int vertex[20];

    int arcs[100][100];

    int vexnum, arcnum;

} AdjMatrix;

int CreateMatrix(AdjMatrix* g)

{

    int a = 0, b = 0, i = 0, j = 0, m = 0, n = 0;

    printf("请输入顶点个数: ");

    scanf_s("%d", &a);

    g->vexnum = a;

    printf("请输入边的个数: ");

    scanf_s("%d", &b);

    for (i = 1; i <= a; i++)

    {

        g->vertex[i] = 0;

        for (j = 1; j <= a; j++)

        {

            g->arcs[i][j] = 0;

        }

    }

    for (i = 1; i <= b; i++)

    {

        printf("请输入第%d条边的弧头和弧尾: ", i);

        scanf_s("%d", &m);

        scanf_s("%d", &n);

        g->arcs[m][n] = 1;

    }

    return m;

}

void DepthFirstSearch(AdjMatrix* g, int v0)

{

    int vj;

    printf("%d ", v0);

    g->vertex[v0] = TRUE;

    for (vj = 1; vj <= g->vexnum; vj++)

    {

        if (g->vertex[vj] == FALSE && g->arcs[v0][vj] == 1)

        {

            DepthFirstSearch(g, vj);

        }

    }

}

void BreadthFirstSearch(AdjMatrix* g, int v0)

{

    bool visited[20] = { FALSE };

    int queue[20];

    int front = 0, rear = 0;

    printf("%d ", v0);

    visited[v0] = TRUE;

    queue[rear++] = v0;

    while (front < rear) {

        int currentVertex = queue[front++];

        for (int i = 1; i <= g->vexnum; i++) {

            if (g->arcs[currentVertex][i] == 1 && !visited[i]) {

                printf("%d ", i);

                visited[i] = TRUE;

                queue[rear++] = i;

            }

        }

    }

}

int main()

{

    AdjMatrix g;

    CreateMatrix(&g);

    printf("深度优先搜索结果为：\n");

    DepthFirstSearch(&g,1);

    printf("广度优先搜索结果为");

    BreadthFirstSearch(&g, 1);

    return 0;

}

邻接表（广度优先）

#include <stdio.h>

#include <stdlib.h>

#define MAX_VERTEX_NUM 100

#define CQ_INIT_SIZE 100

int visited[MAX_VERTEX_NUM];

typedef char VertexType;

typedef int dataType;

typedef struct node

{

    VertexType adjvex;

    struct node* next;

} EdgeNode;

typedef struct vnode

{

    VertexType vex;

    EdgeNode* firstedge;

} VertexNode, AdjList[MAX_VERTEX_NUM];

typedef struct

{

    AdjList adjlist;

    int vexnum;

    int edgenum;

} ALGraph;

typedef struct

{

    dataType* data;

    int front;

    int rear;

    int cqCapacity;

} CQueue;

CQueue* initCQueue();

int push(CQueue* Q, dataType x);

int pop(CQueue* Q, dataType* x);

int isEmpty(CQueue* Q);

int isFull(CQueue* Q);

void CreateALG(ALGraph* ALG)

{

    VertexType ch;

    int i = 0, count = 0;

    EdgeNode* temp;

    printf("请输入图的顶点：");

    while ((ch = getchar()) != '\n')

    {

        ALG->adjlist[i].vex = ch;

        ALG->adjlist[i].firstedge = NULL;

        i++;

    }

    ALG->vexnum = i;

    for (i = 0; i < ALG->vexnum; i++)

    {

        printf("请输入顶点 %c 的邻接顶点：", ALG->adjlist[i].vex);

        while ((ch = getchar()) != '\n') {

            temp = (EdgeNode*)malloc(sizeof(EdgeNode));

            temp->adjvex = ch;

            temp->next = ALG->adjlist[i].firstedge;

            ALG->adjlist[i].firstedge = temp;

            count++;

        }

    }

    ALG->edgenum = count / 2;

}

void TraverseALG(ALGraph ALG)

{

    int i;

    EdgeNode* index;

    if (ALG.vexnum == 0)

    {

        printf("图为空\n");

        return;

    }

    for (i = 0; i < ALG.vexnum; i++)

    {

        printf("顶点 %c ：", ALG.adjlist[i].vex);

        index = ALG.adjlist[i].firstedge;

        while (index) {

            printf("[ %c ] -> ", index->adjvex);

            index = index->next;

        }

        printf("NULL\n");

    }

}

void LocateVex(ALGraph ALG, VertexType vertex, int* index)

{

    int i;

    for (i = 0; i < ALG.vexnum; i++)

    {

        if (ALG.adjlist[i].vex == vertex)

        {

            *index = i;

            return;

        }

    }

    printf("节点 %c 定位失败！\n", vertex);

}

void BFSTraverseALG(ALGraph ALG)

{

    int i, index;

    char ch;

    EdgeNode* temp;

    CQueue* que = initCQueue();

    for (i = 0; i < ALG.vexnum; i++)

    {

        visited[i] = 0;

    }

    printf("请输入开始节点：");

    scanf_s("%c", &ch);

    LocateVex(ALG, ch, &index);

    printf("图的广度优先遍历序列：");

    if (!visited[index])

    {

        push(que, index);

        visited[index] = 1;

        while (!isEmpty(que))

        {

            pop(que, &index);

            printf("%c, ", ALG.adjlist[index].vex);

            temp = ALG.adjlist[index].firstedge;

            while (temp) {

                LocateVex(ALG, temp->adjvex, &index);

                if (!visited[index])

                {

                    push(que, index);

                    visited[index] = 1;

                }

                temp = temp->next;

            }

        }

    }

}

CQueue* initCQueue()

{

    CQueue* Q = (CQueue*)malloc(sizeof(CQueue));

    Q->data = (dataType*)malloc(CQ_INIT_SIZE * sizeof(dataType));

    Q->front = 0;

    Q->rear = 0;

    Q->cqCapacity = CQ_INIT_SIZE;

    return Q;

}

int isFull(CQueue* Q)

{

    return (Q->rear + 1) % Q->cqCapacity == Q->front ? 1 : 0;

}

int isEmpty(CQueue* Q)

{

    return Q->front == Q->rear ? 1 : 0;

}

int push(CQueue* Q, dataType x)

{

    if (isFull(Q))

    {

        int increment = Q->cqCapacity / 2;

        Q->data = (dataType*)realloc(Q->data,

         (Q->cqCapacity + increment) * sizeof(dataType));

        if (!Q->data)

        {

            return 0;

        }

        Q->cqCapacity += increment;

    }

    Q->data[Q->rear] = x;

    Q->rear = (Q->rear + 1) % Q->cqCapacity;

    return 1;

}

int pop(CQueue* Q, dataType* x)

{

    if (isEmpty(Q))

    {

        return 0;

    }

    else

    {

        *x = Q->data[Q->front];

        Q->front = (Q->front + 1) % Q->cqCapacity;

        return 1;

    }

}

int main(void)

{

    ALGraph g;

    CreateALG(&g);

    TraverseALG(g);

    BFSTraverseALG(g);

    return 0;

}

邻接表（深度优先）

#include <stdio.h>

#include <stdlib.h>

#define MAX_VERTEX_NUM 100

int visited[MAX_VERTEX_NUM];

typedef char VertexType;

typedef struct node

{

    VertexType adjvex;

    struct node* next;

} EdgeNode;

typedef struct vnode

{

    VertexType vex;

    EdgeNode* firstedge;

} VertexNode, AdjList[MAX_VERTEX_NUM];

typedef struct

{

    AdjList adjlist;

    int vexnum;

    int edgenum;

} ALGraph;

void CreateALG(ALGraph* ALG)

{

    VertexType ch;

    int i = 0, count = 0;

    EdgeNode* temp;

    printf("请输入图的顶点：");

    while ((ch = getchar()) != '\n')

    {

        ALG->adjlist[i].vex = ch;

        ALG->adjlist[i].firstedge = NULL;

        i++;

    }

    ALG->vexnum = i;

    for (i = 0; i < ALG->vexnum; i++)

    {

        printf("请输入顶点 %c 的邻接顶点：", ALG->adjlist[i].vex);

        while ((ch = getchar()) != '\n')

        {

            temp = (EdgeNode*)malloc(sizeof(EdgeNode));

            temp->adjvex = ch;

            temp->next = ALG->adjlist[i].firstedge;

            ALG->adjlist[i].firstedge = temp;

            count++;

        }

    }

    ALG->edgenum = count / 2;

}

void TraverseALG(ALGraph ALG)

{

    int i;

    EdgeNode* temp;

    if (ALG.vexnum == 0)

    {

        printf("图为空\n");

        return;

    }

    for (i = 0; i < ALG.vexnum; i++)

    {

        printf("顶点 %c ：", ALG.adjlist[i].vex);

        temp = ALG.adjlist[i].firstedge;

        while (temp)

        {

            printf("[ %c ] -> ", temp->adjvex);

            temp = temp->next;

        }

        printf("NULL\n");

    }

}

void LocateVex(ALGraph ALG, VertexType vertex, int* index)

{

    int i;

    for (i = 0; i < ALG.vexnum; i++)

    {

        if (ALG.adjlist[i].vex == vertex)

        {

            *index = i;

            return;

        }

    }

}

void DFSALG(ALGraph ALG, int i)

{

    EdgeNode* temp;

    int index;

    printf("%c, ", ALG.adjlist[i].vex);

    visited[i] = 1;

    temp = ALG.adjlist[i].firstedge;

    while (temp)

    {

        LocateVex(ALG, temp->adjvex, &index);

        if (!visited[index])

        {

            DFSALG(ALG, index);

        }

        temp = temp->next;

    }

}

void DFSTraverseALG(ALGraph ALG)

{

    int i;

    for (i = 0; i < ALG.vexnum; i++)

    {

        visited[i] = 0;

    }

    printf("图的深度优先遍历序列：");

    for (i = 0; i < ALG.vexnum; i++)

    {

        if (!visited[i])

        {

            DFSALG(ALG, i);

        }

    }

}

int main(void)

{

    ALGraph g;

    CreateALG(&g);

    TraverseALG(g);

    DFSTraverseALG(g);

    return 0;

}

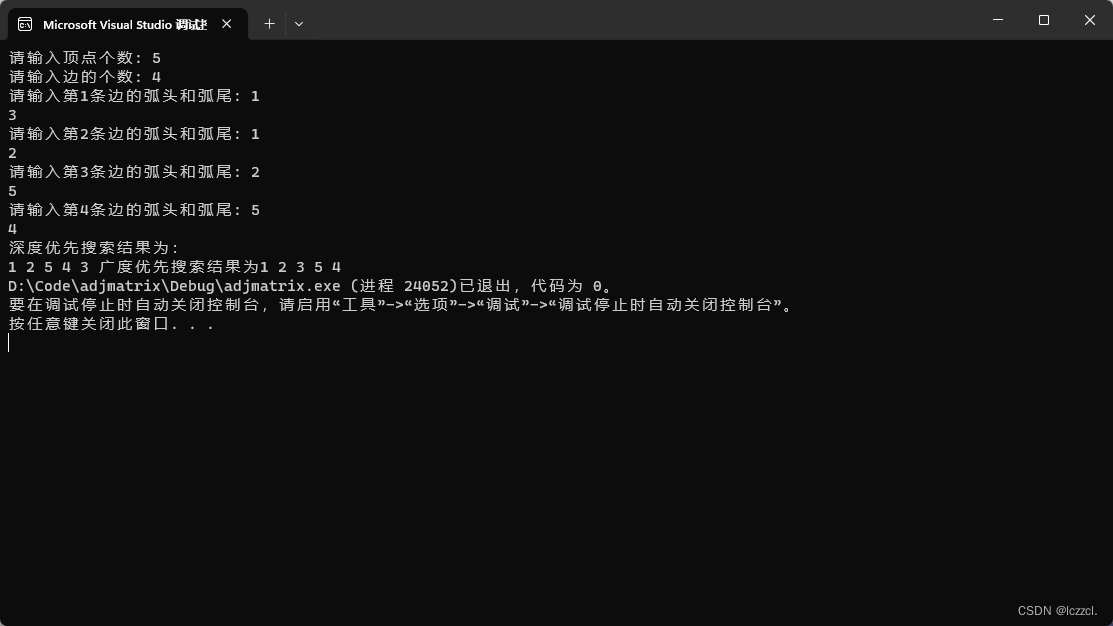

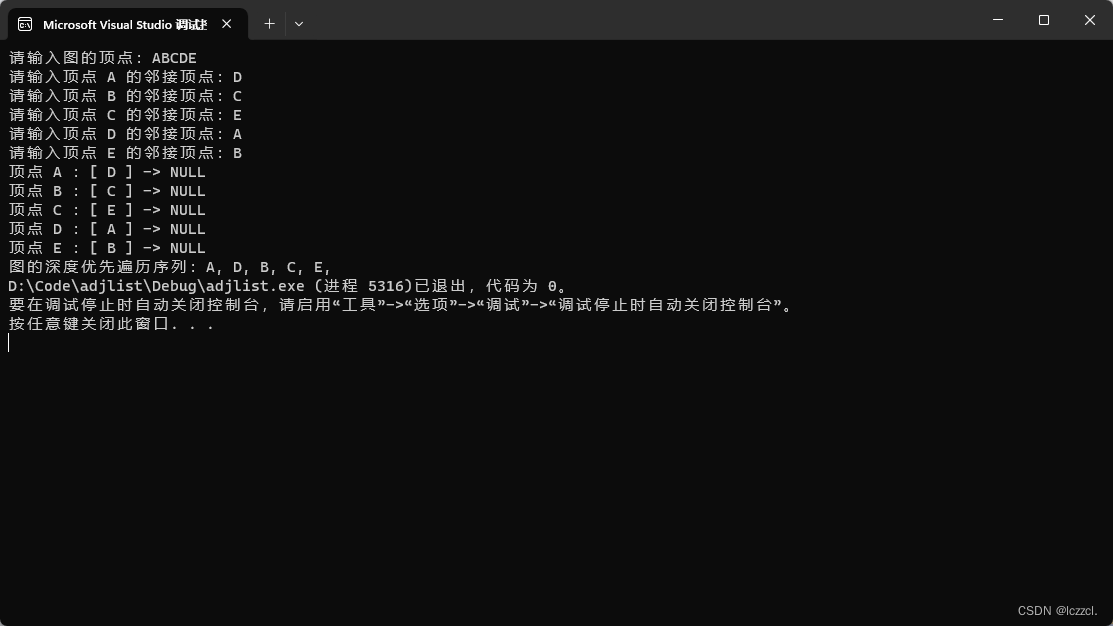

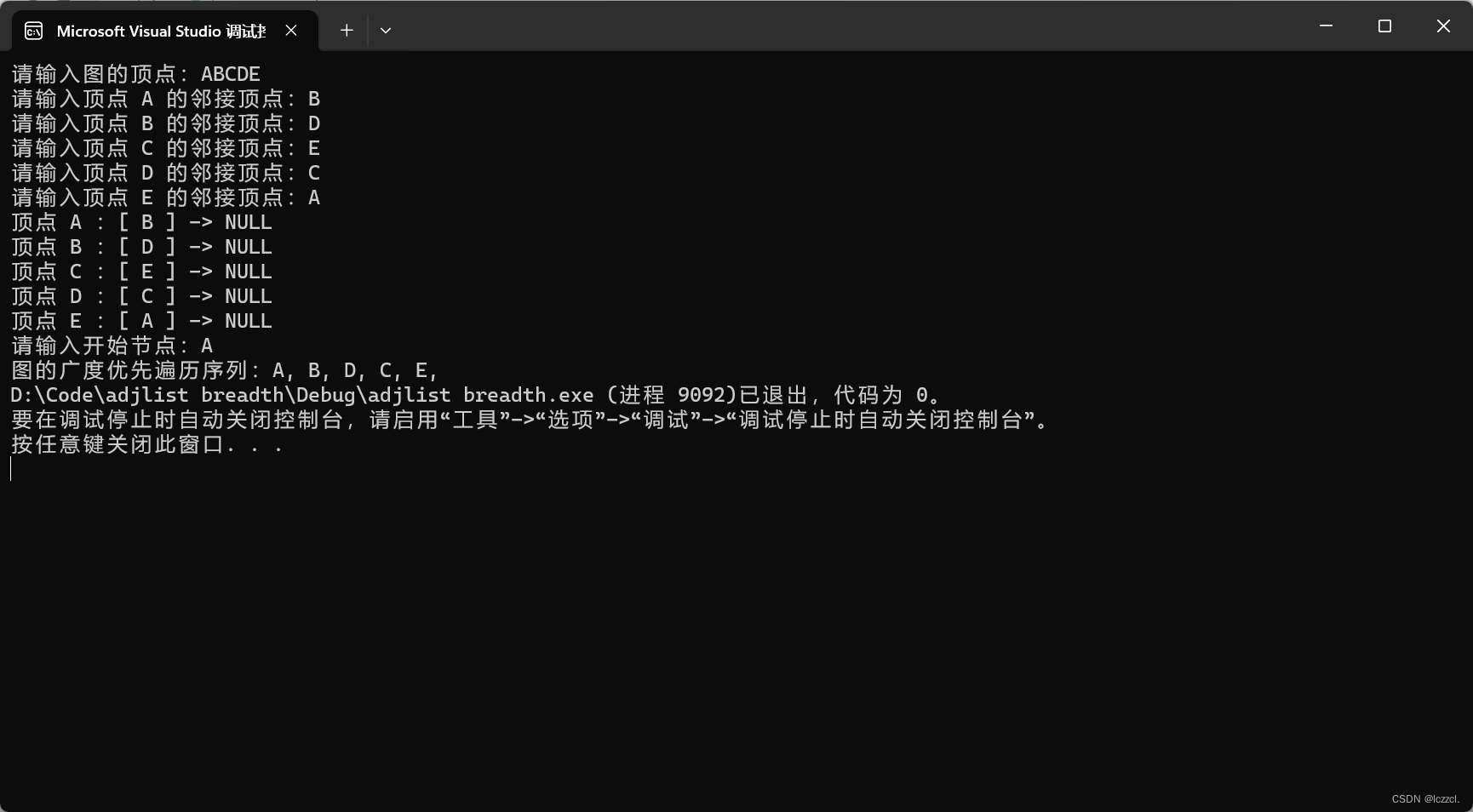

五、运行结果及分析
